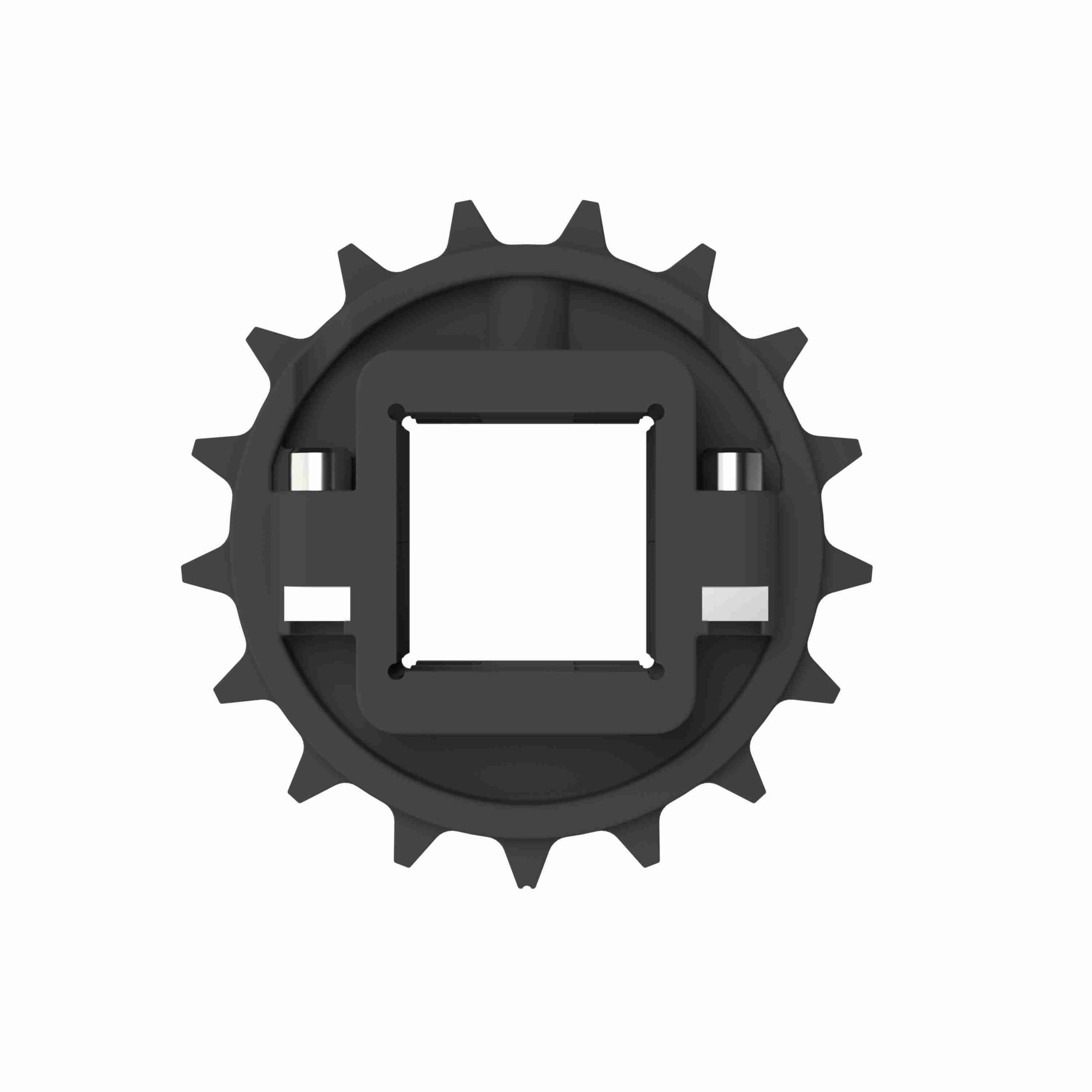

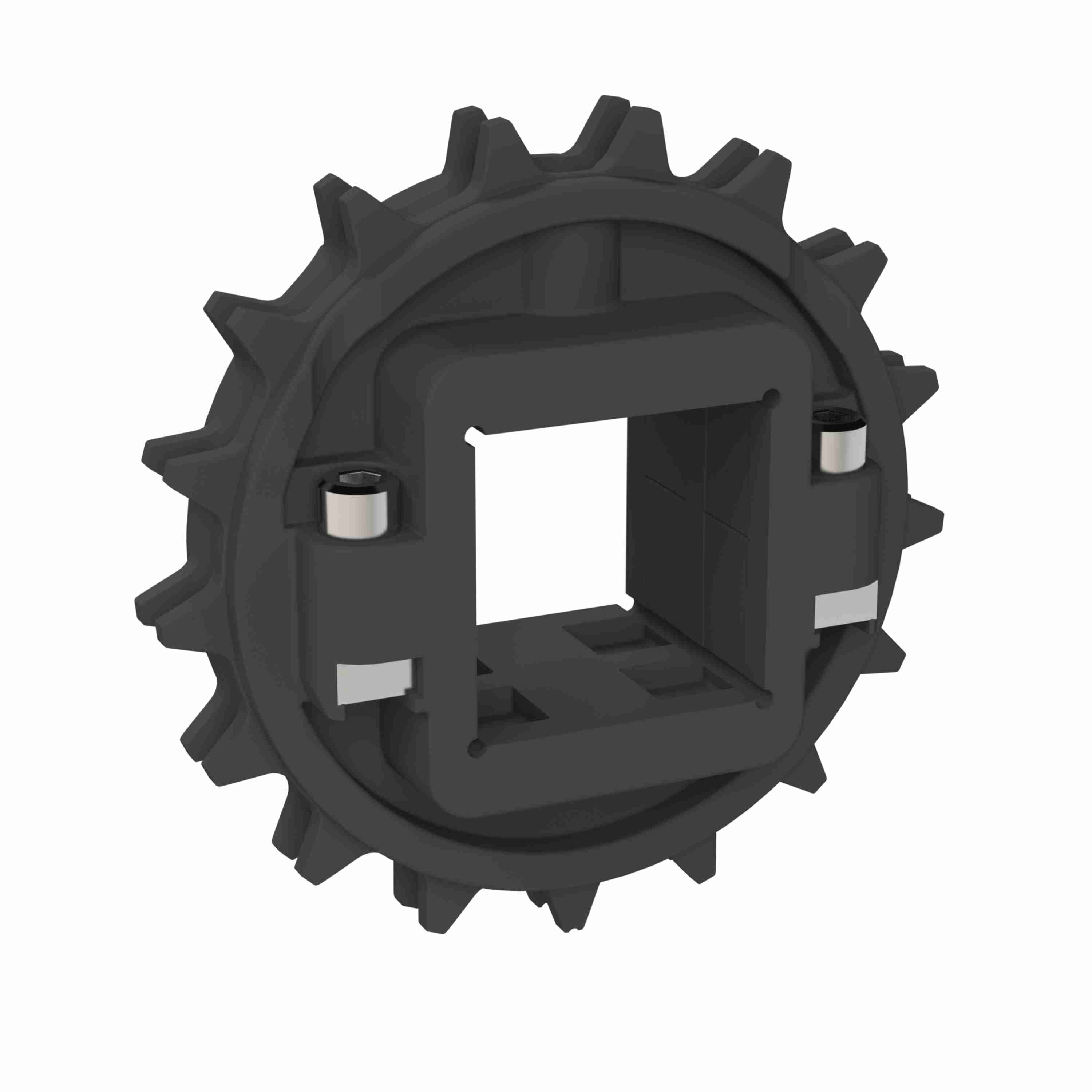

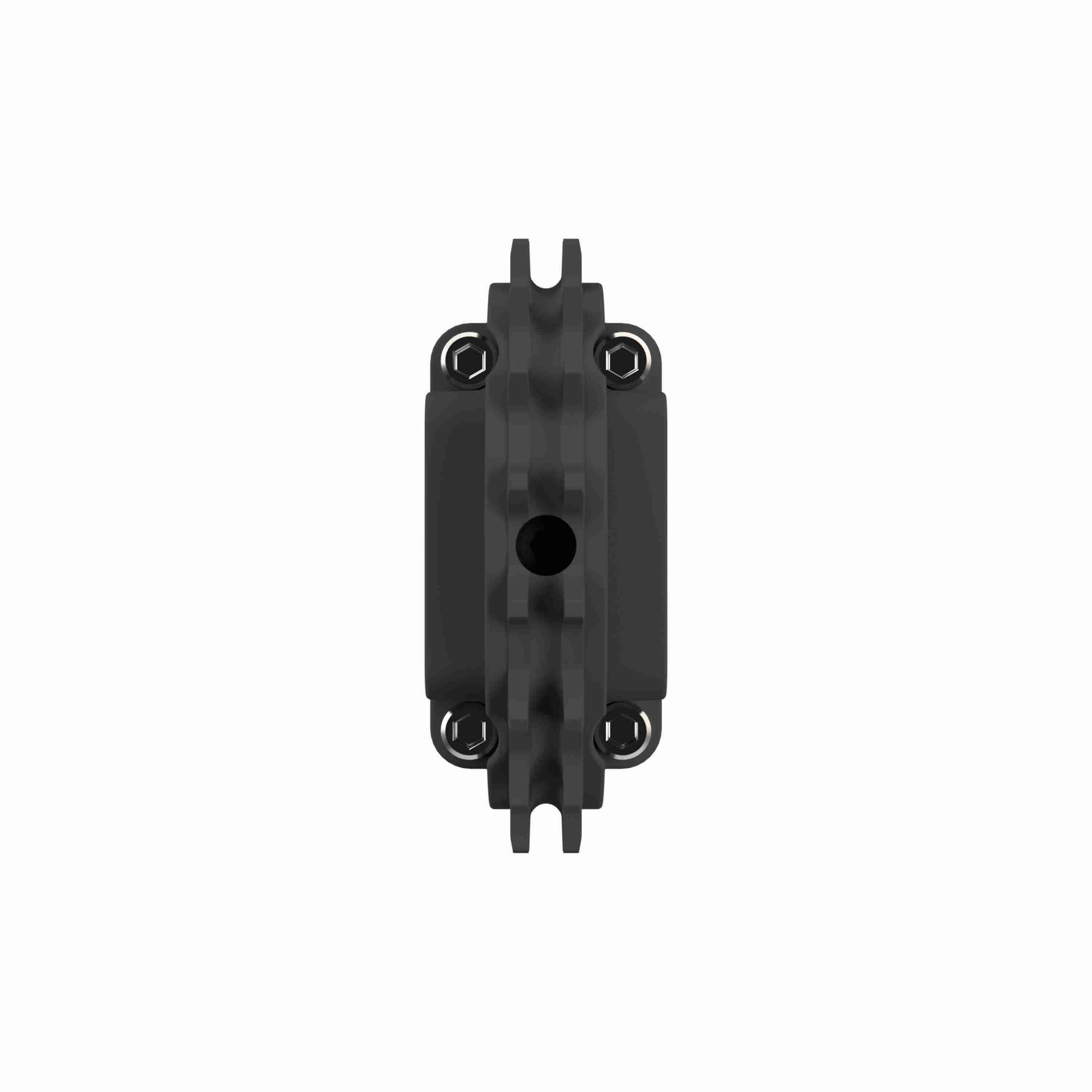

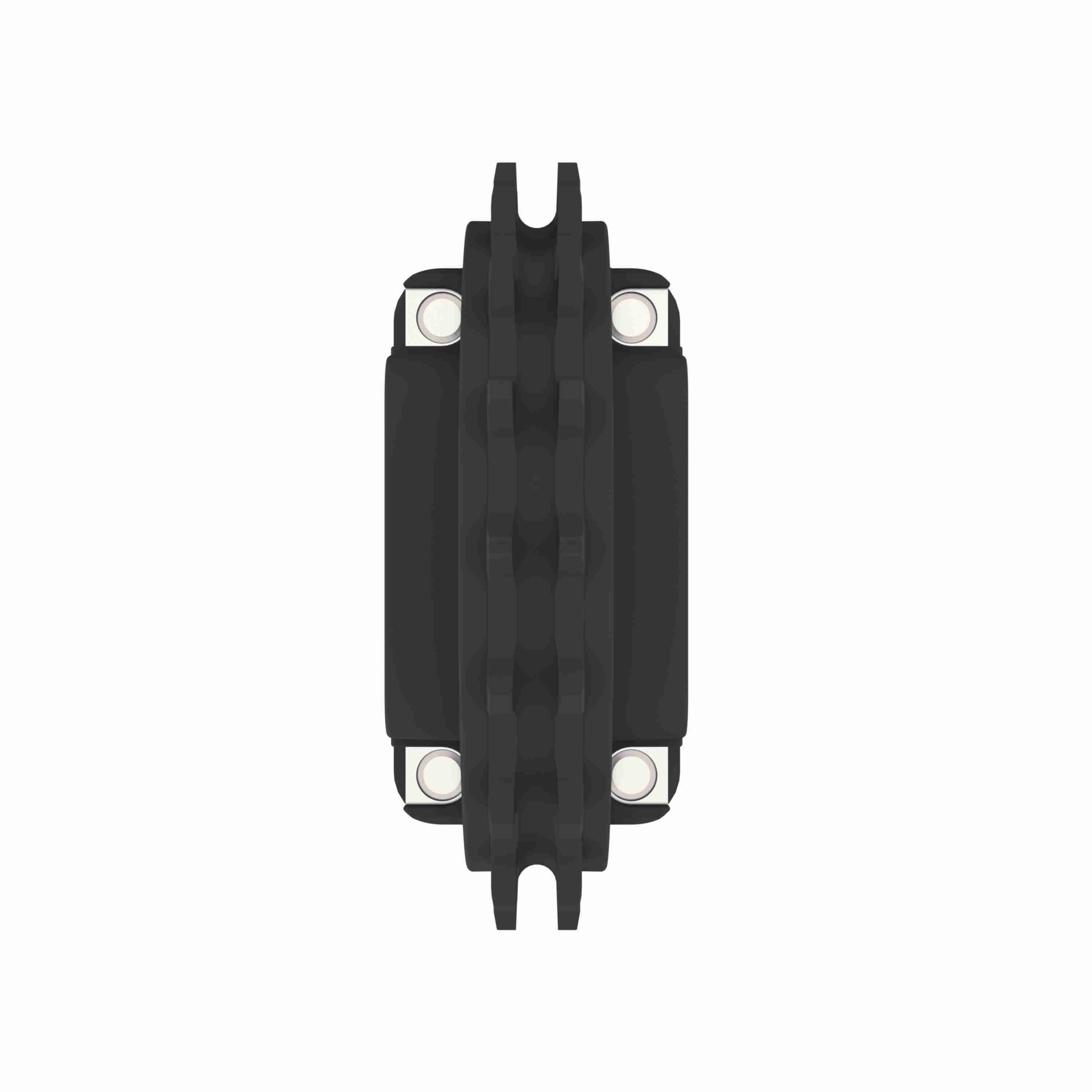

Rexnord 8500 Series Split Molded Nylon Sprocket with 17 Teeth and a 40mm Square Bore - 614-177-4
Part #:10332312
Catalog #:614-177-4
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Bore Shape: | Square | Body Style: | Block |
| Sprocket Construction: | Molded Split Sprocket | Number of Keyways: | 0 |
| Number of Set Screws: | None | Bore Type: | Shaft-Ready |
| Pitch Diameter (in): | 4.082 | Product Group: | MatTop® |
| Pitch Diameter (mm): | 103.67 | Material: | Nylon |
| Sprocket Series: | 8500 | Bore Diameter (mm): | 40 mm |
| Number of Teeth: | 17 | Chain Number: | 8500 |
| Product Line: | Chain and Belt Sprockets |
General Specifications
| UPC: | 782934824197 | Weight: | 0.22 KG |
| HTC: | 8483901050 | Country of Origin: | Mexico |
