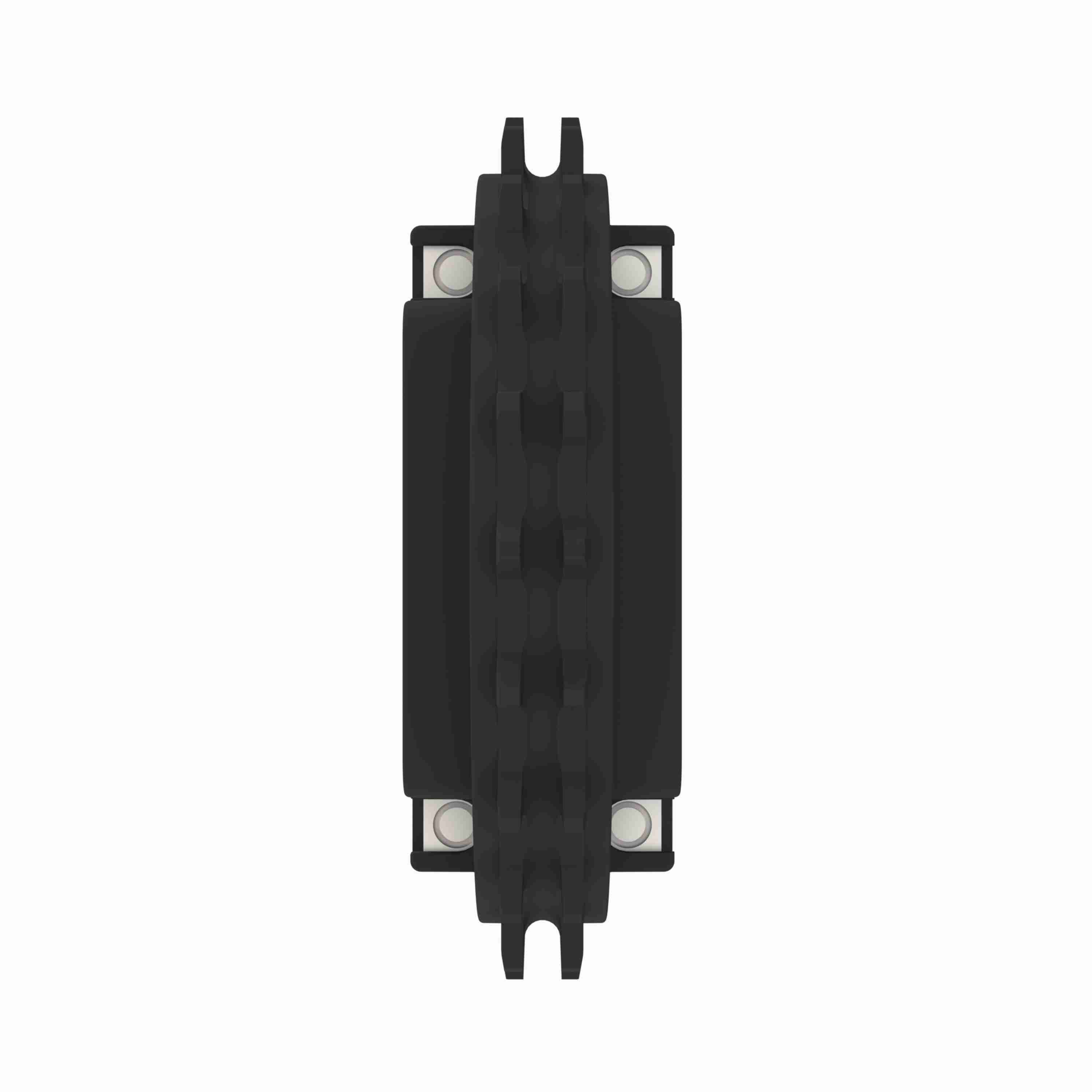

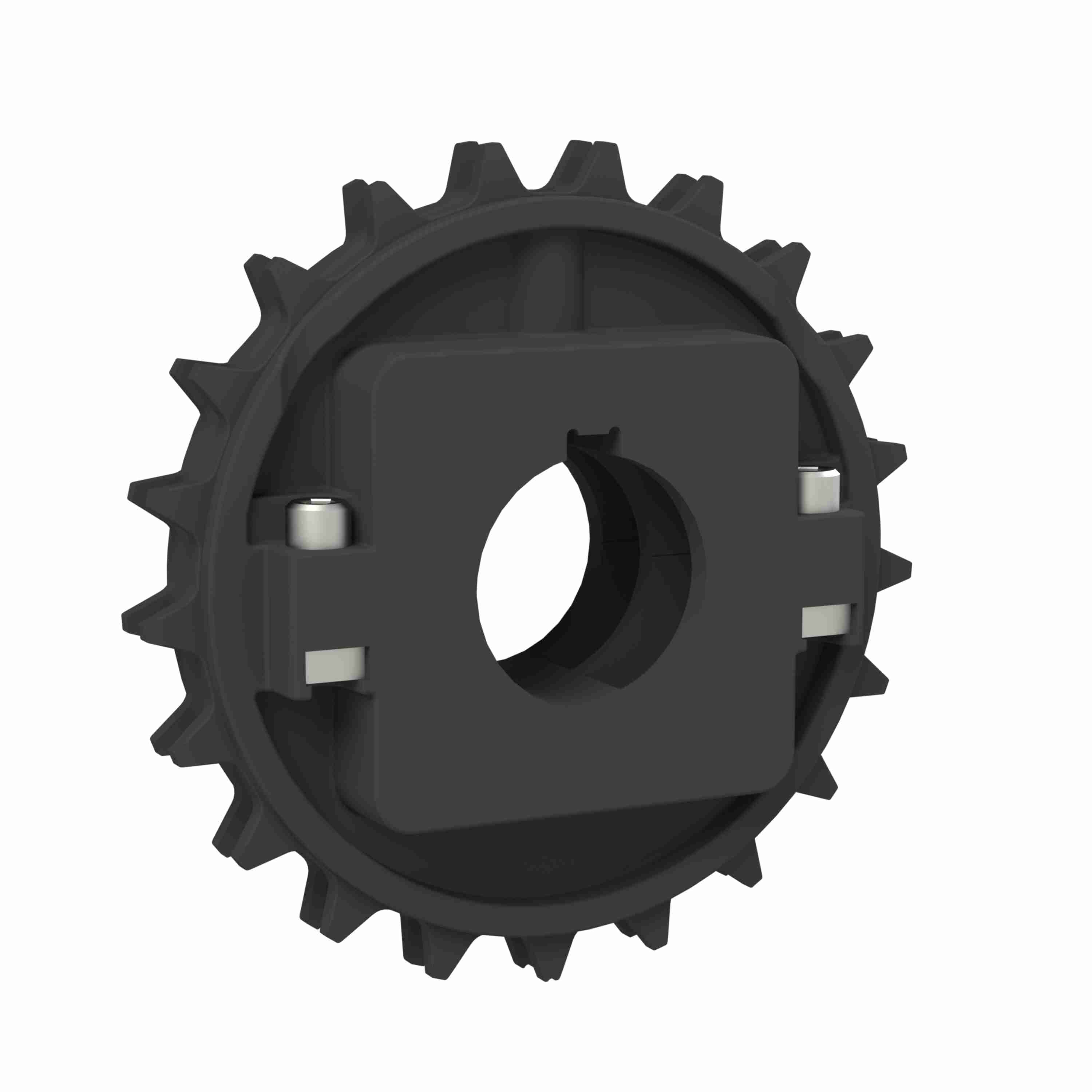

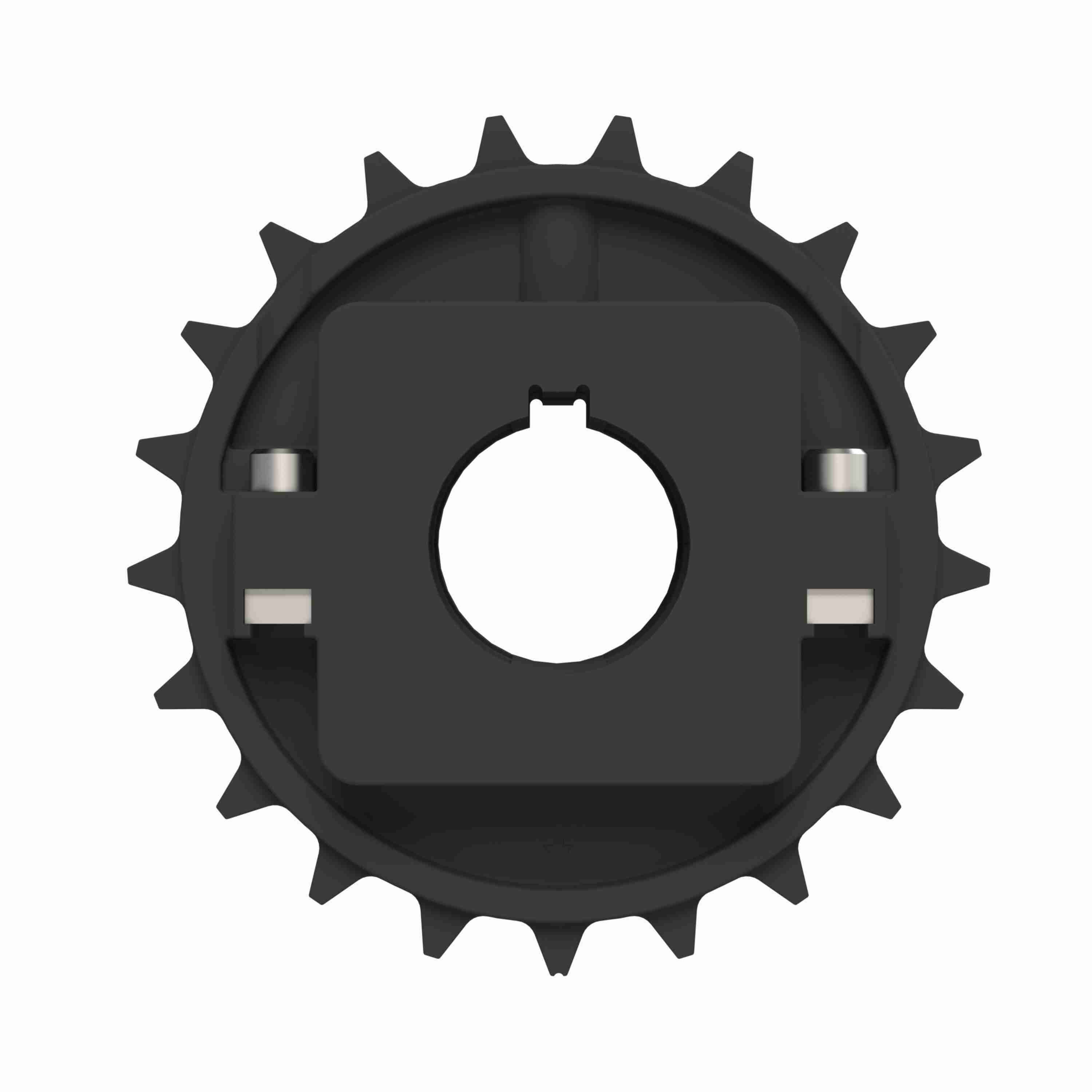

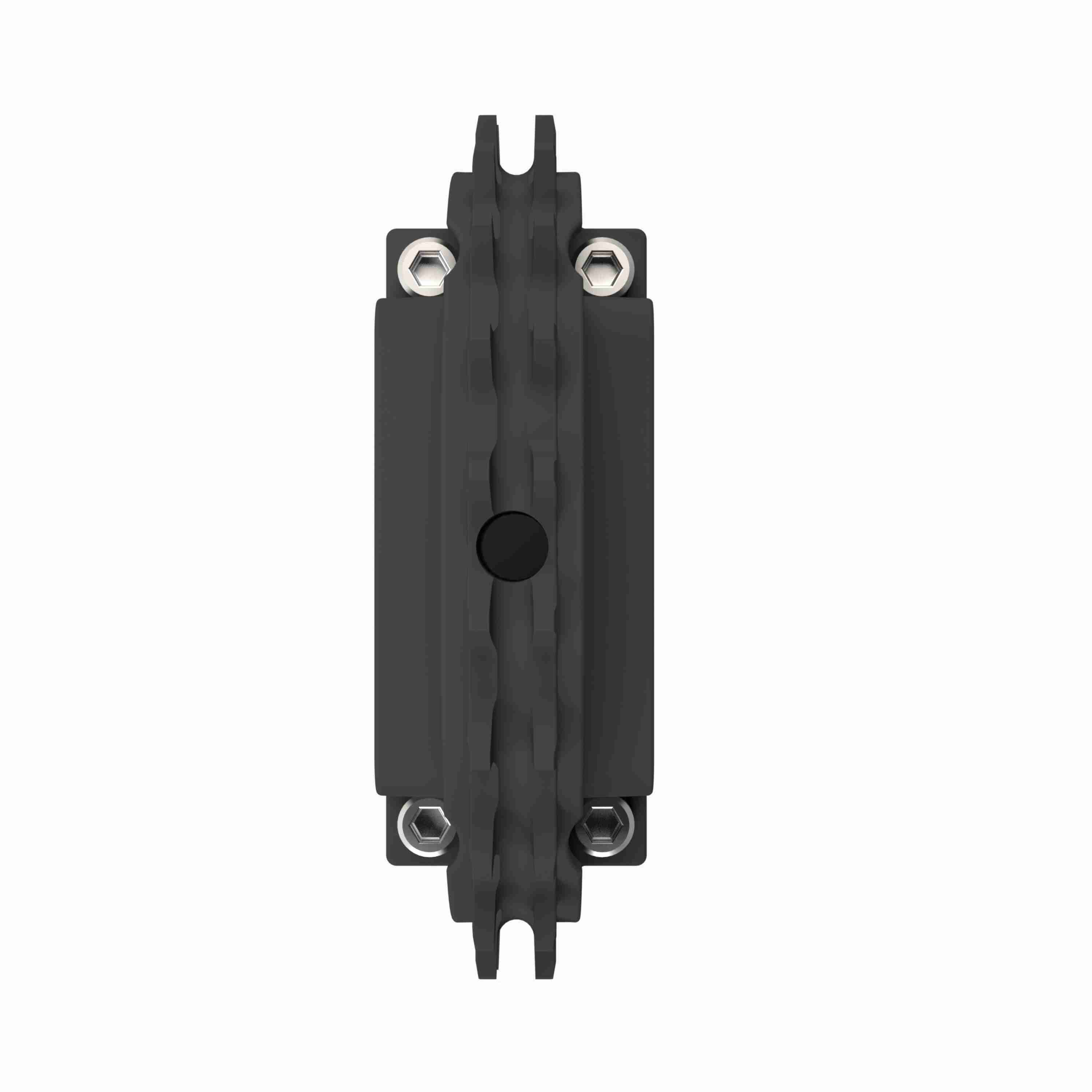

Rexnord 8500 Series Split Molded Nylon Sprocket with 21 Teeth and 25mm Round Shaft-Ready Bore with Keyway - 614-239-1
Part #:10028678
Catalog #:614-239-1
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Number of Set Screws: | None | Bore Diameter (mm): | 25 mm |
| Material: | Nylon | Hub Type: | C-HUB |
| Pitch Diameter (mm): | 127.82 | Number of Teeth: | 21 |
| Bore Shape: | Round | Sprocket Series: | 8500 |
| Number of Keyways: | 1 | Body Style: | Block |
| Pitch Diameter (in): | 5.032 | Bore Type: | Shaft-Ready |
| Sprocket Construction: | Molded Split Sprocket | Product Group: | MatTop® |
| Chain Number: | 8500 | Product Line: | Chain and Belt Sprockets |
General Specifications
| UPC: | 793699262315 | Weight: | 0.58 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
