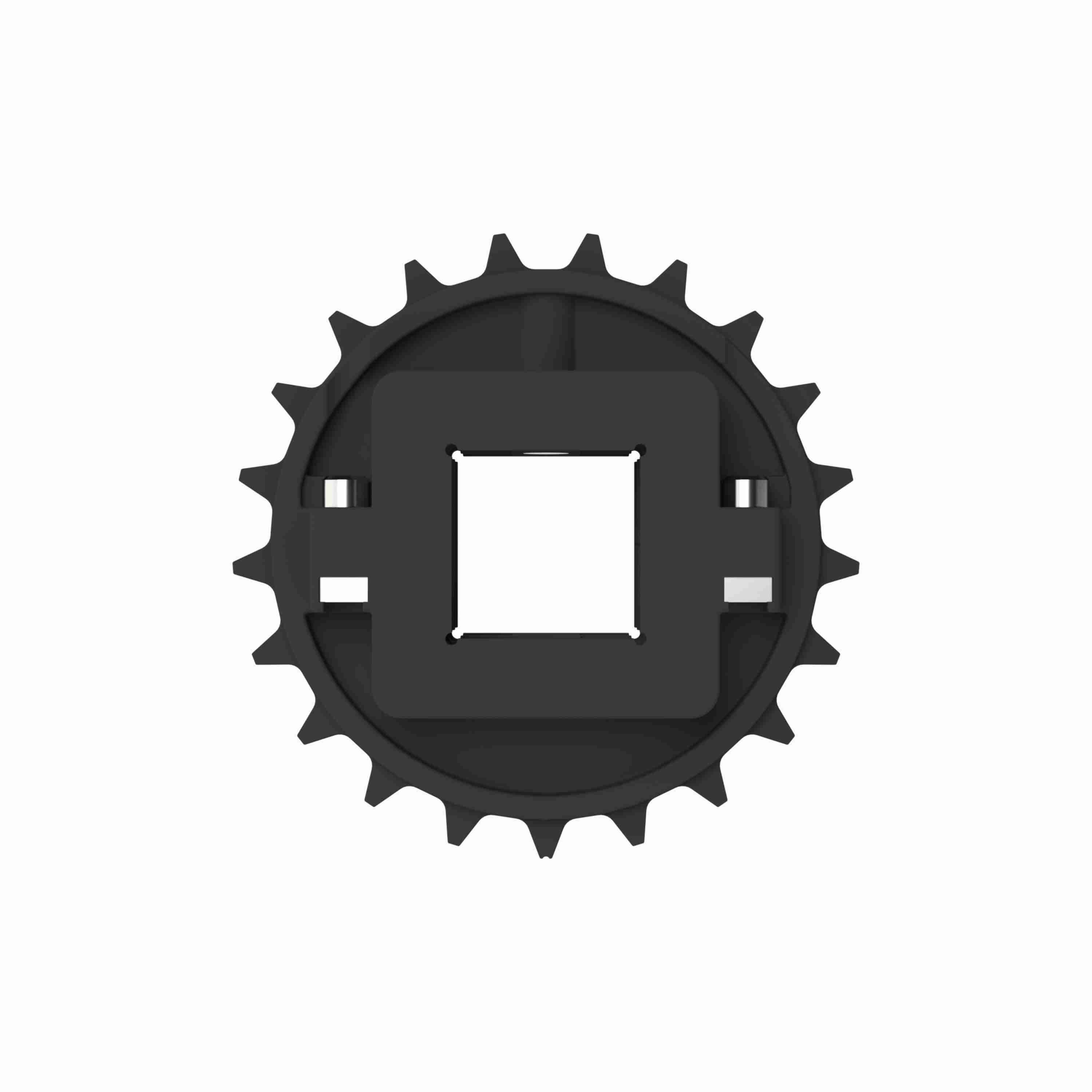

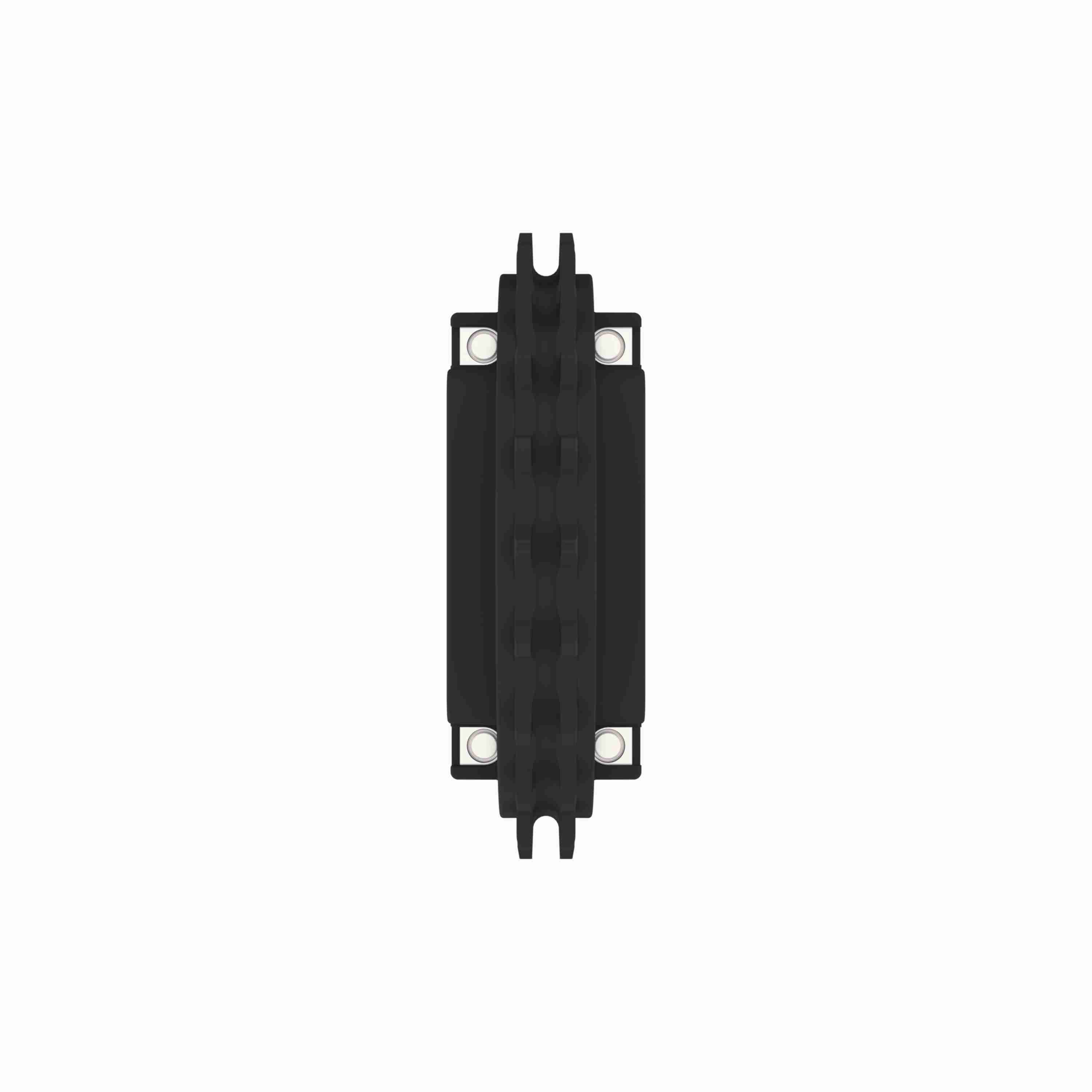

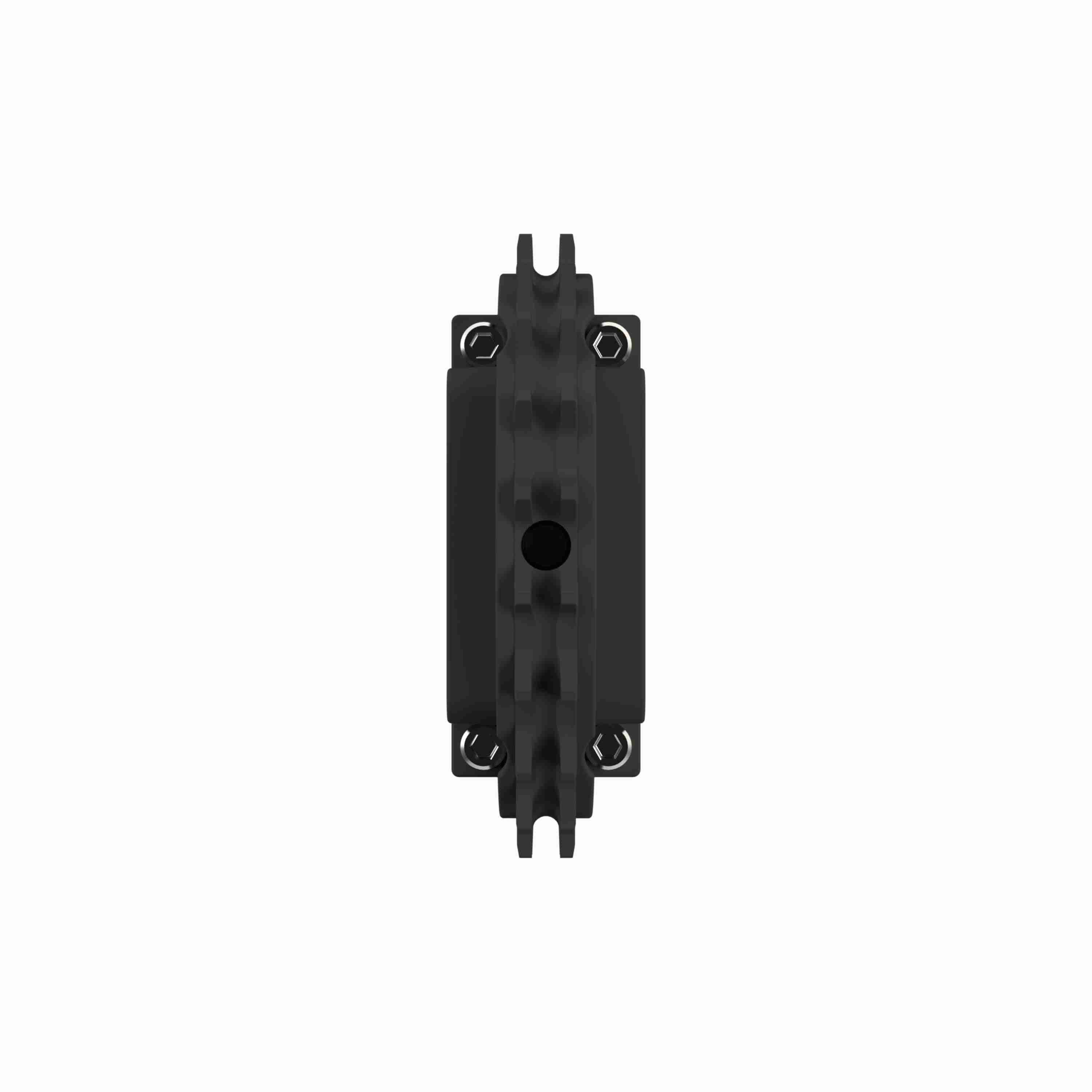

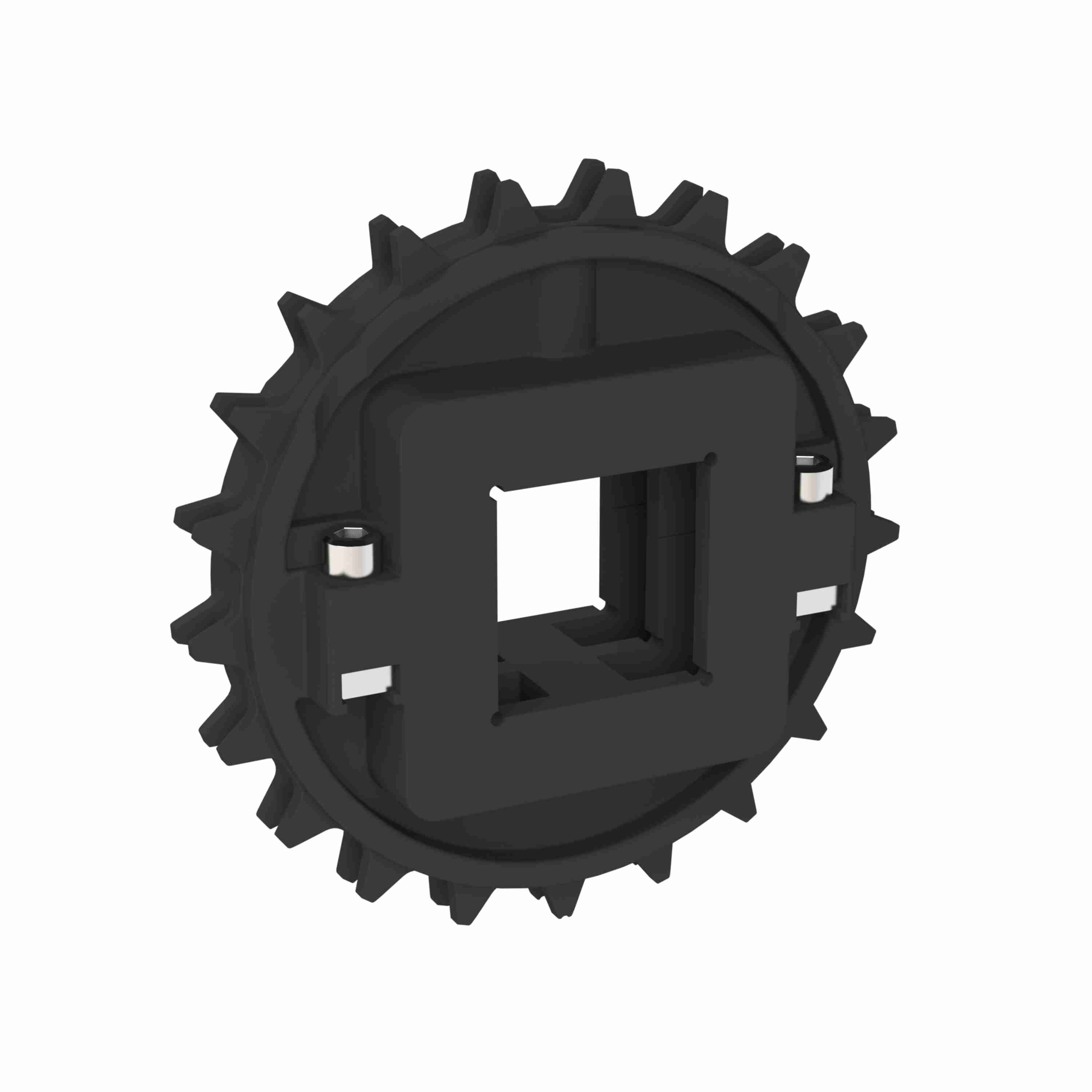

Rexnord 8500 Series Split Molded Nylon Sprocket with 21 Teeth and a 25mm Square Bore - 614-240-1
Part #:10331200
Catalog #:614-240-1
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Body Style: | Block | Product Group: | MatTop® |
| Number of Keyways: | 0 | Bore Shape: | Square |
| Material: | Nylon | Pitch Diameter (in): | 5.032 |
| Number of Teeth: | 21 | Sprocket Construction: | Molded Split Sprocket |
| Hub Type: | C-HUB | Bore Diameter (mm): | 25 mm |
| Sprocket Series: | 8500 | Bore Type: | Shaft-Ready |
| Pitch Diameter (mm): | 127.82 | Chain Number: | 8500 |
| Product Line: | Chain and Belt Sprockets | Number of Set Screws: | None |
General Specifications
| UPC: | 782934824128 | Weight: | 0.26 KG |
| HTC: | 8483901050 | Country of Origin: | Mexico |
