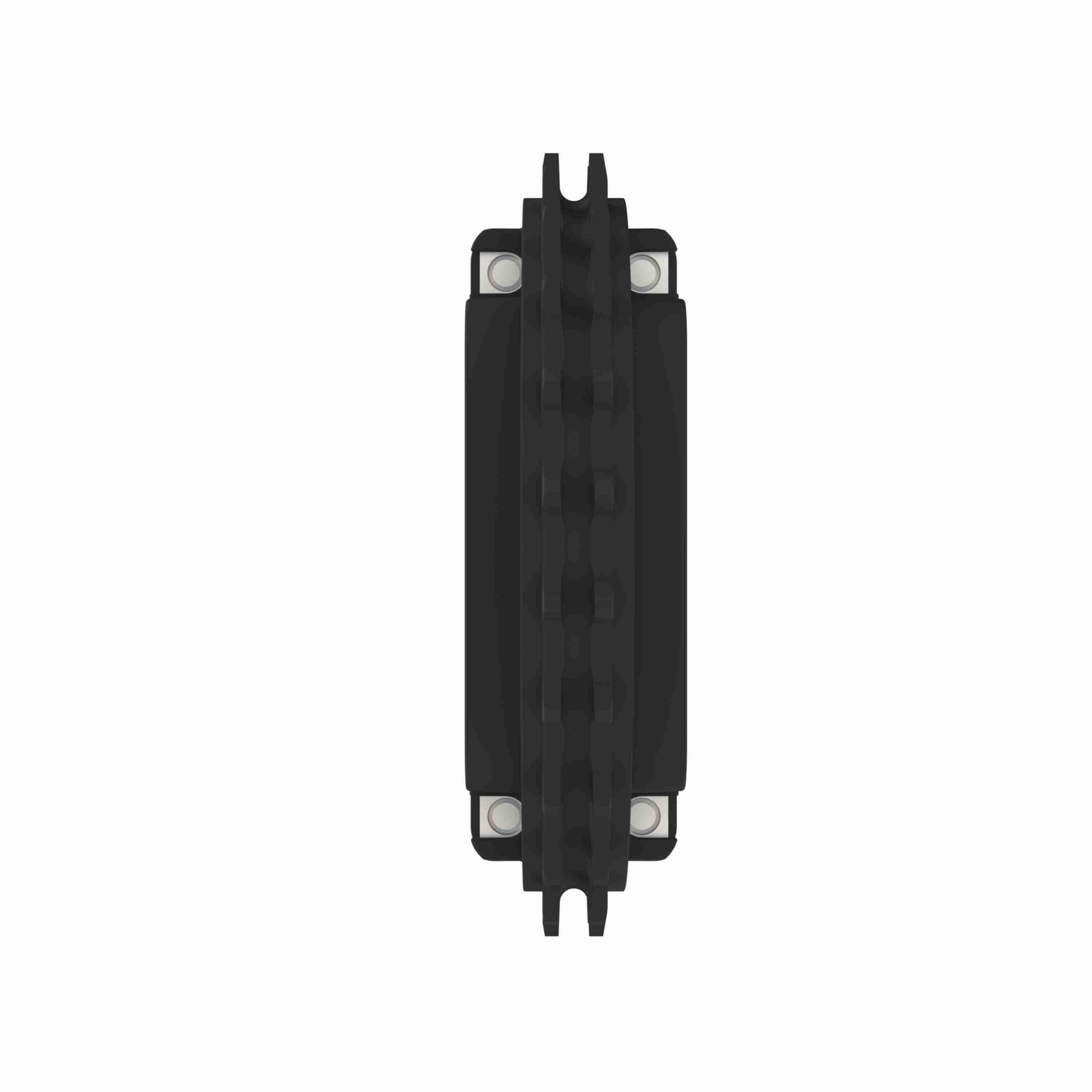

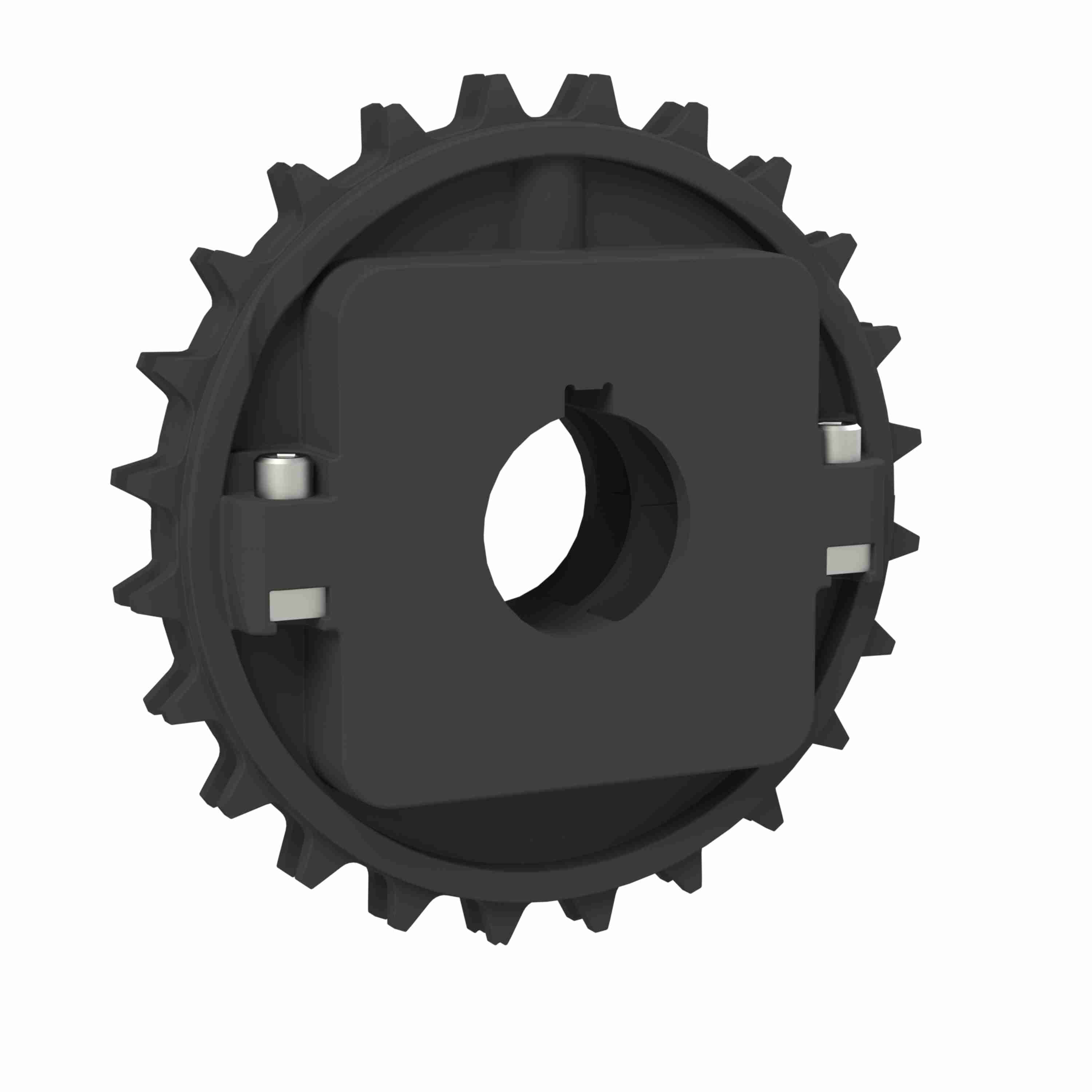

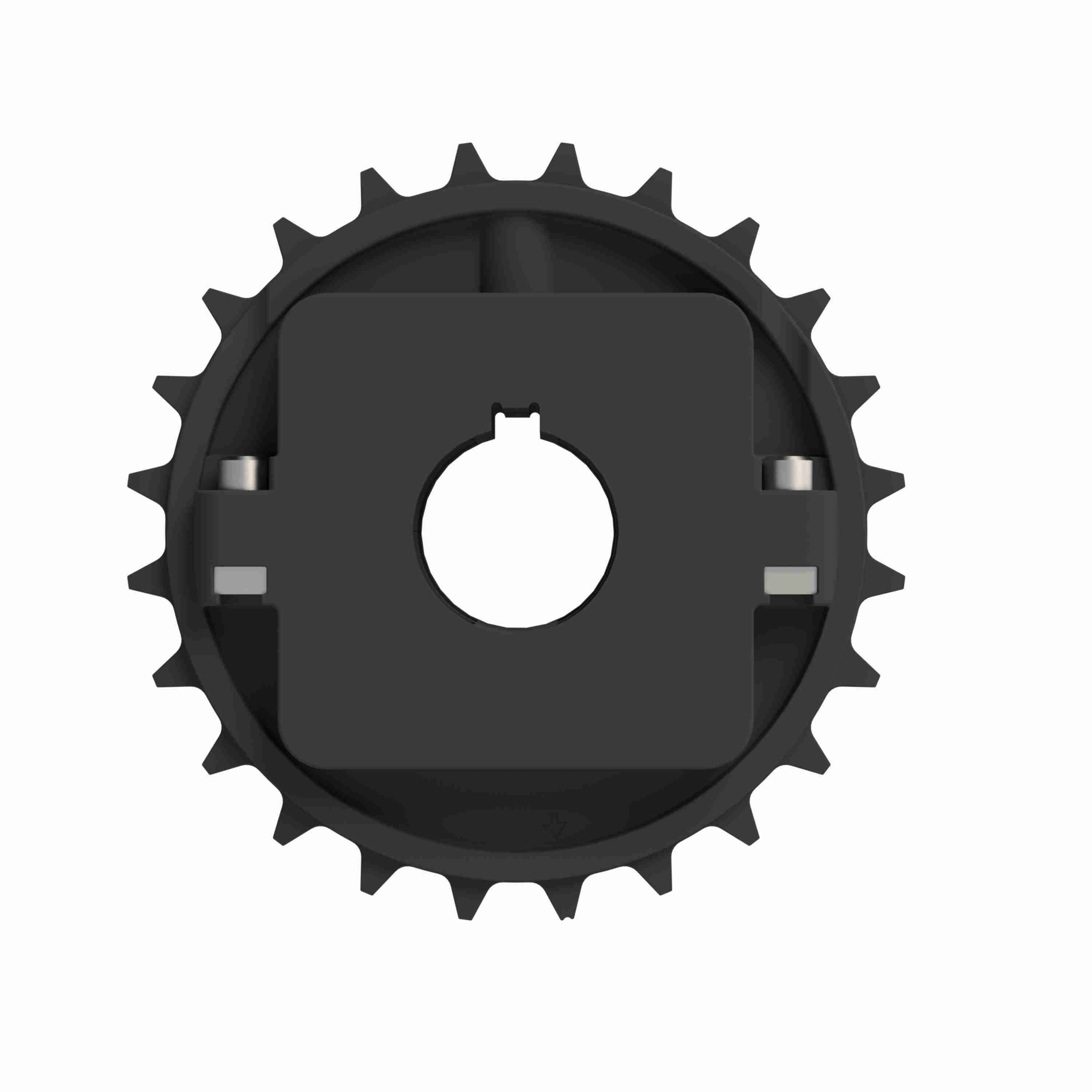

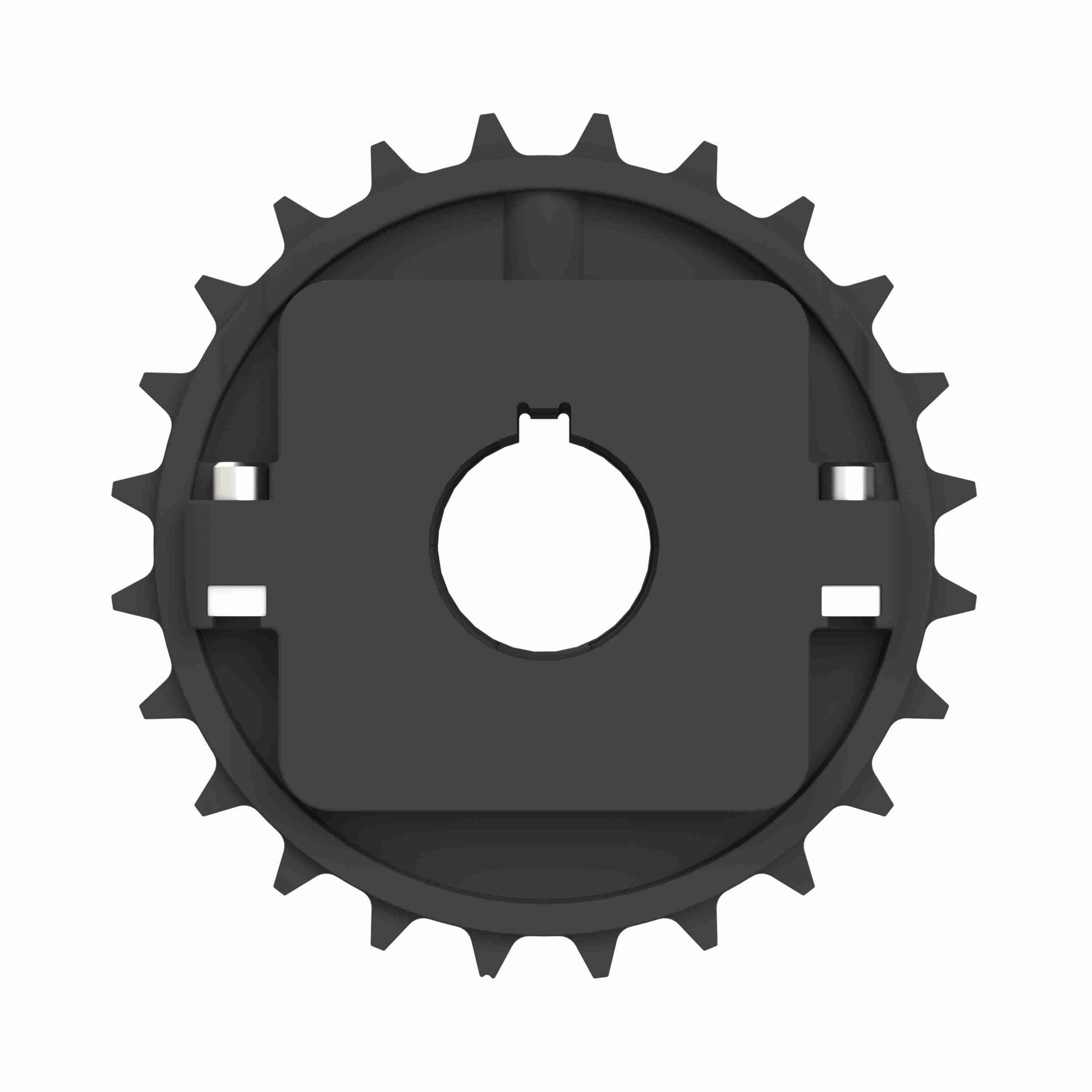

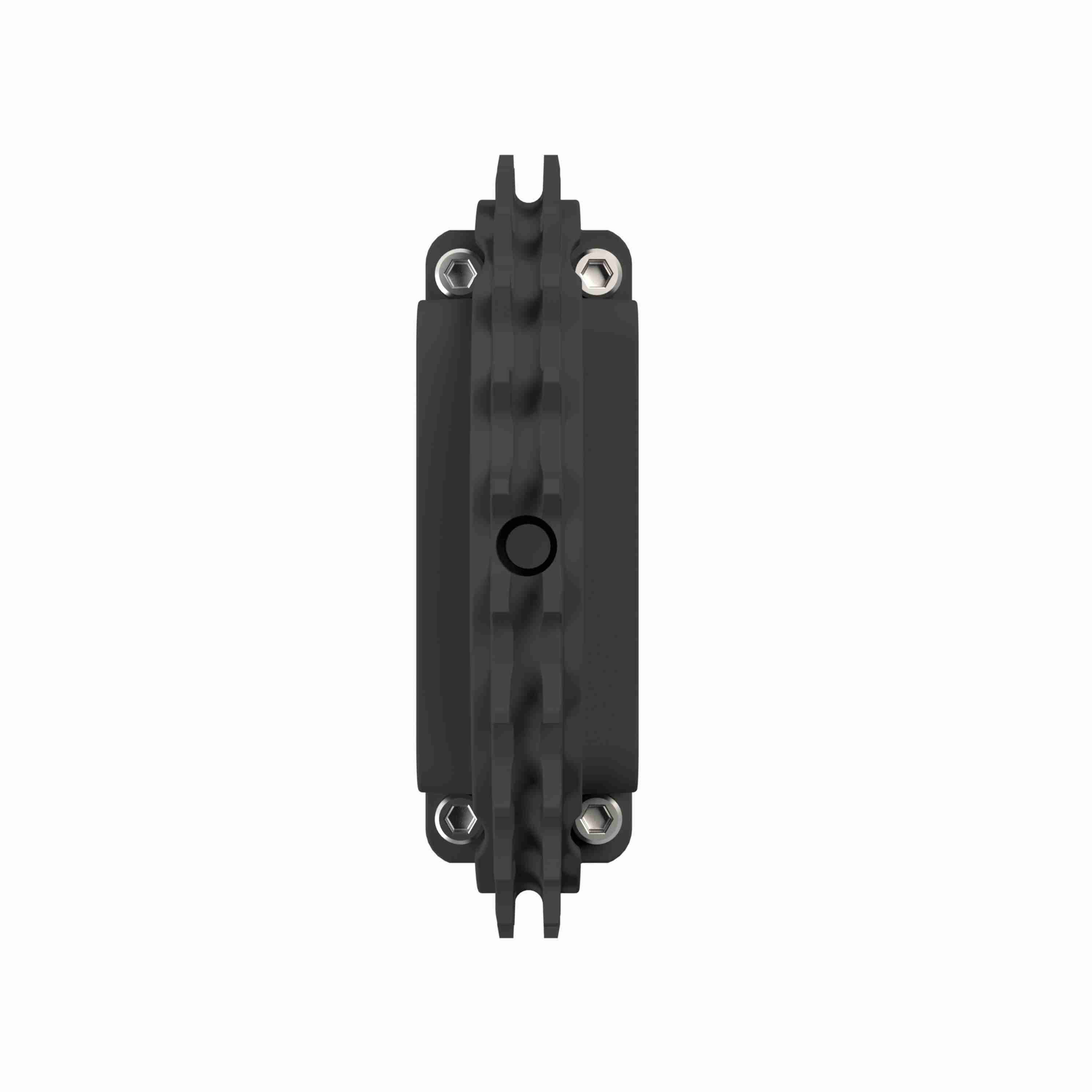

Rexnord 8500 Series Split Molded Nylon Sprocket with 24 Teeth and 25mm Round Shaft-Ready Bore with Keyway - 614-188-25
Part #:10028695
Catalog #:614-188-25
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Material: | Nylon | Sprocket Series: | 8500 |
| Bore Type: | Shaft-Ready | Sprocket Construction: | Molded Split Sprocket |
| Number of Keyways: | 1 | Bore Shape: | Round |
| Product Line: | Chain and Belt Sprockets | Body Style: | Block |
| Hub Type: | C-HUB | Product Group: | MatTop® |
| Pitch Diameter (in): | 5.746 | Chain Number: | 8500 |
| Number of Teeth: | 24 | Pitch Diameter (mm): | 145.95 |
| Number of Set Screws: | None | Bore Diameter (mm): | 25 mm |
General Specifications
| UPC: | 793699417876 | Weight: | 0.52 KG |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
