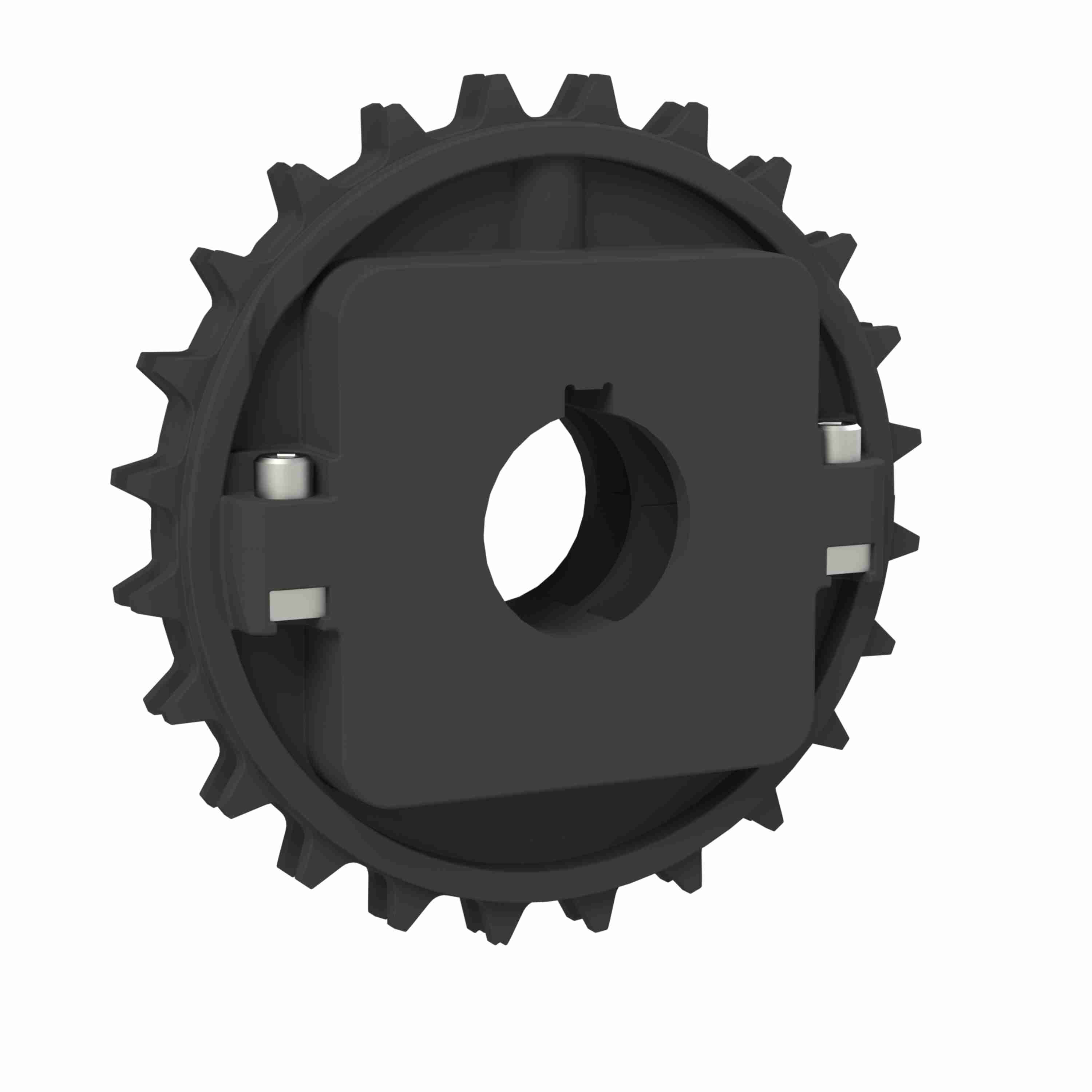

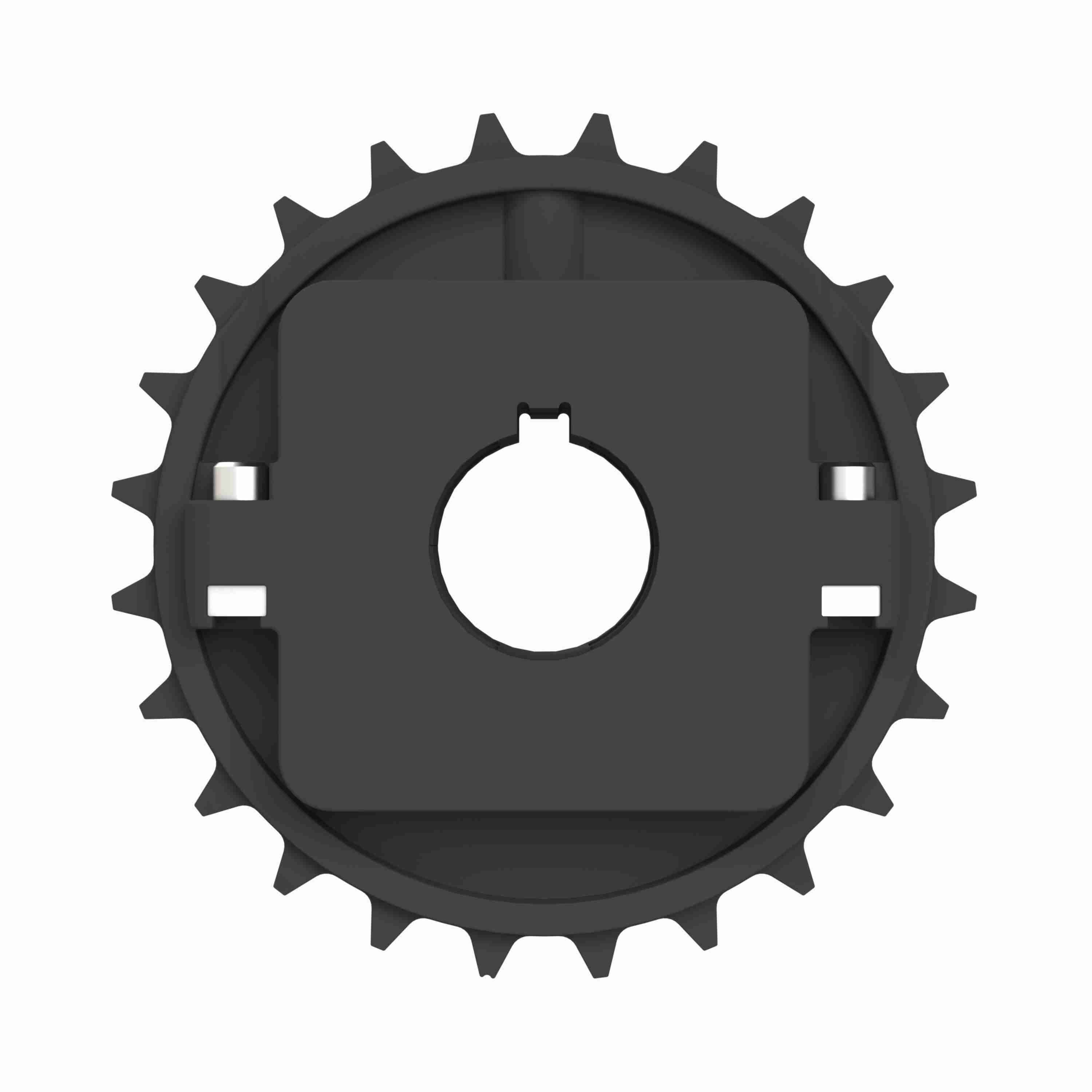

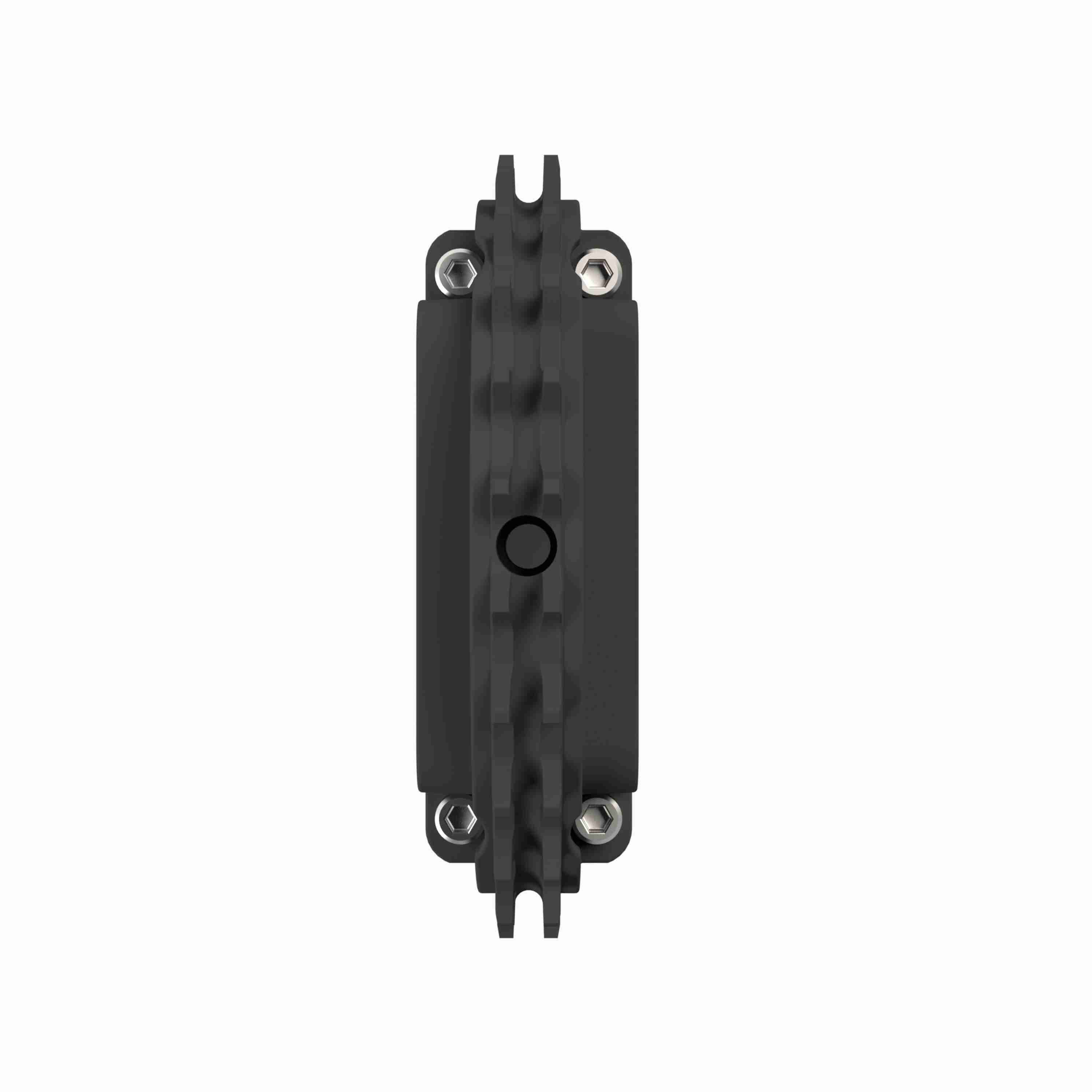

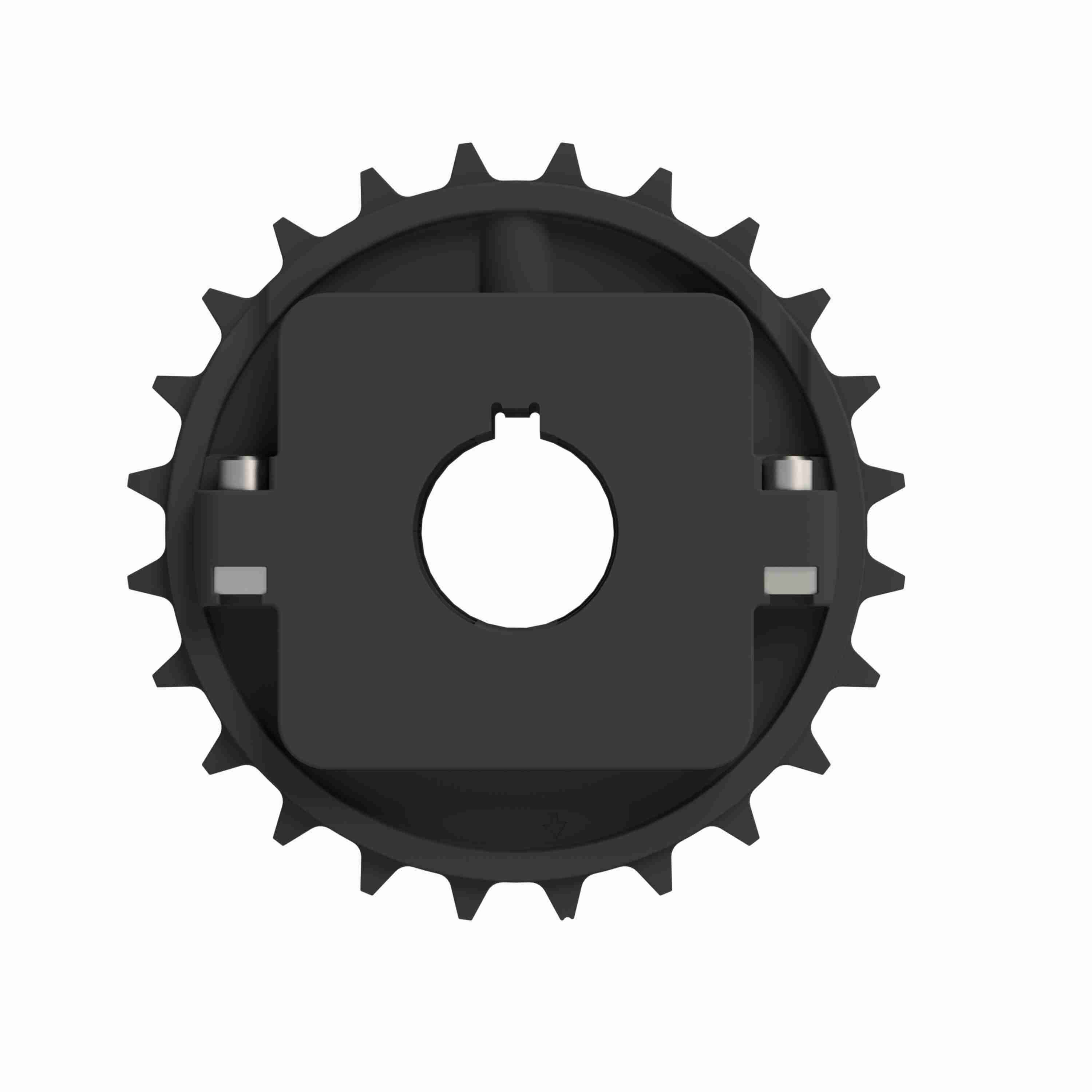

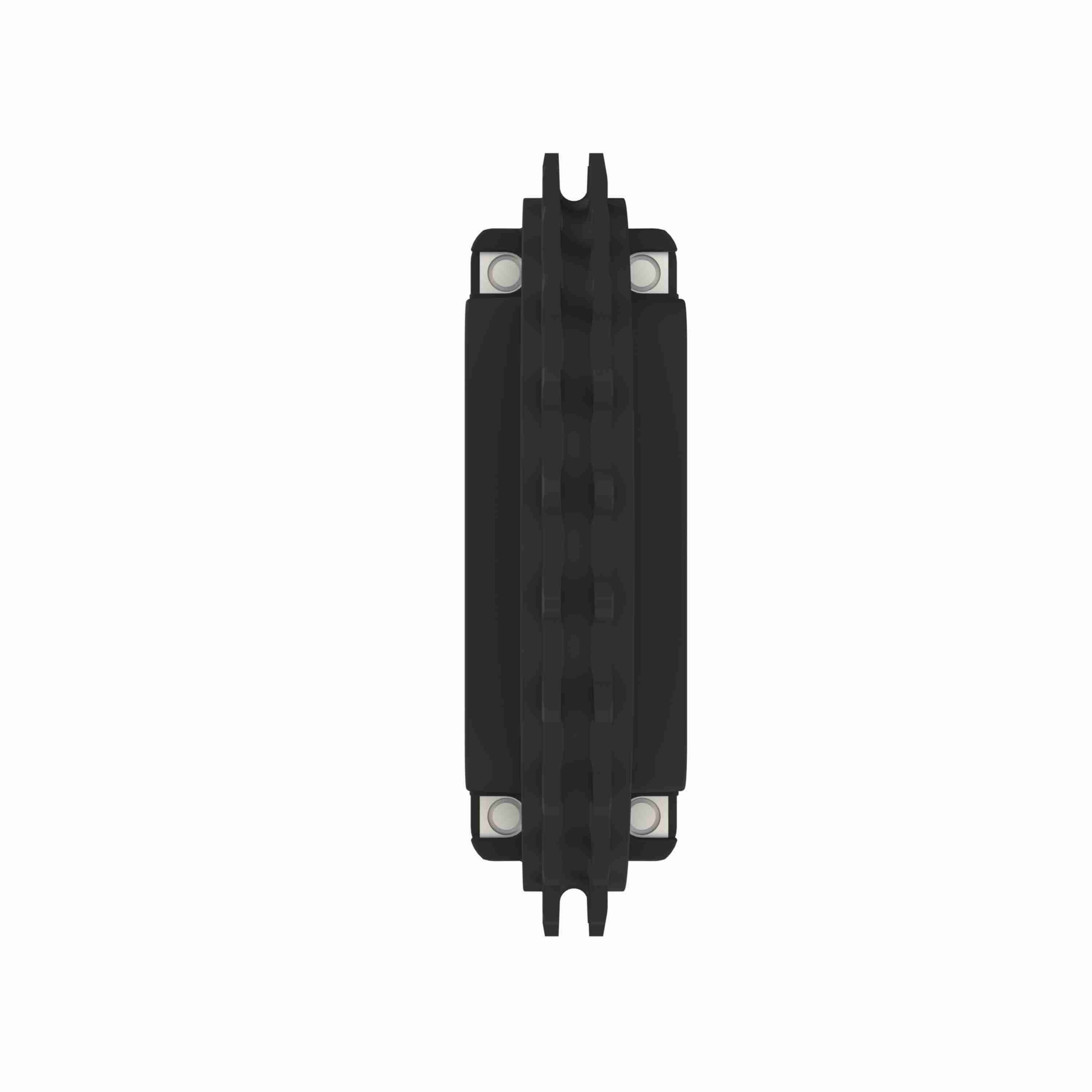

Rexnord 8500 Series Split Molded Nylon Sprocket with 24 Teeth and 30mm Round Shaft-Ready Bore with Keyway - 614-188-30
Part #:10028696
Catalog #:614-188-30
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Material: | Nylon | Chain Number: | 8500 |
| Pitch Diameter (mm): | 145.95 | Sprocket Series: | 8500 |
| Product Group: | MatTop® | Bore Diameter (mm): | 30 mm |
| Bore Shape: | Round | Sprocket Construction: | Molded Split Sprocket |
| Number of Keyways: | 1 | Number of Teeth: | 24 |
| Bore Type: | Shaft-Ready | Body Style: | Block |
| Number of Set Screws: | None | Pitch Diameter (in): | 5.746 |
| Product Line: | Chain and Belt Sprockets |
General Specifications
| UPC: | 793699262209 | Weight: | 0.52 KG |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
