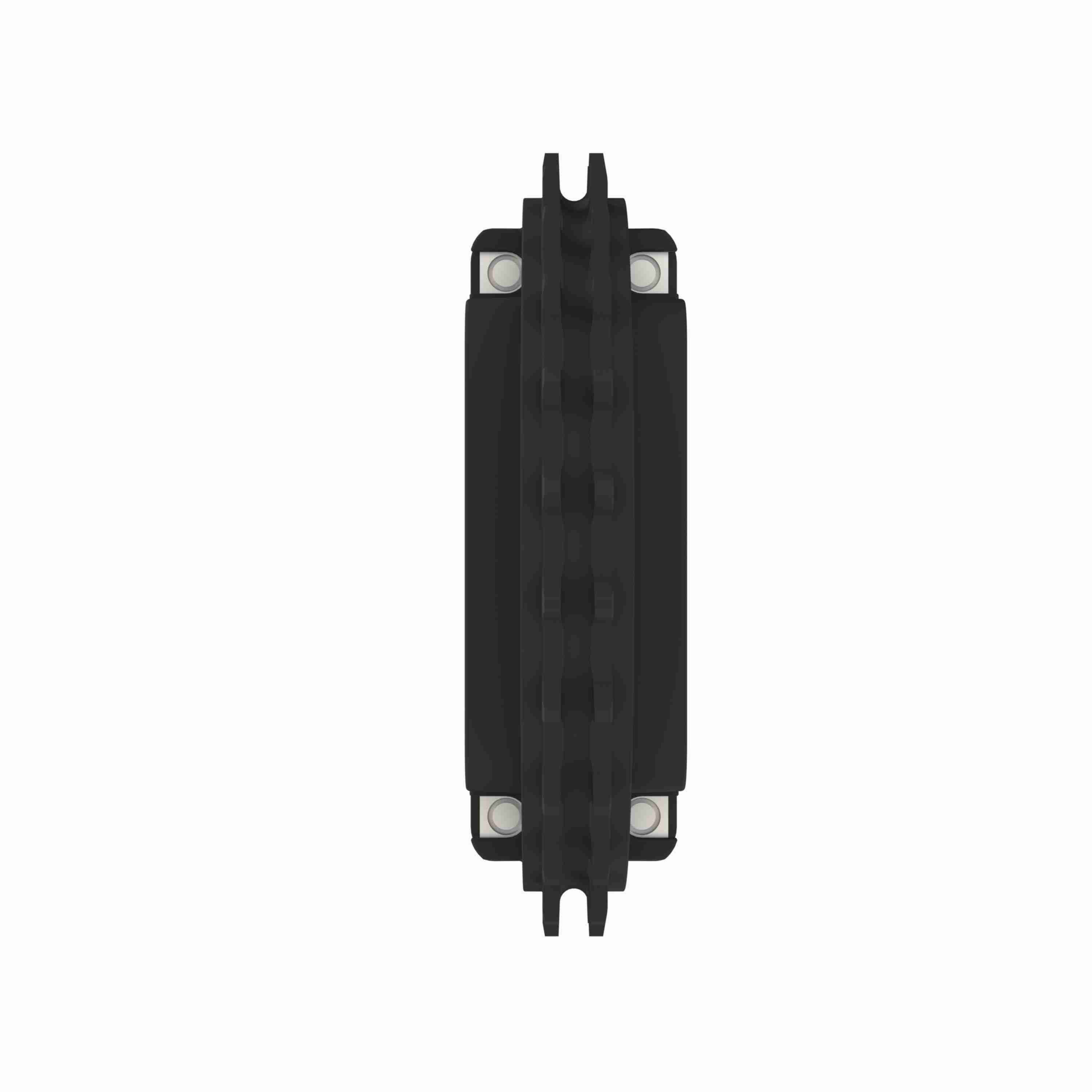

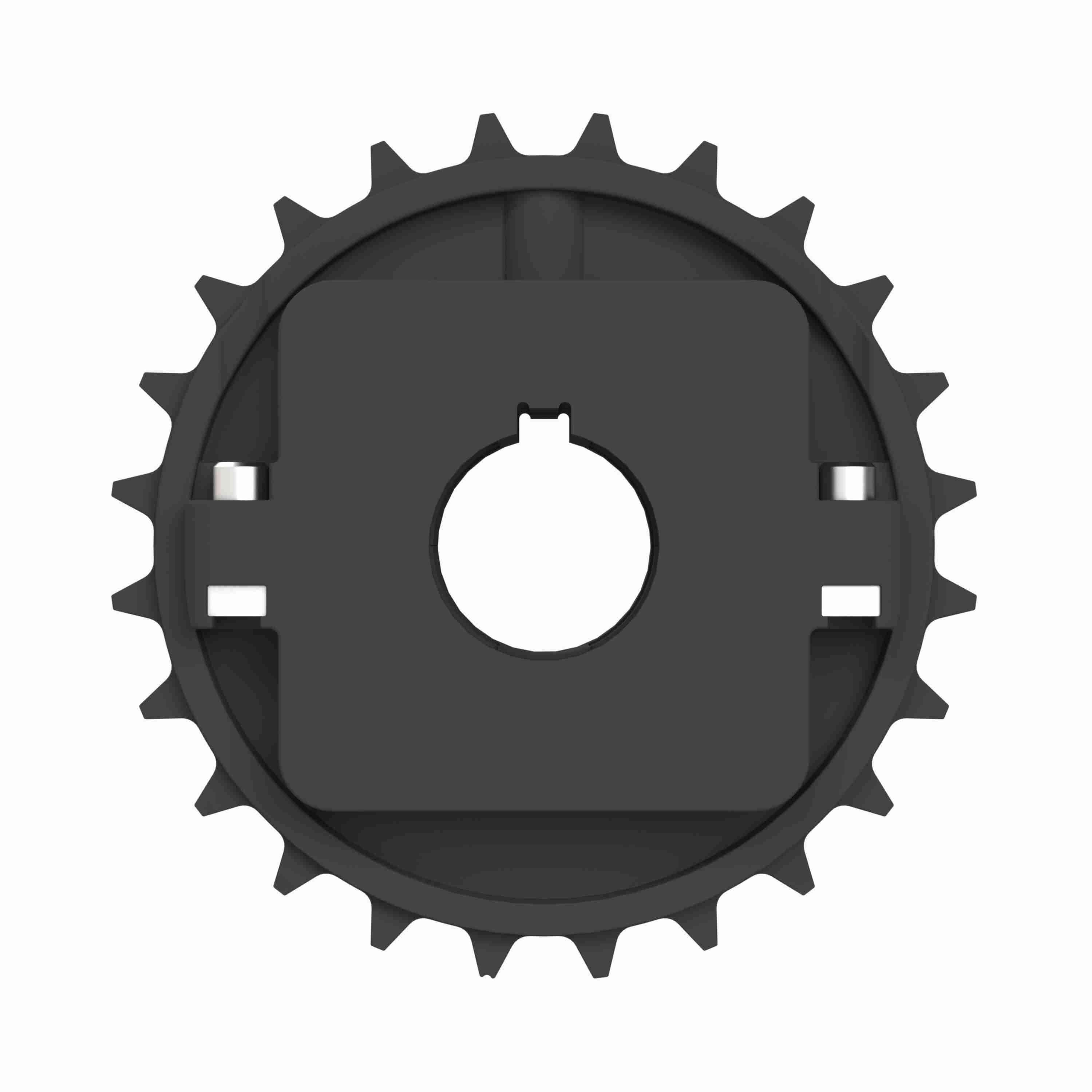

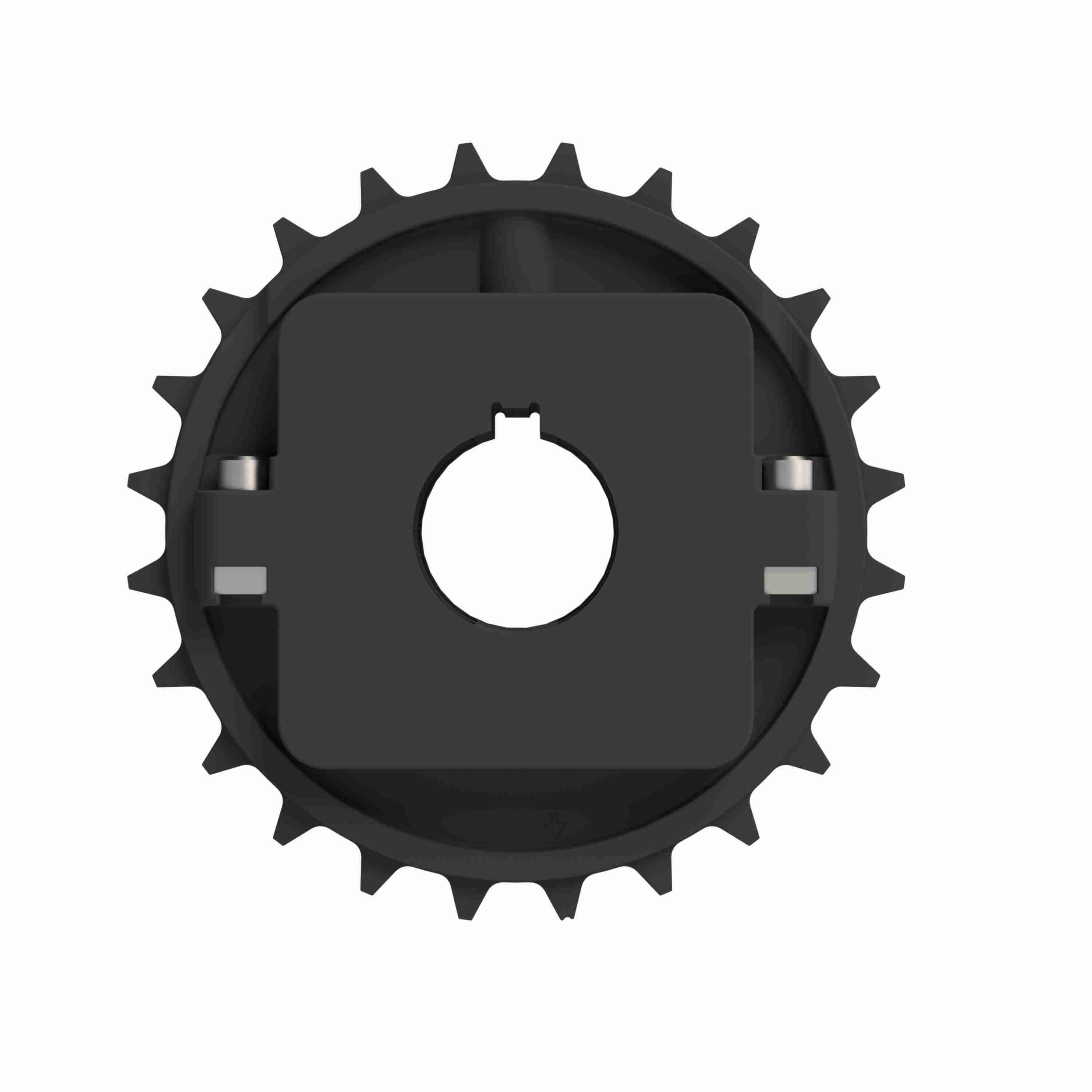

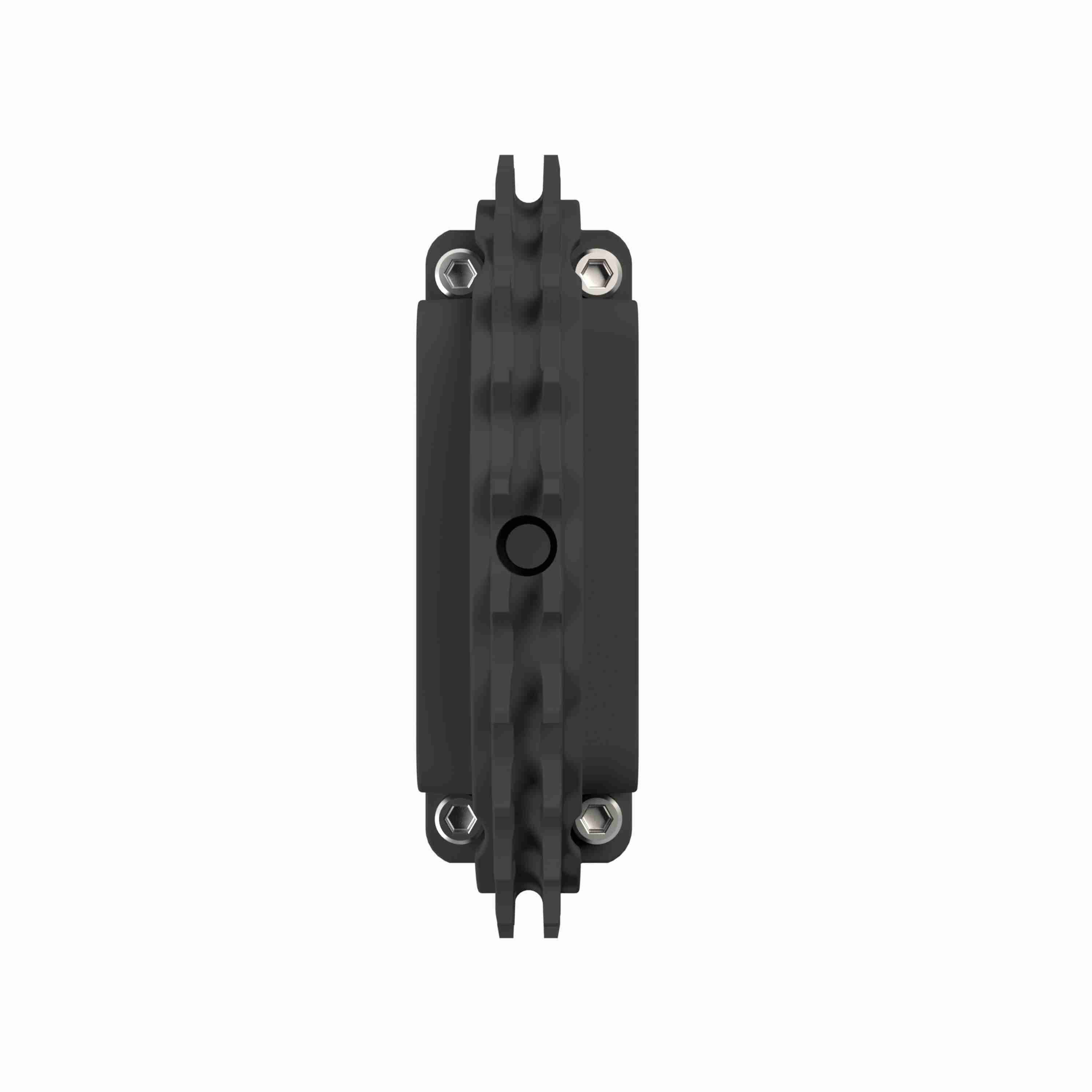

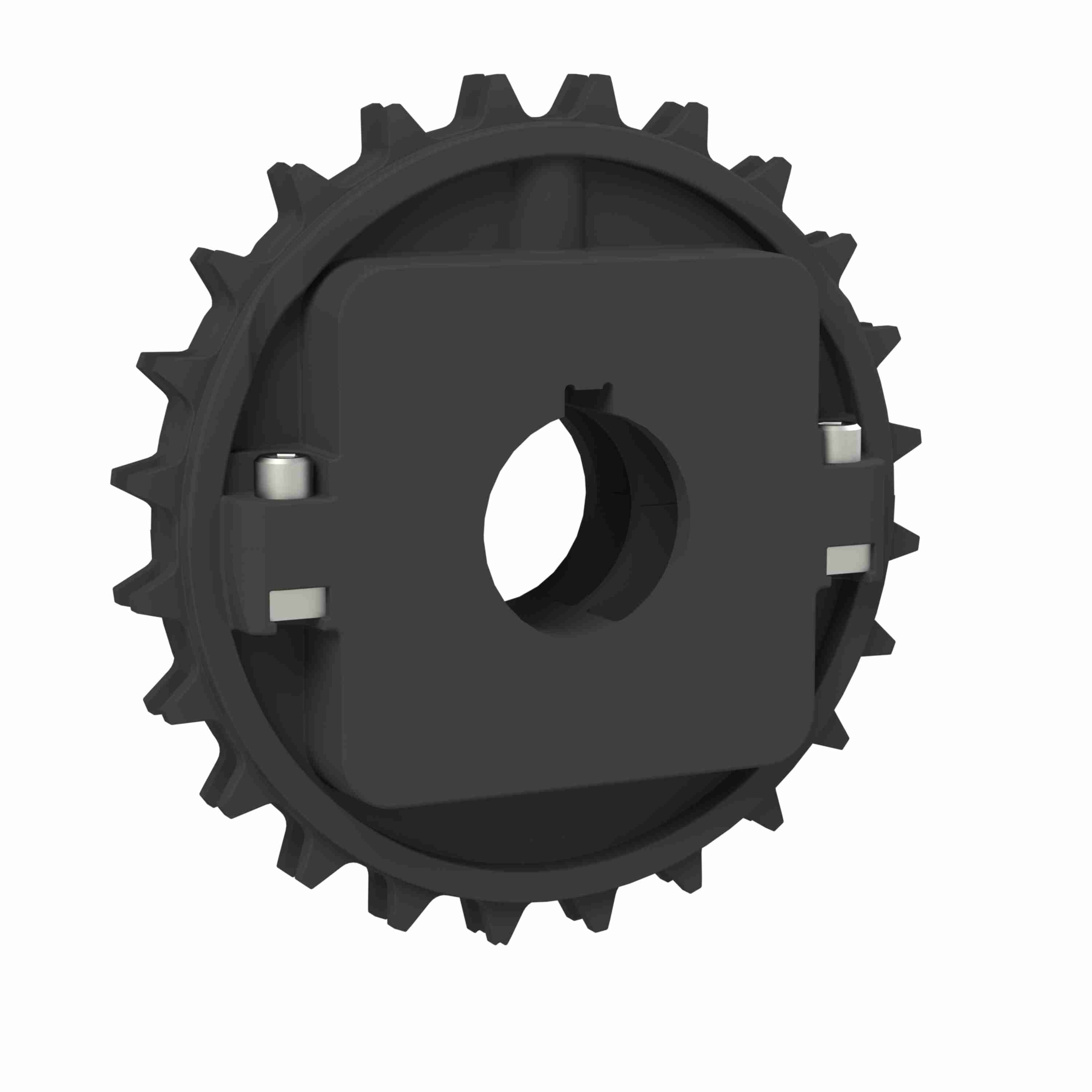

Rexnord 8500 Series Split Molded Nylon Sprocket with 24 Teeth and 40mm Round Shaft-Ready Bore with Keyway - 614-188-40
Part #:10332355
Catalog #:614-188-40
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Number: | 8500 | Bore Diameter (mm): | 40 mm |
| Pitch Diameter (mm): | 145.95 | Number of Keyways: | 1 |
| Number of Set Screws: | None | Material: | Nylon |
| Product Line: | Chain and Belt Sprockets | Bore Type: | Shaft-Ready |
| Bore Shape: | Round | Product Group: | MatTop® |
| Body Style: | Block | Number of Teeth: | 24 |
| Pitch Diameter (in): | 5.746 | Sprocket Series: | 8500 |
| Sprocket Construction: | Molded Split Sprocket |
General Specifications
| UPC: | 782934824210 | Weight: | 0.62 KG |
| HTC: | 8483901050 | Country of Origin: | Mexico |
