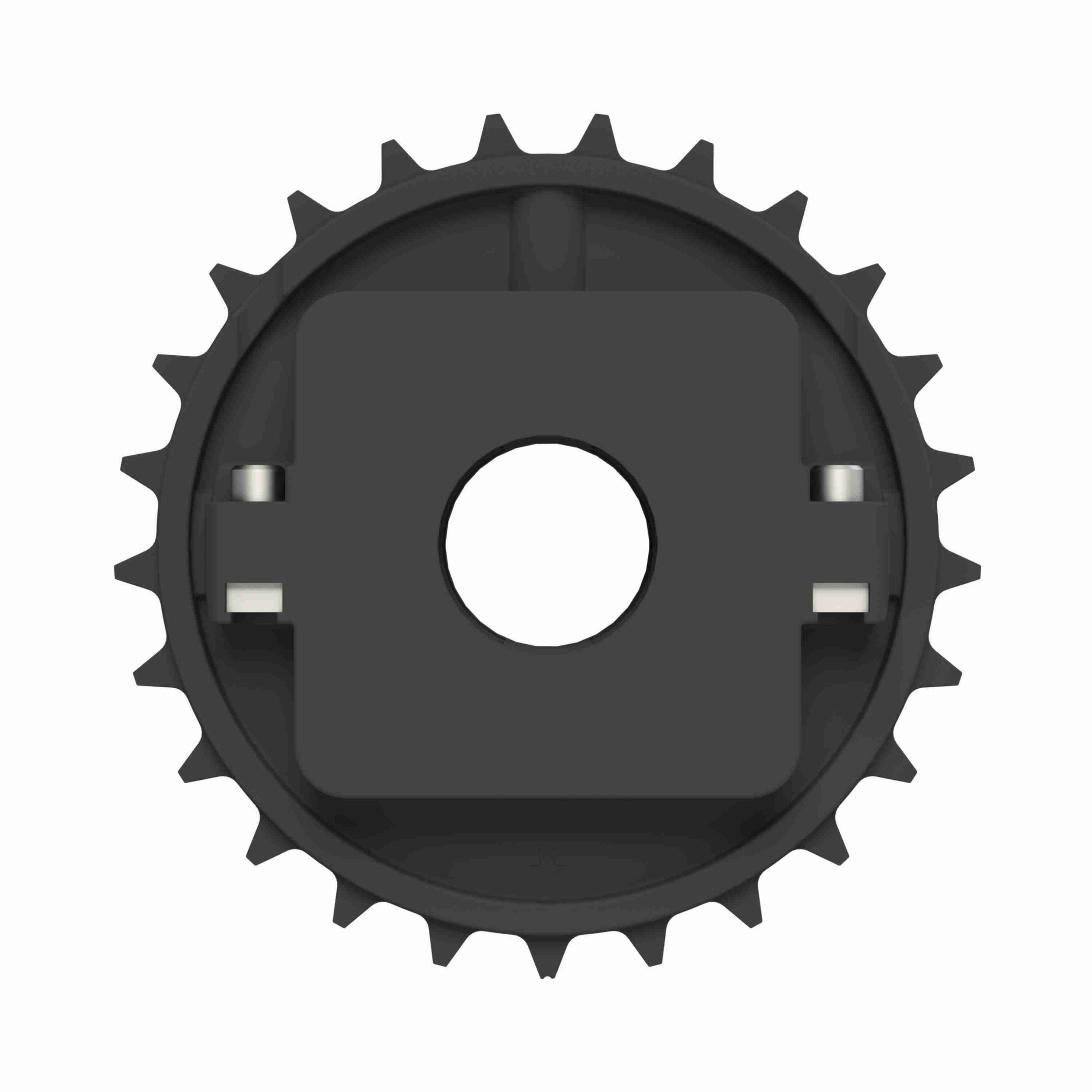

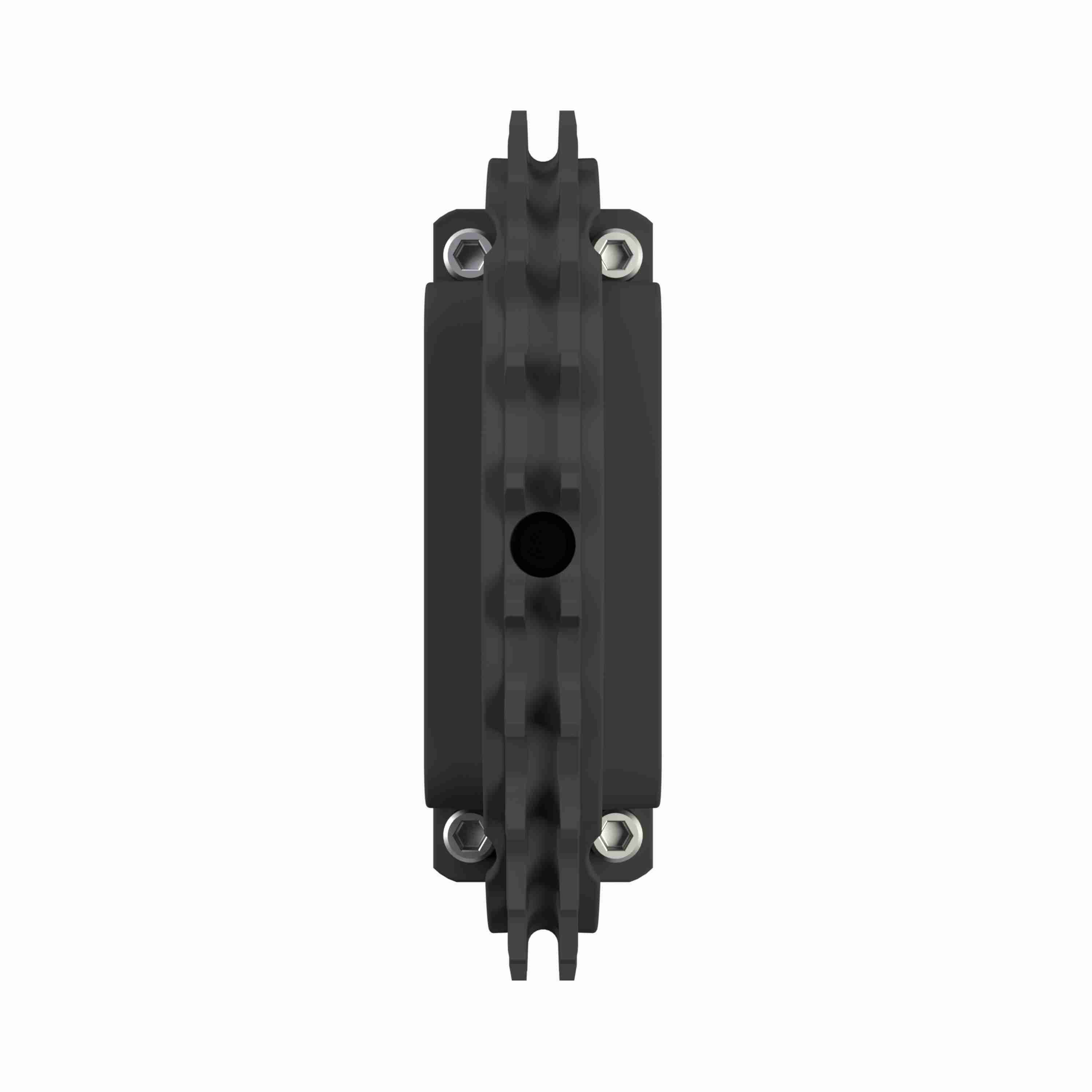

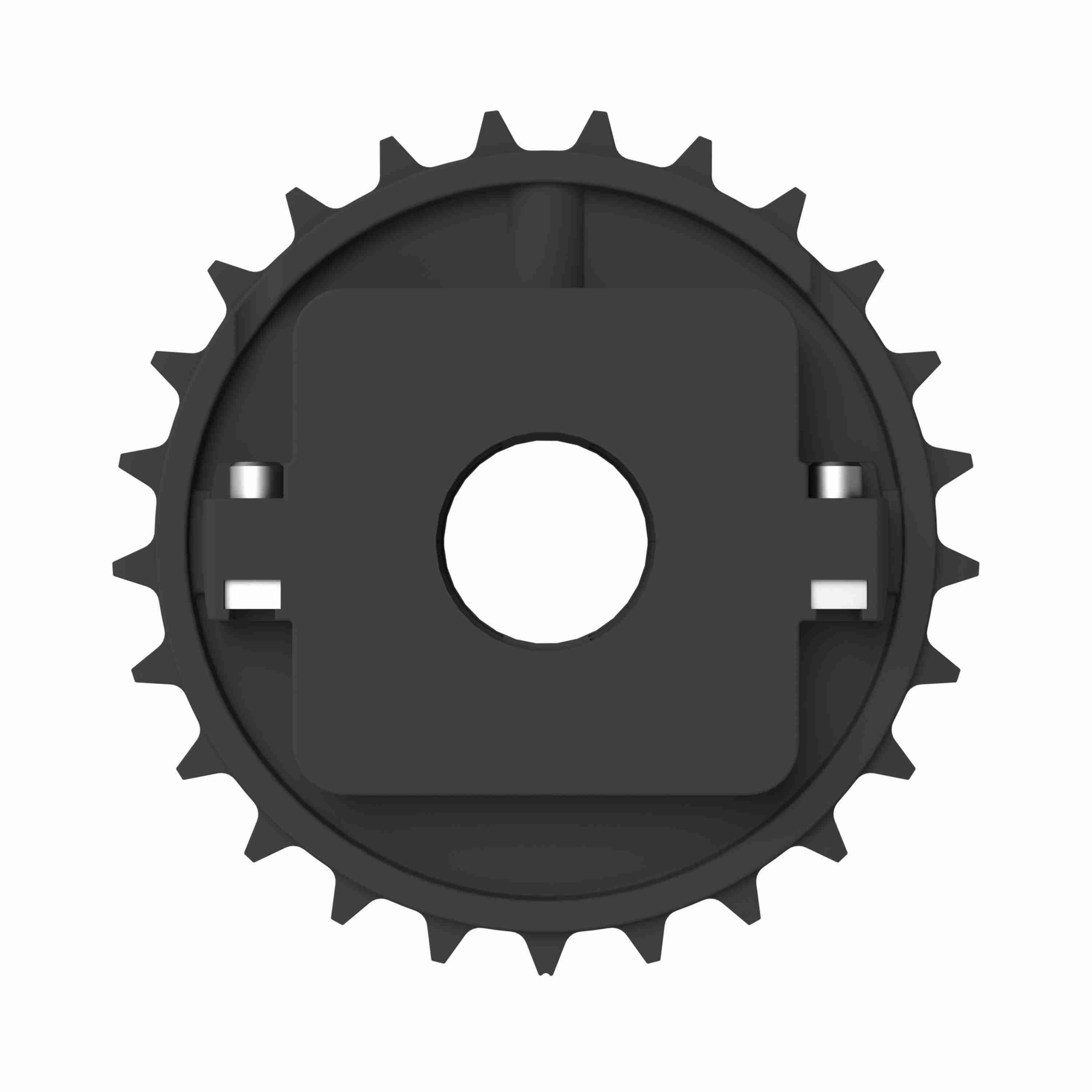

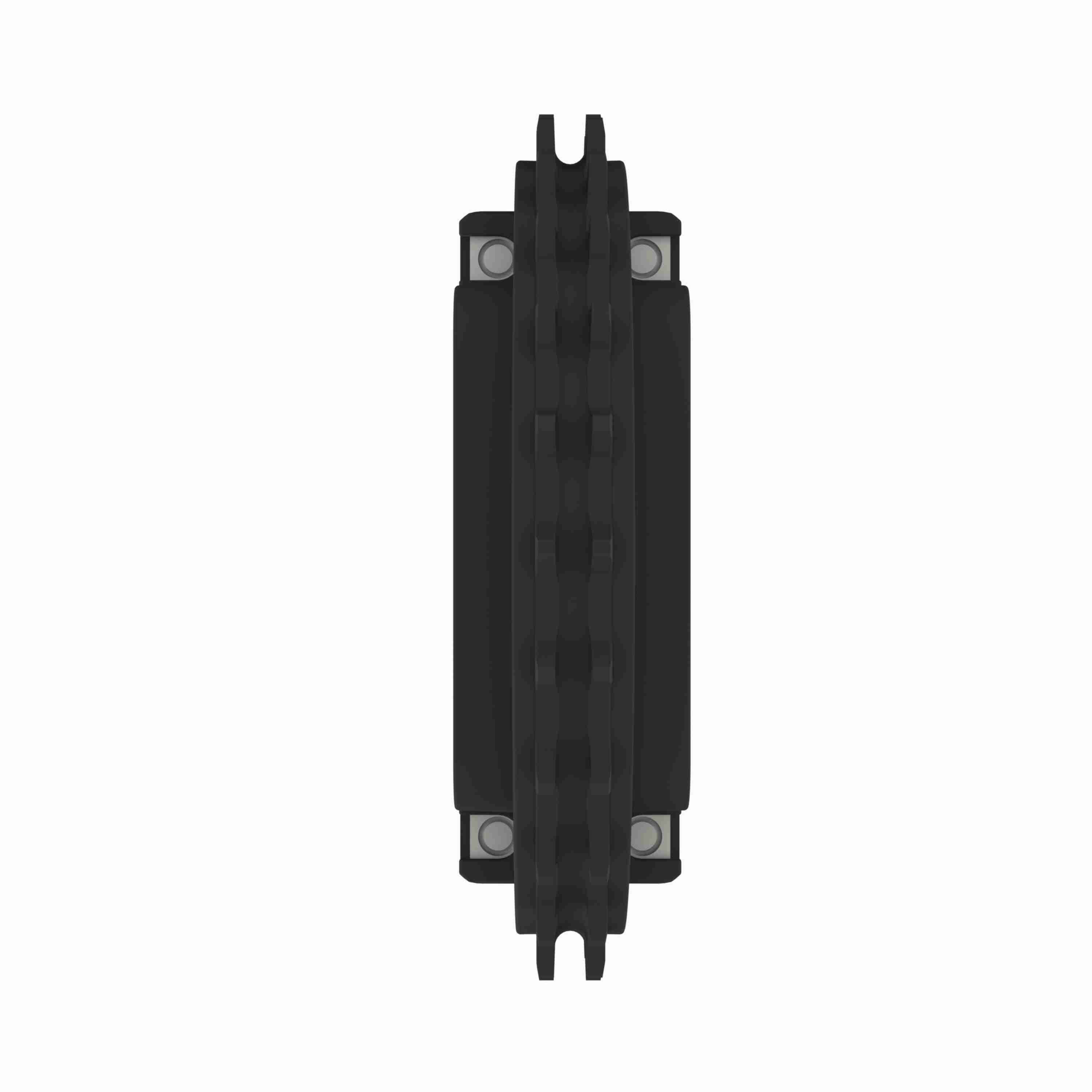

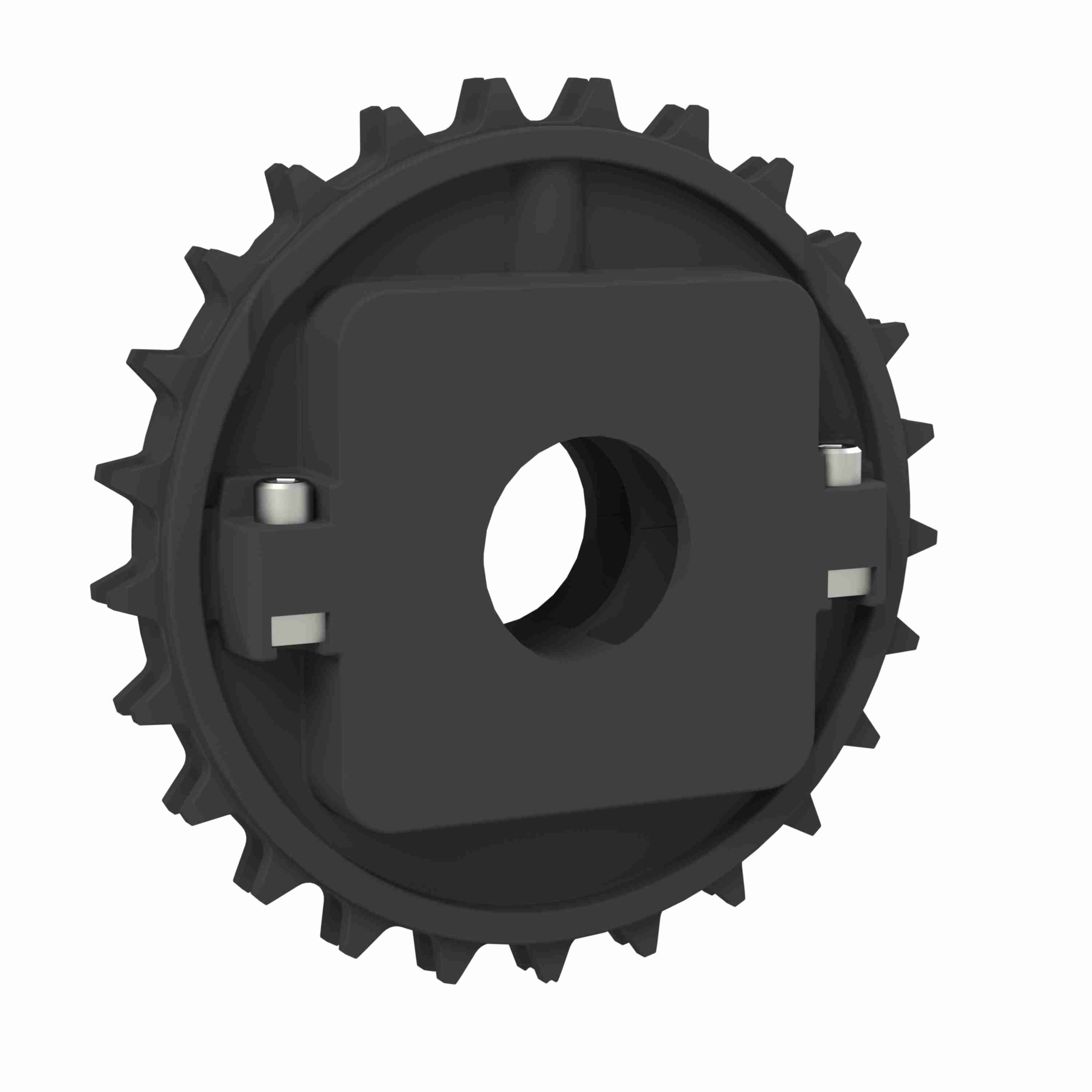

Rexnord 8500 Series Split Molded Nylon Sprocket with 25 Teeth and 30mm Round Idler Bore - 614-192-5
Part #:10028708
Catalog #:614-192-5
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Number of Teeth: | 25 | Chain Number: | 8500 |
| Product Line: | Chain and Belt Sprockets | Bore Shape: | Round |
| Pitch Diameter (in): | 5.984 | Sprocket Construction: | Molded Split Sprocket |
| Bore Diameter (mm): | 30 mm | Number of Set Screws: | None |
| Bore Type: | Idler | Product Group: | MatTop® |
| Body Style: | Block | Sprocket Series: | 8500 |
| Material: | Nylon | Pitch Diameter (mm): | 151.99 |
| Number of Keyways: | 0 |
General Specifications
| UPC: | 793699409680 | Weight: | 0.78 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
