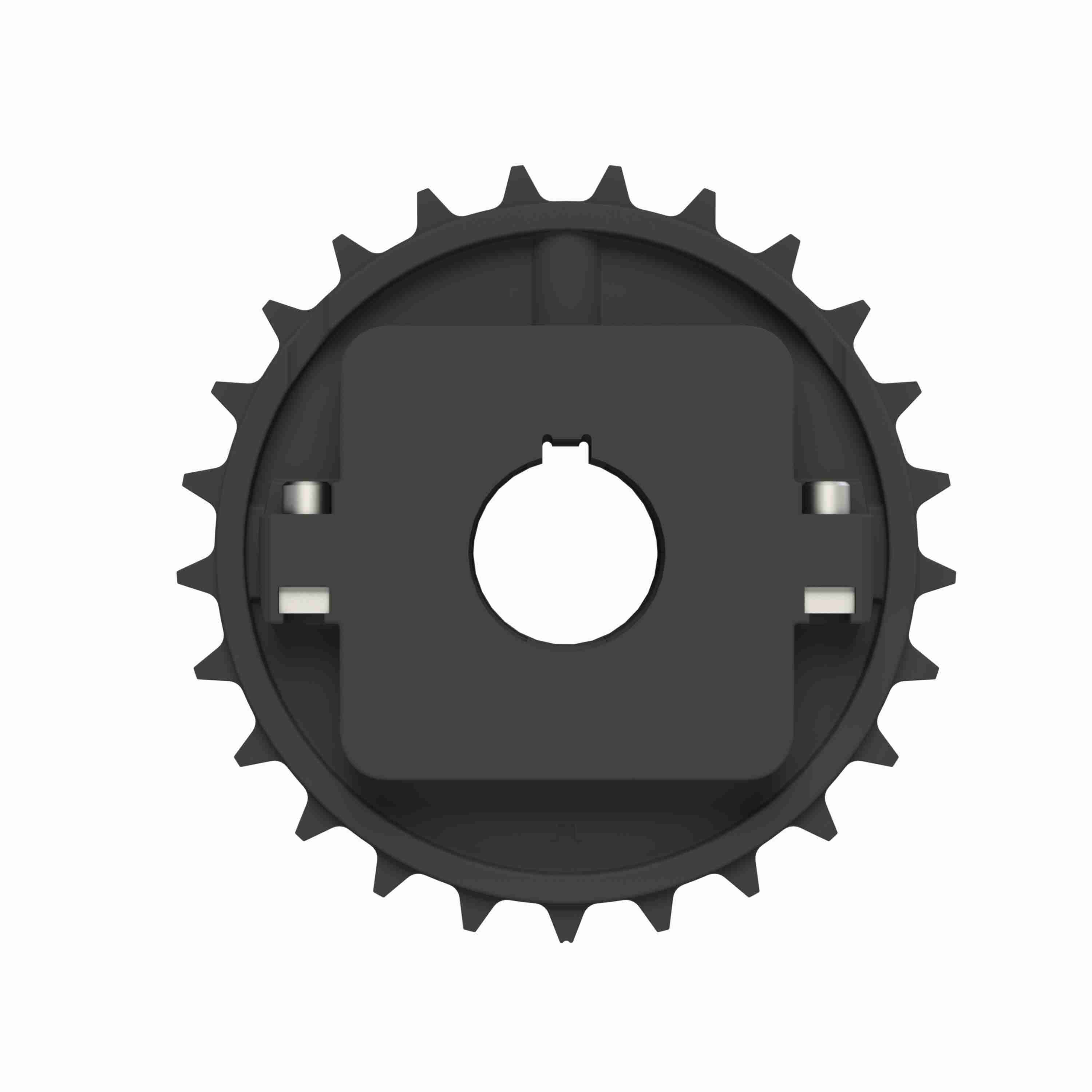

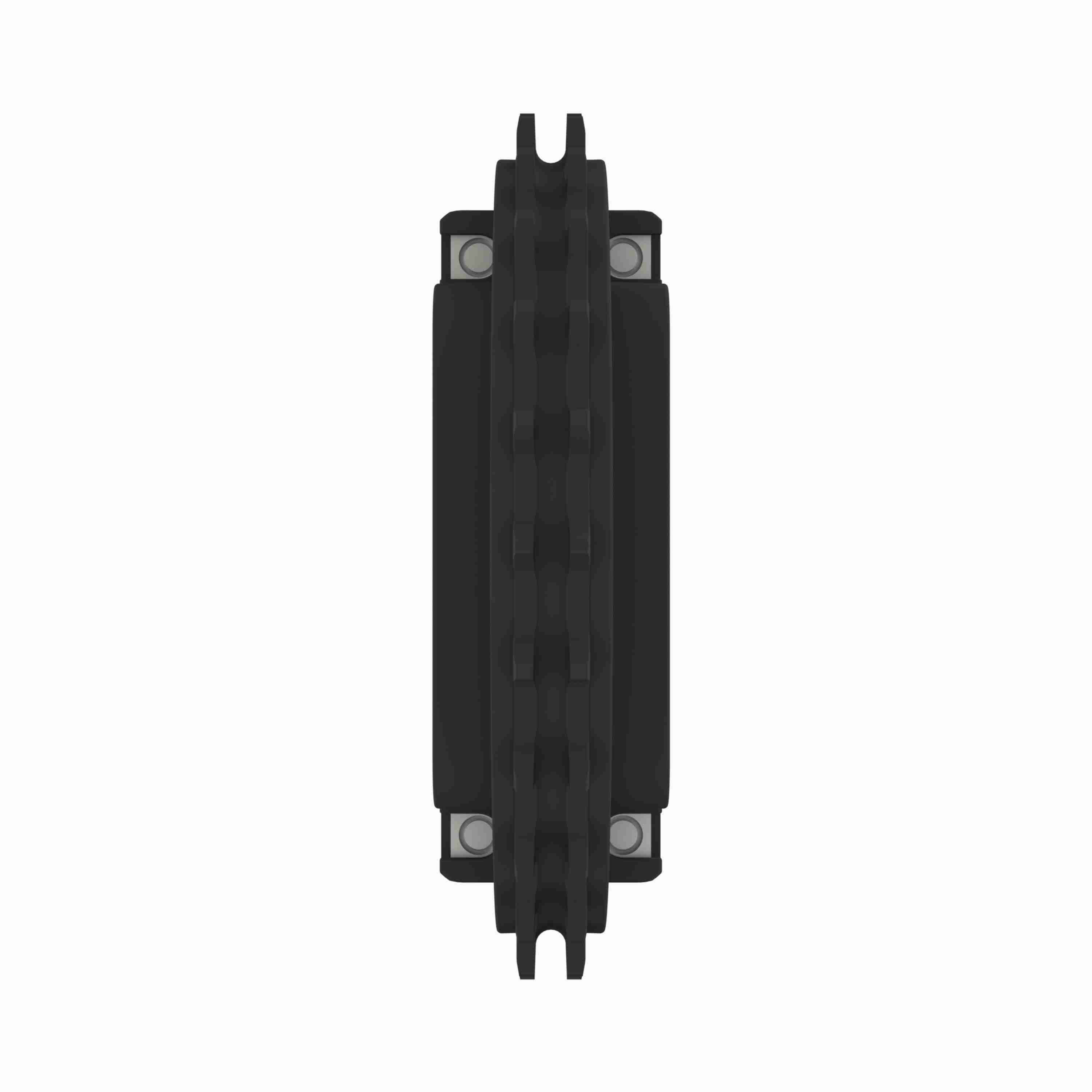

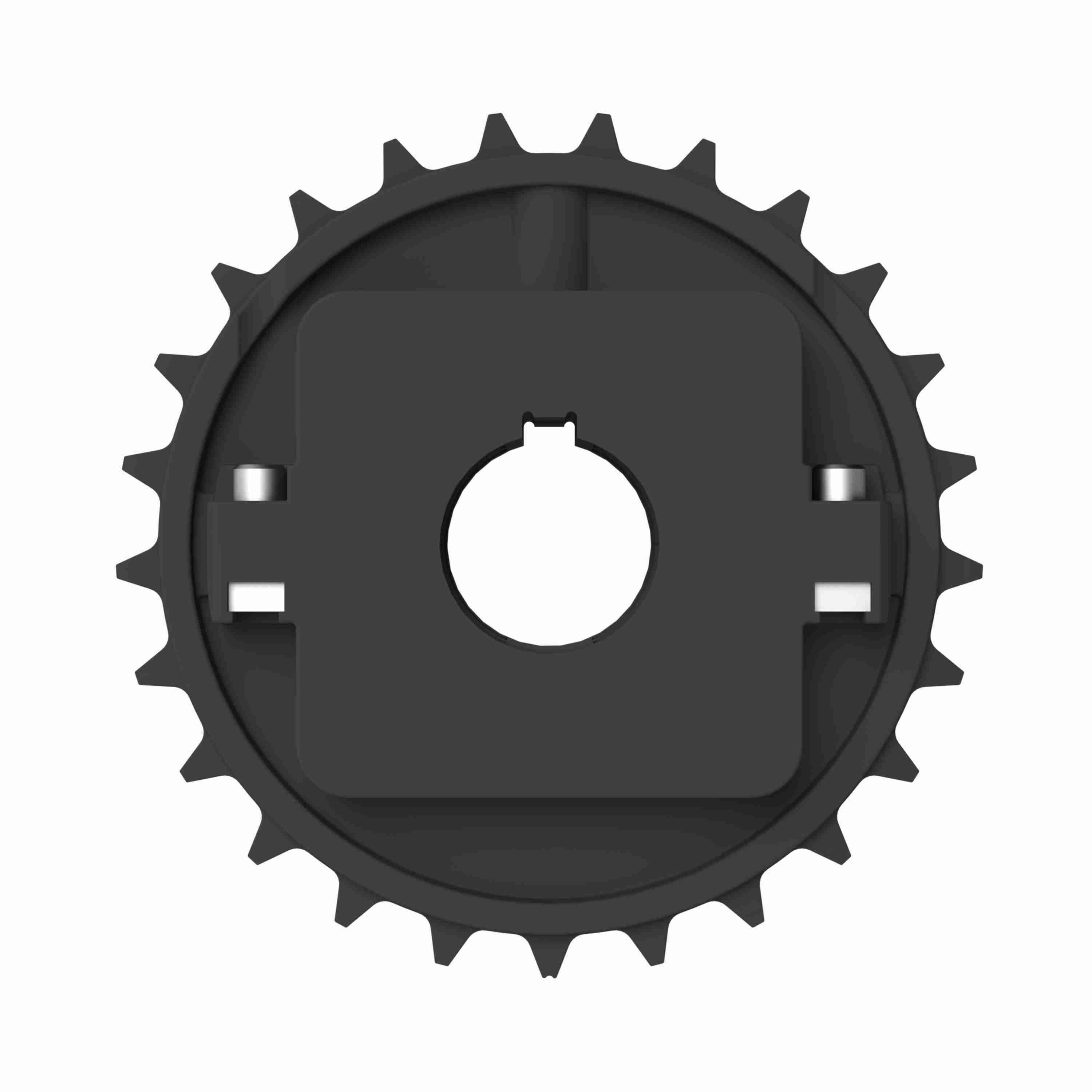

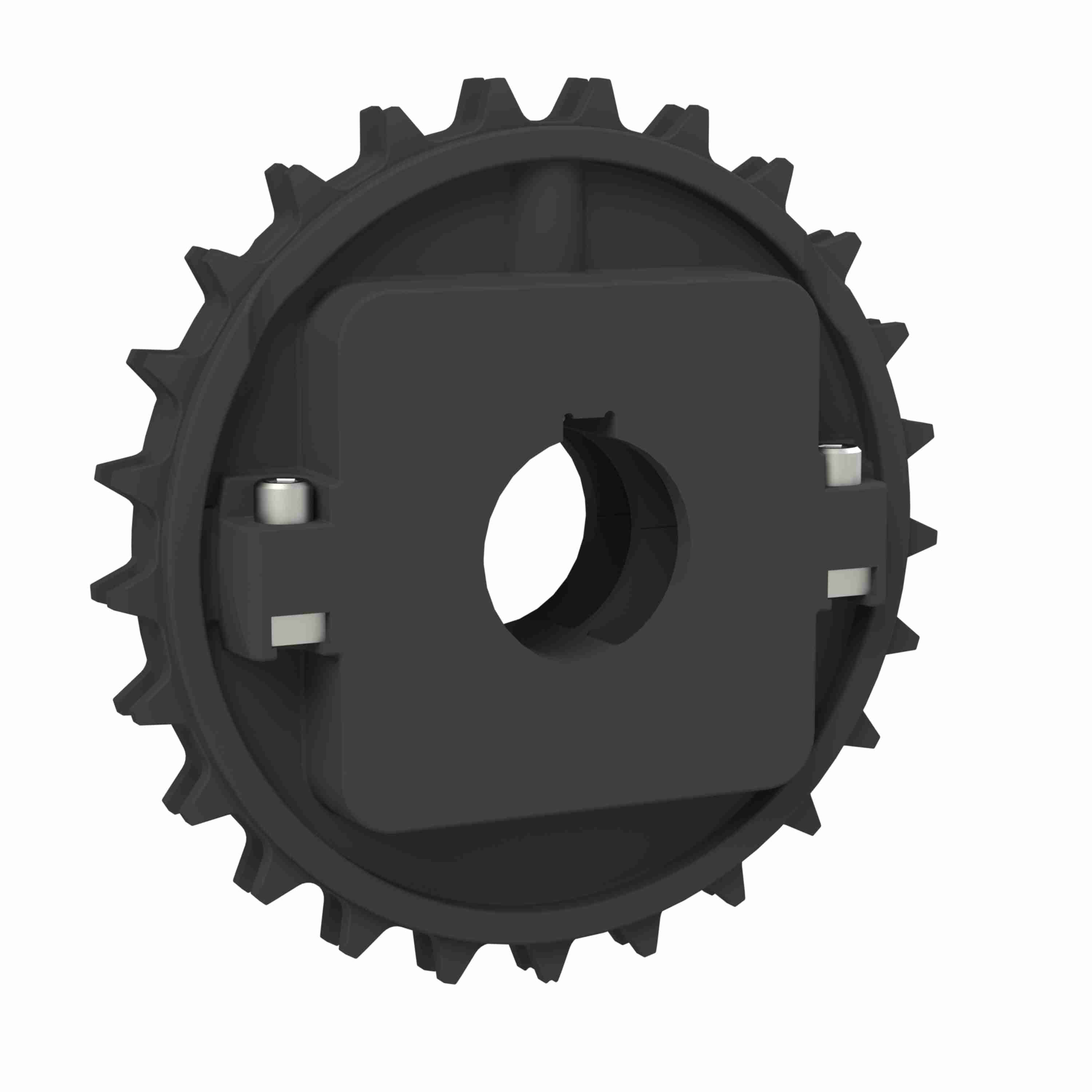

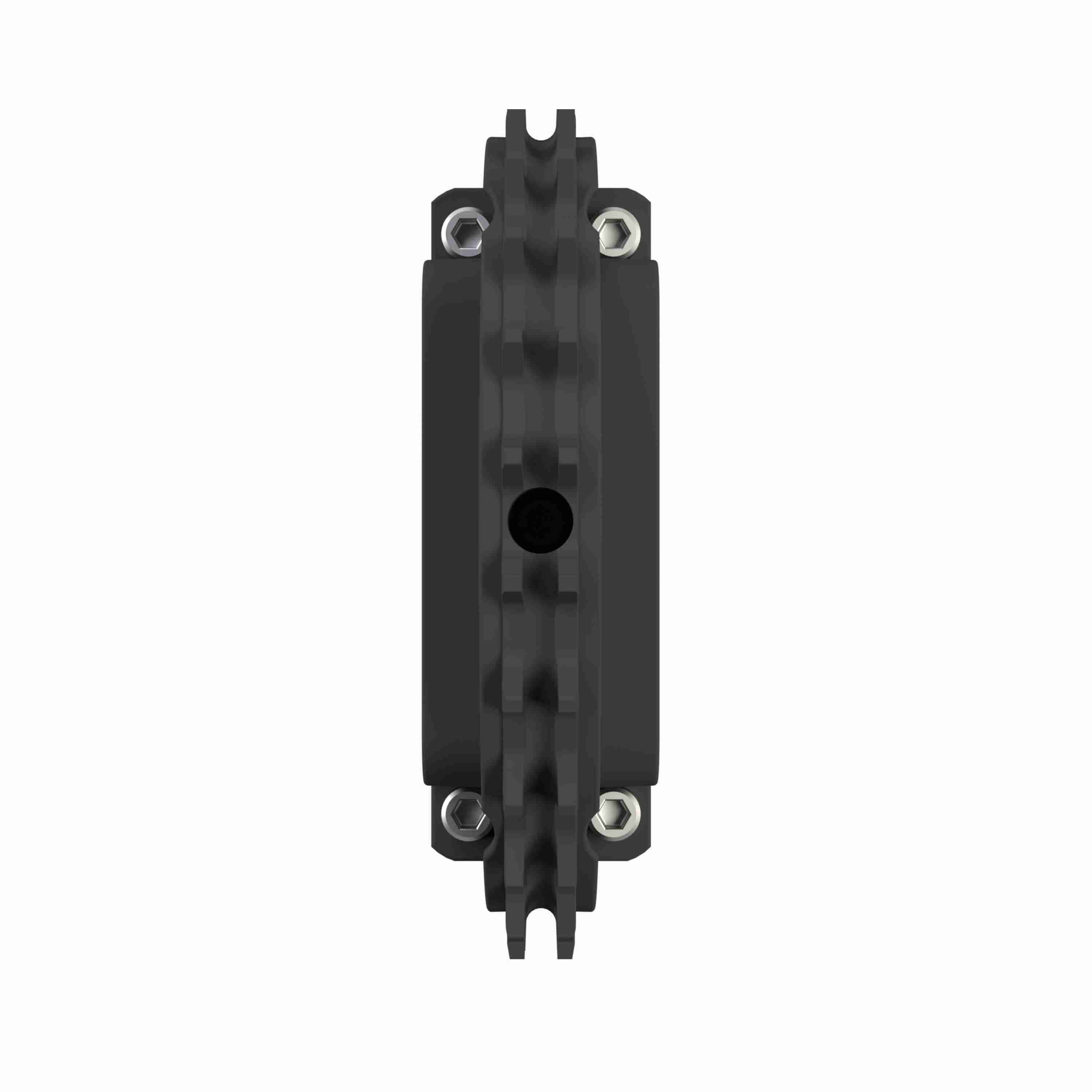

Rexnord 8500 Series Split Molded Nylon Sprocket with 25 Teeth and 40mm Round Shaft-Ready Bore with Keyway - 614-192-40
Part #:10028710
Catalog #:614-192-40
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Product Line: | Chain and Belt Sprockets | Bore Shape: | Round |
| Number of Teeth: | 25 | Pitch Diameter (mm): | 151.99 |
| Body Style: | Block | Number of Keyways: | 1 |
| Bore Type: | Shaft-Ready | Pitch Diameter (in): | 5.984 |
| Material: | Nylon | Sprocket Construction: | Molded Split Sprocket |
| Sprocket Series: | 8500 | Bore Diameter (mm): | 40 mm |
| Number of Set Screws: | None | Chain Number: | 8500 |
| Product Group: | MatTop® |
General Specifications
| UPC: | 793699262261 | Weight: | 0.78 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
