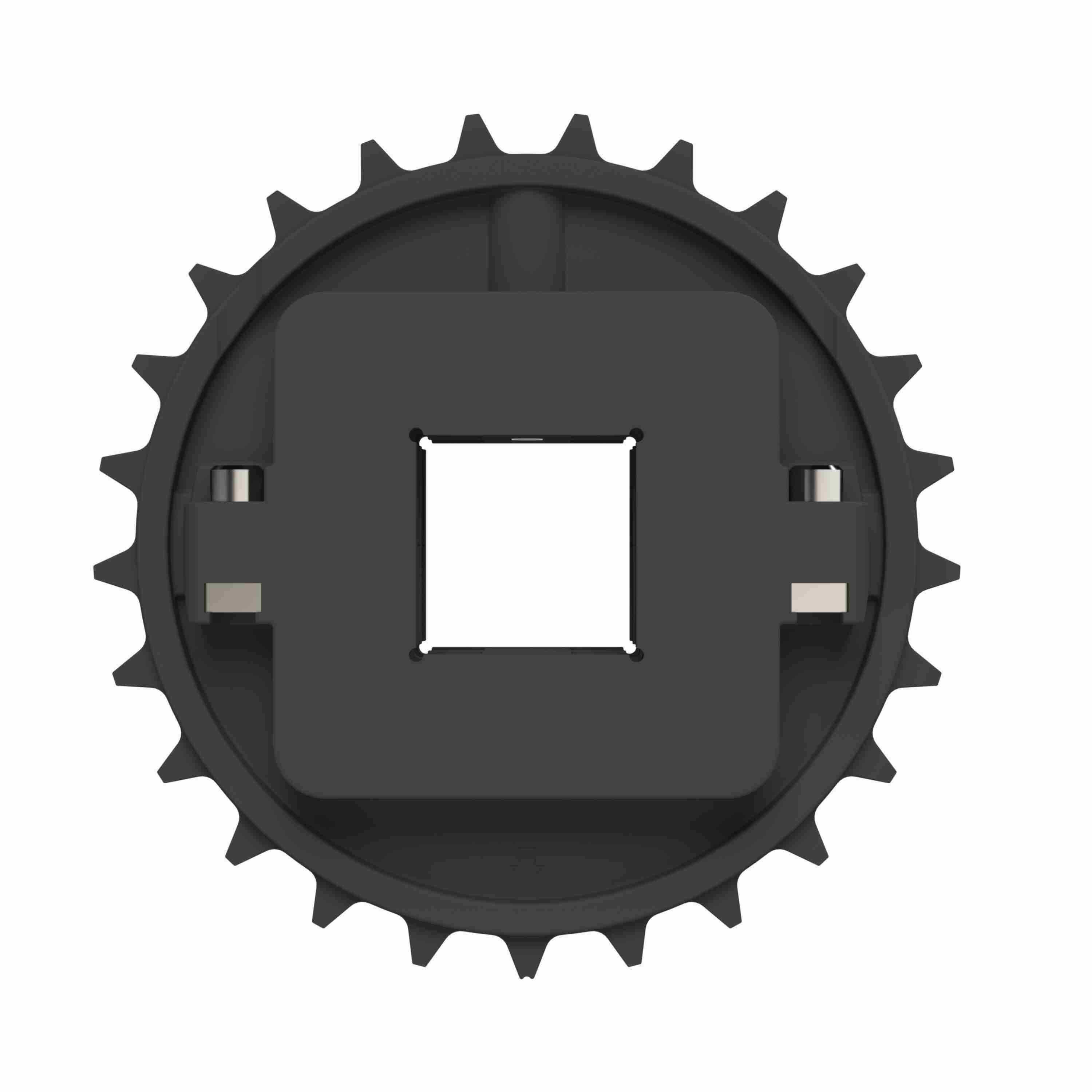

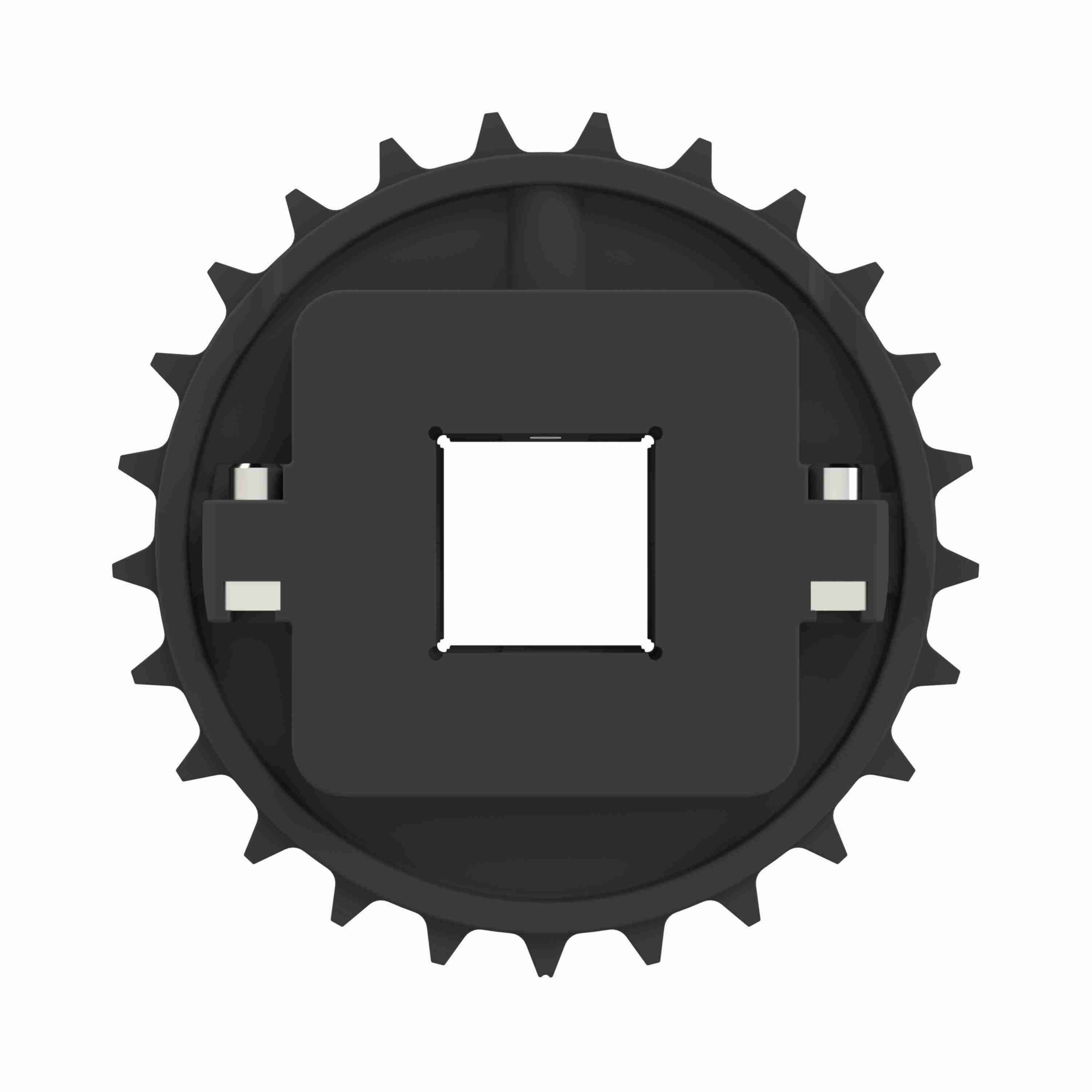

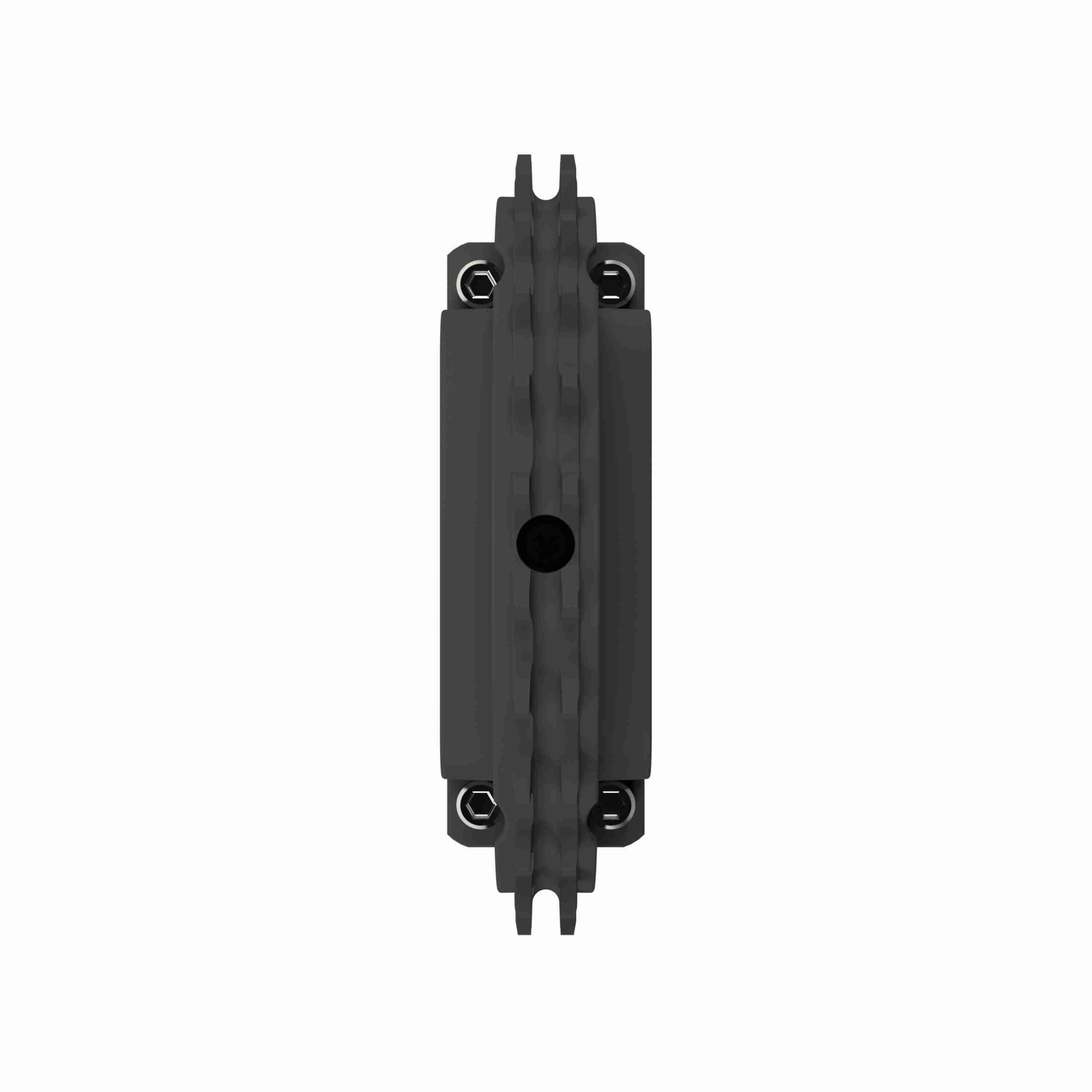

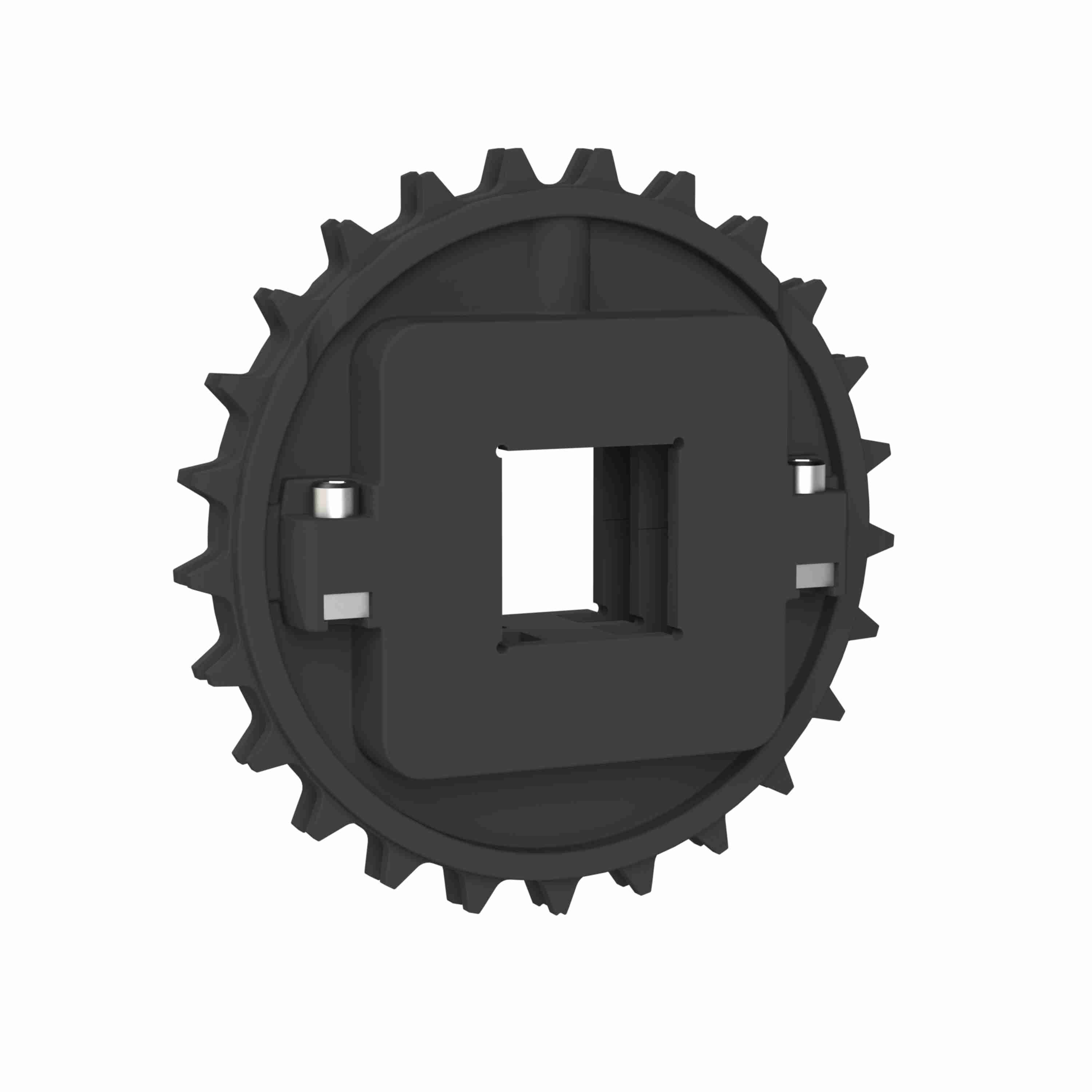

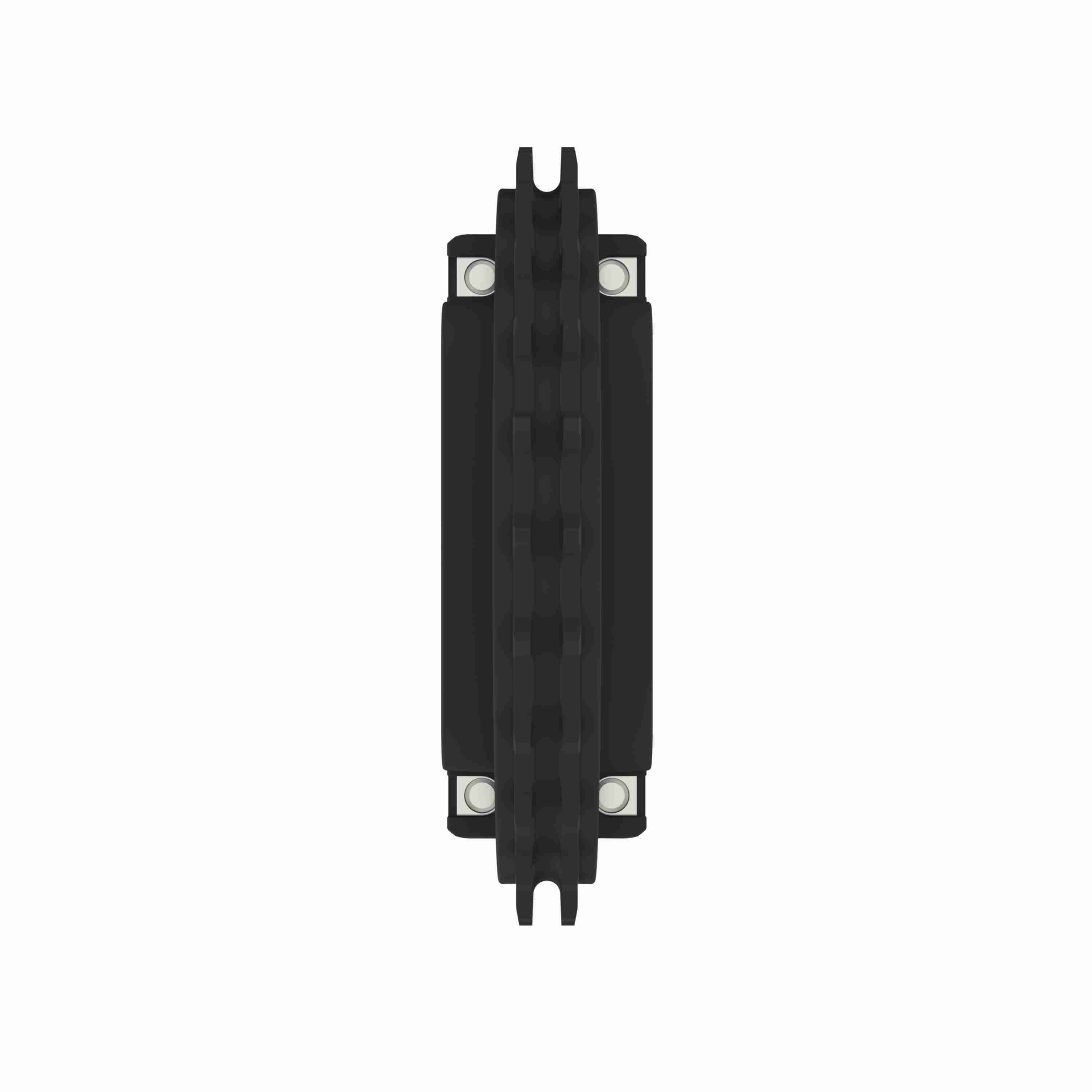

Rexnord 8500 Series Split Molded Nylon Sprocket with 25 Teeth and a 60mm Square Bore - 614-193-3
Part #:10333348
Catalog #:614-193-3
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Product Group: | MatTop® | Number of Keyways: | 0 |
| Sprocket Series: | 8500 | Bore Type: | Shaft-Ready |
| Bore Shape: | Square | Number of Set Screws: | None |
| Chain Number: | 8500 | Number of Teeth: | 25 |
| Sprocket Construction: | Molded Split Sprocket | Product Line: | Chain and Belt Sprockets |
| Bore Diameter (mm): | 60 mm | Hub Type: | C-HUB |
| Pitch Diameter (in): | 5.984 | Material: | Nylon |
| Body Style: | Block | Pitch Diameter (mm): | 151.99 |
General Specifications
| UPC: | 782934824050 | Weight: | 0.35 KG |
| HTC: | 8483901050 | Country of Origin: | Mexico |
