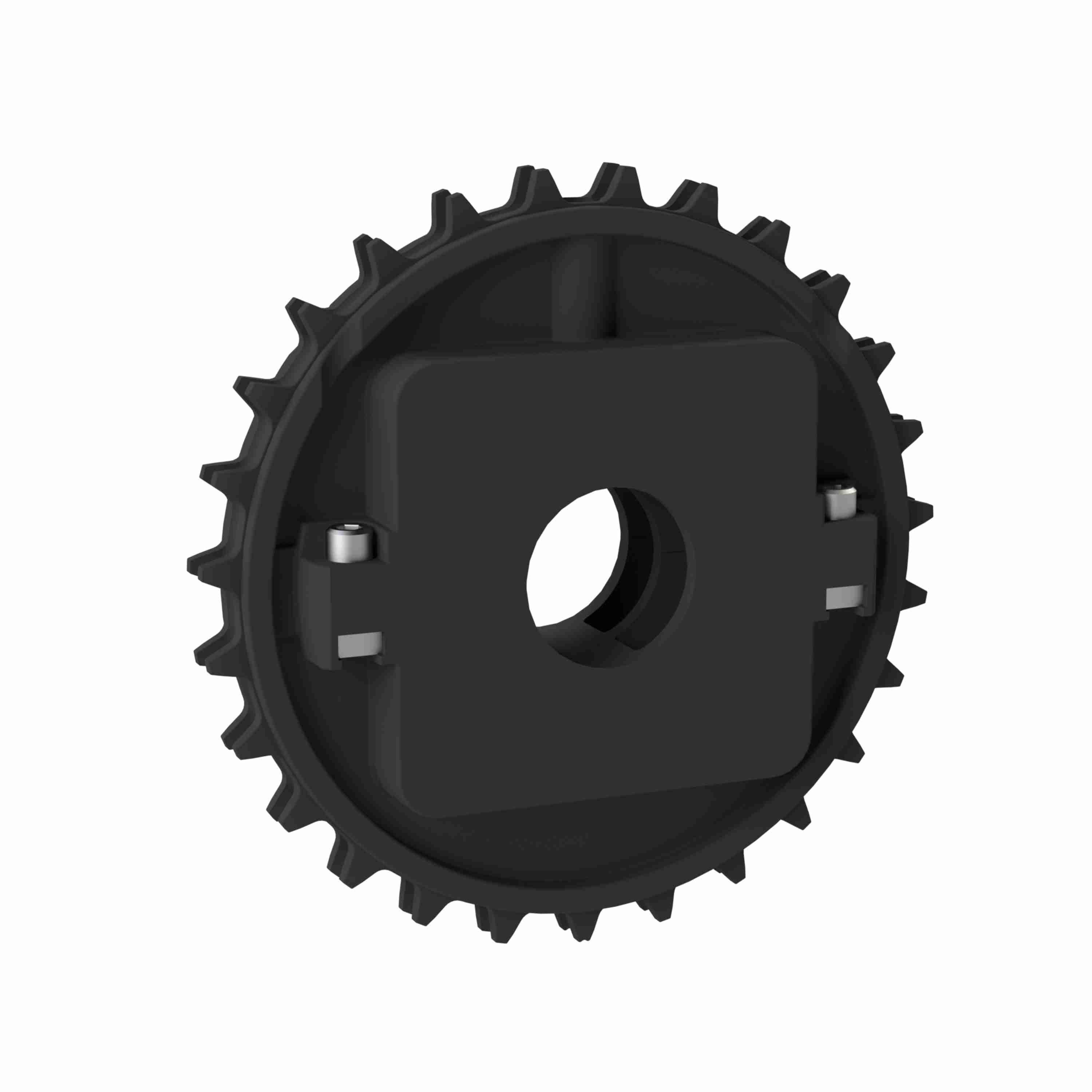

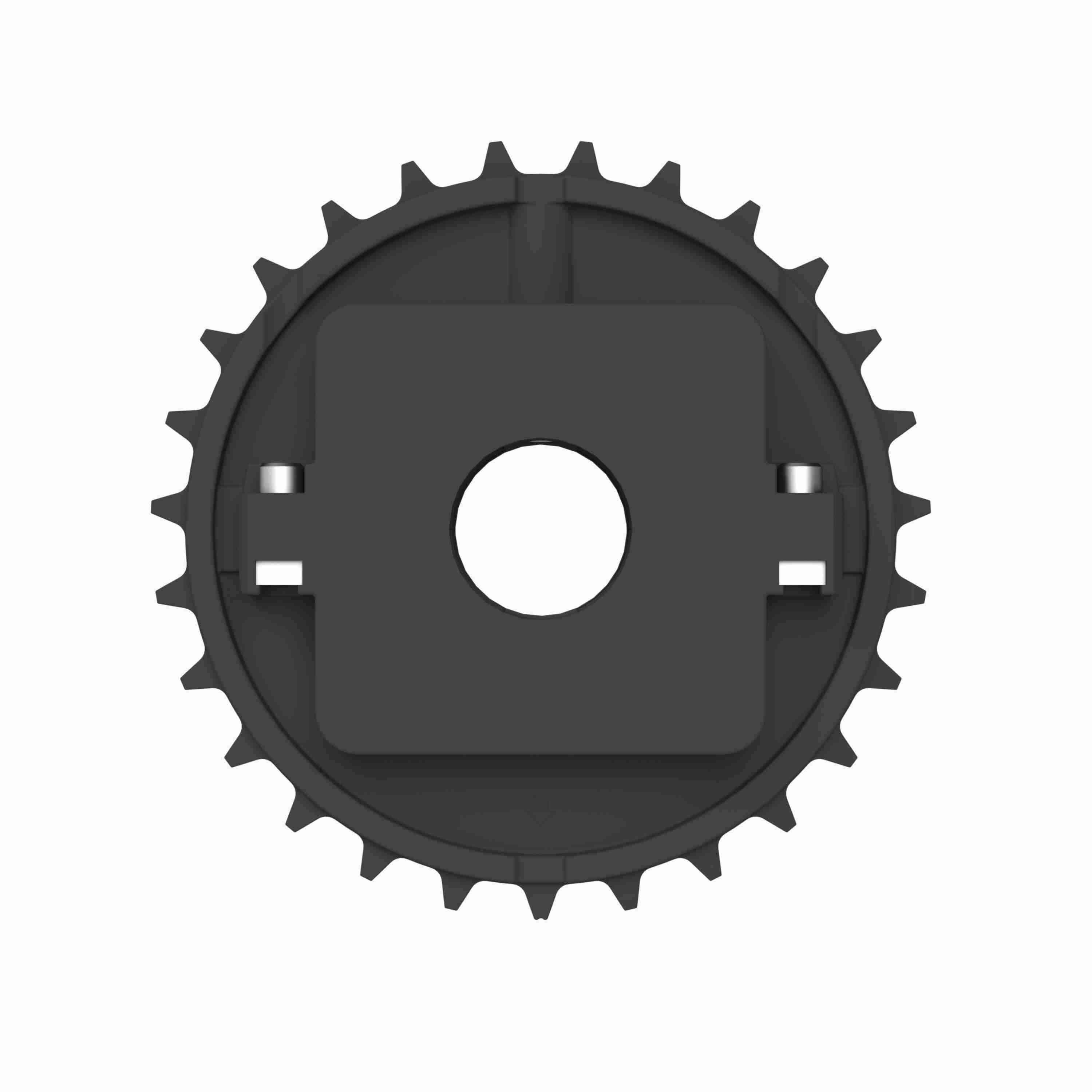

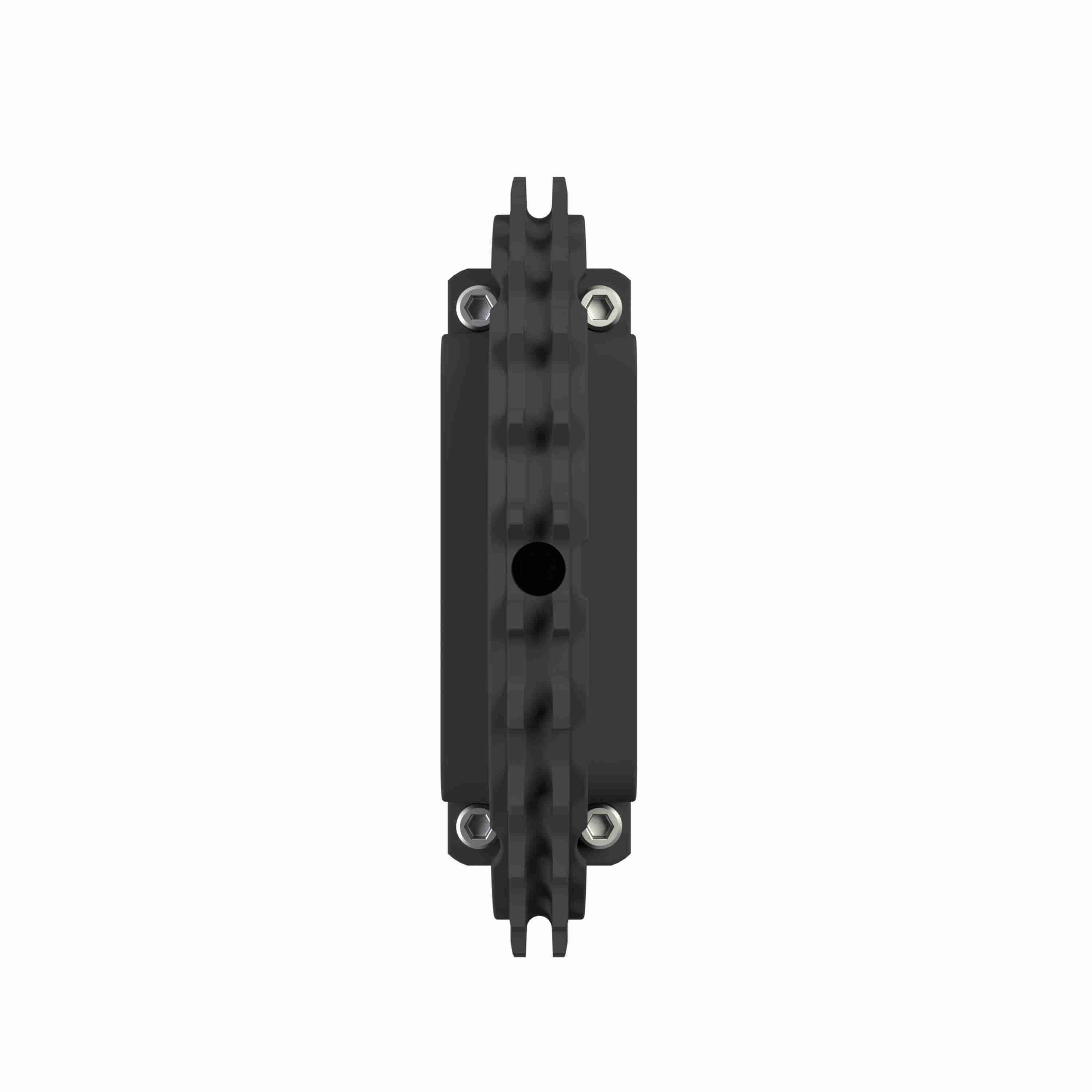

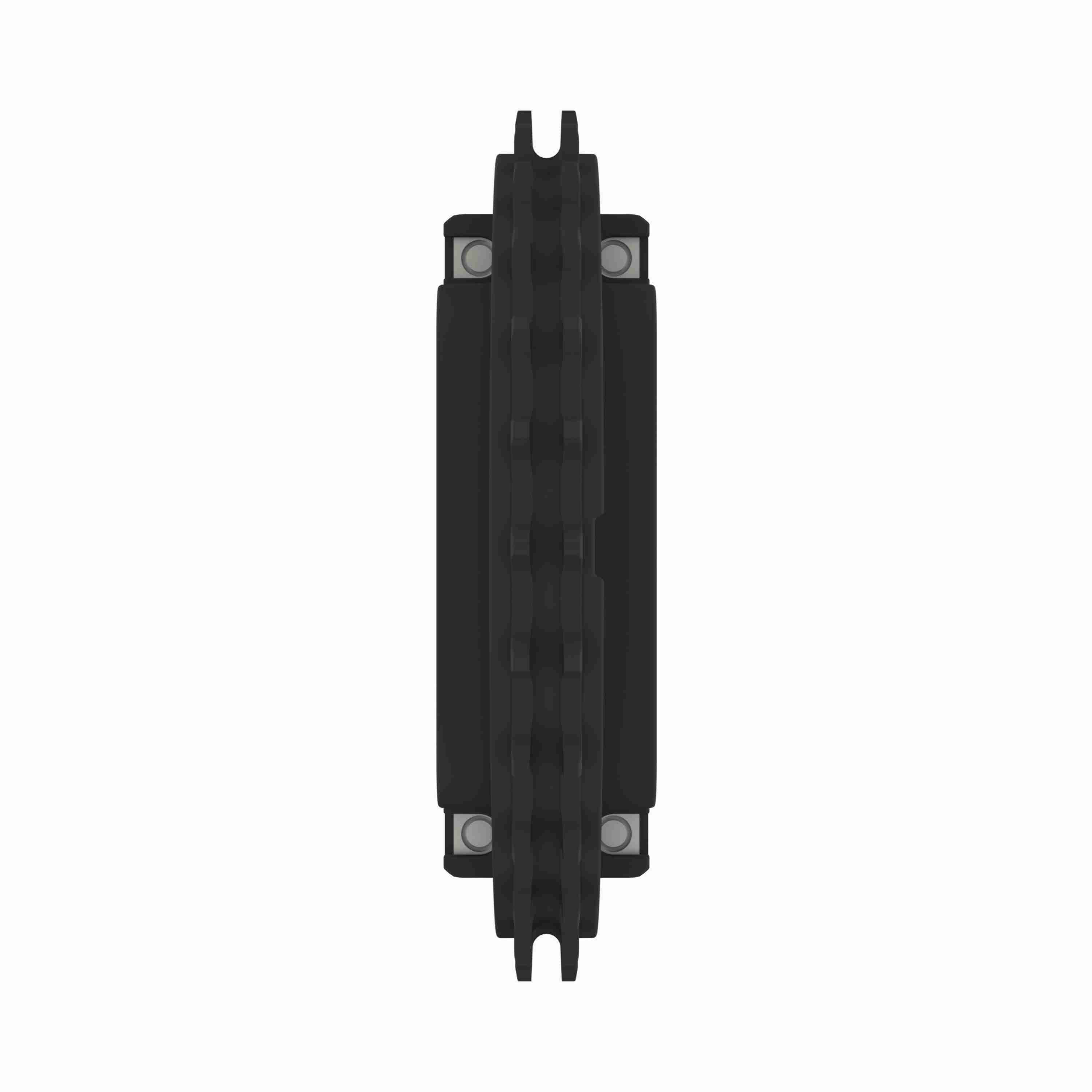

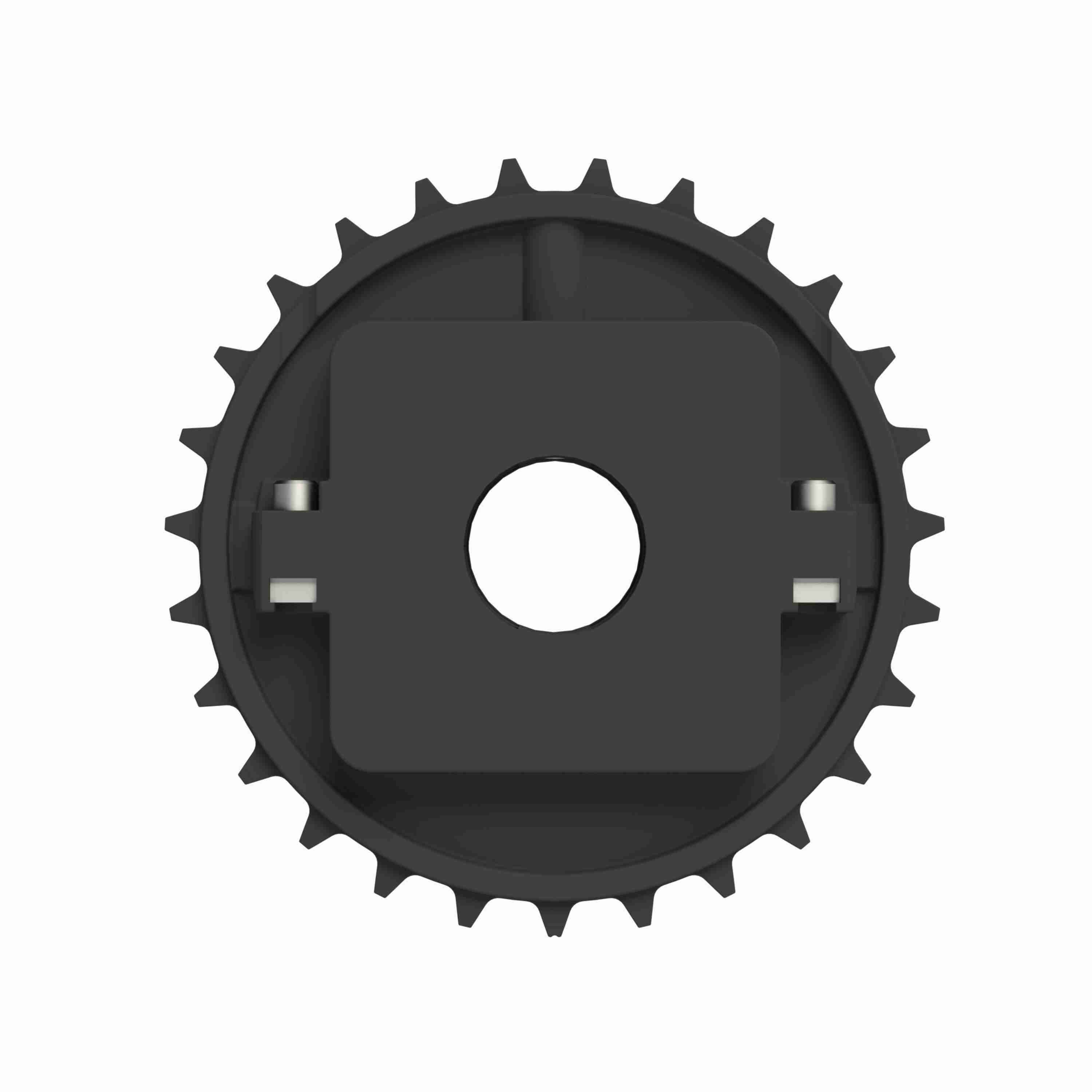

Rexnord 8500 Series Split Molded Nylon Sprocket with 27 Teeth and 1-1/4in Round Idler Bore - 614-196-7
Part #:10028717
Catalog #:614-196-7
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Pitch Diameter (in): | 6.46 | Material: | Nylon |
| Number of Keyways: | 0 | Product Group: | MatTop® |
| Chain Number: | 8500 | Pitch Diameter (mm): | 164.09 |
| Bore Type: | Idler | Number of Teeth: | 27 |
| Product Line: | Chain and Belt Sprockets | Sprocket Construction: | Molded Split Sprocket |
| Bore Shape: | Round | Number of Set Screws: | None |
| Body Style: | Block | Bore Diameter (in): | 1-1/4 in |
| Sprocket Series: | 8500 |
General Specifications
| UPC: | 793699409840 | Weight: | 1.18 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
