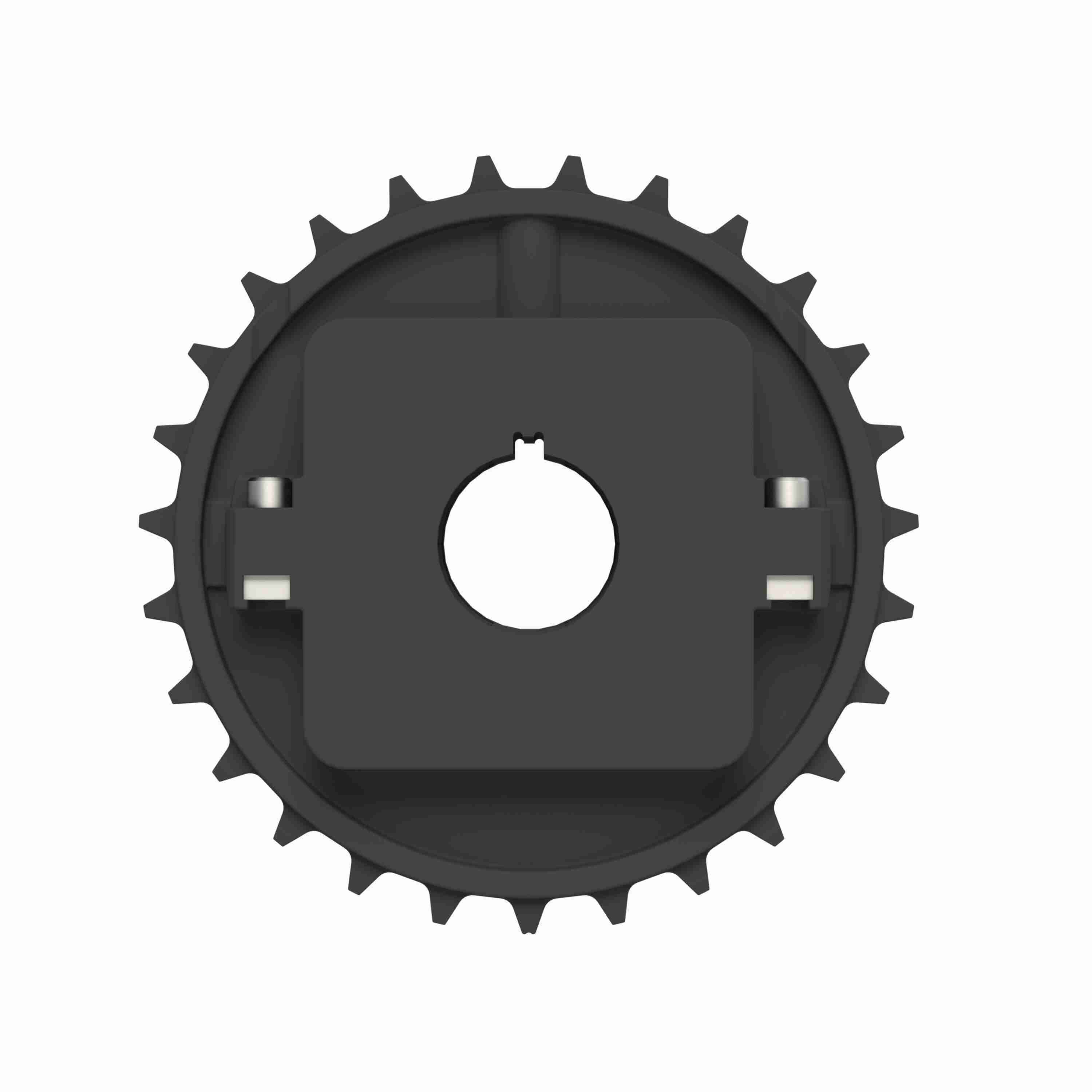

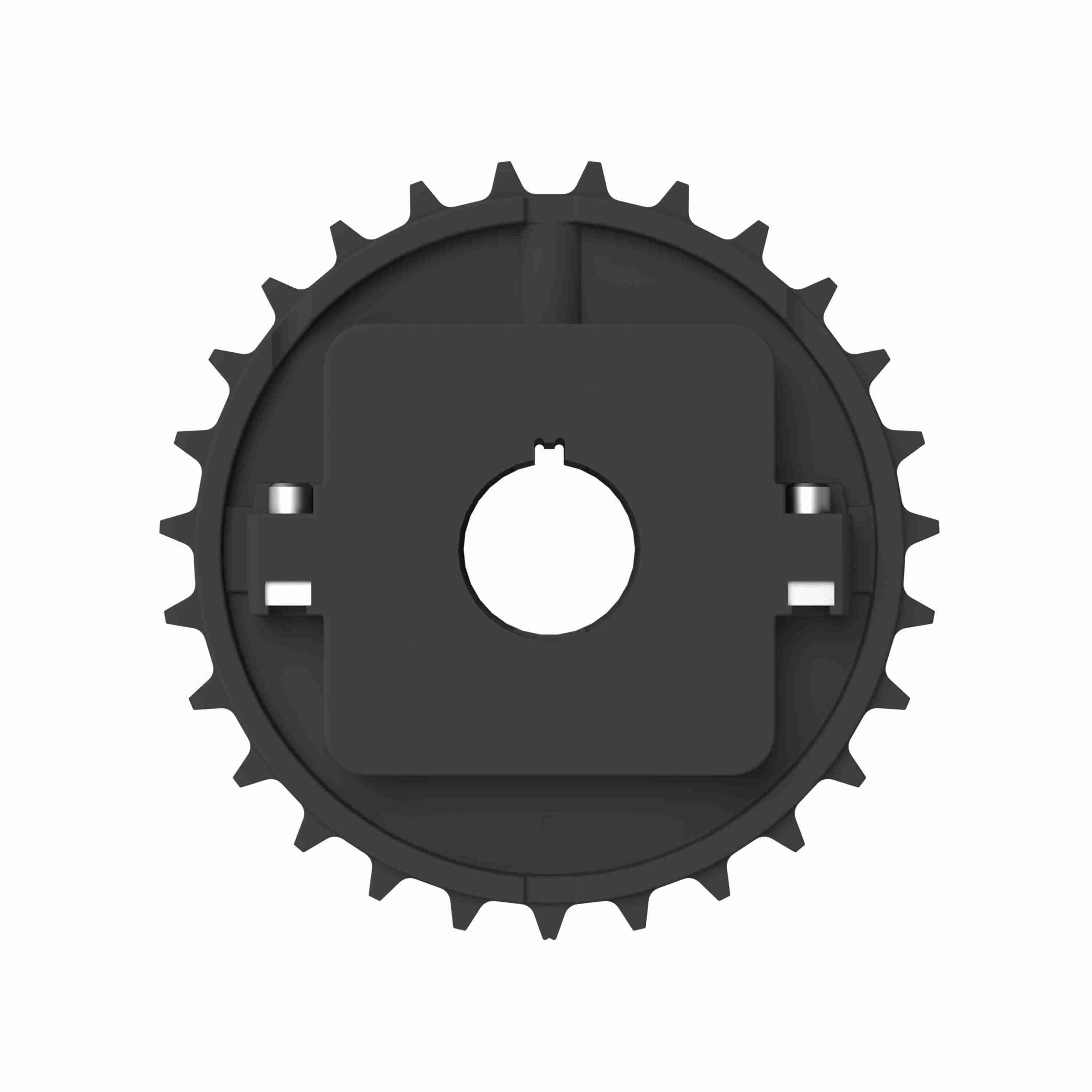

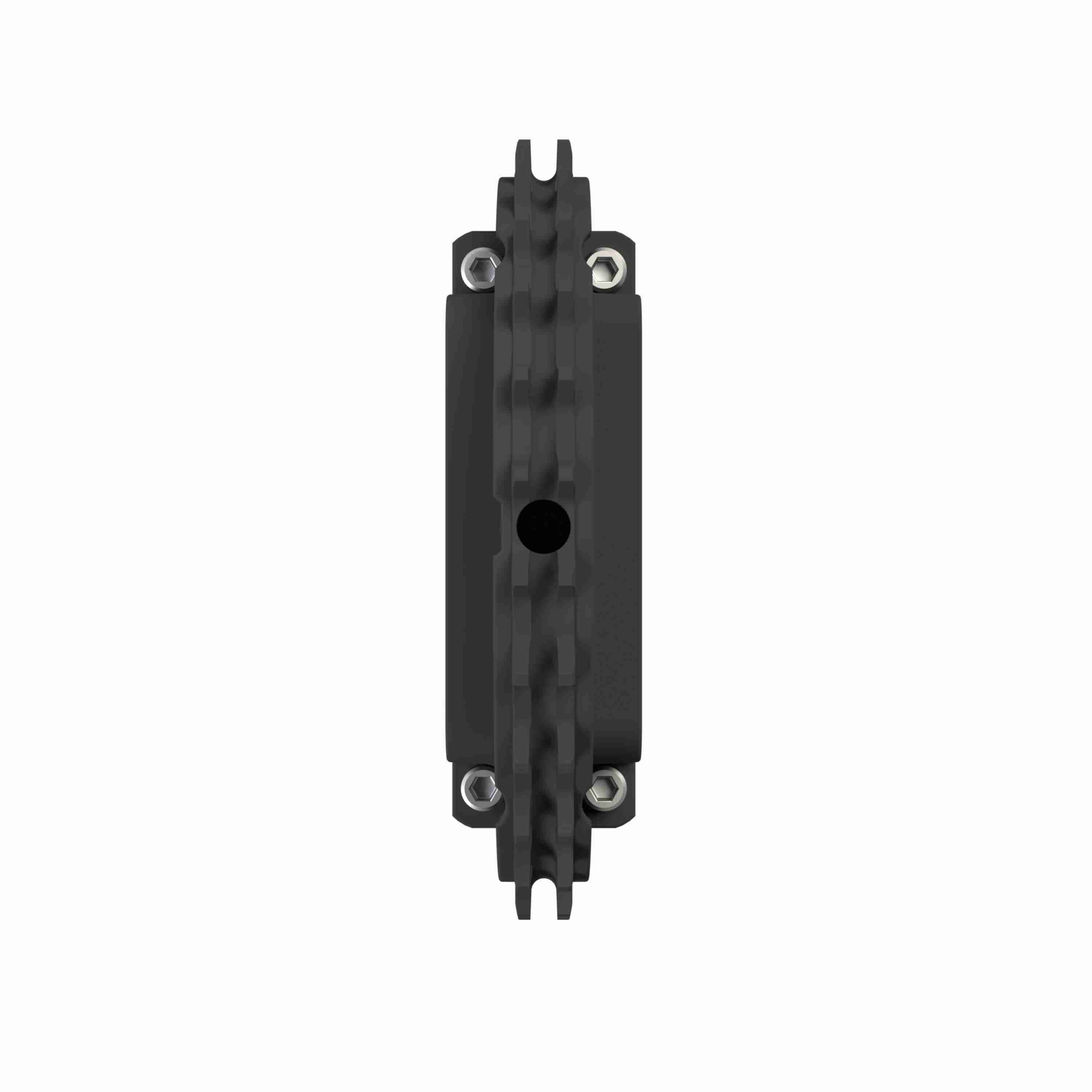

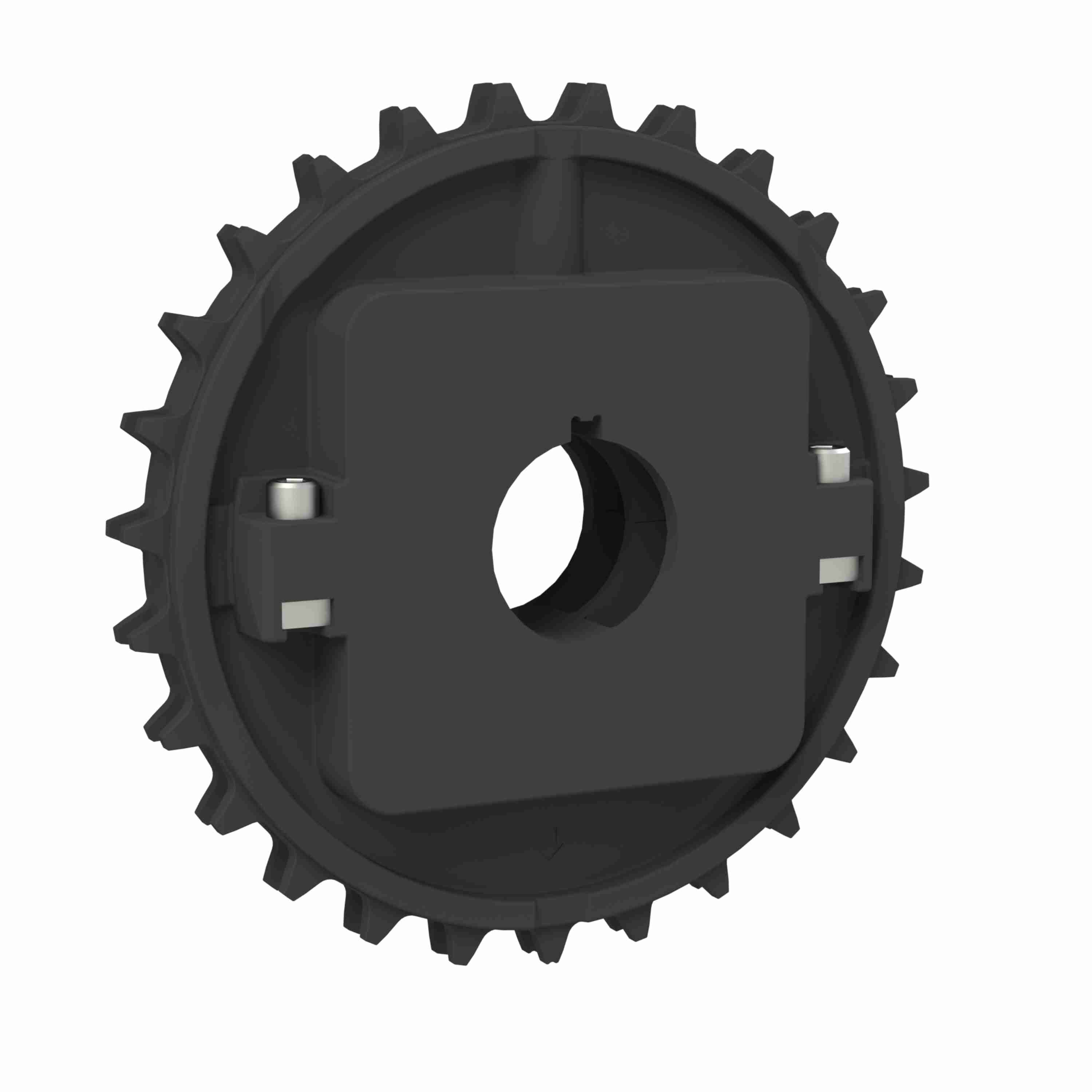

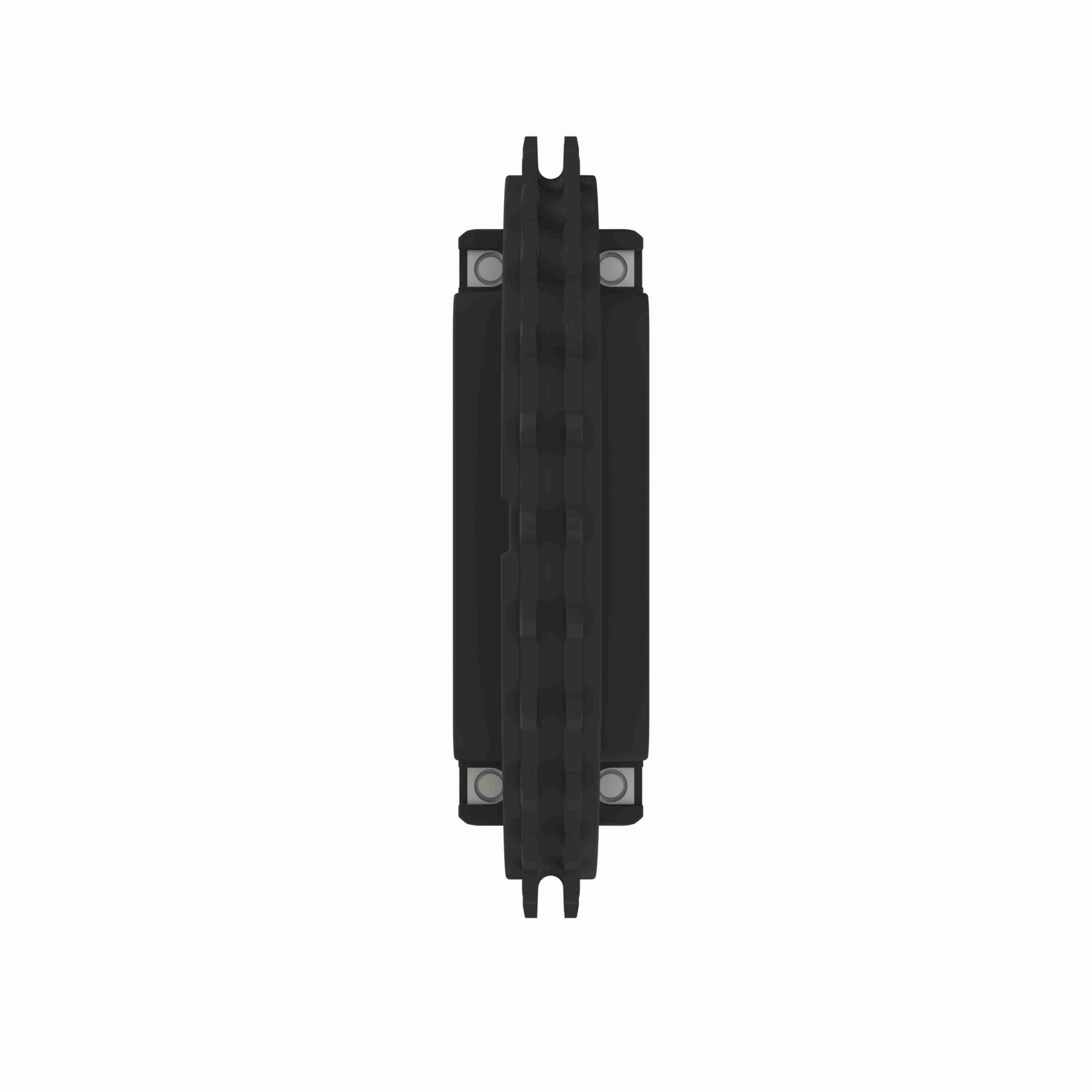

Rexnord 8500 Series Split Molded Nylon Sprocket with 27 Teeth and 40mm Round Shaft-Ready Bore with Keyway - 614-198-40
Part #:10332352
Catalog #:614-198-40
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Number of Teeth: | 27 | Sprocket Series: | 8500 |
| Material: | Nylon | Hub Type: | C-HUB |
| Pitch Diameter (in): | 6.46 | Bore Shape: | Round |
| Product Line: | Chain and Belt Sprockets | Body Style: | Block |
| Chain Number: | 8500 | Sprocket Construction: | Molded Split Sprocket |
| Bore Type: | Shaft-Ready | Number of Keyways: | 1 |
| Pitch Diameter (mm): | 164.09 | Product Group: | MatTop® |
| Number of Set Screws: | None | Bore Diameter (mm): | 40 mm |
General Specifications
| UPC: | 782934824067 | Weight: | 0.54 KG |
| HTC: | 8483901050 | Country of Origin: | Mexico |
