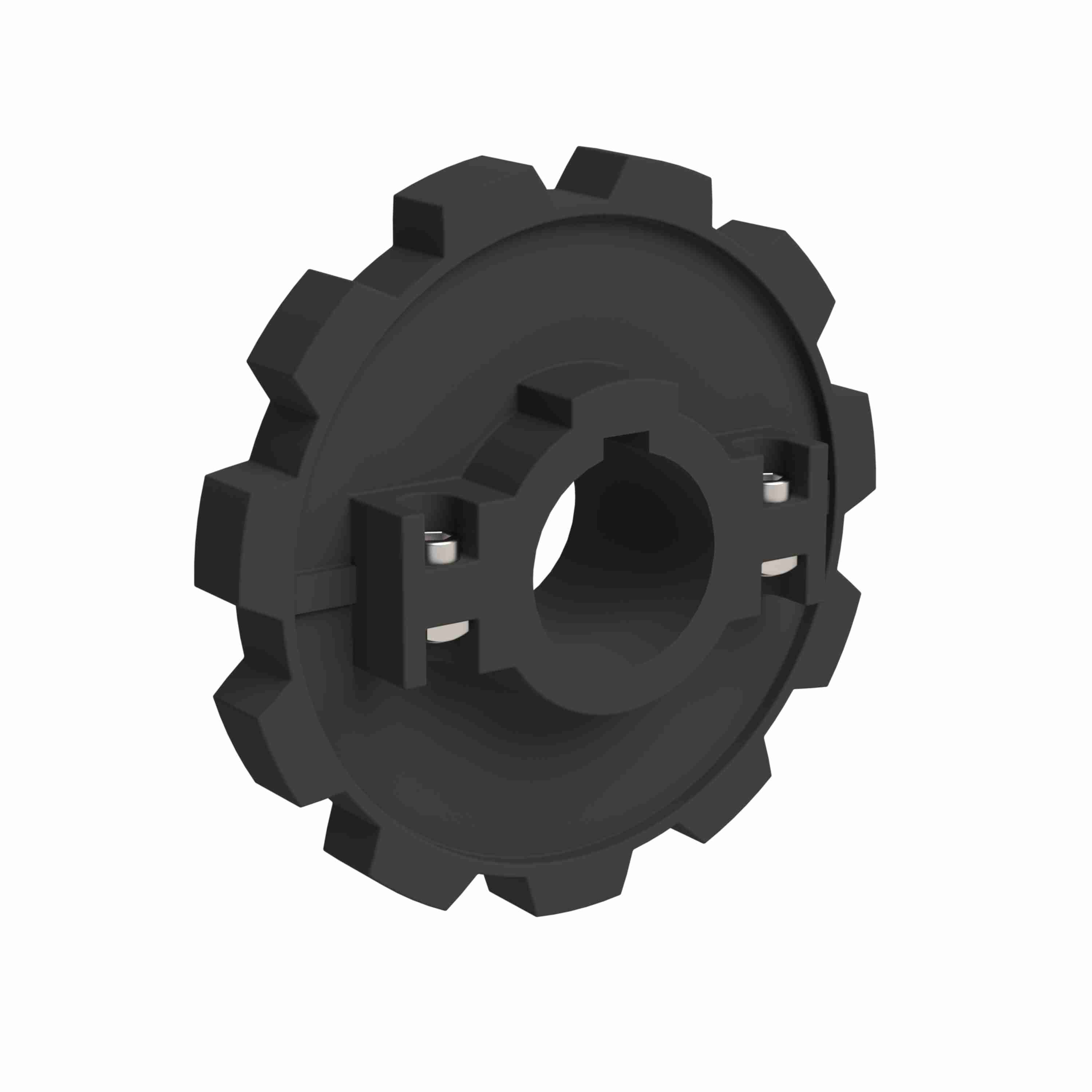

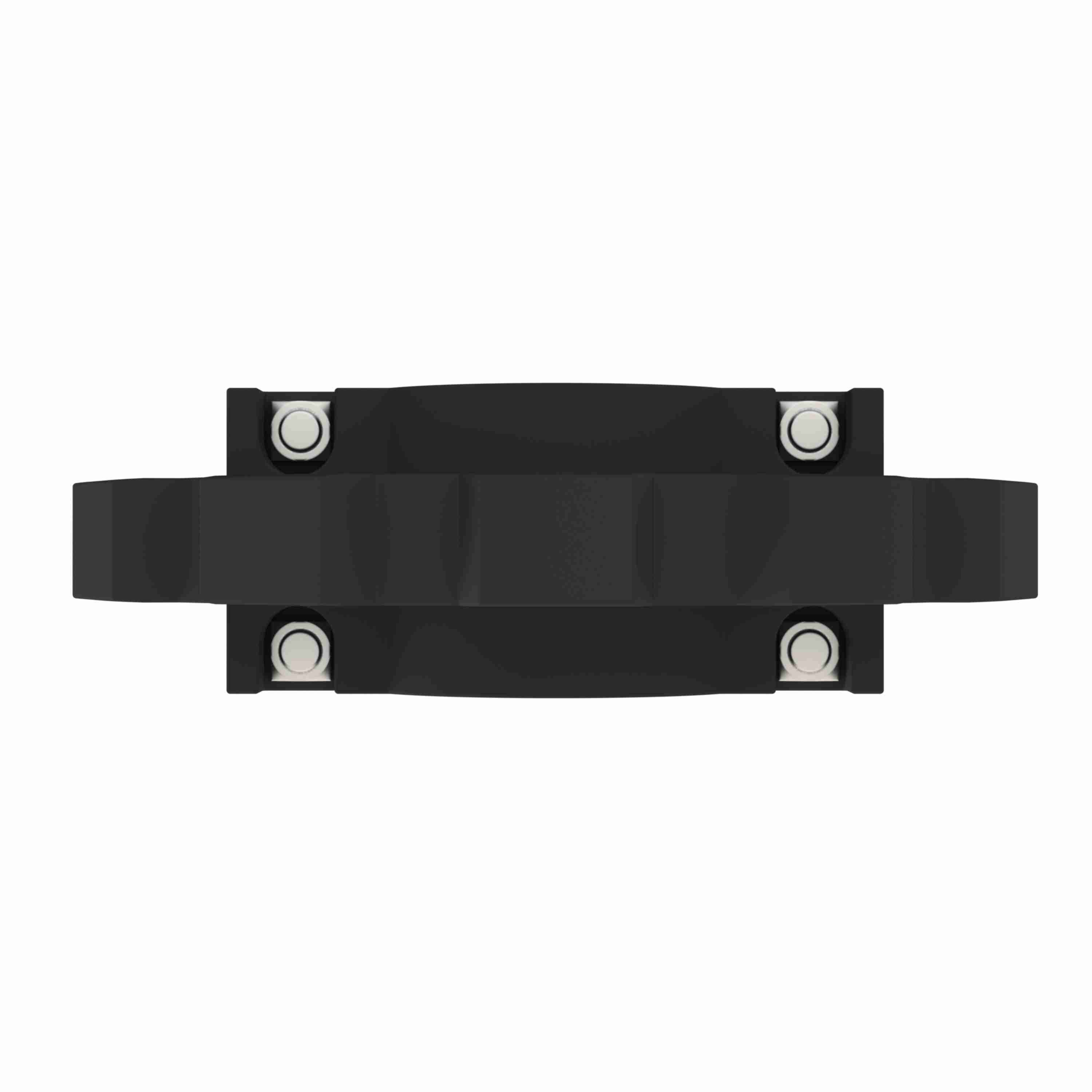

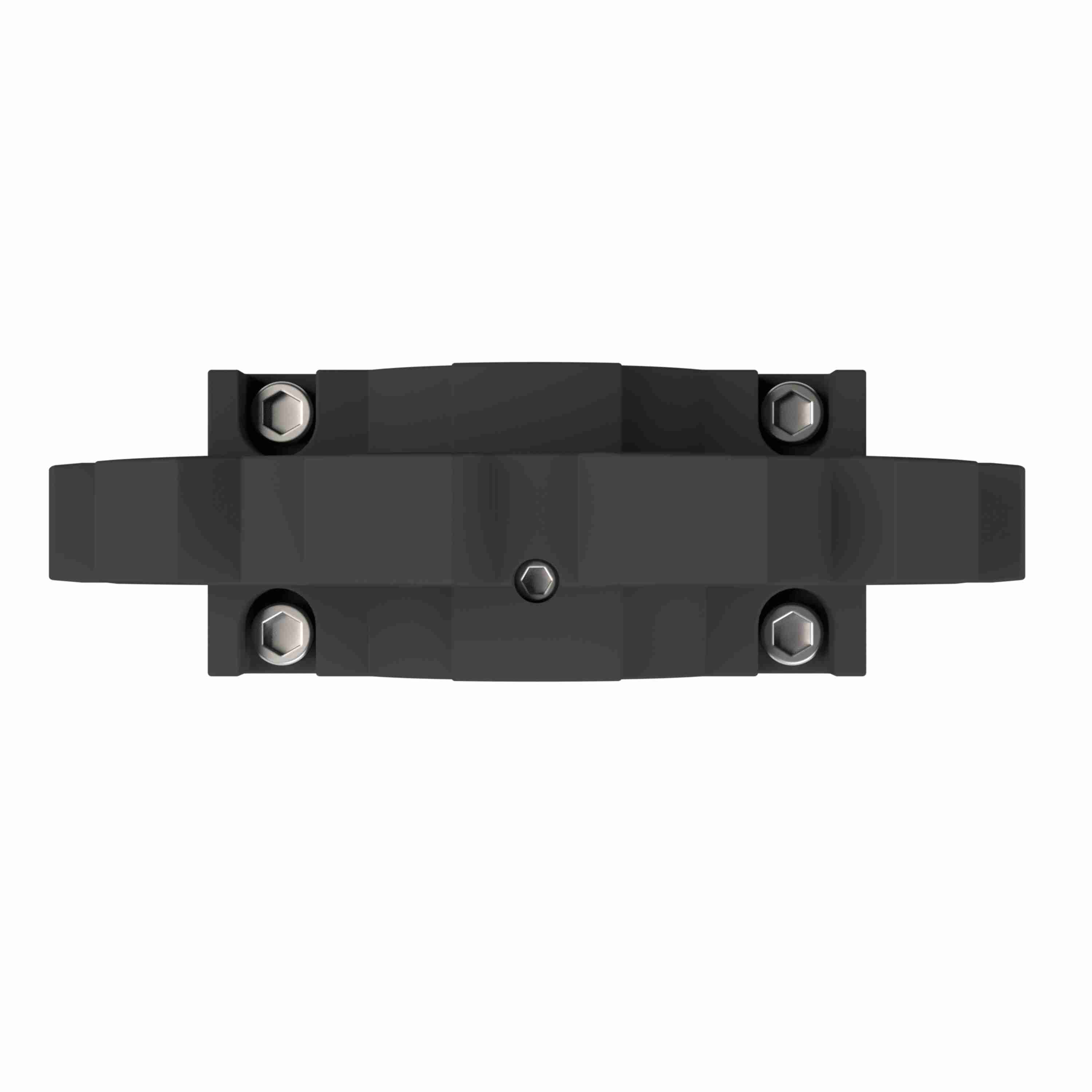

Rexnord 880 Series Split Molded Nylon Sprocket and a 11 Teeth with 1-1/4in Round Shaft-Ready Bore with Keyway & Setscrew - 614-101-3
Part #:10028724
Catalog #:614-101-3
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Number: | 880 | Number of Teeth: | 11 |
| Bore Type: | Shaft-Ready | Pitch Diameter (in): | 5.324 |
| Body Style: | Block | Pitch Diameter (mm): | 135.23 |
| Bore Shape: | Round | Product Group: | TableTop® |
| Number of Set Screws: | 1 Setscrew | Material: | Nylon |
| Product Line: | Chain and Belt Sprockets | Sprocket Construction: | Molded Split Sprocket |
| Bore Diameter (in): | 1-1/4 in | Number of Keyways: | 1 |
| Sprocket Series: | 880 |
General Specifications
| UPC: | 698210122089 | Weight: | 0.66 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
