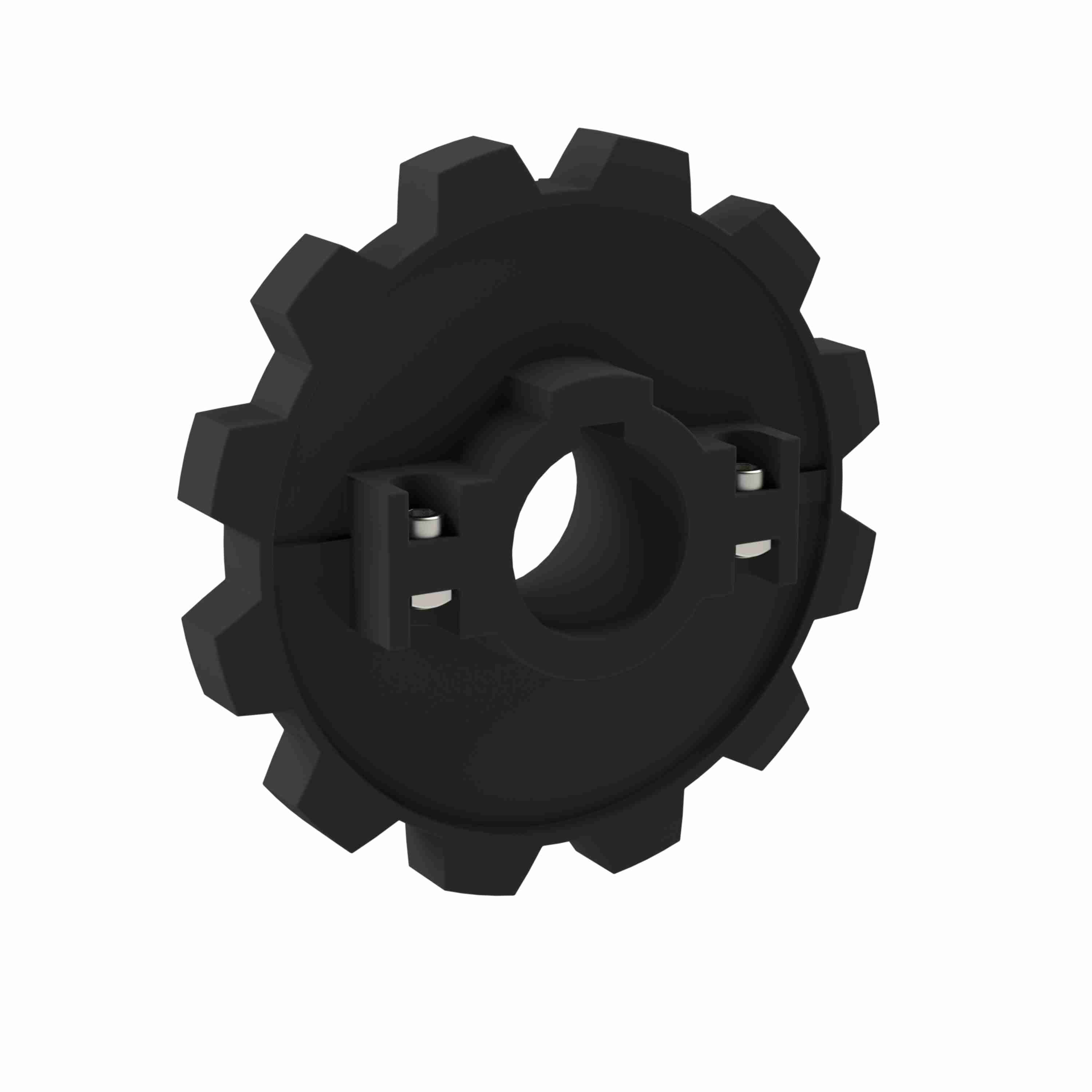

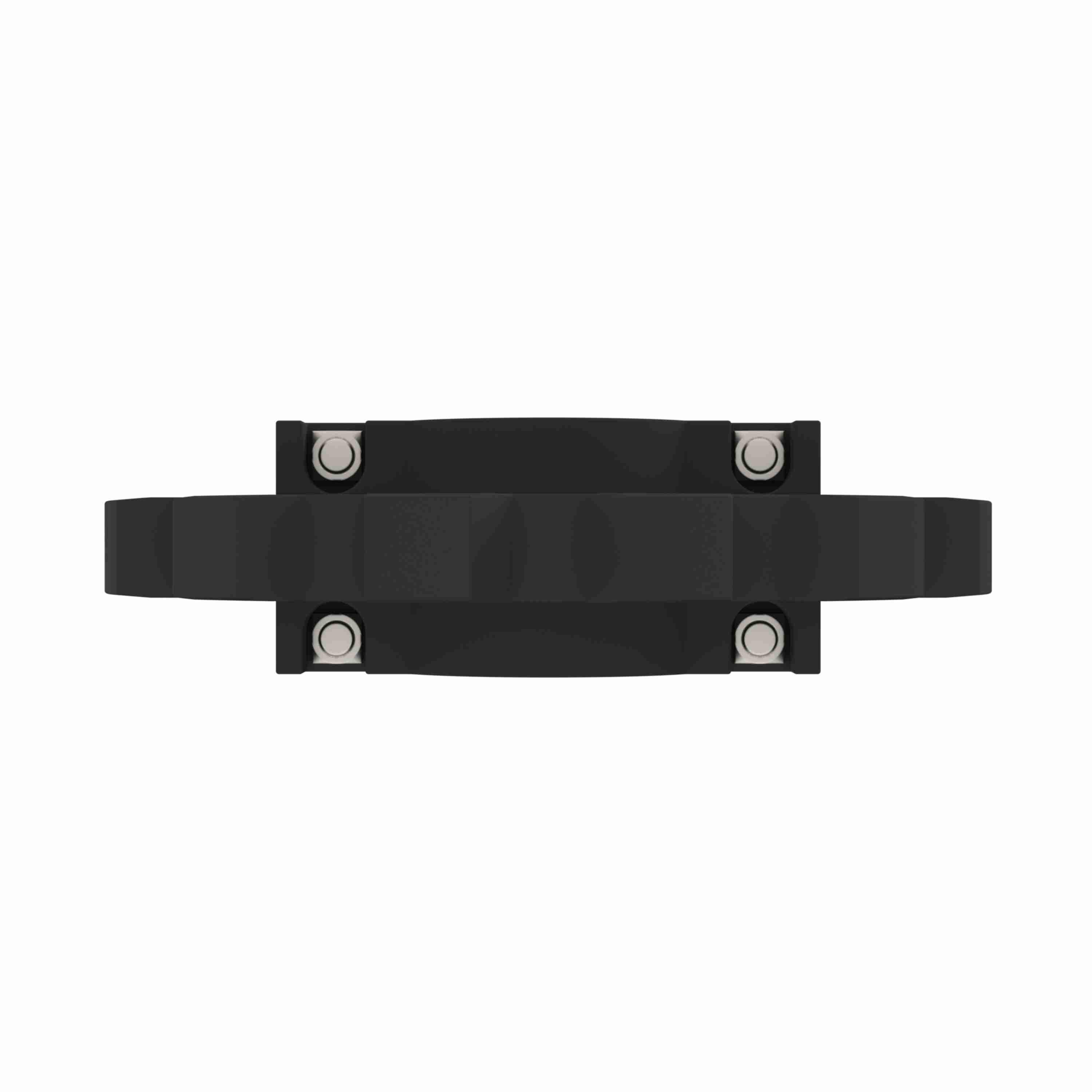

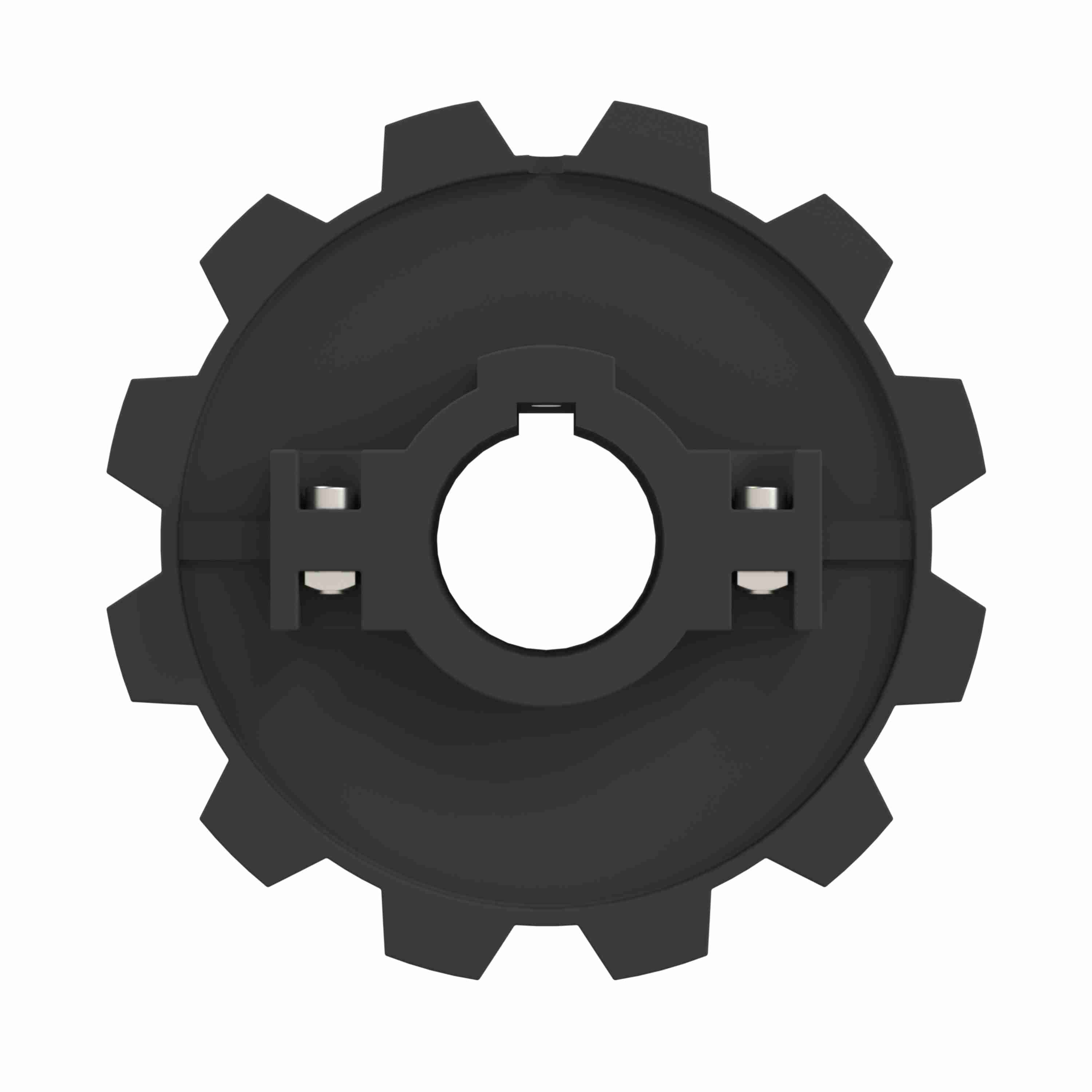

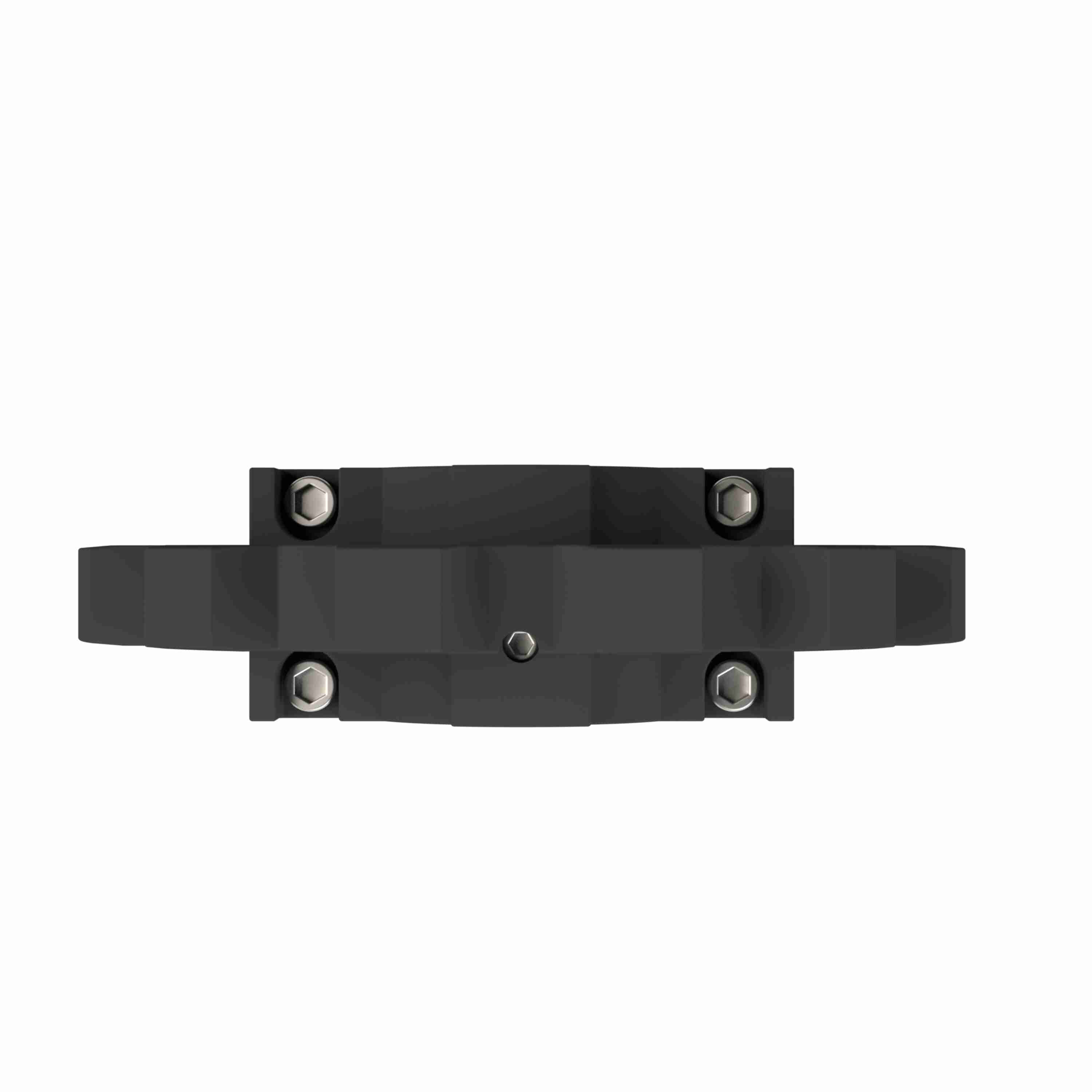

Rexnord 880 Series Split Molded Nylon Sprocket and a 12 Teeth with 1-1/4in Round Shaft-Ready Bore with Keyway & Setscrew - 614-34-3
Part #:10028729
Catalog #:614-34-3
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Product Line: | Chain and Belt Sprockets | Number of Teeth: | 12 |
| Body Style: | Block | Bore Diameter (in): | 1-1/4 in |
| Pitch Diameter (mm): | 147.21 | Number of Set Screws: | 1 Setscrew |
| Sprocket Series: | 880 | Sprocket Construction: | Molded Split Sprocket |
| Bore Type: | Shaft-Ready | Material: | Nylon |
| Pitch Diameter (in): | 5.796 | Chain Number: | 880 |
| Bore Shape: | Round | Number of Keyways: | 1 |
| Product Group: | TableTop® |
General Specifications
| UPC: | 698210857066 | Weight: | 0.80 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
