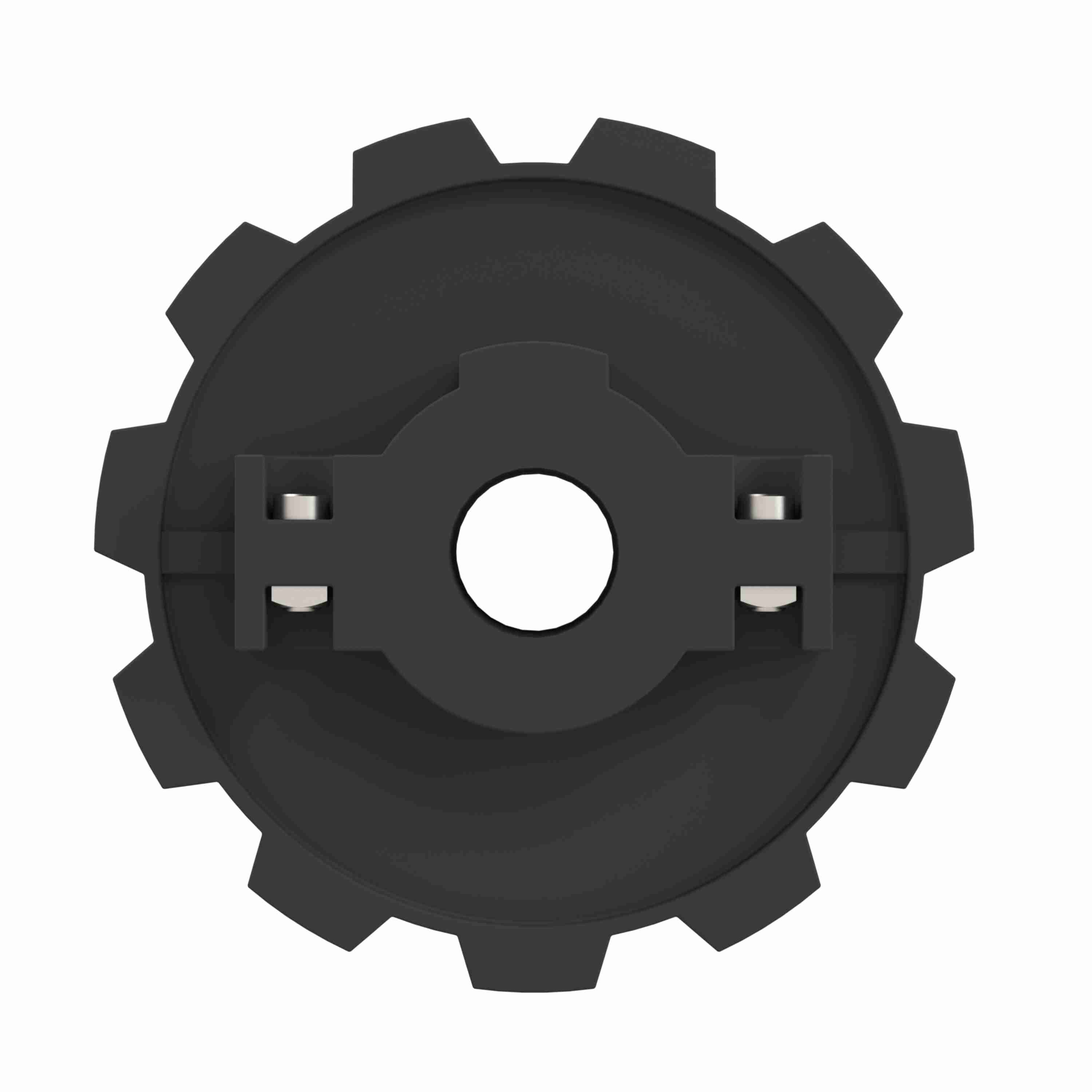

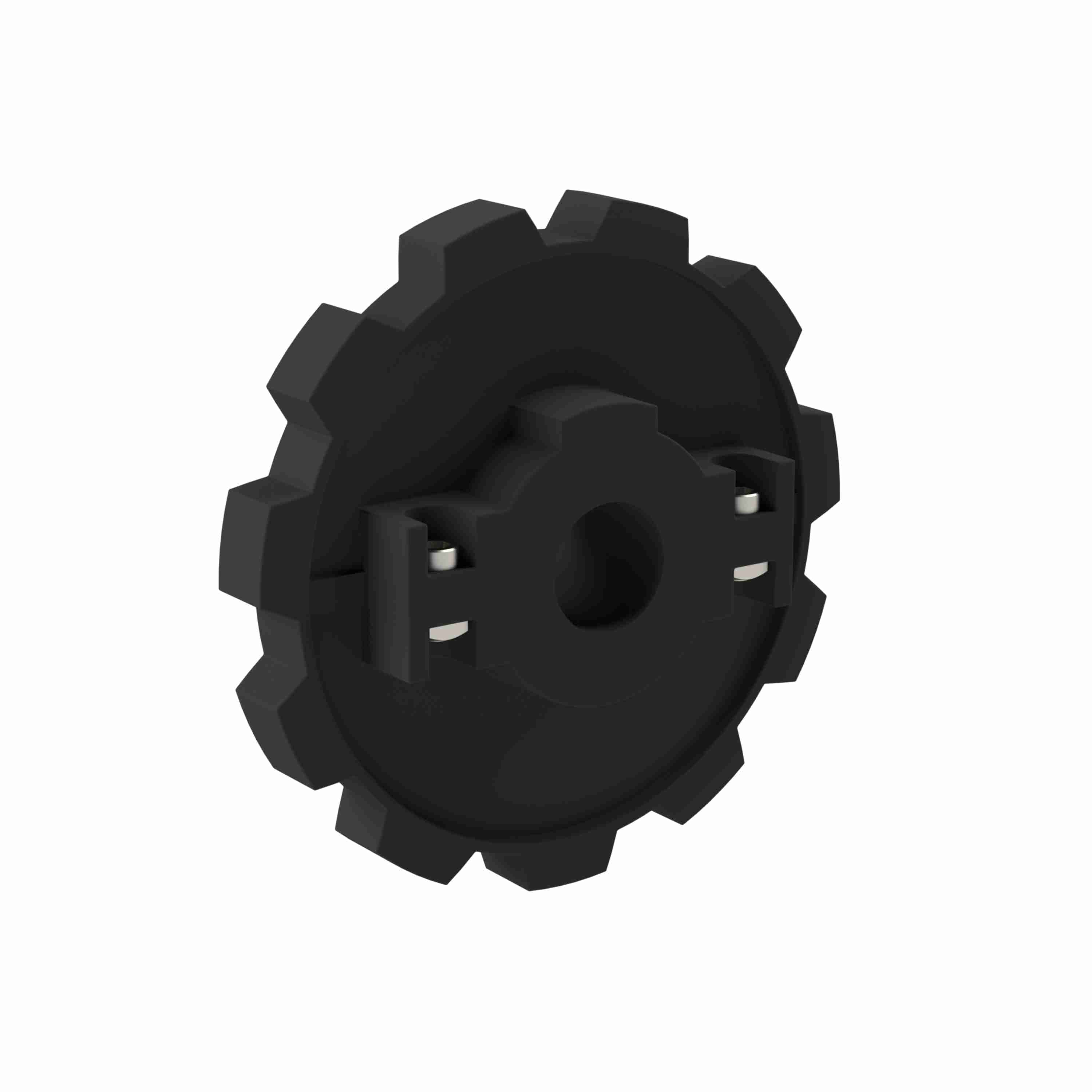

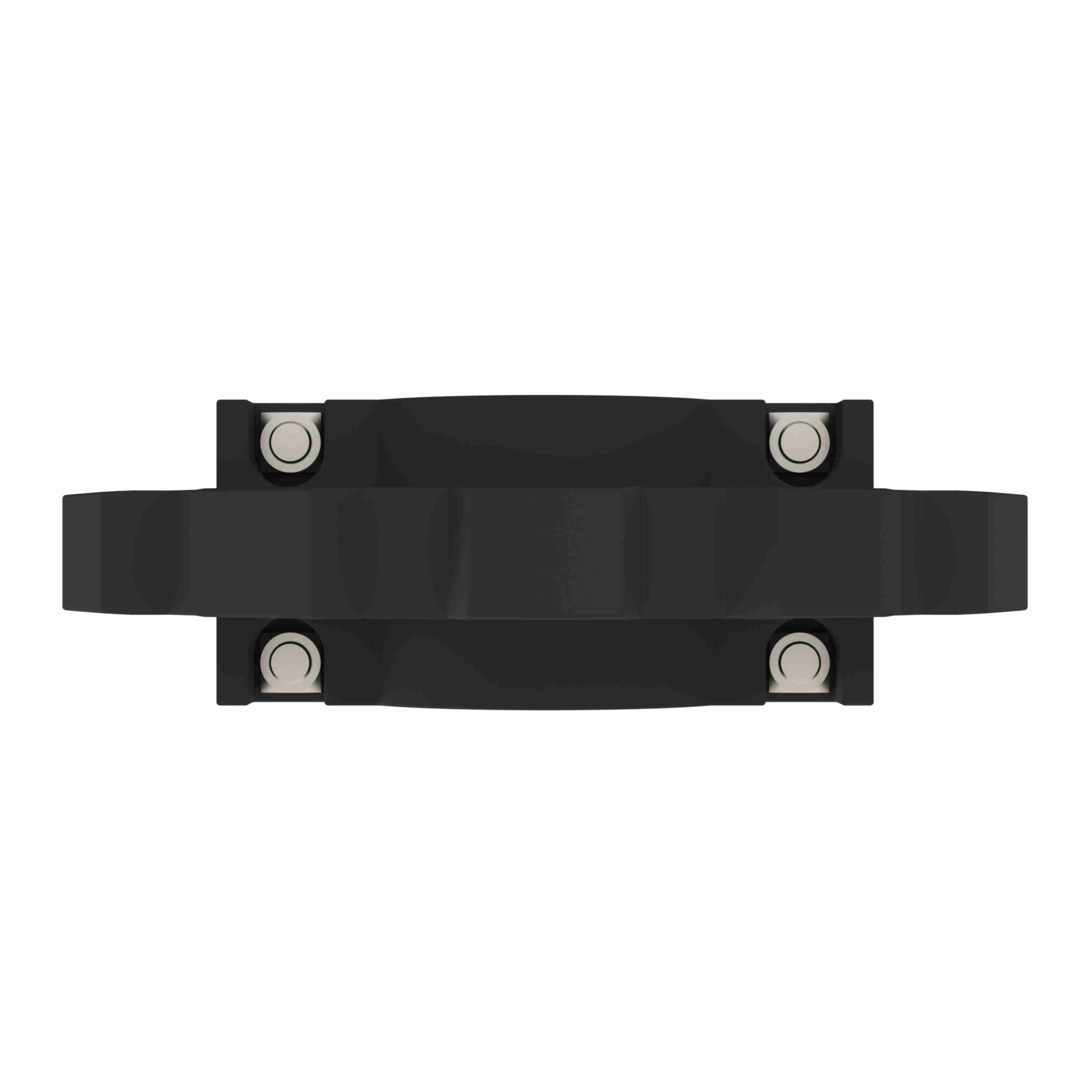

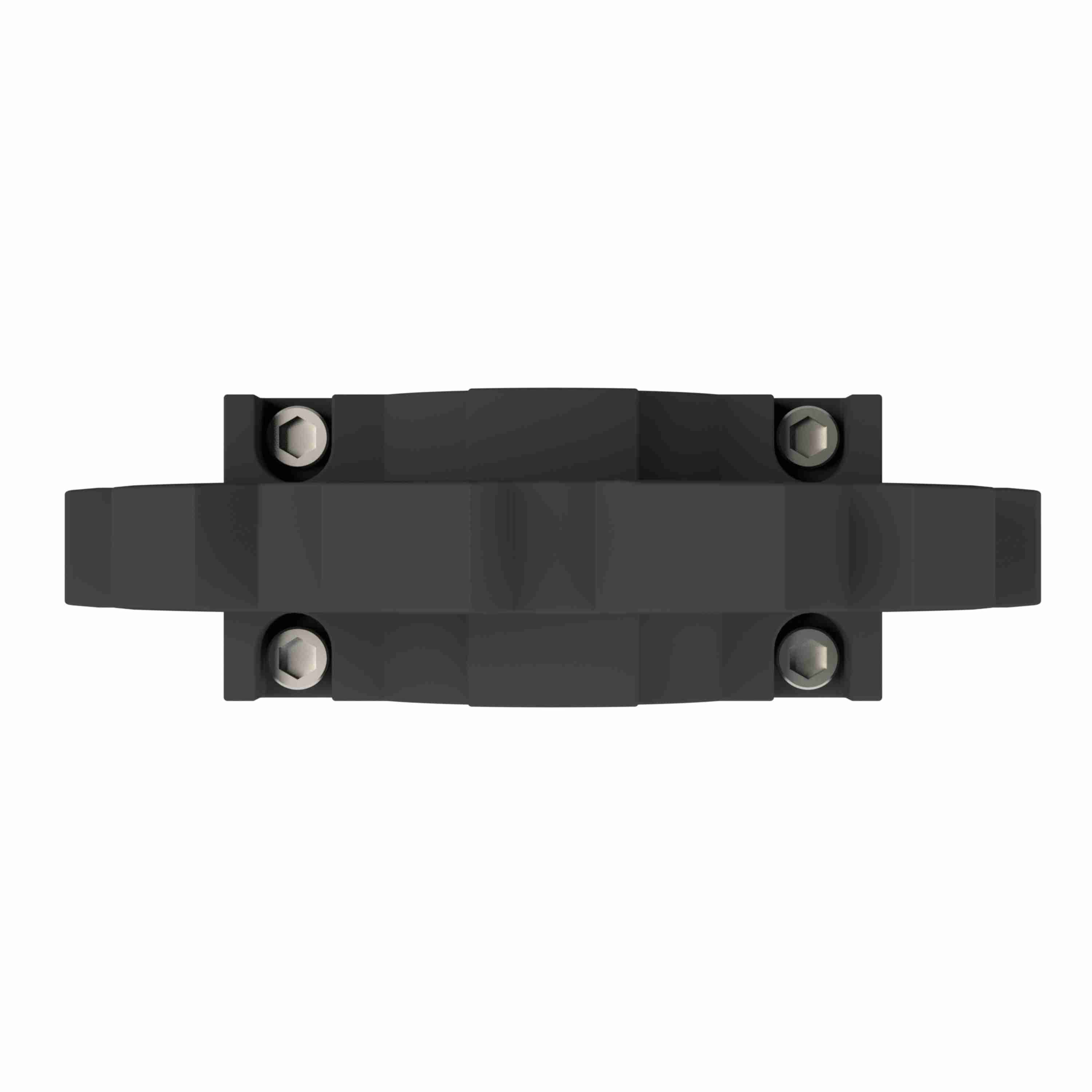

Rexnord 880 Series Split Molded Nylon Sprocket with 11 Teeth and 1in Round Idler Bore - 614-101-7
Part #:10028721
Catalog #:614-101-7
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Sprocket Construction: | Molded Split Sprocket | Number of Set Screws: | None |
| Pitch Diameter (in): | 5.324 | Bore Shape: | Round |
| Bore Diameter (in): | 1 in | Sprocket Series: | 880 |
| Chain Number: | 880 | Pitch Diameter (mm): | 135.23 |
| Body Style: | Block | Number of Keyways: | 0 |
| Product Group: | TableTop® | Hub Type: | C-HUB |
| Bore Type: | Idler | Material: | Nylon |
| Product Line: | Chain and Belt Sprockets | Number of Teeth: | 11 |
General Specifications
| UPC: | 793699406283 | Weight: | 0.66 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
