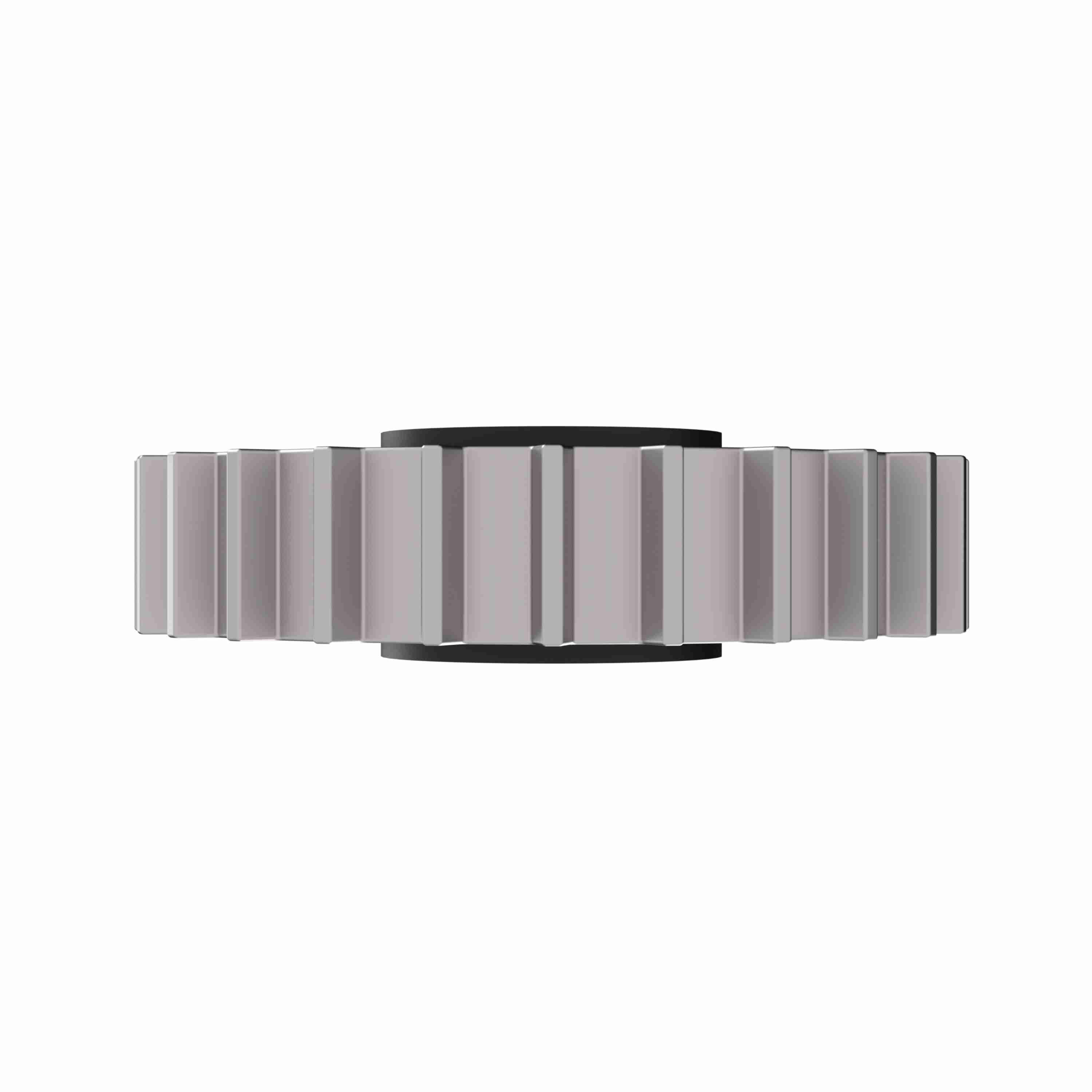

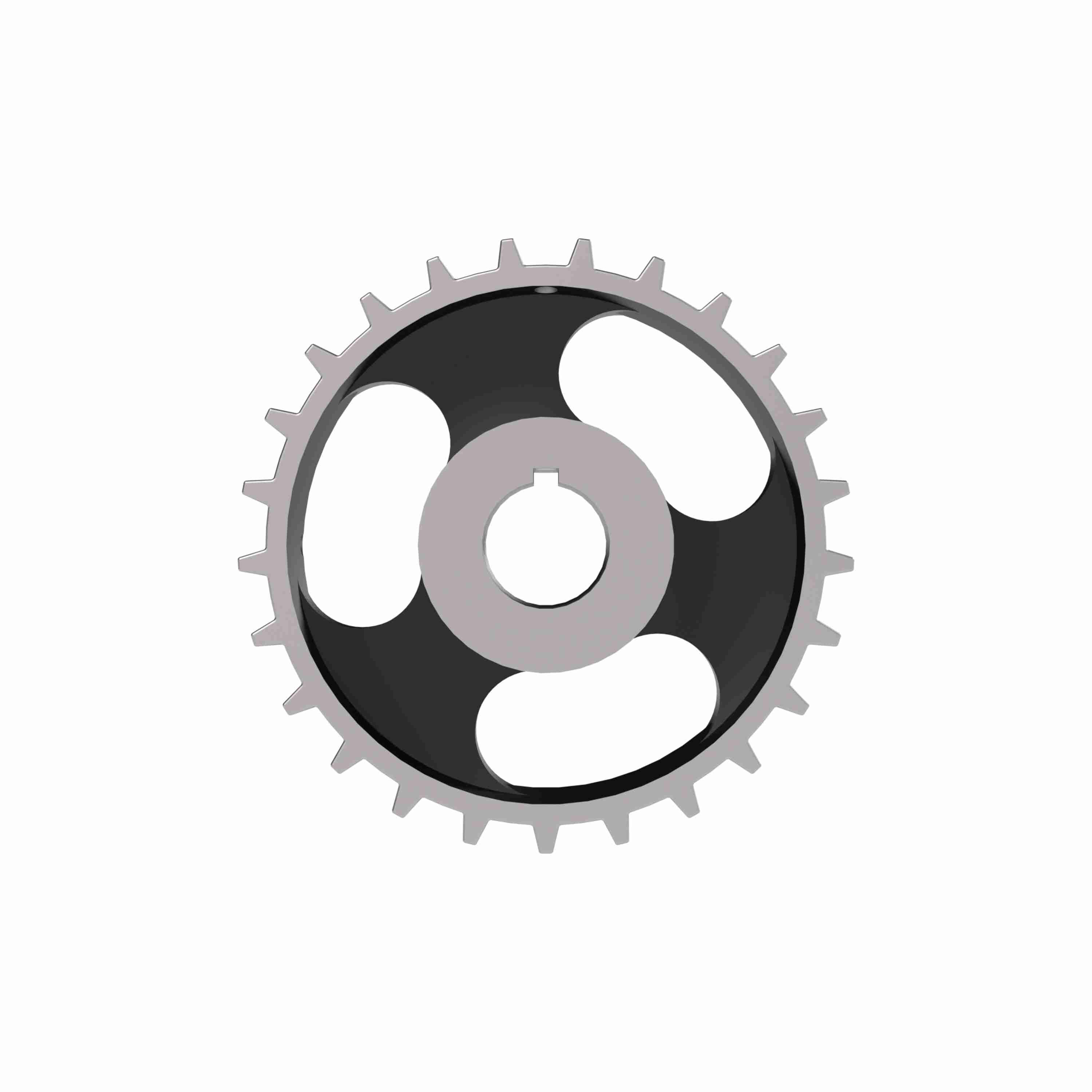

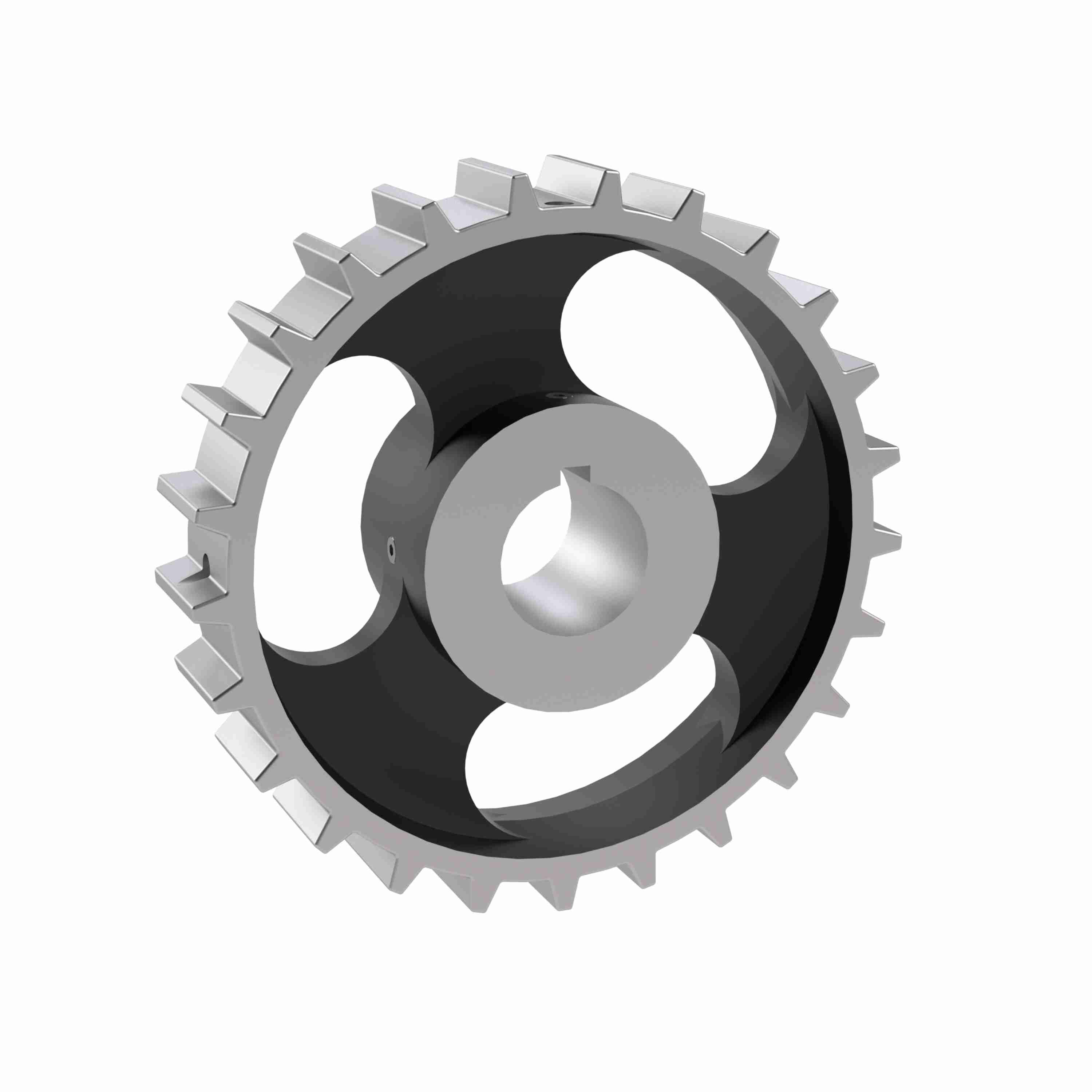

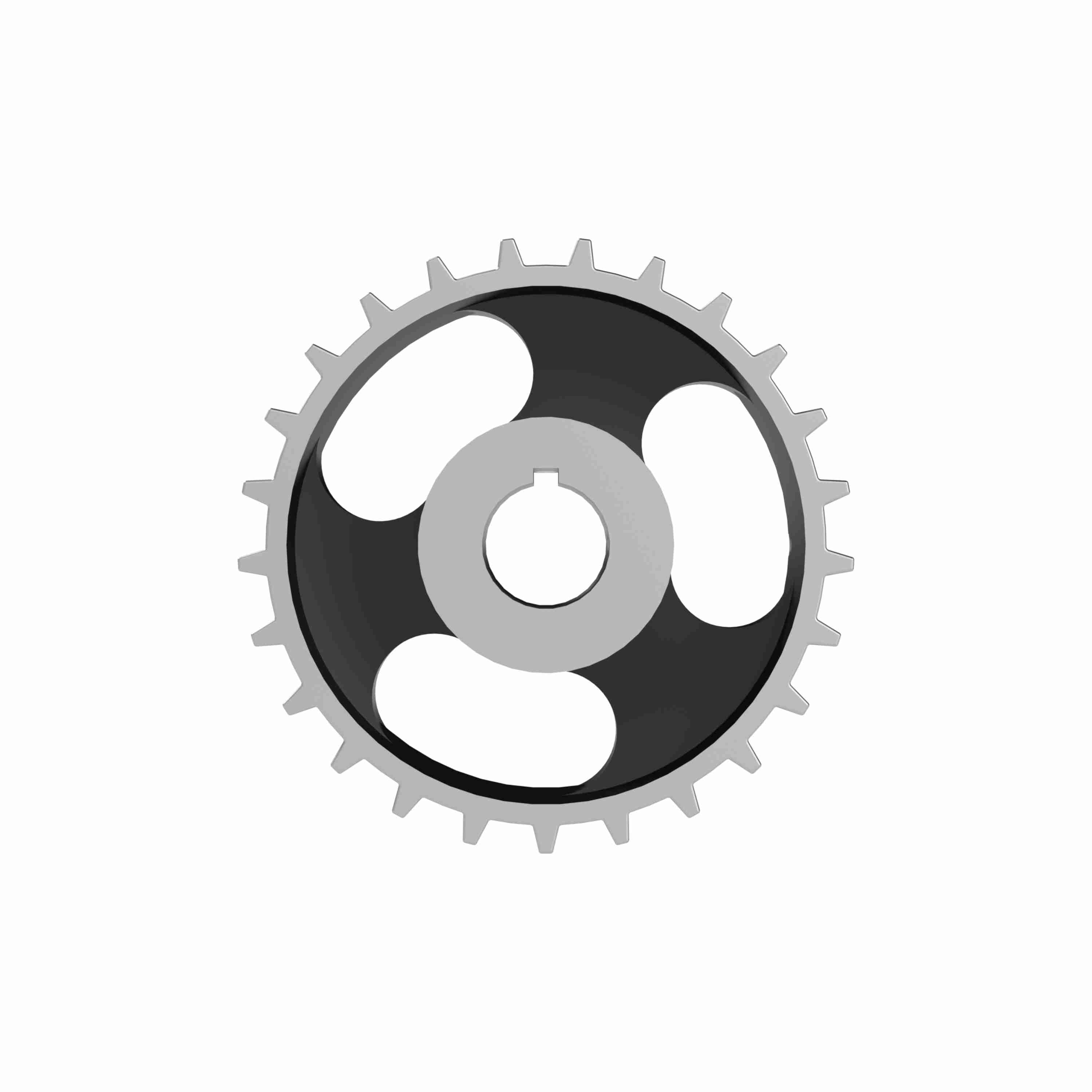

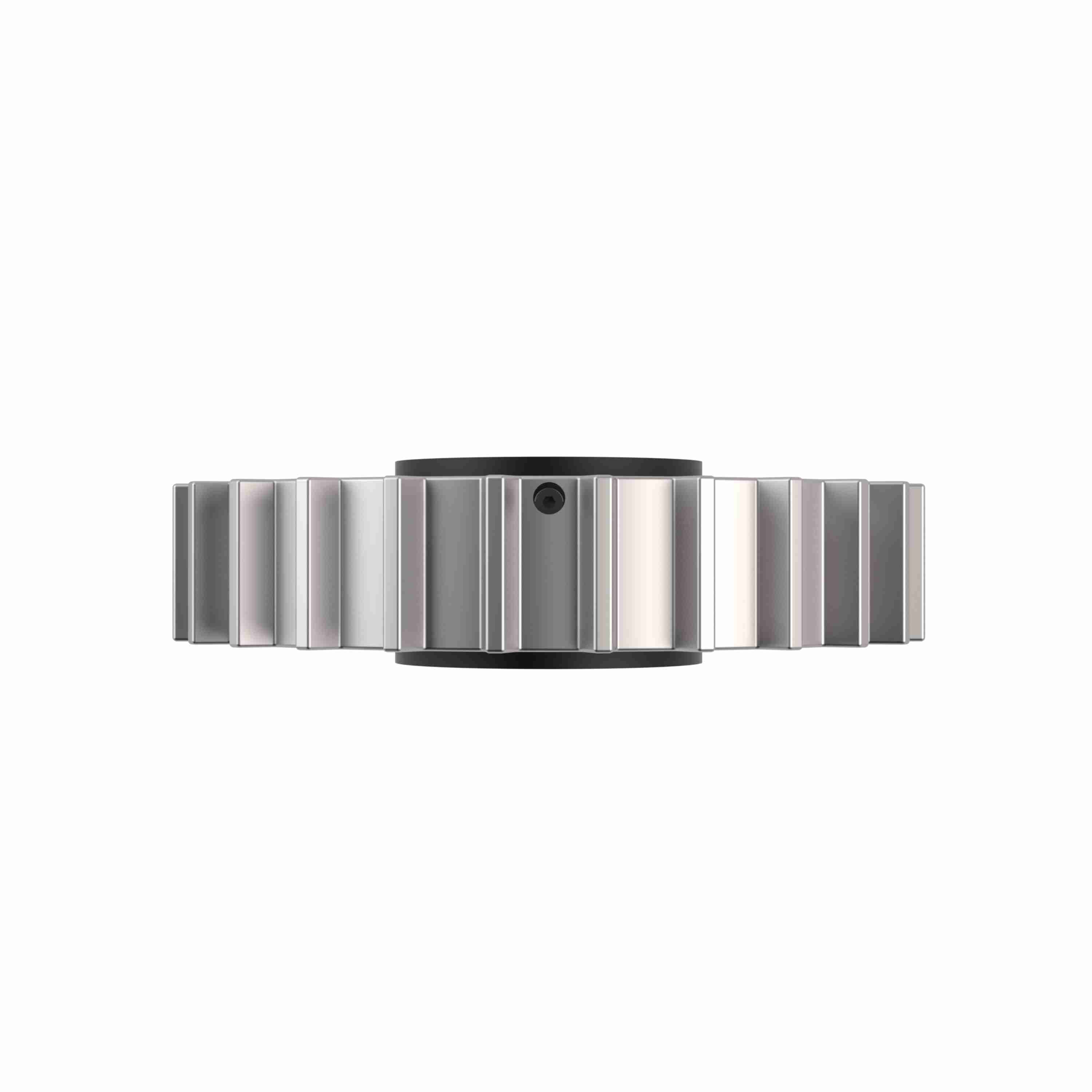

Rexnord 881 Series Solid One Piece Cast Iron Sprocket with 25 Teeth and a 1-3/16in Round Shaft-Ready Bore with Keyway & Setscrew - 401-288-18
Part #:10028860
Catalog #:401-288-18
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Hub Type: | A-No Hub | Number of Teeth: | 25 |
| Body Style: | Arm | Material: | Cast Iron |
| Sprocket Series: | 881 | Pitch Diameter (in): | 5.984 |
| Pitch Diameter (mm): | 151.99 | Bore Type: | Shaft-Ready |
| Bore Diameter (in): | 1-3/16 in | Chain Number: | 881 |
| Number of Keyways: | 1 | Product Group: | TableTop® |
| Number of Set Screws: | 1 Setscrew | Sprocket Construction: | Cast-Iron Non-Split Sprocket |
| Product Line: | Chain and Belt Sprockets | Bore Shape: | Round |
General Specifications
| UPC: | 662864686013 | Weight: | 5.00 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | United States of America |
