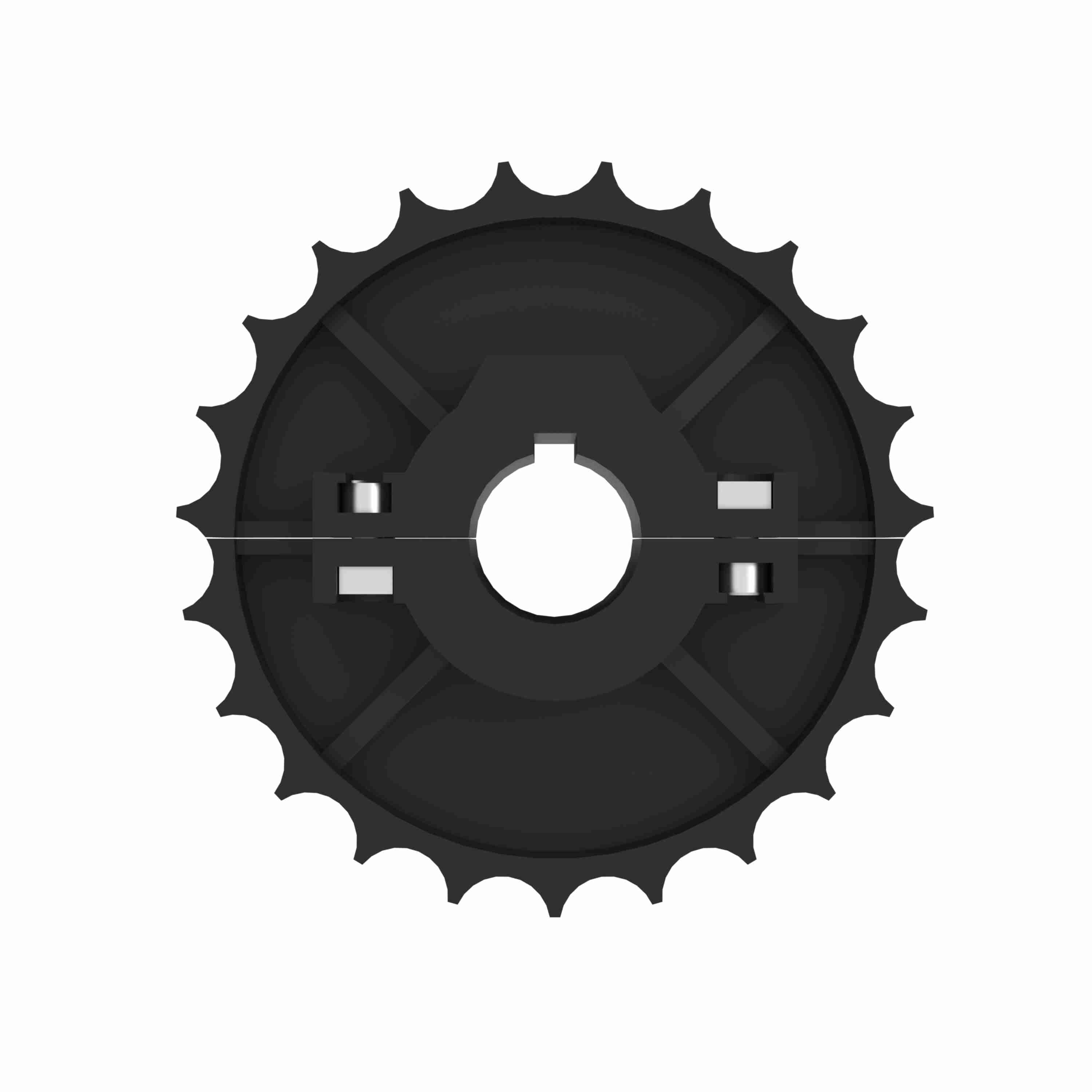

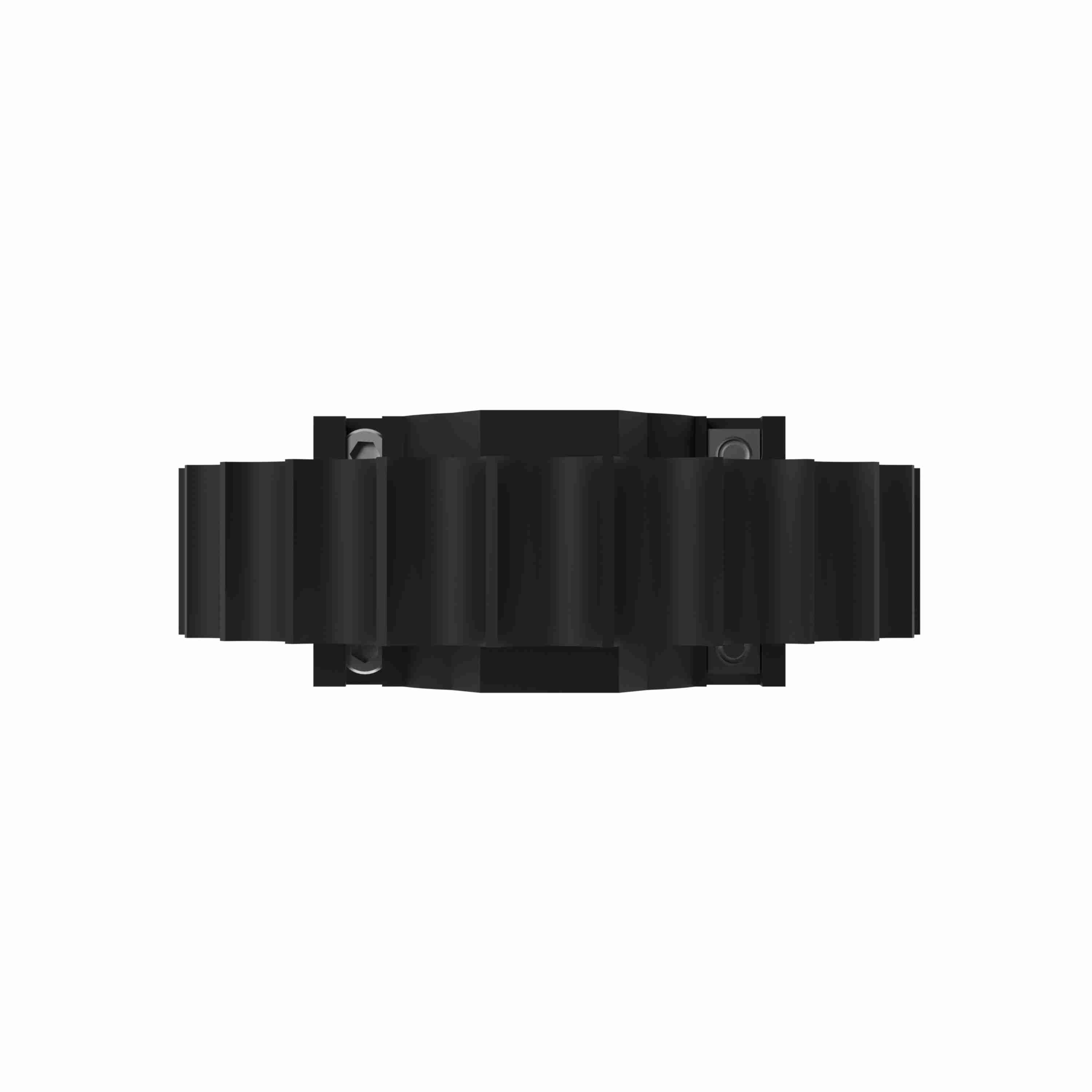

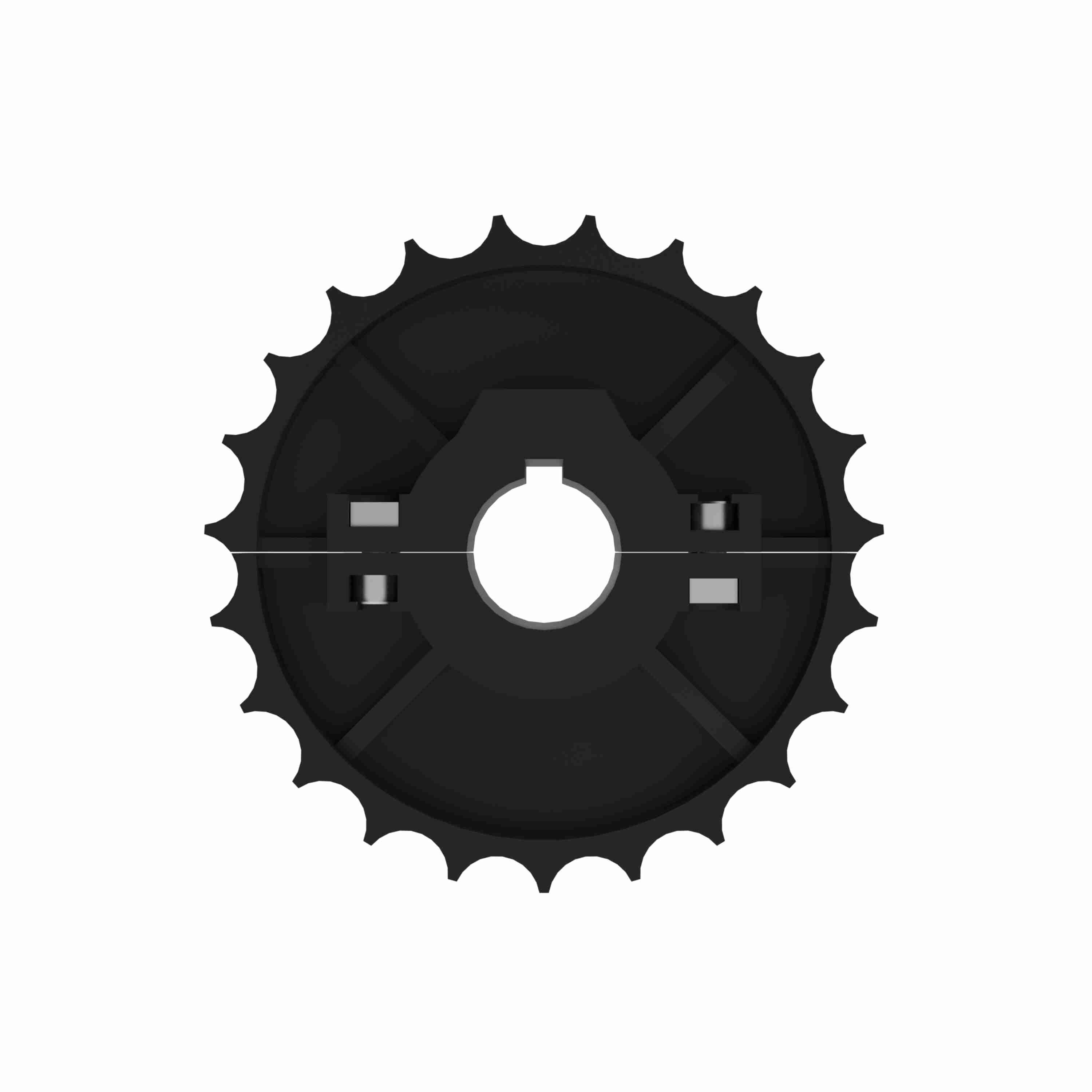

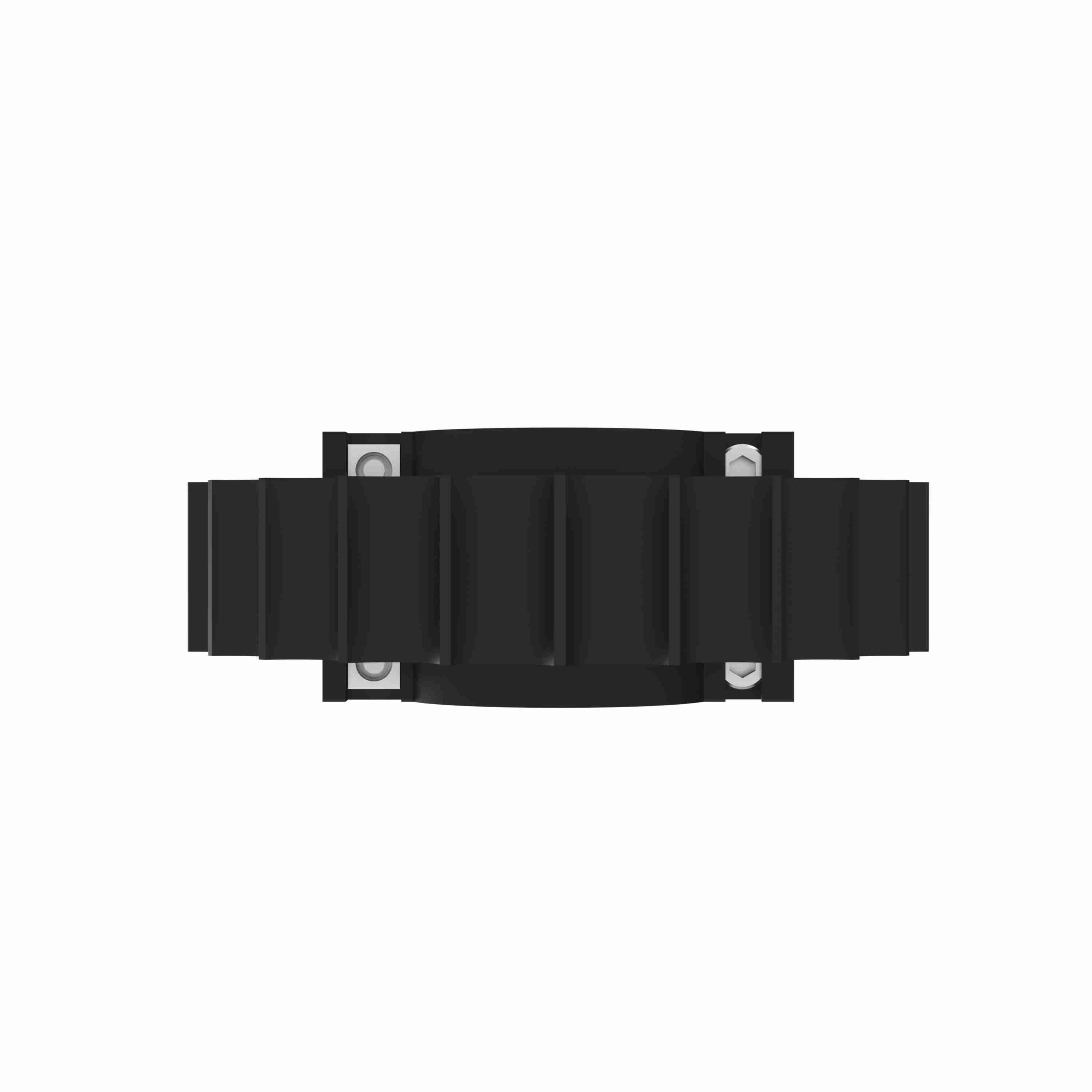

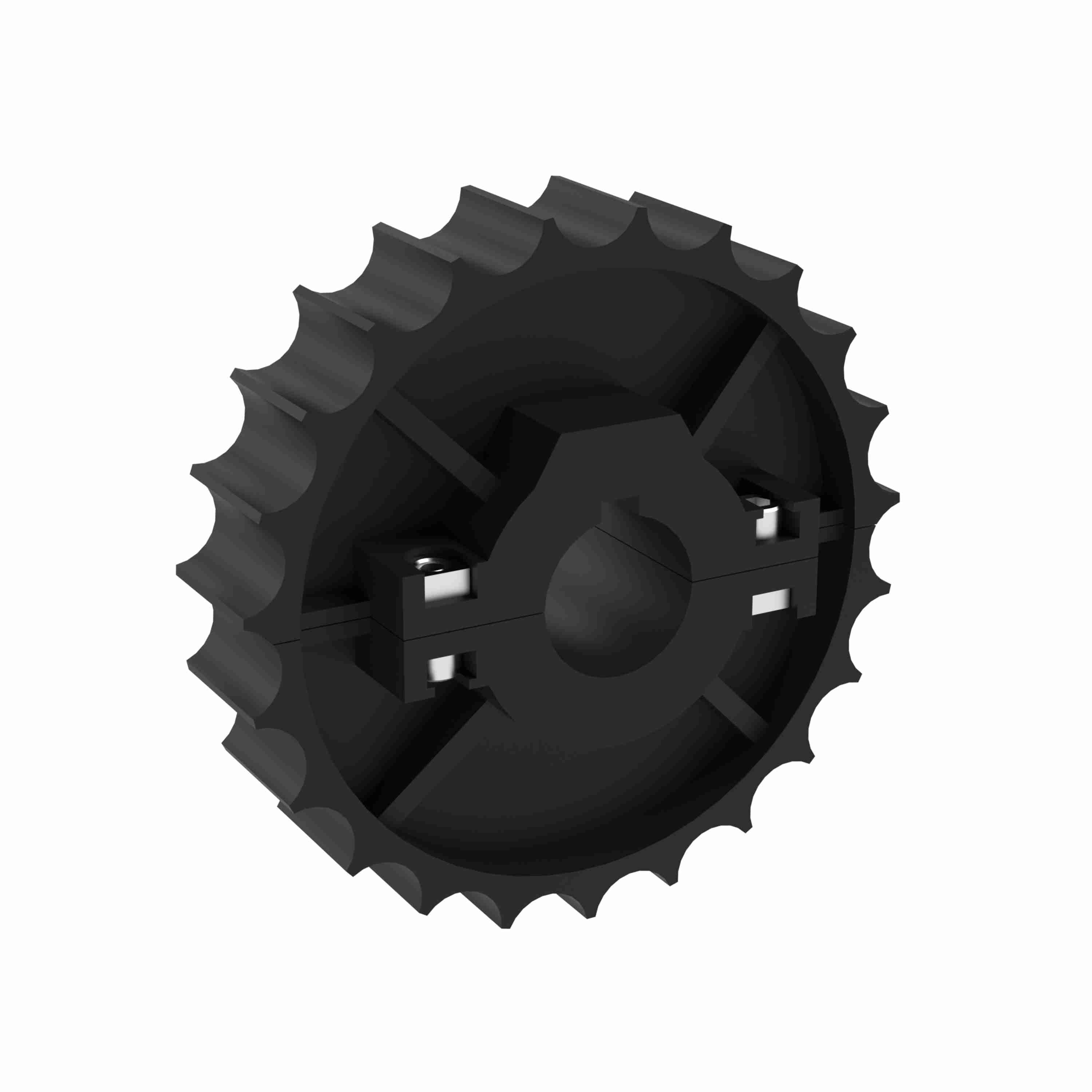

Rexnord 881 Series Split Molded Nylon Sprocket and a 23 Teeth with 1in Round Shaft-Ready Bore with Keyway & Setscrew - 614-43-1
Part #:10028739
Catalog #:614-43-1
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Product Line: | Chain and Belt Sprockets | Hub Type: | C-HUB |
| Product Group: | TableTop® | Bore Diameter (in): | 1 in |
| Material: | Nylon | Pitch Diameter (in): | 5.508 |
| Sprocket Construction: | Molded Split Sprocket | Pitch Diameter (mm): | 139.9 |
| Bore Type: | Shaft-Ready | Number of Keyways: | 1 |
| Chain Number: | 881 | Number of Teeth: | 23 |
| Number of Set Screws: | 1 Setscrew | Bore Shape: | Round |
| Body Style: | Block | Sprocket Series: | 881 |
General Specifications
| UPC: | 698210864828 | Weight: | 1.00 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
