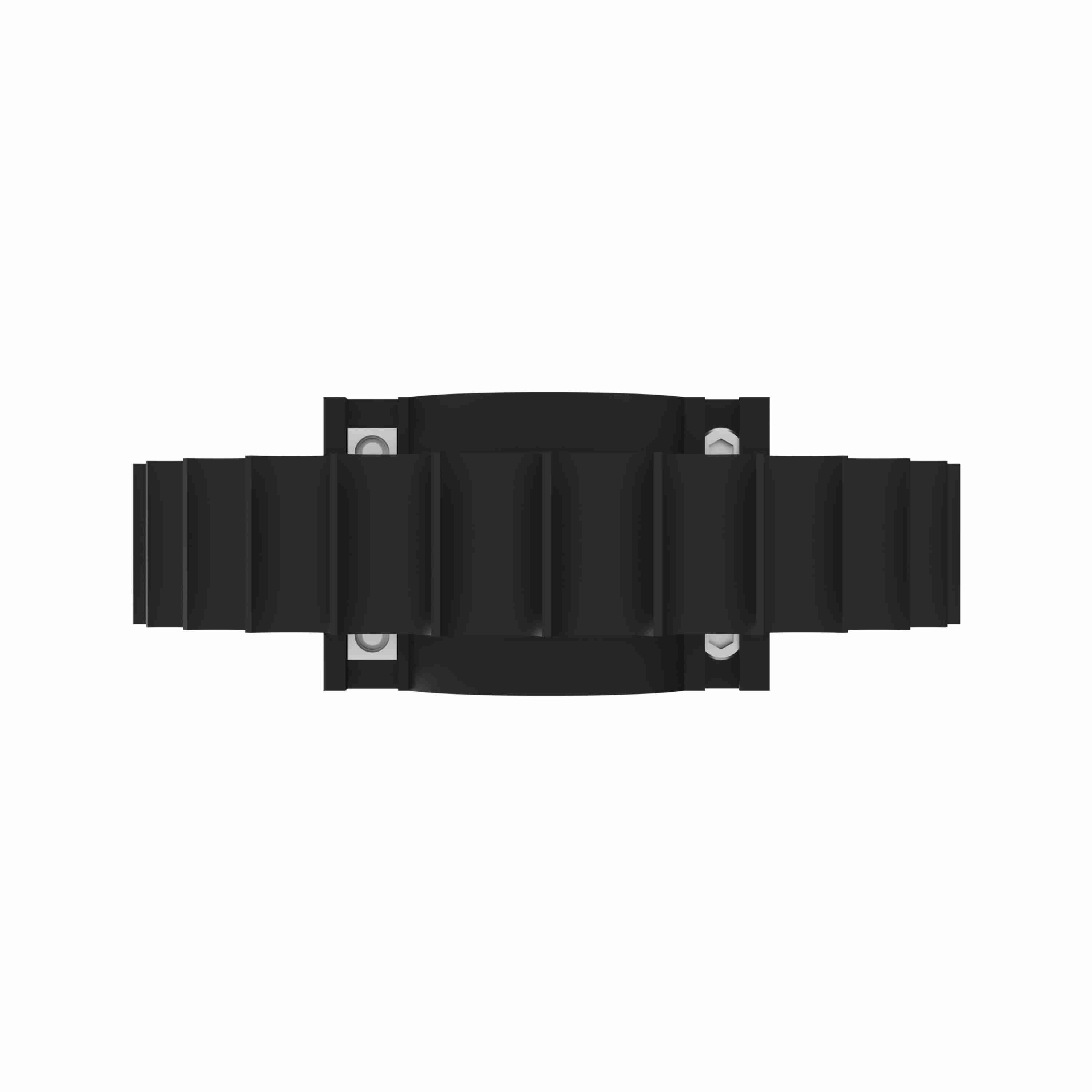

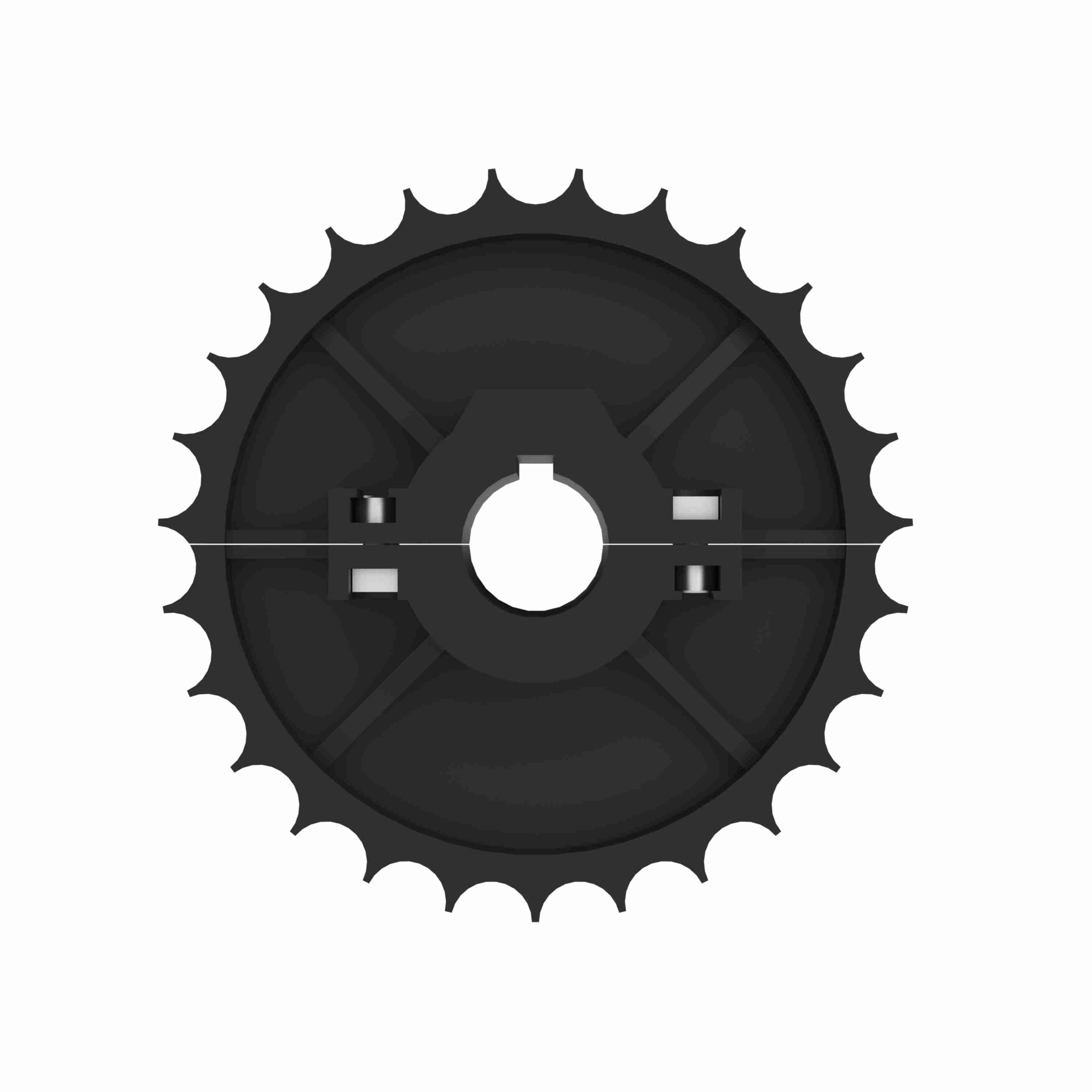

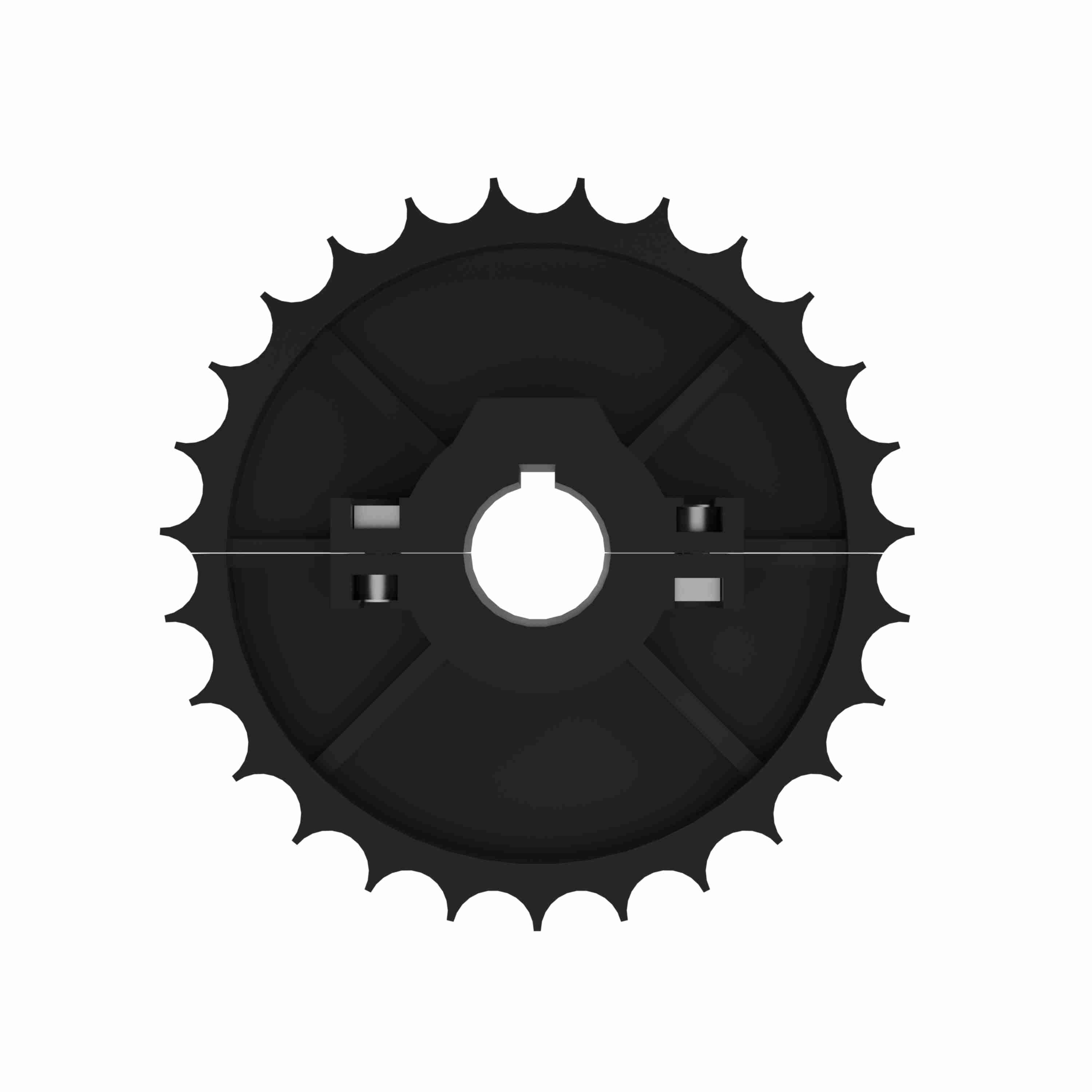

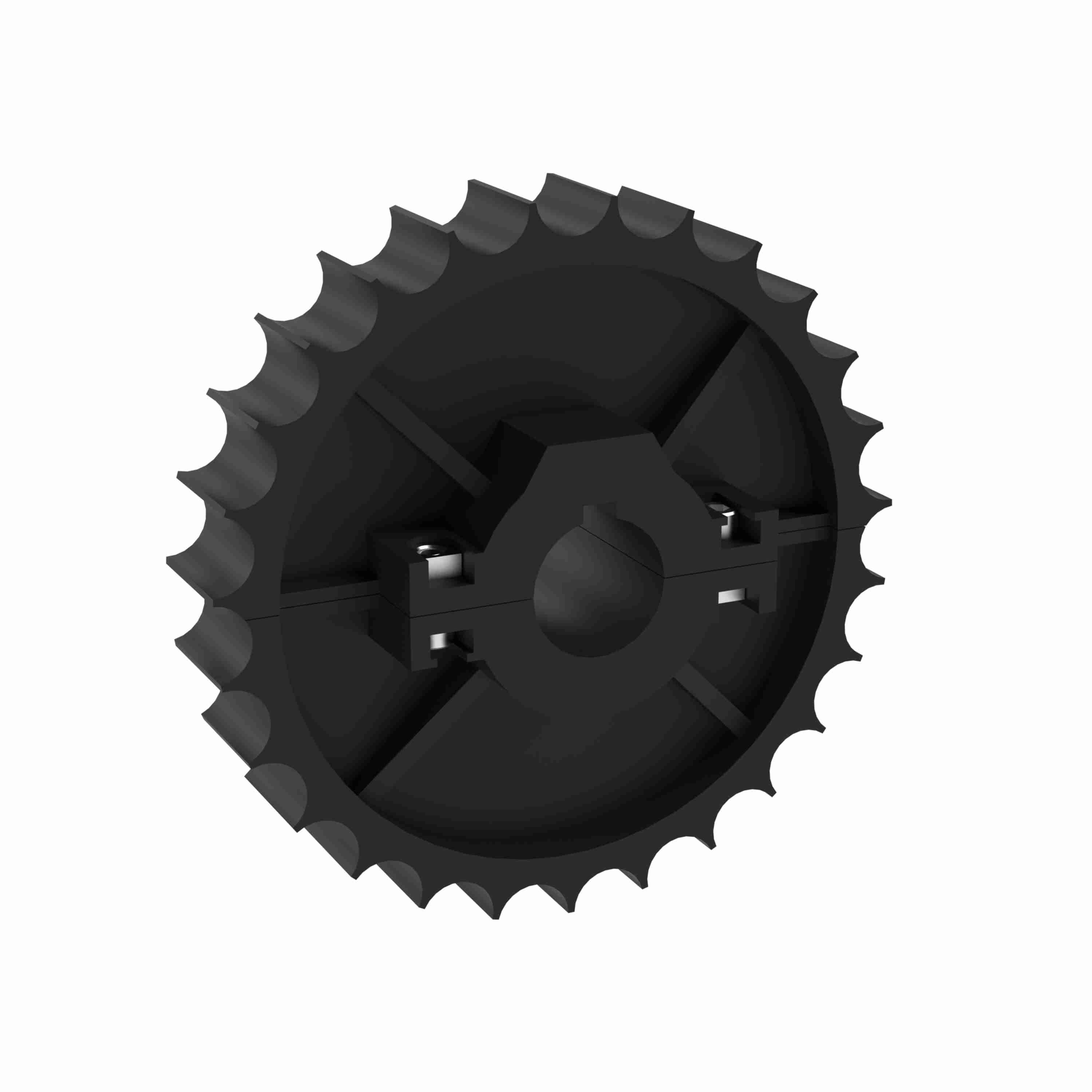

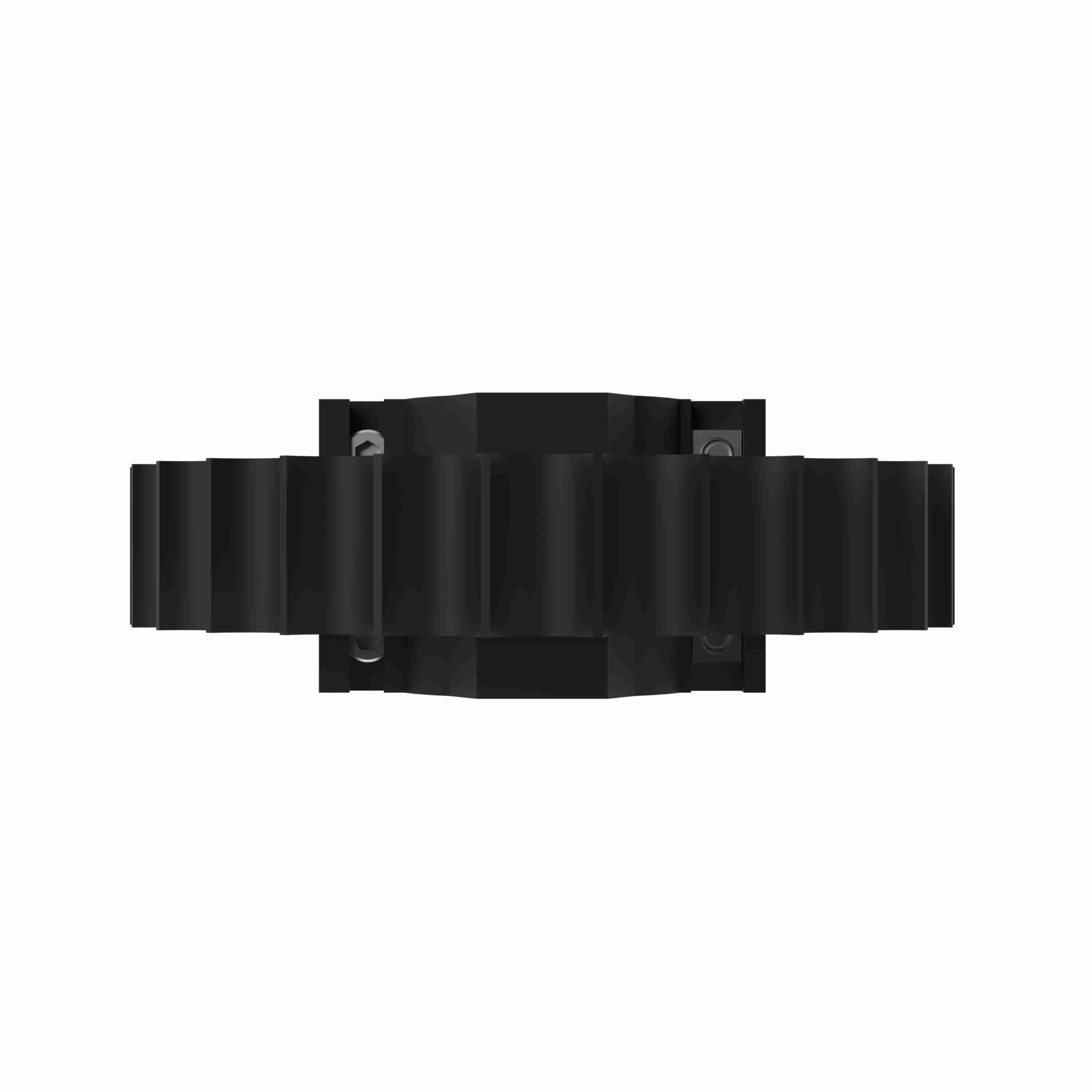

Rexnord 881 Series Split Molded Nylon Sprocket and a 27 Teeth with 1-1/4in Round Shaft-Ready Bore with Keyway & Setscrew - 614-45-3
Part #:10028746
Catalog #:614-45-3
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Number of Teeth: | 27 | Bore Shape: | Round |
| Chain Number: | 881 | Sprocket Construction: | Molded Split Sprocket |
| Product Line: | Chain and Belt Sprockets | Number of Keyways: | 1 |
| Body Style: | Block | Number of Set Screws: | 1 Setscrew |
| Bore Diameter (in): | 1-1/4 in | Material: | Nylon |
| Sprocket Series: | 881 | Pitch Diameter (in): | 6.46 |
| Pitch Diameter (mm): | 164.09 | Bore Type: | Shaft-Ready |
| Product Group: | TableTop® |
General Specifications
| UPC: | 698210106102 | Weight: | 1.30 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
