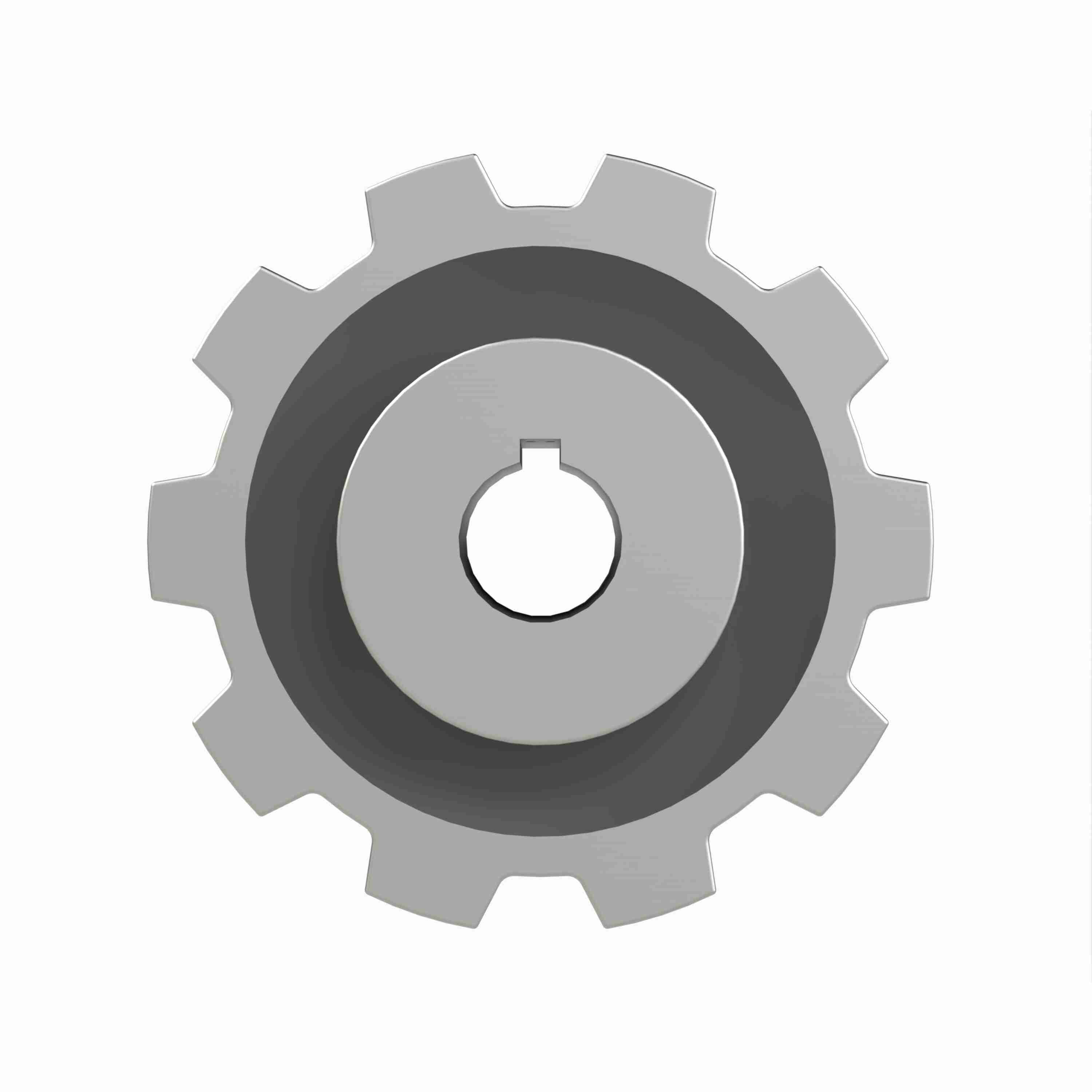

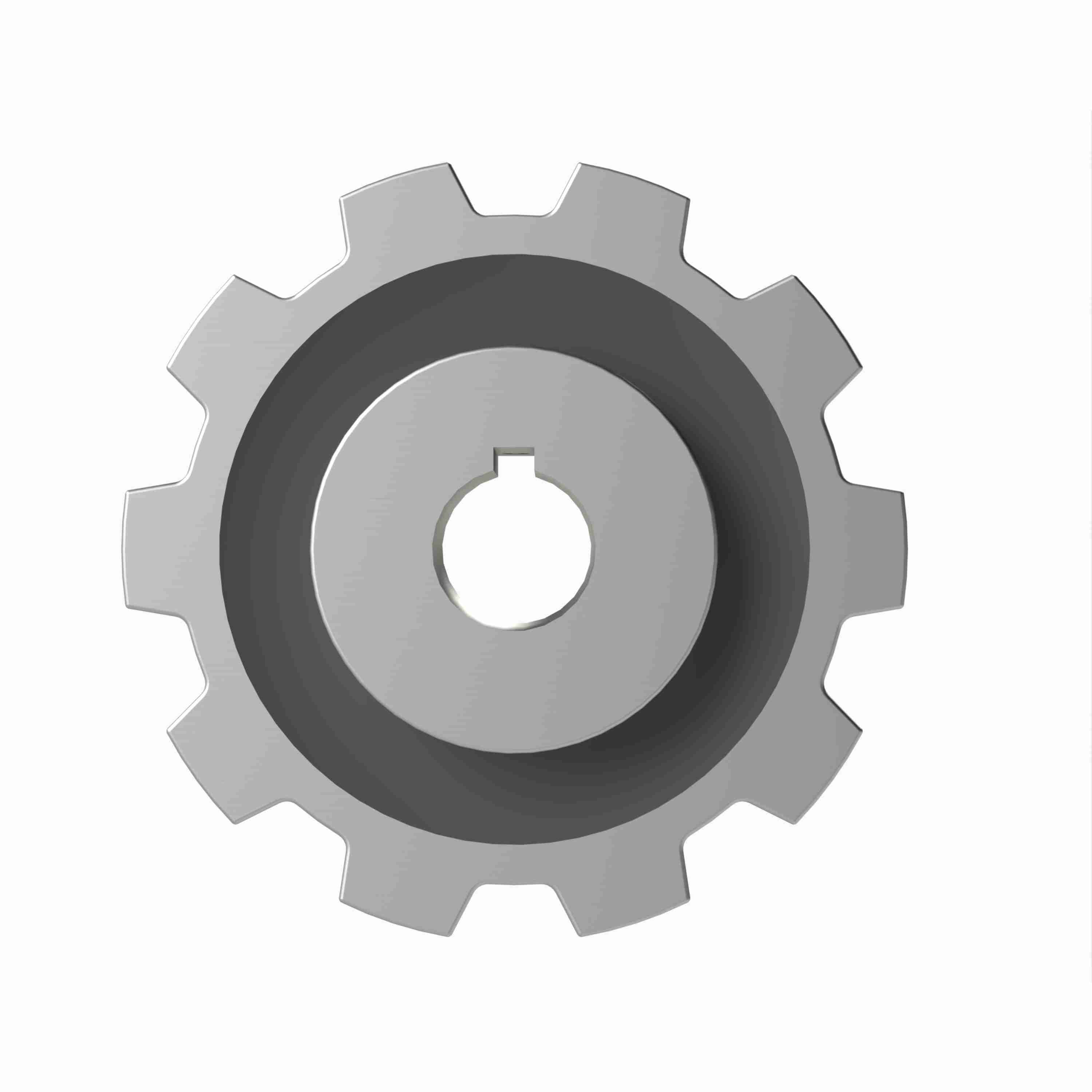

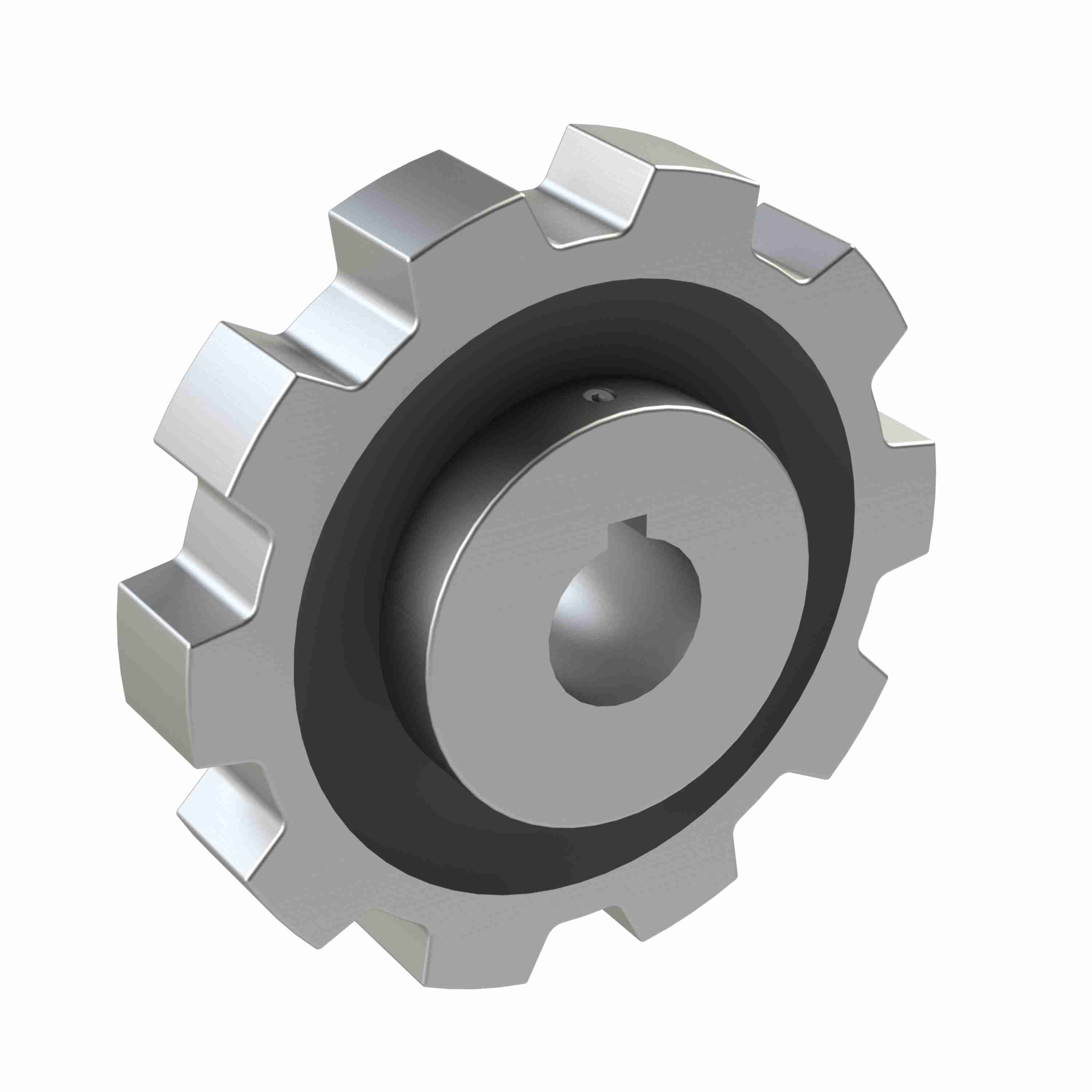

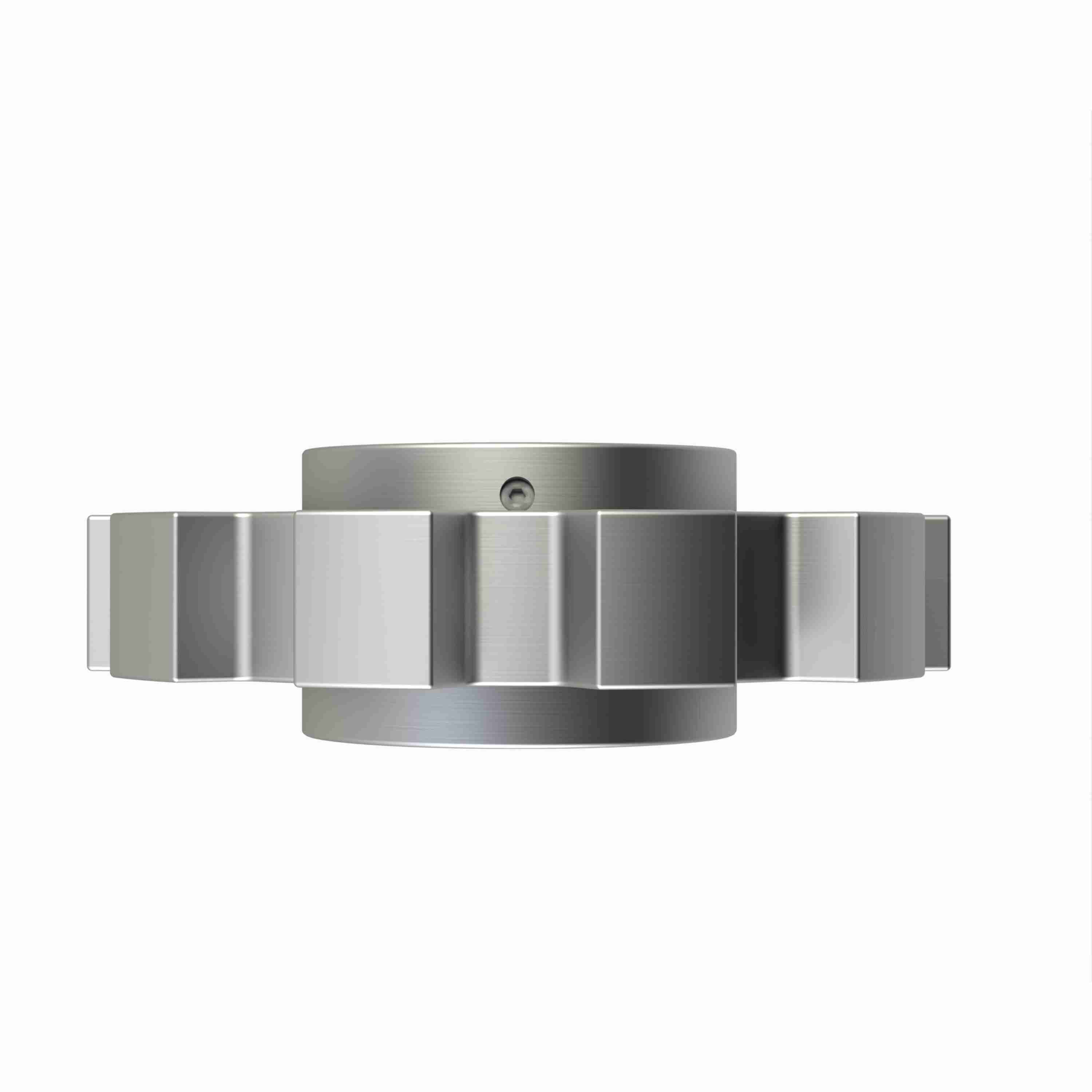

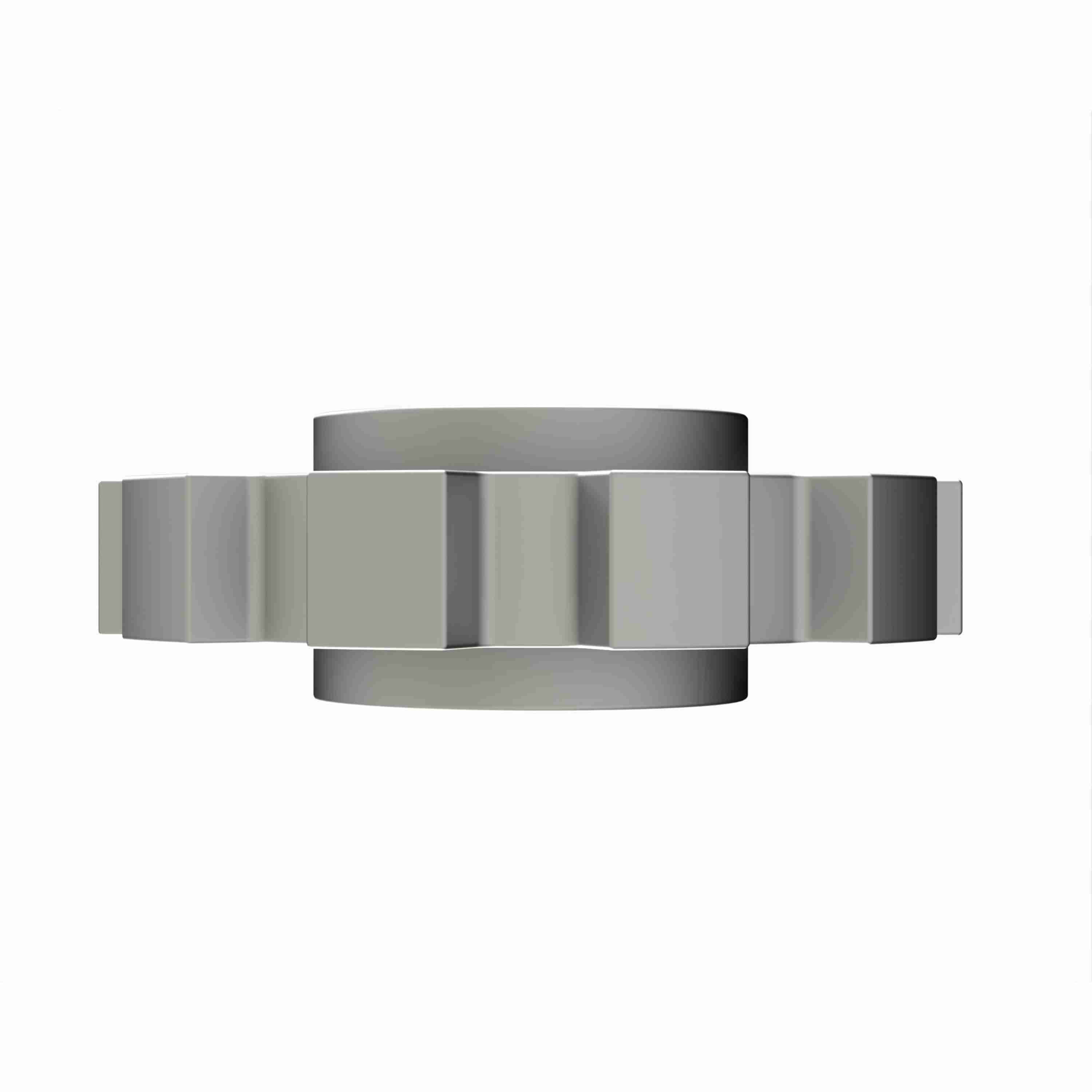

Rexnord 882 Series Solid One Piece Cast Iron Sprocket with 10 Teeth and a 1in Round Shaft-Ready Bore with Keyway & Setscrew - 401-323-6
Part #:10028862
Catalog #:401-323-6
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Body Style: | Block | Chain Number: | 882 |
| Number of Keyways: | 1 | Number of Set Screws: | 1 Setscrew |
| Hub Type: | A-No Hub | Sprocket Construction: | Cast-Iron Non-Split Sprocket |
| Product Line: | Chain and Belt Sprockets | Number of Teeth: | 10 |
| Pitch Diameter (in): | 4.854 | Bore Type: | Shaft-Ready |
| Sprocket Series: | 882 | Material: | Cast Iron |
| Bore Diameter (in): | 1 in | Product Group: | TableTop® |
| Bore Shape: | Round | Pitch Diameter (mm): | 123.29 |
General Specifications
| UPC: | 698210211936 | Weight: | 4.19 LB |
| Packaged Length: | 5.00 IN | Packaged Width: | 5.00 IN |
| Packaged Height: | 1.75 IN | HTC: | 8483901050 |
| Country of Origin: | United States of America |
