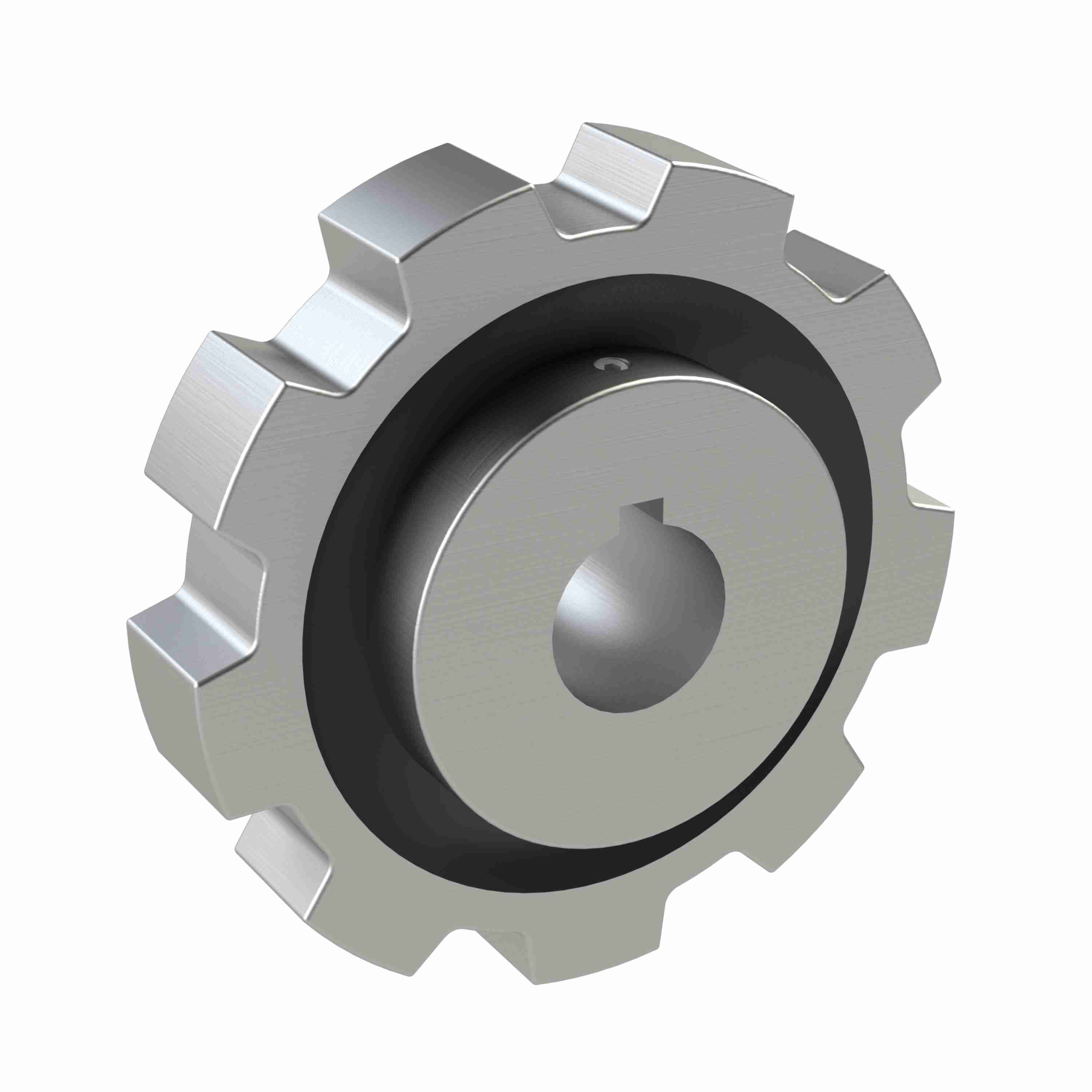

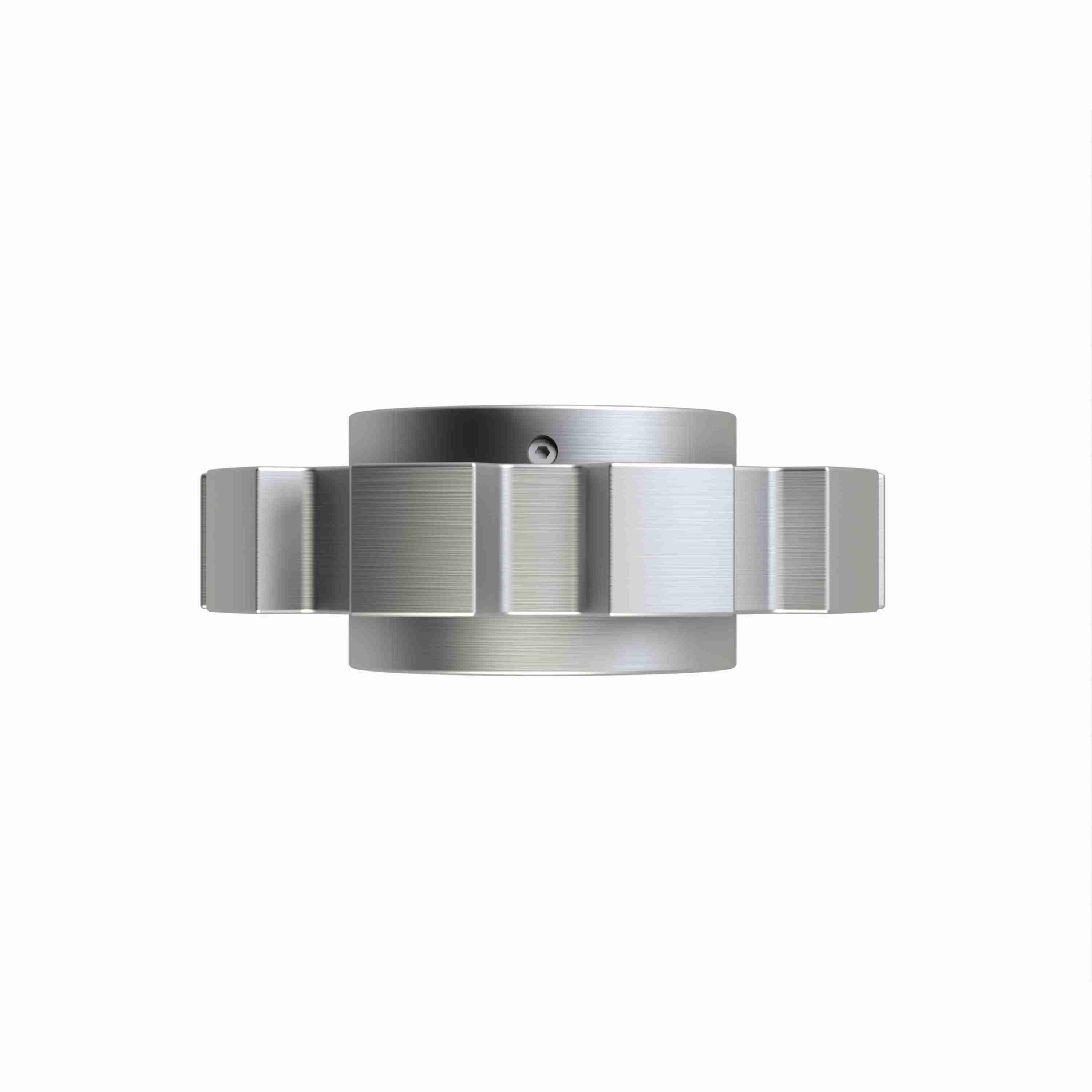

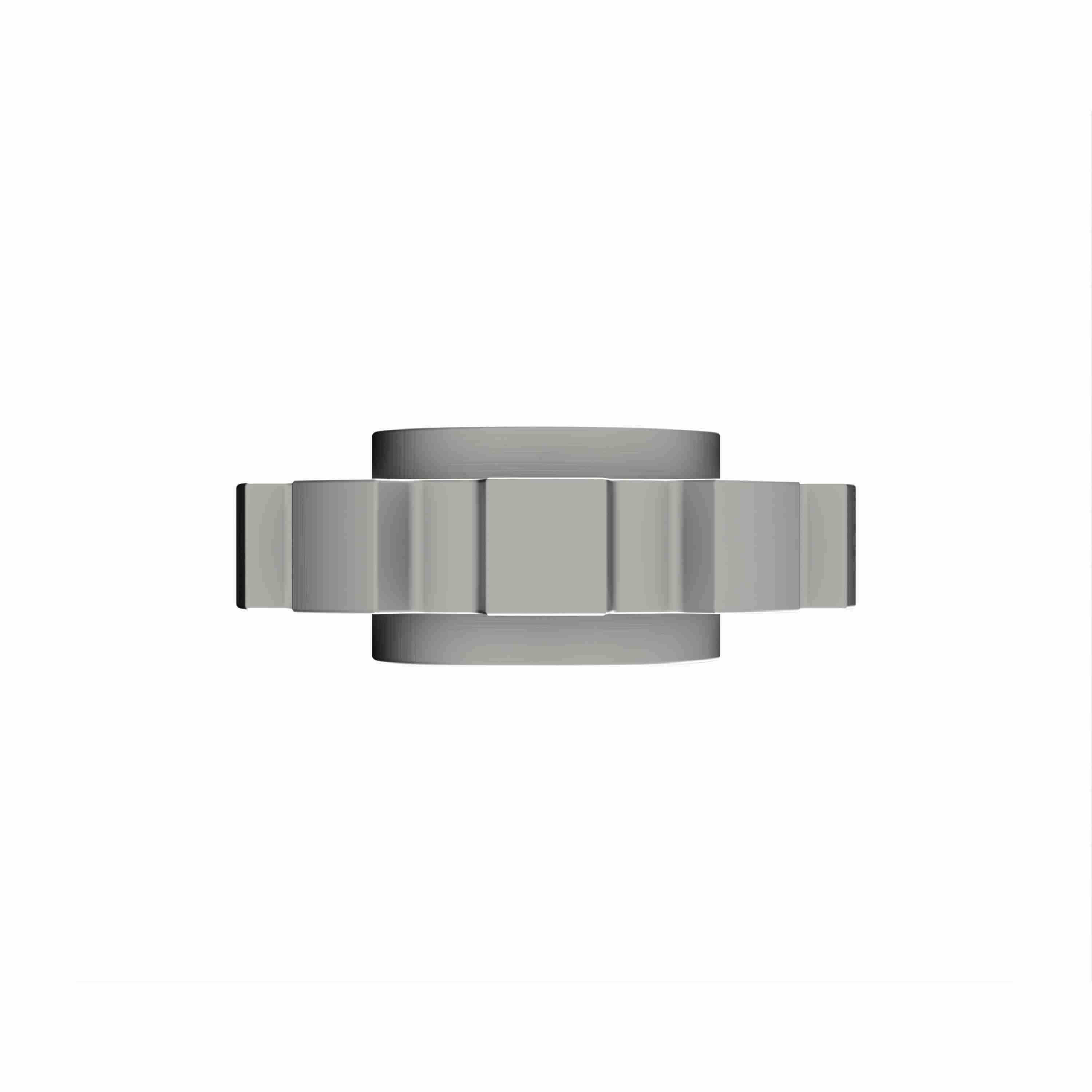

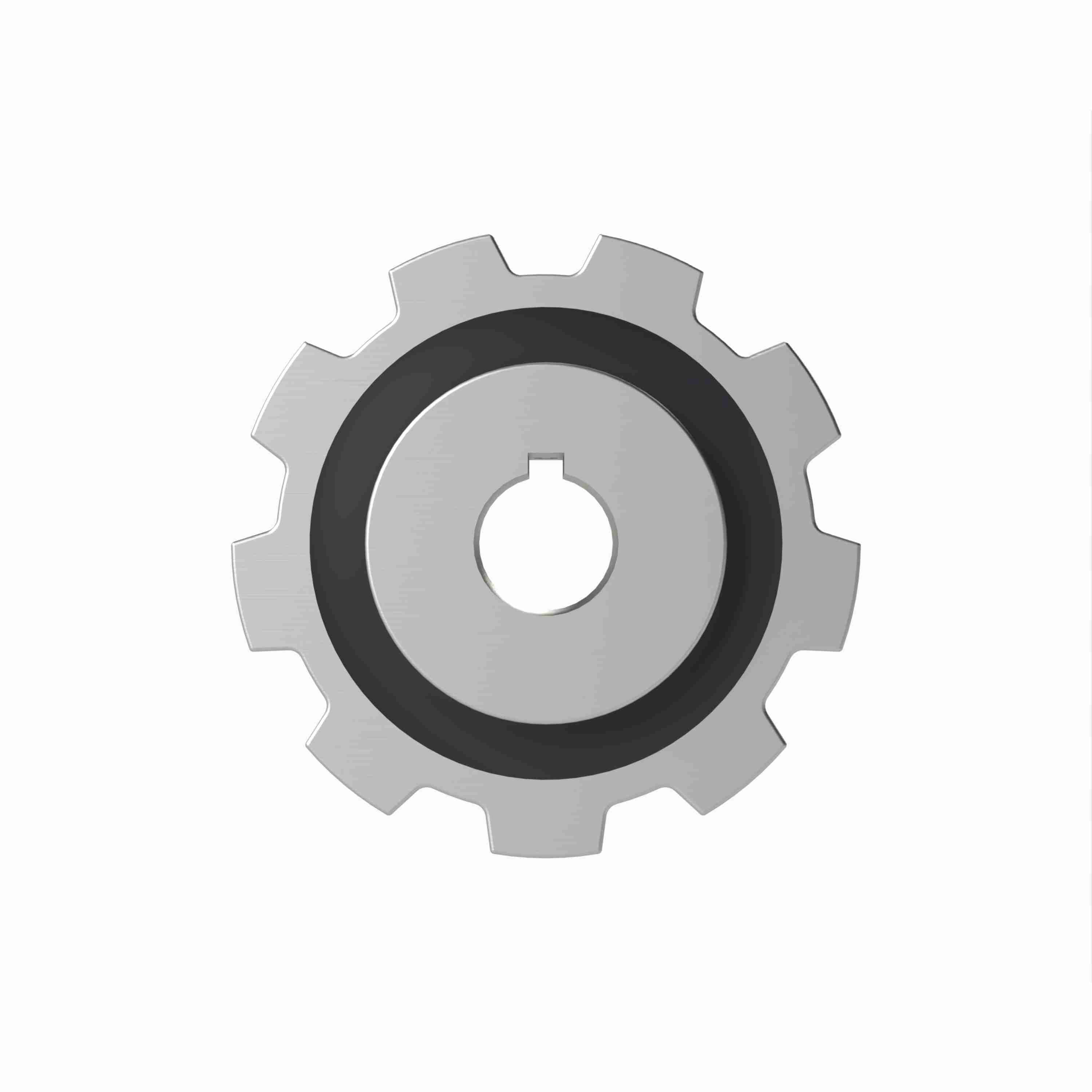

Rexnord 882 Series Solid One Piece Cast Iron Sprocket with 9 Teeth and a 1in Round Shaft-Ready Bore with Keyway & Setscrew - 401-322-4
Part #:10028869
Catalog #:401-322-4
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Number: | 882 | Sprocket Series: | 882 |
| Product Line: | Chain and Belt Sprockets | Number of Set Screws: | 1 Setscrew |
| Product Group: | TableTop® | Number of Keyways: | 1 |
| Number of Teeth: | 9 | Pitch Diameter (in): | 4.386 |
| Body Style: | Block | Hub Type: | A-No Hub |
| Bore Type: | Shaft-Ready | Pitch Diameter (mm): | 111.4 |
| Bore Shape: | Round | Material: | Cast Iron |
| Sprocket Construction: | Cast-Iron Non-Split Sprocket | Bore Diameter (in): | 1 in |
General Specifications
| UPC: | 698210187873 | Weight: | 3.75 LB |
| Packaged Length: | 4.50 IN | Packaged Width: | 4.50 IN |
| Packaged Height: | 1.75 IN | HTC: | 8483901050 |
| Country of Origin: | United States of America |
