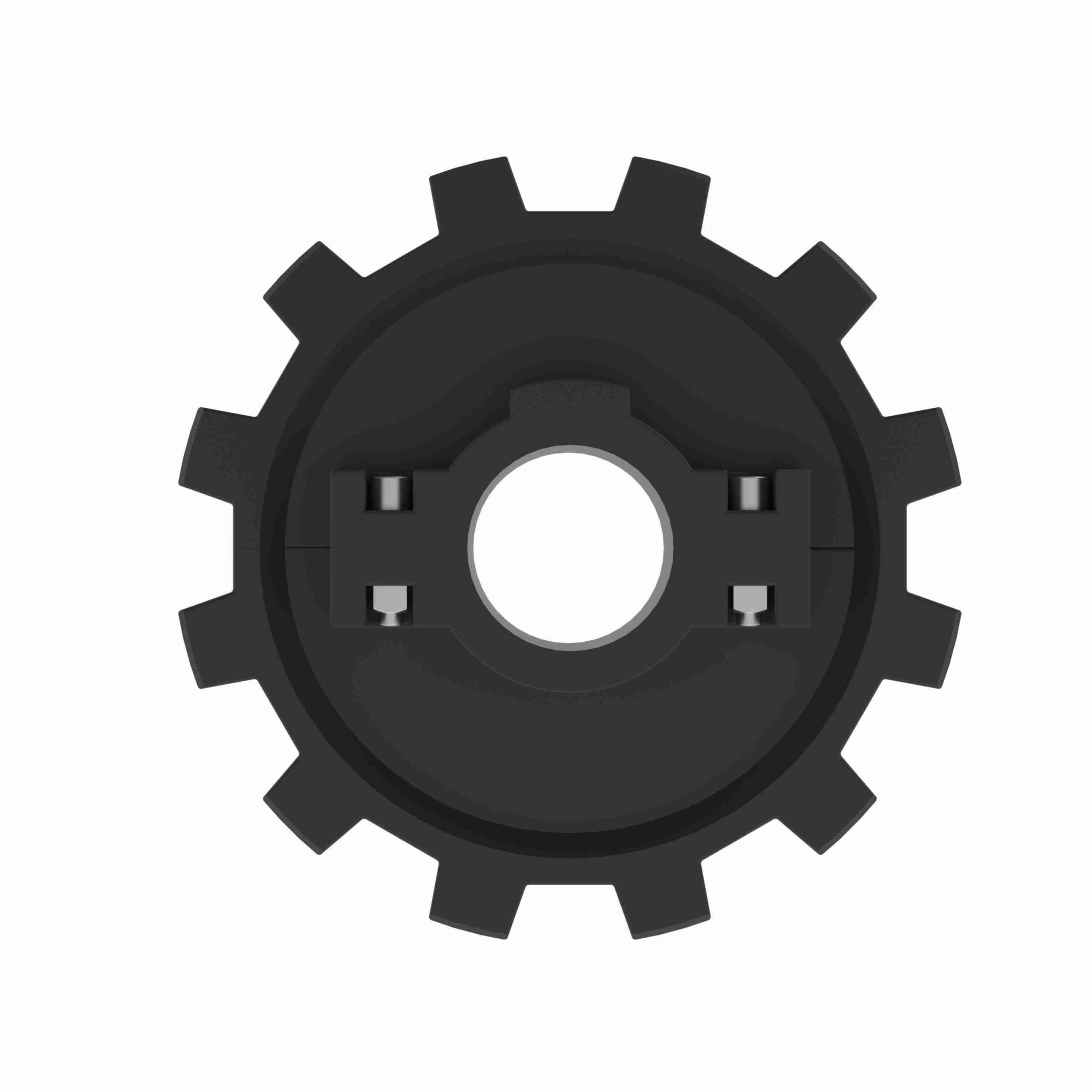

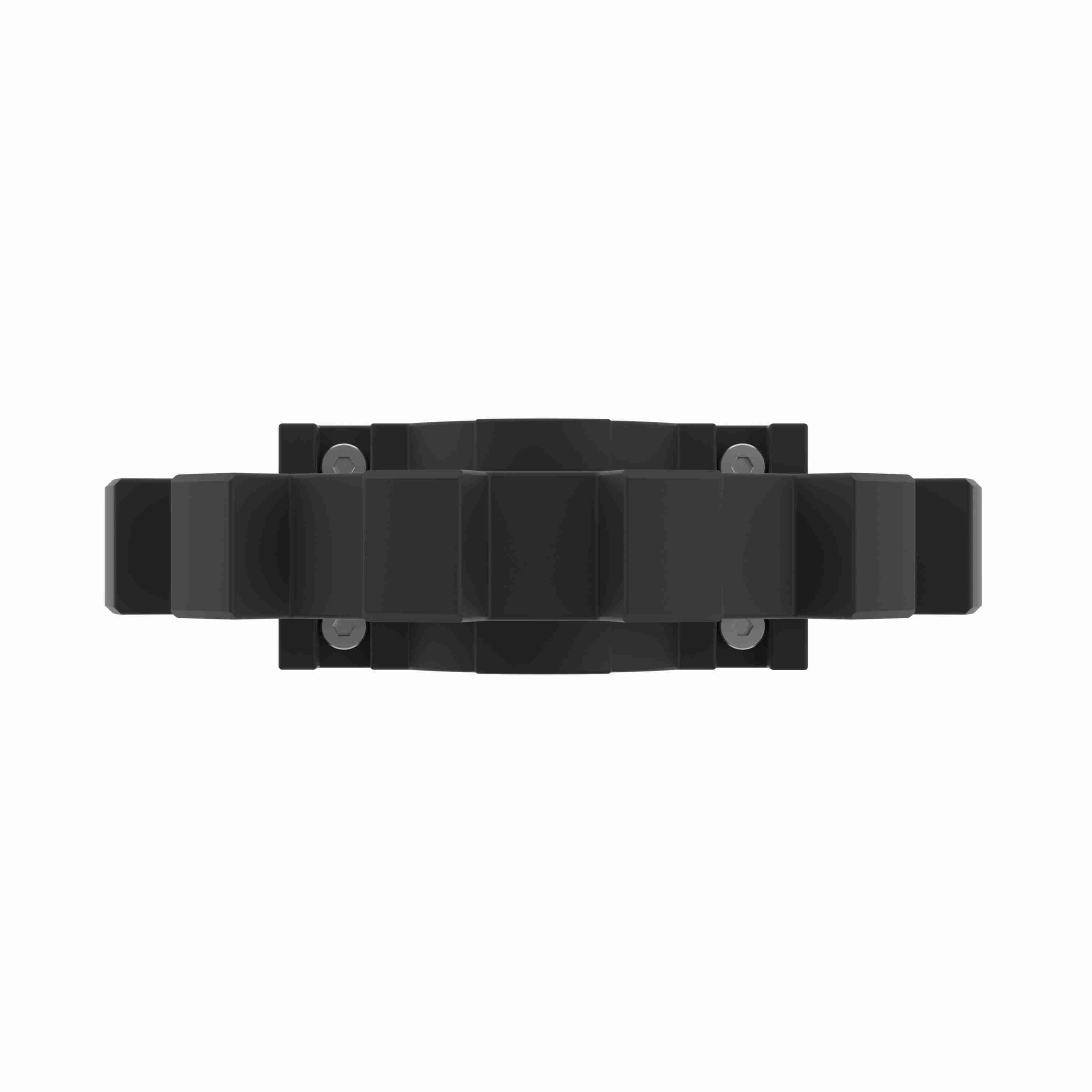

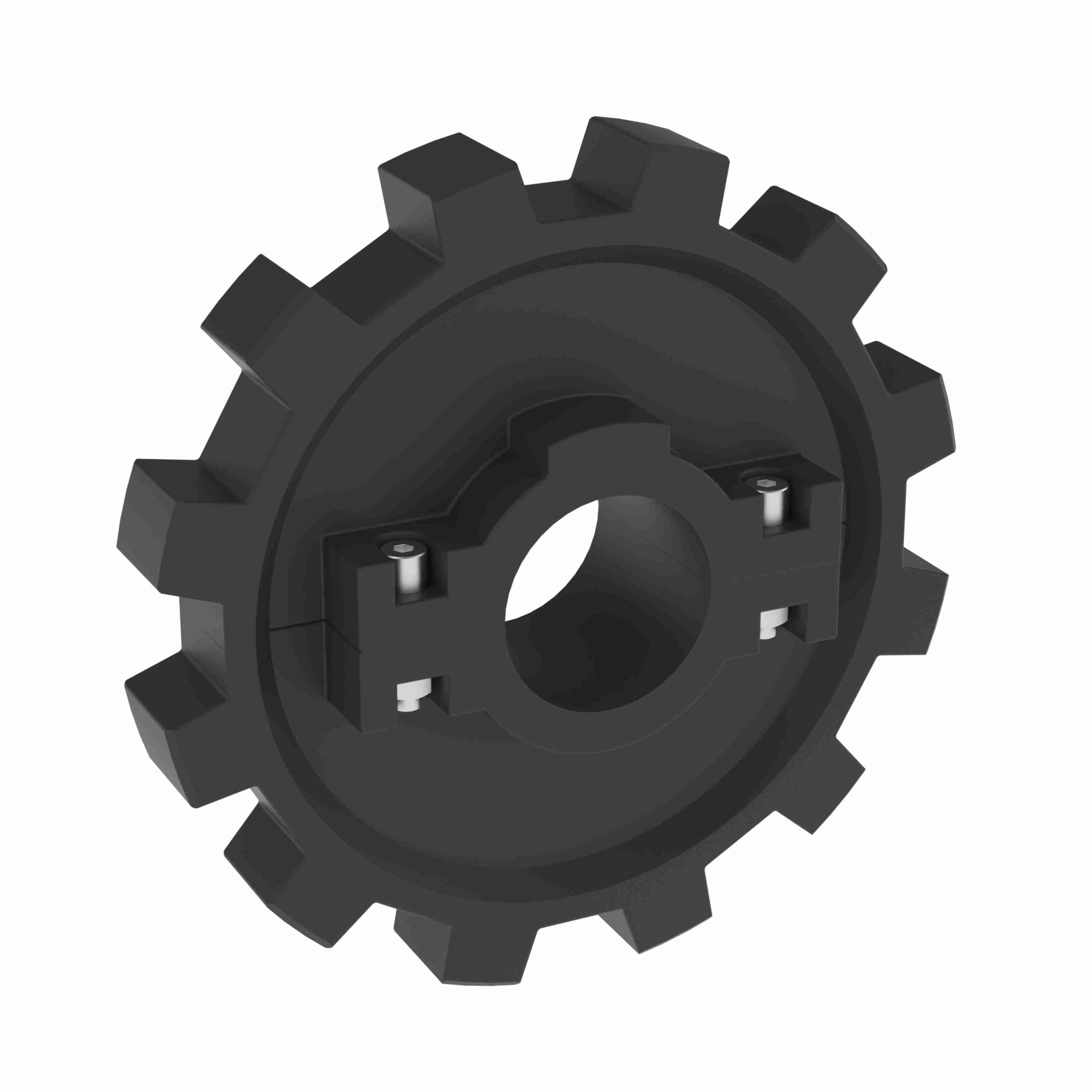

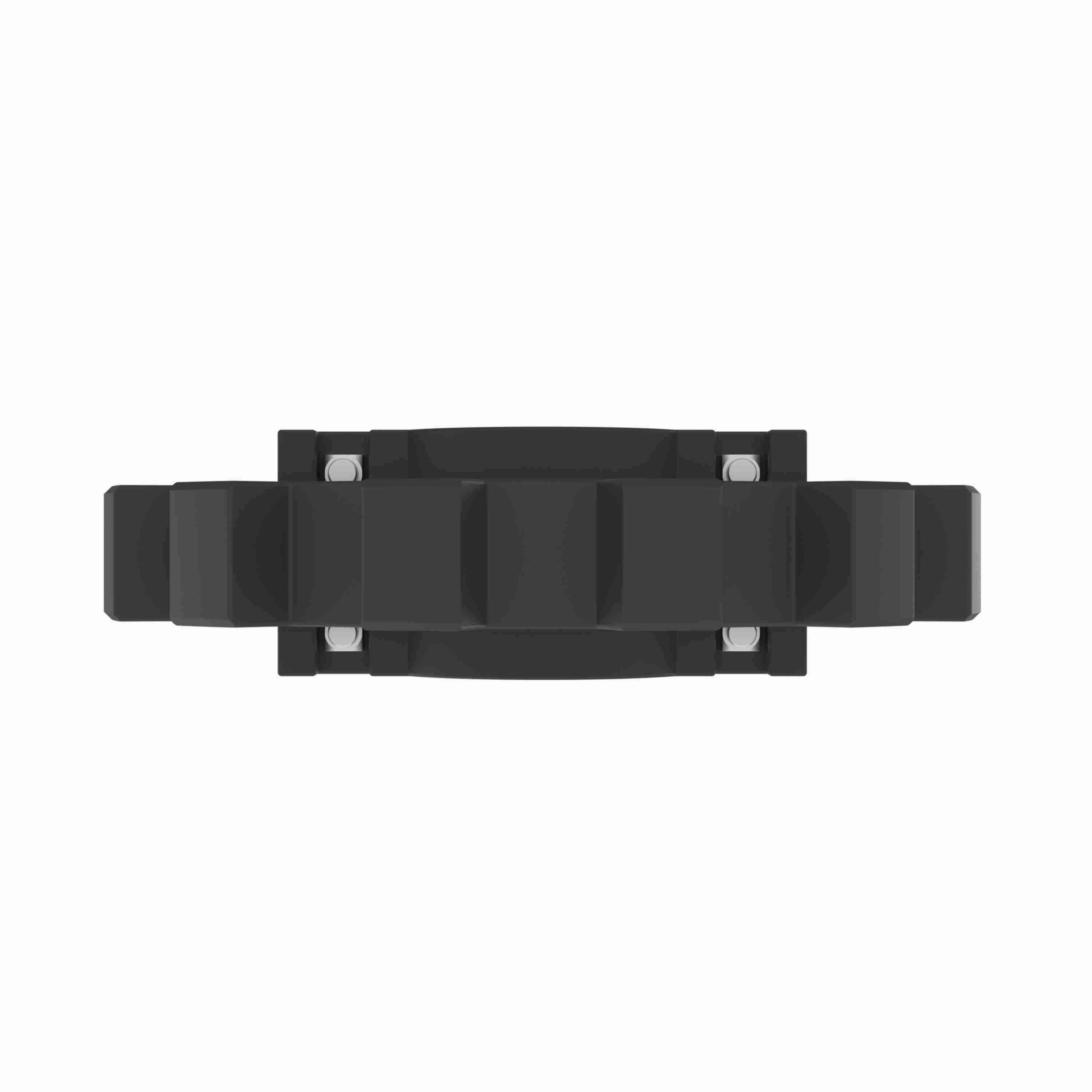

Rexnord 882 Series Split Molded Nylon Sprocket with 12 Teeth and 1-1/2in Round Idler Bore - 614-29-19
Part #:10028751
Catalog #:614-29-19
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Bore Shape: | Round | Number of Keyways: | 0 |
| Number of Teeth: | 12 | Pitch Diameter (in): | 5.796 |
| Body Style: | Block | Hub Type: | C-HUB |
| Sprocket Construction: | Molded Split Sprocket | Number of Set Screws: | None |
| Sprocket Series: | 882 | Material: | Nylon |
| Bore Diameter (in): | 1-1/2 in | Product Line: | Chain and Belt Sprockets |
| Pitch Diameter (mm): | 147.21 | Product Group: | TableTop® |
| Chain Number: | 882 | Bore Type: | Idler |
General Specifications
| UPC: | 793699411614 | Weight: | 0.82 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
