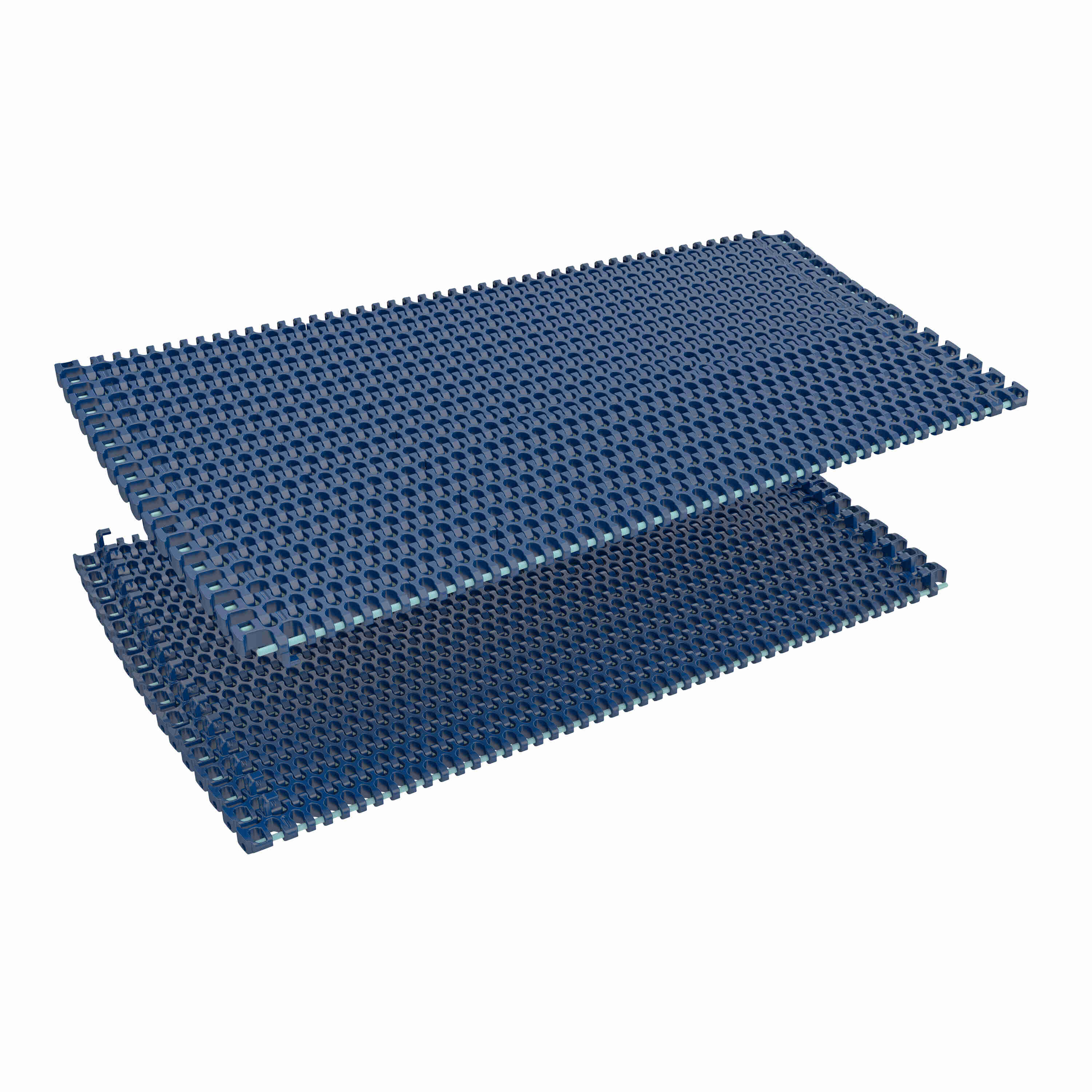

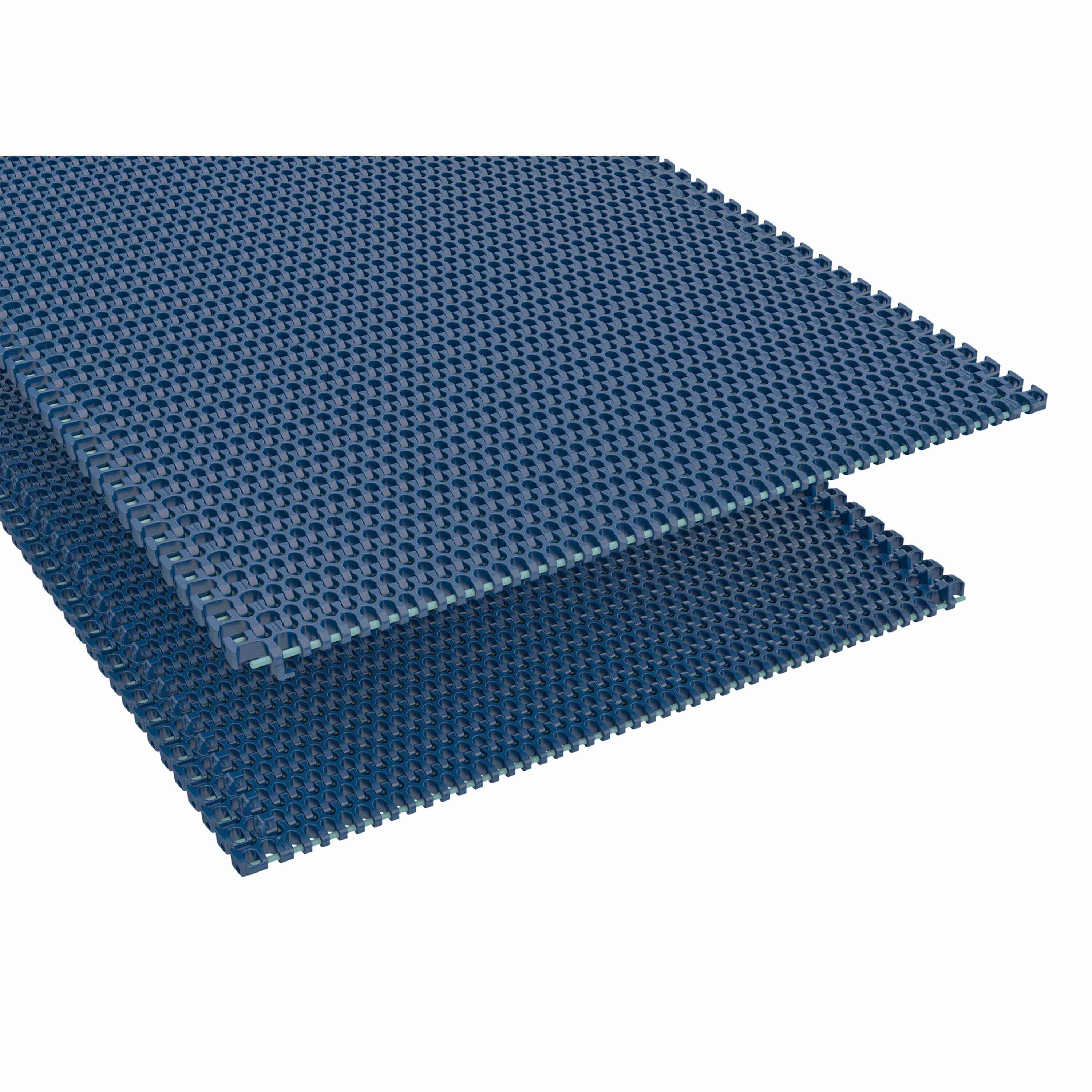

Rexnord 1655 Side-flexing Flush Grid, Material: Blue Cut Resistant, Width: 8in, Pitch: 1in - 10832803
Part #:10832803
Catalog #:10832803
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Straight or Side-Flex: | Side-flexing | Series: | KleanTop 1600 Series Side-flexing Belt |
| Chain Width (in): | 8 in | Chain Number: | 1655 |
| Chain Pitch (in): | 1 in | Rod/Pin Material: | Polyester |
| Chain Width (mm): | 203.2 mm | Chain Material: | SMB |
| Surface Type: | Flush Grid | Chain Material Description: | Blue Cut Resistant |
| Belt Thickness (mm): | 12.7 mm | Chain Pitch (mm): | 25.4 mm |
| Curve Retention Type: | NO TAB | Belt Thickness (in): | 0.5 in |
| Chain Width Measurement System: | Imperial |
General Specifications
| Weight: | 0.10 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
