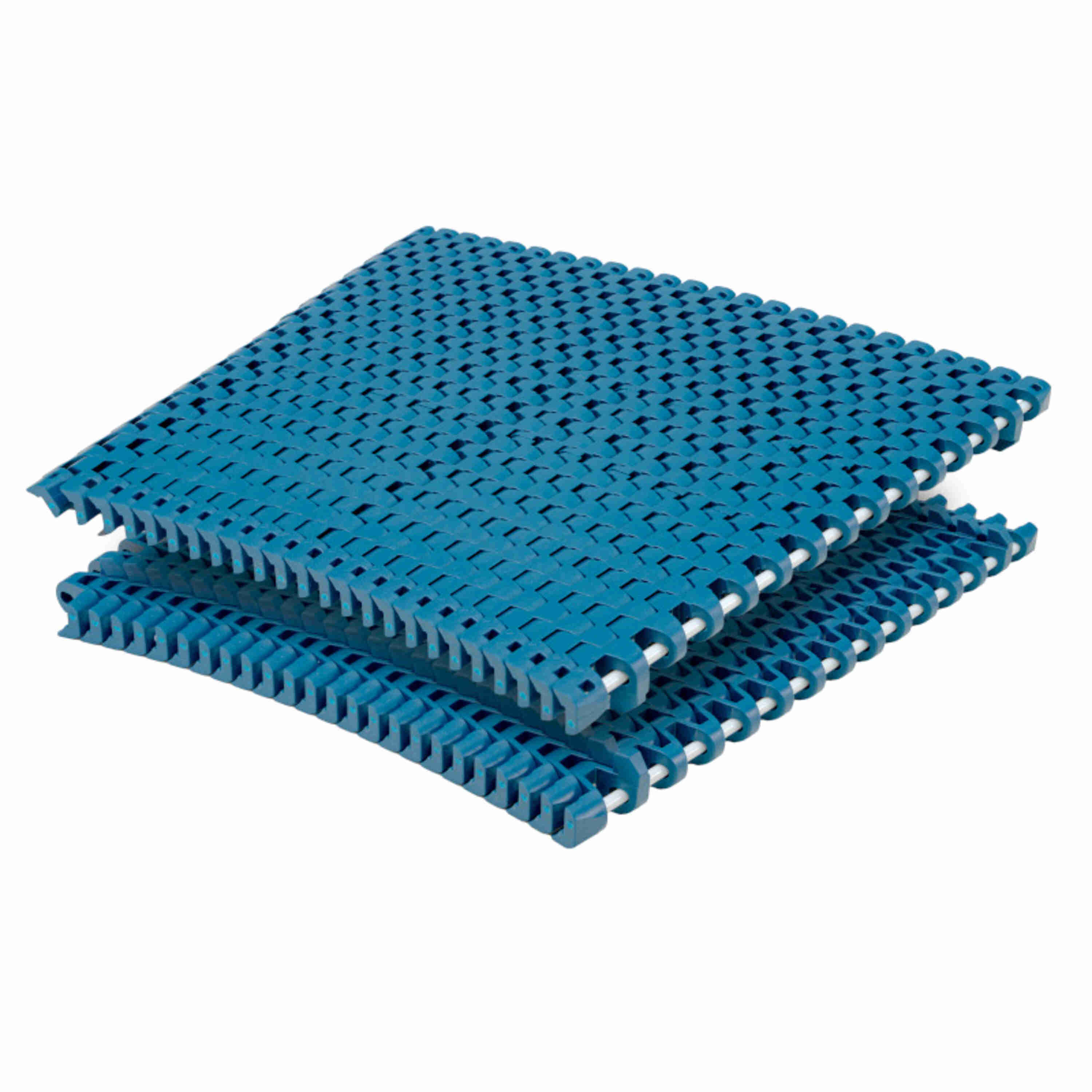

Rexnord 505 Side-flexing Flush Grid, Material: XLG, Width: 595mm, Pitch: 0.5in - 11058651
Part #:11058651
Catalog #:11058651
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Number: | 505 | Series: | MatTop 505 Series Side-flexing Chain |
| Belt Thickness (in): | 0.5 in | Chain Pitch (mm): | 12.7 mm |
| Chain Material: | XLG | Chain Width (in): | 23.43 in |
| Chain Pitch (in): | 0.5 in | Chain Material Description: | Green Low Friction High Performance |
| Curve Retention Type: | Bevel | Straight or Side-Flex: | Side-flexing |
| Open Area (%): | 39 % | Belt Thickness (mm): | 12.7 mm |
| Curve Chain Strength (N): | 9,002 N | Surface Type: | Flush Grid |
| Chain Width Measurement System: | Metric | Chain Strength (N/m): | 9,002 N·m |
| Curve Chain Strength (lb): | 617 lb | Chain Strength (lb/ft): | 617 lb/ft |
| Rod/Pin Material: | GVK | Chain Width (mm): | 595 mm |
General Specifications
| Weight: | 0.08 LB |
