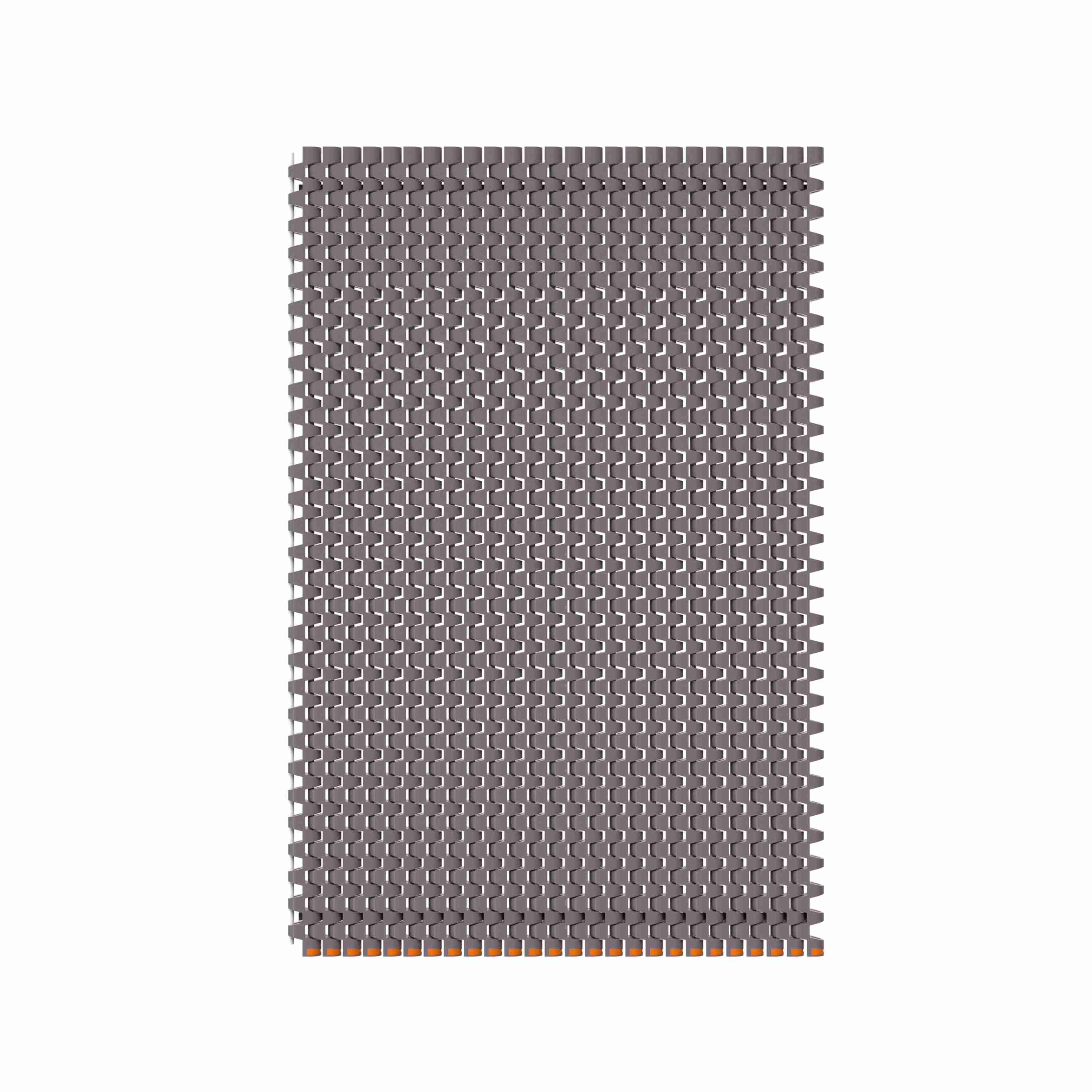

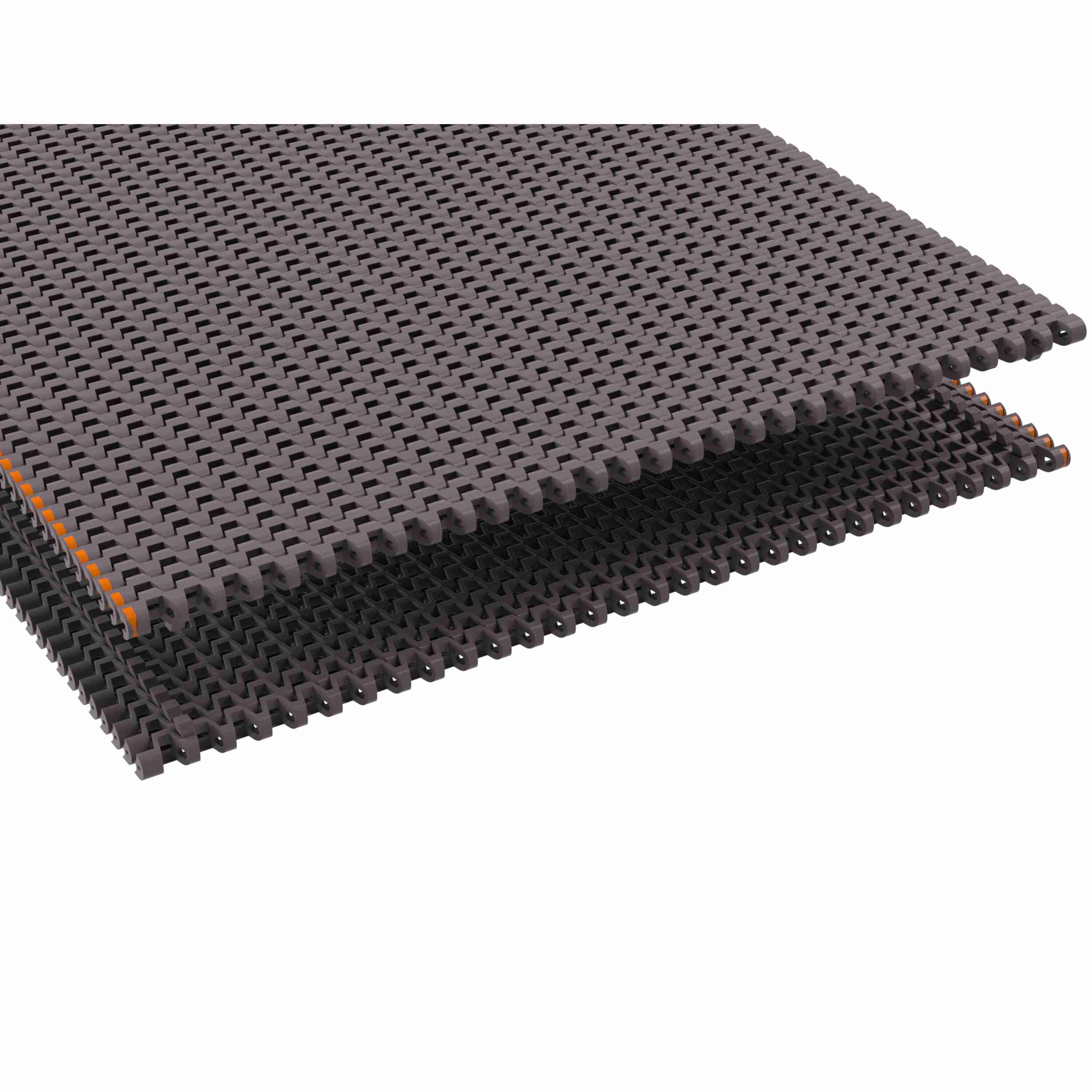

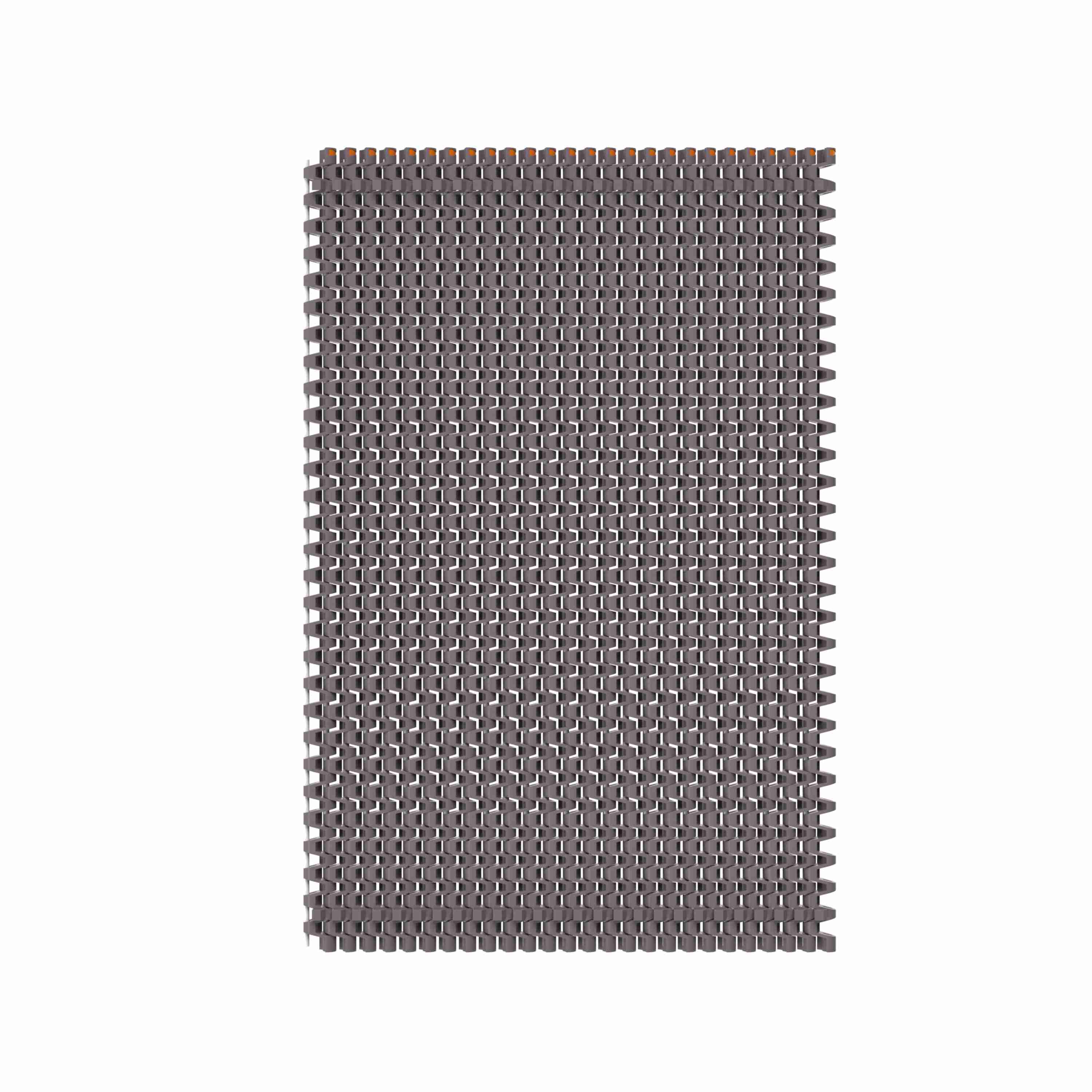

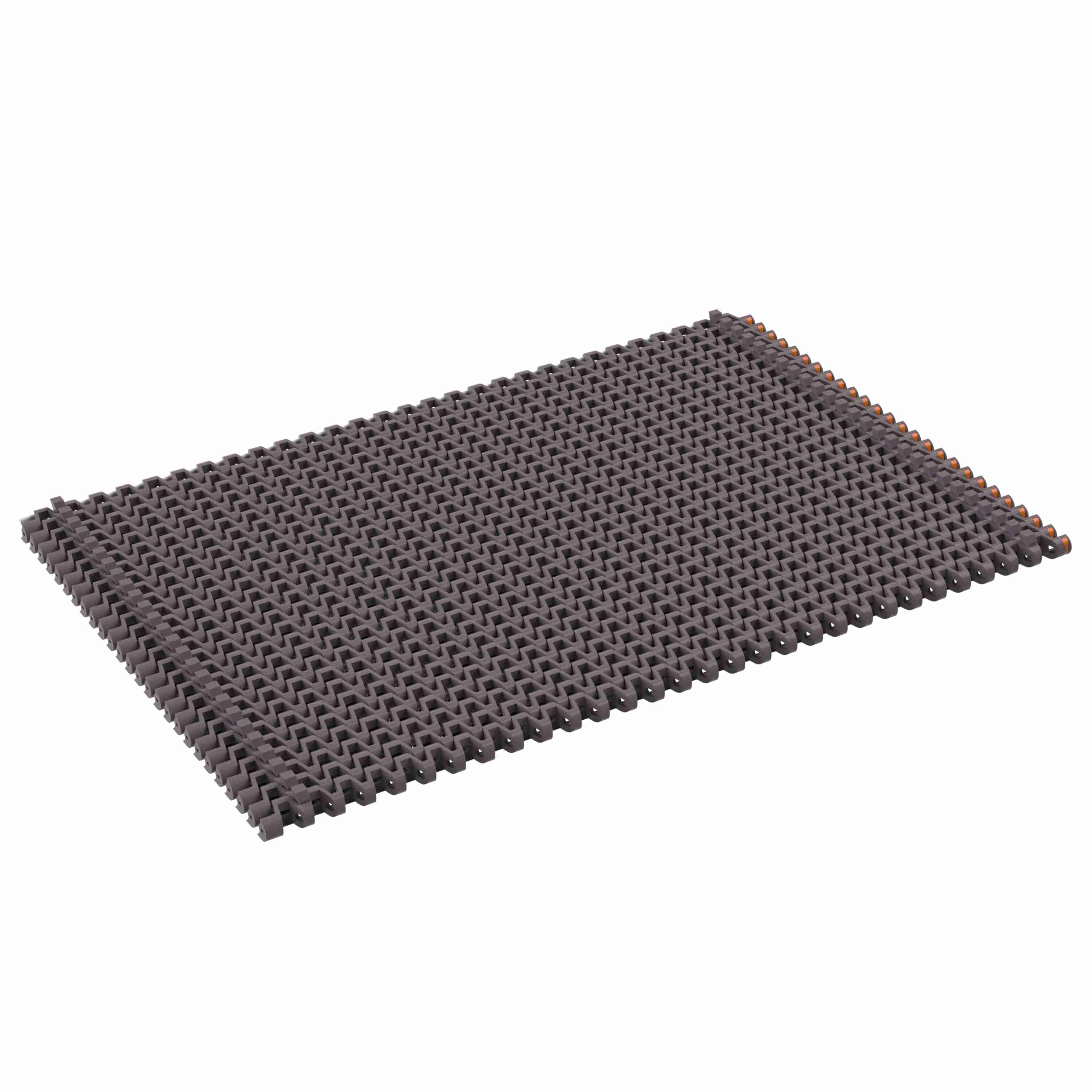

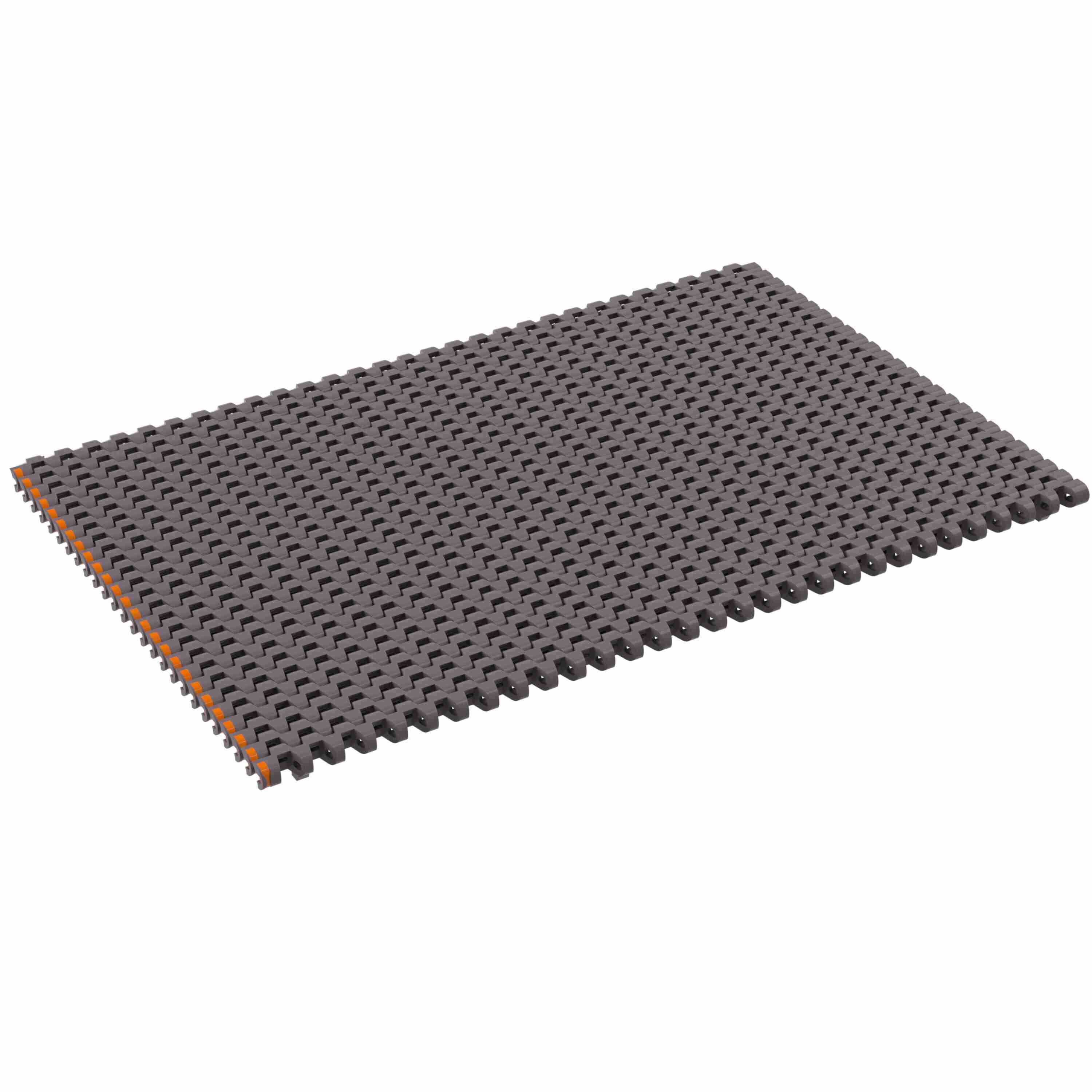

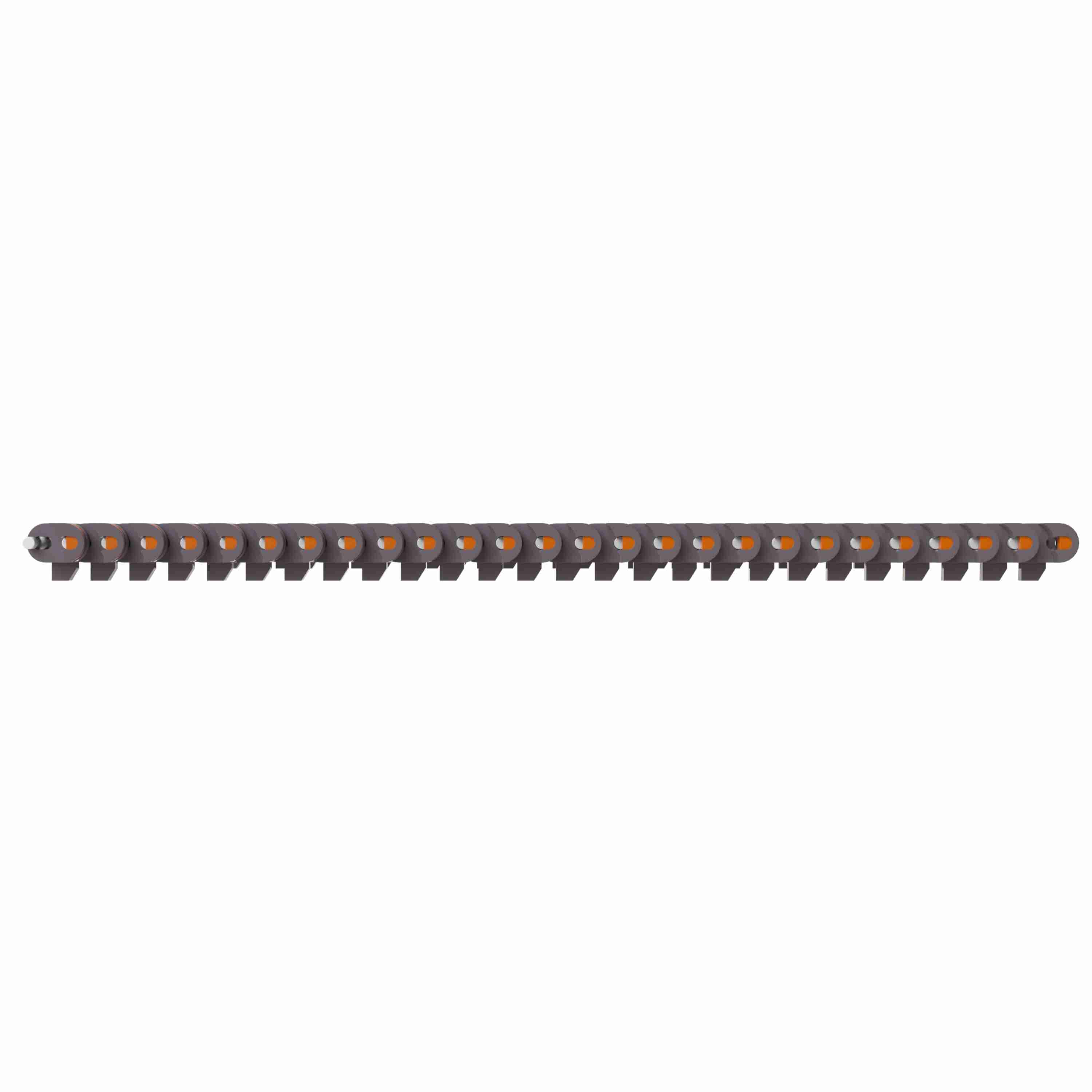

Rexnord 7526 Side-flexing Flush Grid, Material: HP, Width: 255mm, Pitch: 0.5in - HP7526-255
Part #:10028926
Catalog #:HP7526-255
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Series: | MatTop 7526 Series Side-flexing Chain | Curve Chain Strength (N): | 9,002 N |
| Rod/Pin Material: | GVK | Chain Width (mm): | 255 mm |
| Chain Width (in): | 10.04 in | Chain Material Description: | Brown High Performance |
| Belt Thickness (in): | 0.5 in | Chain Width Measurement System: | Metric |
| Open Area (%): | 39 % | Chain Strength (N/m): | 9,002 N·m |
| Chain Pitch (in): | 0.5 in | Straight or Side-Flex: | Side-flexing |
| Chain Strength (lb/ft): | 617 lb/ft | Surface Type: | Flush Grid |
| Belt Thickness (mm): | 12.7 mm | Chain Number: | 7526 |
| Curve Retention Type: | Bevel | Curve Chain Strength (lb): | 617 lb |
| Chain Pitch (mm): | 12.7 mm | Chain Material: | HP |
General Specifications
| Weight: | 0.07 LB | HTC: | 3926909989 |
| Country of Origin: | Mexico |
