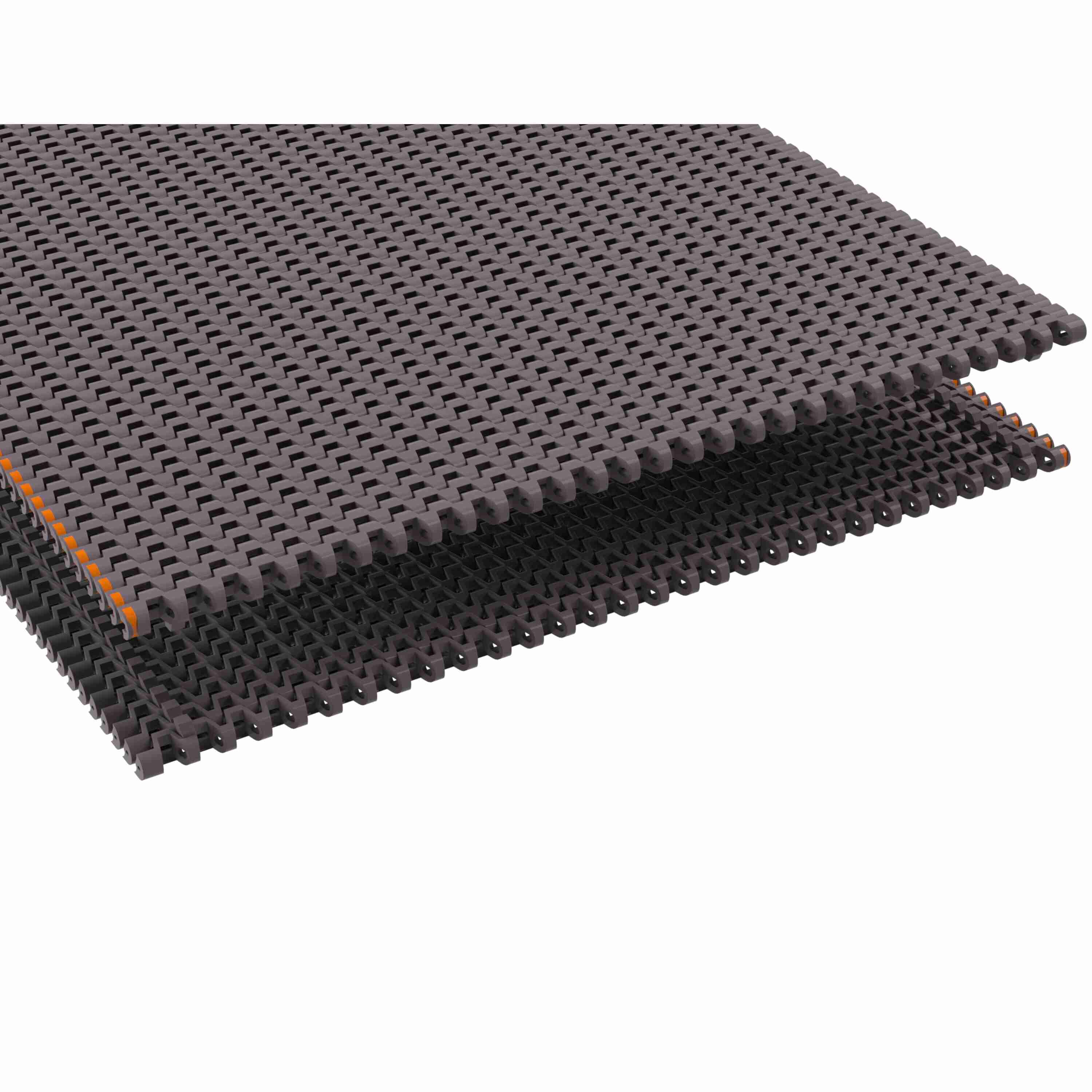

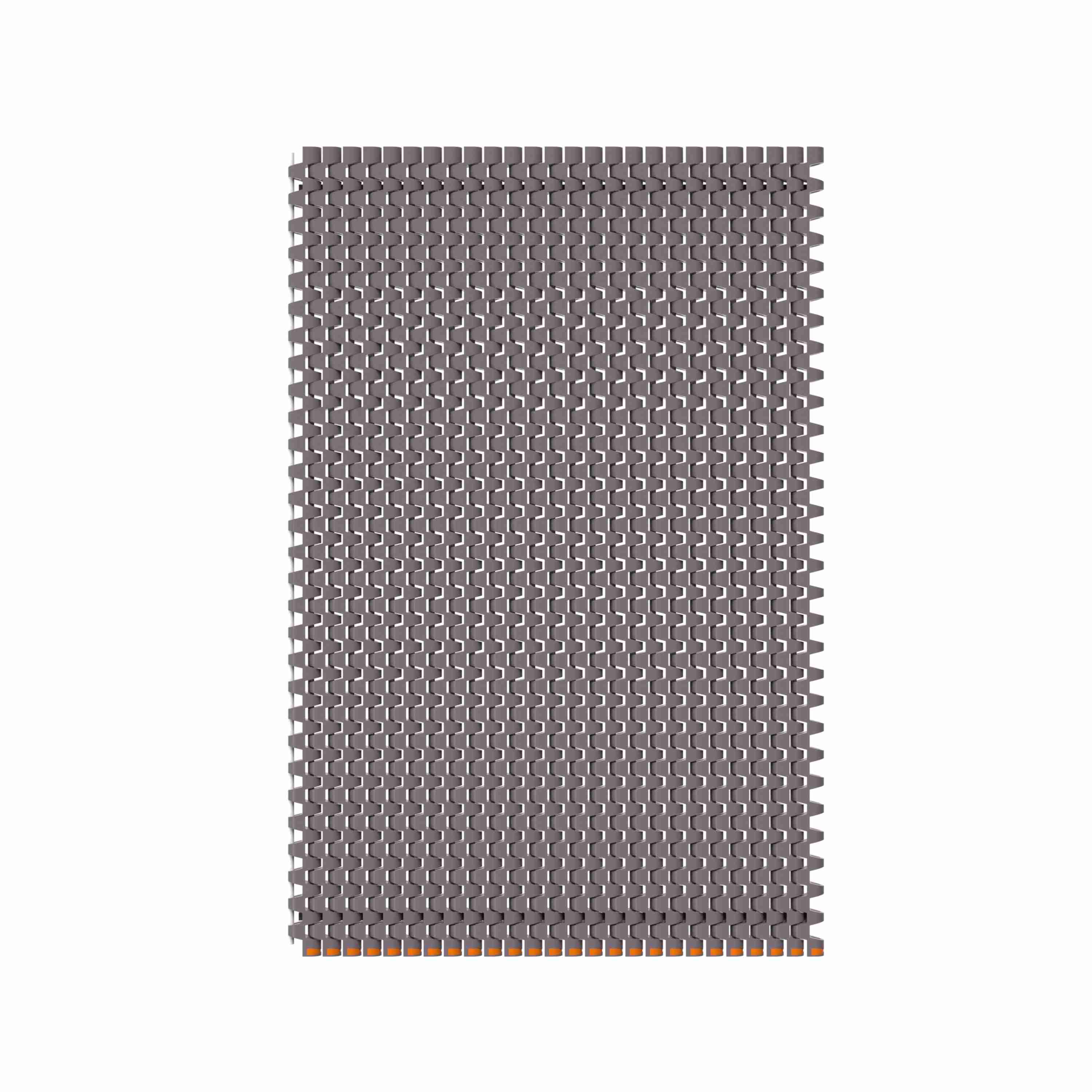

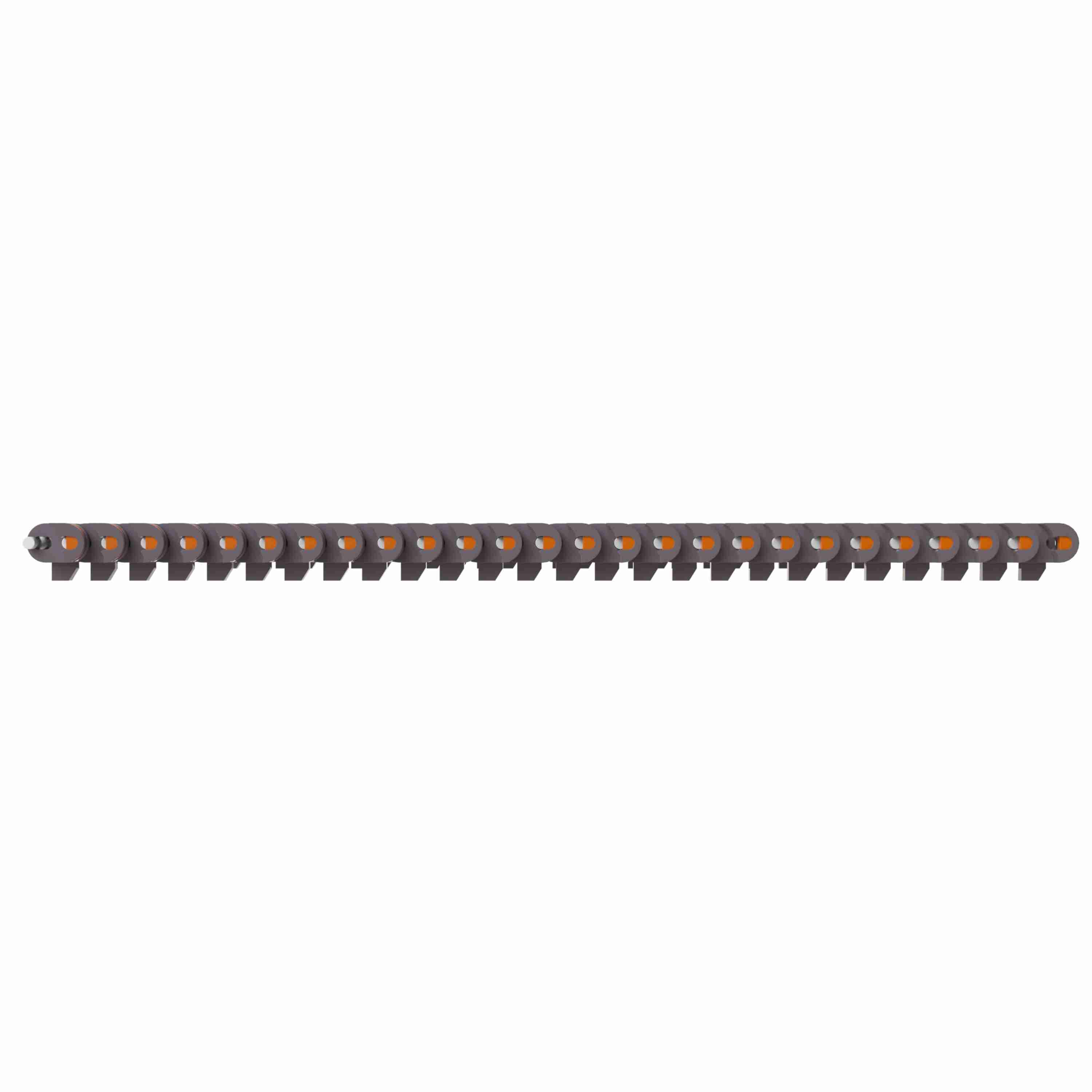

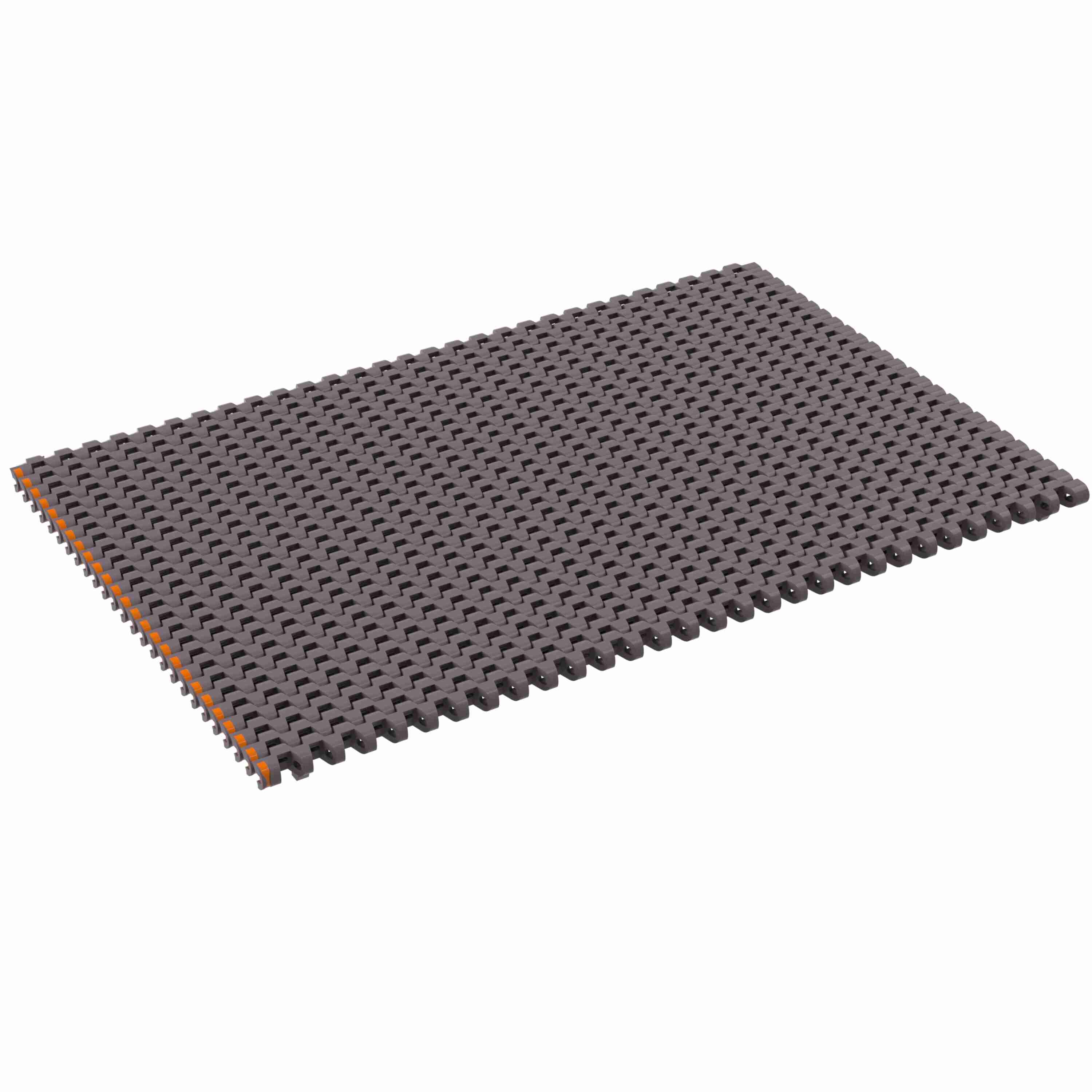

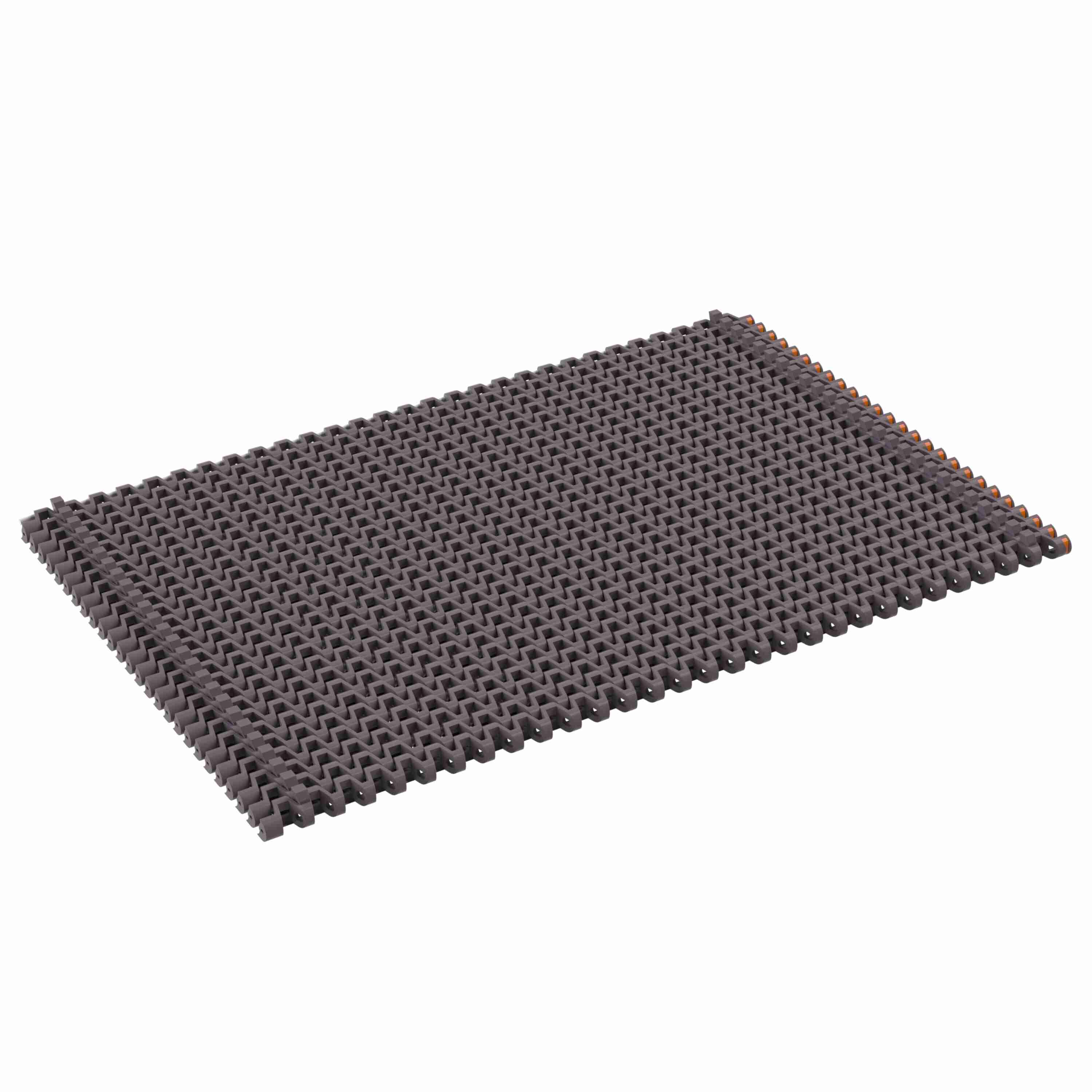

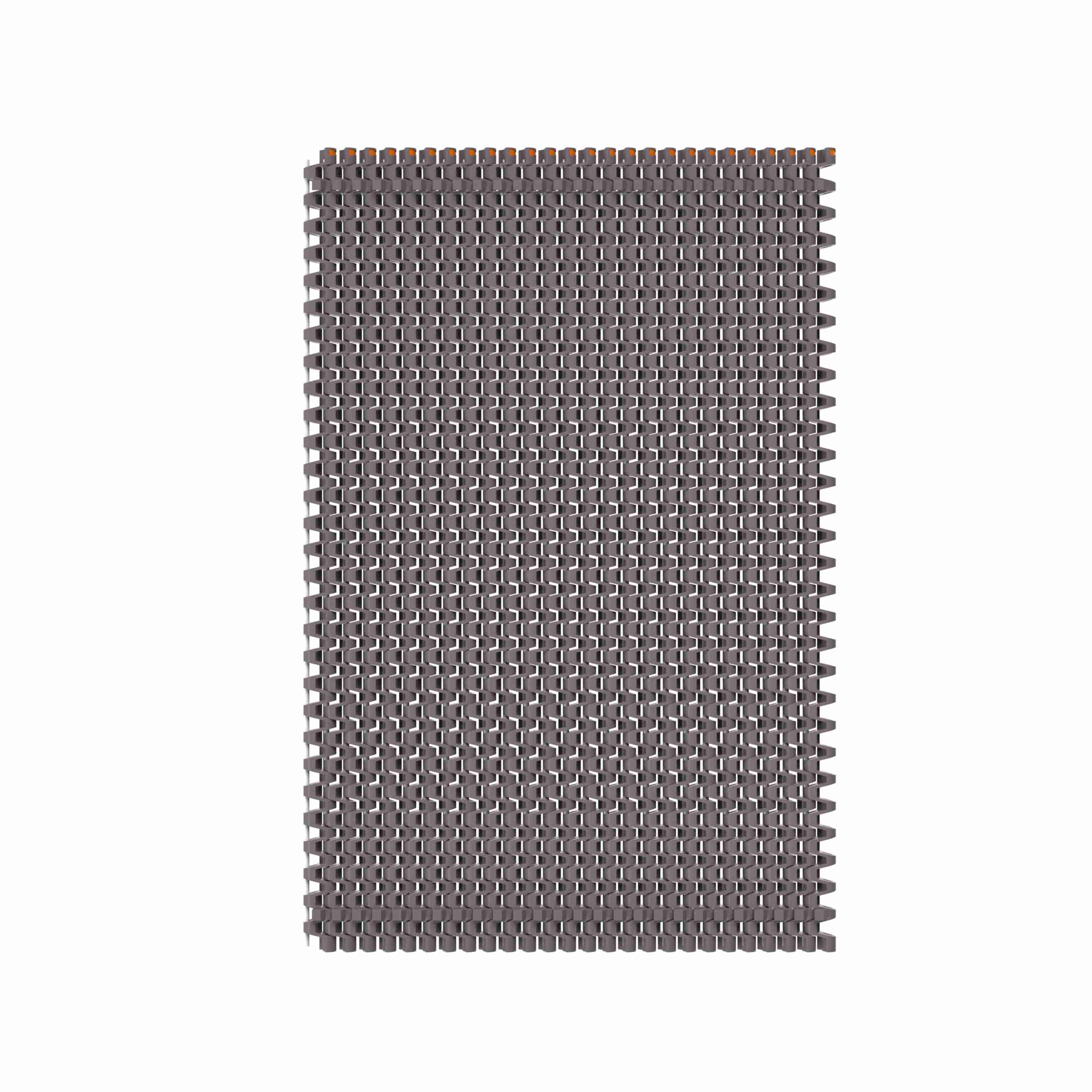

Rexnord 7526 Side-flexing Flush Grid, Material: HP, Width: 595mm, Pitch: 0.5in - HP7526-595
Part #:10028930
Catalog #:HP7526-595
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Surface Type: | Flush Grid | Straight or Side-Flex: | Side-flexing |
| Chain Pitch (in): | 0.5 in | Chain Width (in): | 23.43 in |
| Chain Width (mm): | 595 mm | Chain Strength (N/m): | 9,002 N·m |
| Chain Width Measurement System: | Metric | Open Area (%): | 39 % |
| Chain Pitch (mm): | 12.7 mm | Belt Thickness (mm): | 12.7 mm |
| Curve Chain Strength (lb): | 617 lb | Curve Retention Type: | Bevel |
| Curve Chain Strength (N): | 9,002 N | Series: | MatTop 7526 Series Side-flexing Chain |
| Chain Material Description: | Brown High Performance | Rod/Pin Material: | GVK |
| Belt Thickness (in): | 0.5 in | Chain Number: | 7526 |
| Chain Material: | HP | Chain Strength (lb/ft): | 617 lb/ft |
General Specifications
| Weight: | 0.17 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
