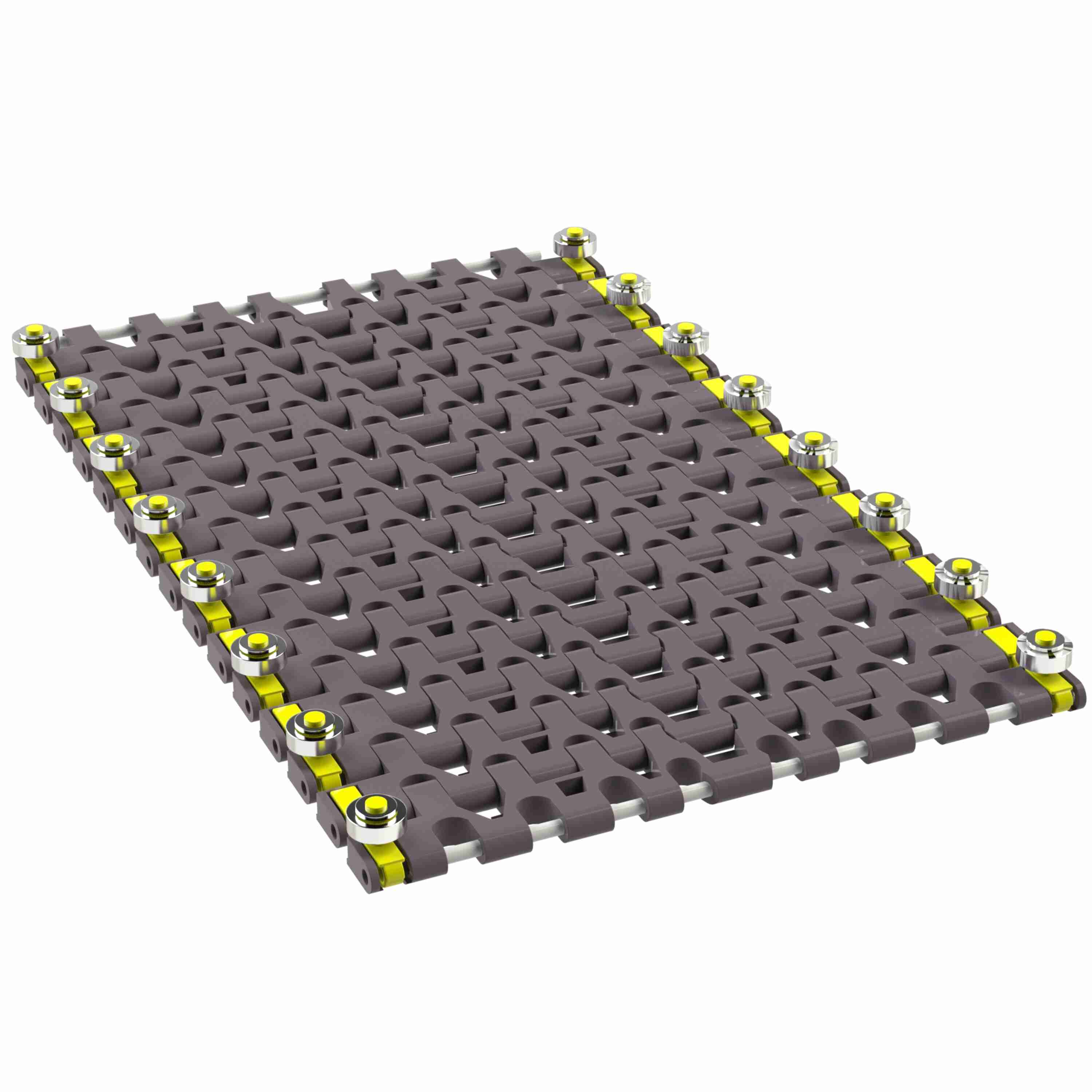

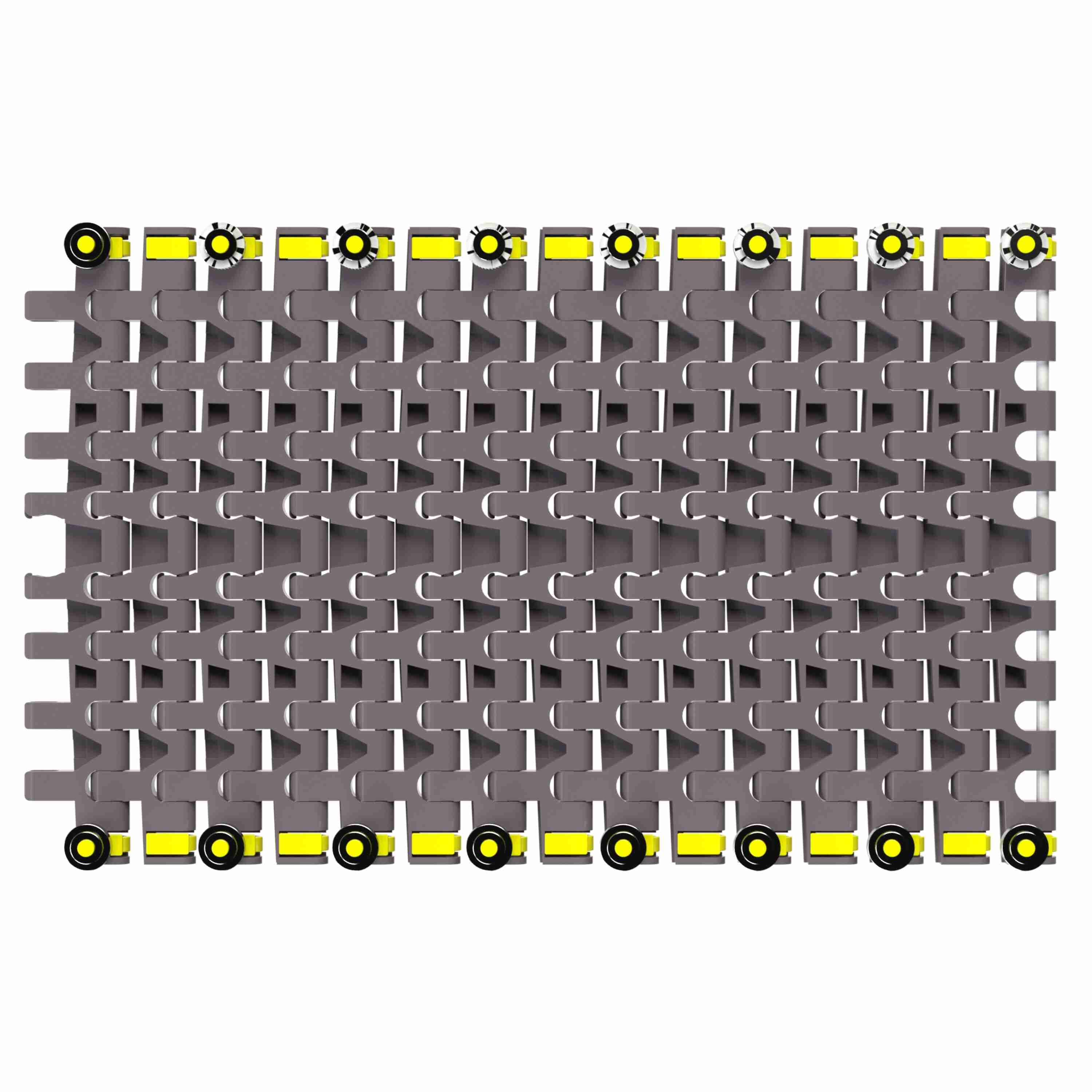

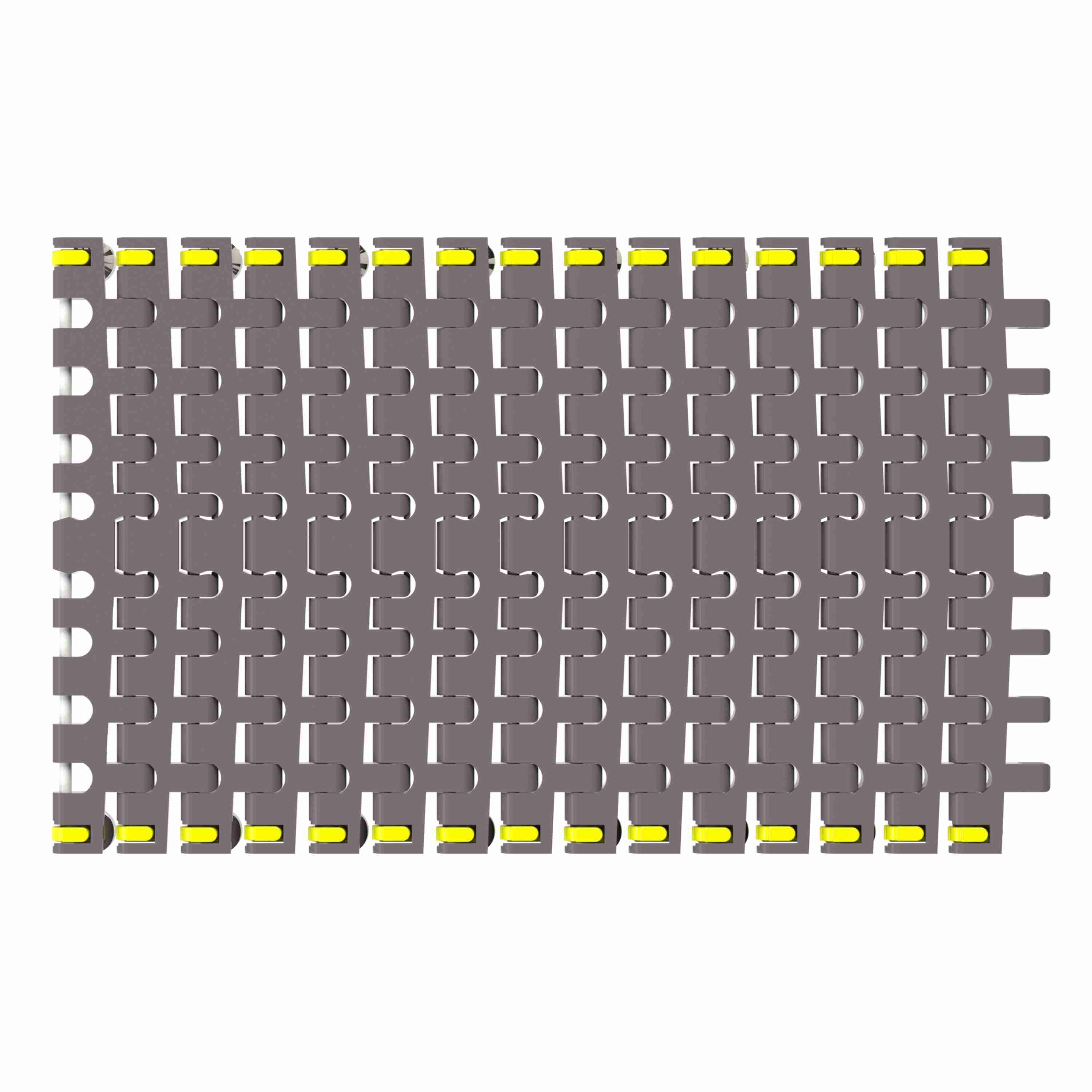

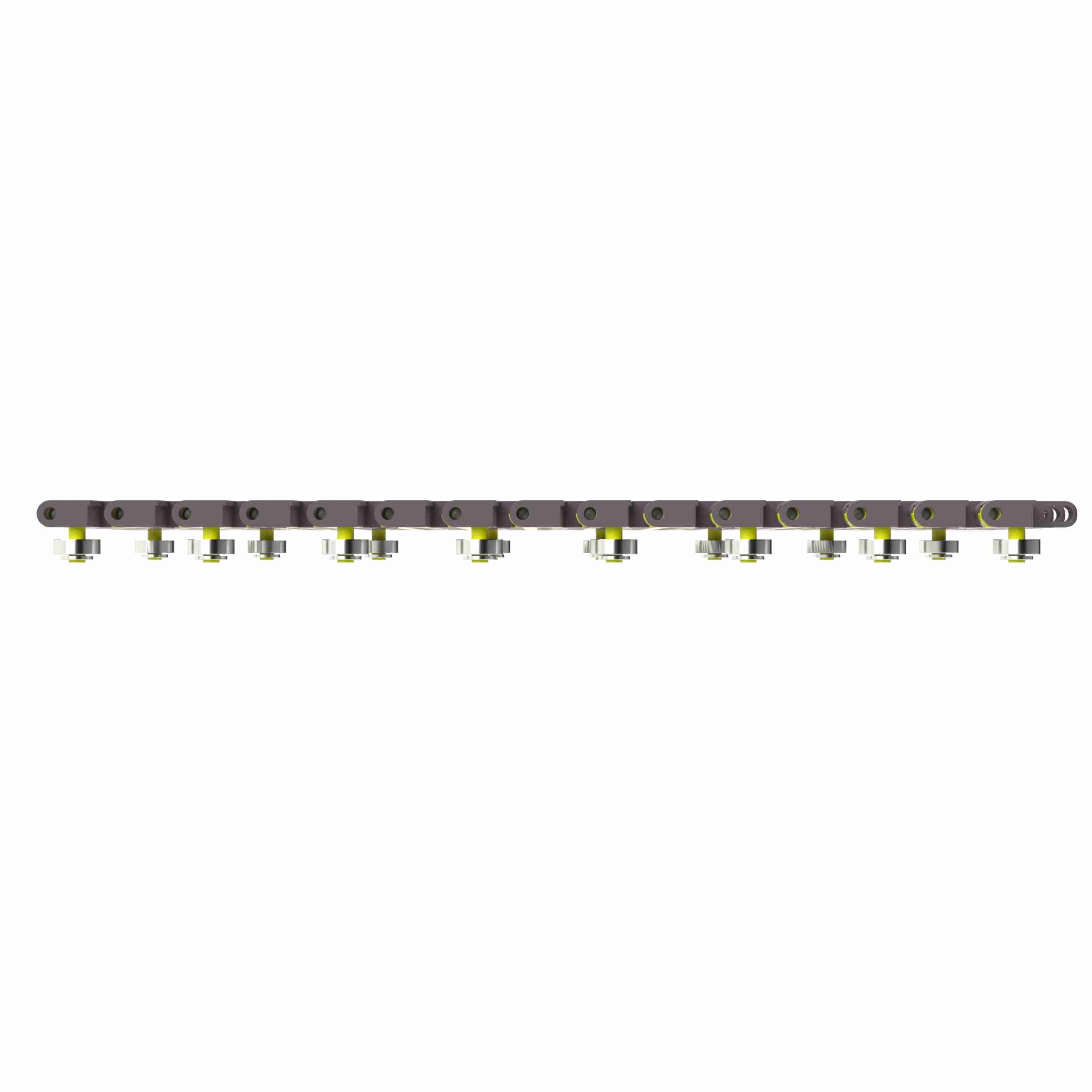

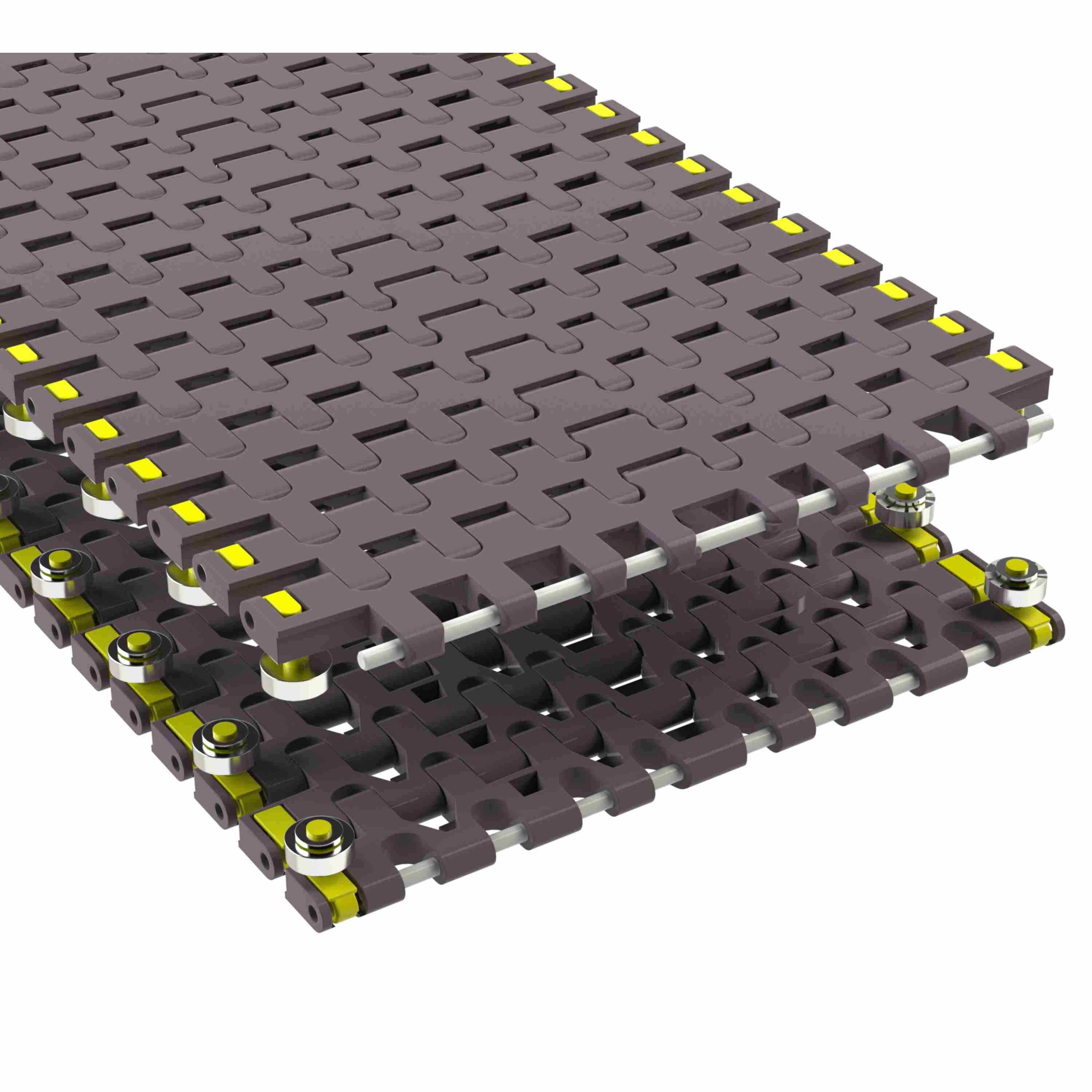

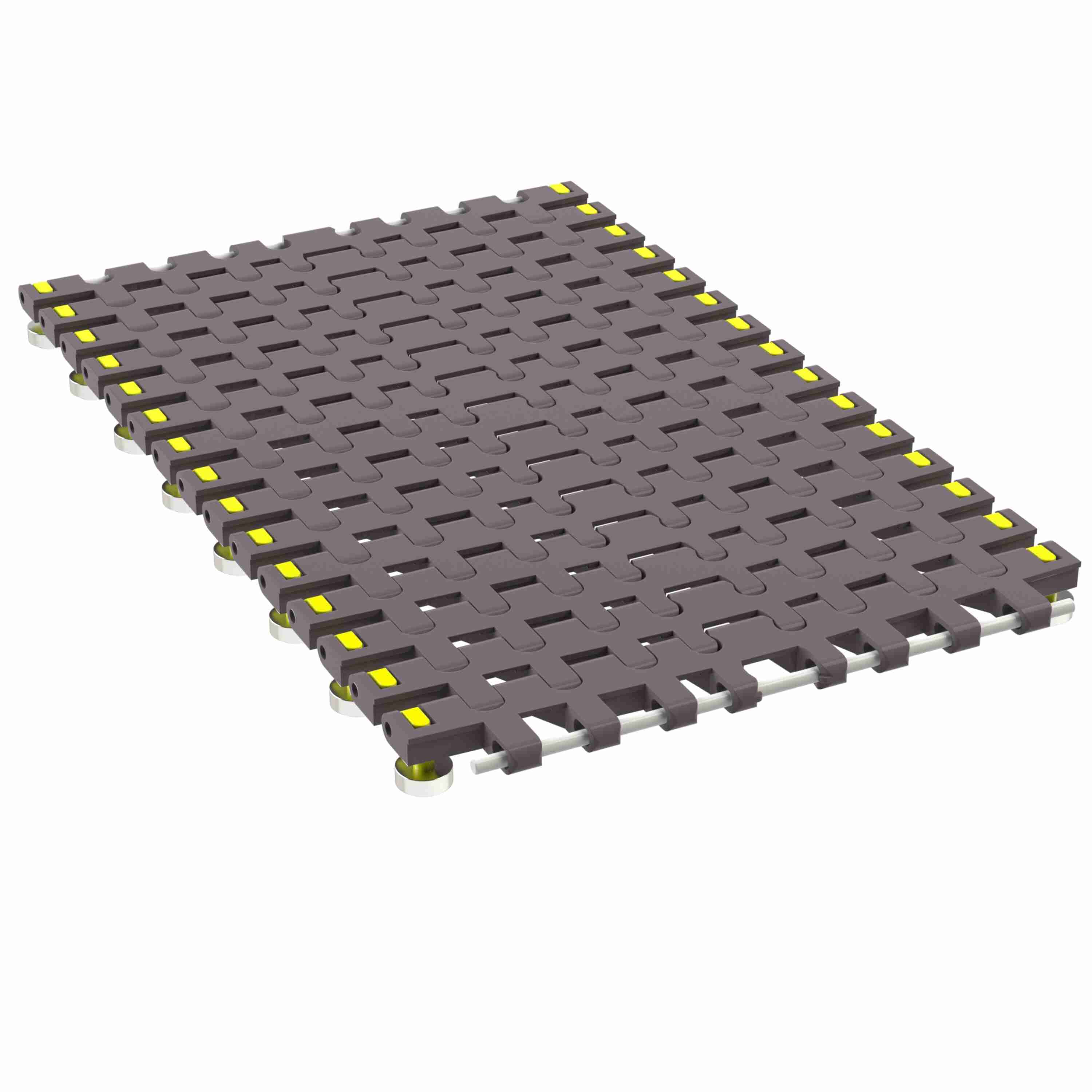

Rexnord 7956B Side-flexing Flush Grid, Material: Brown High Performance, Width: 12in, Pitch: 1.25in - 81450661
Part #:10146274
Catalog #:81450661
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Width (in): | 12 in | Chain Material Description: | Brown High Performance |
| Chain Pitch (in): | 1.25 in | Chain Number: | 7956B |
| Chain Width (mm): | 304.8 mm | Chain Material: | HP |
| Chain Width Measurement System: | Imperial | Direction: | S-Turn |
| Open Area (%): | 16 % | Series: | MatTop 7956 Series Side-flexing Chain |
| Chain Pitch (mm): | 31.75 mm | Curve Retention Type: | Bearing |
| Chain Strength (N): | 3,552 N | Belt Thickness (in): | 0.5 in |
| Straight or Side-Flex: | Side-flexing | Surface Type: | Flush Grid |
| Rod/Pin Material: | Polyester | Chain Strength (lb): | 800 lb |
| Belt Thickness (mm): | 12.7 mm |
General Specifications
| Weight: | 0.25 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
