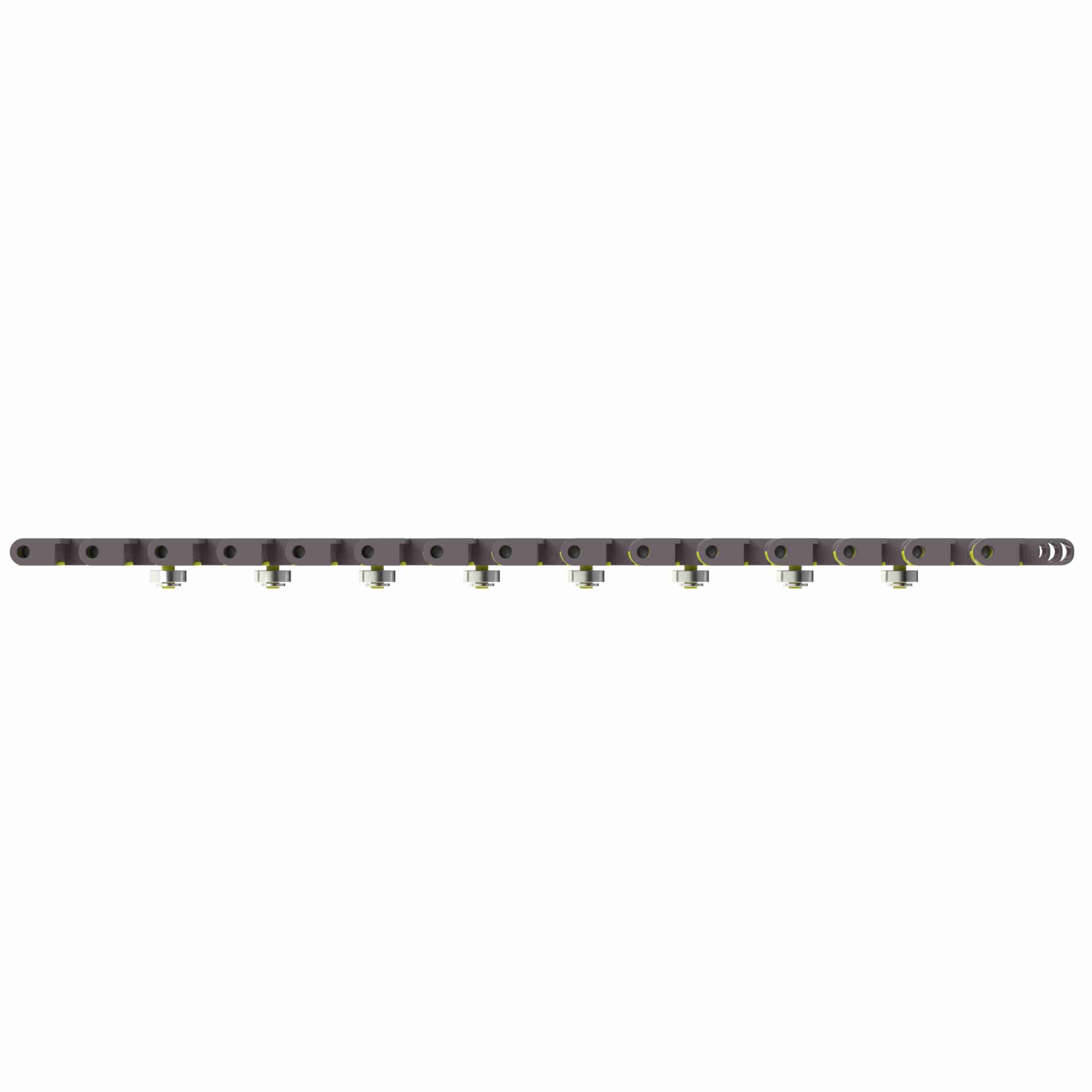

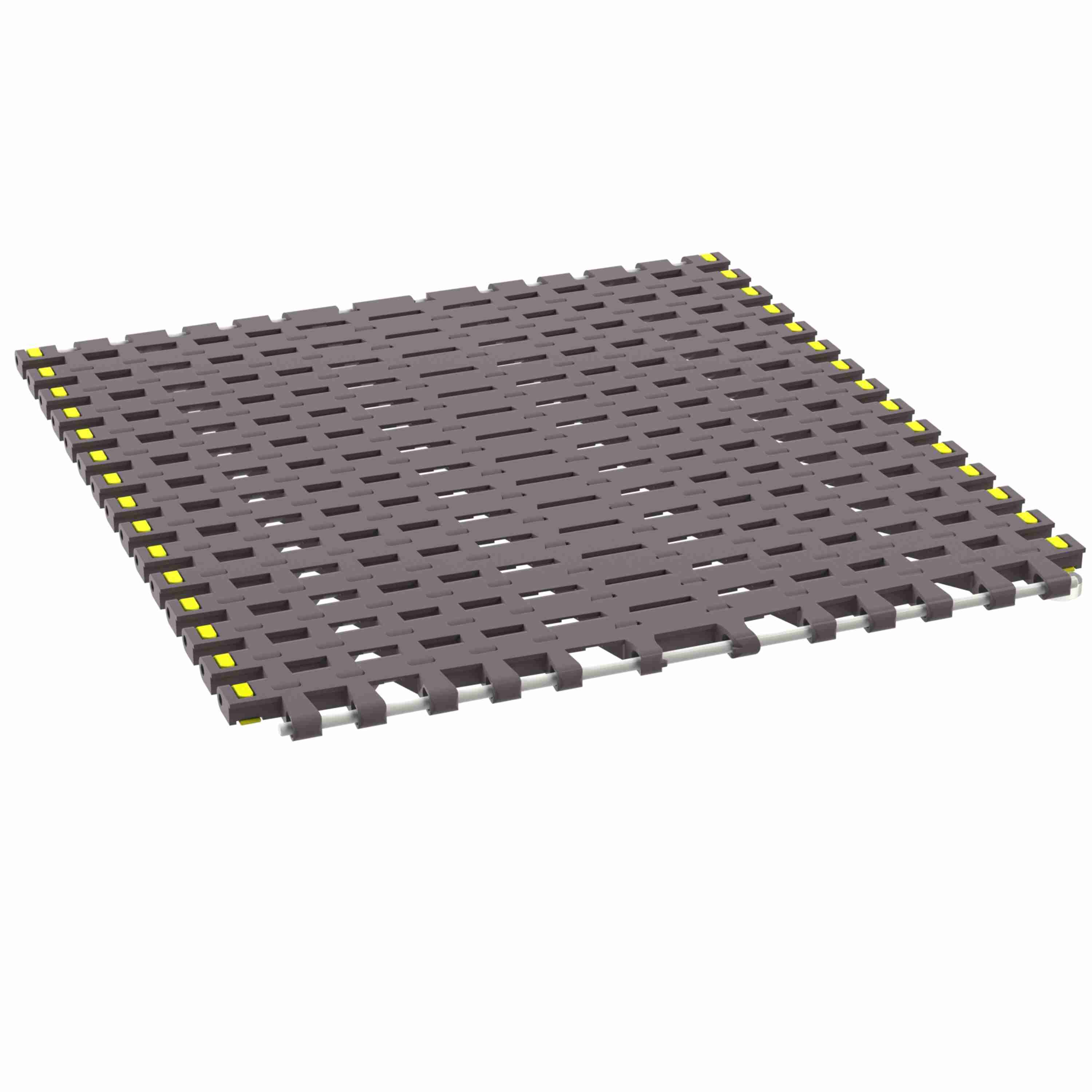

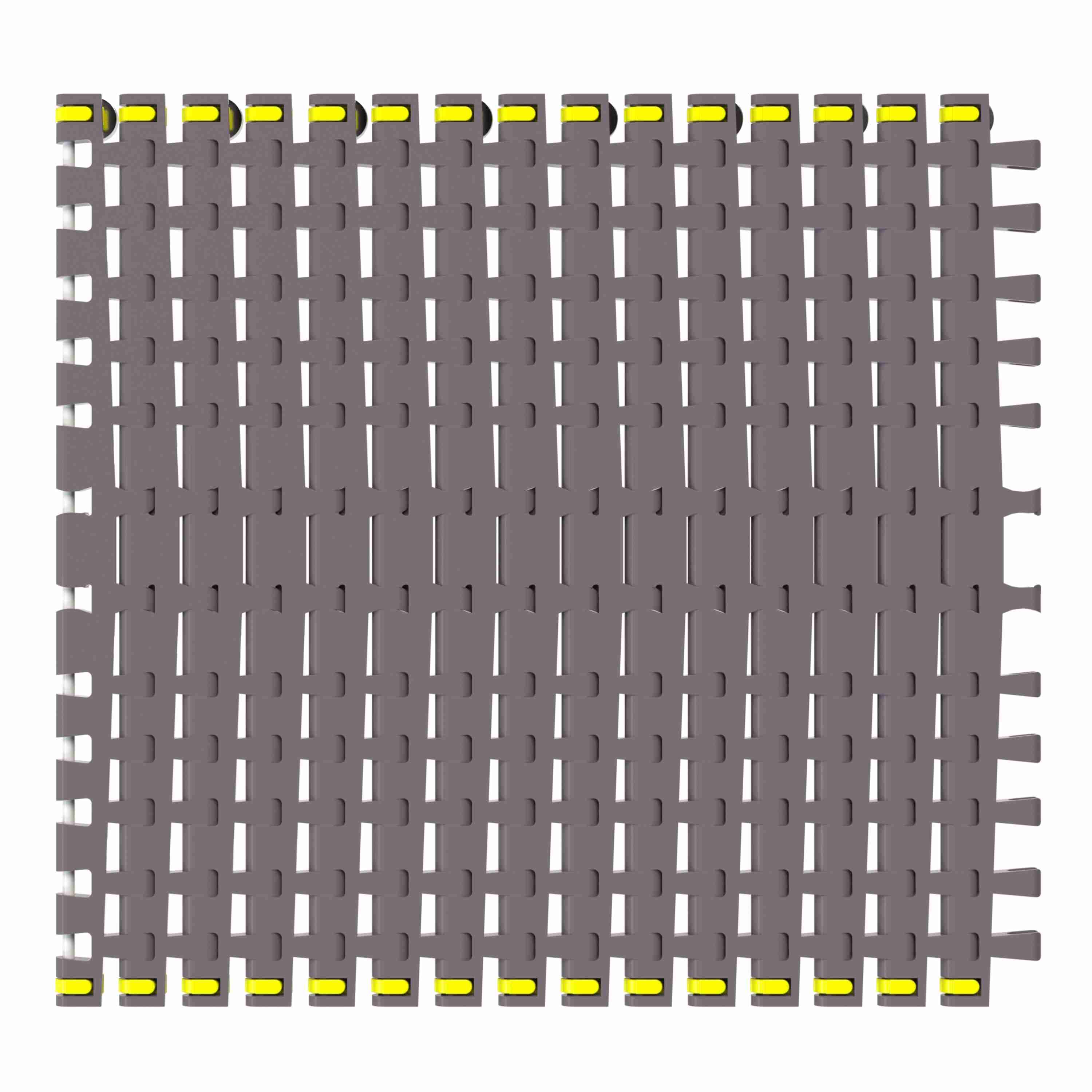

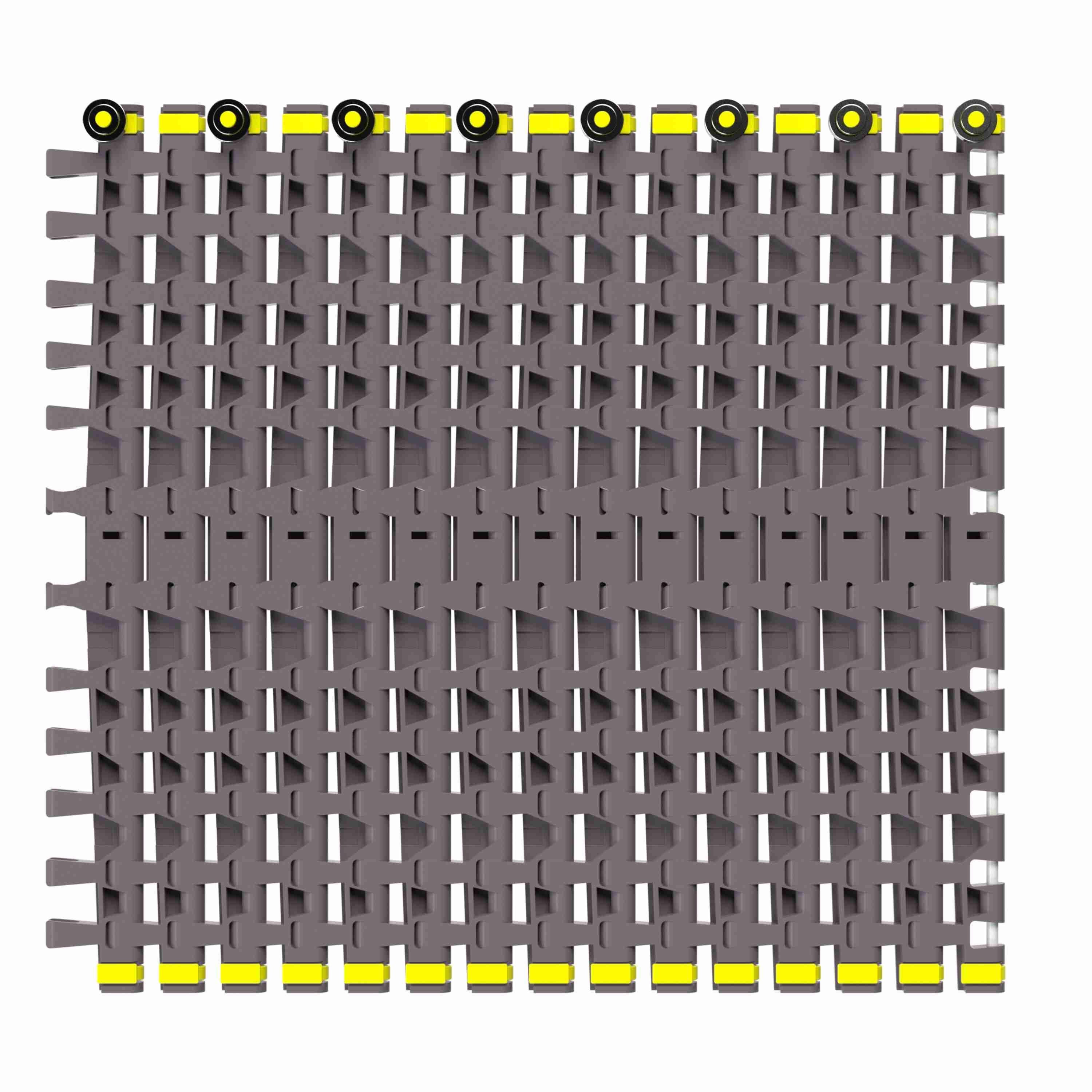

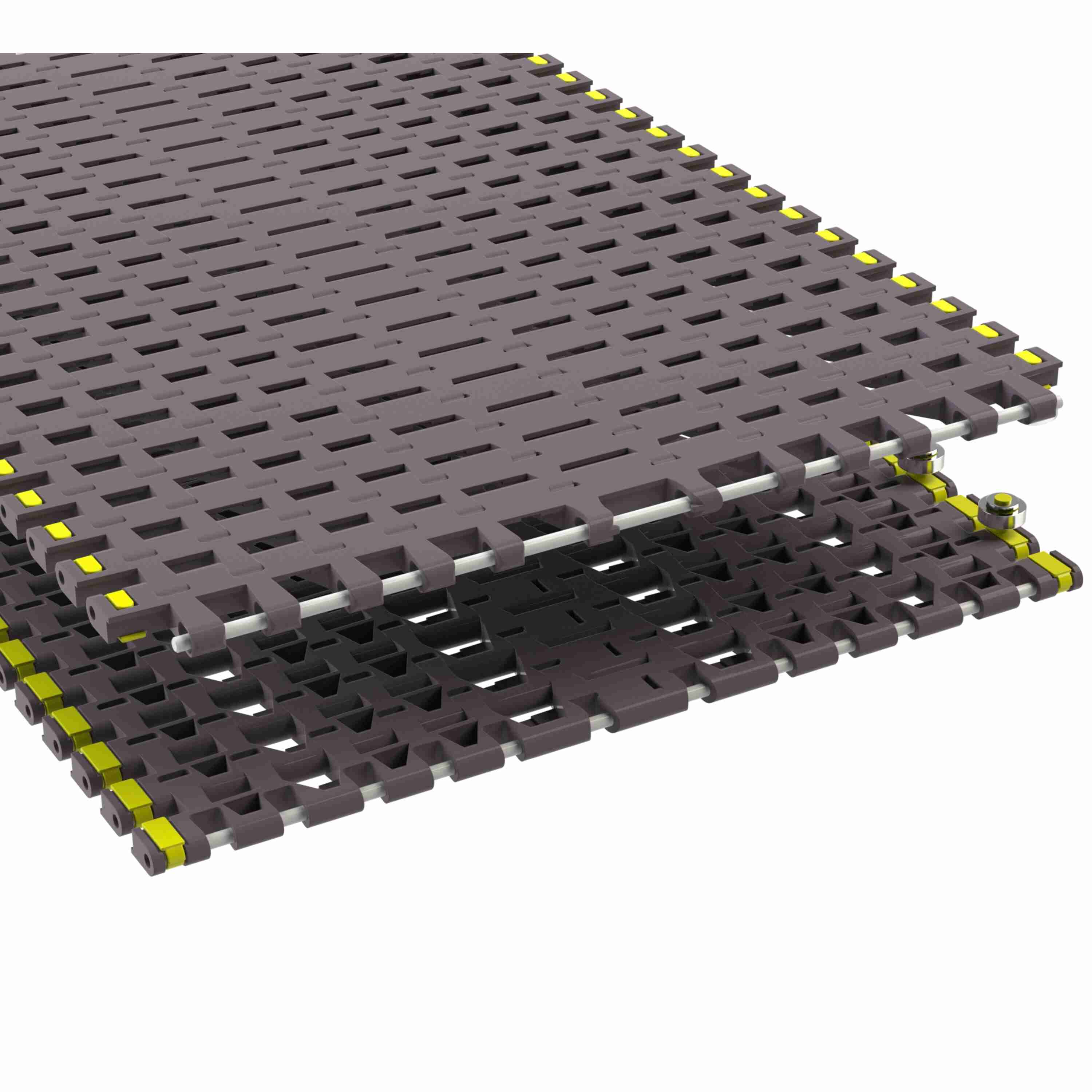

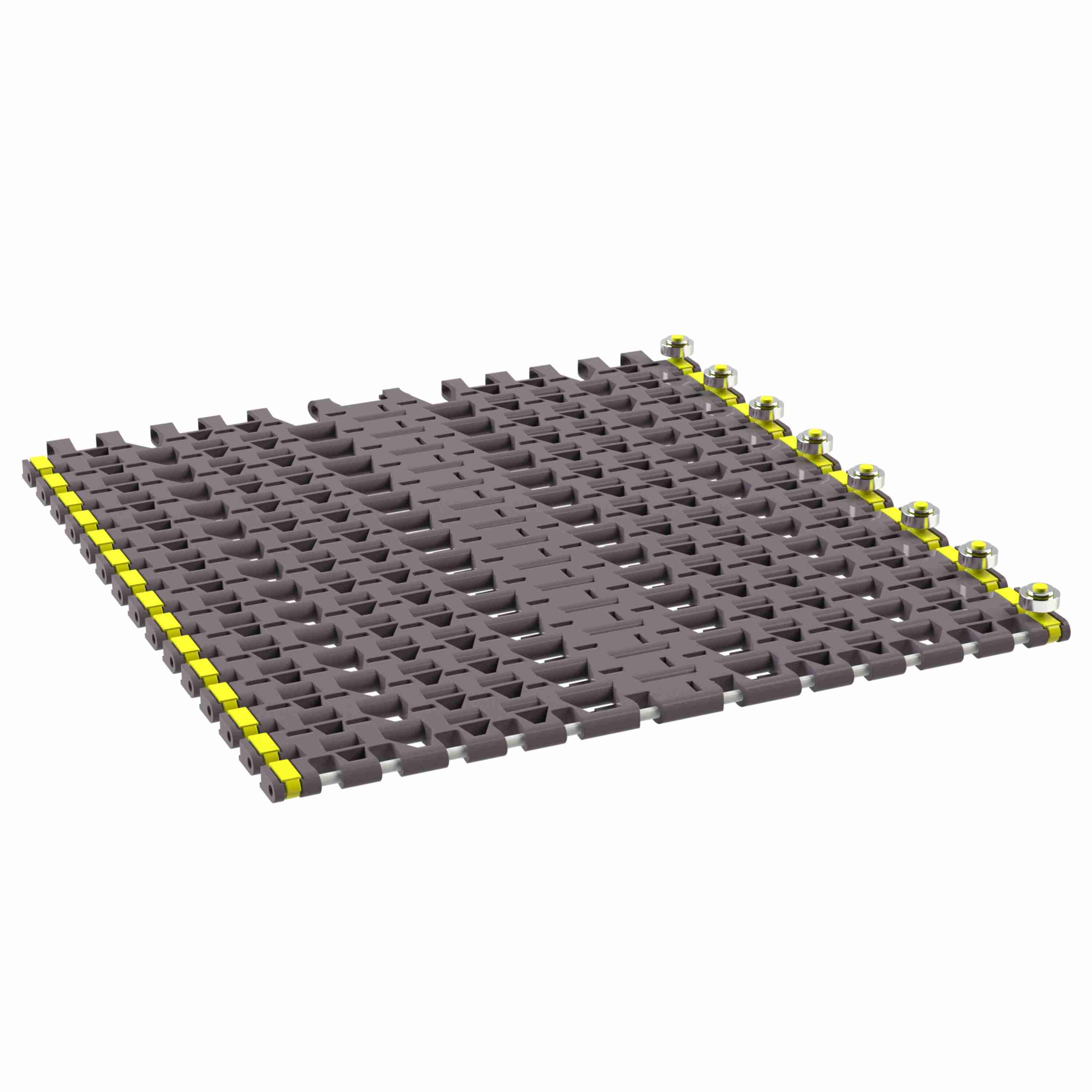

Rexnord 7956B Side-flexing Flush Grid, Material: Brown High Performance, Width: 18in, Pitch: 1.25in - 81450771
Part #:10146285
Catalog #:81450771
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Curve Retention Type: | Bearing | Chain Number: | 7956B |
| Chain Material: | HP | Surface Type: | Flush Grid |
| Chain Pitch (mm): | 31.75 mm | Chain Strength (lb): | 950 lb |
| Open Area (%): | 16 % | Series: | MatTop 7956 Series Side-flexing Chain |
| Belt Thickness (mm): | 12.7 mm | Chain Width (mm): | 457.2 mm |
| Chain Material Description: | Brown High Performance | Chain Width (in): | 18 in |
| Belt Thickness (in): | 0.5 in | Chain Width Measurement System: | Imperial |
| Straight or Side-Flex: | Side-flexing | Chain Strength (N): | 4,218 N |
| Direction: | Clockwise | Chain Pitch (in): | 1.25 in |
| Rod/Pin Material: | Polyester |
General Specifications
| Weight: | 0.35 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
