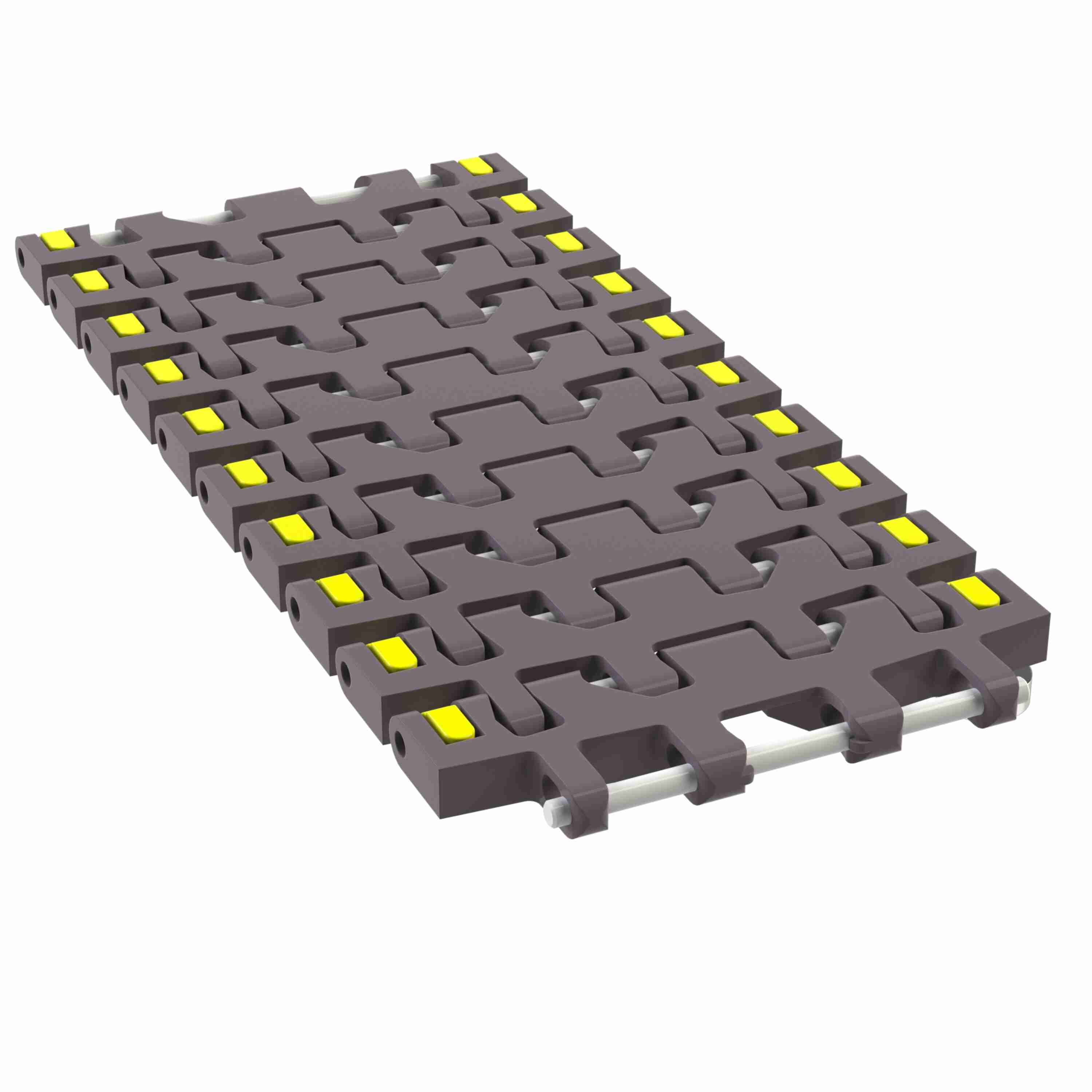

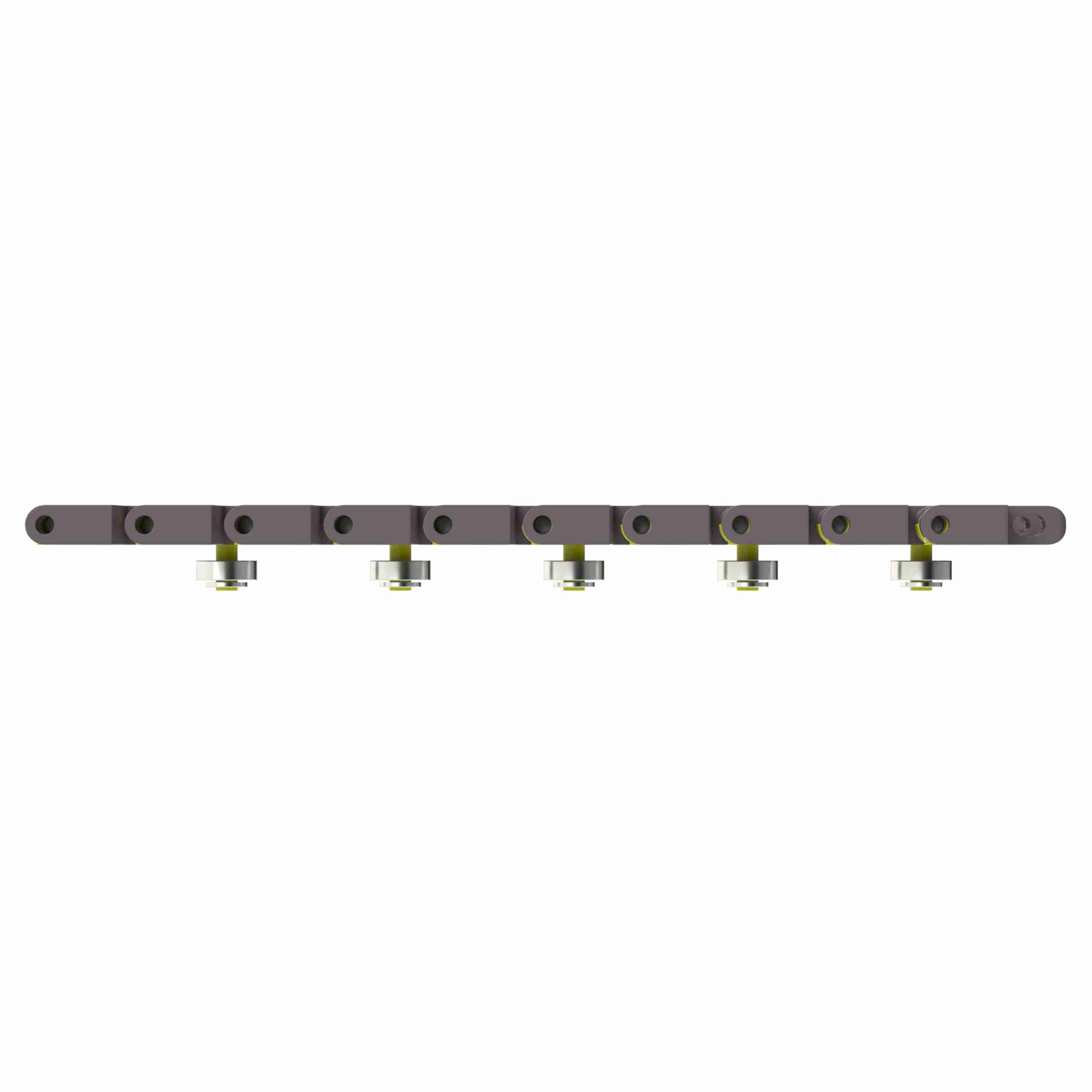

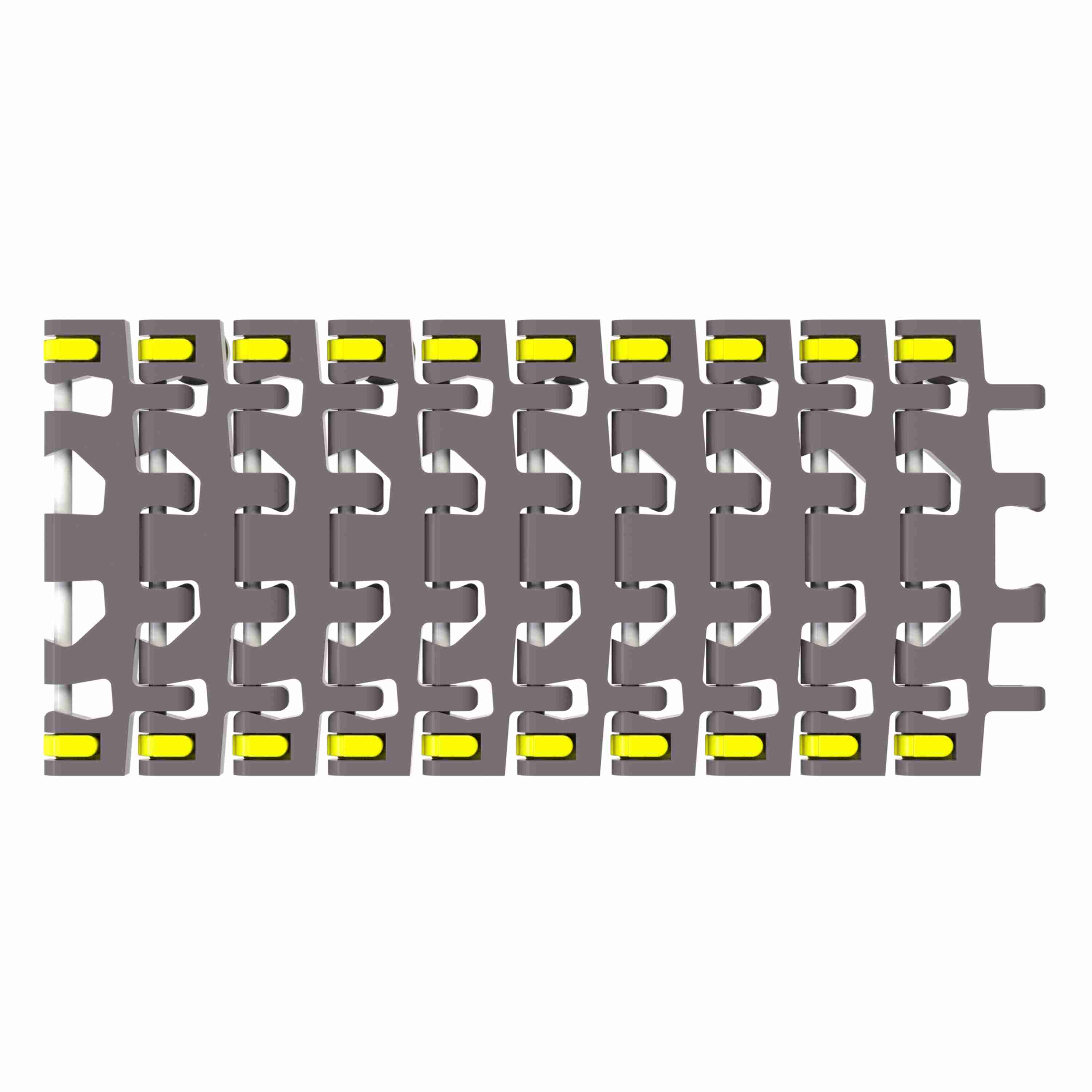

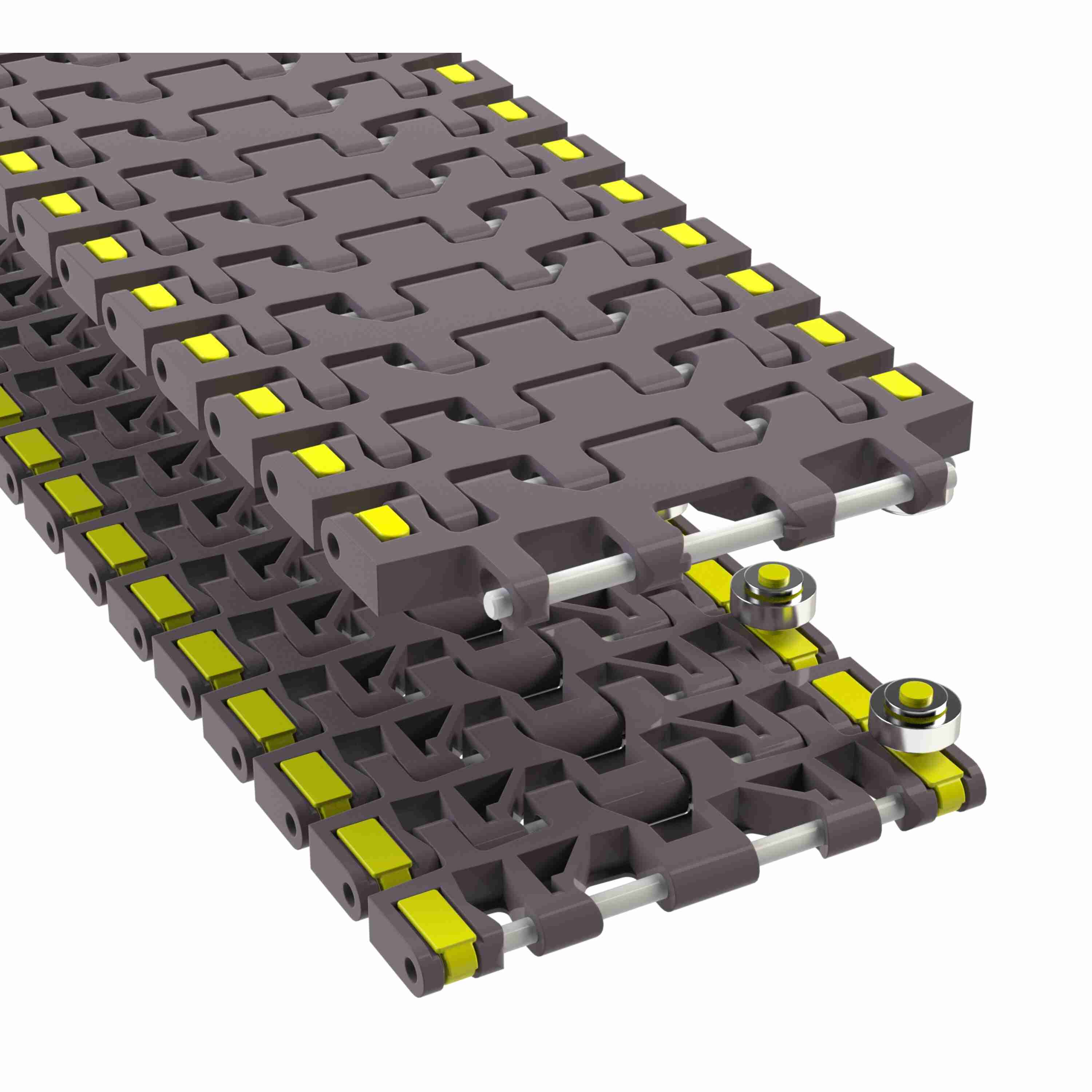

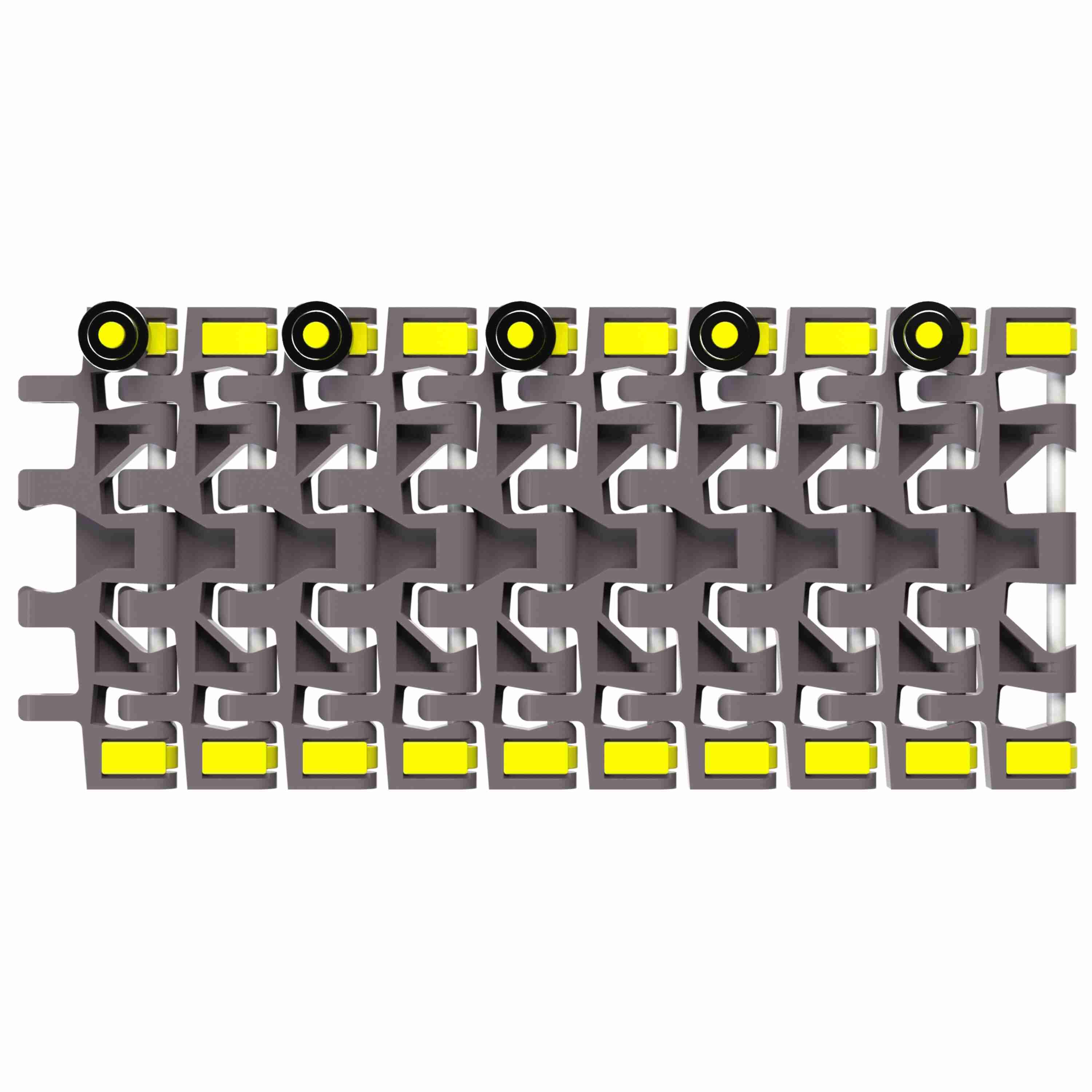

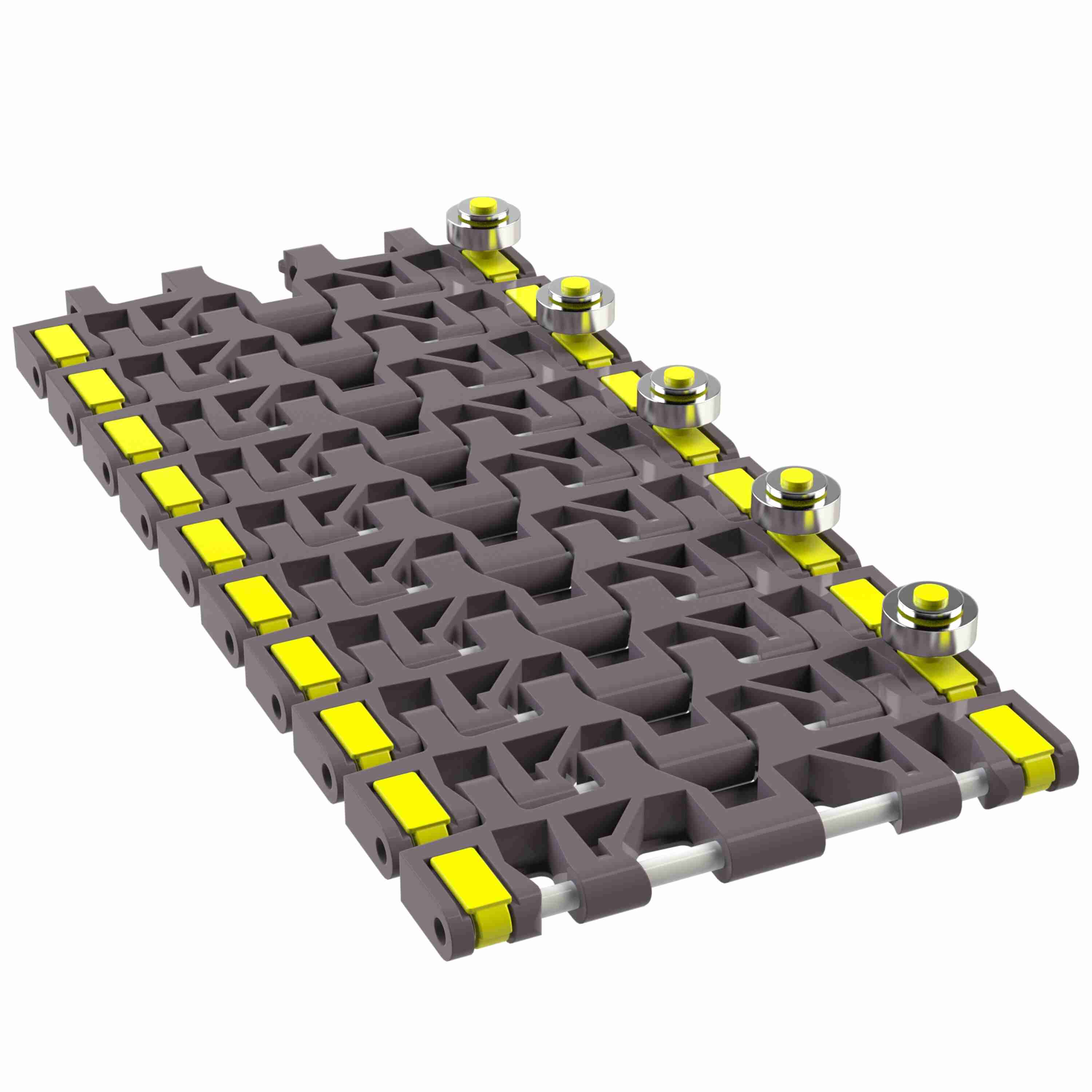

Rexnord 7956B Side-flexing Flush Grid, Material: Brown High Performance, Width: 6in, Pitch: 1.25in - 10343070
Part #:10343070
Catalog #:10343070
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Number: | 7956B | Belt Thickness (in): | 0.5 in |
| Rod/Pin Material: | Polyester | Curve Retention Type: | Bearing |
| Belt Thickness (mm): | 12.7 mm | Direction: | Clockwise |
| Chain Pitch (in): | 1.25 in | Chain Strength (N): | 1,998 N |
| Surface Type: | Flush Grid | Chain Pitch (mm): | 31.75 mm |
| Series: | MatTop 7956 Series Side-flexing Chain | Open Area (%): | 16 % |
| Chain Material Description: | Brown High Performance | Straight or Side-Flex: | Side-flexing |
| Chain Width (mm): | 152.4 mm | Chain Material: | HP |
| Chain Width Measurement System: | Imperial | Chain Strength (lb): | 450 lb |
| Chain Width (in): | 6 in |
General Specifications
| Weight: | 0.12 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
