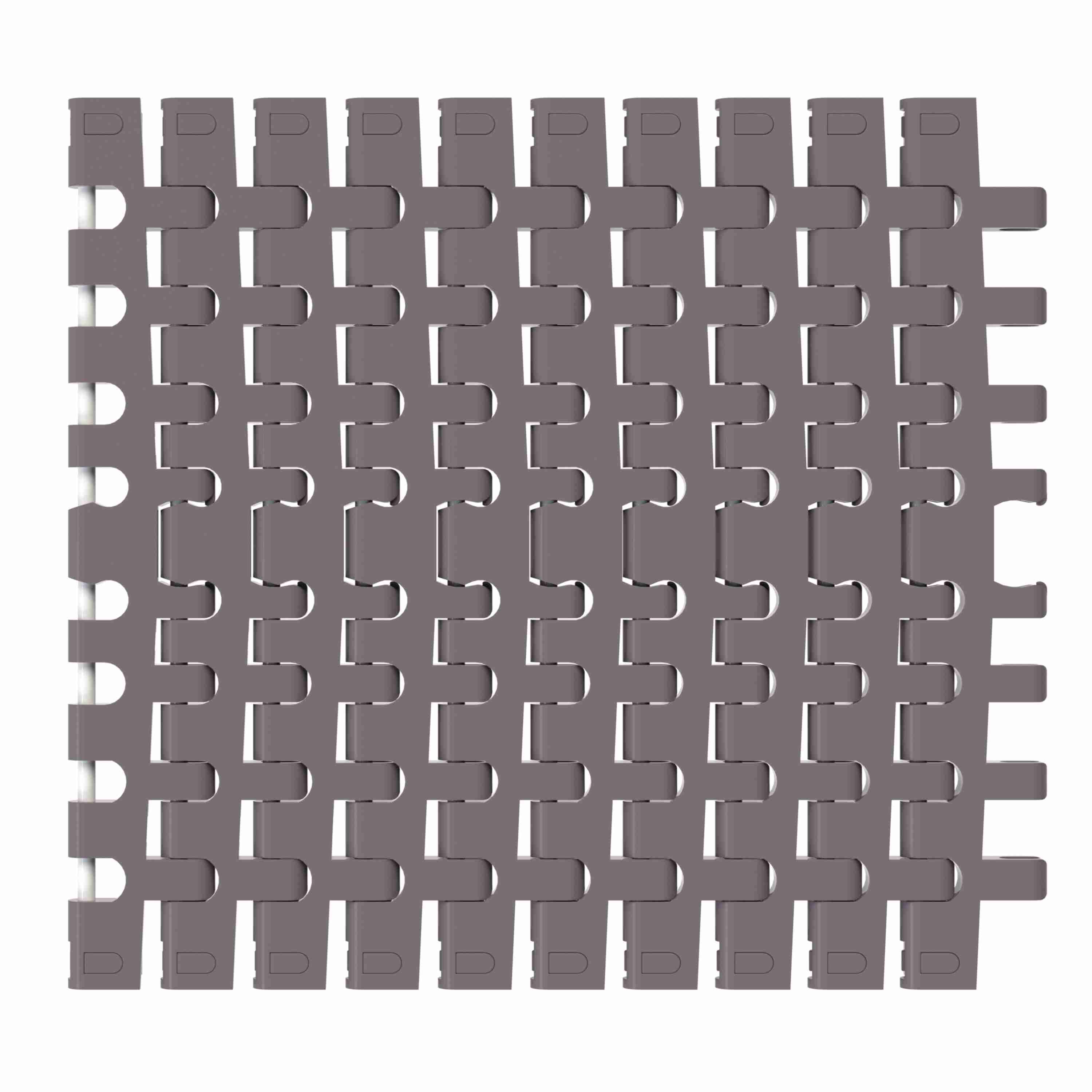

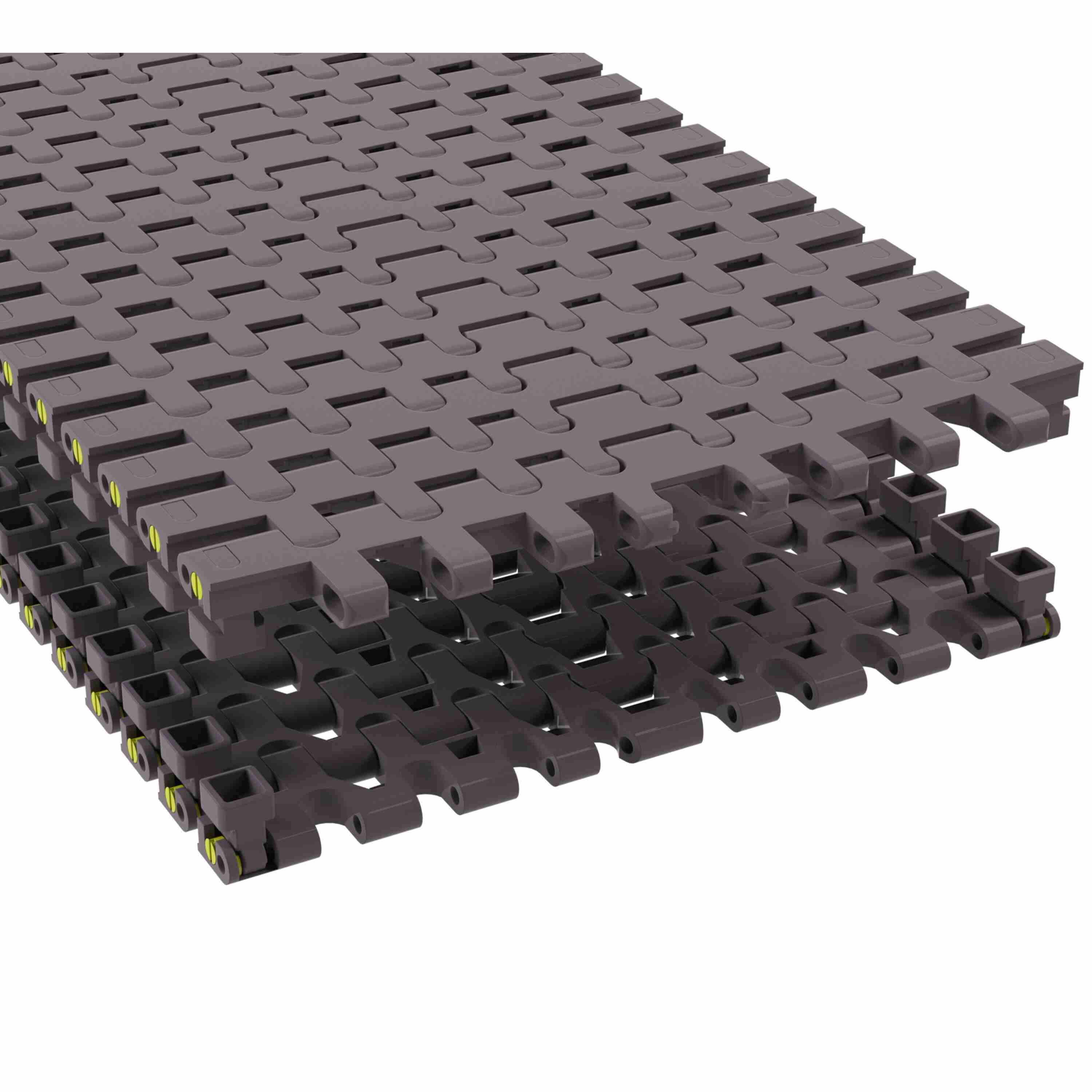

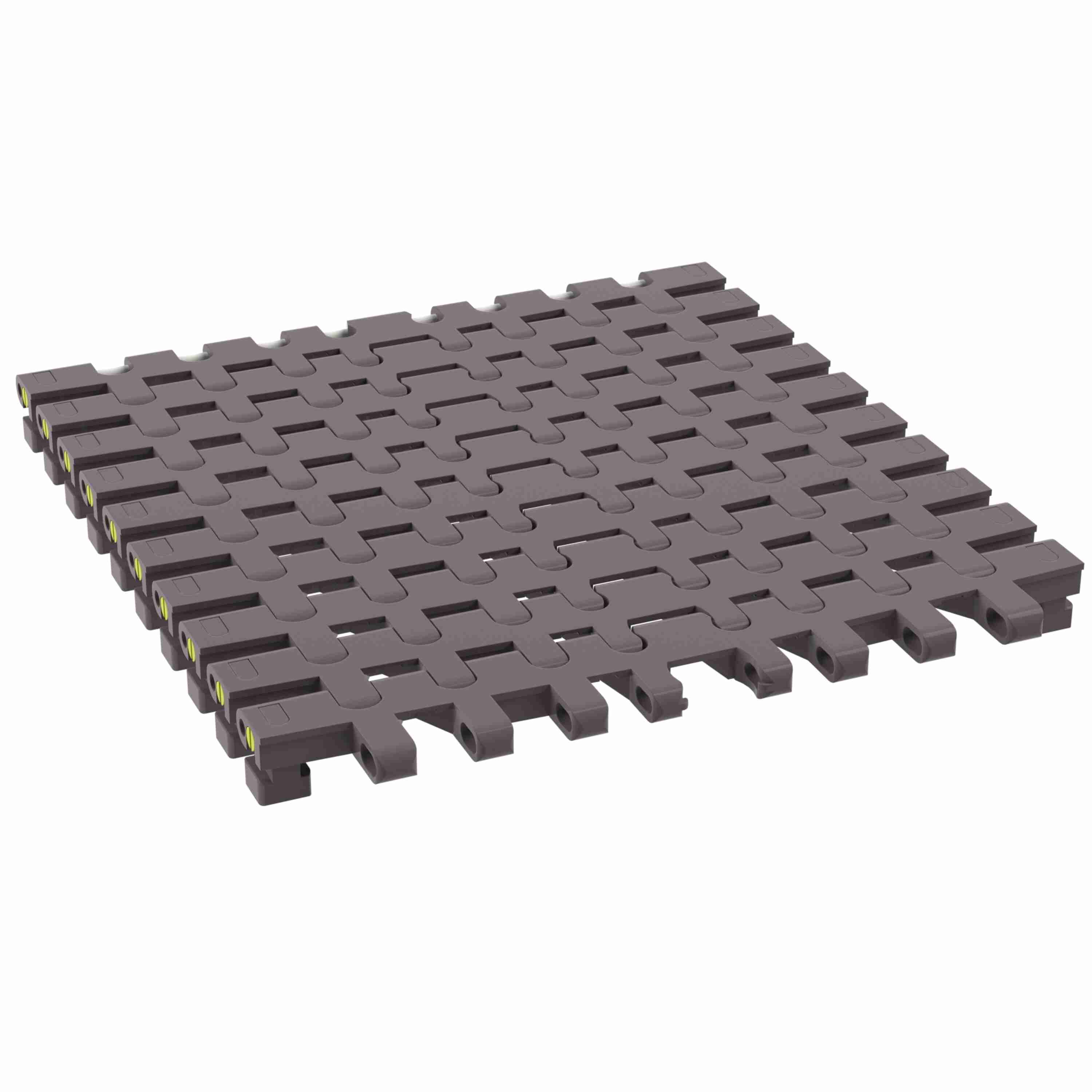

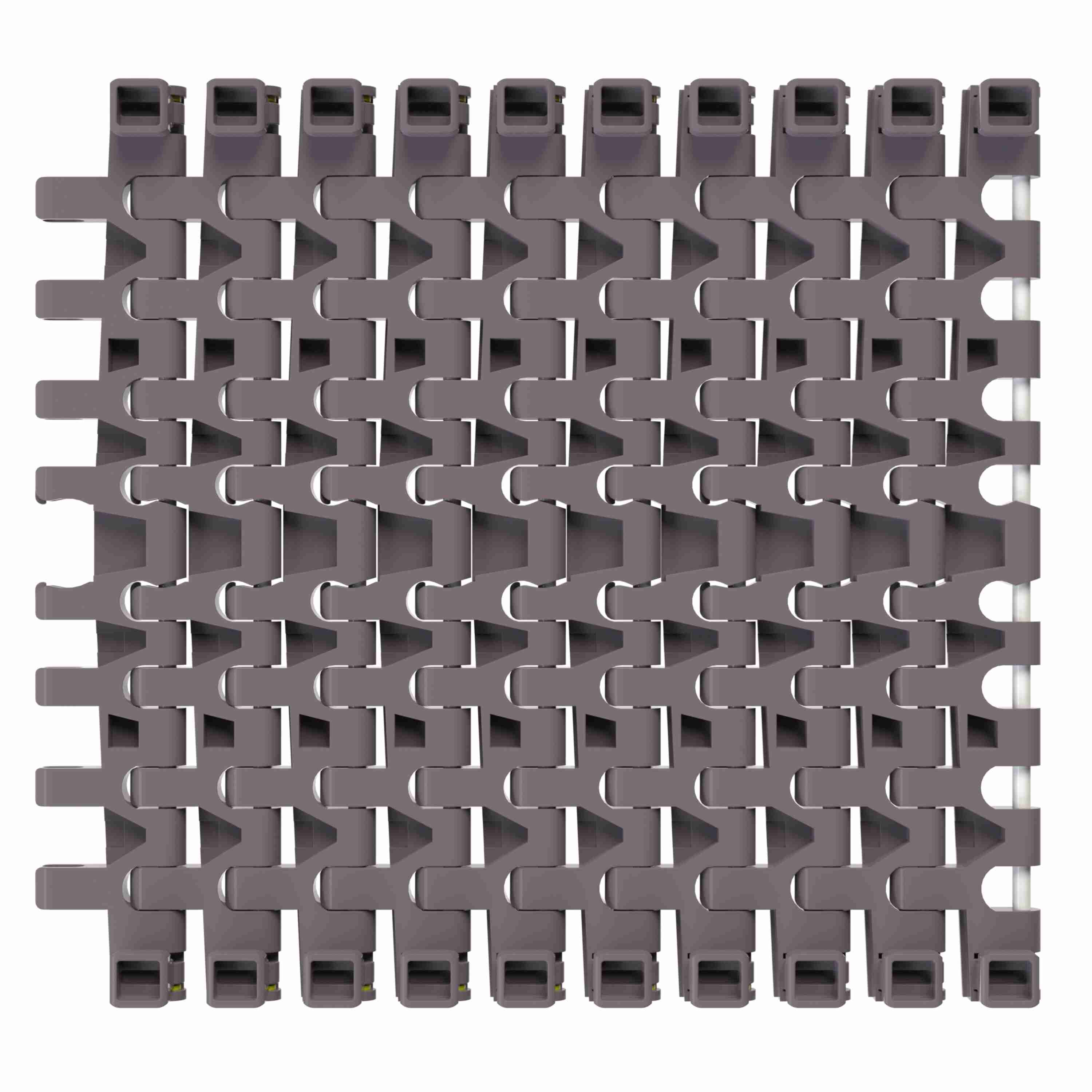

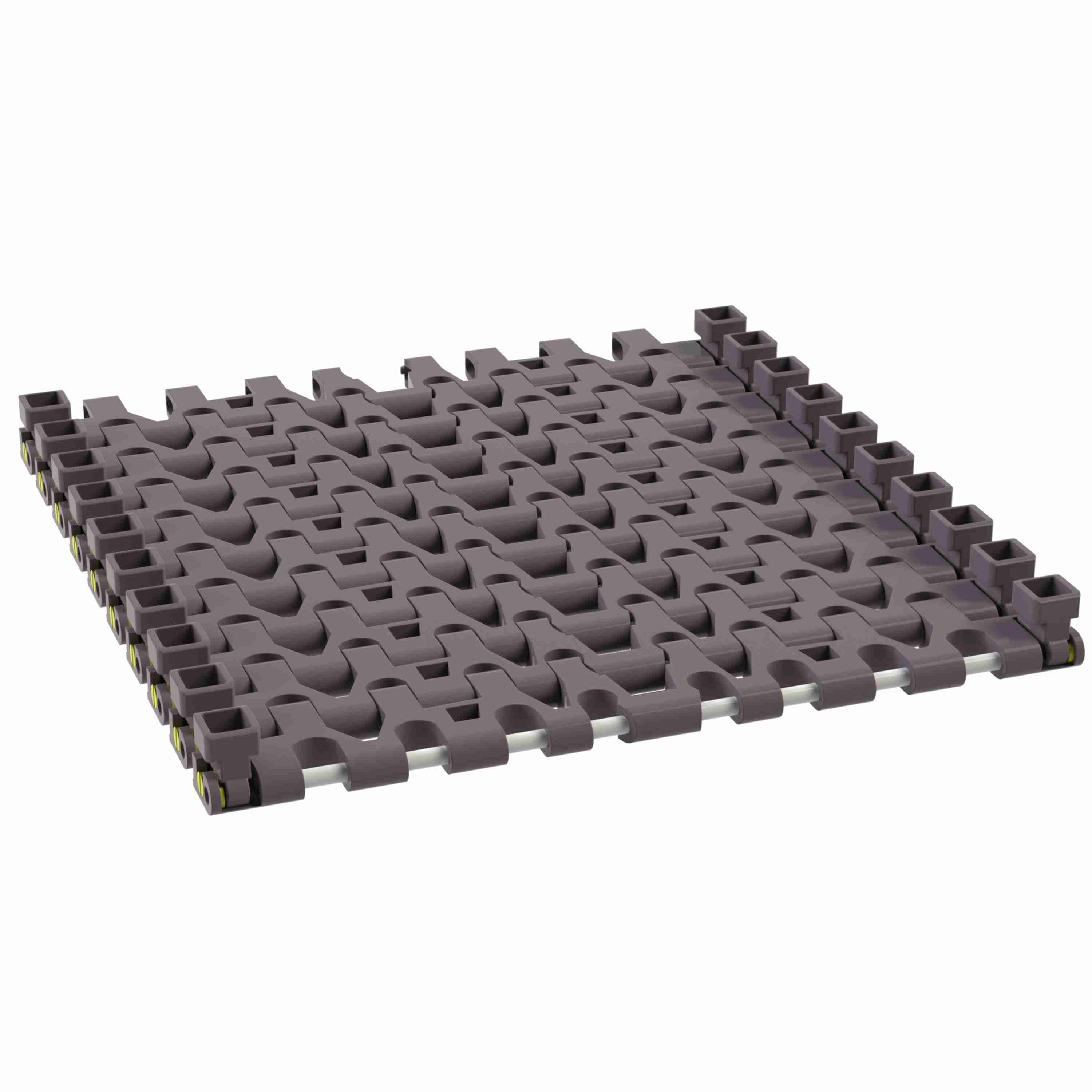

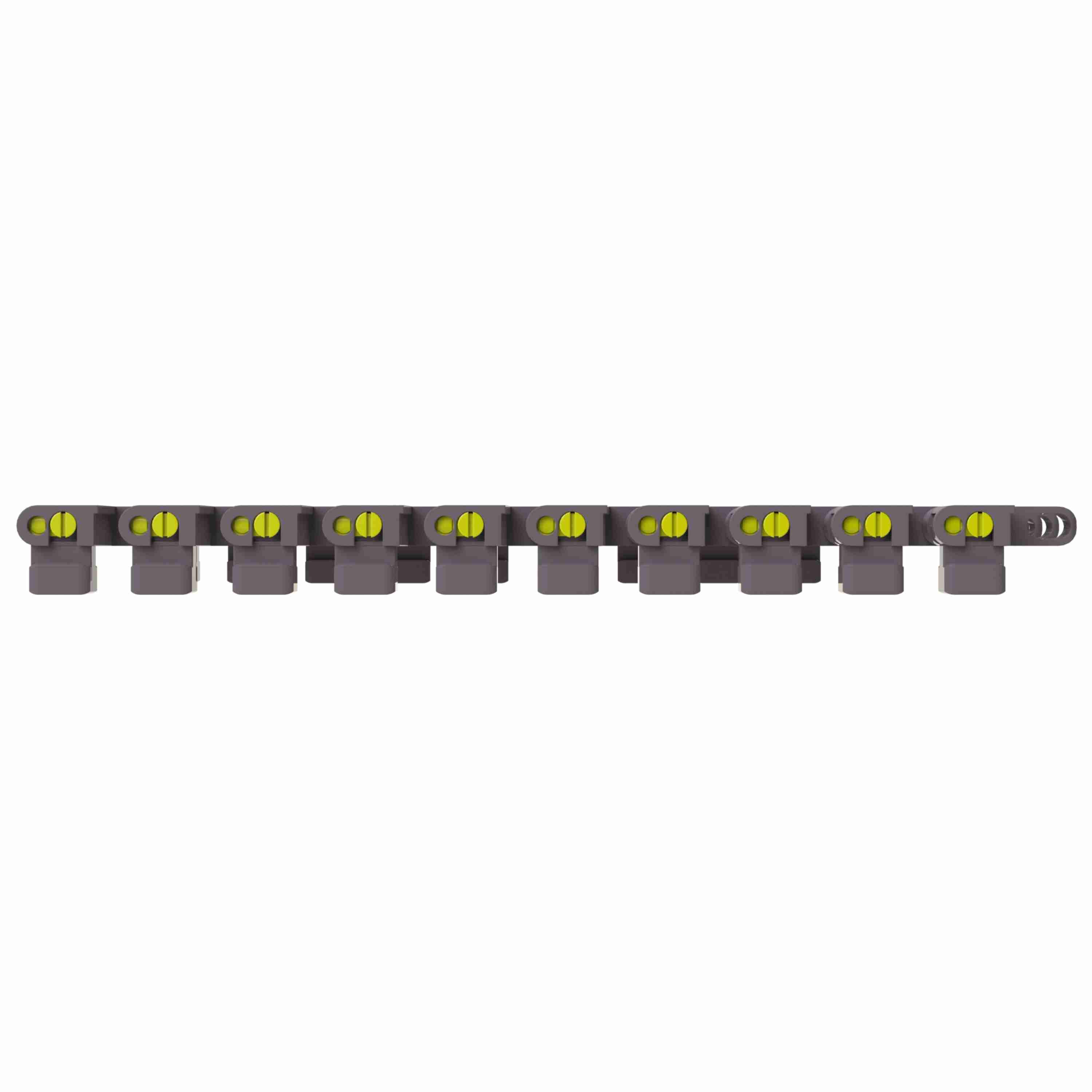

Rexnord 7956GT Side-flexing Flush Grid, Material: Brown High Performance, Width: 12in, Pitch: 1.25in - 81450631
Part #:10146271
Catalog #:81450631
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Rod/Pin Material: | Polyester | Chain Material Description: | Brown High Performance |
| Curve Retention Type: | GT | Straight or Side-Flex: | Side-flexing |
| Chain Pitch (in): | 1.25 in | Chain Width Measurement System: | Imperial |
| Direction: | S-Turn | Belt Thickness (mm): | 12.7 mm |
| Chain Strength (N): | 3,552 N | Chain Width (in): | 12 in |
| Chain Material: | HP | Surface Type: | Flush Grid |
| Chain Number: | 7956GT | Chain Strength (lb): | 800 lb |
| Chain Pitch (mm): | 31.75 mm | Belt Thickness (in): | 0.5 in |
| Series: | MatTop 7956 Series Side-flexing Chain | Open Area (%): | 16 % |
| Chain Width (mm): | 304.8 mm |
General Specifications
| Weight: | 0.24 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
