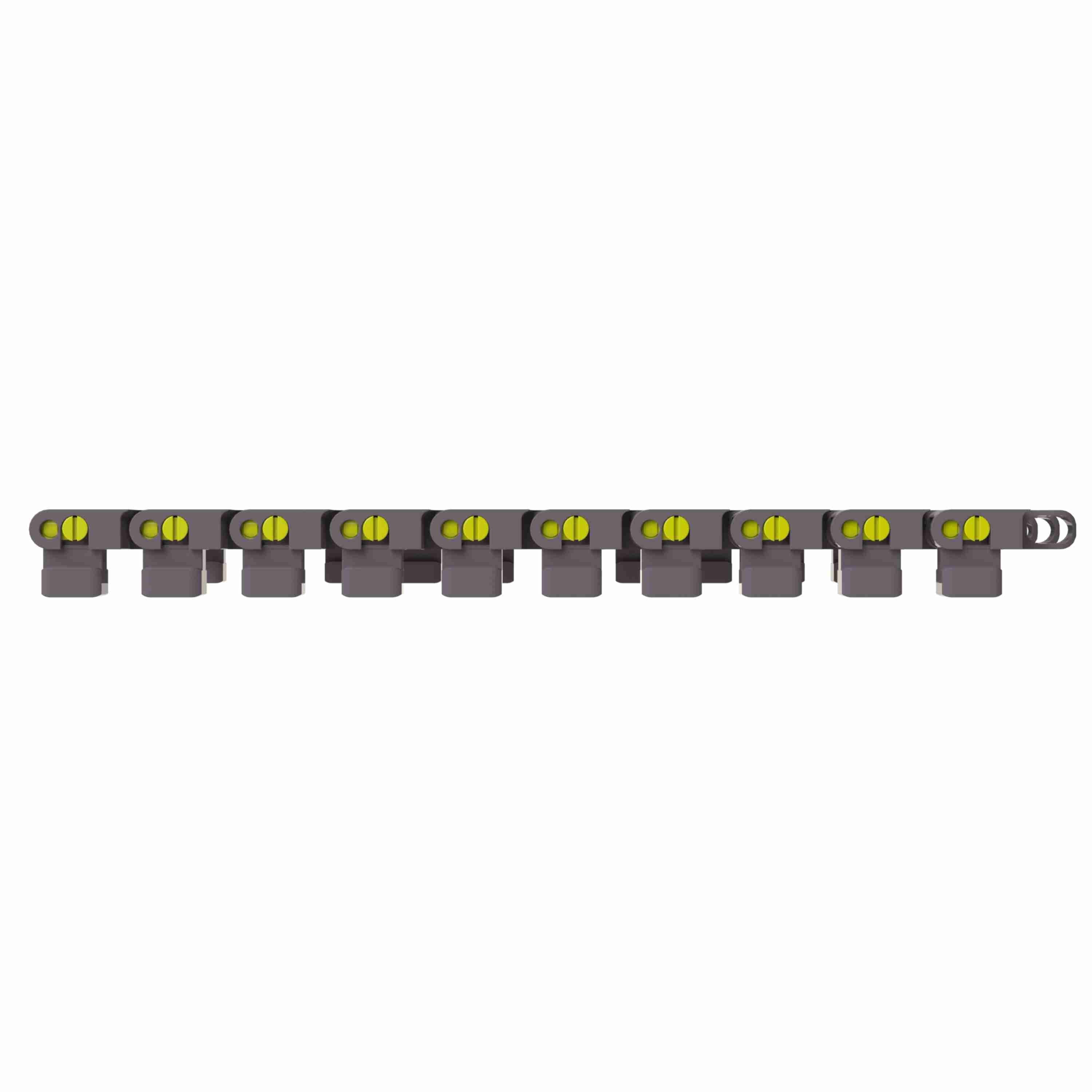

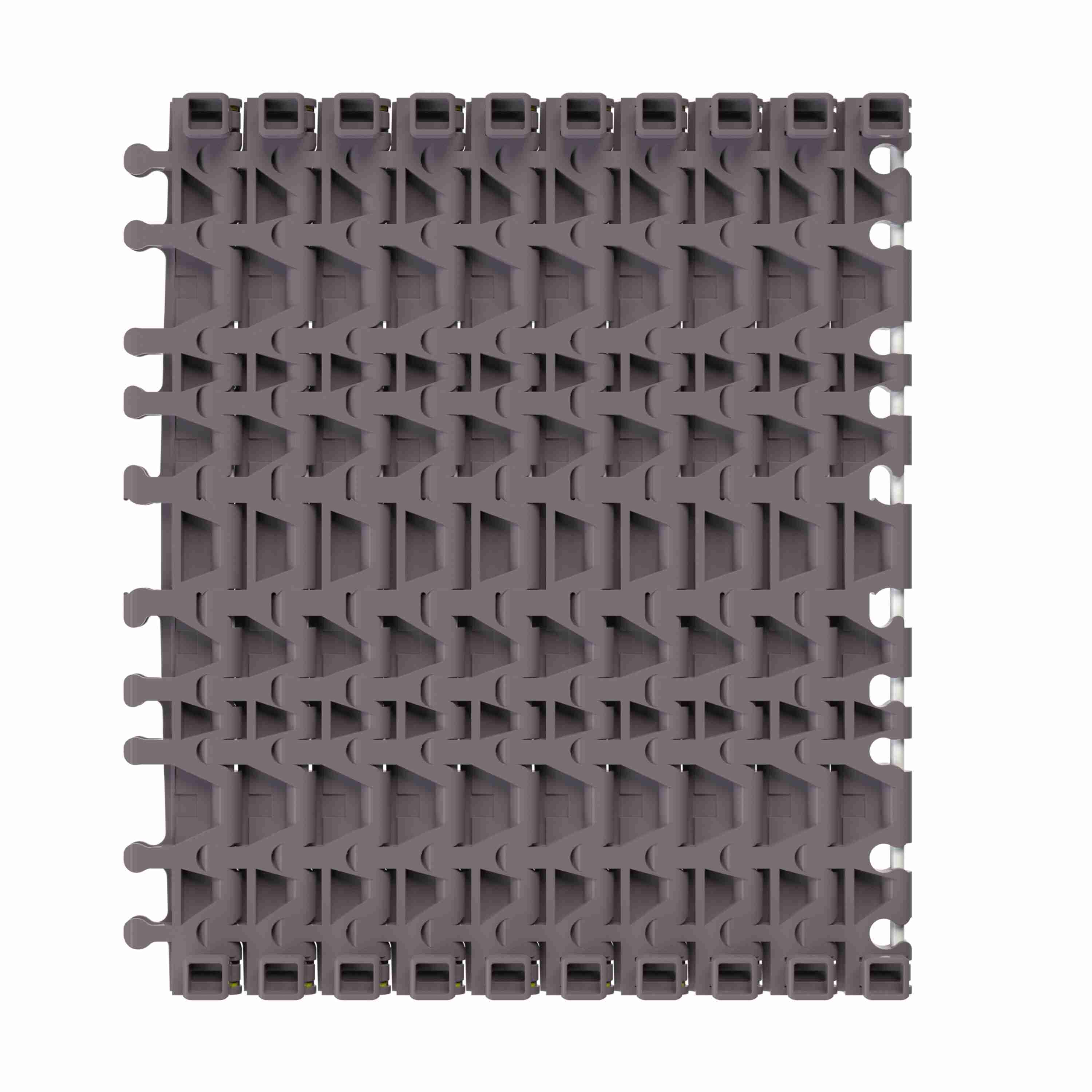

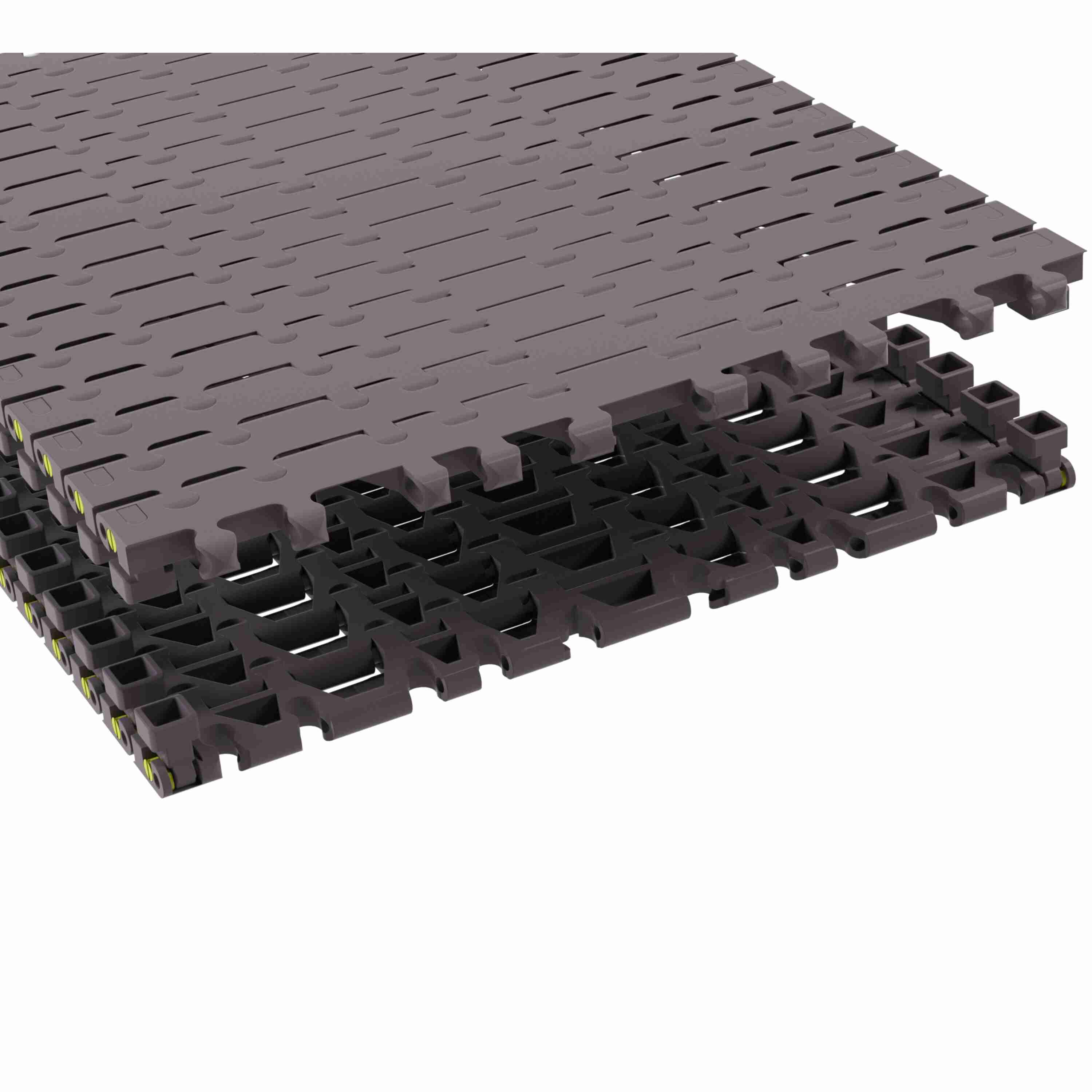

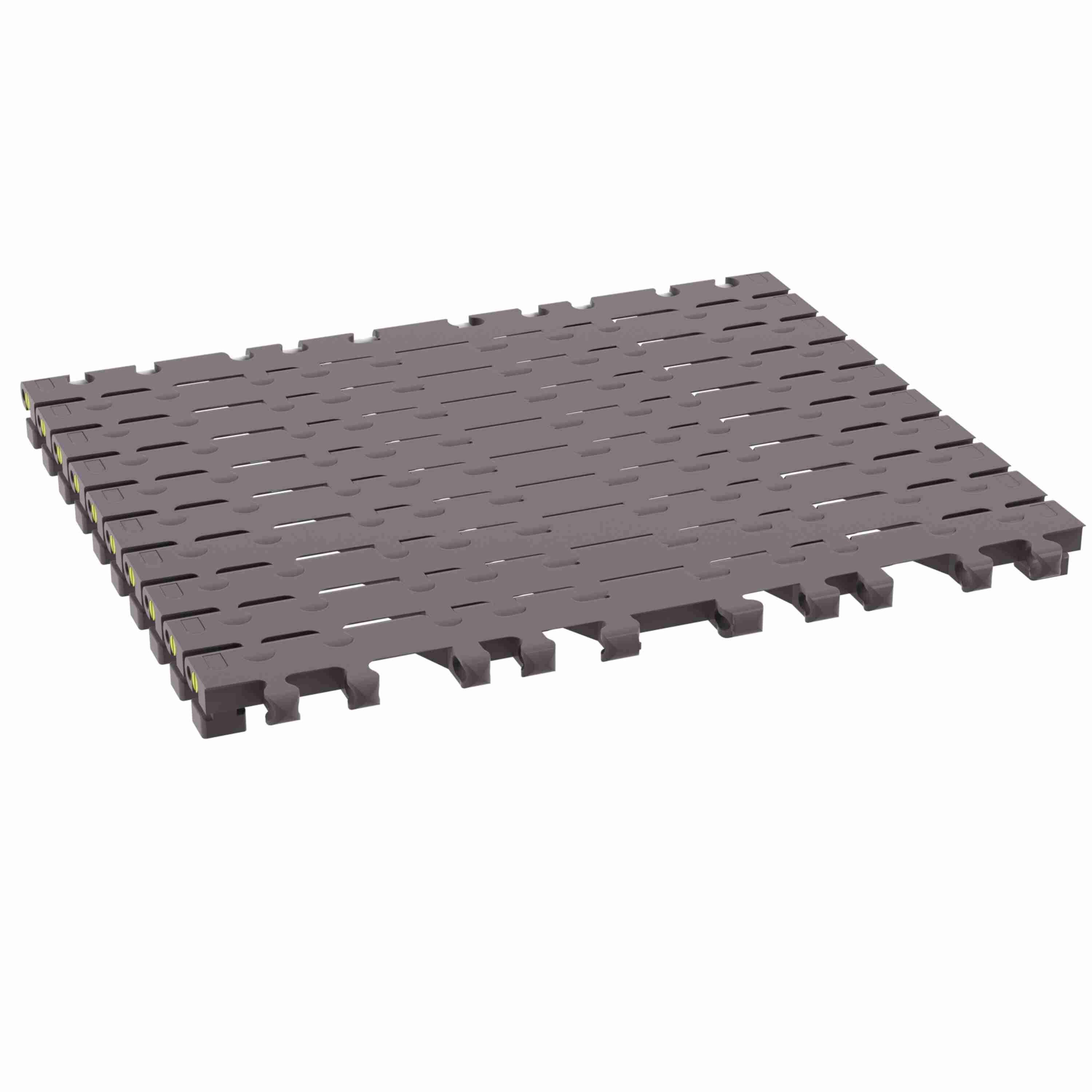

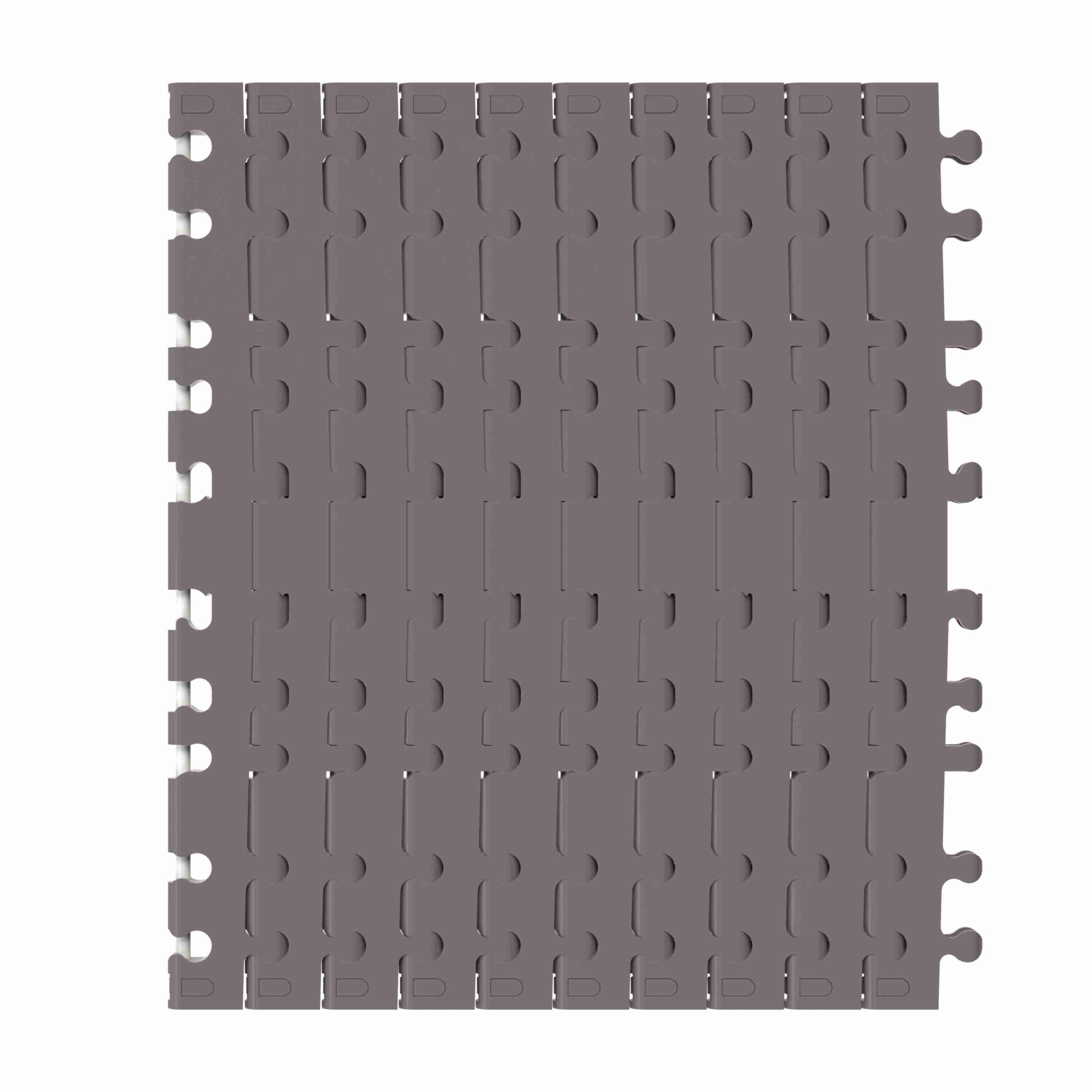

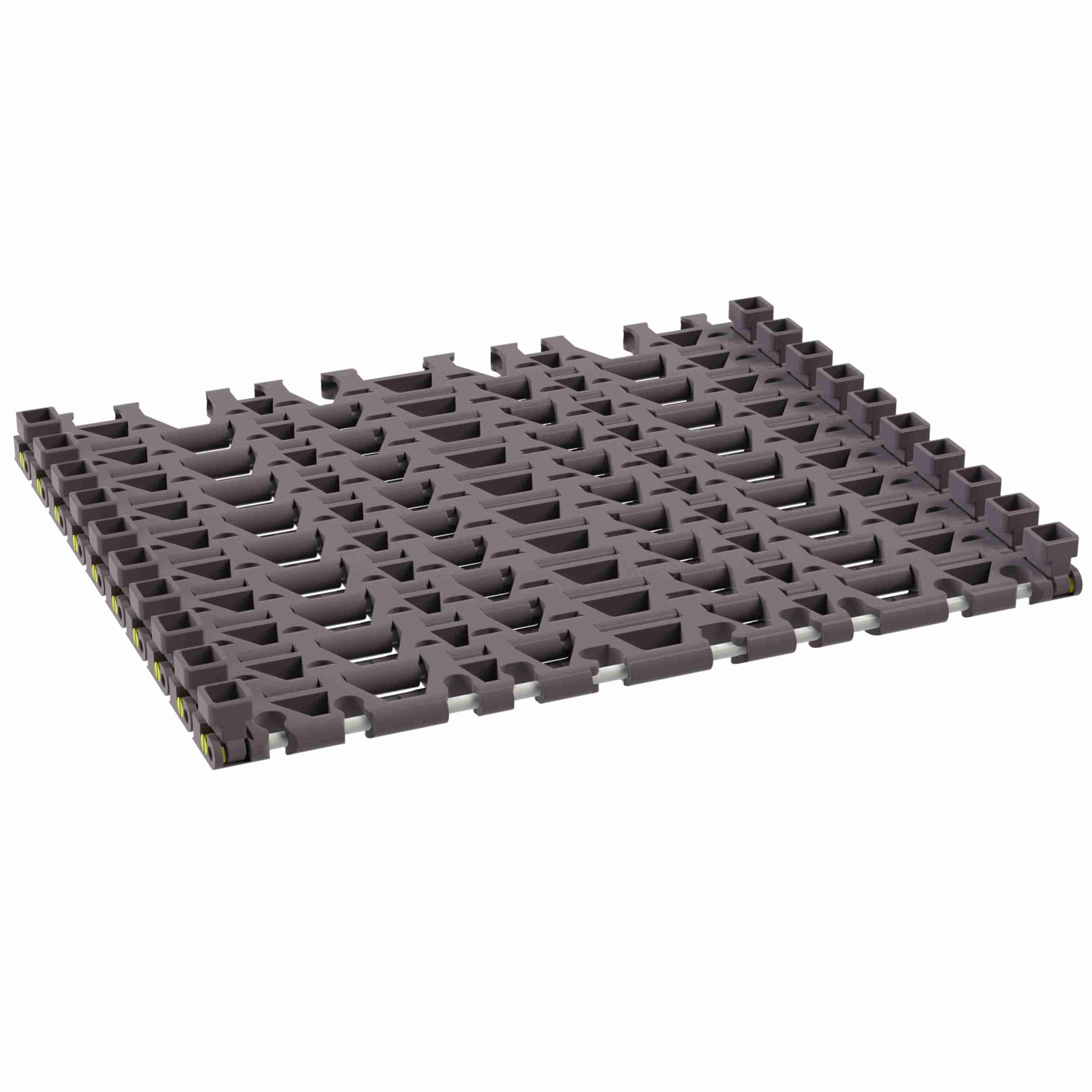

Rexnord 7956GT Side-flexing Flush Grid, Material: Brown High Performance, Width: 15in, Pitch: 1.25in - 81450301
Part #:10146243
Catalog #:81450301
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Width (mm): | 381 mm | Belt Thickness (in): | 0.5 in |
| Chain Strength (lb): | 900 lb | Chain Pitch (in): | 1.25 in |
| Chain Width Measurement System: | Imperial | Chain Pitch (mm): | 31.75 mm |
| Chain Material Description: | Brown High Performance | Belt Thickness (mm): | 12.7 mm |
| Series: | MatTop 7956 Series Side-flexing Chain | Surface Type: | Flush Grid |
| Curve Retention Type: | GT | Rod/Pin Material: | Polyester |
| Open Area (%): | 16 % | Chain Width (in): | 15 in |
| Chain Number: | 7956GT | Chain Material: | HP |
| Straight or Side-Flex: | Side-flexing | Chain Strength (N): | 3,996 N |
| Direction: | S-Turn |
General Specifications
| Weight: | 0.31 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
