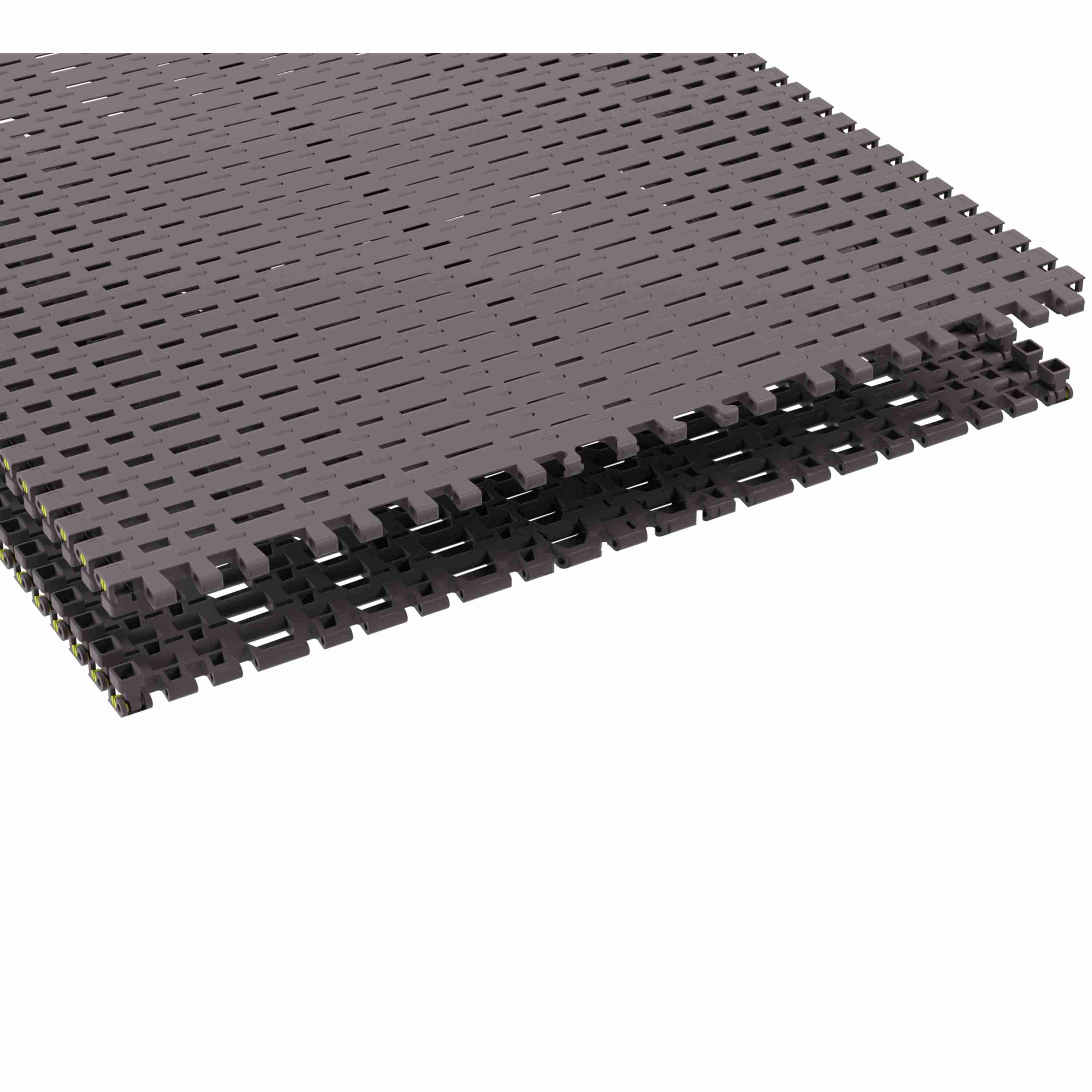

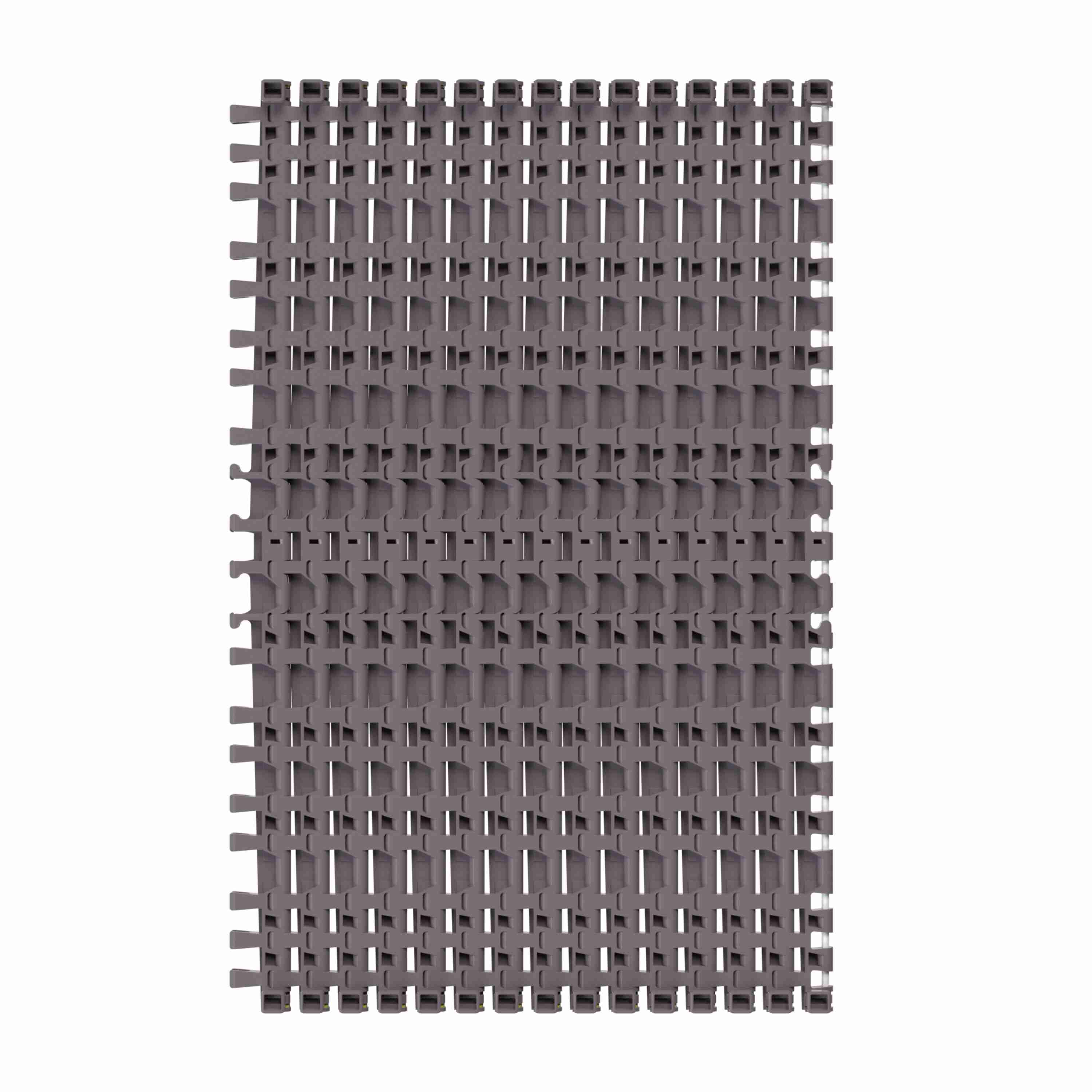

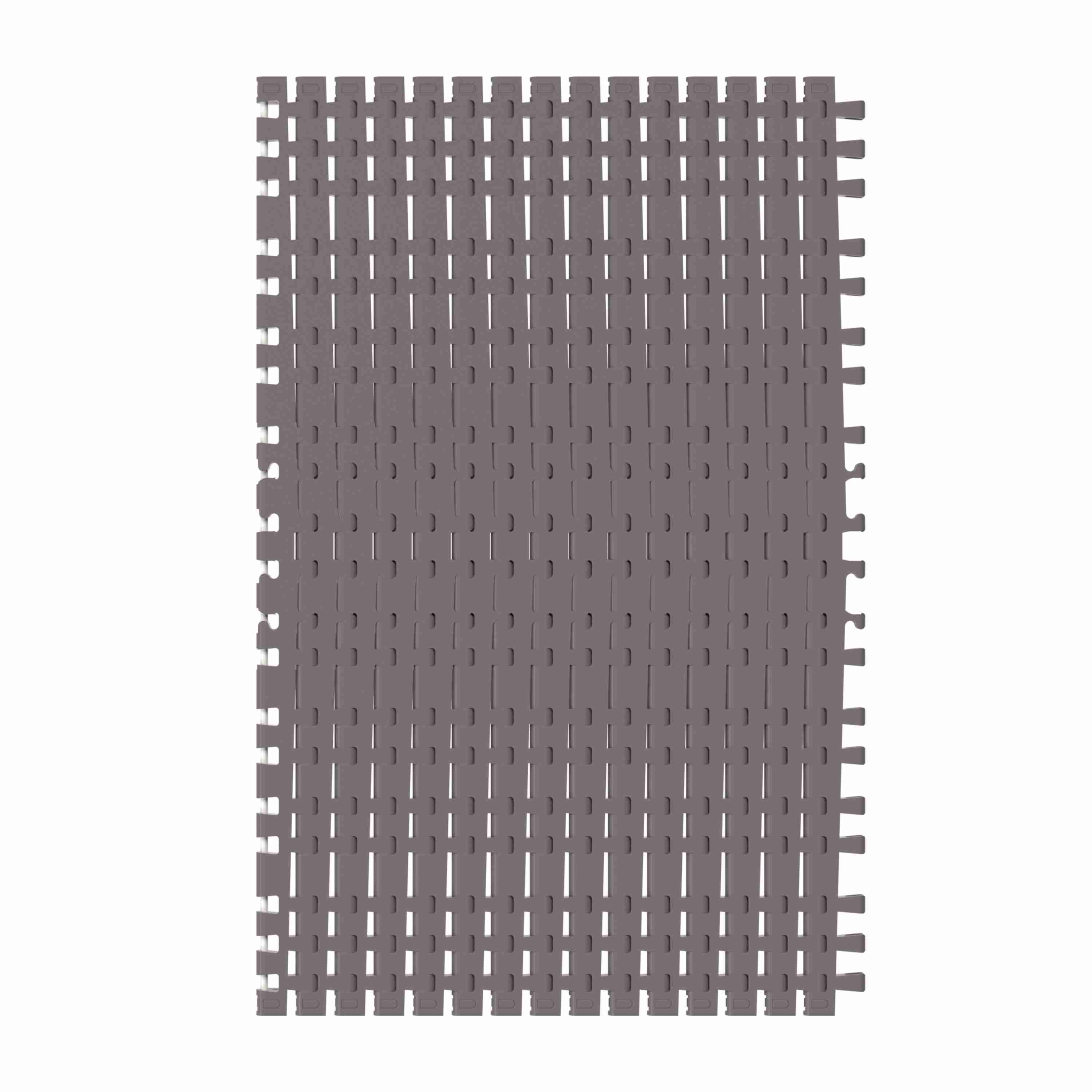

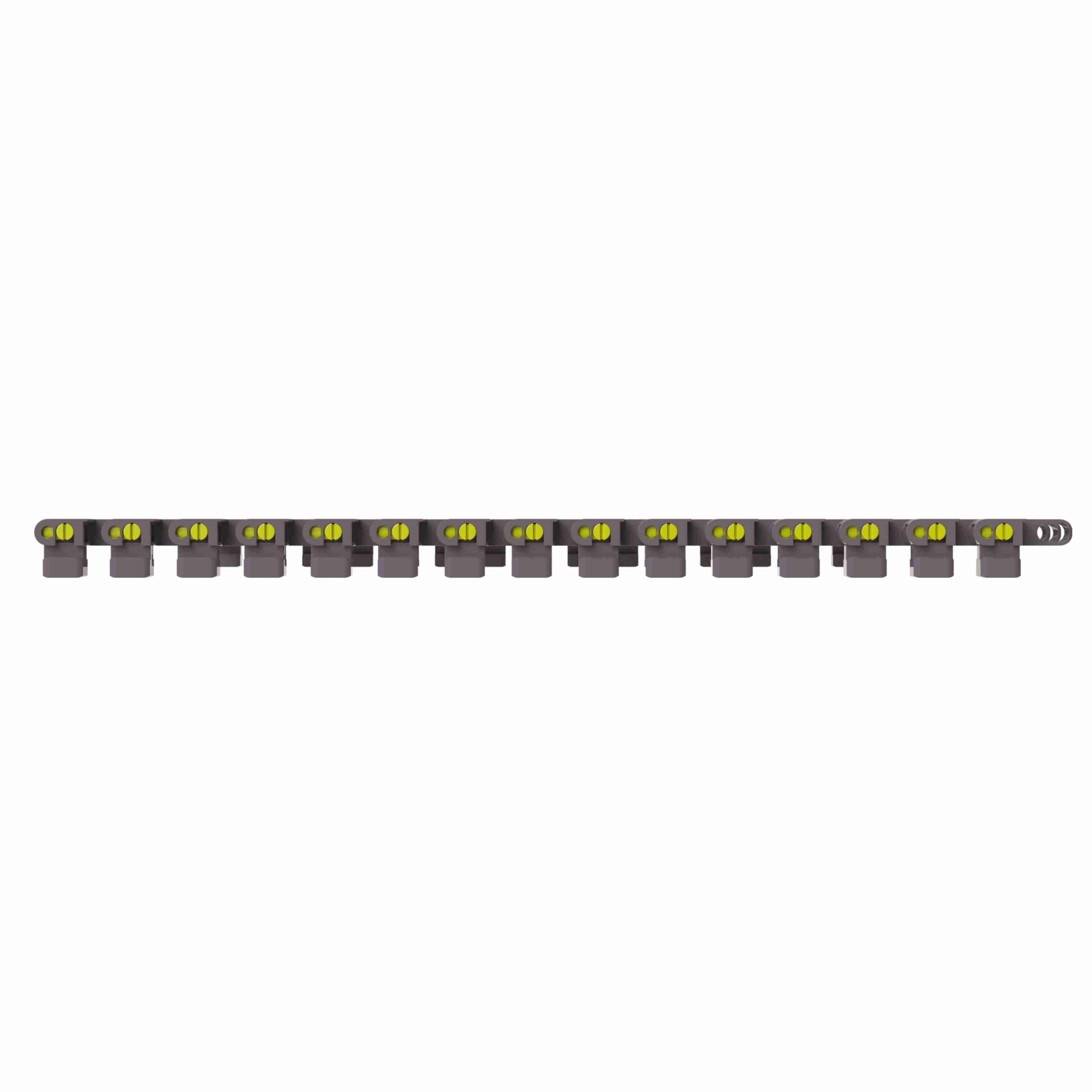

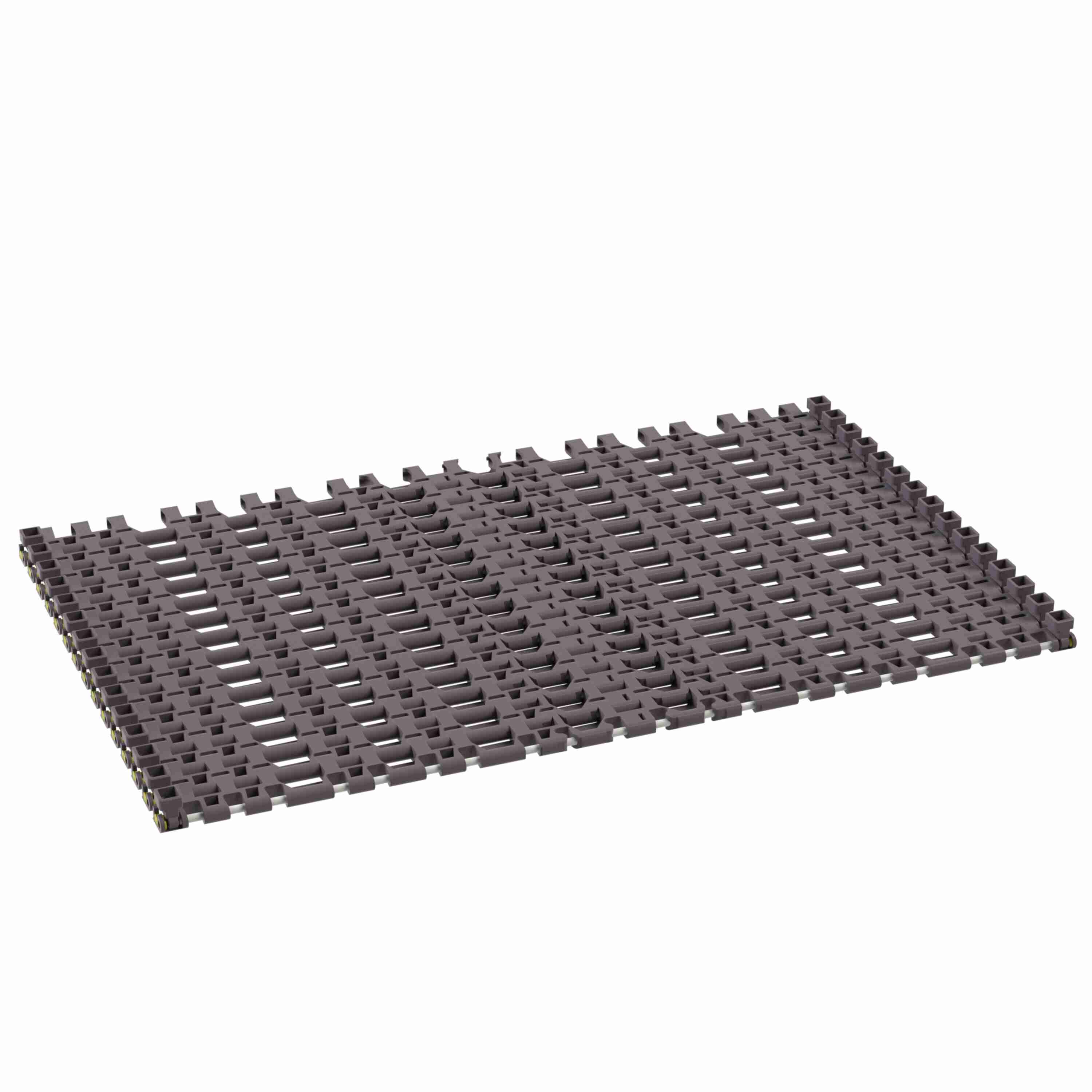

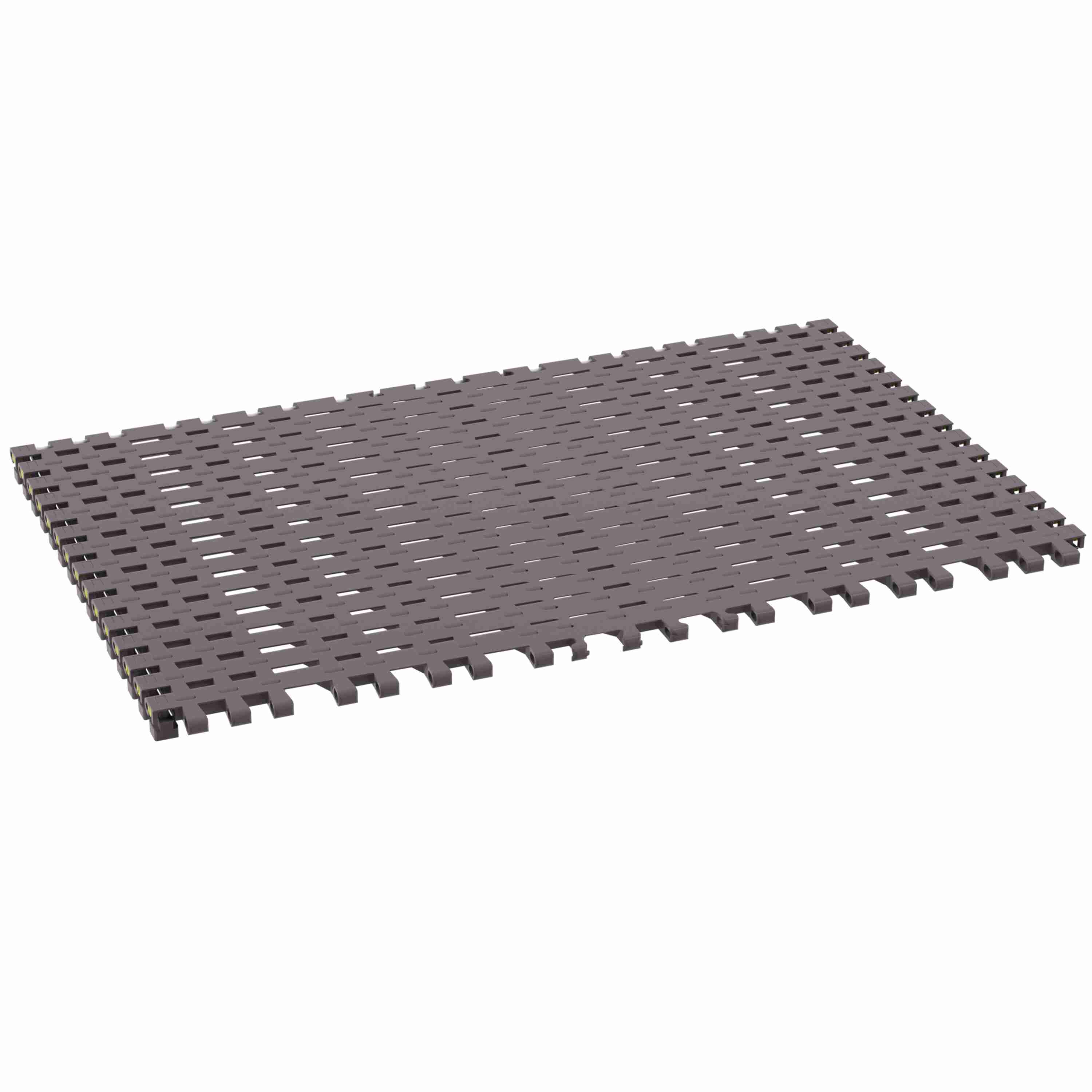

Rexnord 7956GT Side-flexing Flush Grid, Material: Brown High Performance, Width: 30in, Pitch: 1.25in - 10464499
Part #:10464499
Catalog #:10464499
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Straight or Side-Flex: | Side-flexing | Direction: | S-Turn |
| Chain Pitch (mm): | 31.75 mm | Chain Material: | HP |
| Belt Thickness (mm): | 12.7 mm | Chain Strength (N): | 5,772 N |
| Chain Width Measurement System: | Imperial | Surface Type: | Flush Grid |
| Chain Pitch (in): | 1.25 in | Chain Strength (lb): | 1,300 lb |
| Chain Material Description: | Brown High Performance | Belt Thickness (in): | 0.5 in |
| Open Area (%): | 16 % | Chain Width (mm): | 762 mm |
| Rod/Pin Material: | Polyester | Series: | MatTop 7956 Series Side-flexing Chain |
| Chain Number: | 7956GT | Chain Width (in): | 30 in |
| Curve Retention Type: | GT |
General Specifications
| Weight: | 0.55 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
