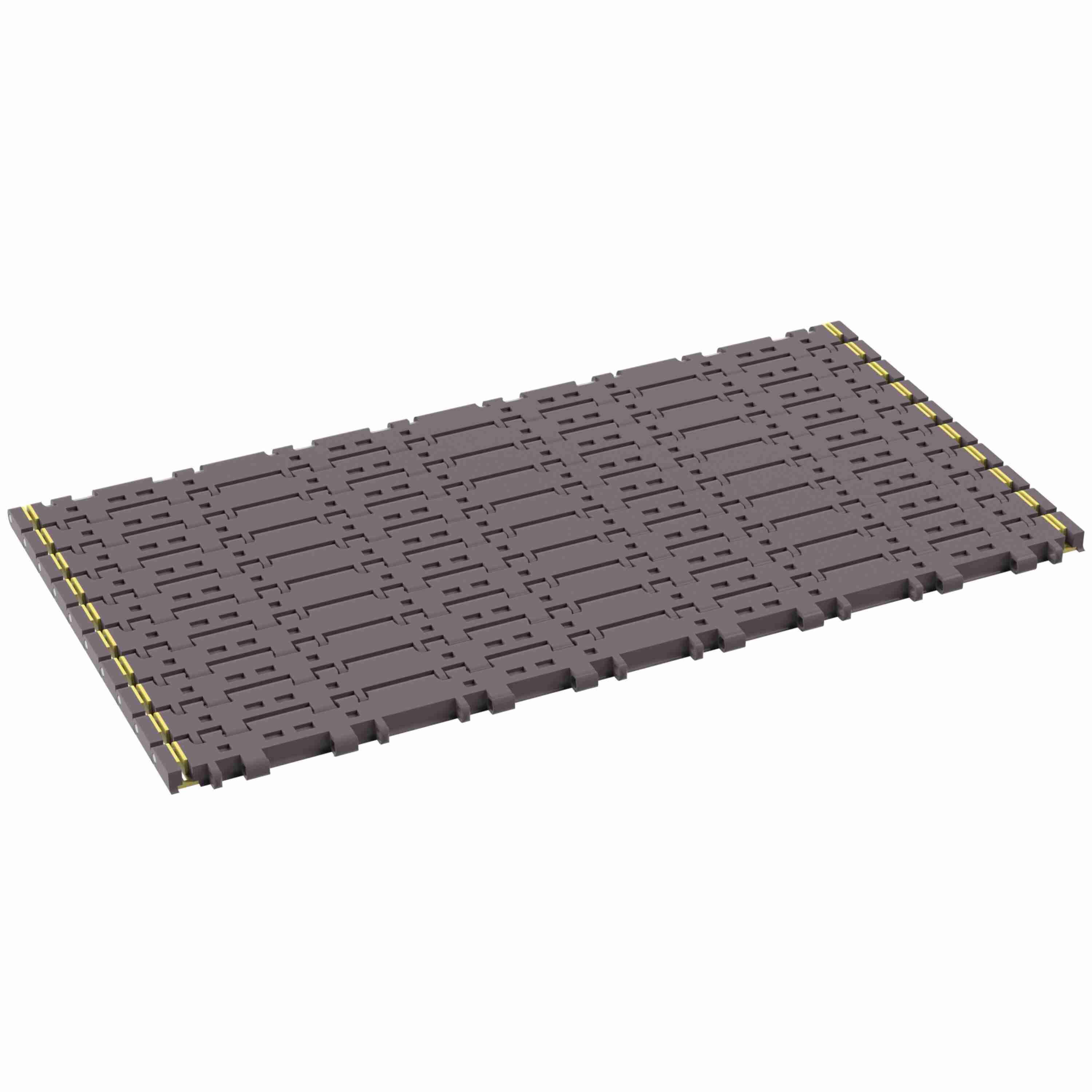

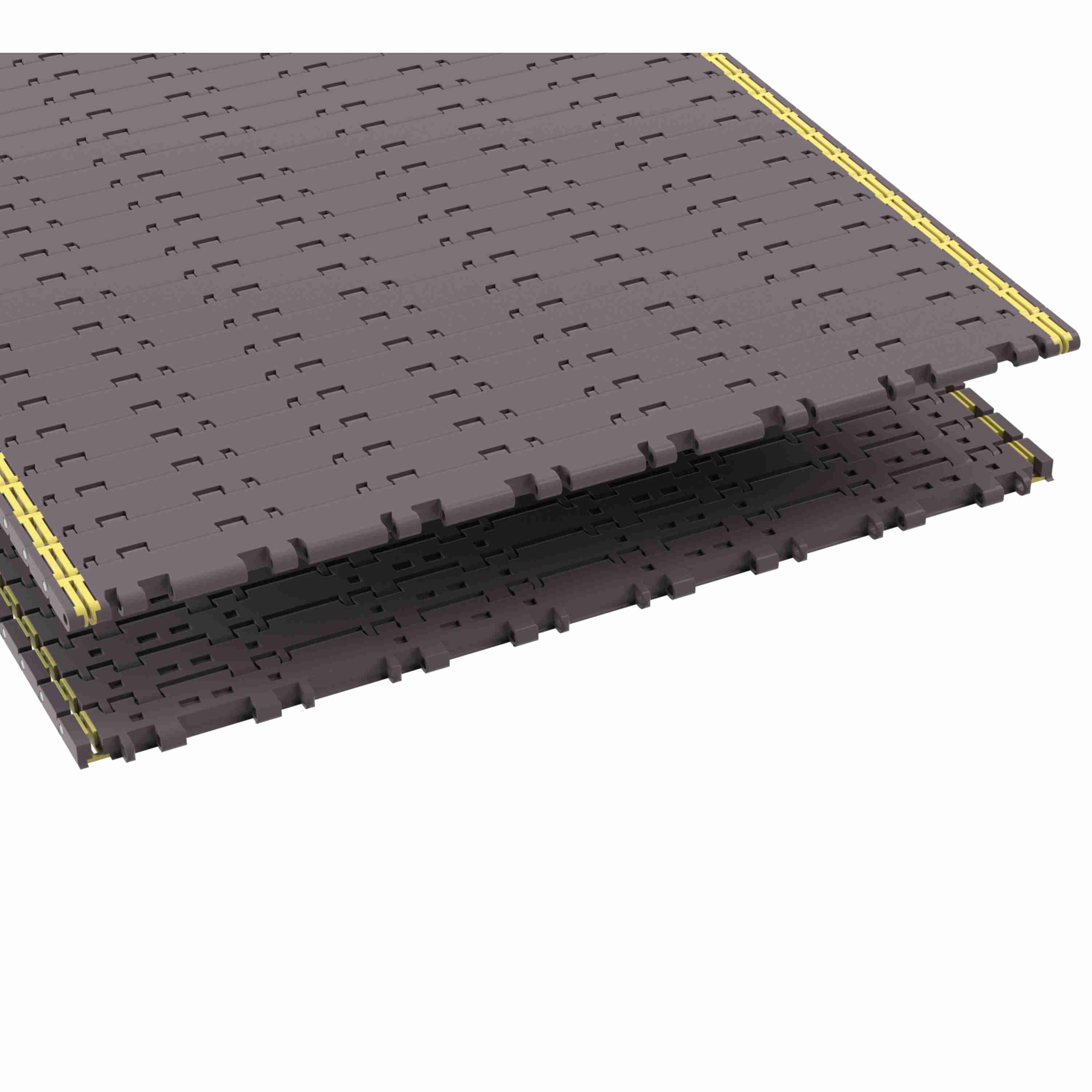

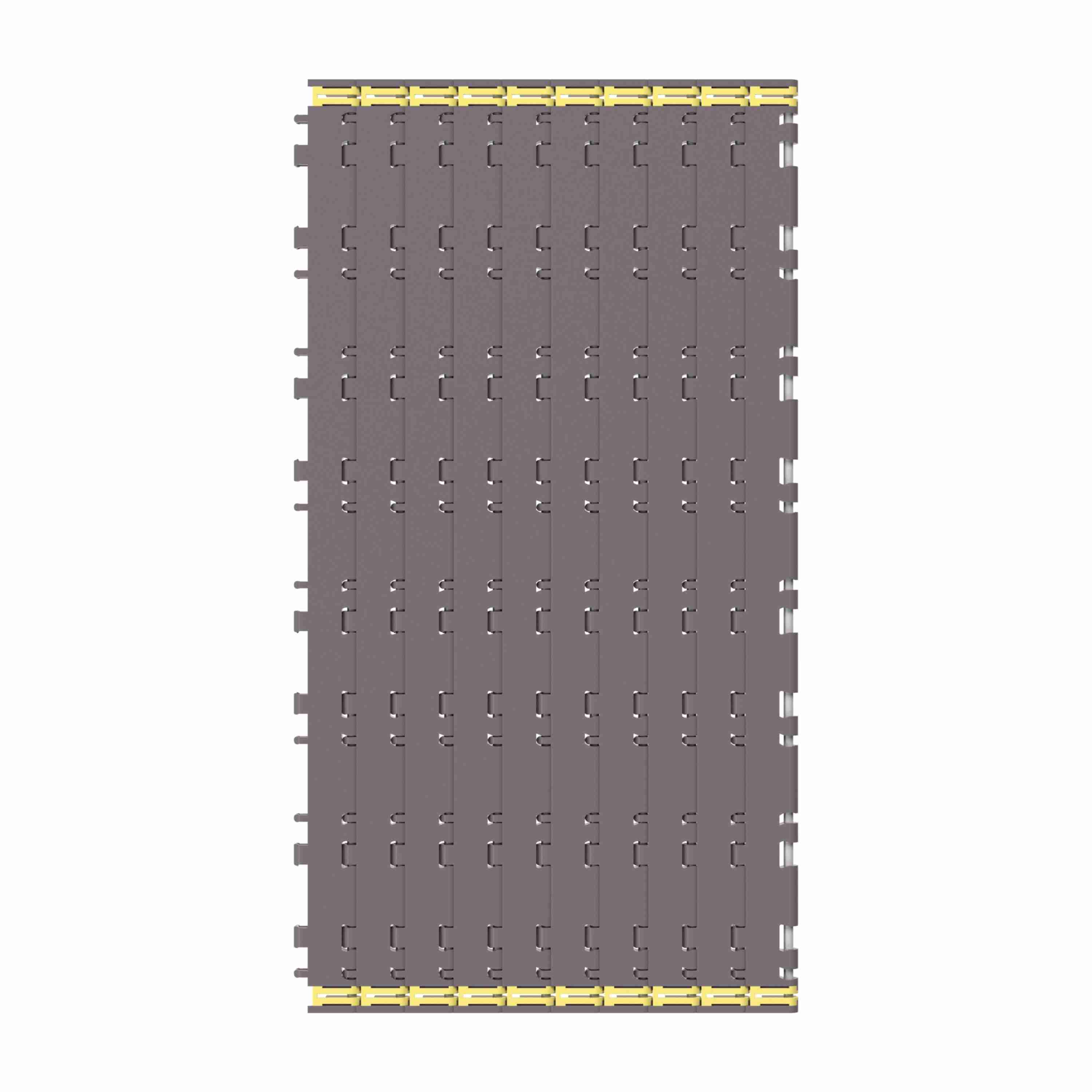

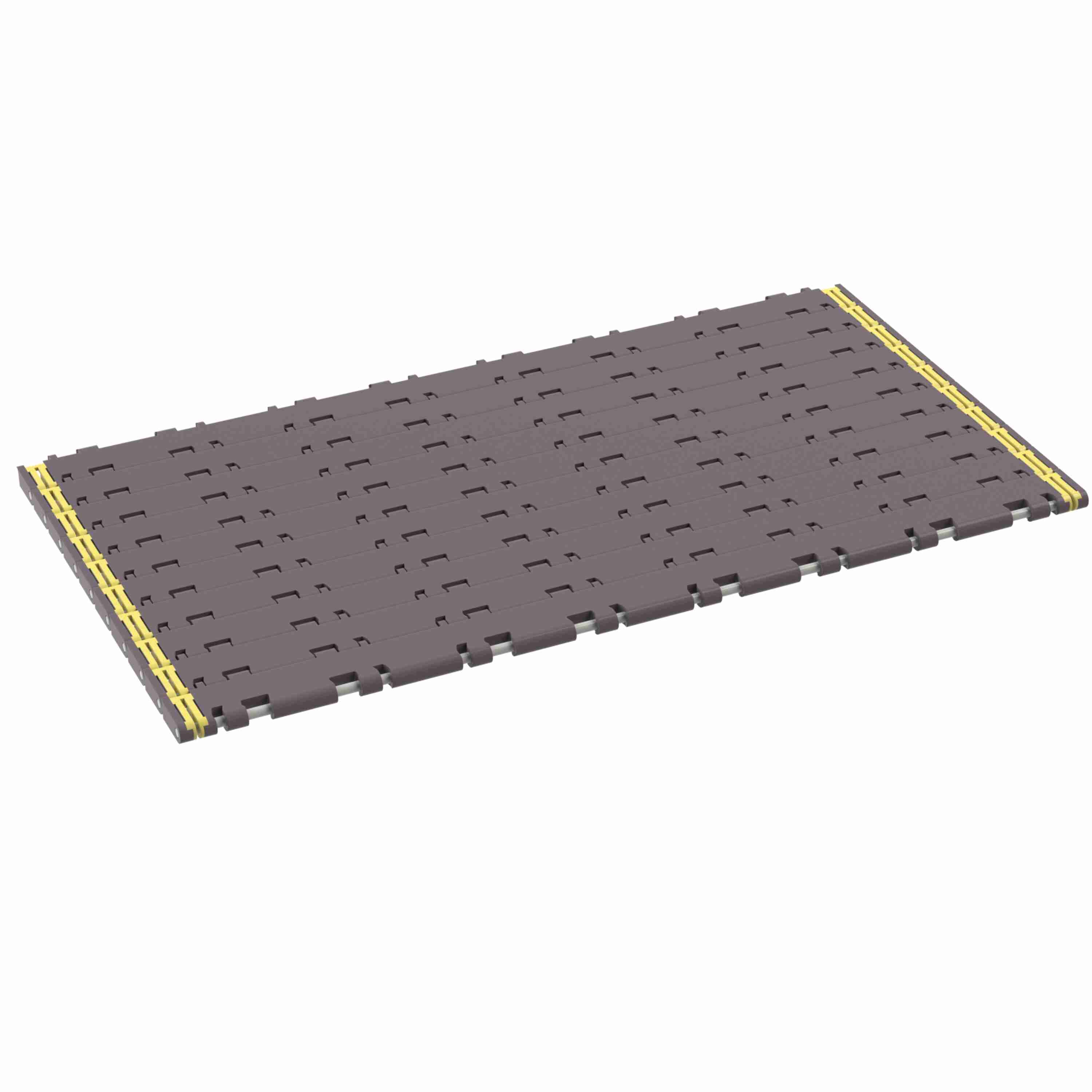

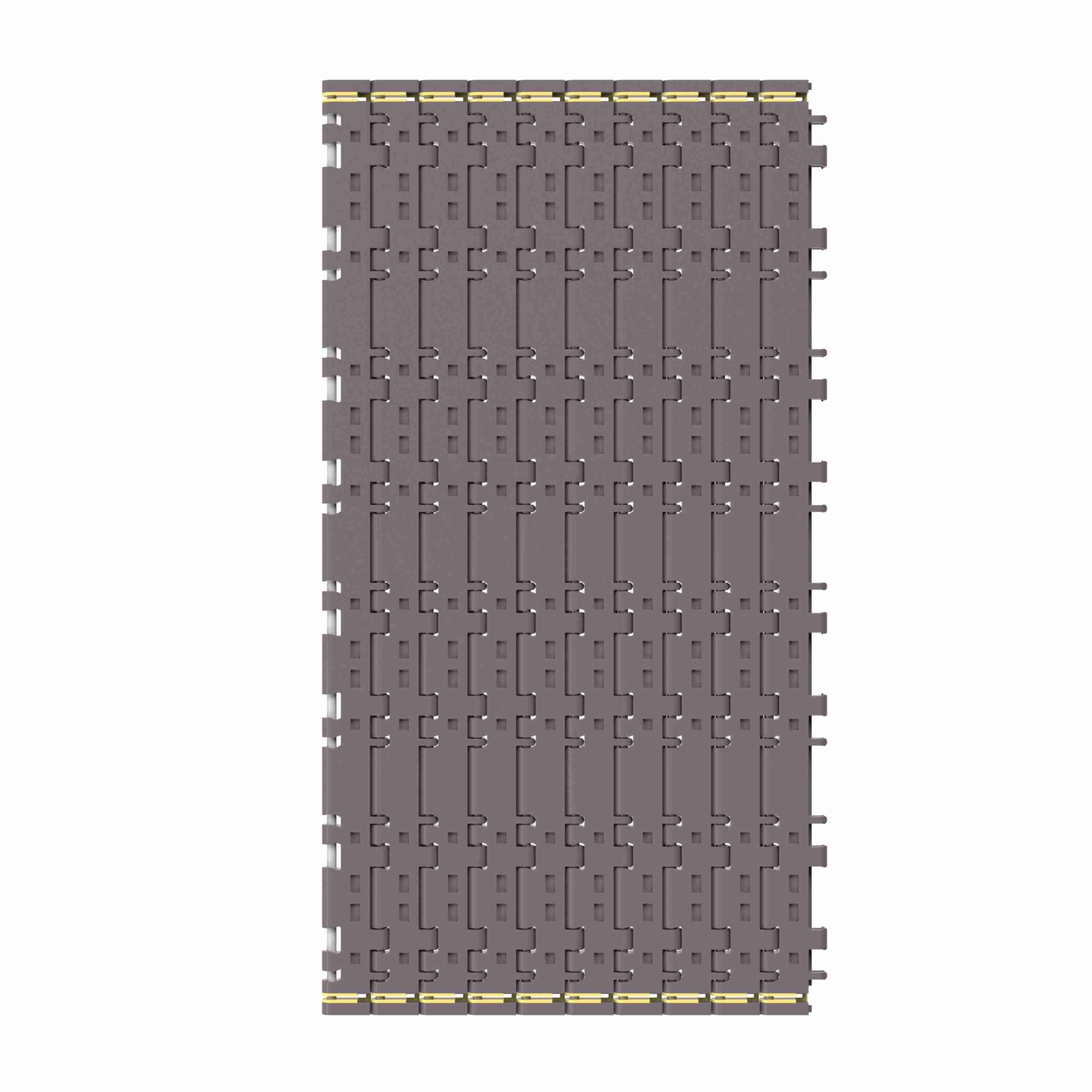

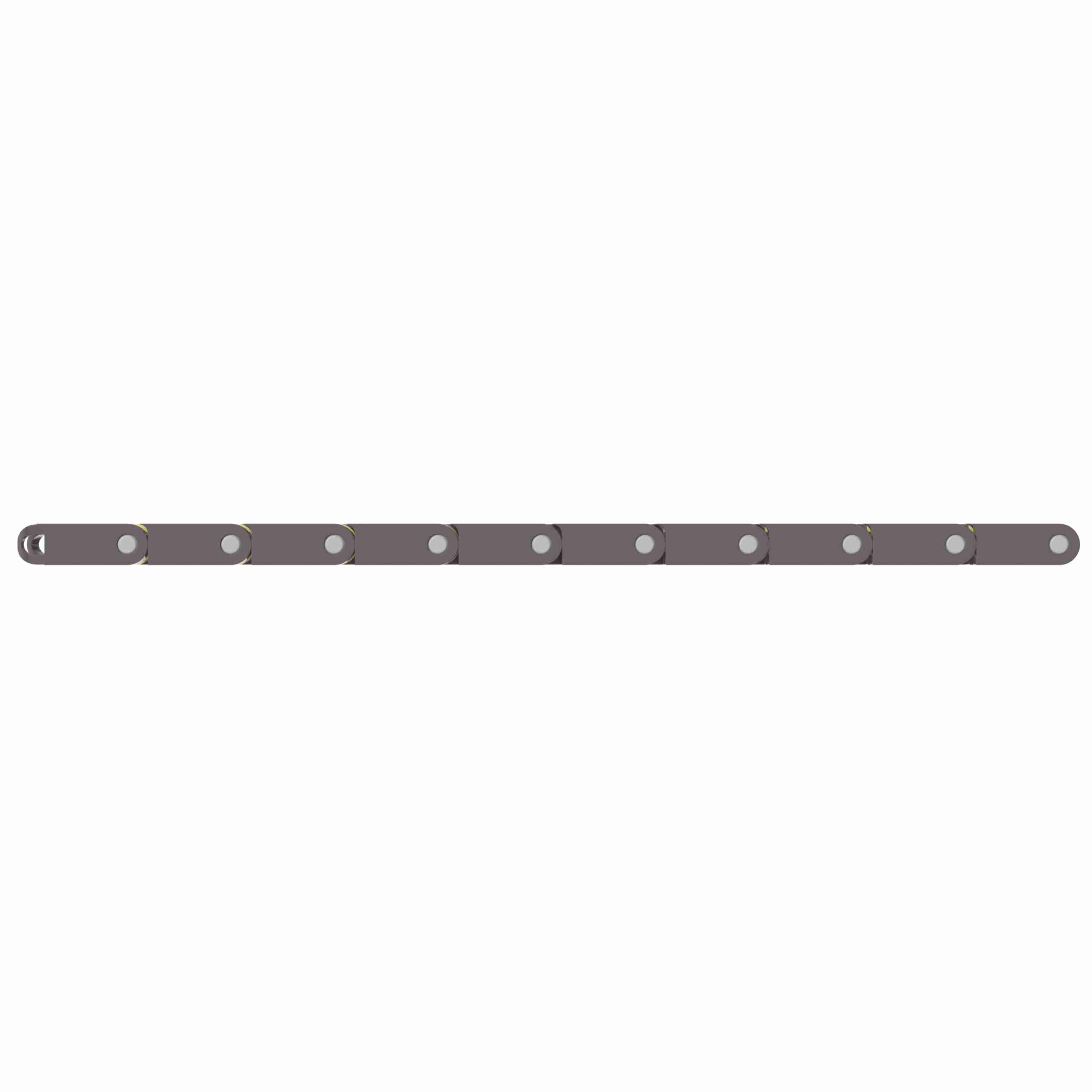

Rexnord 7956NT Side-flexing Flush Grid, Material: Brown High Performance, Width: 24in, Pitch: 1.25in - 10464497
Part #:10464497
Catalog #:10464497
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Surface Type: | Flush Grid | Chain Width Measurement System: | Imperial |
| Belt Thickness (mm): | 12.7 mm | Series: | MatTop 7956 Series Side-flexing Chain |
| Chain Width (mm): | 609.6 mm | Belt Thickness (in): | 0.5 in |
| Chain Number: | 7956NT | Chain Pitch (in): | 1.25 in |
| Straight or Side-Flex: | Side-flexing | Chain Material: | HP |
| Chain Pitch (mm): | 31.75 mm | Chain Strength (N): | 4,440 N |
| Chain Width (in): | 24 in | Rod/Pin Material: | Polyester |
| Chain Strength (lb): | 1,000 lb | Open Area (%): | 16 % |
| Chain Material Description: | Brown High Performance | Curve Retention Type: | NO TAB |
| Direction: | S-Turn |
General Specifications
| Weight: | 0.46 LB | HTC: | 3926909989 |
| Country of Origin: | Mexico |
