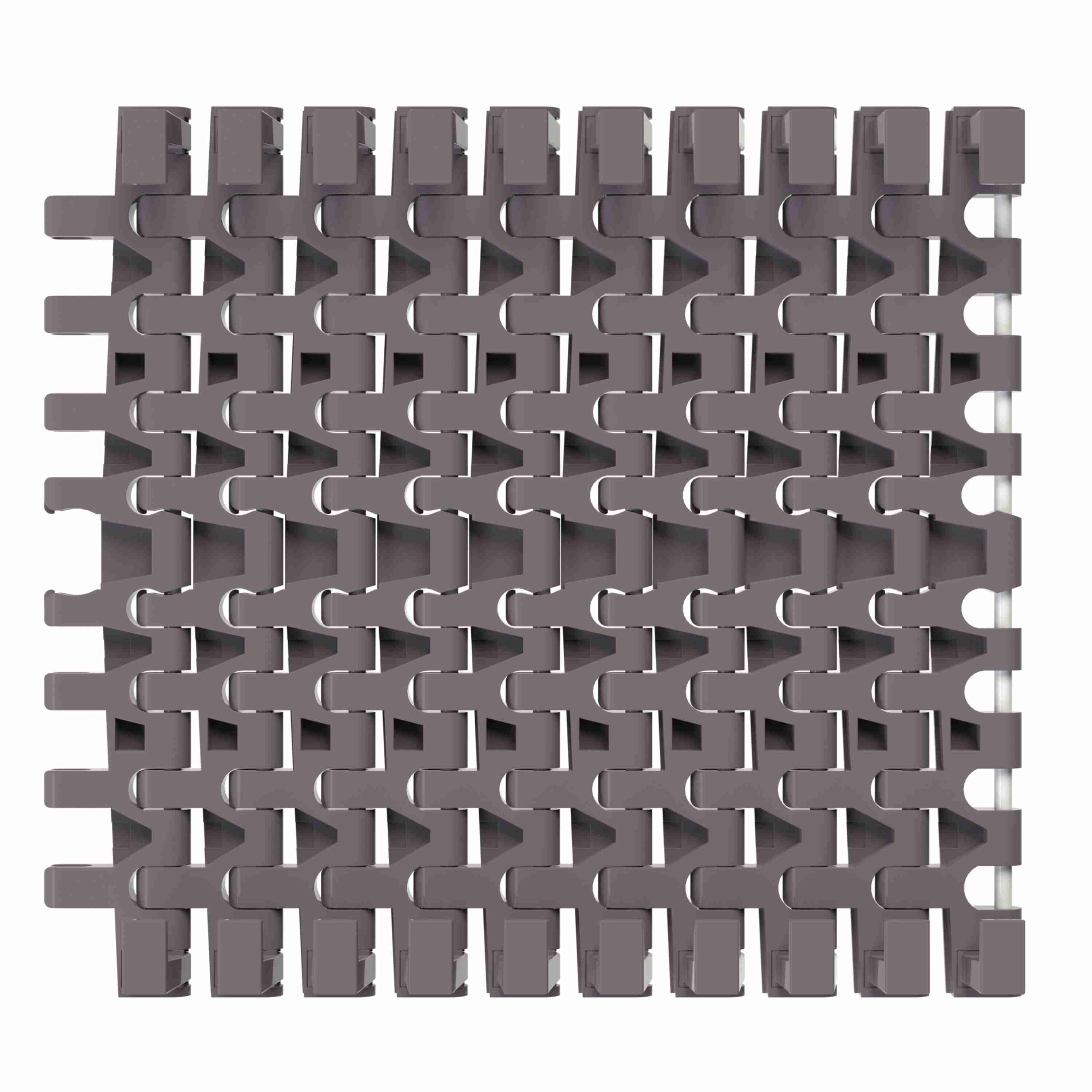

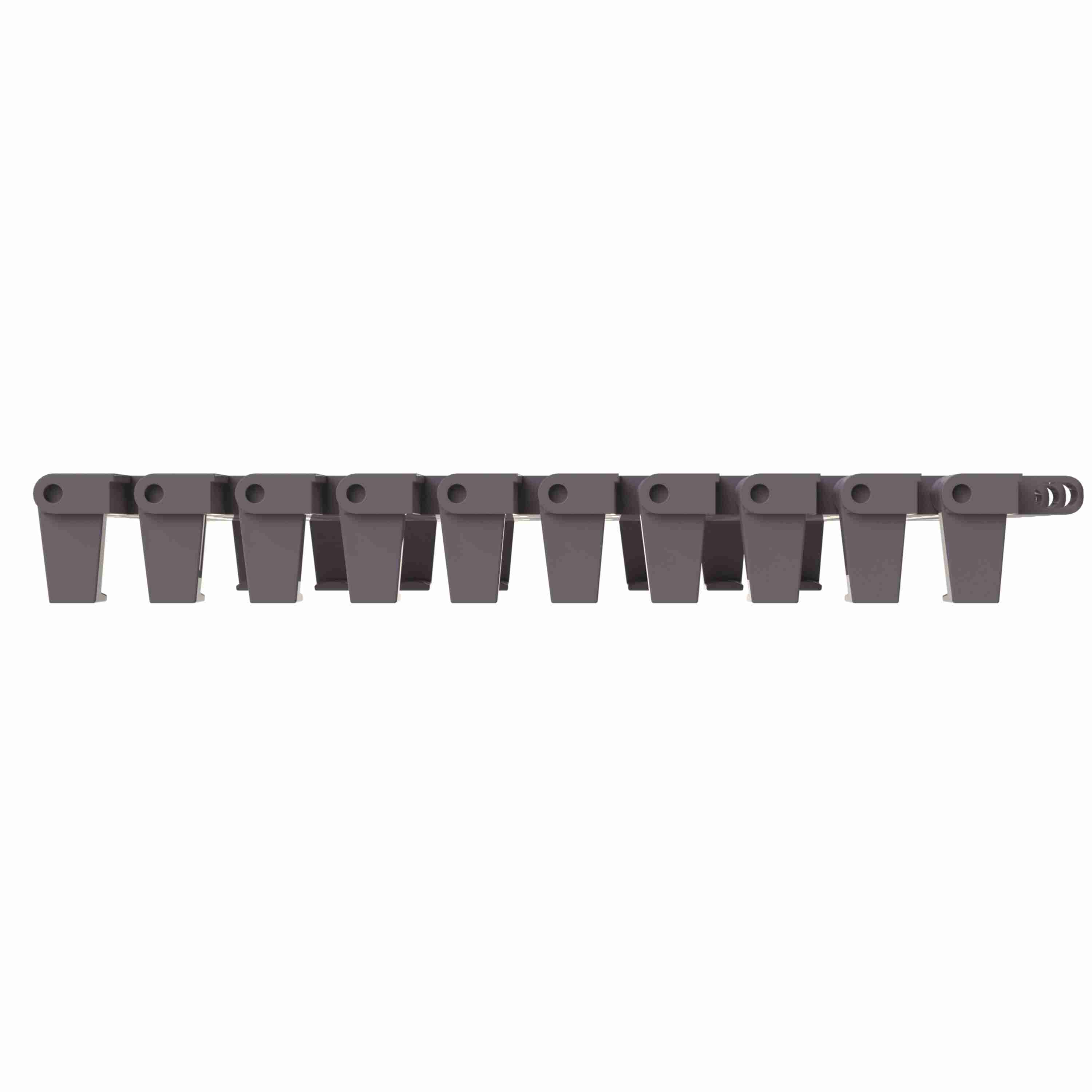

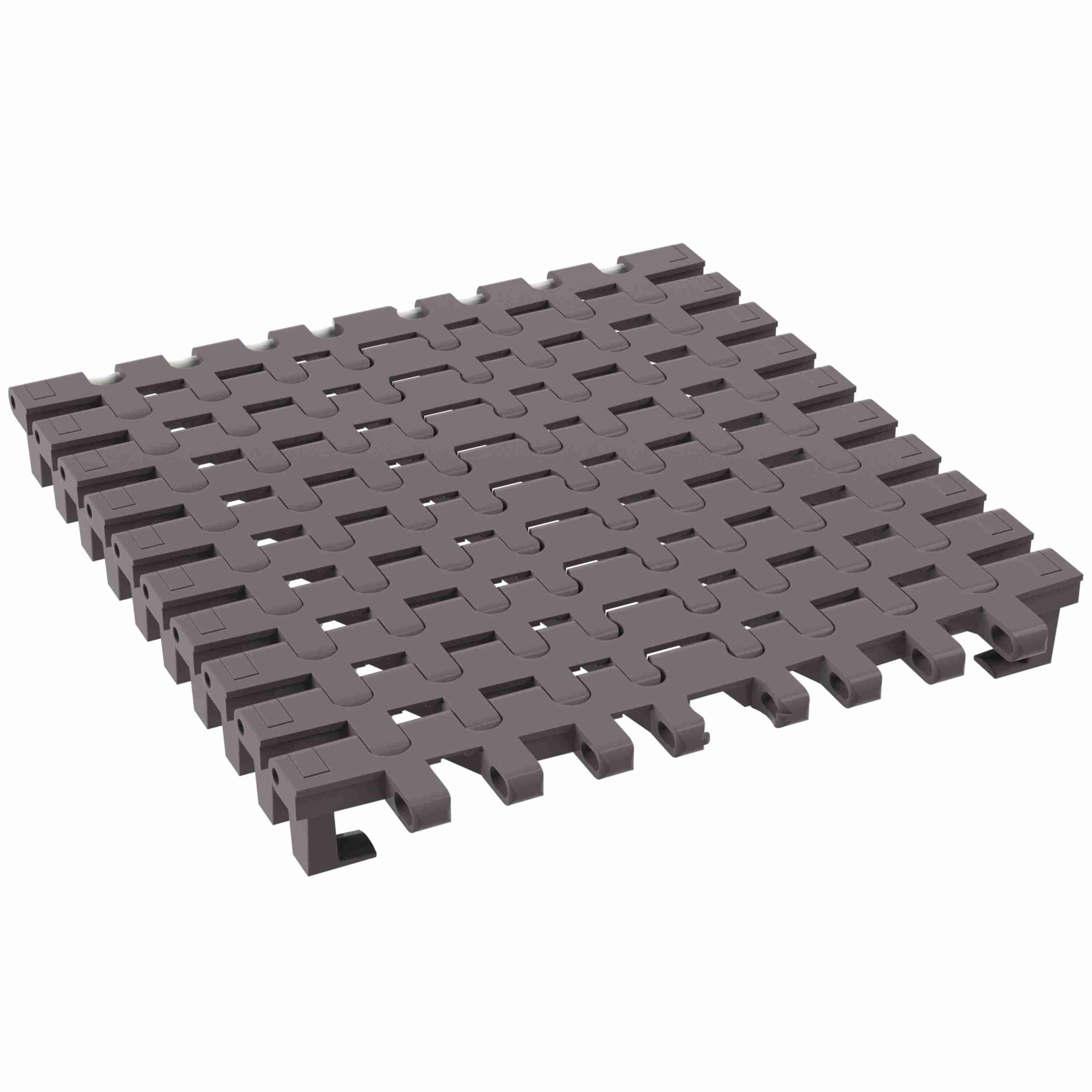

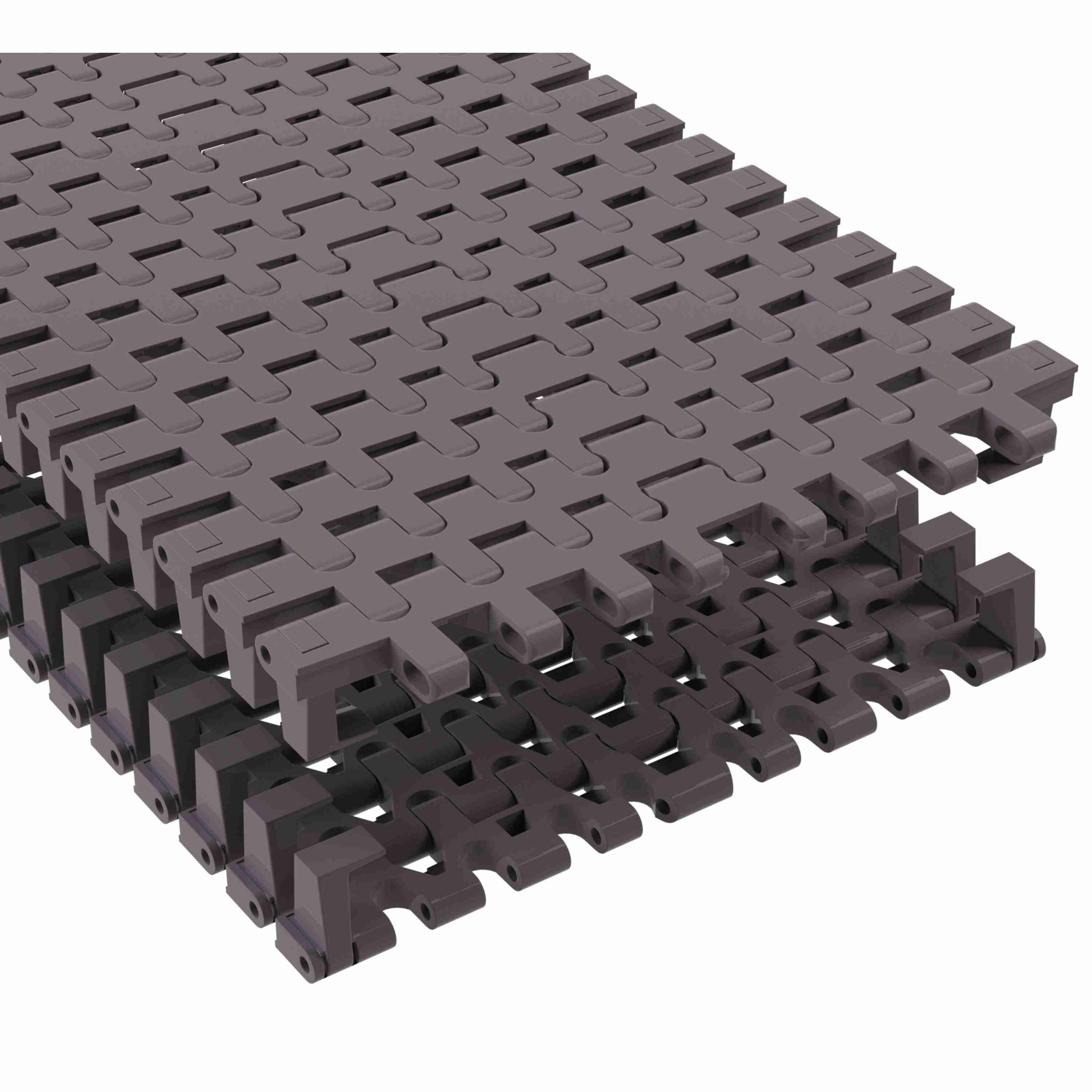

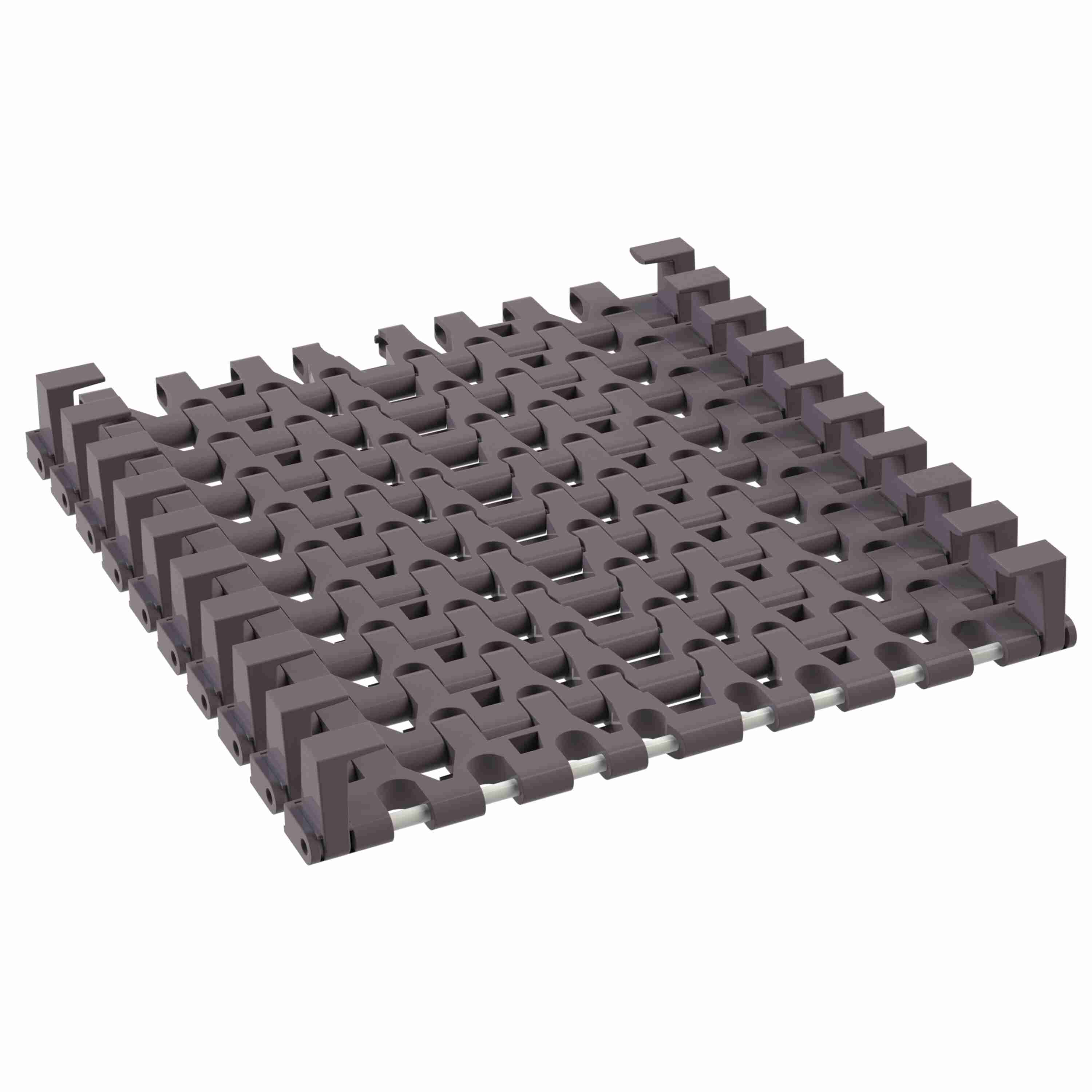

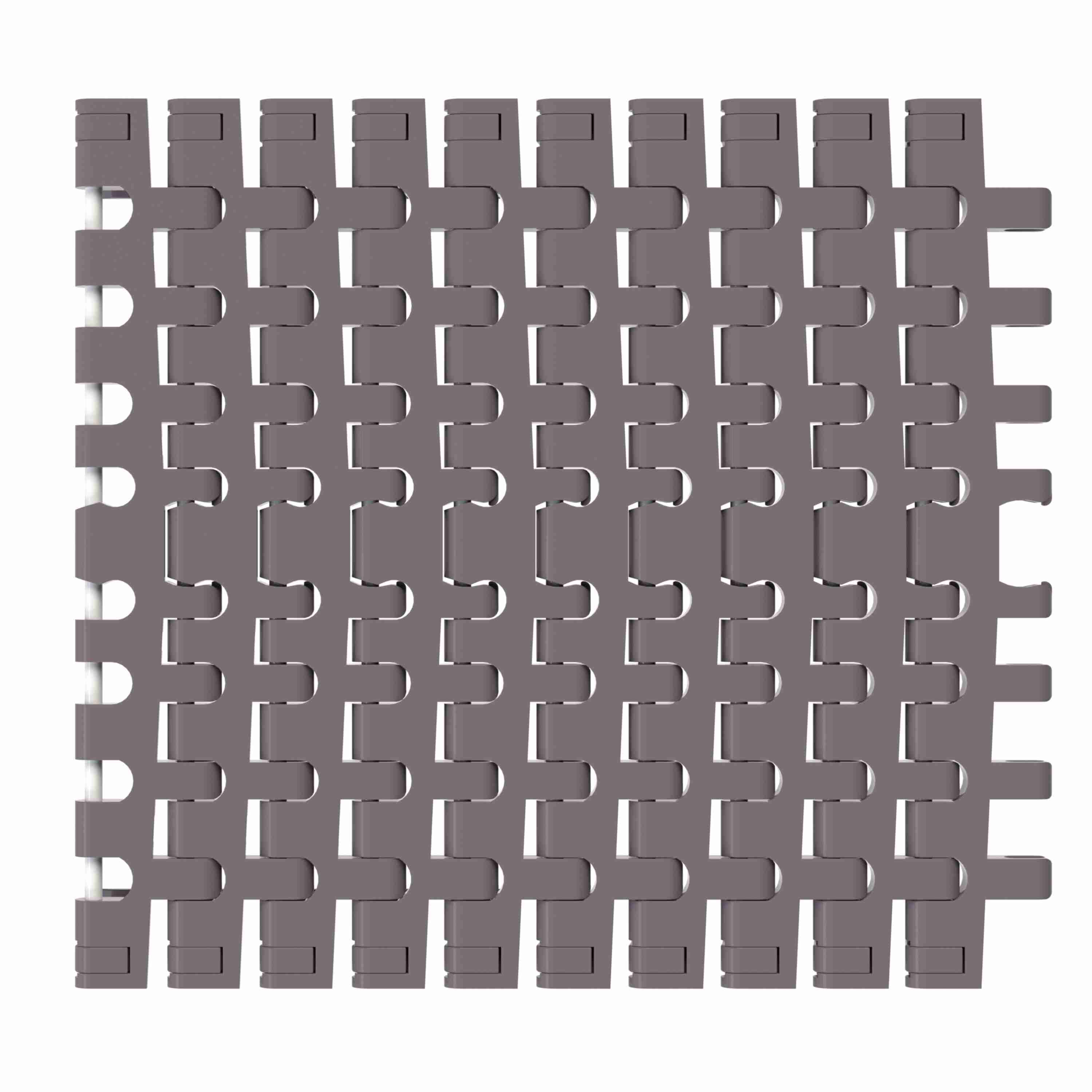

Rexnord 7956TAB Side-flexing Flush Grid, Material: Brown High Performance, Width: 12in, Pitch: 1.25in - 81450611
Part #:10146269
Catalog #:81450611
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Pitch (in): | 1.25 in | Chain Width (mm): | 304.8 mm |
| Belt Thickness (mm): | 12.7 mm | Straight or Side-Flex: | Side-flexing |
| Chain Material Description: | Brown High Performance | Chain Width Measurement System: | Imperial |
| Chain Material: | HP | Surface Type: | Flush Grid |
| Chain Strength (lb): | 800 lb | Chain Number: | 7956TAB |
| Chain Width (in): | 12 in | Curve Retention Type: | TAB |
| Rod/Pin Material: | Polyester | Chain Strength (N): | 3,552 N |
| Chain Pitch (mm): | 31.75 mm | Direction: | S-Turn |
| Series: | MatTop 7956 Series Side-flexing Chain | Belt Thickness (in): | 0.5 in |
| Open Area (%): | 16 % |
General Specifications
| Weight: | 0.25 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
