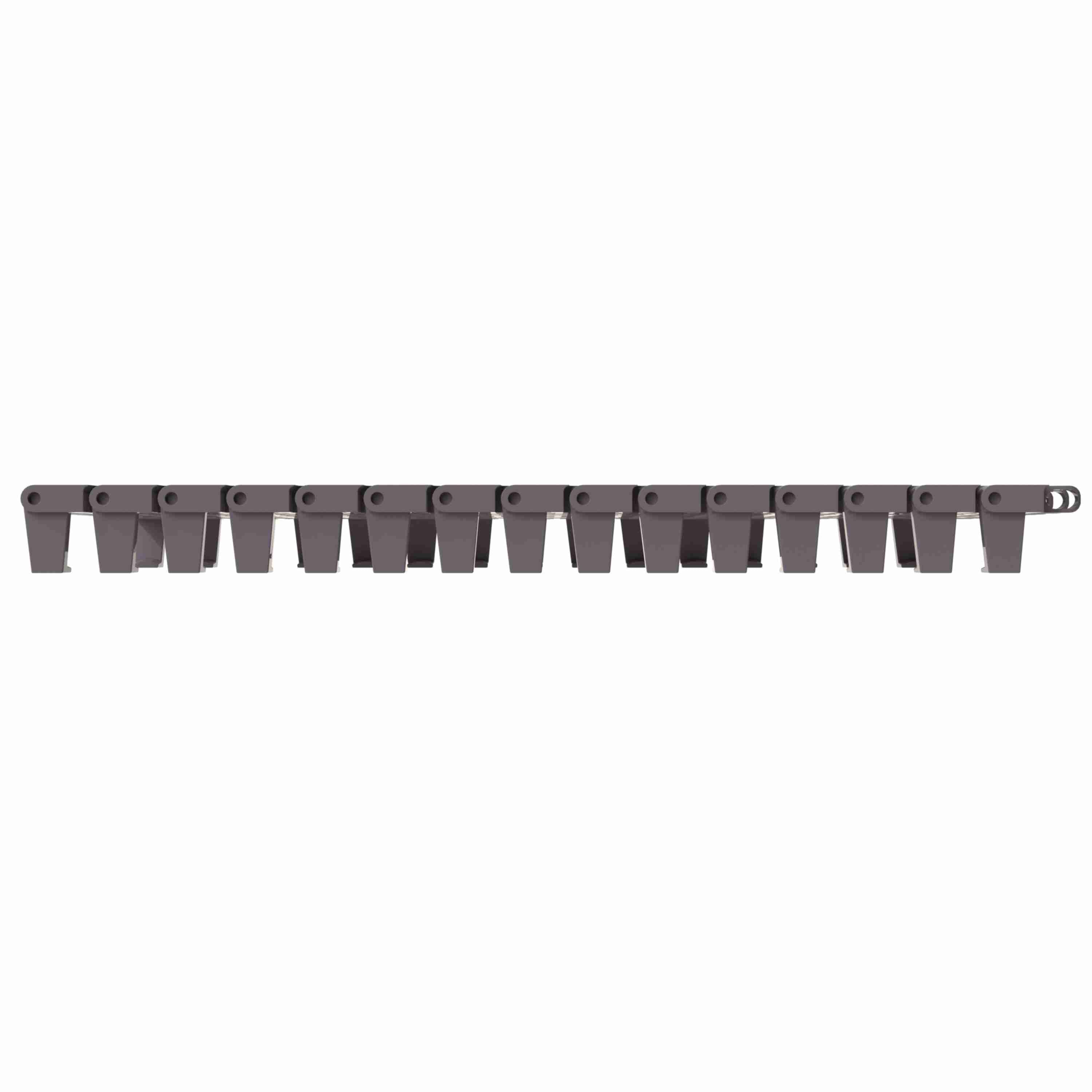

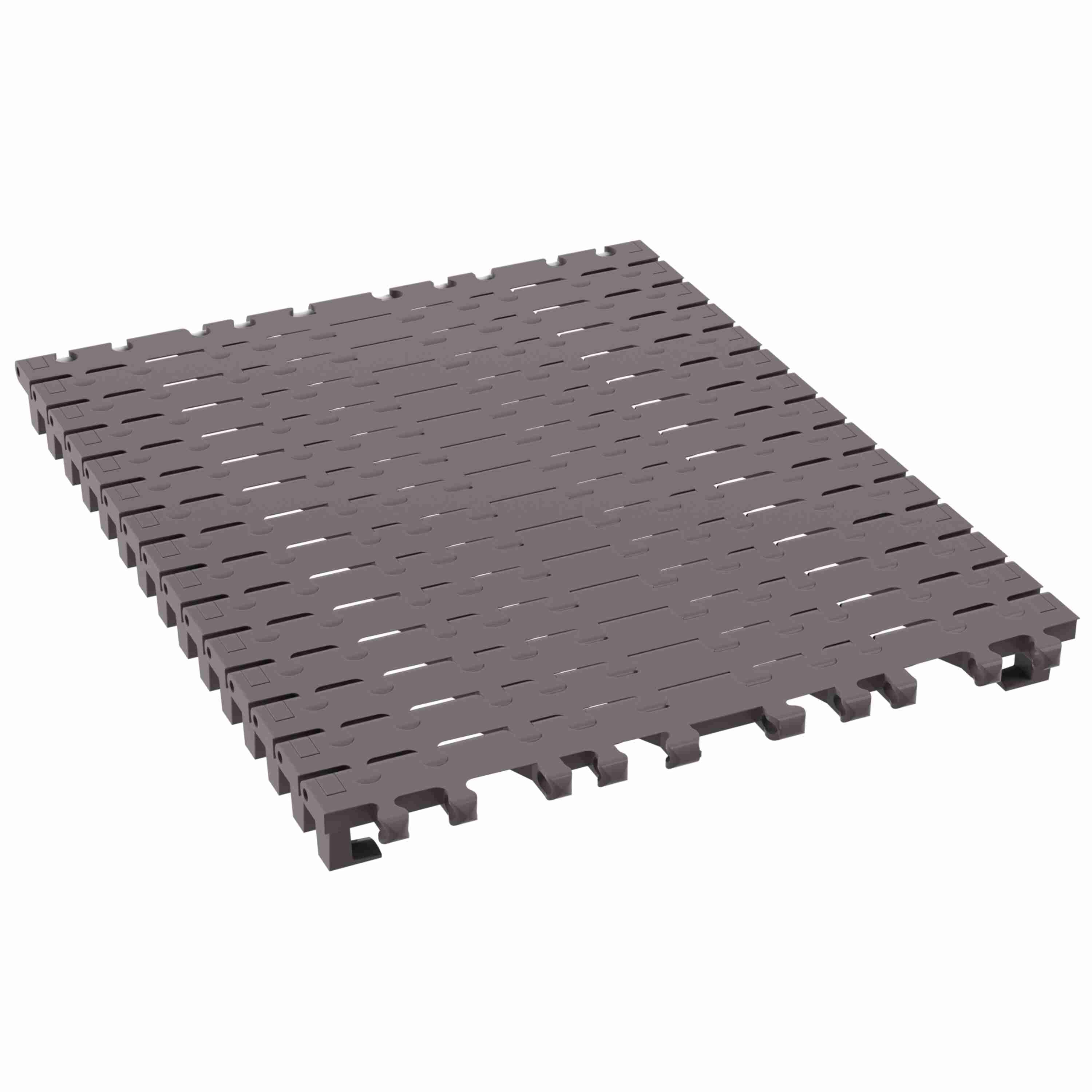

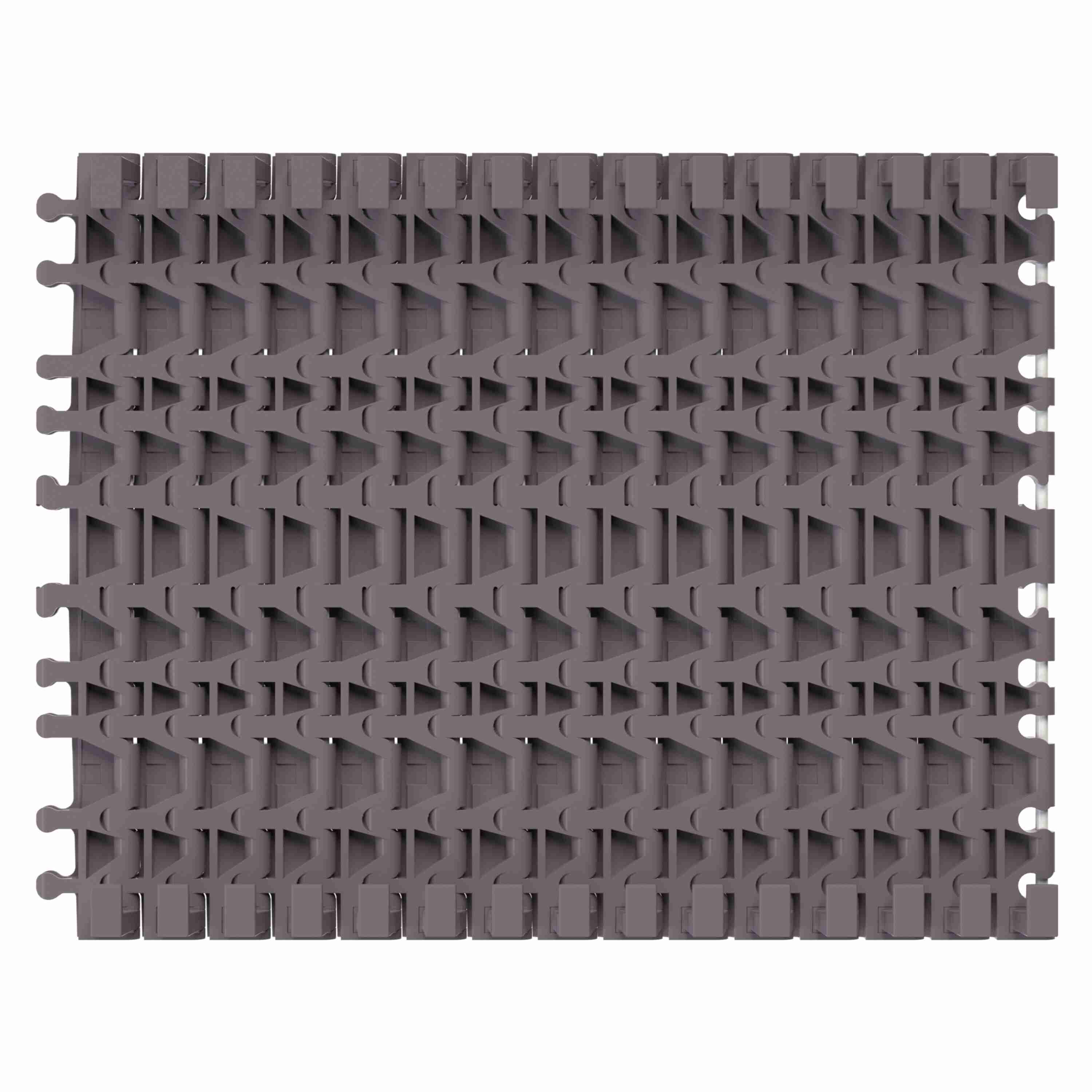

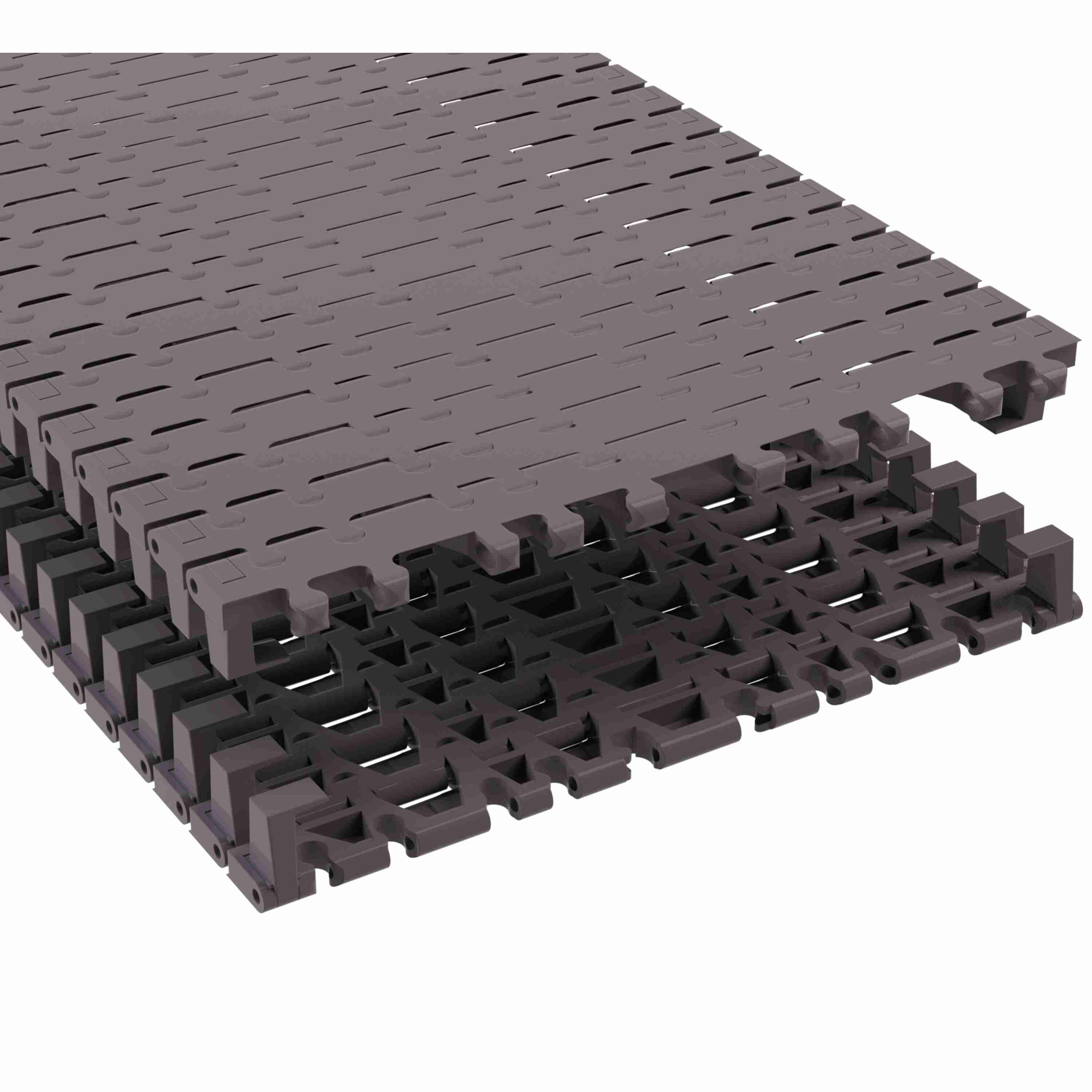

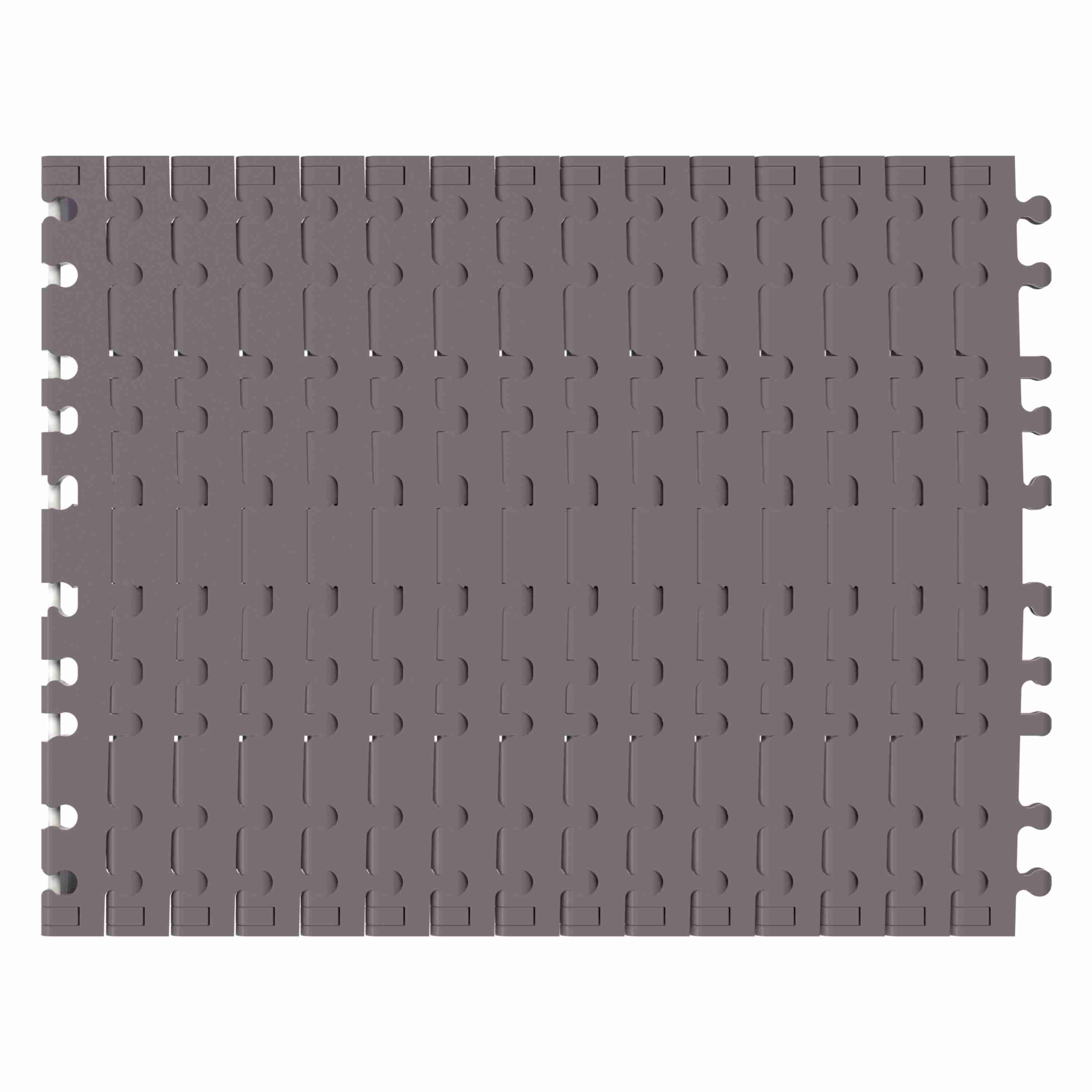

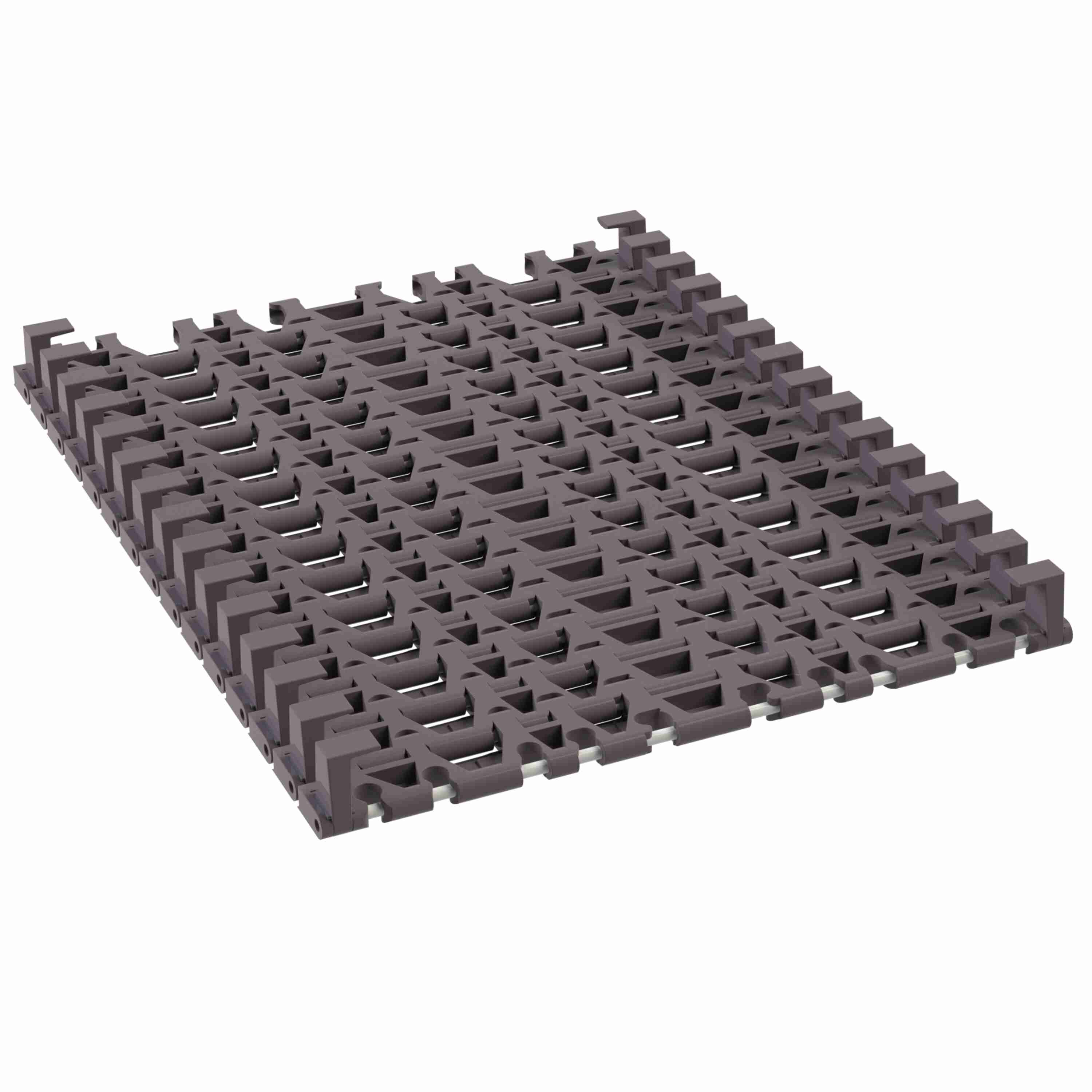

Rexnord 7956TAB Side-flexing Flush Grid, Material: Brown High Performance, Width: 15in, Pitch: 1.25in - 81450281
Part #:10146241
Catalog #:81450281
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Strength (N): | 3,996 N | Chain Width (mm): | 381 mm |
| Chain Pitch (mm): | 31.75 mm | Chain Material Description: | Brown High Performance |
| Surface Type: | Flush Grid | Chain Number: | 7956TAB |
| Straight or Side-Flex: | Side-flexing | Open Area (%): | 16 % |
| Rod/Pin Material: | Polyester | Chain Material: | HP |
| Belt Thickness (mm): | 12.7 mm | Chain Width (in): | 15 in |
| Chain Strength (lb): | 900 lb | Series: | MatTop 7956 Series Side-flexing Chain |
| Belt Thickness (in): | 0.5 in | Chain Pitch (in): | 1.25 in |
| Chain Width Measurement System: | Imperial | Curve Retention Type: | TAB |
| Direction: | S-Turn |
General Specifications
| Weight: | 0.33 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
