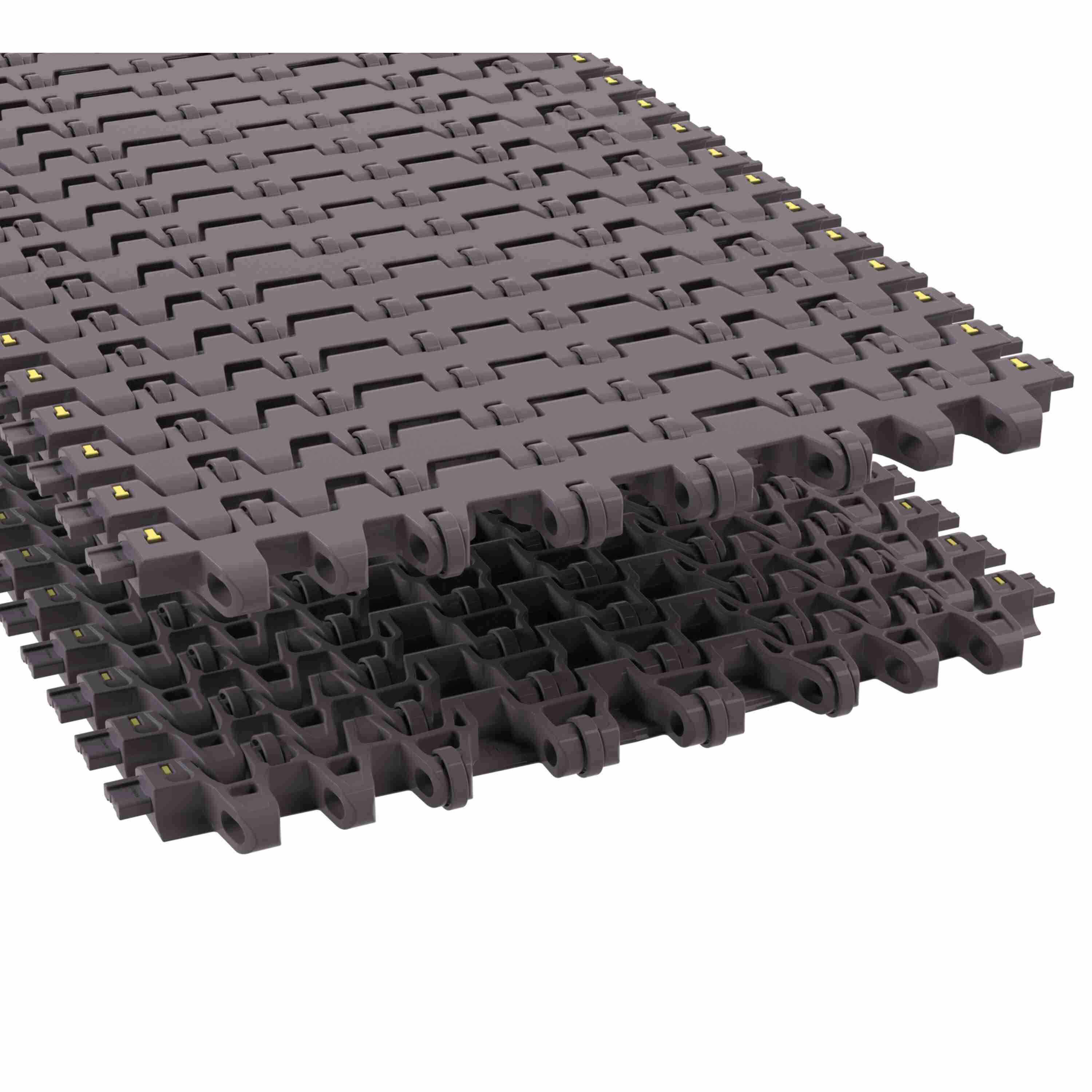

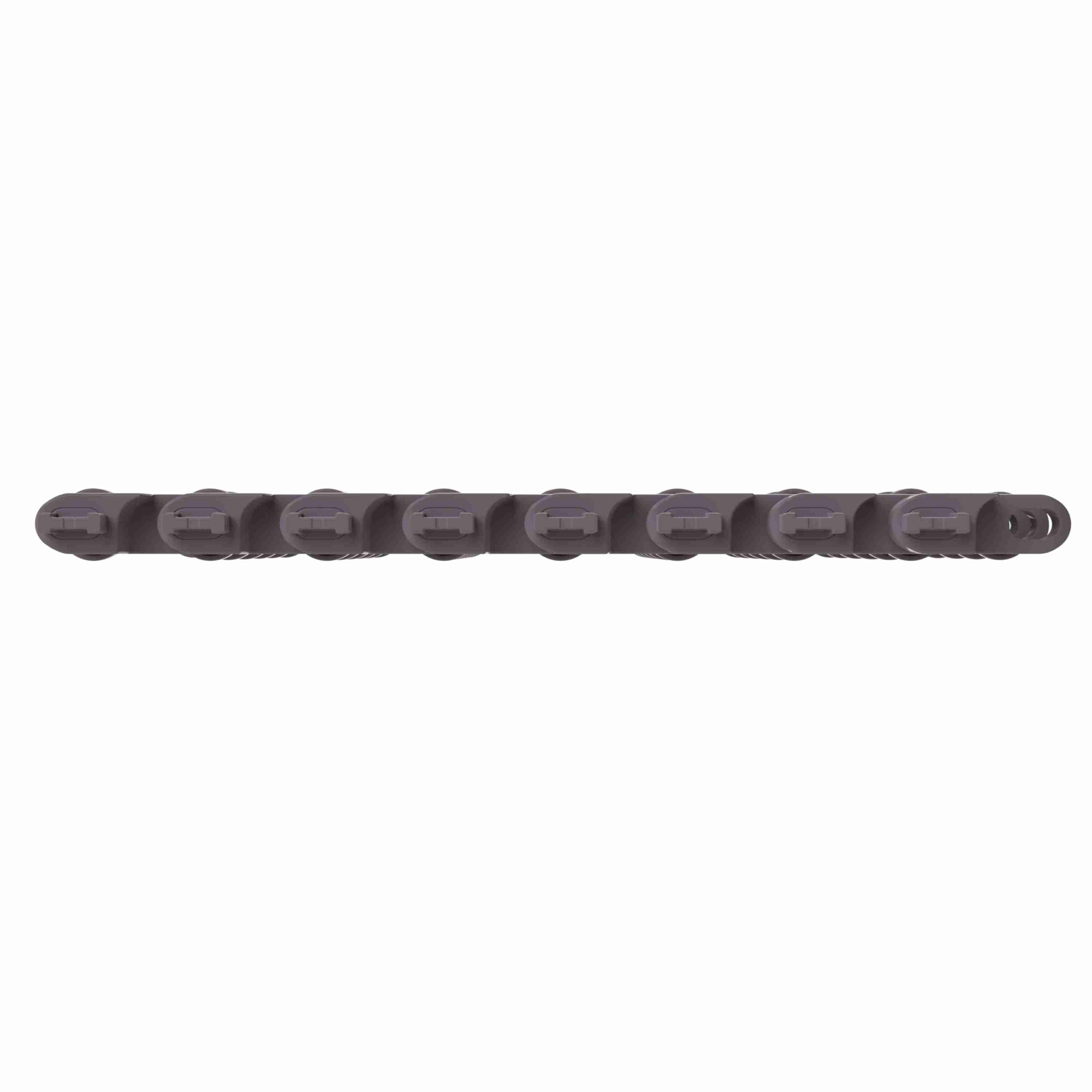

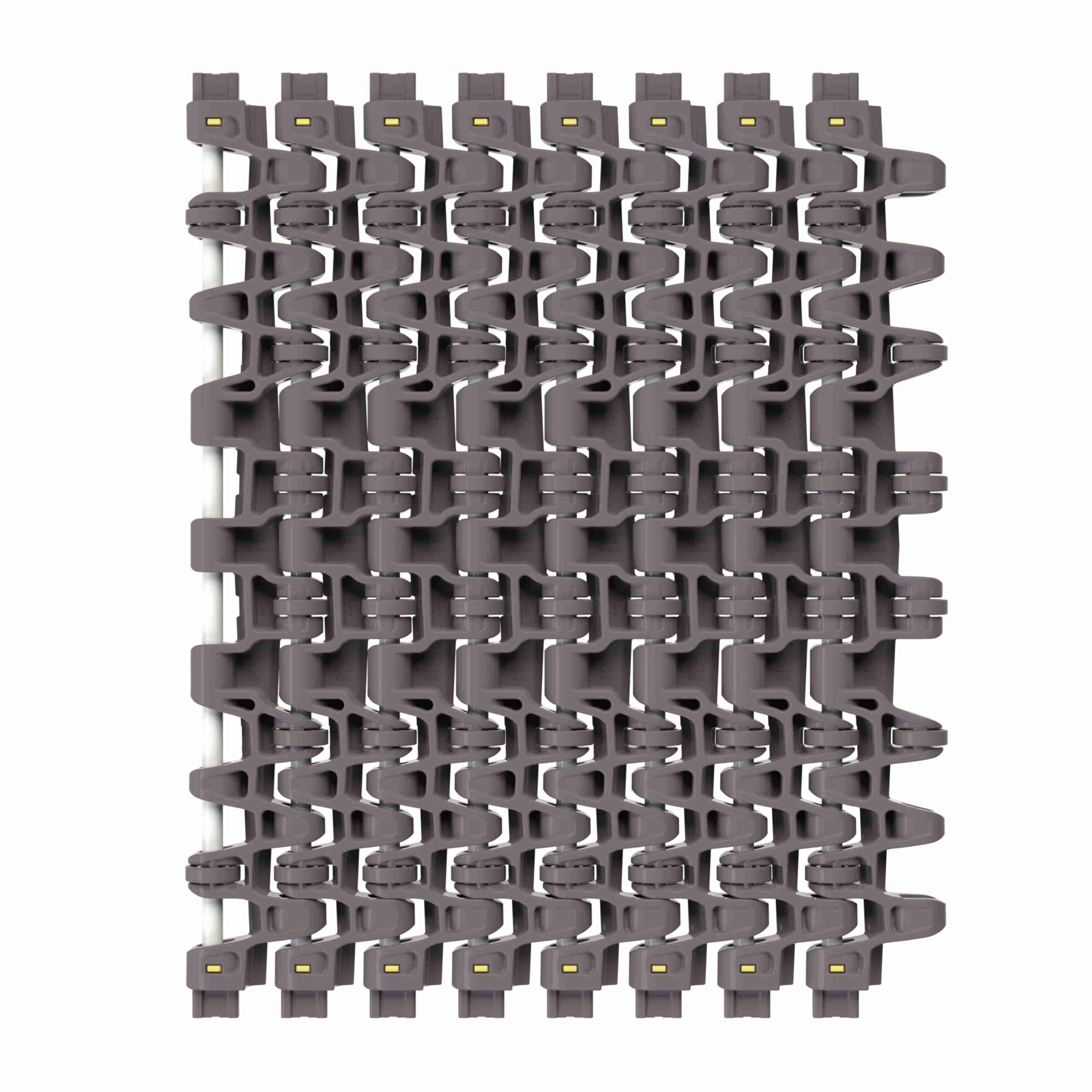

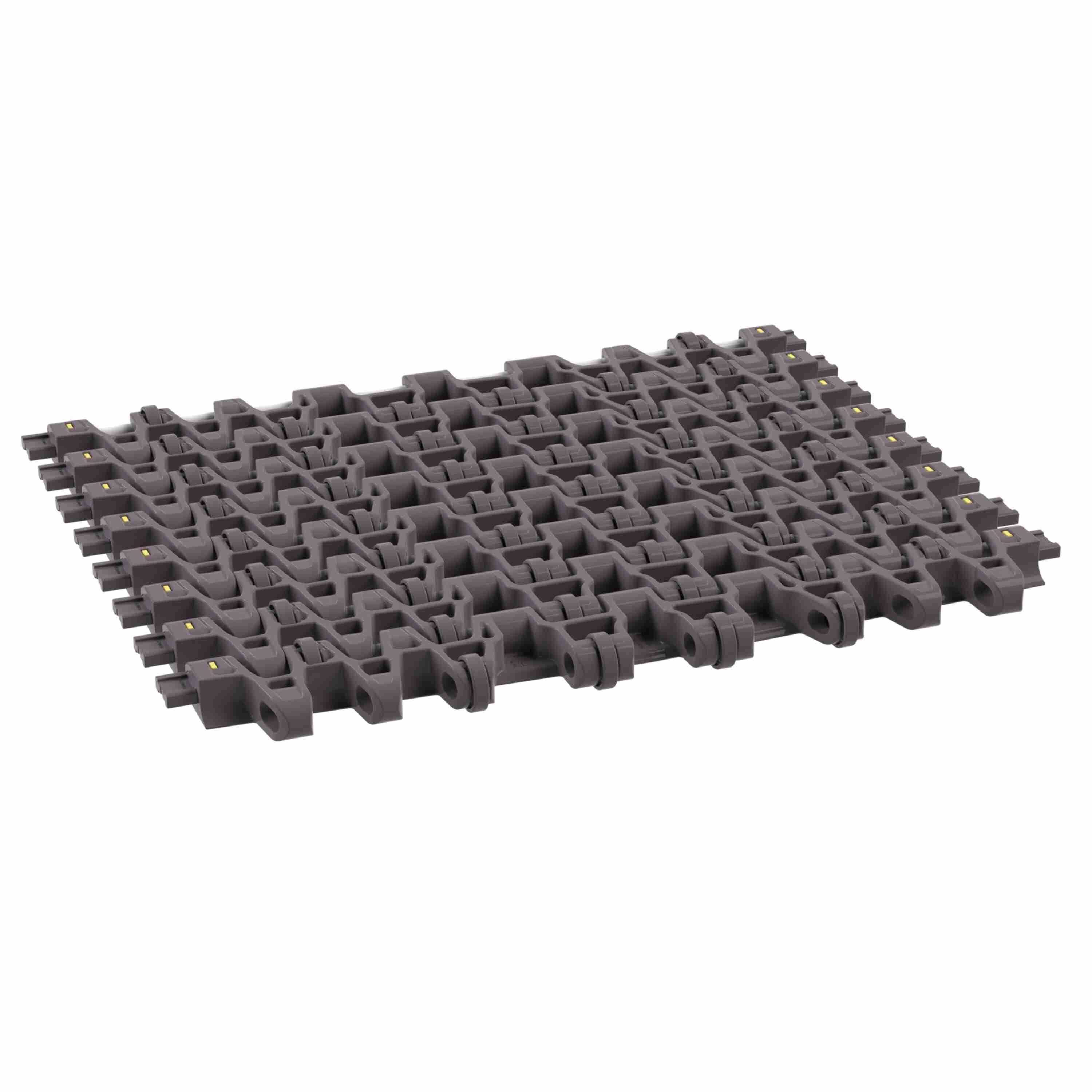

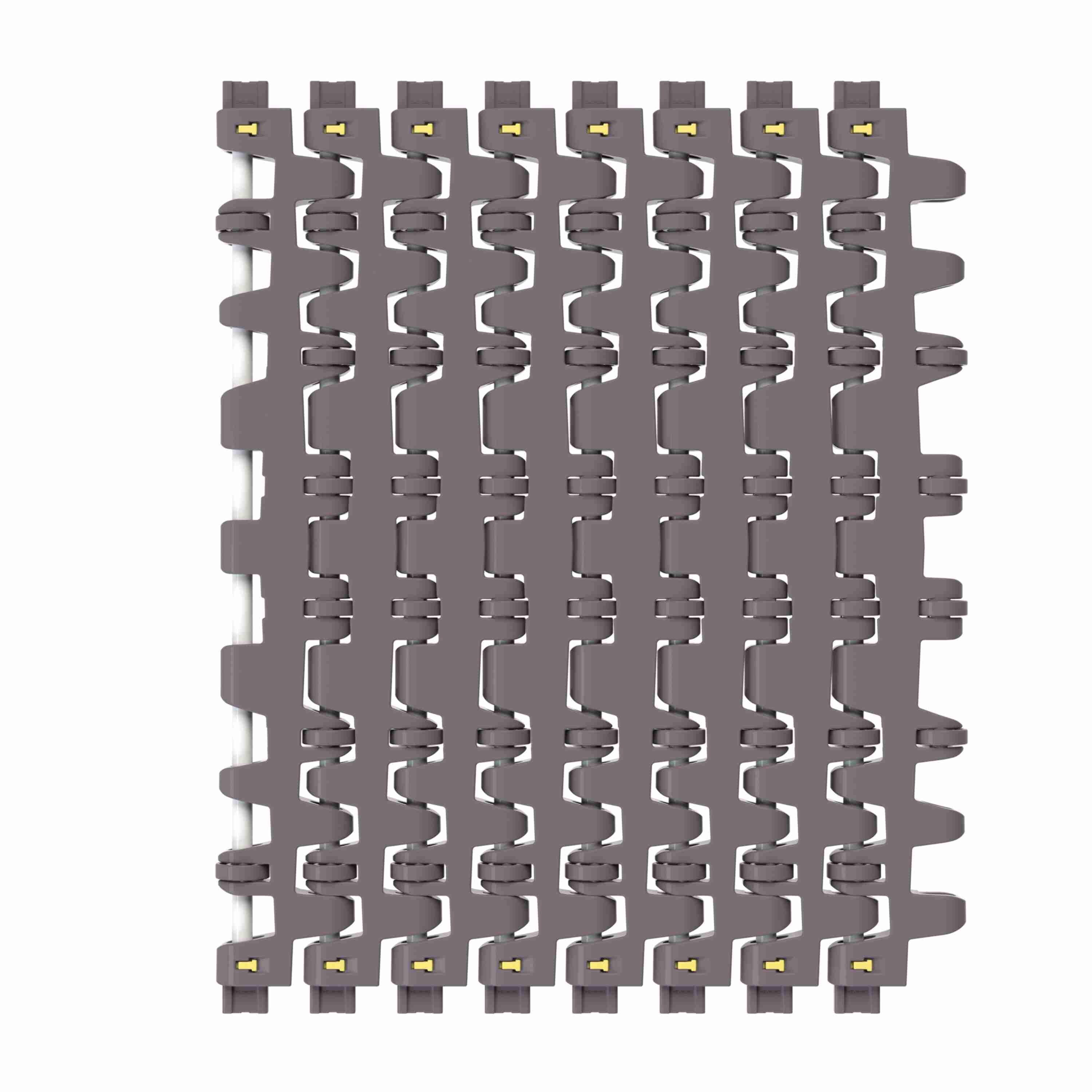

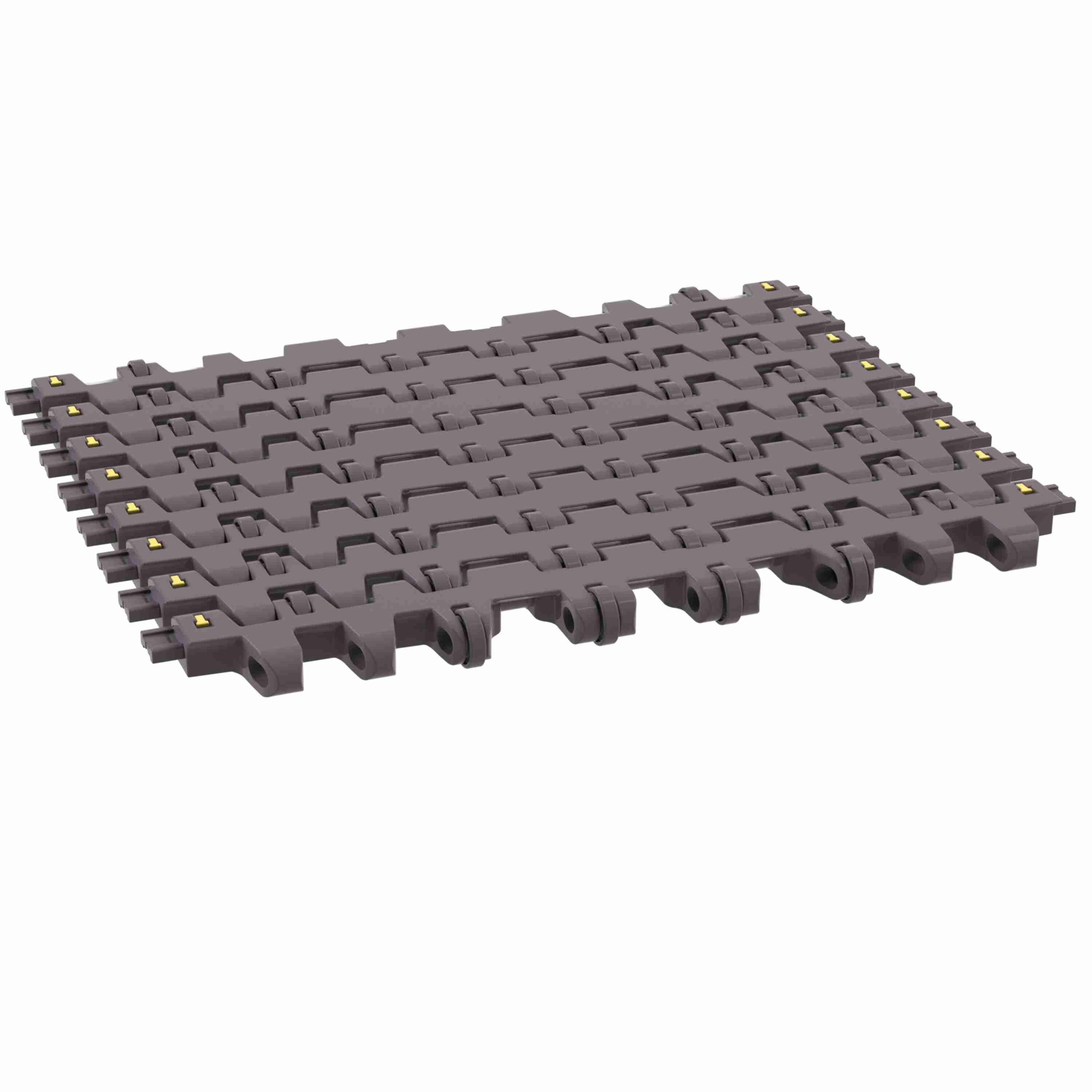

Rexnord 7963ST Side-flexing Low Backline Pressure, Material: Brown High Performance, Width: 15in, Pitch: 1.5in - 10324717
Part #:10324717
Catalog #:10324717
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Strength (N): | 3,108 N | Chain Pitch (mm): | 38.1 mm |
| Belt Thickness (in): | 0.75 in | Chain Material: | HP |
| Chain Width (mm): | 381 mm | Open Area (%): | 16 % |
| Chain Strength (lb): | 700 lb | Curve Retention Type: | ST |
| Chain Material Description: | Brown High Performance | Rod/Pin Material: | Polyester |
| Chain Number: | 7963ST | Chain Pitch (in): | 1.5 in |
| Belt Thickness (mm): | 19.1 mm | Chain Width (in): | 15 in |
| Straight or Side-Flex: | Side-flexing | Series: | MatTop 7960 Series Side-flexing Chain |
| Surface Type: | Low Backline Pressure | Chain Width Measurement System: | Imperial |
General Specifications
| Weight: | 0.48 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
