Rexnord 6416 Series, Material: BSE, Width: 36in (914.4mm), Pitch: 1.5in, Active Drive - 11100140
Part #:11100140
Catalog #:11100140
KEY FEATURES

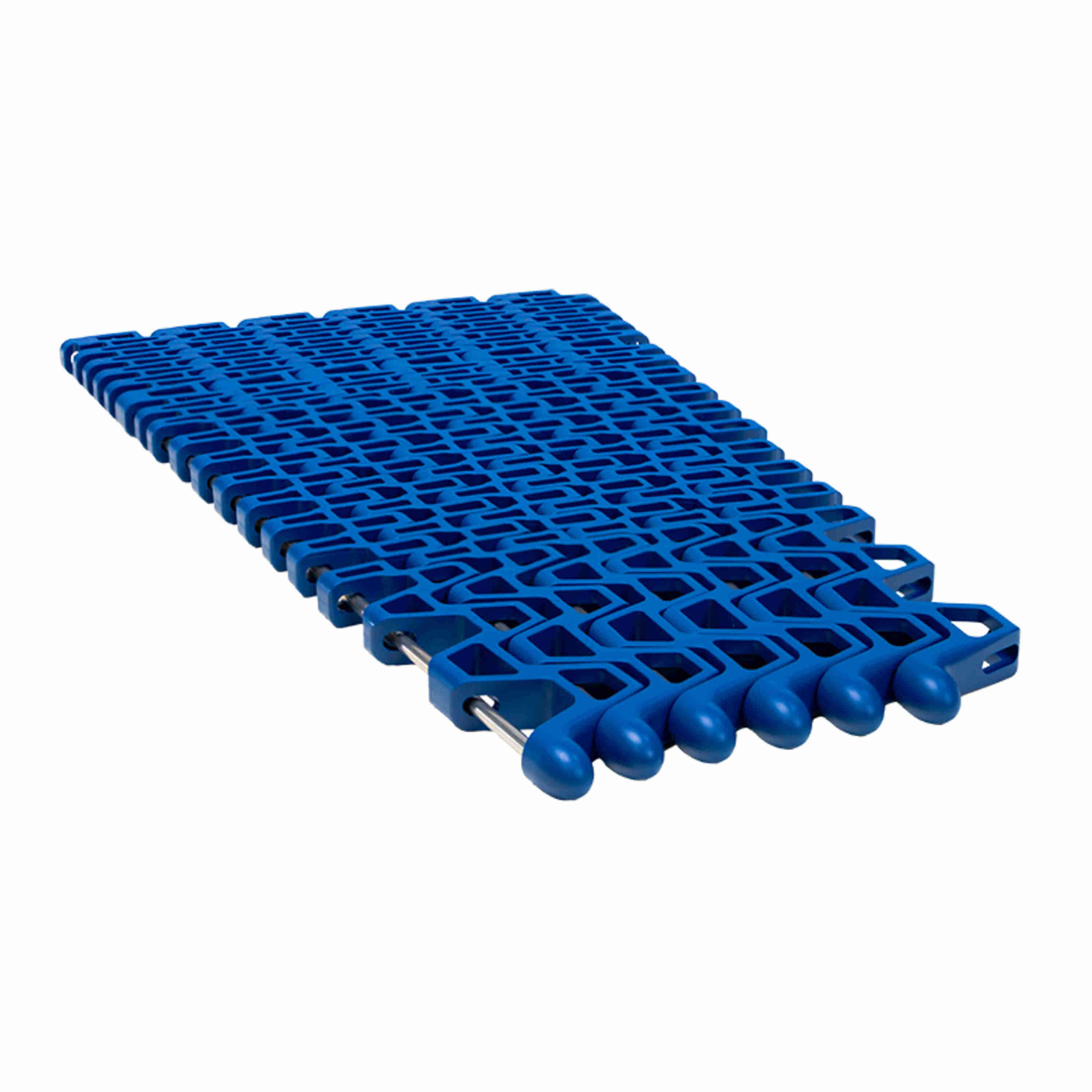

- The 6416 36-inch wide 6400 KleanTop® Plastic Belt is ideal for "actively driven" spiral cage conveying. With a 1.5" (38,1 mm)pitch and 2.2 turn radius, it boosts productivity through enhanced tension strength via PowerKey™ technology and stainless steel rails for heavier loads and longer runs. Its open design offers 45% open area for airflow and easy cleaning, maintaining sanitation while optimizing performance. Belt material is blue self-extinguishing (BSE) and low moisture absorption.
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Strength (lbs/ft): | 1800 lb/ft | Application: | Active Drive Spiral Cage Systems |
| Chain Material Description: | Blue Self Extinguishing | Chain Number: | 6416 |
| Rod/Pin Material: | Stainless Steel | Curve Chain Strength (lb): | 600 lb |
| Chain Width (mm): | 914.4 mm | Open Area (%): | 0.45 % |
| Chain Width (in): | 36 in | Straight or Side-Flex: | Side-flexing |
| Chain Material: | BSE | Chain Pitch (in): | 1.5 in |
| Curve Chain Strength (N): | 2,600 N | Chain Pitch (mm): | 38.1 mm |
| Surface Type: | Flush Grid | Chain Strength (N/m): | 26,000 N·m |
| Base Chain Material: | Nylon, Self Extinguishing |
General Specifications
| Weight: | 0.87 LB |
