Rexnord 6422 Series, Material: SMB, Width: 34in (863.6mm), Pitch: 1.5in, Low Tension - 10920253
Part #:10920253
Catalog #:10920253
KEY FEATURES

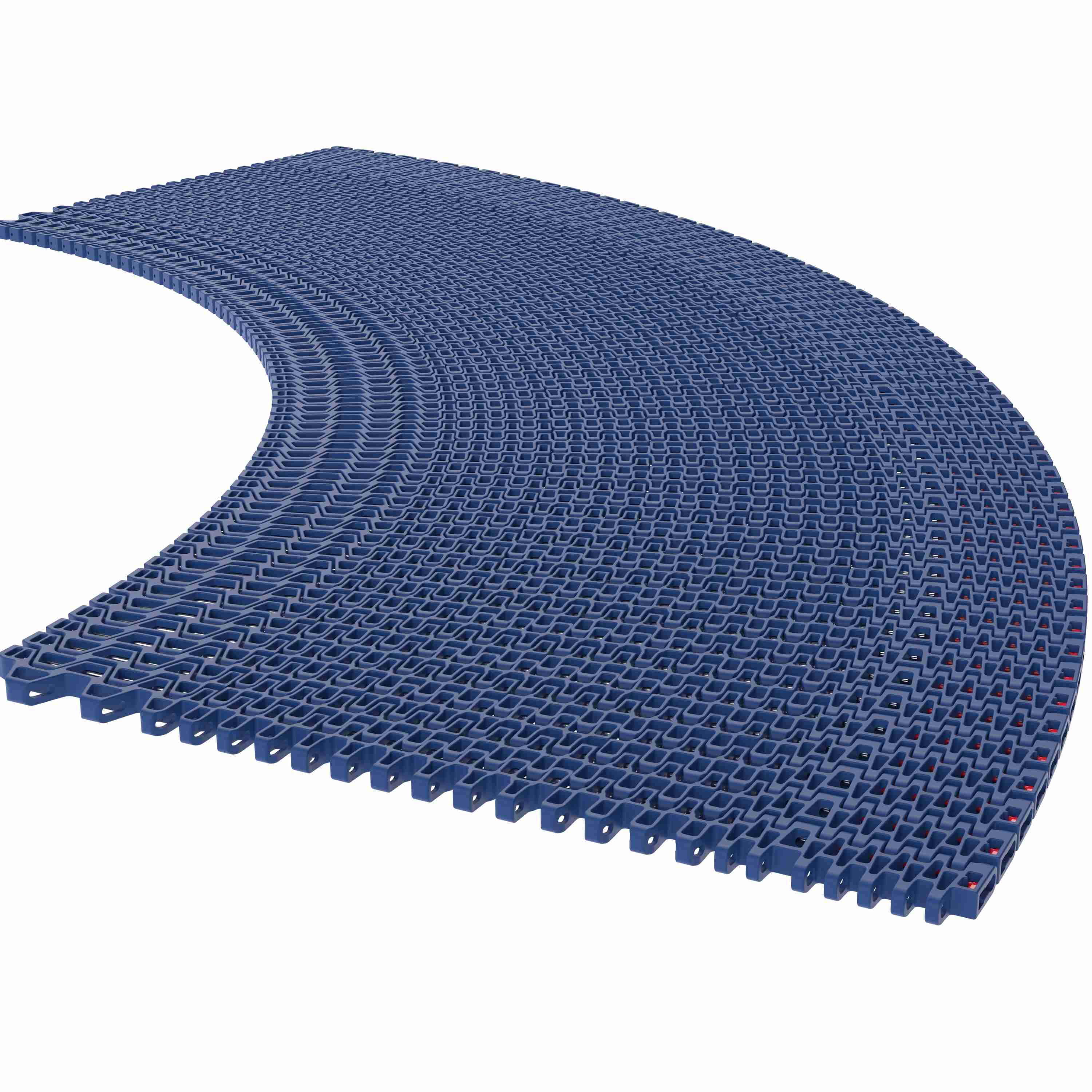

- The 6422 34-inch wide 6400 KleanTop® Plastic Belt is ideal for low tension spiral cage conveying. With a 1.5" (38,1 mm)pitch and 2.2 turn radius, it boosts productivity through enhanced tension strength via PowerKey™ technology and stainless steel rails for heavier loads and longer runs. Its open design offers 45% open area for airflow and easy cleaning, maintaining sanitation while optimizing performance.
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Material Description: | Blue Acetal | Chain Material: | SMB |
| Surface Type: | Flush Grid | Chain Pitch (mm): | 38.1 mm |
| Chain Number: | 6422 | Application: | Low Tension Spiral Cage Systems |
| Curve Chain Strength (lb): | 600 lb | Chain Width (in): | 34 in |
| Chain Strength (N/m): | 26,000 N·m | Chain Strength (lbs/ft): | 1,800 lb/ft |
| Chain Pitch (in): | 1.5 in | Base Chain Material: | Plastic |
| Straight or Side-Flex: | Side-flexing | Open Area (%): | 0.45 % |
| Curve Chain Strength (N): | 2,600 N | Rod/Pin Material: | Stainless Steel |
| Chain Width (mm): | 863.6 mm |
General Specifications
| Weight: | 390.00 G | HTC: | 39269097 |
| Country of Origin: | Netherlands |
