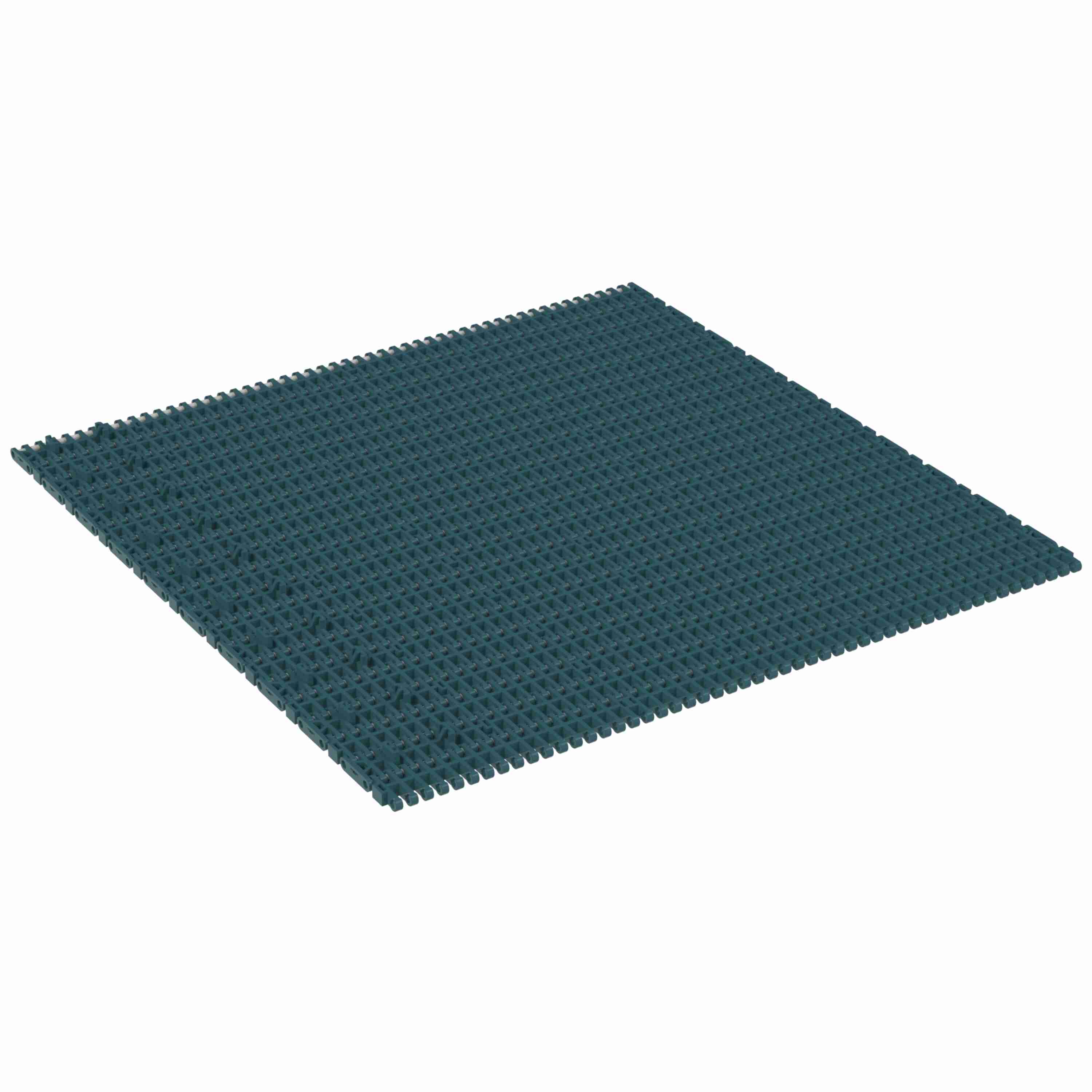

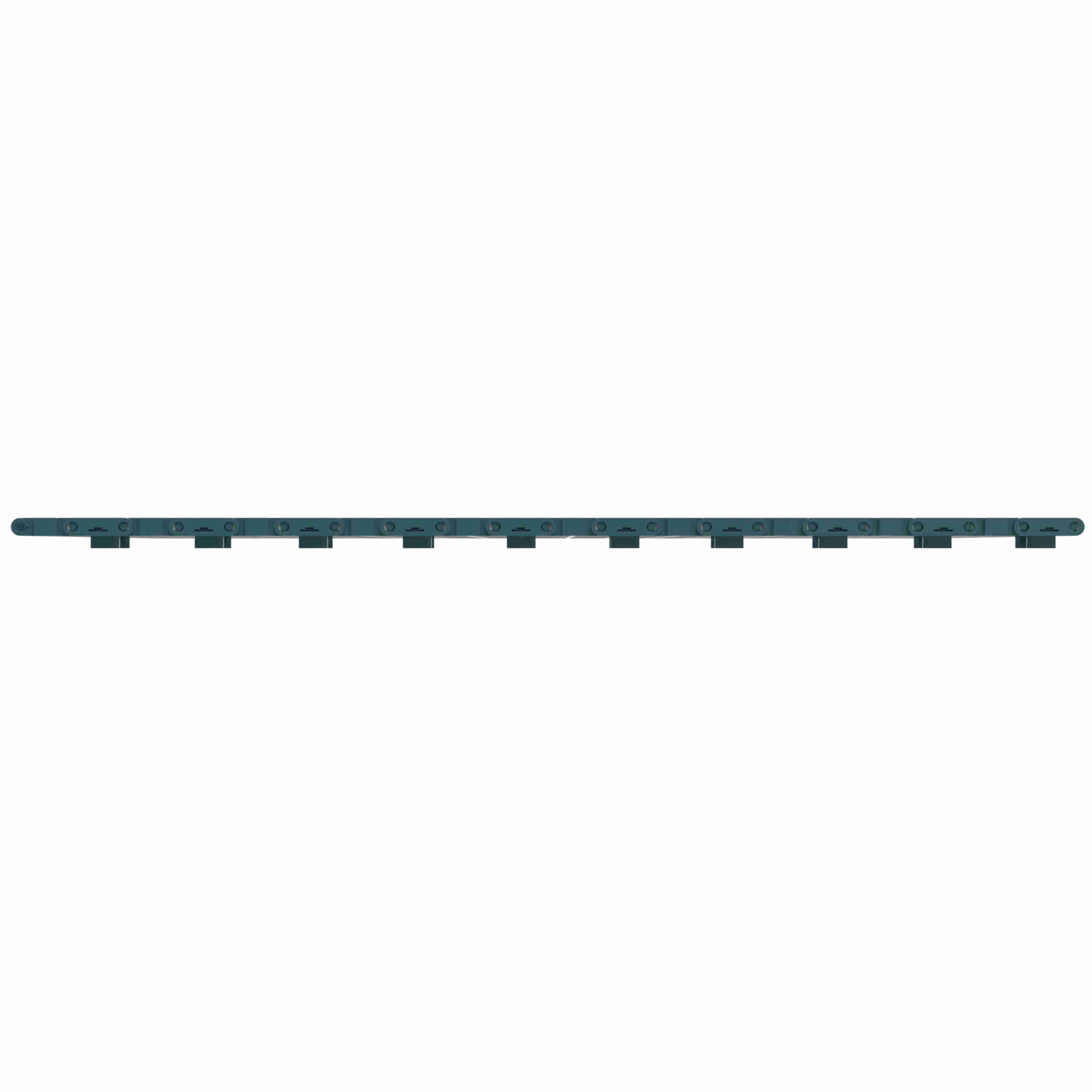

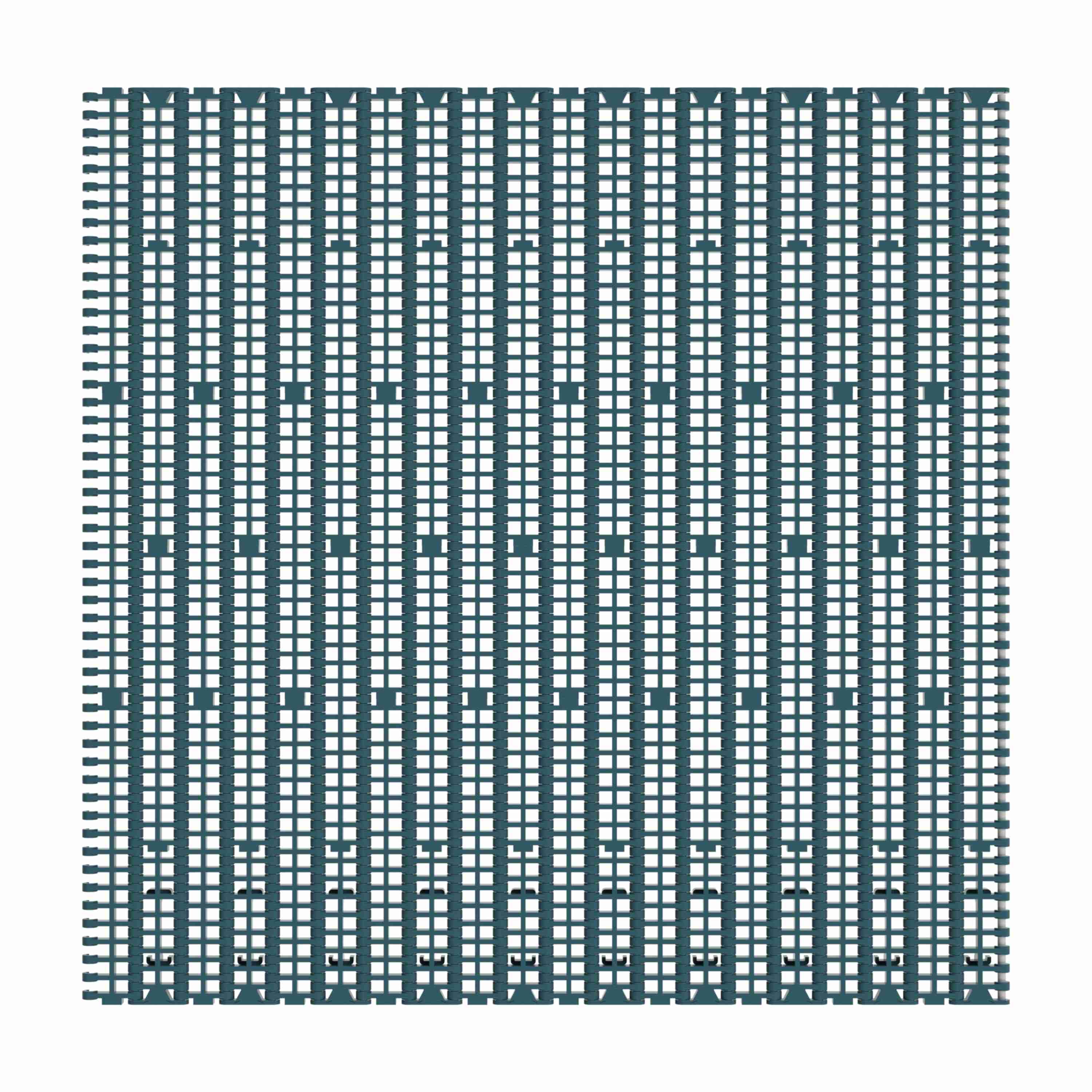

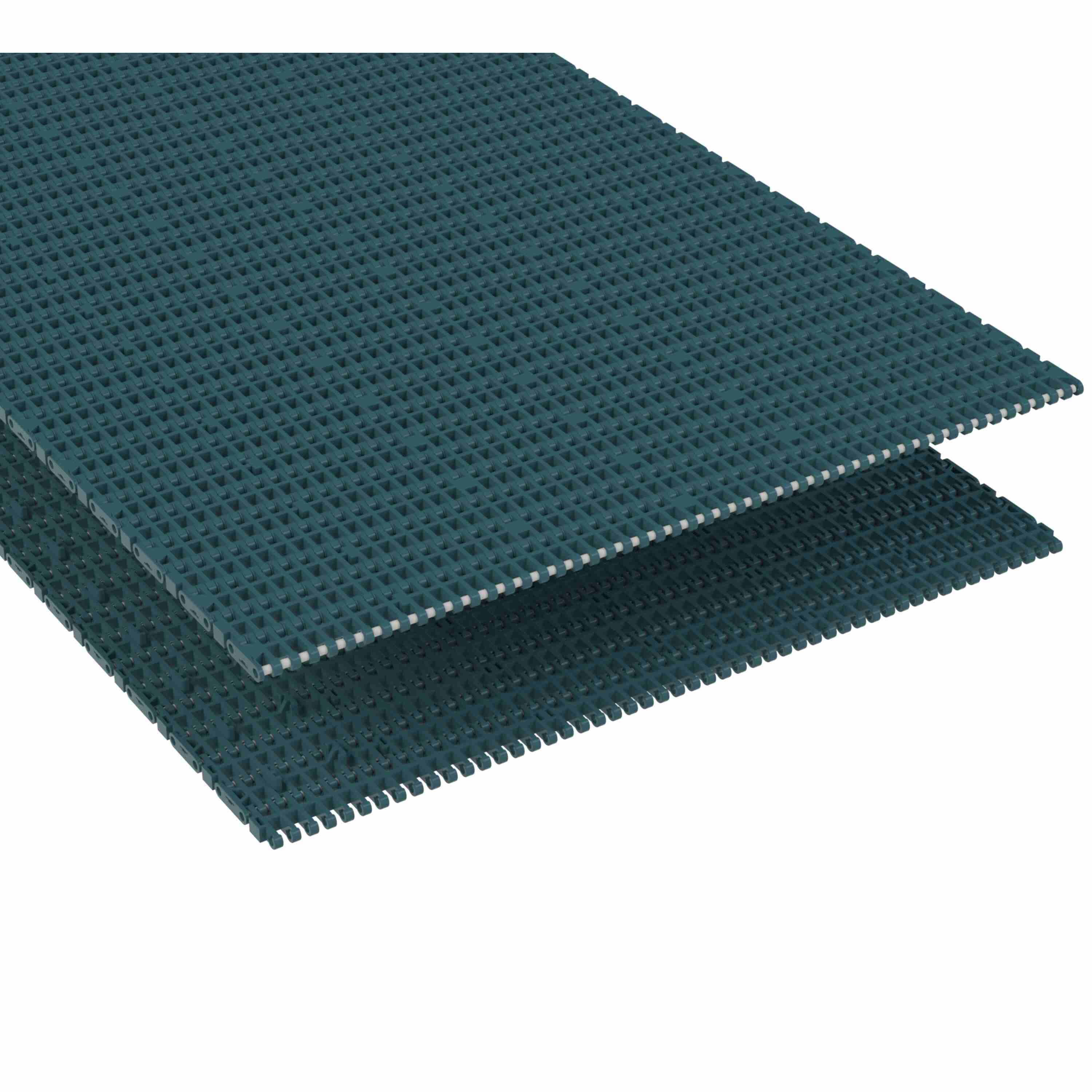

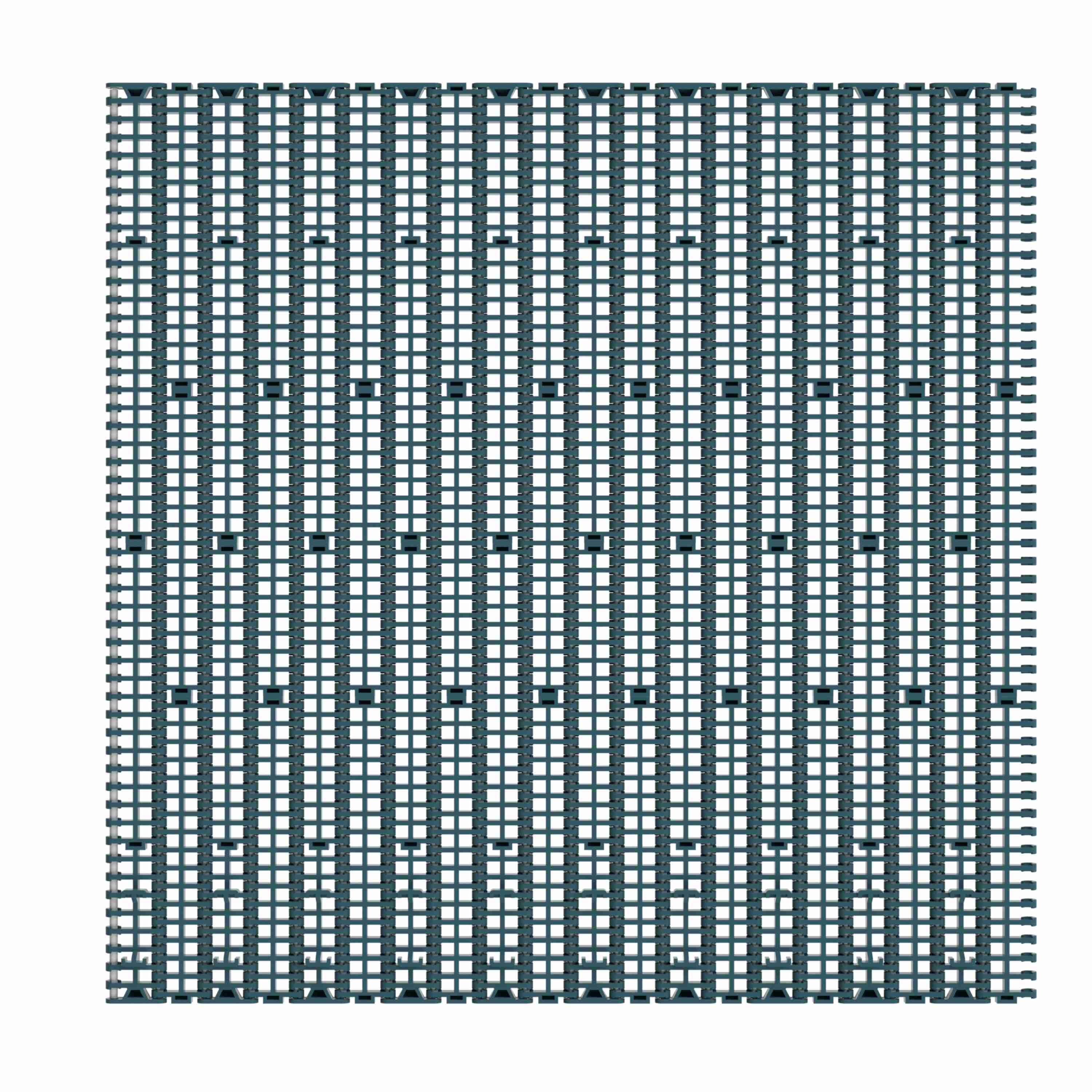

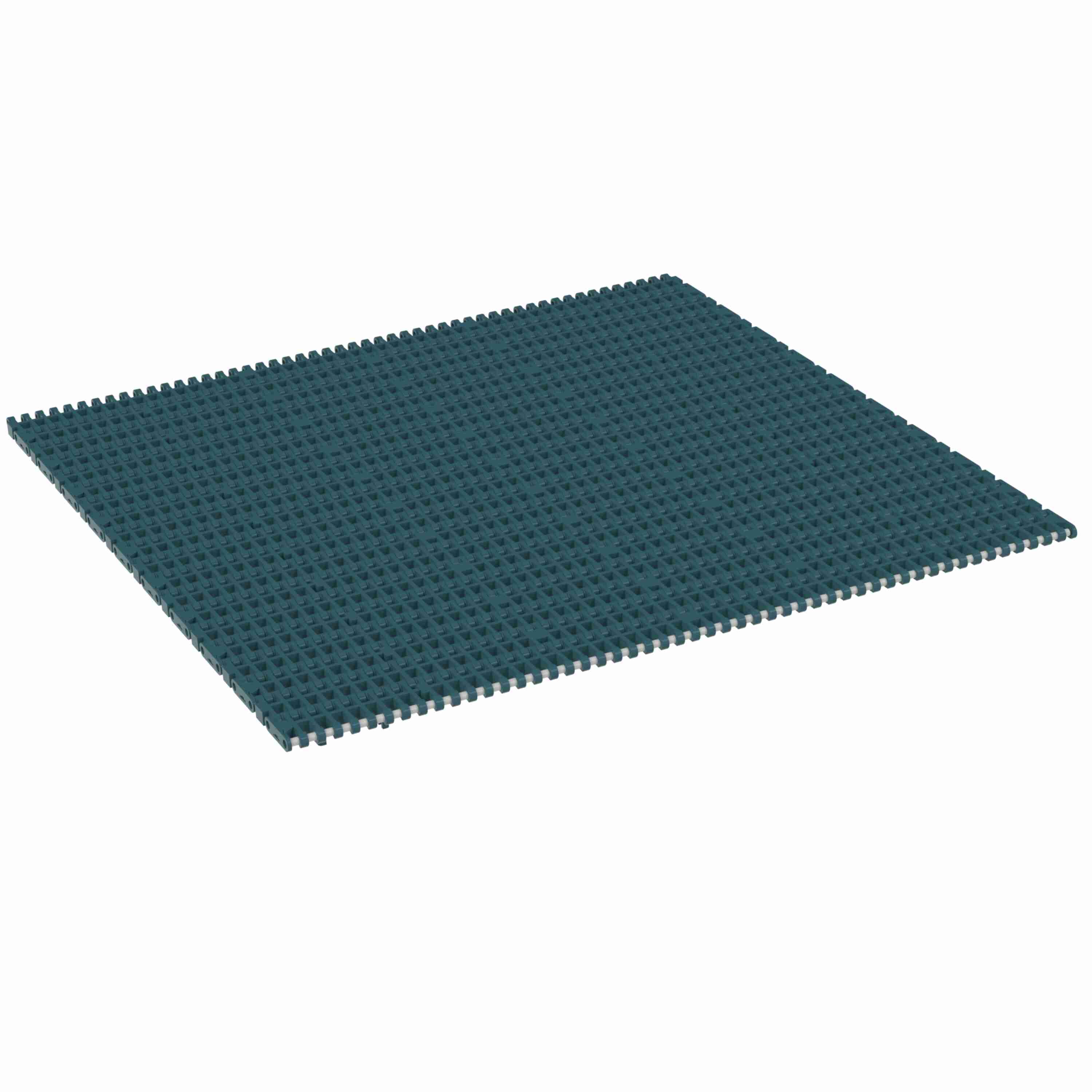

Rexnord 1000FG Straight Running Flush Grid, Material: Green Low Friction Acetal, Width: 170mm, Pitch: 1in - 874.43.11
Part #:10148005
Catalog #:874.43.11
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Open Area (%): | 40 % | Series: | MatTop 1000 Series Chain |
| Chain Material: | XLG | Chain Width (mm): | 170 mm |
| Product Line: | Plastic Modular Chain and Belt | Positrack: | True |
| Chain Number: | 1000FG | Chain Width Measurement System: | Metric |
| Belt Thickness (in): | 0.34 in | Number of Positrack: | 2 |
| Chain Width (in): | 6.69 in | Rod/Pin Material: | Polypropylene |
| Chain Strength (lb/ft): | 1,508 lb/ft | Positrack Location: | Either |
| Chain Pitch (mm): | 25.4 mm | Chain Material Description: | Green Low Friction Acetal |
| Surface Type: | Flush Grid | Chain Pitch (in): | 1 in |
| Chain Strength (N/m): | 22,000 N·m | Product Group: | Modular Plastic Belts |
| Product Type: | Straight Running | Straight or Side-Flex: | Straight Running |
| Belt Thickness (mm): | 8.7 mm |
General Specifications
| Weight: | 0.03 KG | HTC: | 3926909989 |
| Country of Origin: | Mexico |
