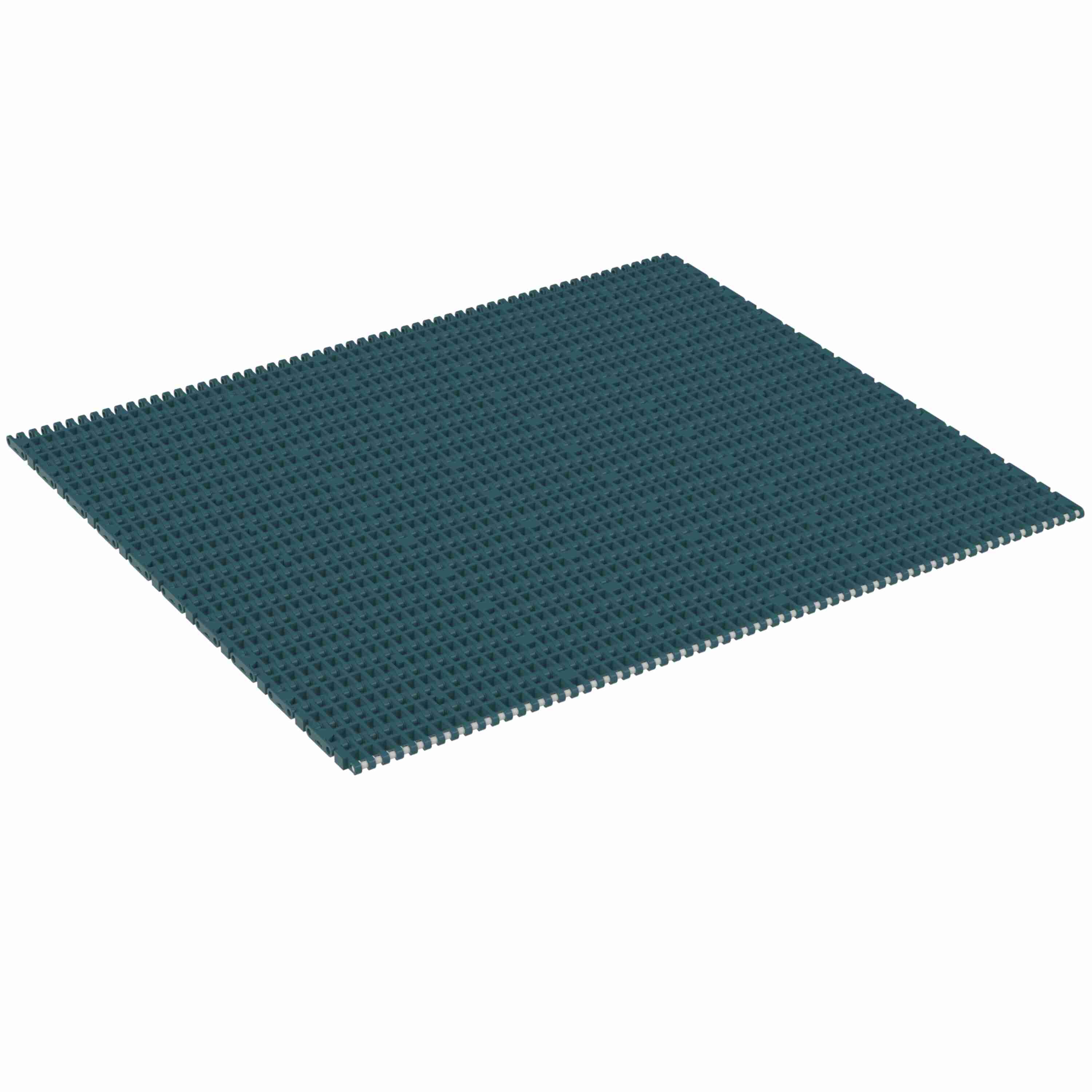

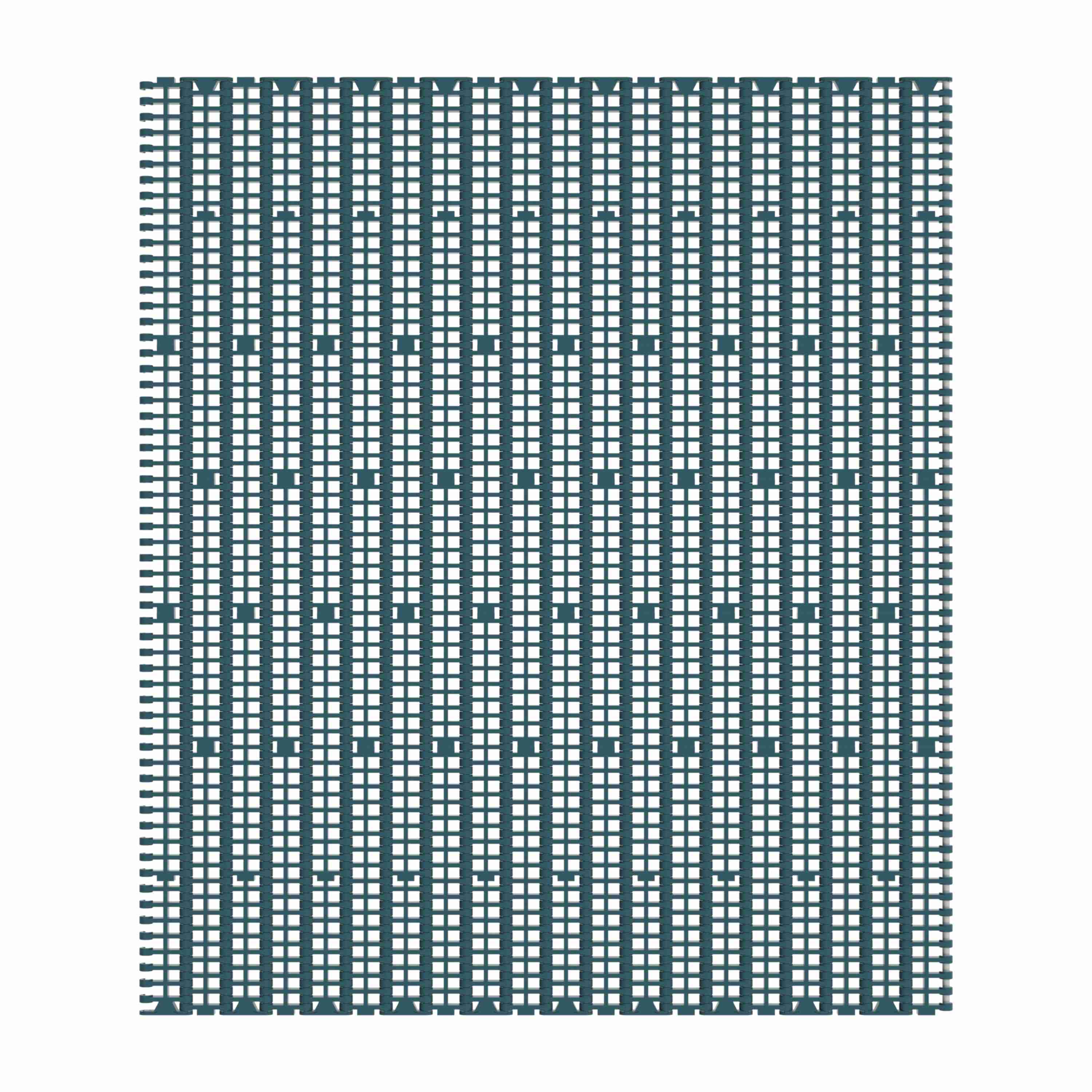

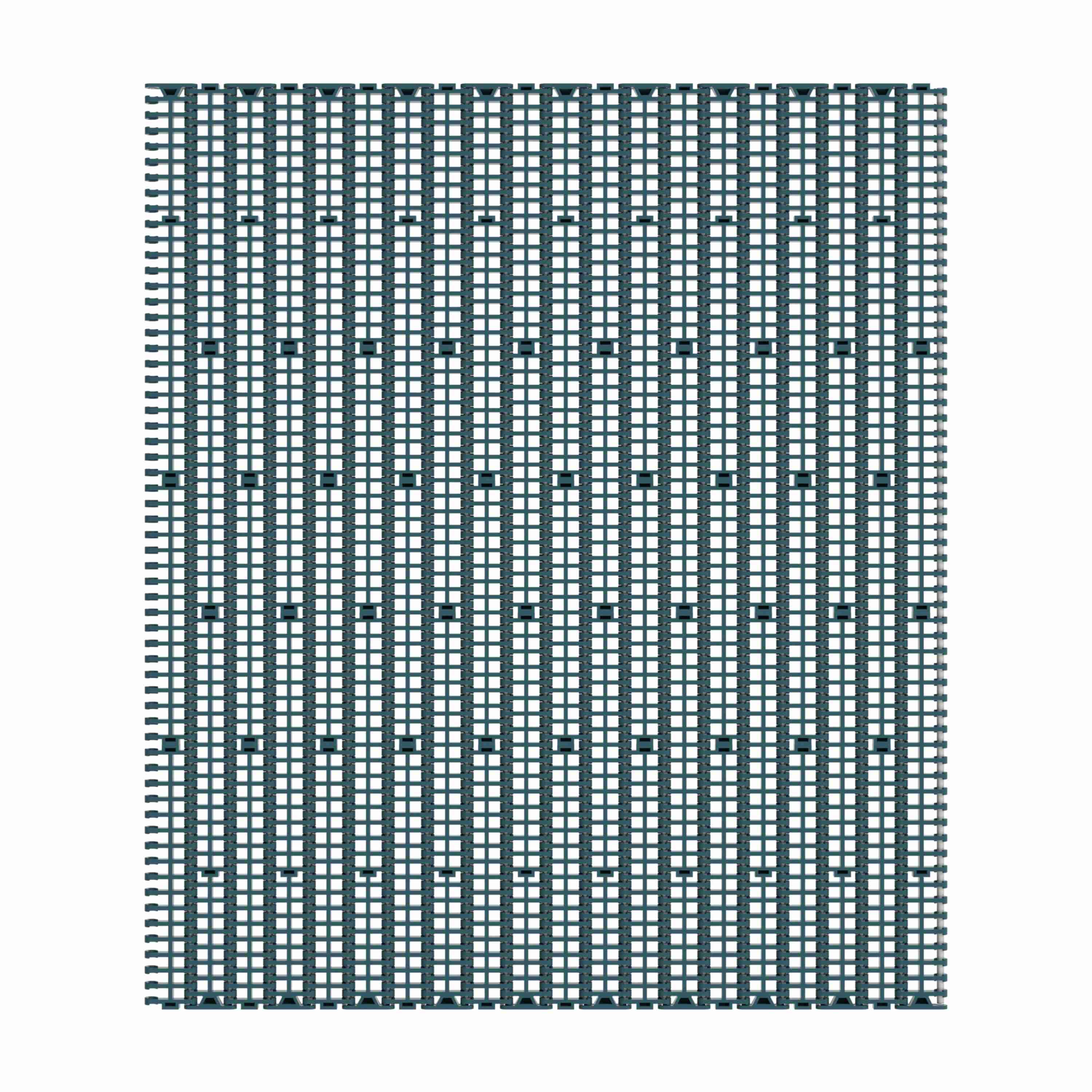

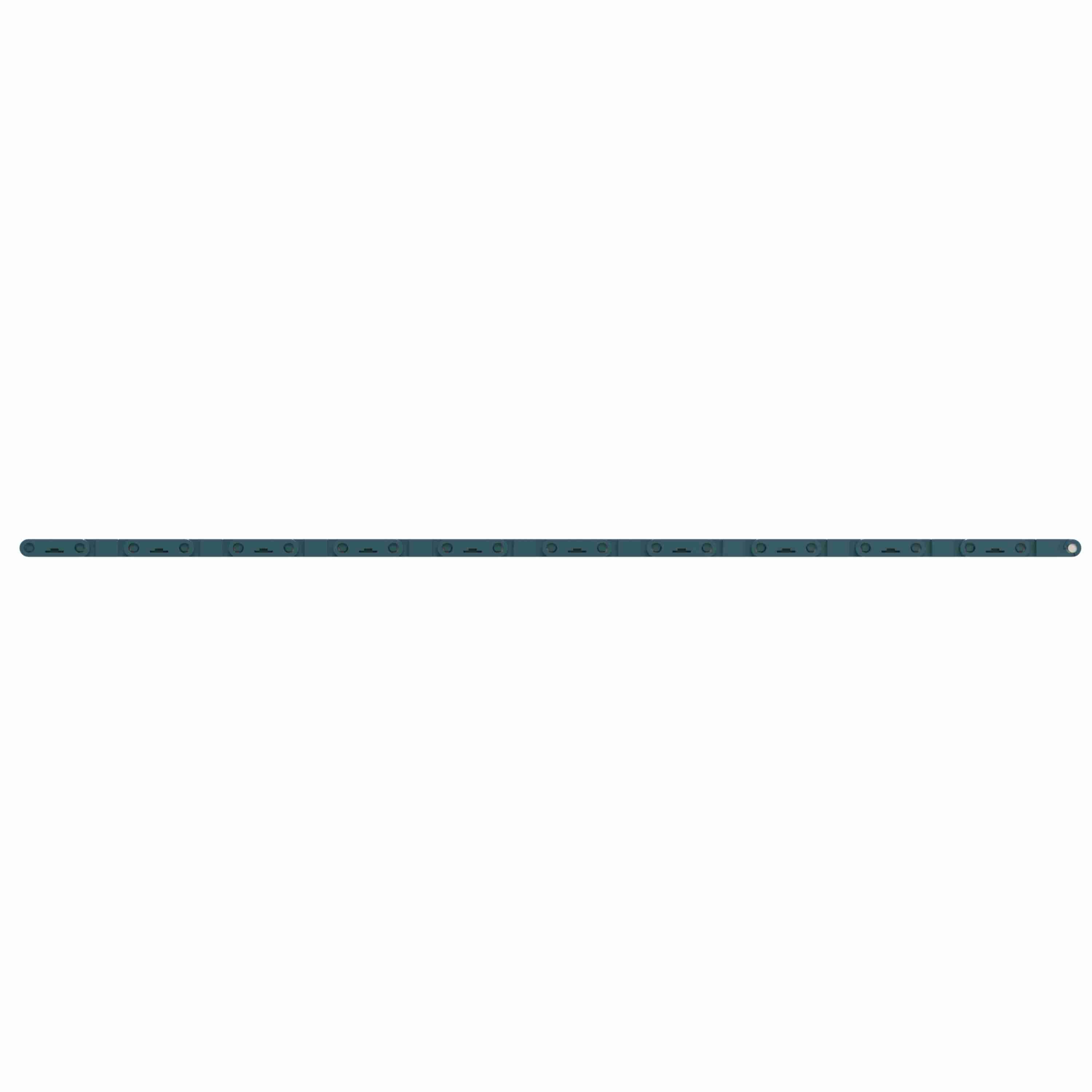

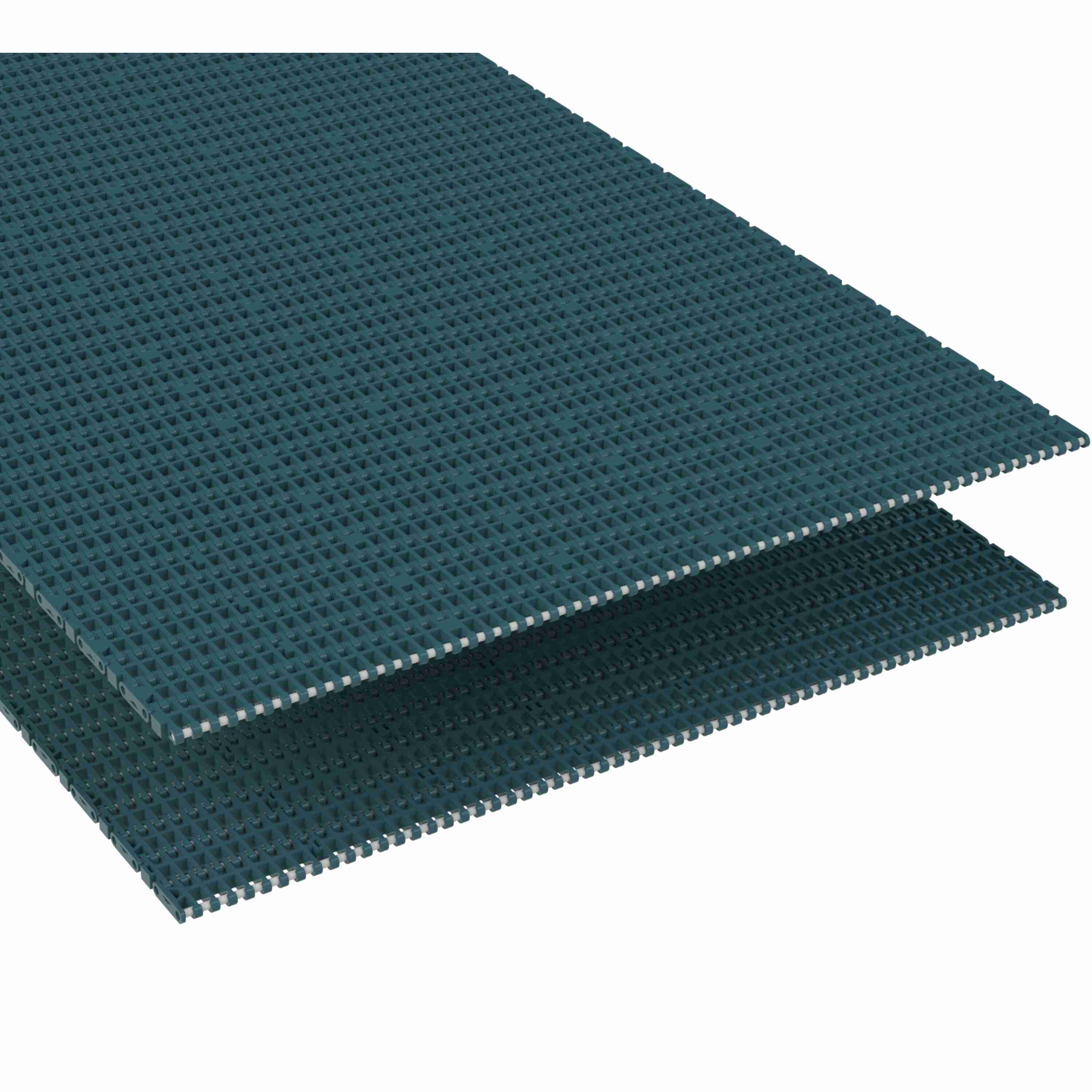

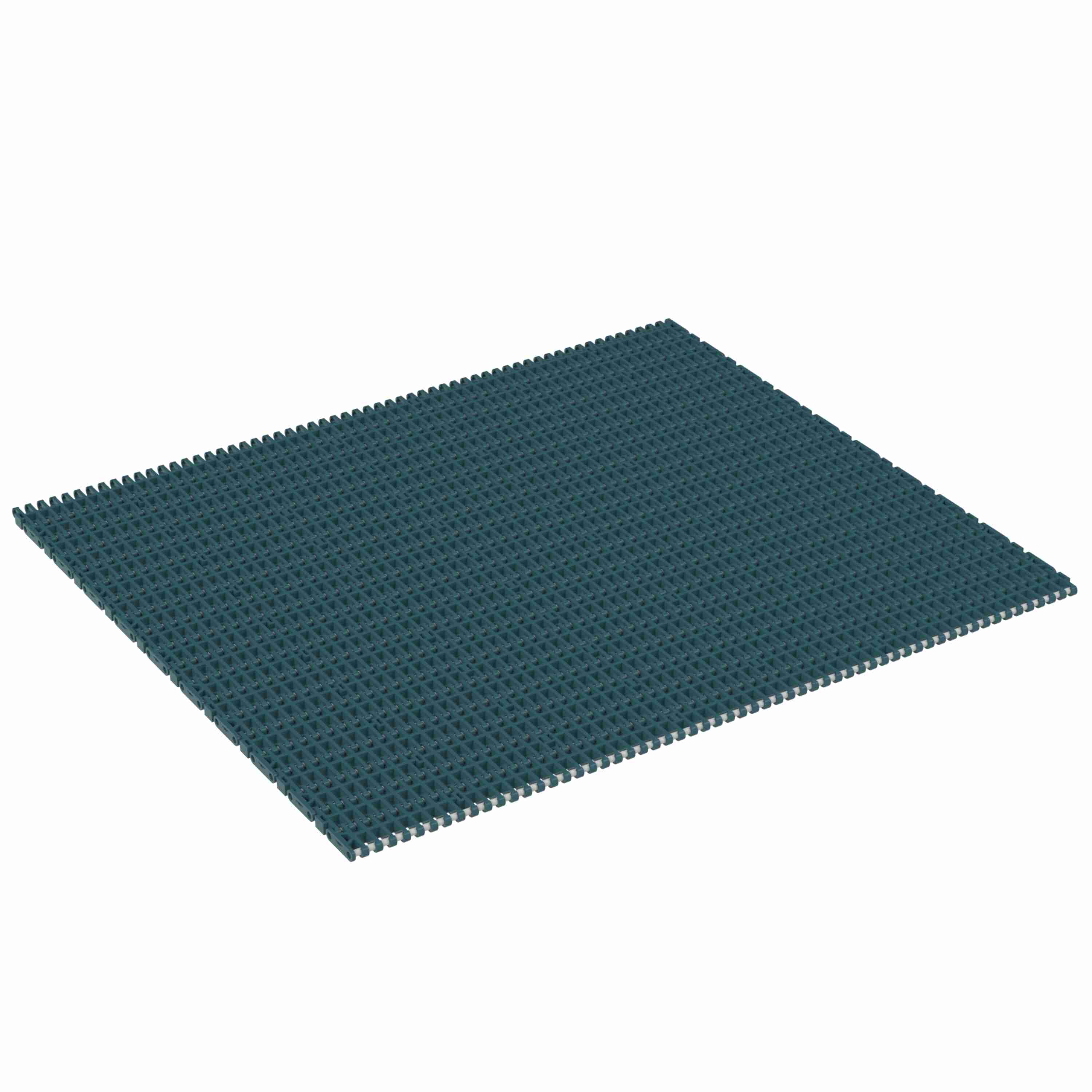

Rexnord 1000FG Straight Running Flush Grid, Material: Green Low Friction Acetal, Width: 170mm, Pitch: 1in - 817.40.11
Part #:10194019
Catalog #:817.40.11
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Width (mm): | 170 mm | Product Group: | Modular Plastic Belts |
| Chain Pitch (mm): | 25.4 mm | Open Area (%): | 40 % |
| Chain Width Measurement System: | Metric | Rod/Pin Material: | Polypropylene |
| Belt Thickness (in): | 0.34 in | Chain Pitch (in): | 1 in |
| Surface Type: | Flush Grid | Series: | MatTop 1000 Series Chain |
| Chain Strength (lb/ft): | 1,508 lb/ft | Product Type: | Straight Running |
| Straight or Side-Flex: | Straight Running | Chain Number: | 1000FG |
| Chain Material: | XLG | Belt Thickness (mm): | 8.7 mm |
| Product Line: | Plastic Modular Chain and Belt | Chain Width (in): | 6.69 in |
| Chain Material Description: | Green Low Friction Acetal | Chain Strength (N/m): | 22,000 N·m |
General Specifications
| Weight: | 0.03 KG | HTC: | 3926906090 |
| Country of Origin: | Mexico |
