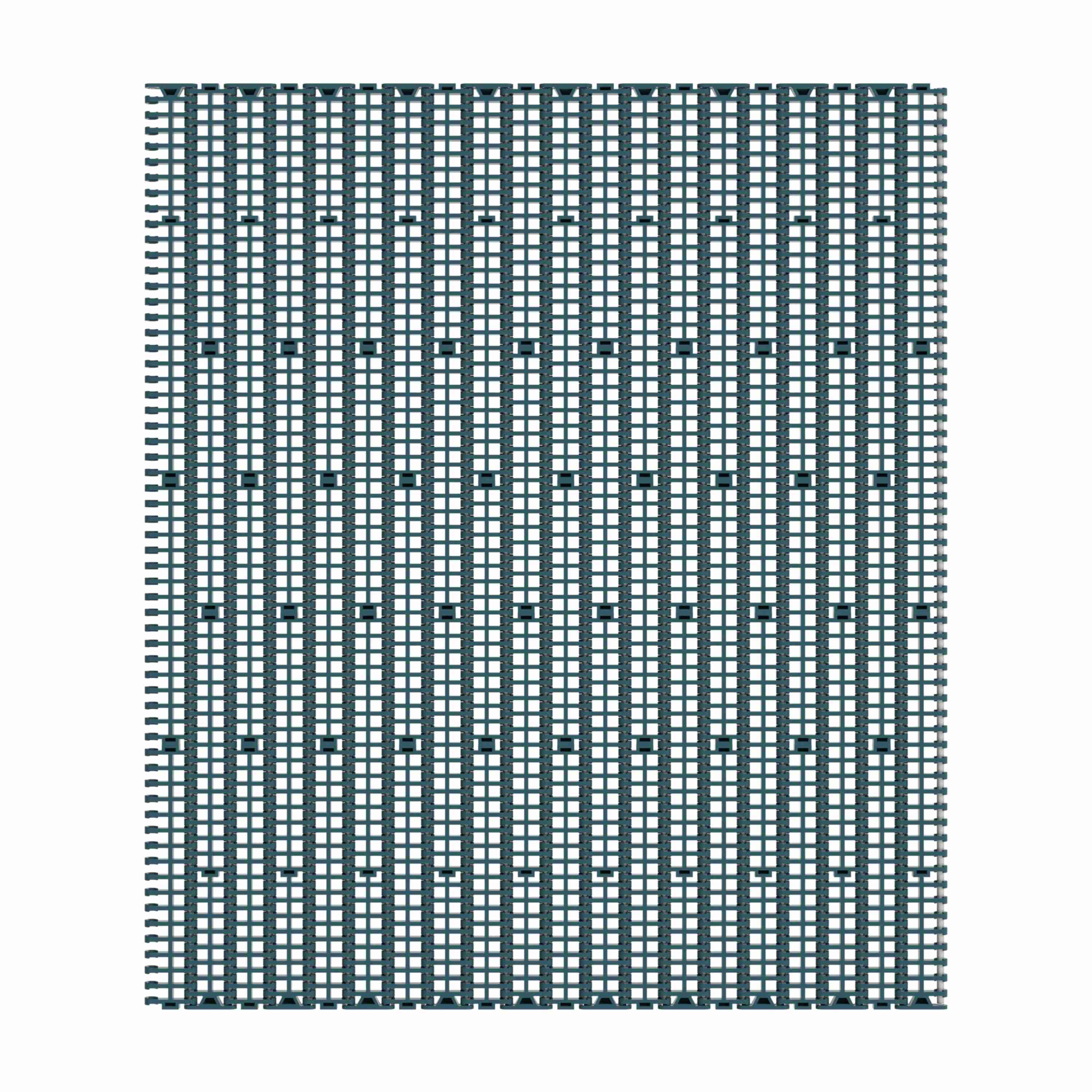

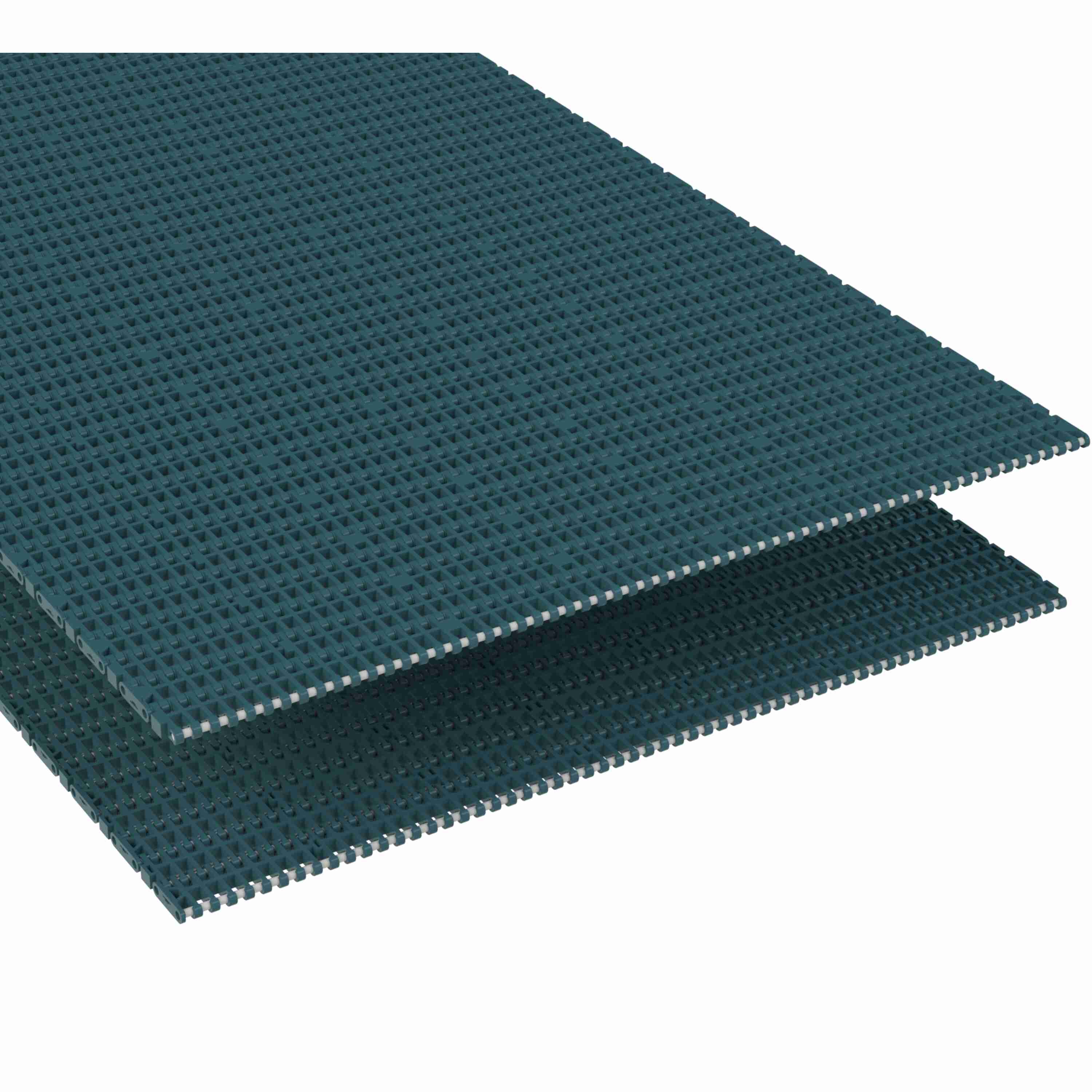

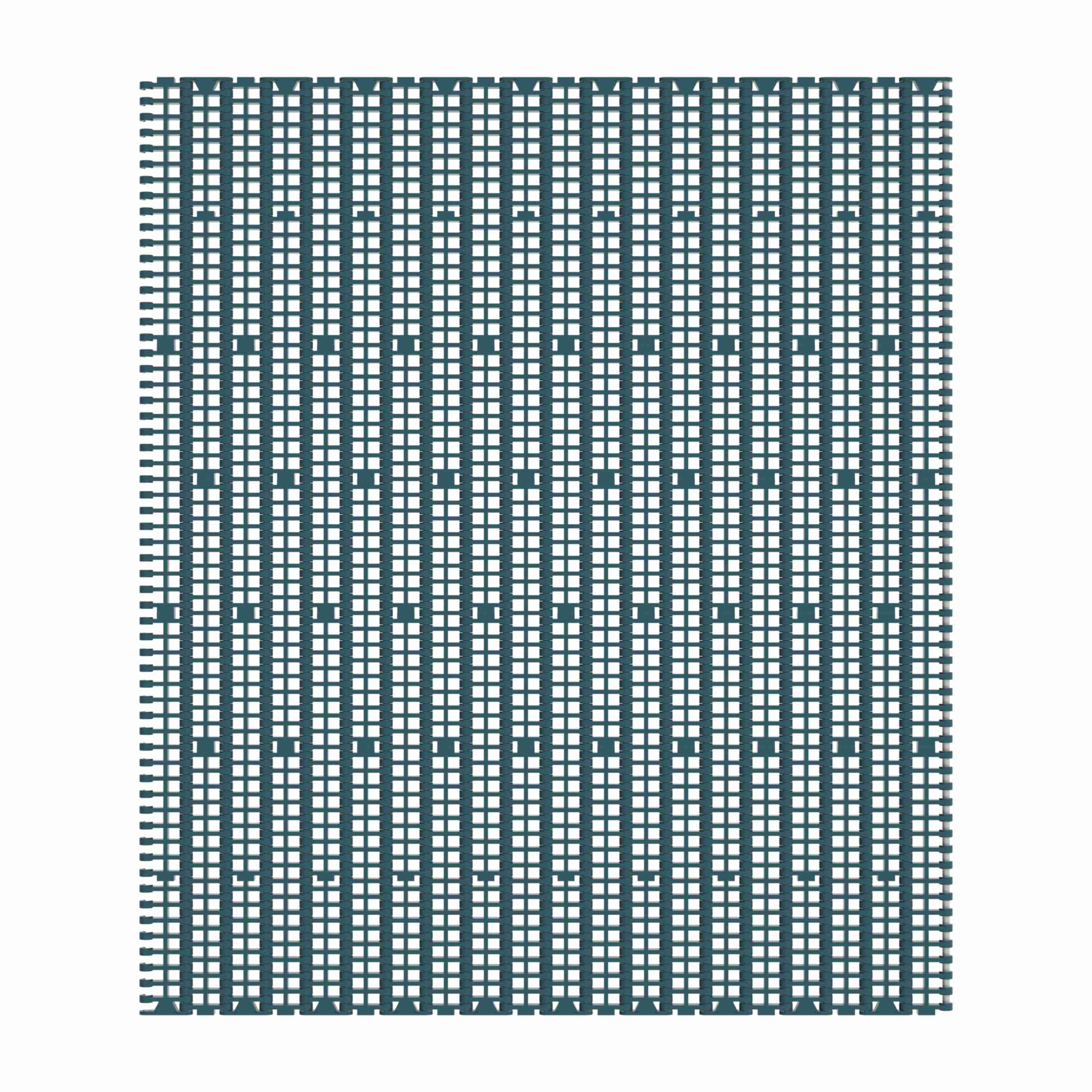

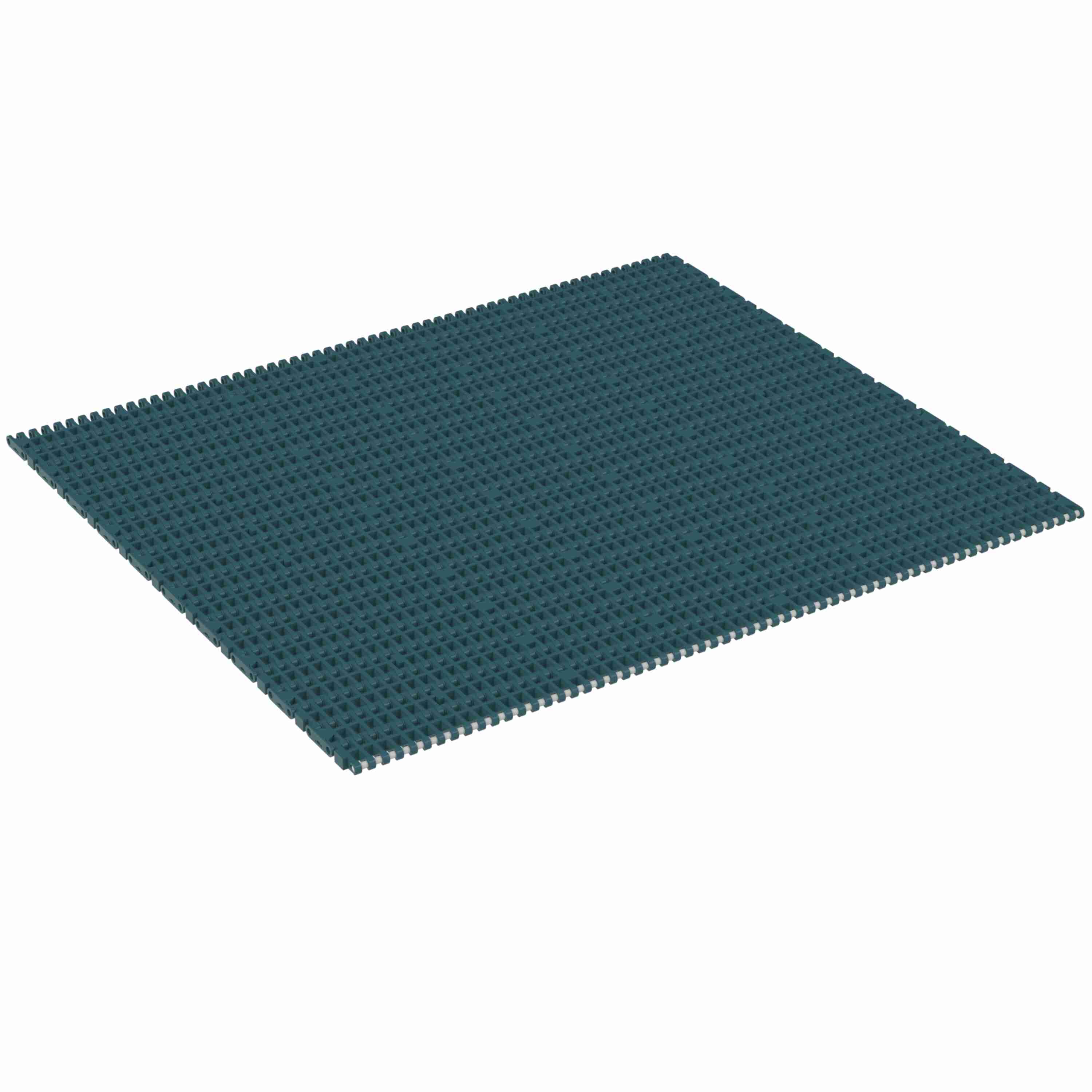

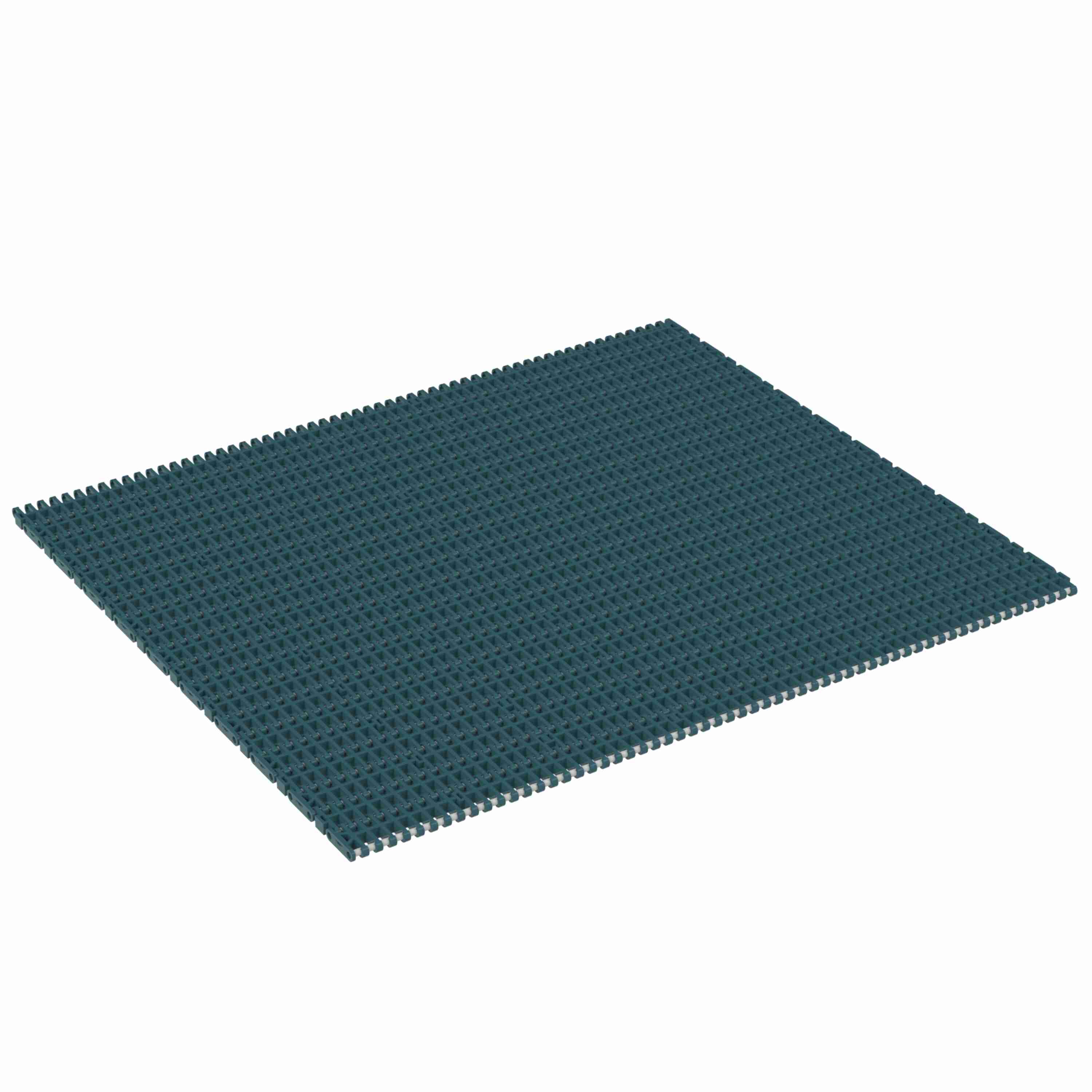

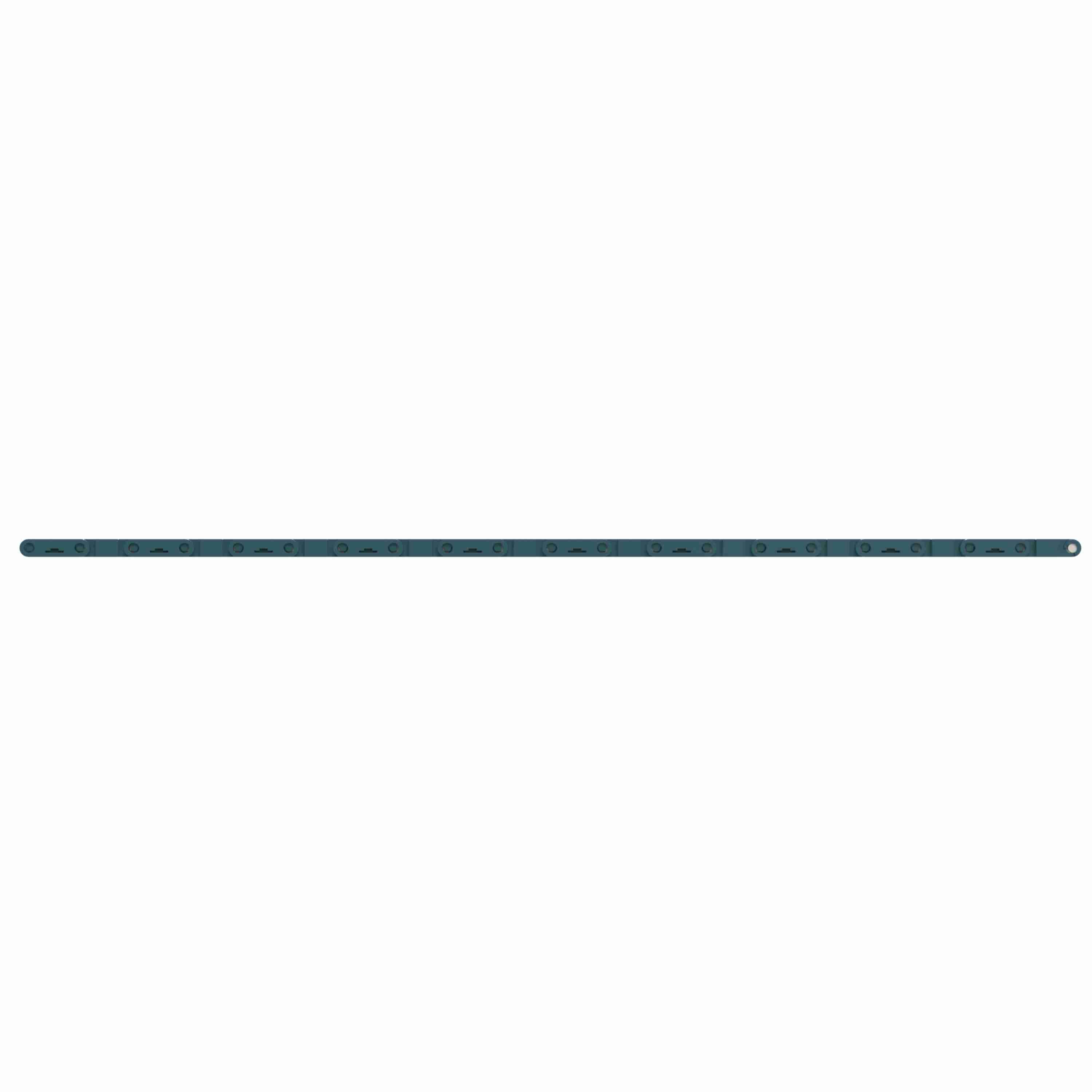

Rexnord 1000FG Straight Running Flush Grid, Material: Green Low Friction Acetal, Width: 3570mm, Pitch: 1in - 817.40.51
Part #:10374165
Catalog #:817.40.51
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Width Measurement System: | Metric | Open Area (%): | 40 % |
| Product Line: | Plastic Modular Chain and Belt | Belt Thickness (mm): | 8.7 mm |
| Product Group: | Modular Plastic Belts | Chain Number: | 1000FG |
| Belt Thickness (in): | 0.34 in | Chain Pitch (mm): | 25.4 mm |
| Rod/Pin Material: | Polypropylene | Chain Width (in): | 140.55 in |
| Chain Material: | XLG | Chain Pitch (in): | 1 in |
| Chain Material Description: | Green Low Friction Acetal | Product Type: | Straight Running |
| Straight or Side-Flex: | Straight Running | Chain Strength (lb/ft): | 1,508 lb/ft |
| Chain Width (mm): | 3,570 mm | Surface Type: | Flush Grid |
| Series: | MatTop 1000 Series Chain | Chain Strength (N/m): | 22,000 N·m |
General Specifications
| Weight: | 0.53 KG | HTC: | 8431390010 |
| Country of Origin: | Netherlands |
