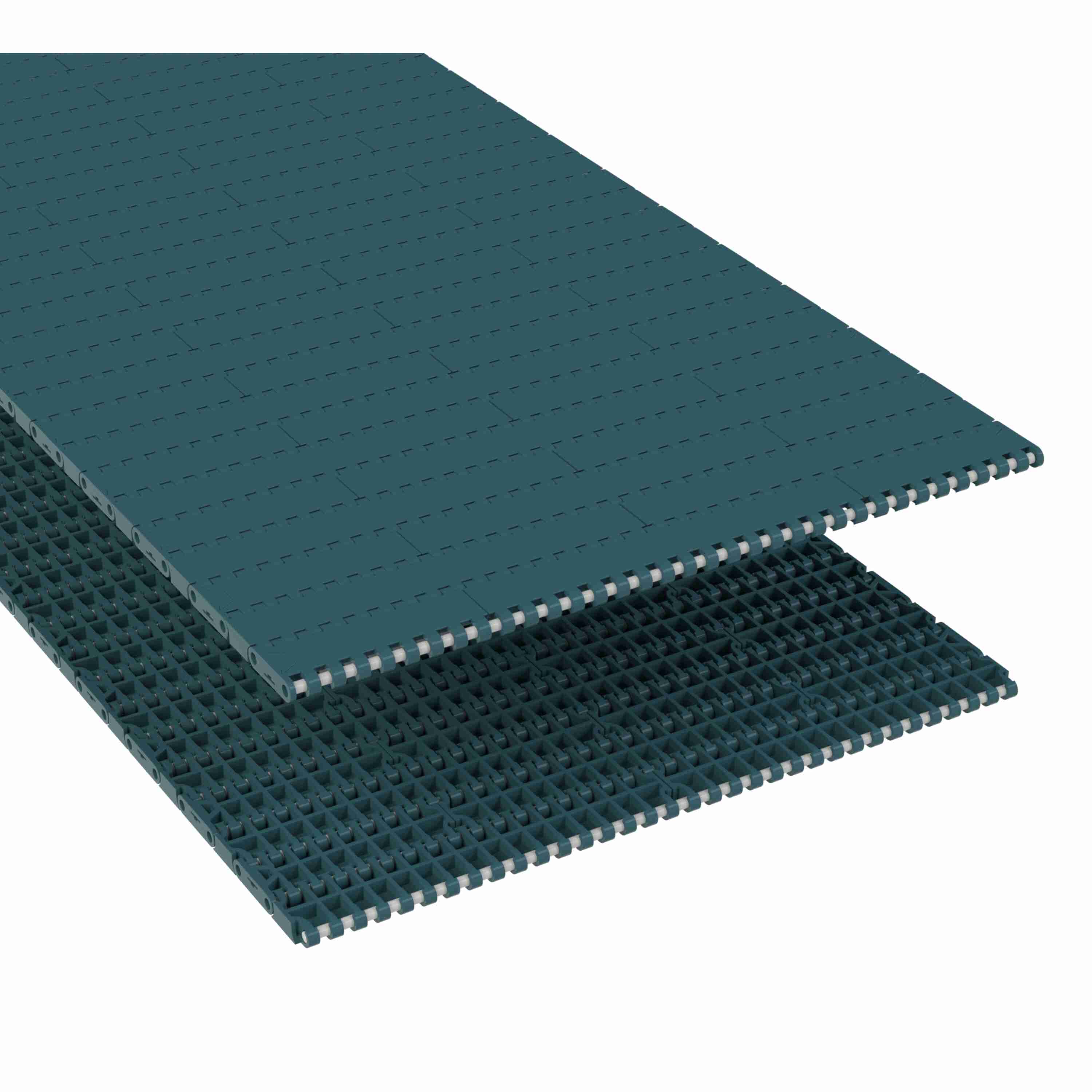

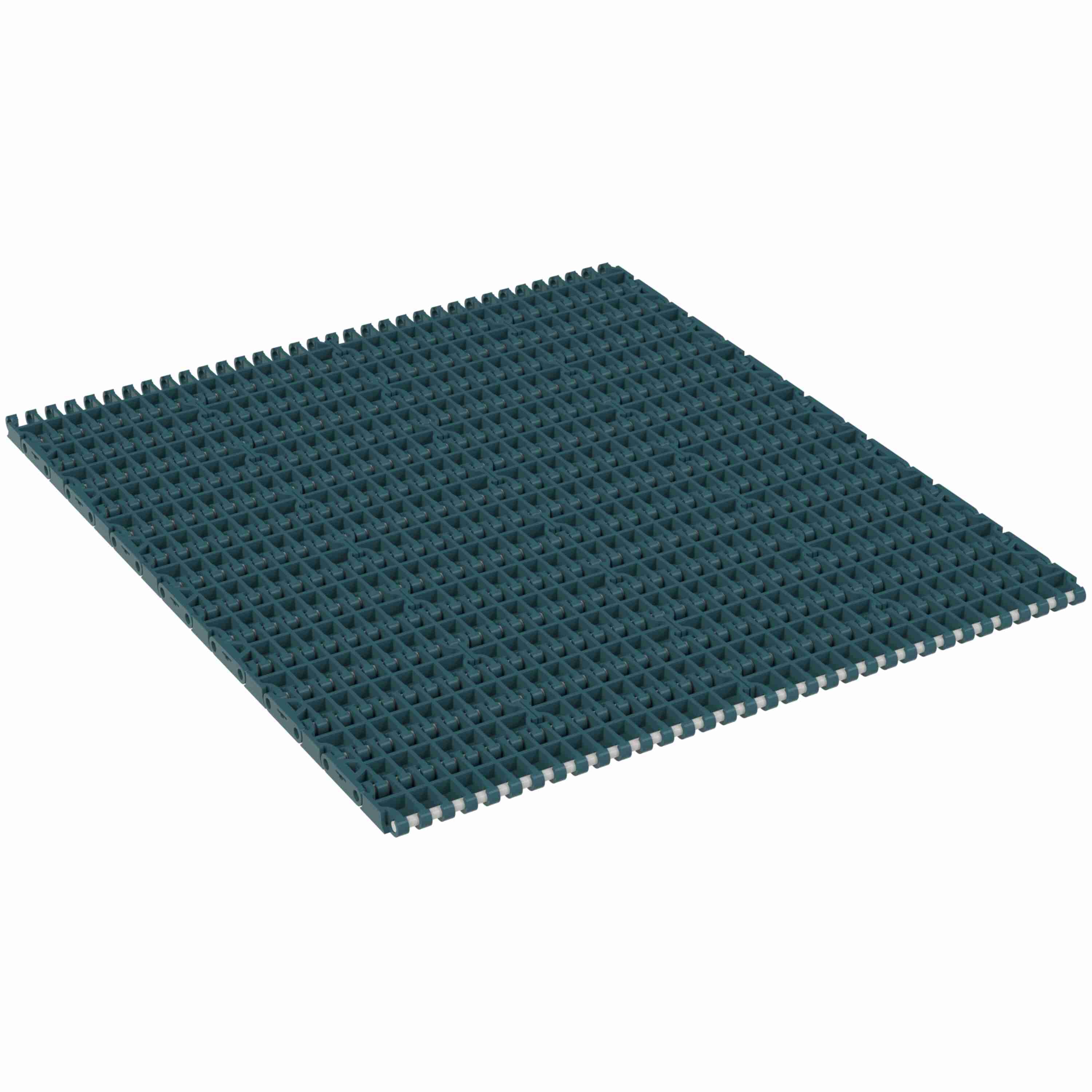

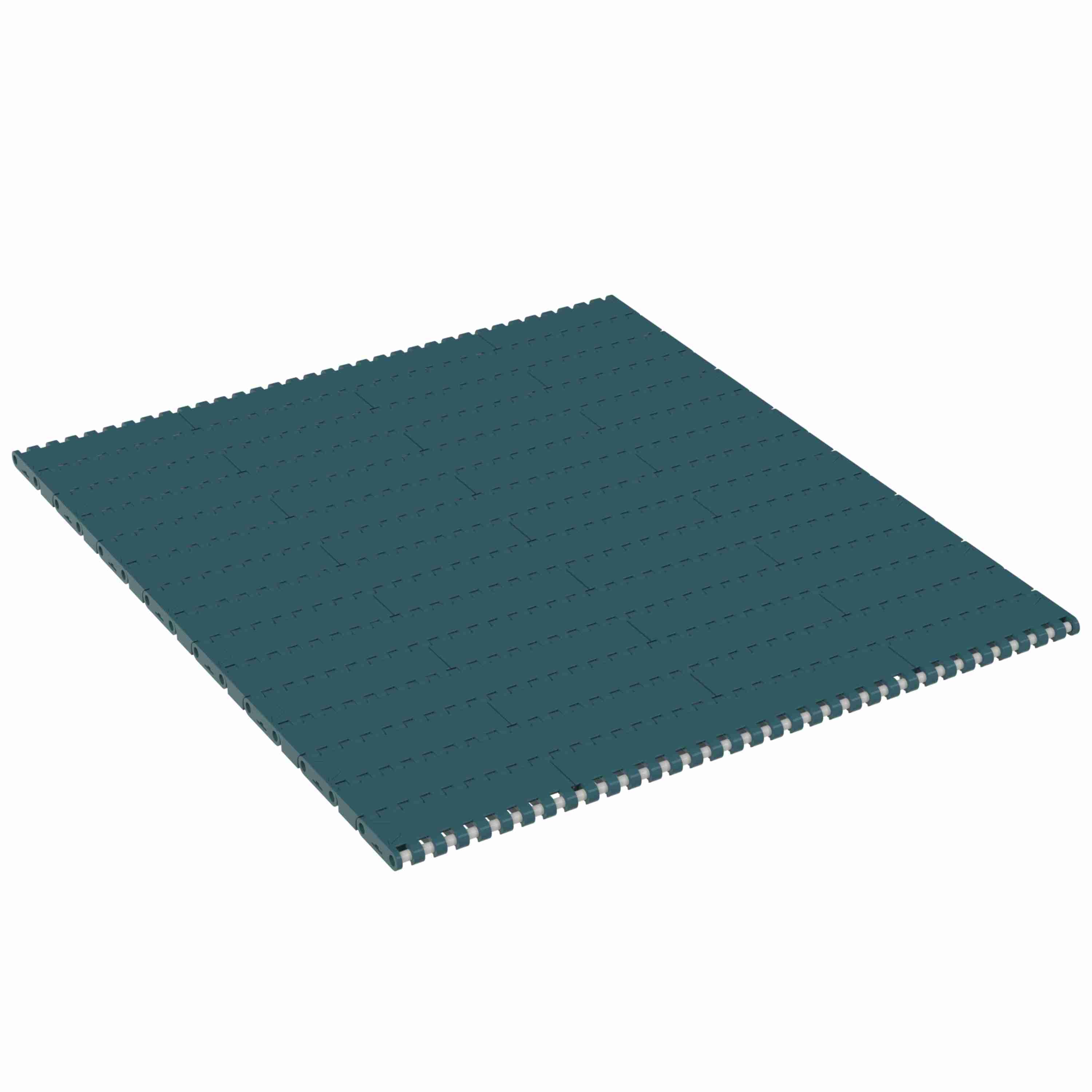

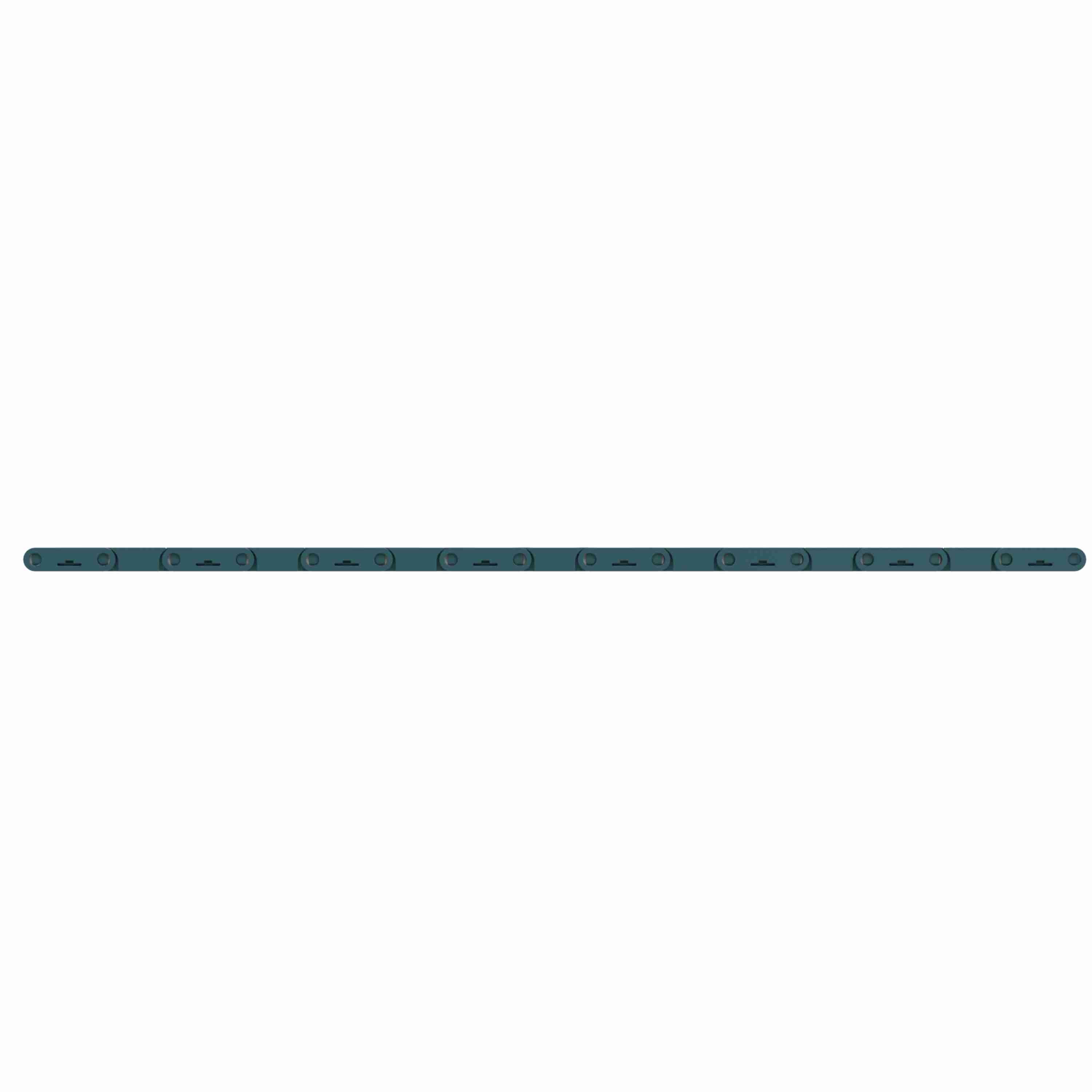

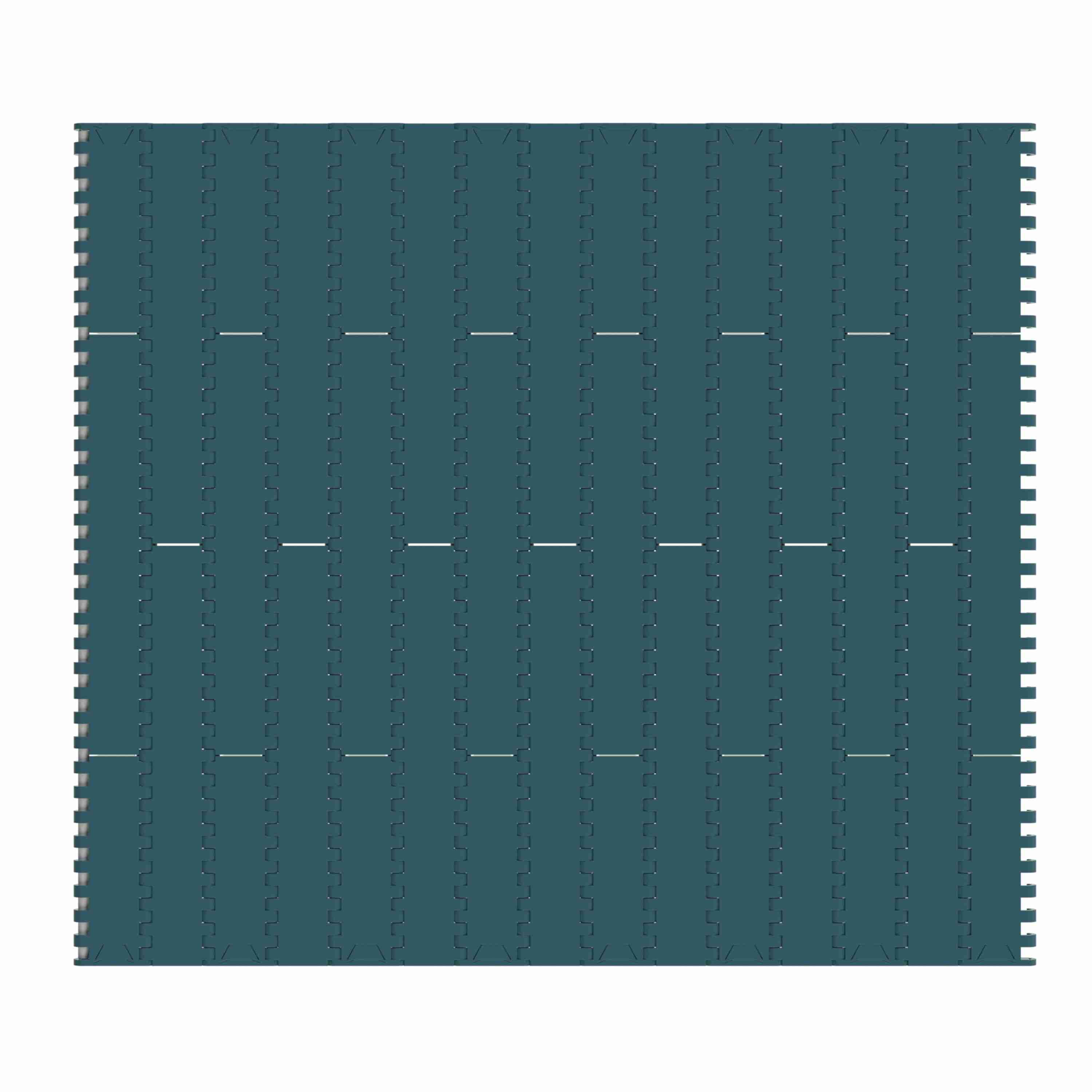

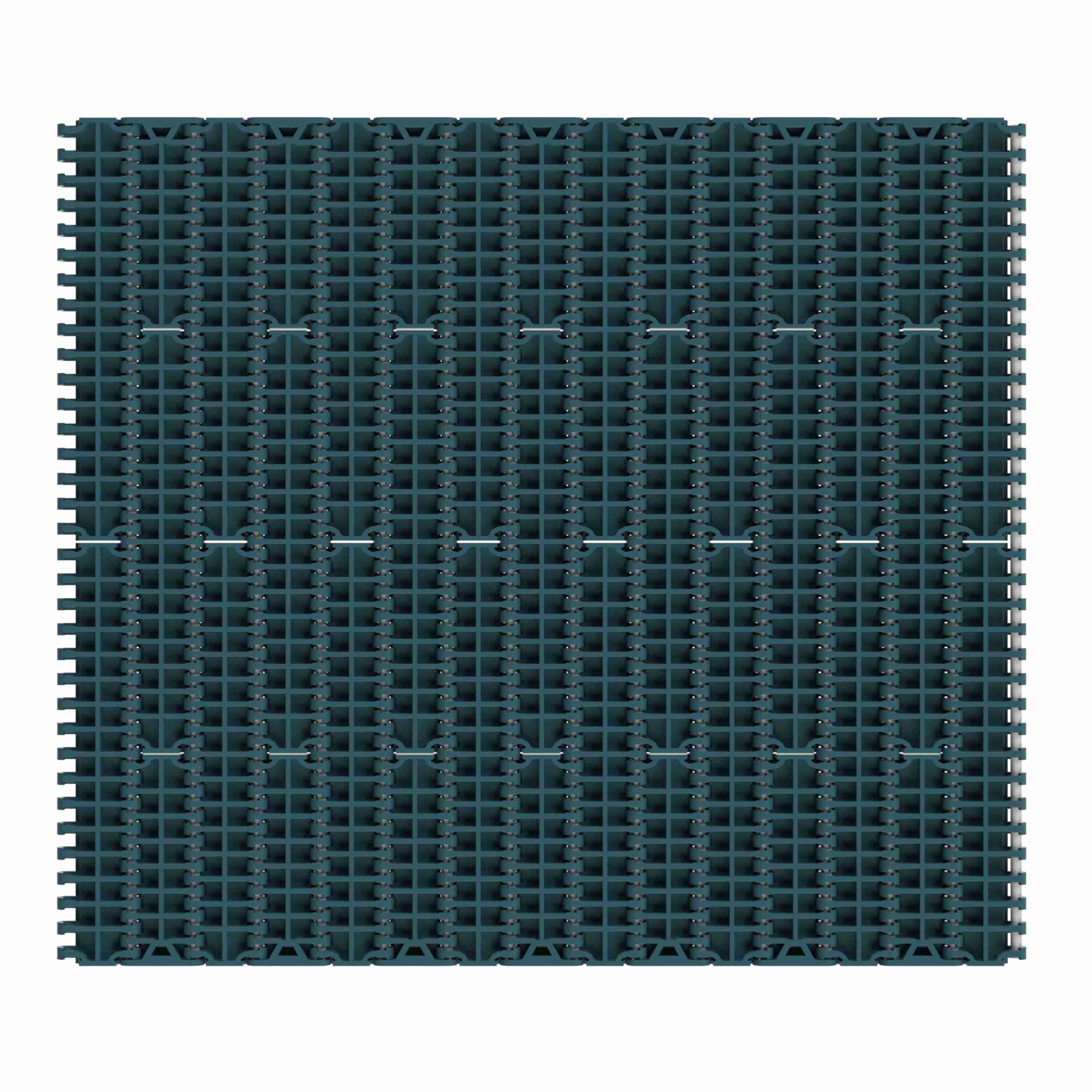

Rexnord 1000FT Straight Running Solid Top, Material: Green Low Friction Acetal, Width: 170mm, Pitch: 1in - 817.30.11
Part #:10146452
Catalog #:817.30.11
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Strength (lb/ft): | 1,508 lb/ft | Chain Number: | 1000FT |
| Chain Width (in): | 6.69 in | Product Type: | Straight Running |
| Surface Type: | Solid Top | Belt Thickness (in): | 0.34 in |
| Chain Strength (N/m): | 22,000 N·m | Rod/Pin Material: | Polypropylene |
| Product Line: | Plastic Modular Chain and Belt | Product Group: | Modular Plastic Belts |
| Chain Pitch (in): | 1 in | Chain Width (mm): | 170 mm |
| Straight or Side-Flex: | Straight Running | Chain Width Measurement System: | Metric |
| Chain Material: | XLG | Open Area (%): | 0 % |
| Chain Pitch (mm): | 25.4 mm | Series: | MatTop 1000 Series Chain |
| Chain Material Description: | Green Low Friction Acetal | Belt Thickness (mm): | 8.7 mm |
General Specifications
| Weight: | 0.06 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
