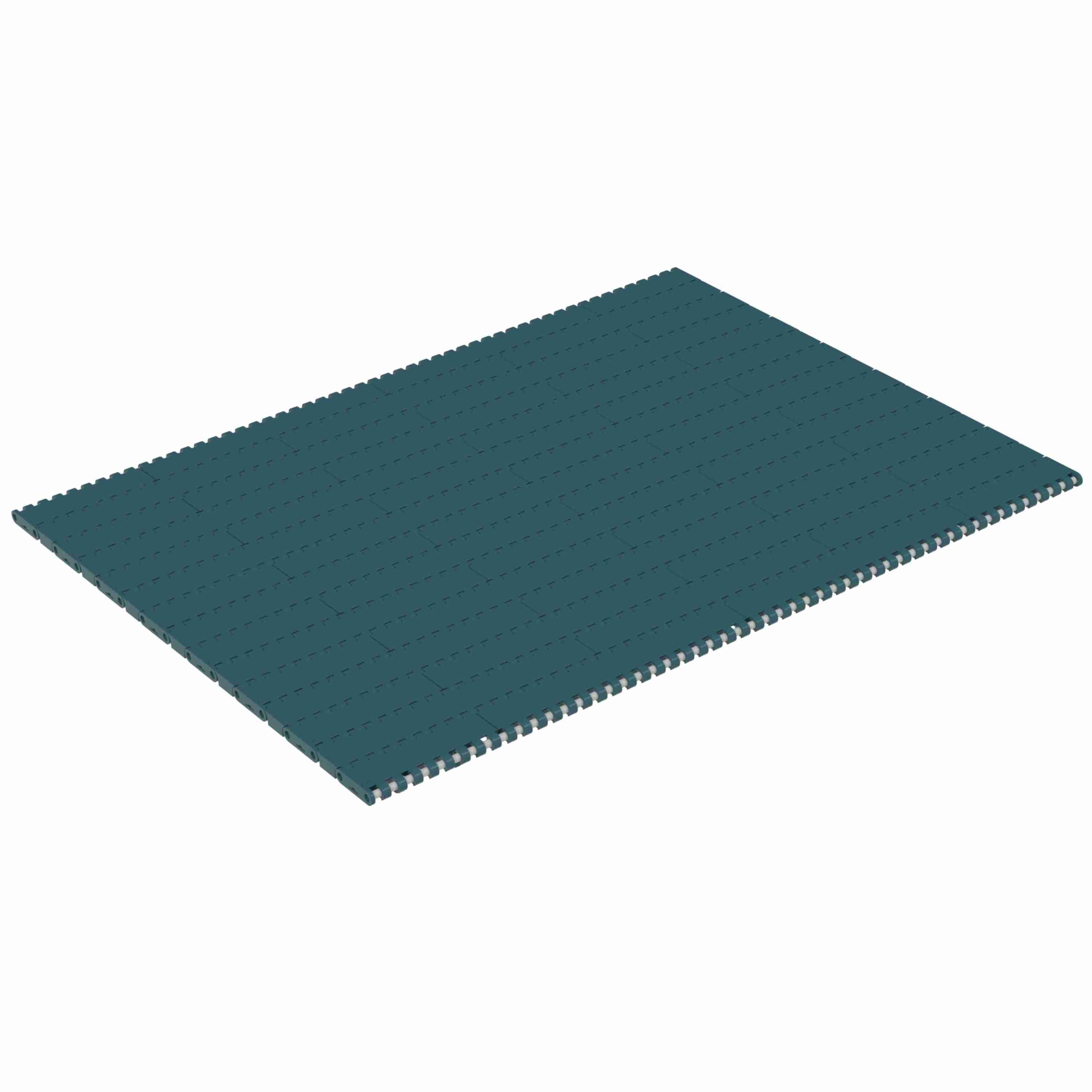

Rexnord 1000FT Straight Running Solid Top, Material: Green Low Friction Acetal, Width: 510mm, Pitch: 1in - 873.27.15
Part #:10147982
Catalog #:873.27.15
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Product Type: | Straight Running | Belt Thickness (in): | 0.34 in |
| Positrack Location: | Either | Chain Width (mm): | 510 mm |
| Chain Pitch (mm): | 25.4 mm | Number of Positrack: | 2 |
| Chain Width Measurement System: | Metric | Chain Pitch (in): | 1 in |
| Surface Type: | Solid Top | Chain Material Description: | Green Low Friction Acetal |
| Series: | MatTop 1000 Series Chain | Chain Strength (N/m): | 22,000 N·m |
| Product Line: | Plastic Modular Chain and Belt | Chain Width (in): | 20.08 in |
| Product Group: | Modular Plastic Belts | Chain Material: | XLG |
| Belt Thickness (mm): | 8.7 mm | Open Area (%): | 0 % |
| Straight or Side-Flex: | Straight Running | Positrack: | True |
| Chain Strength (lb/ft): | 1,508 lb/ft | Rod/Pin Material: | Polypropylene |
| Chain Number: | 1000FT |
General Specifications
| Weight: | 0.19 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
