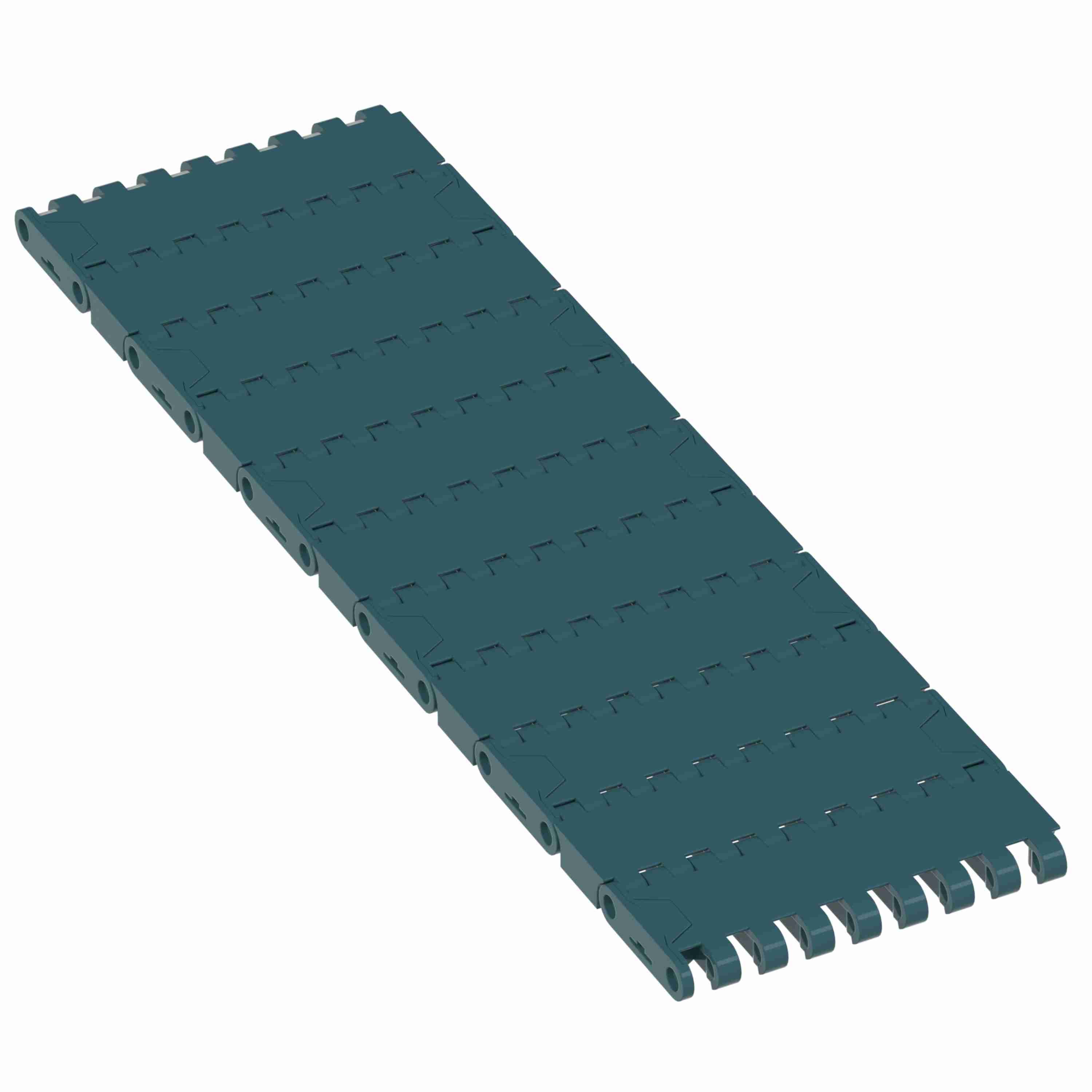

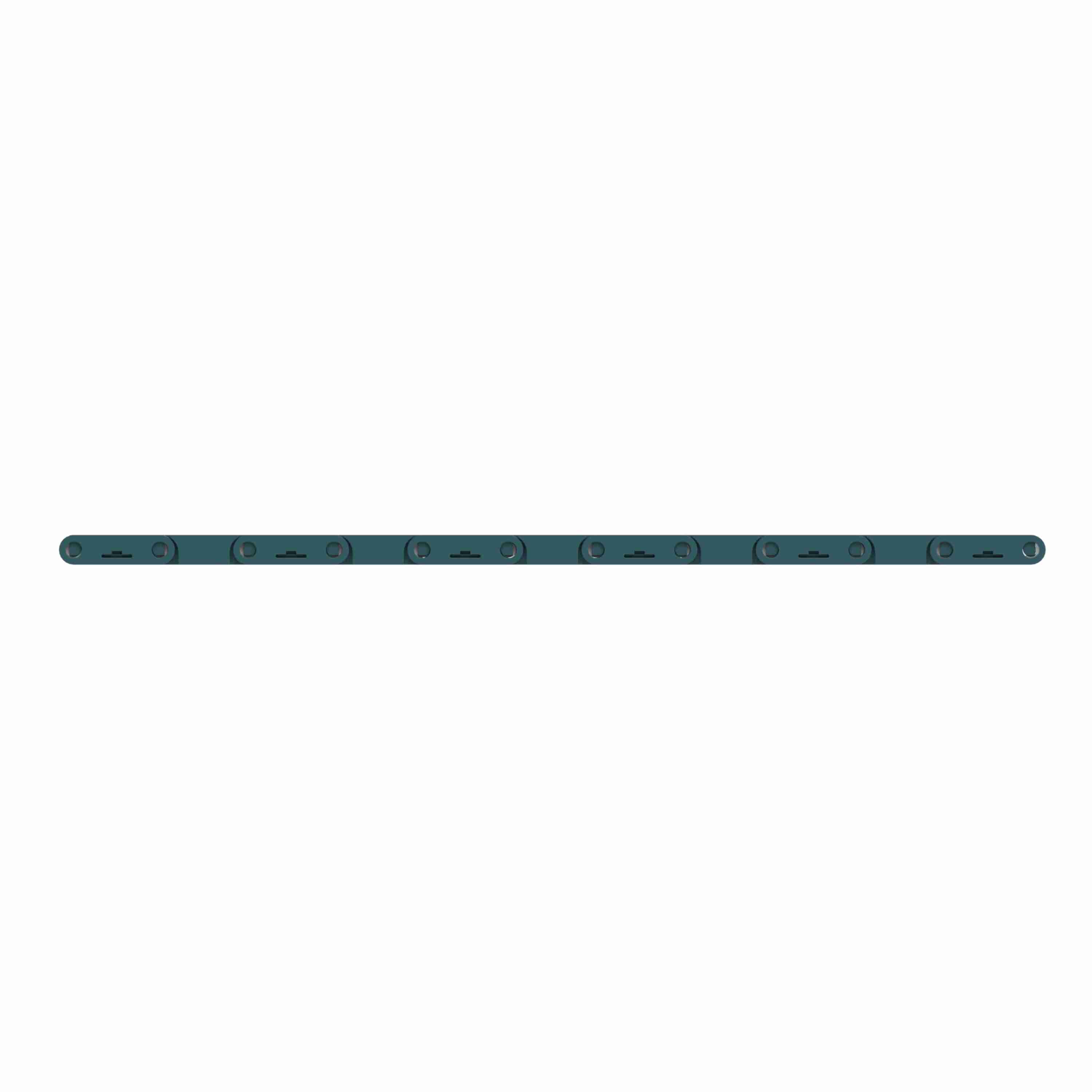

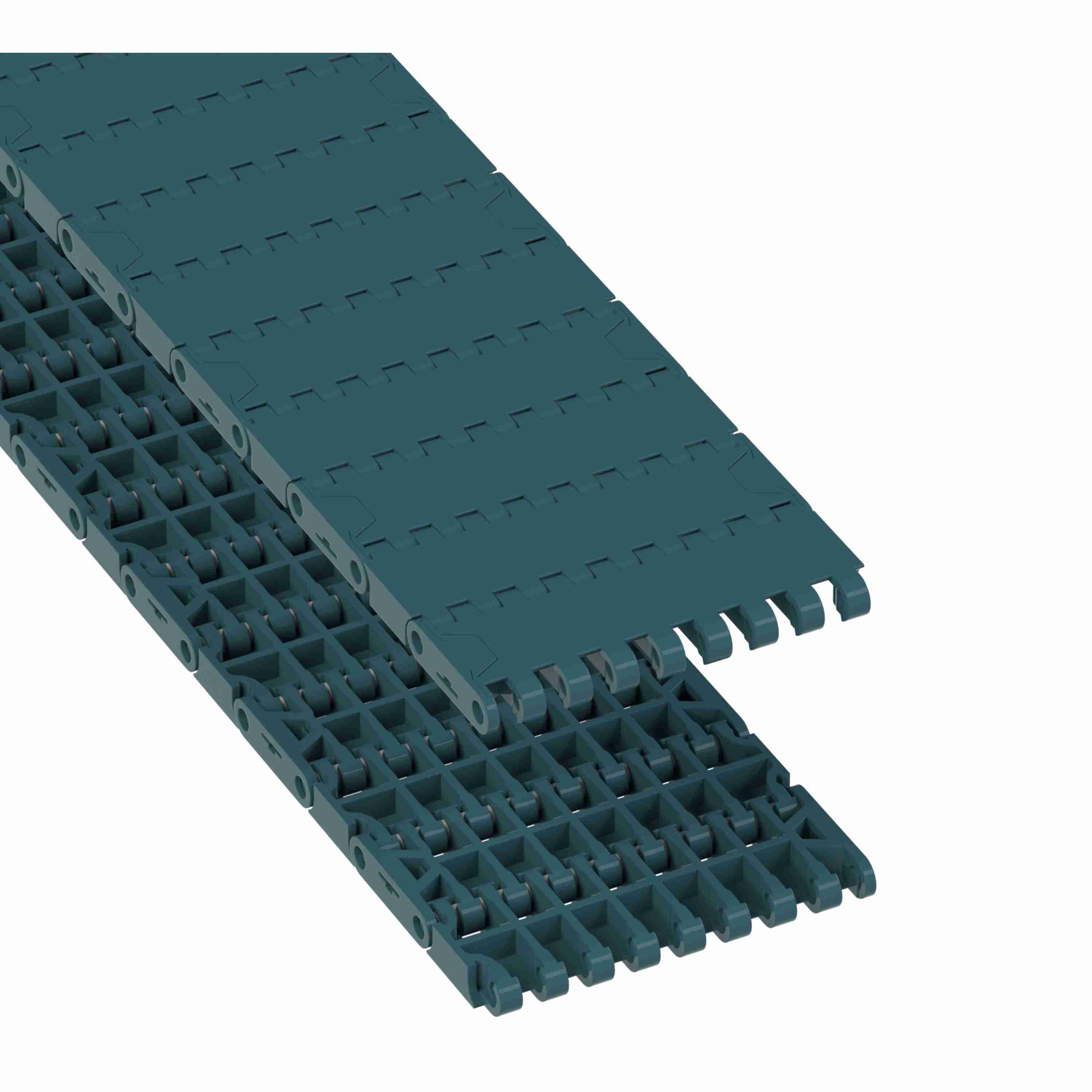

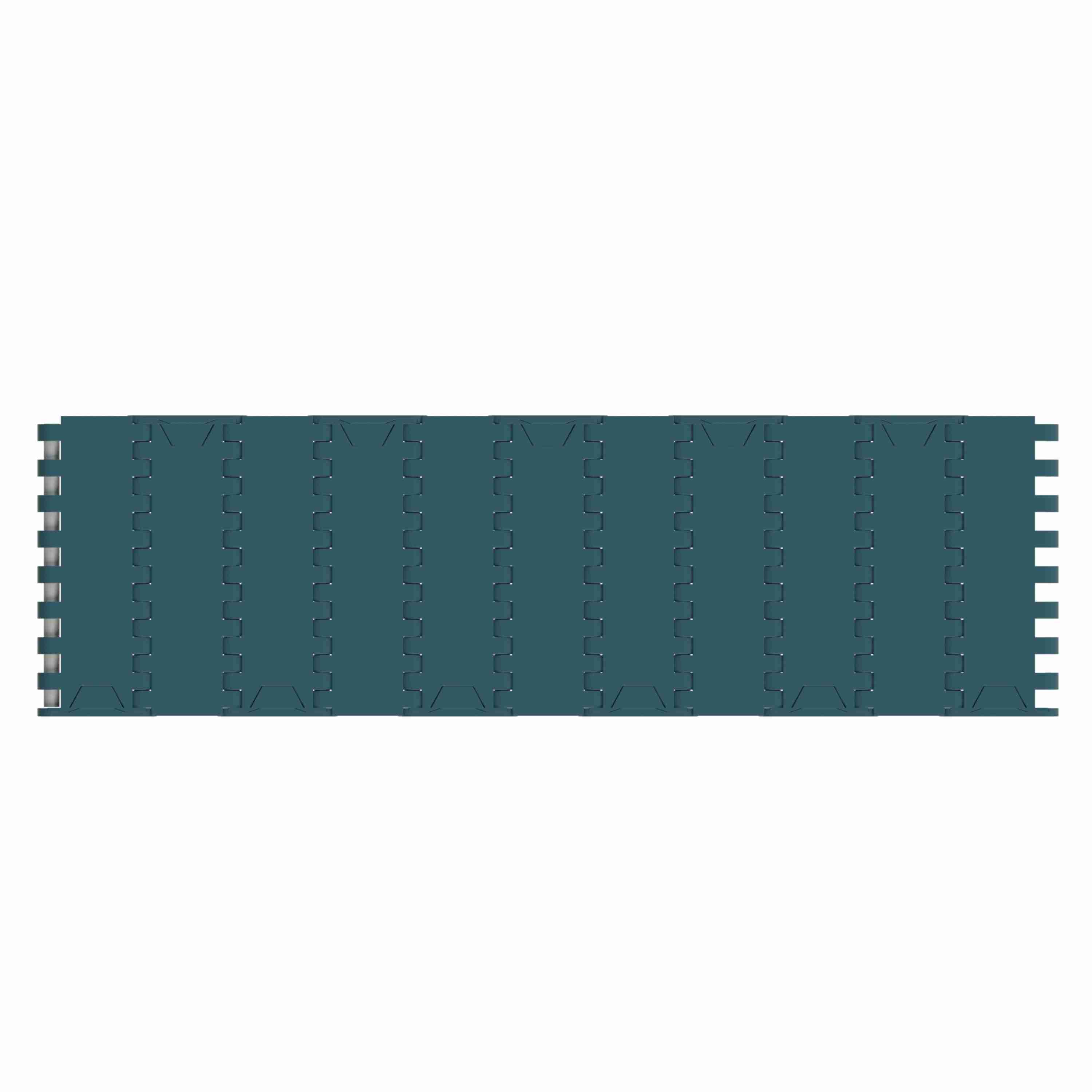

Rexnord 1000FT Straight Running Solid Top, Material: Green Low Friction Acetal, Width: 85mm, Pitch: 1in - 817.30.10
Part #:10146451
Catalog #:817.30.10
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Number: | 1000FT | Product Line: | Plastic Modular Chain and Belt |
| Chain Strength (lb): | 420 lb | Chain Material Description: | Green Low Friction Acetal |
| Chain Pitch (in): | 1 in | Product Group: | Modular Plastic Belts |
| Chain Material: | XLG | Chain Width (mm): | 85 mm |
| Rod/Pin Material: | Polyester | Chain Pitch (mm): | 25.4 mm |
| Surface Type: | Solid Top | Chain Width Measurement System: | Metric |
| Chain Strength (N): | 1,870 N | Series: | MatTop 1000 Series Chain |
| Open Area (%): | 0 % | Belt Thickness (in): | 0.34 in |
| Straight or Side-Flex: | Straight Running | Product Type: | Straight Running |
| Belt Thickness (mm): | 8.7 mm | Chain Width (in): | 3.35 in |
General Specifications
| Weight: | 0.02 KG | HTC: | 3926906090 |
| Country of Origin: | Mexico |
