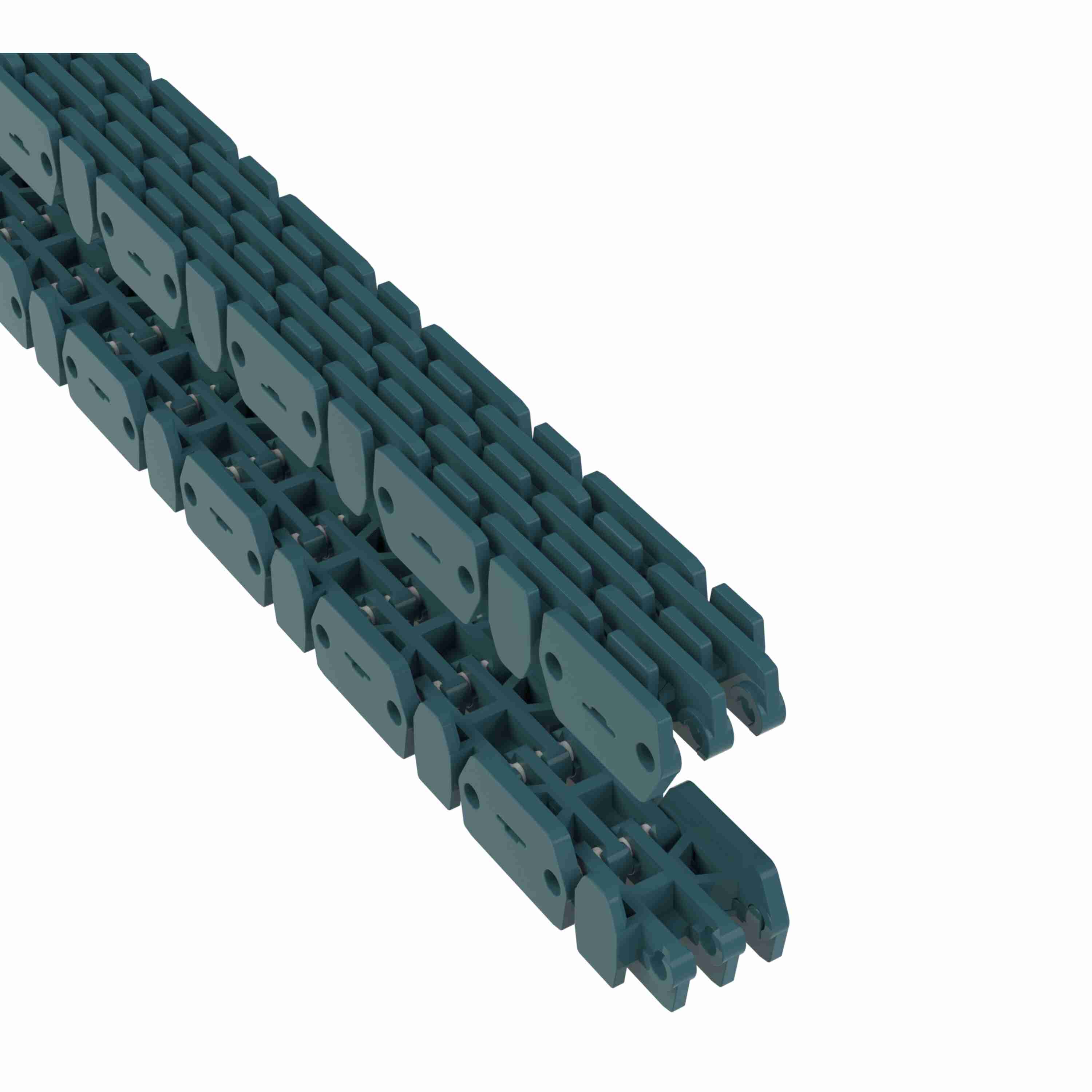

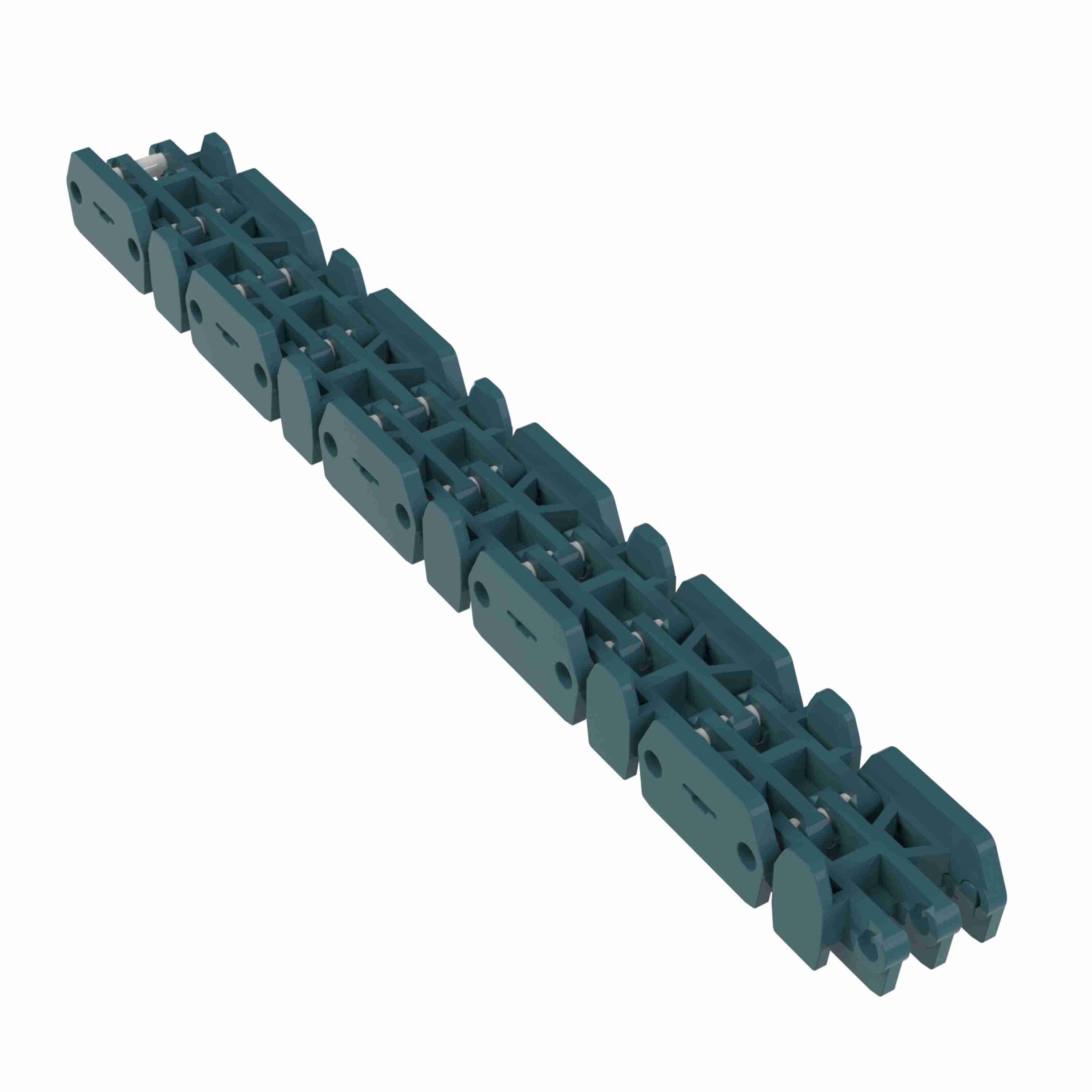

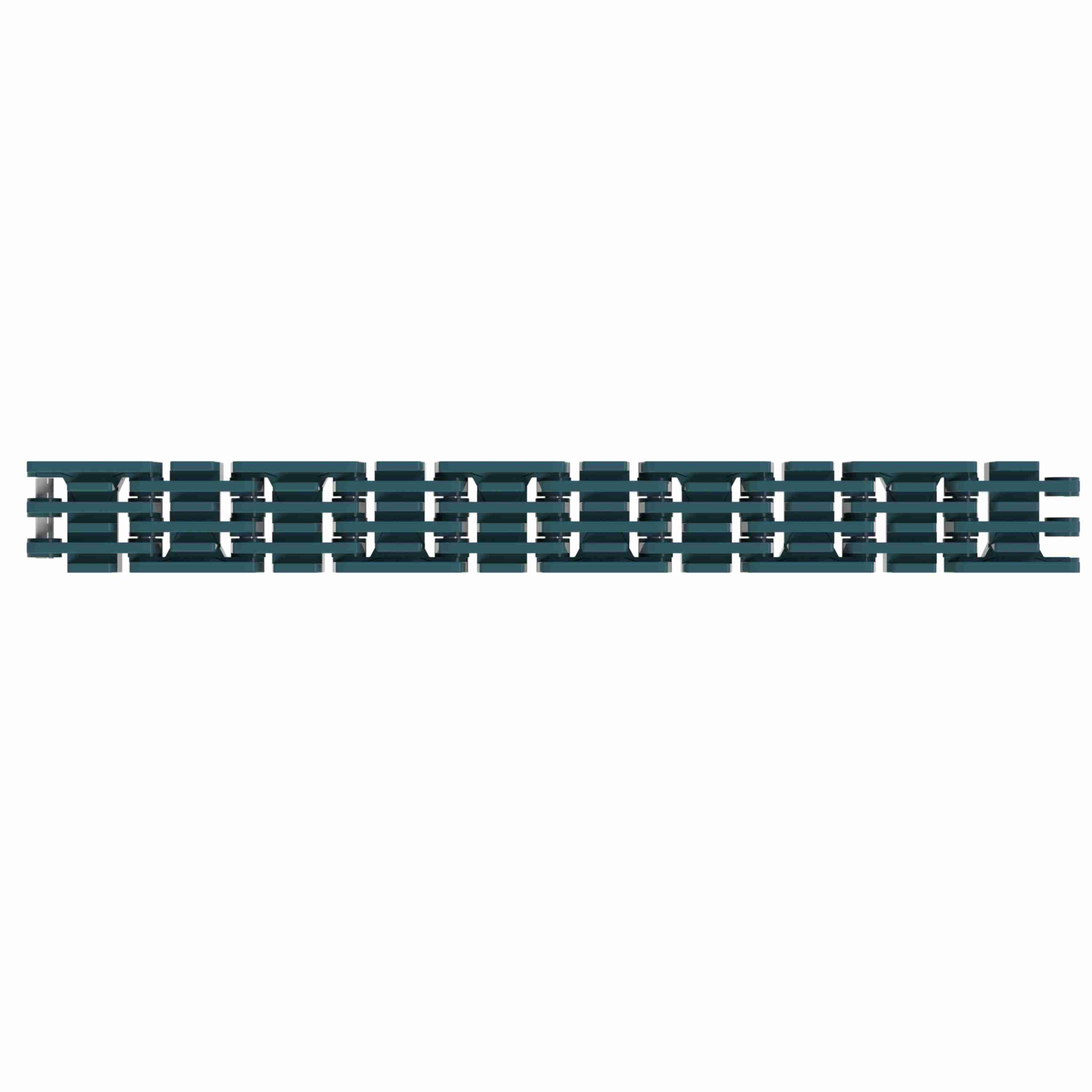

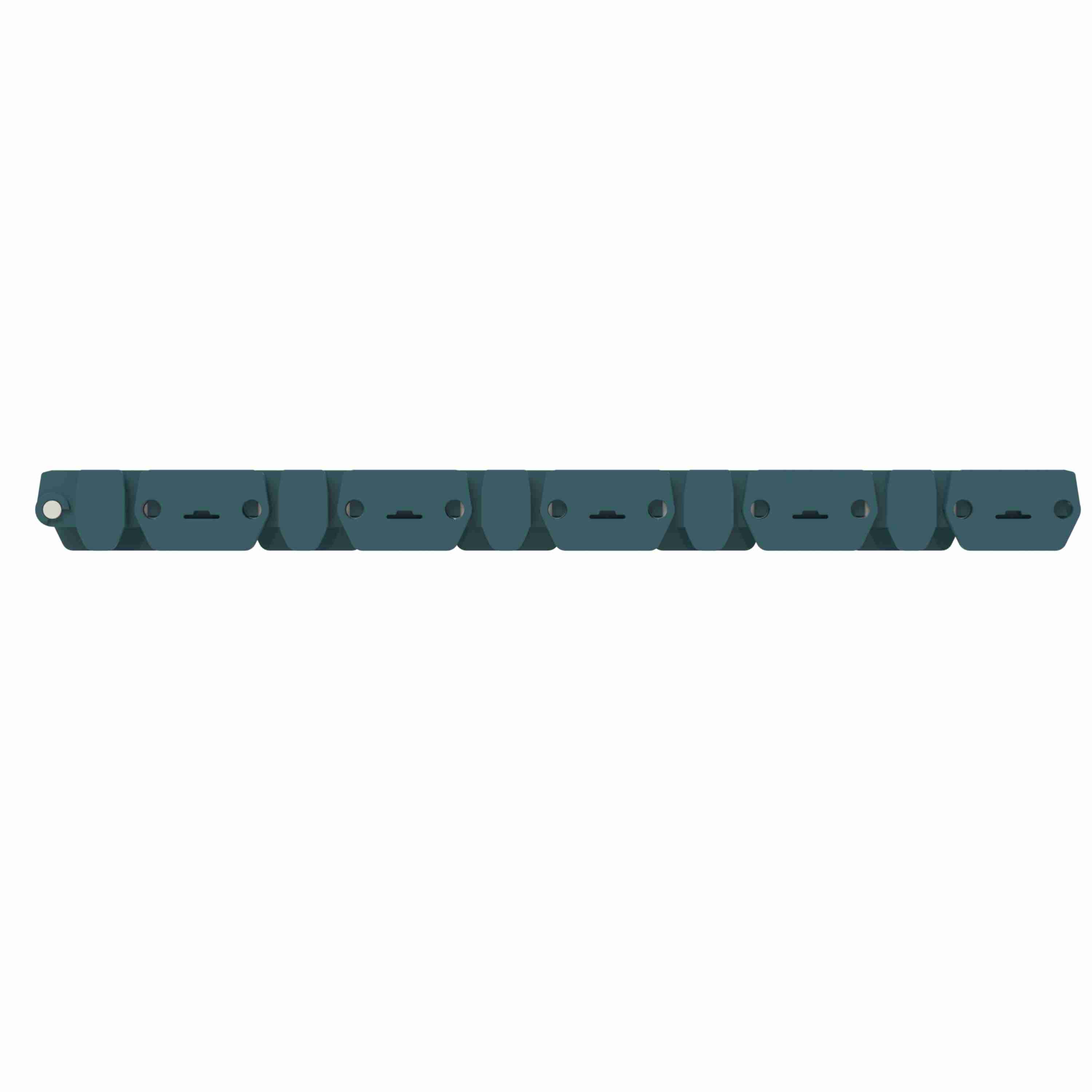

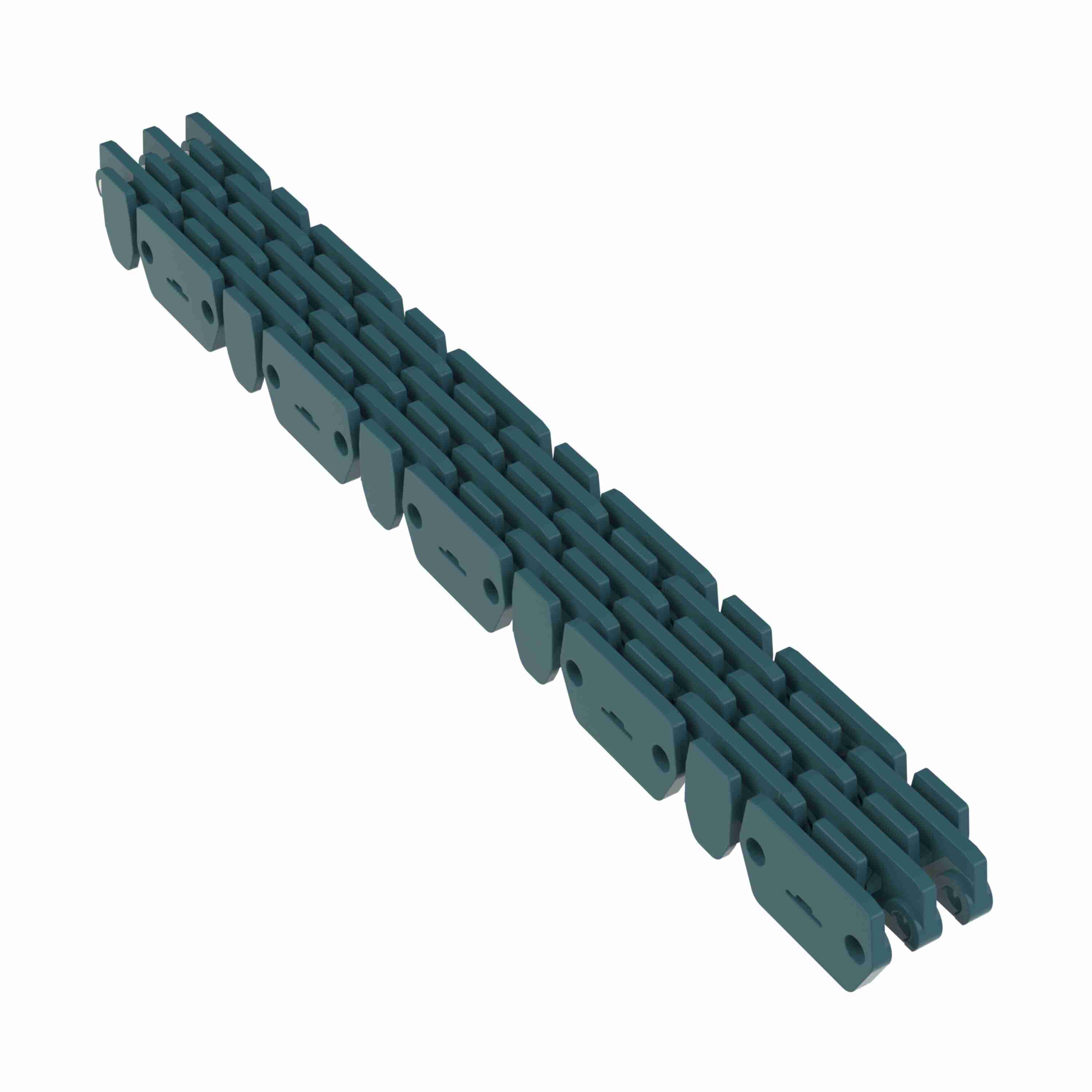

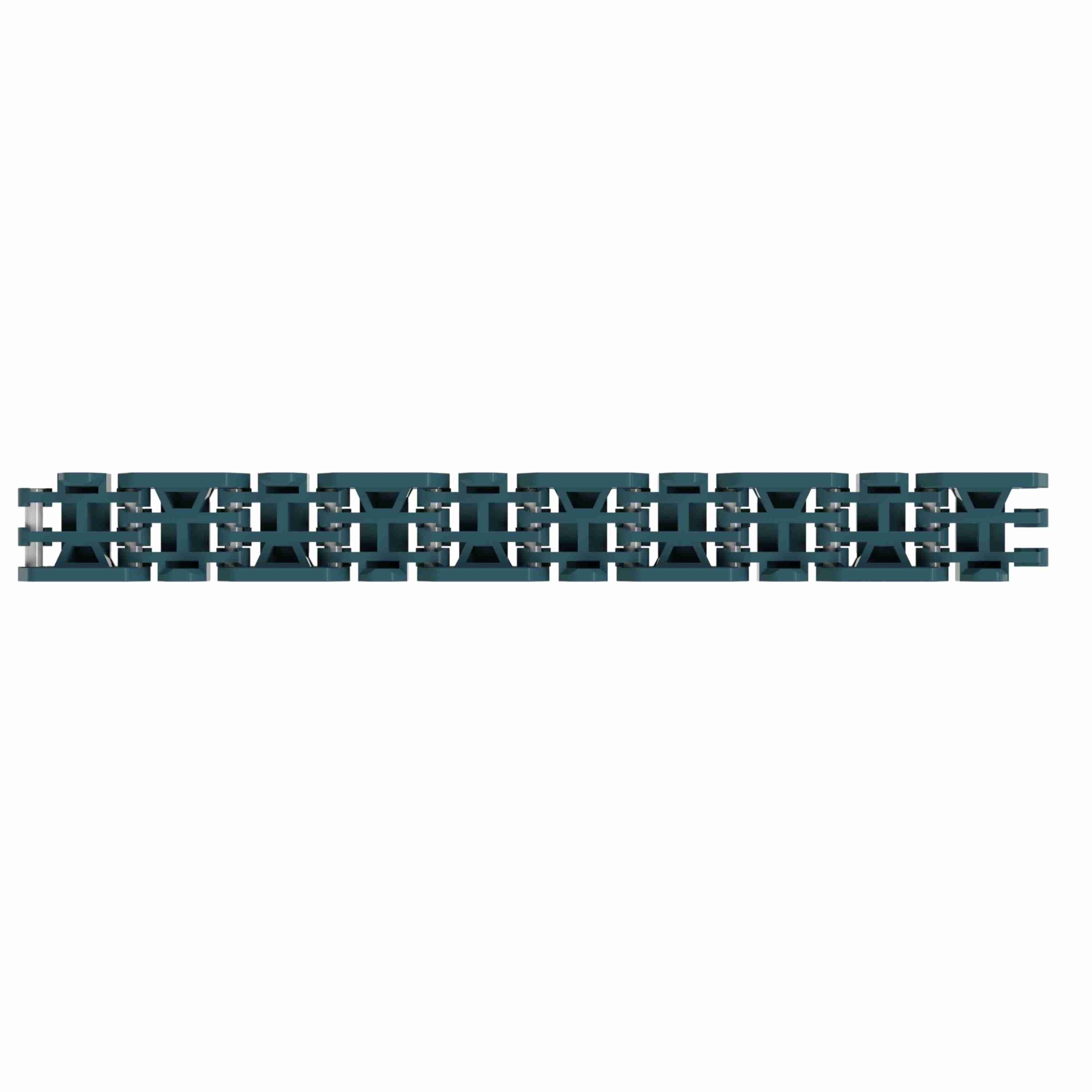

Rexnord 1000RRR Straight Running Raised Rib Rail Track, Material: Green Low Friction Acetal, Width: 28mm, Pitch: 1in - 871.00.03
Part #:10147971
Catalog #:871.00.03
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Belt Thickness (mm): | 20.3 mm | Series: | MatTop 1000 Series Chain |
| Surface Type: | Raised Rib Rail Track | Chain Width Measurement System: | Metric |
| Chain Material Description: | Green Low Friction Acetal | Chain Number: | 1000RRR |
| Product Group: | Modular Plastic Belts | Chain Material: | XLG |
| Chain Strength (lb): | 45 lb | Product Type: | Straight Running |
| Rod/Pin Material: | Polyester | Chain Pitch (mm): | 25.4 mm |
| Chain Width (in): | 1.1 in | Straight or Side-Flex: | Straight Running |
| Open Area (%): | 13 % | Chain Strength (N): | 200 N |
| Belt Thickness (in): | 0.8 in | Chain Width (mm): | 28 mm |
| Product Line: | Plastic Modular Chain and Belt | Chain Pitch (in): | 1 in |
General Specifications
| Weight: | 0.01 KG | HTC: | 3926906090 |
