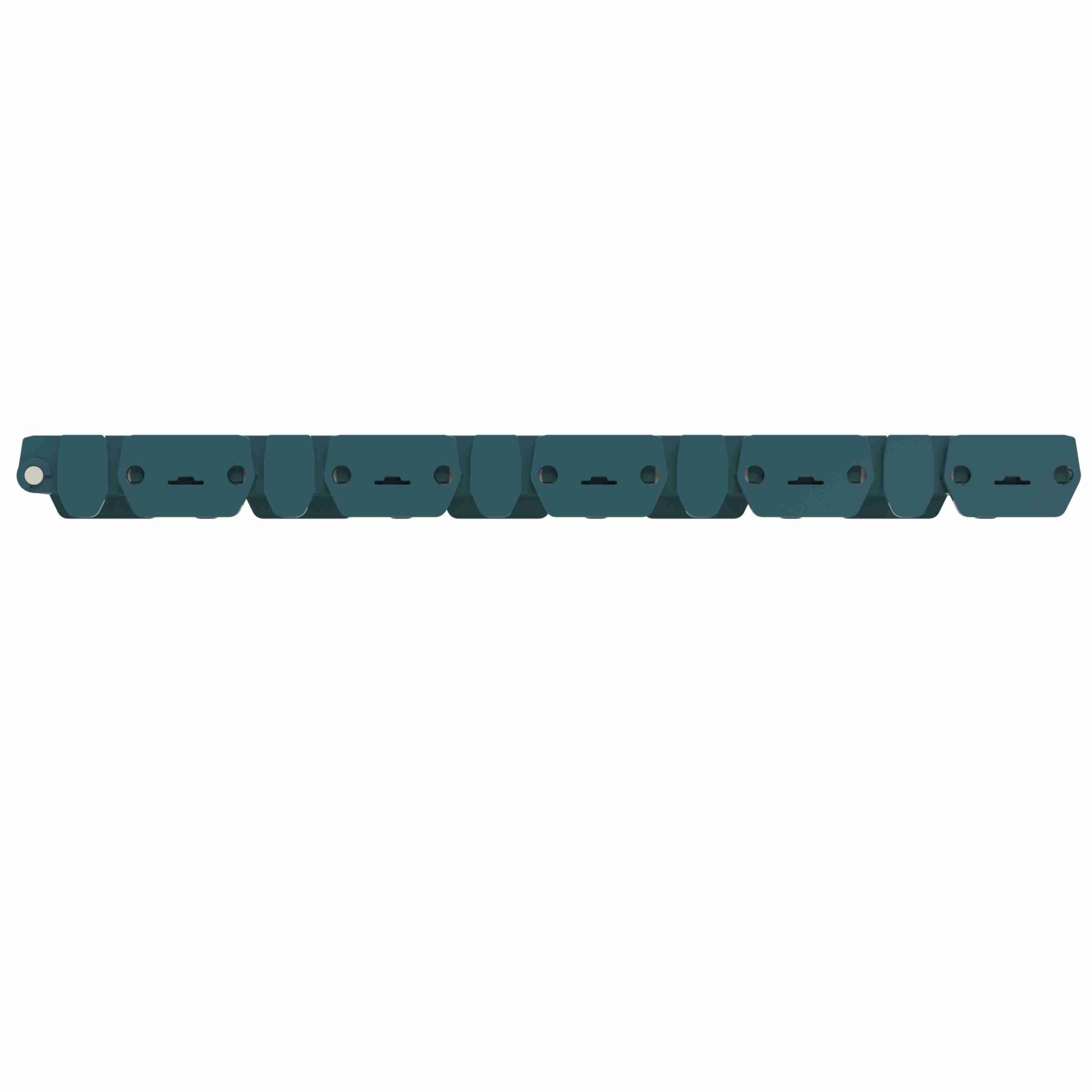

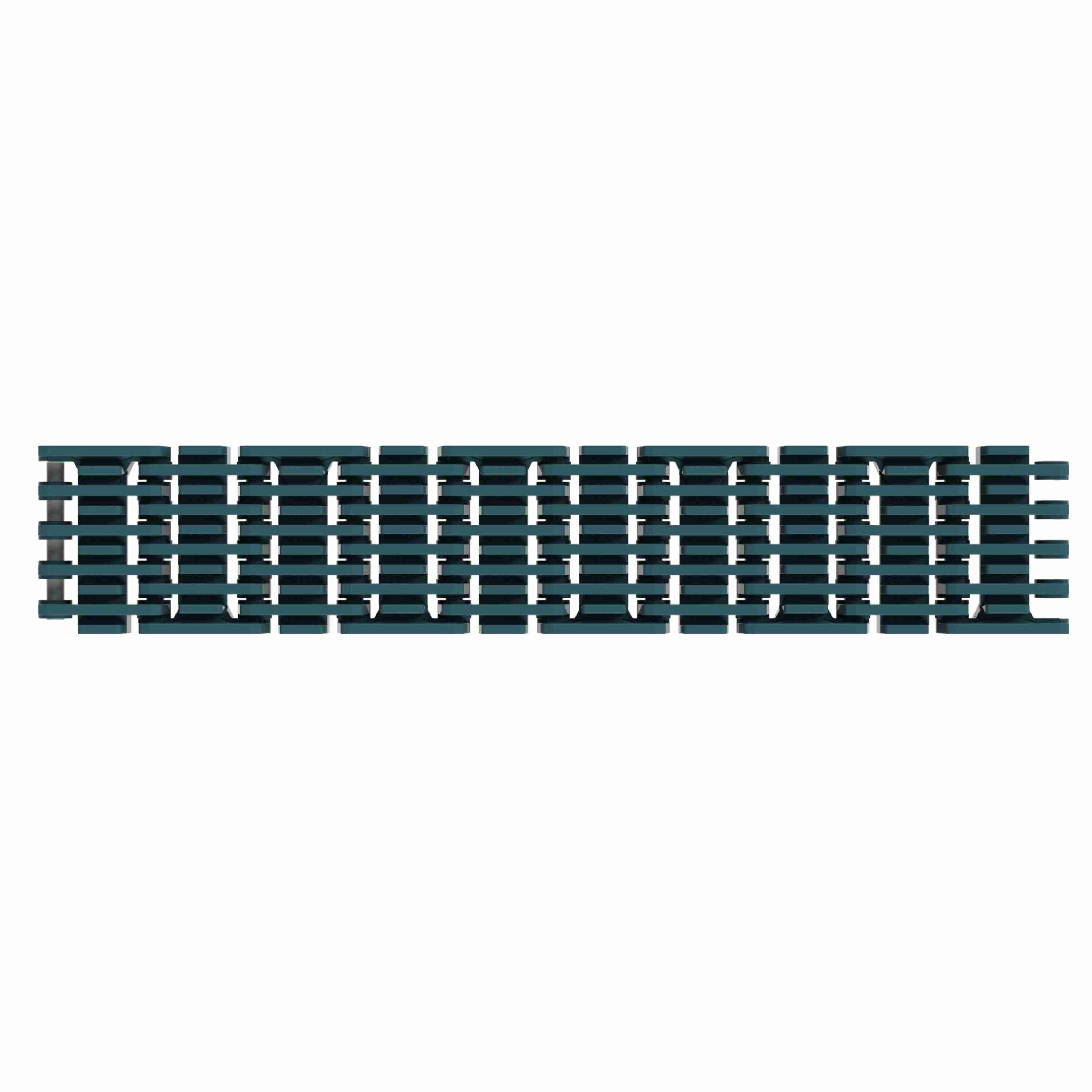

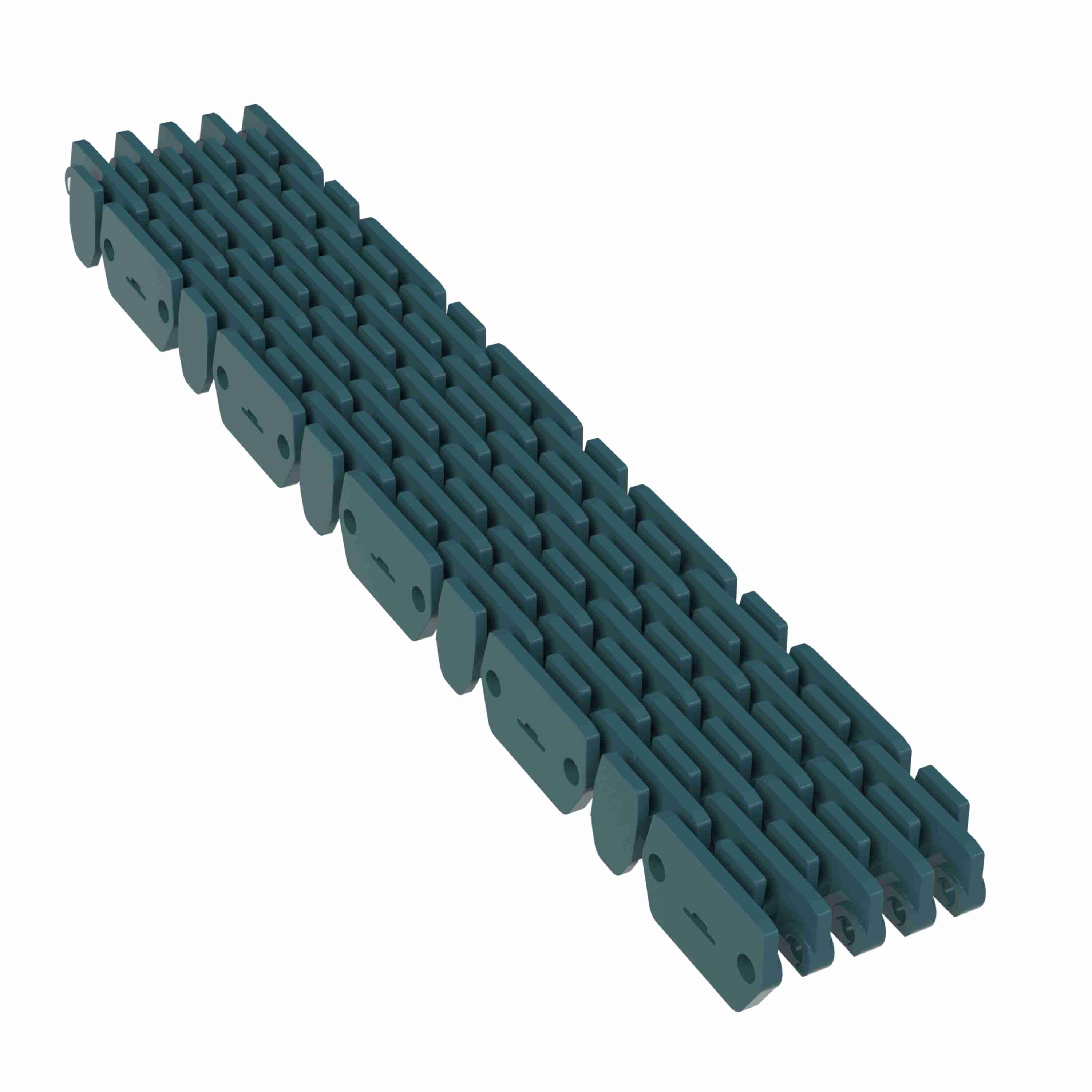

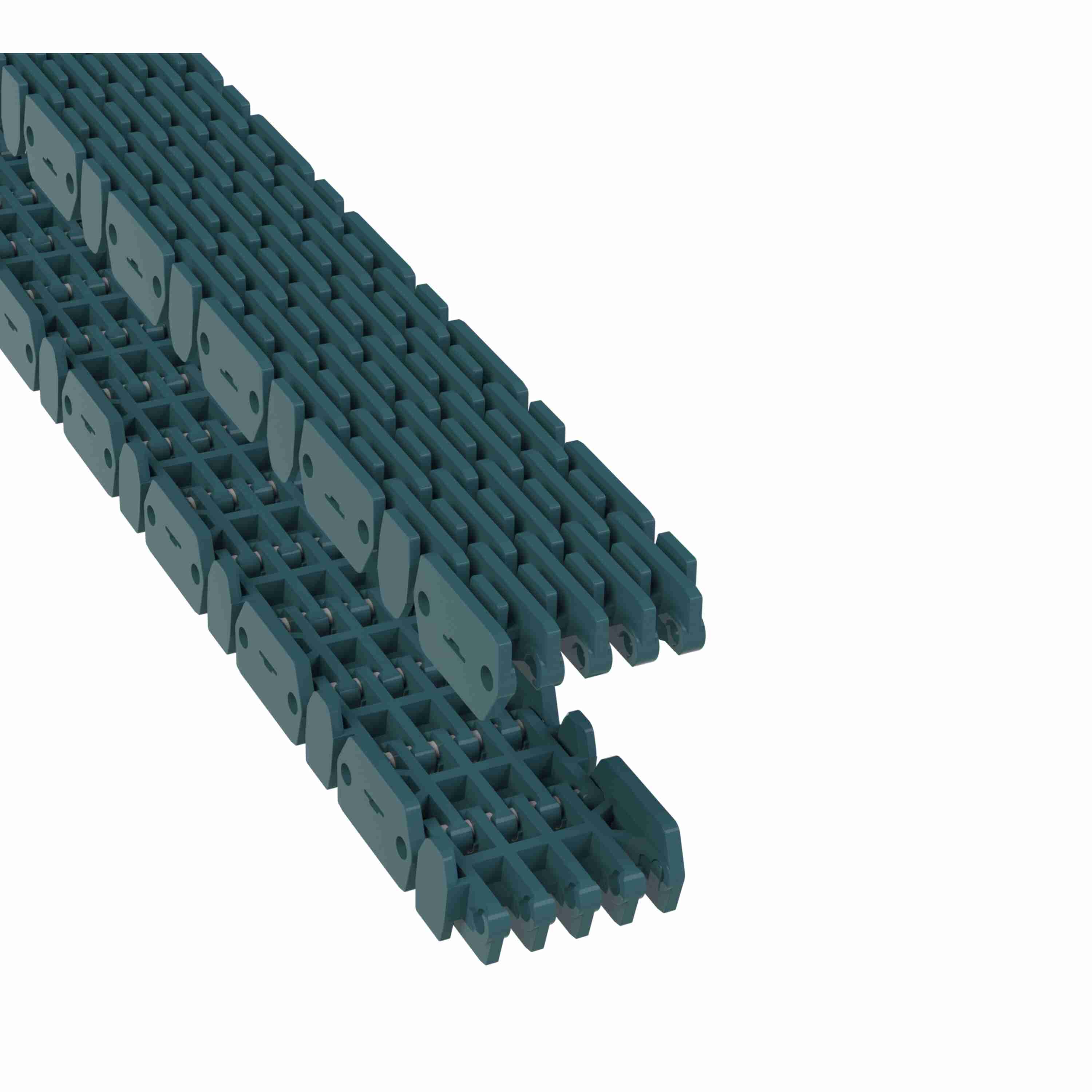

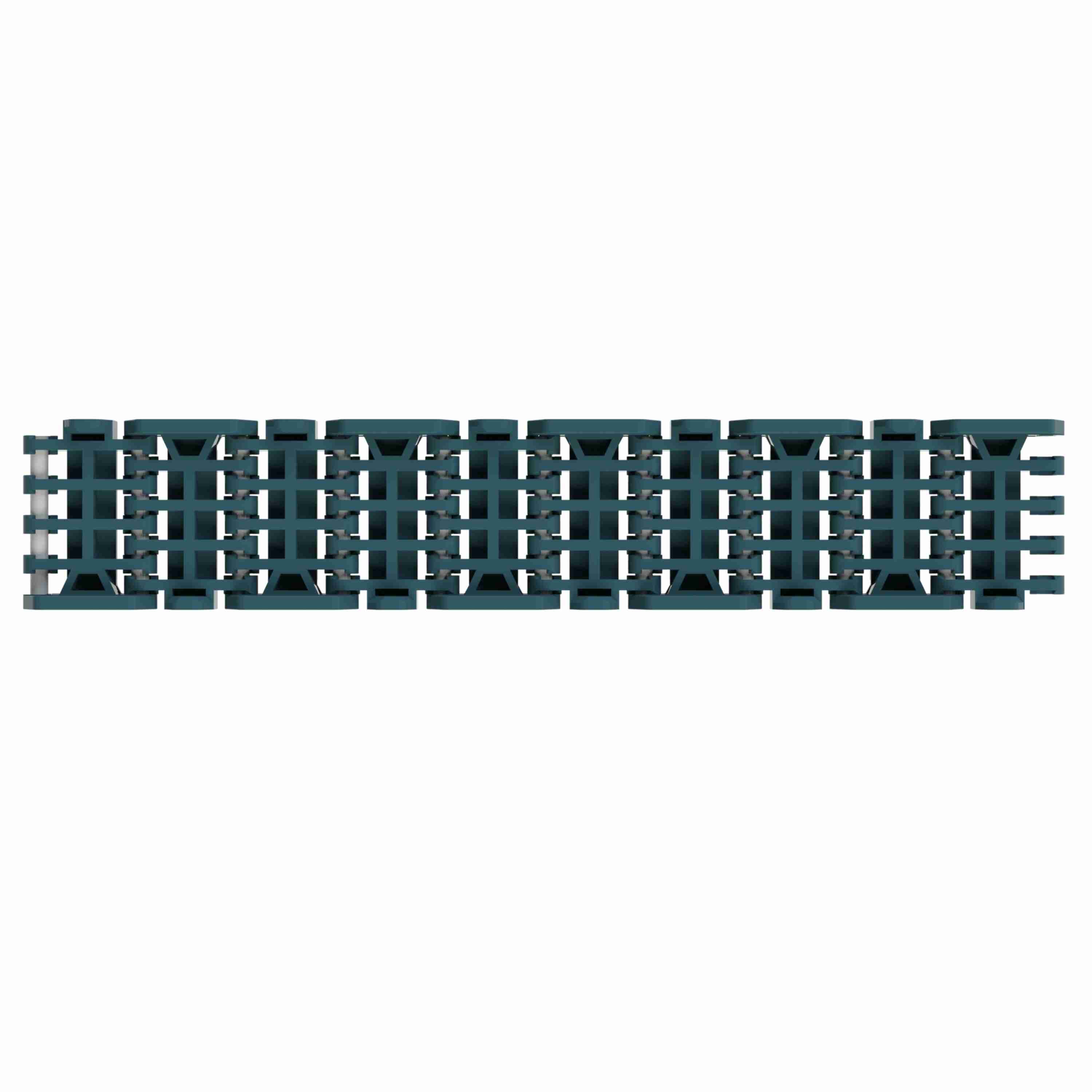

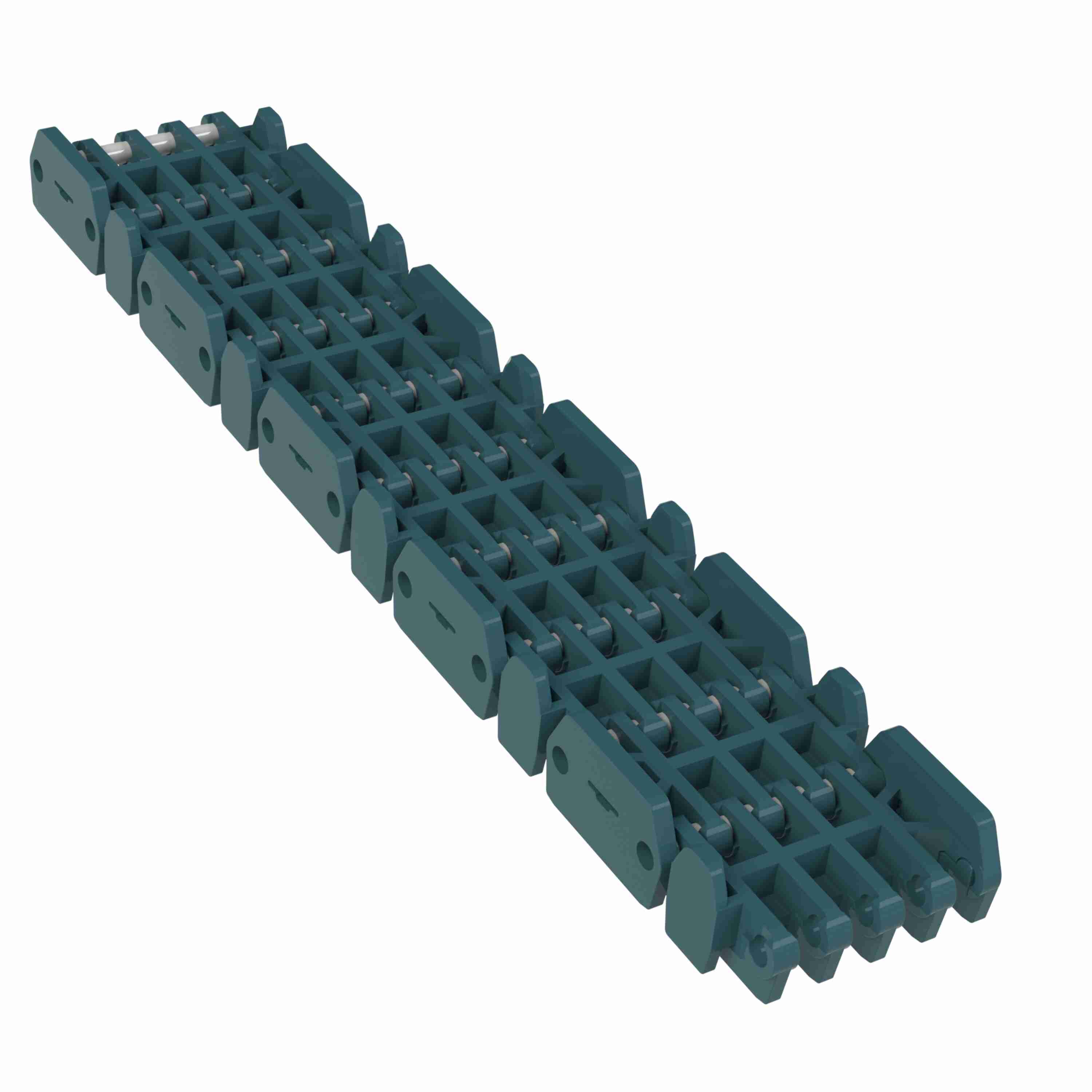

Rexnord 1000RRR Straight Running Raised Rib Rail Track, Material: Green Low Friction Acetal, Width: 48mm, Pitch: 1in - 871.00.01
Part #:10147969
Catalog #:871.00.01
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Strength (lb): | 135 lb | Belt Thickness (in): | 0.8 in |
| Series: | MatTop 1000 Series Chain | Product Line: | Plastic Modular Chain and Belt |
| Chain Pitch (in): | 1 in | Open Area (%): | 13 % |
| Rod/Pin Material: | Polyester | Chain Width (mm): | 48 mm |
| Surface Type: | Raised Rib Rail Track | Chain Number: | 1000RRR |
| Chain Material Description: | Green Low Friction Acetal | Chain Width Measurement System: | Metric |
| Belt Thickness (mm): | 20.3 mm | Product Group: | Modular Plastic Belts |
| Product Type: | Straight Running | Chain Material: | XLG |
| Chain Width (in): | 1.89 in | Straight or Side-Flex: | Straight Running |
| Chain Strength (N): | 600 N | Chain Pitch (mm): | 25.4 mm |
General Specifications
| Weight: | 0.02 KG | HTC: | 3926906090 |
| Country of Origin: | Netherlands |
