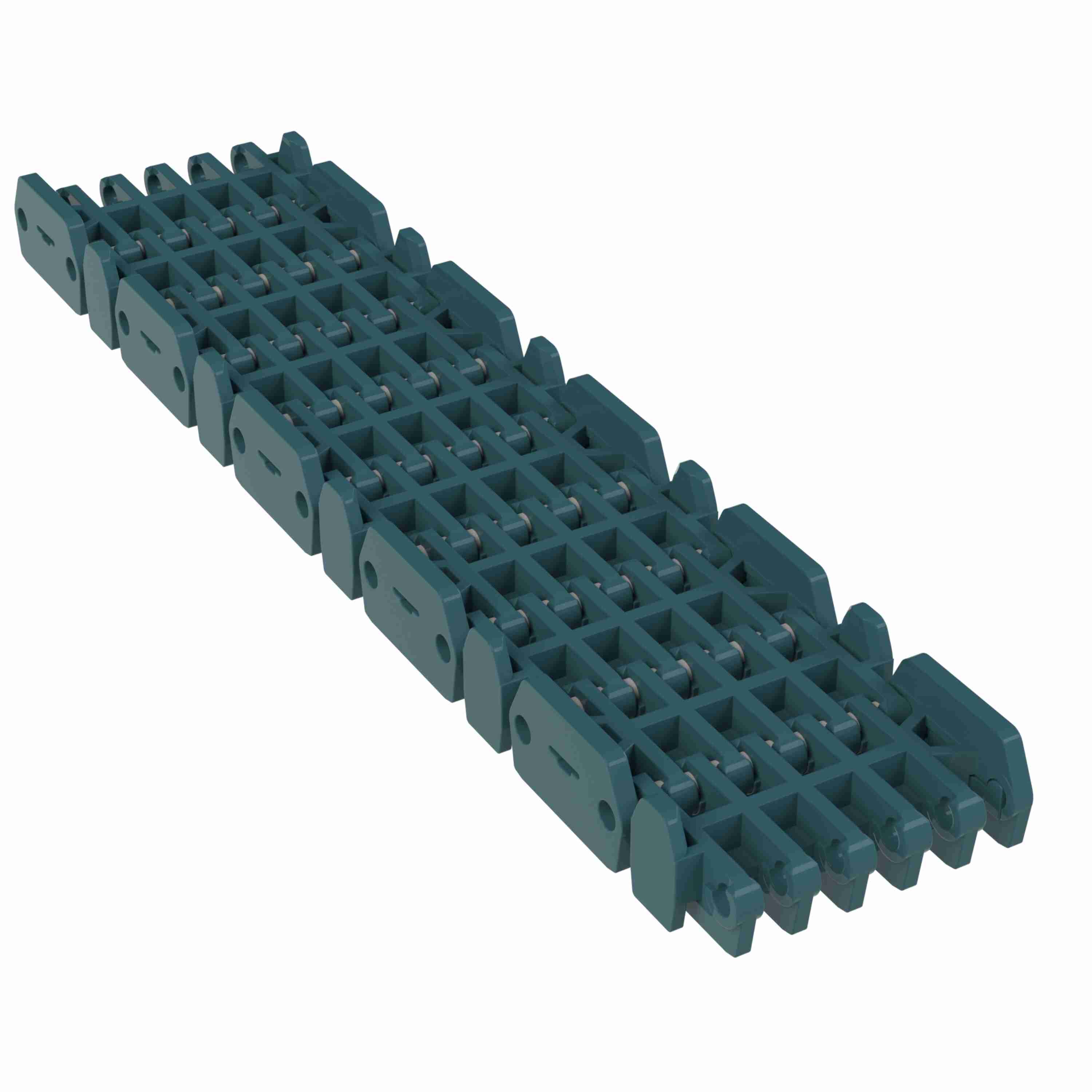

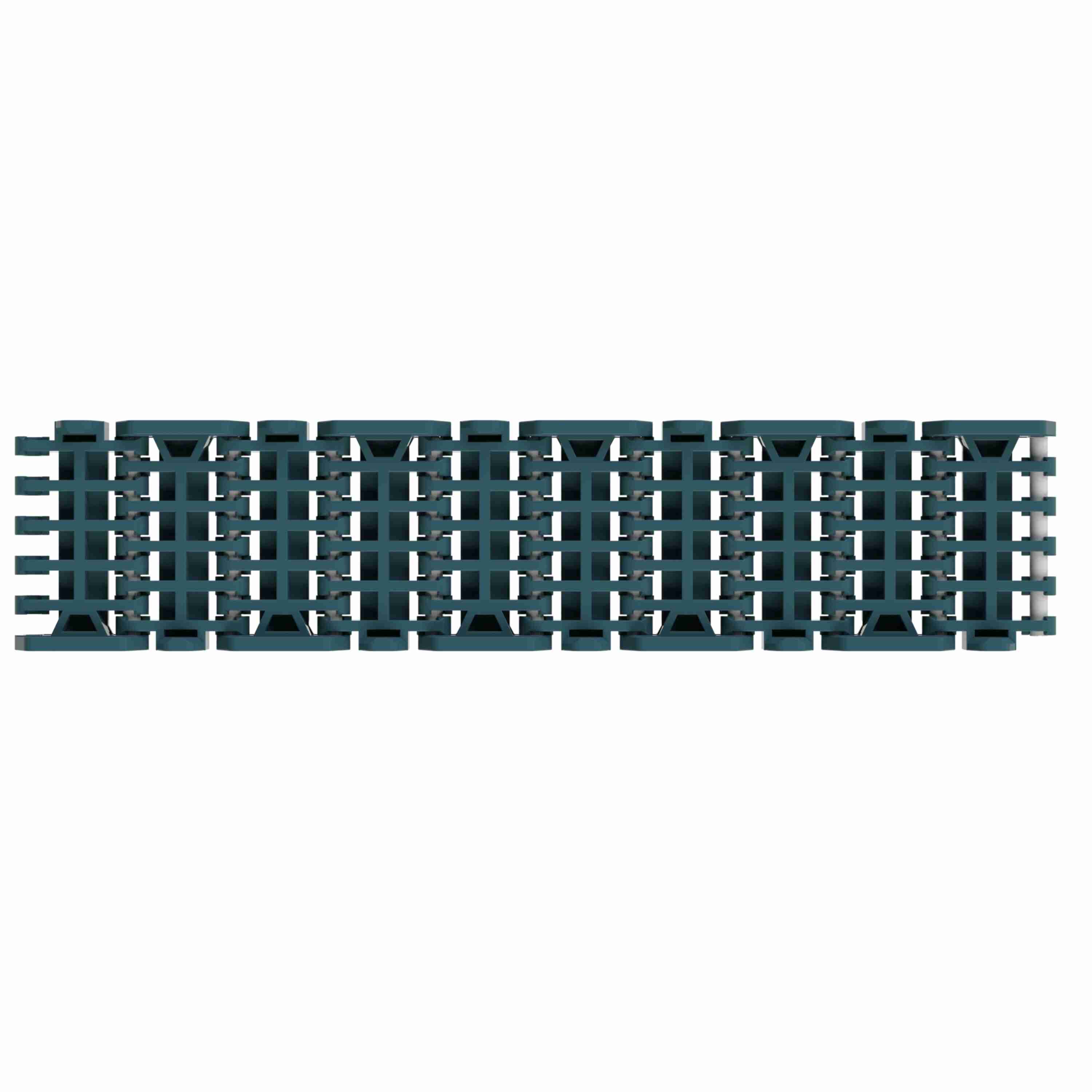

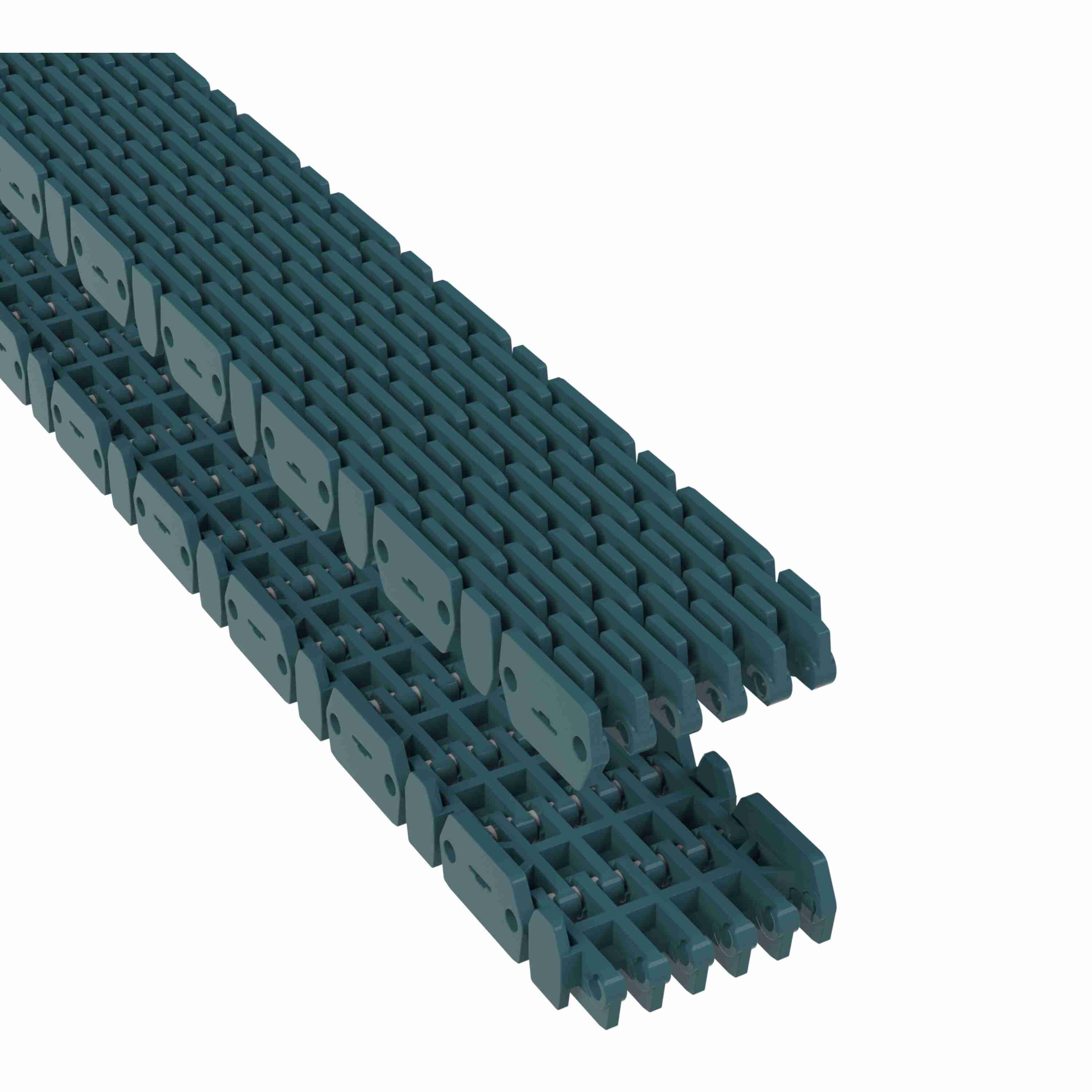

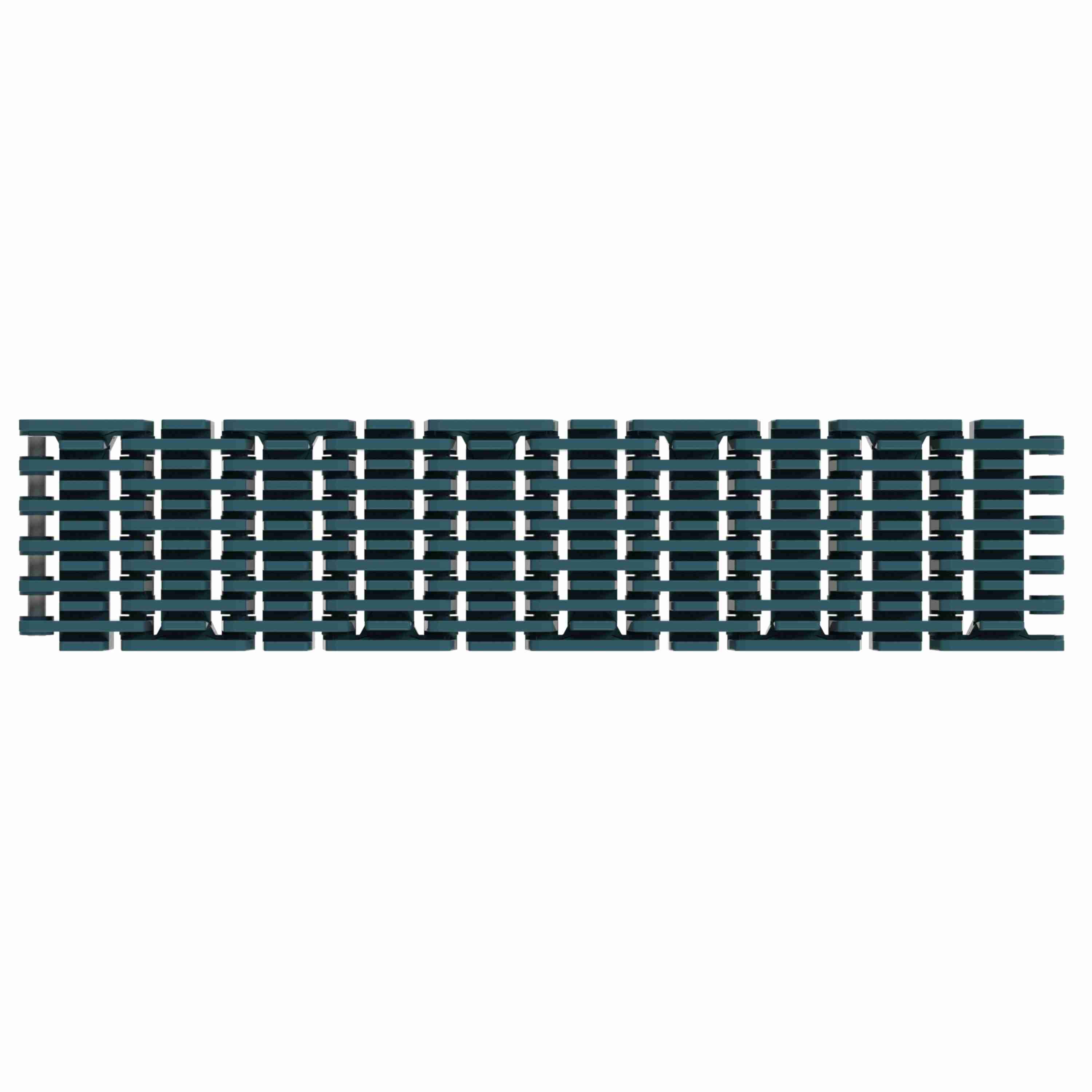

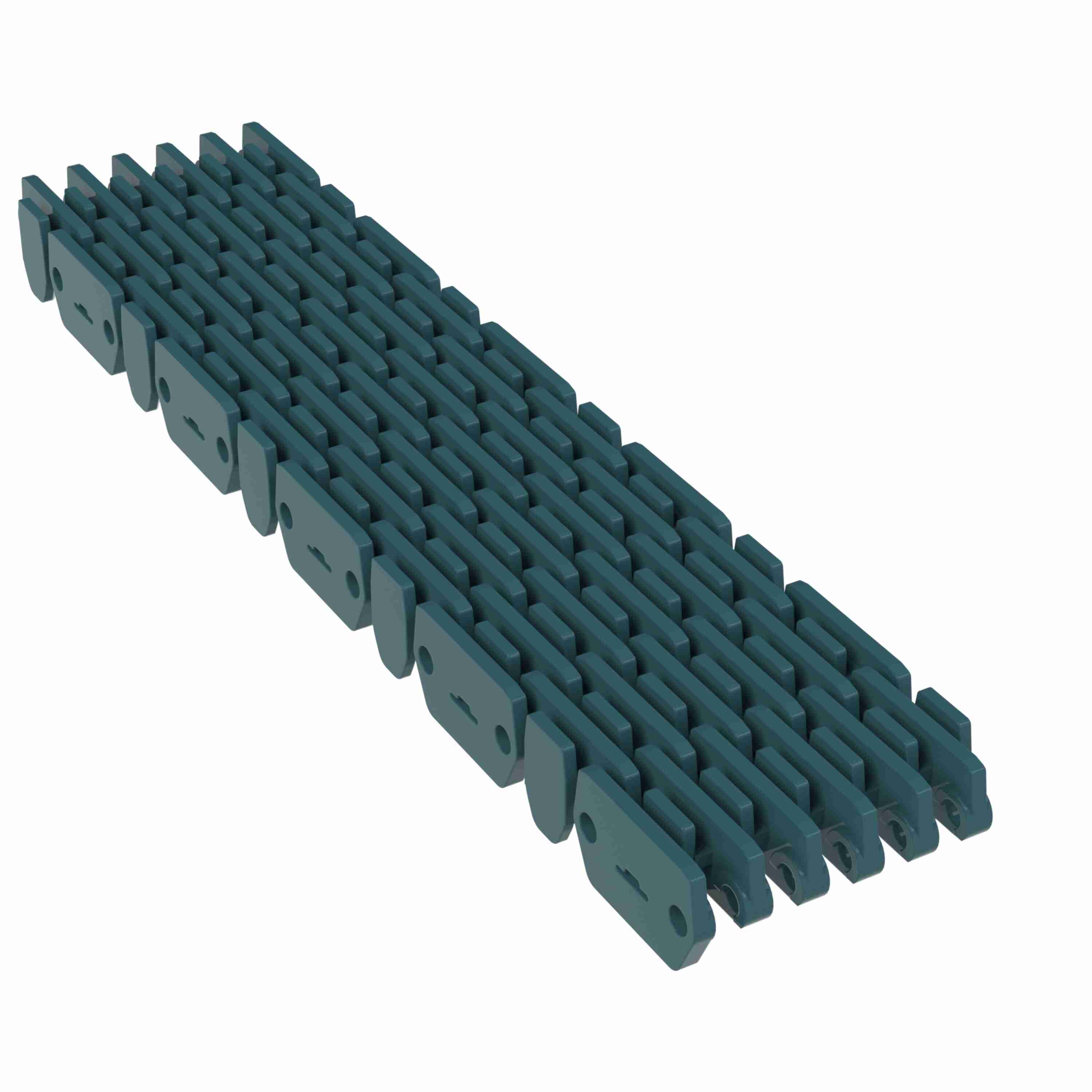

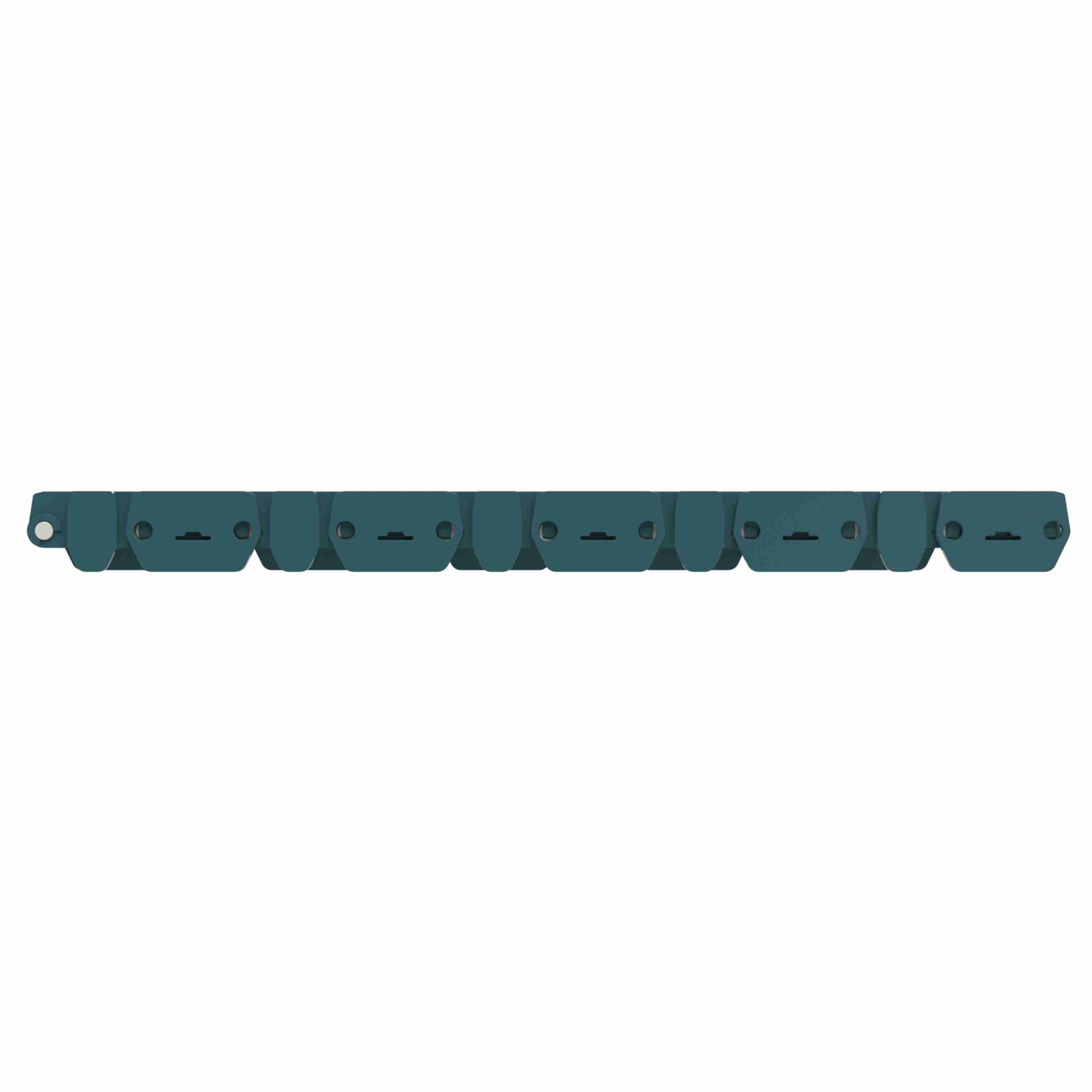

Rexnord 1000RRR Straight Running Raised Rib Rail Track, Material: Green Low Friction Acetal, Width: 58mm, Pitch: 1in - 871.00.02
Part #:10147970
Catalog #:871.00.02
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Belt Thickness (mm): | 20.3 mm | Chain Material: | XLG |
| Chain Width (mm): | 58 mm | Chain Pitch (in): | 1 in |
| Chain Material Description: | Green Low Friction Acetal | Product Type: | Straight Running |
| Series: | MatTop 1000 Series Chain | Chain Width Measurement System: | Metric |
| Chain Strength (lb): | 180 lb | Straight or Side-Flex: | Straight Running |
| Product Group: | Modular Plastic Belts | Chain Width (in): | 2.28 in |
| Chain Strength (N): | 800 N | Chain Pitch (mm): | 25.4 mm |
| Open Area (%): | 13 % | Surface Type: | Raised Rib Rail Track |
| Chain Number: | 1000RRR | Belt Thickness (in): | 0.8 in |
| Rod/Pin Material: | Polyester | Product Line: | Plastic Modular Chain and Belt |
General Specifications
| Weight: | 15.88 G | HTC: | 3926906090 |
| Country of Origin: | Netherlands |
