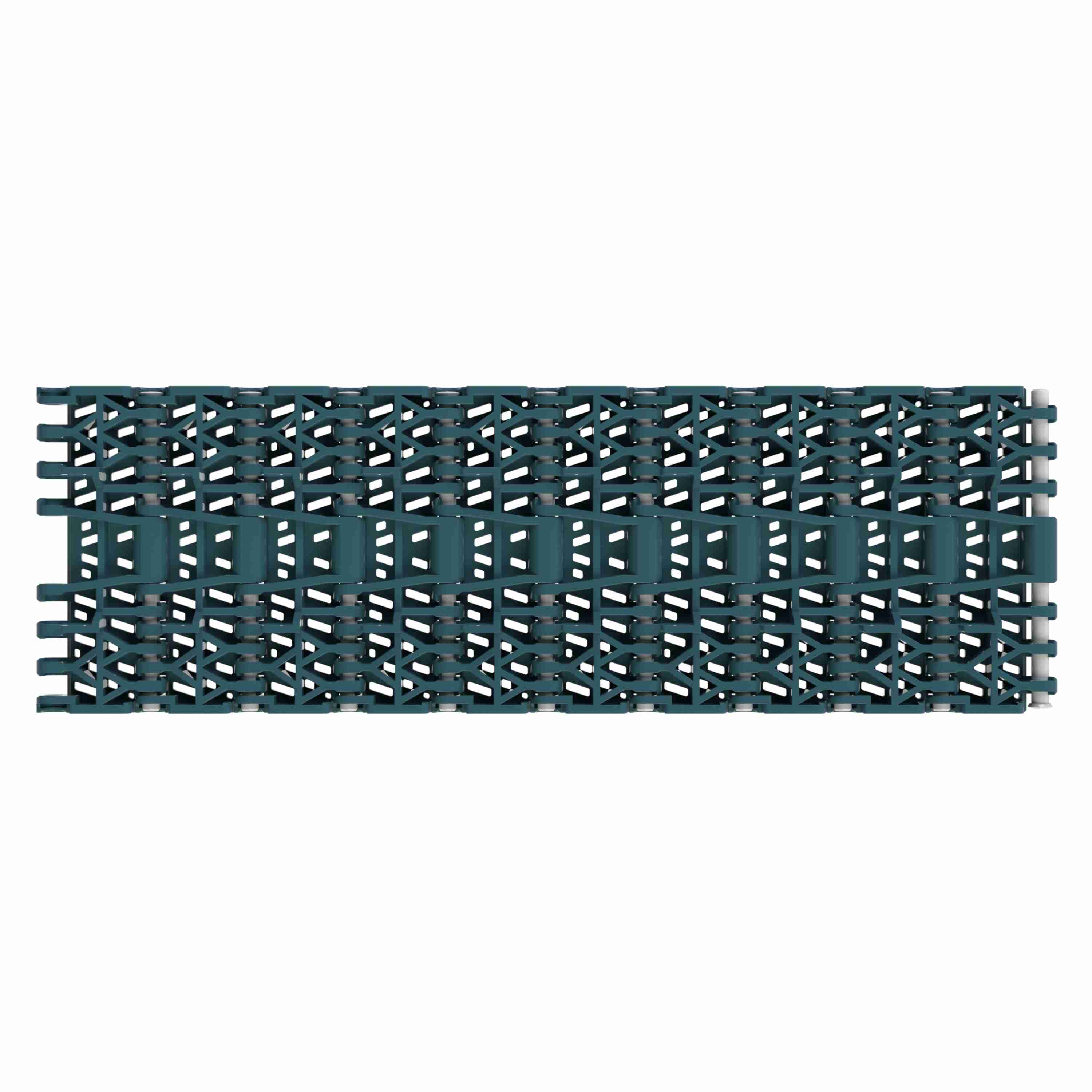

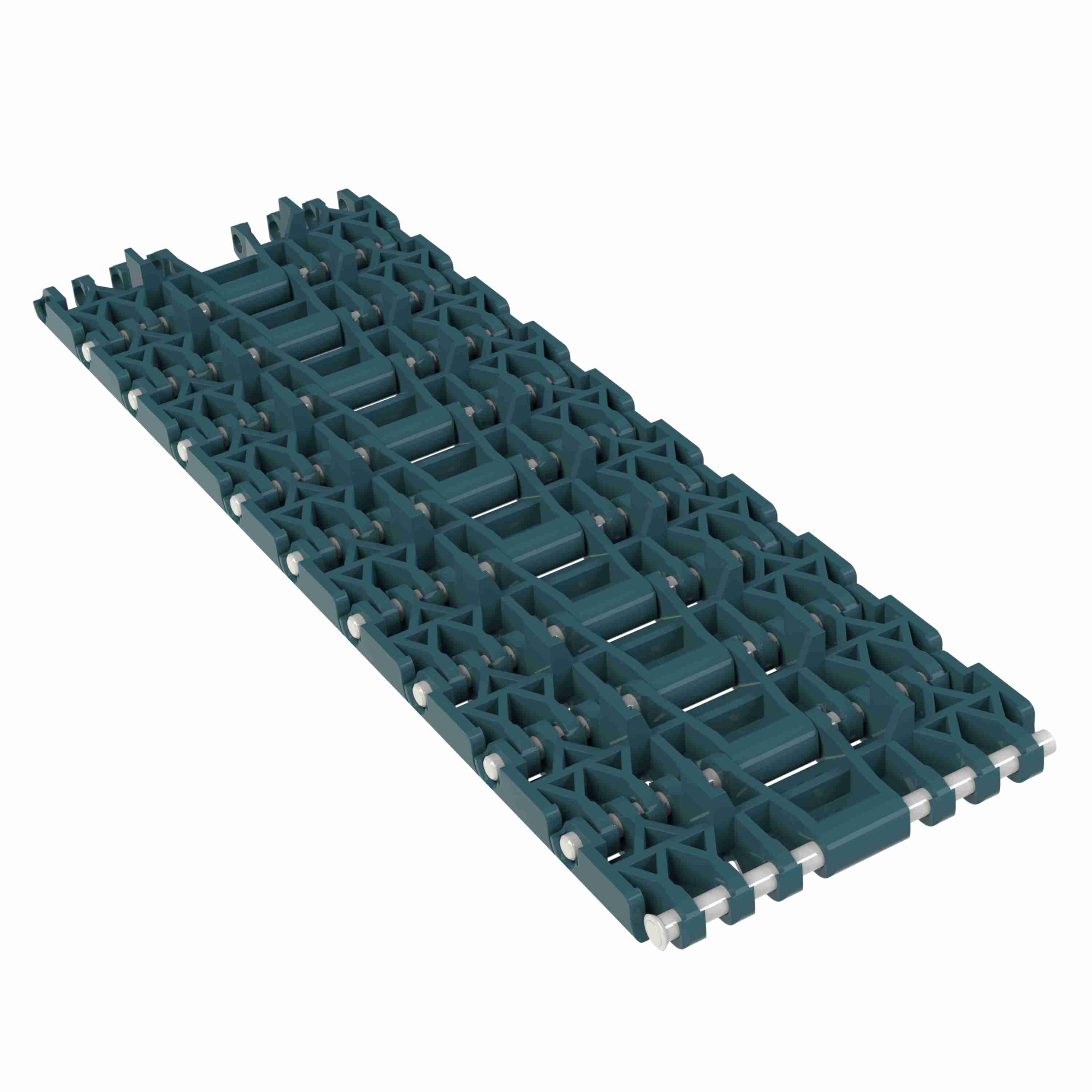

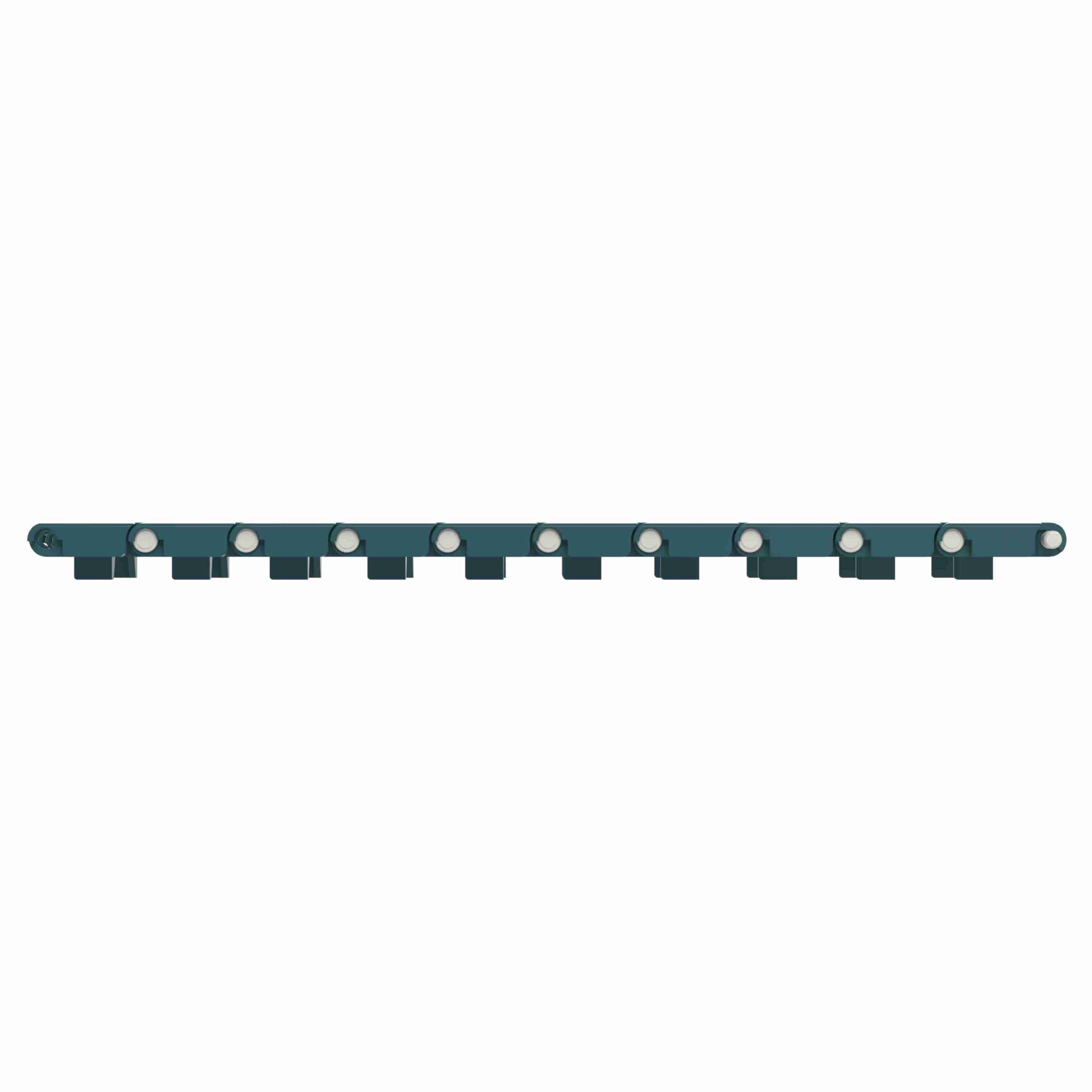

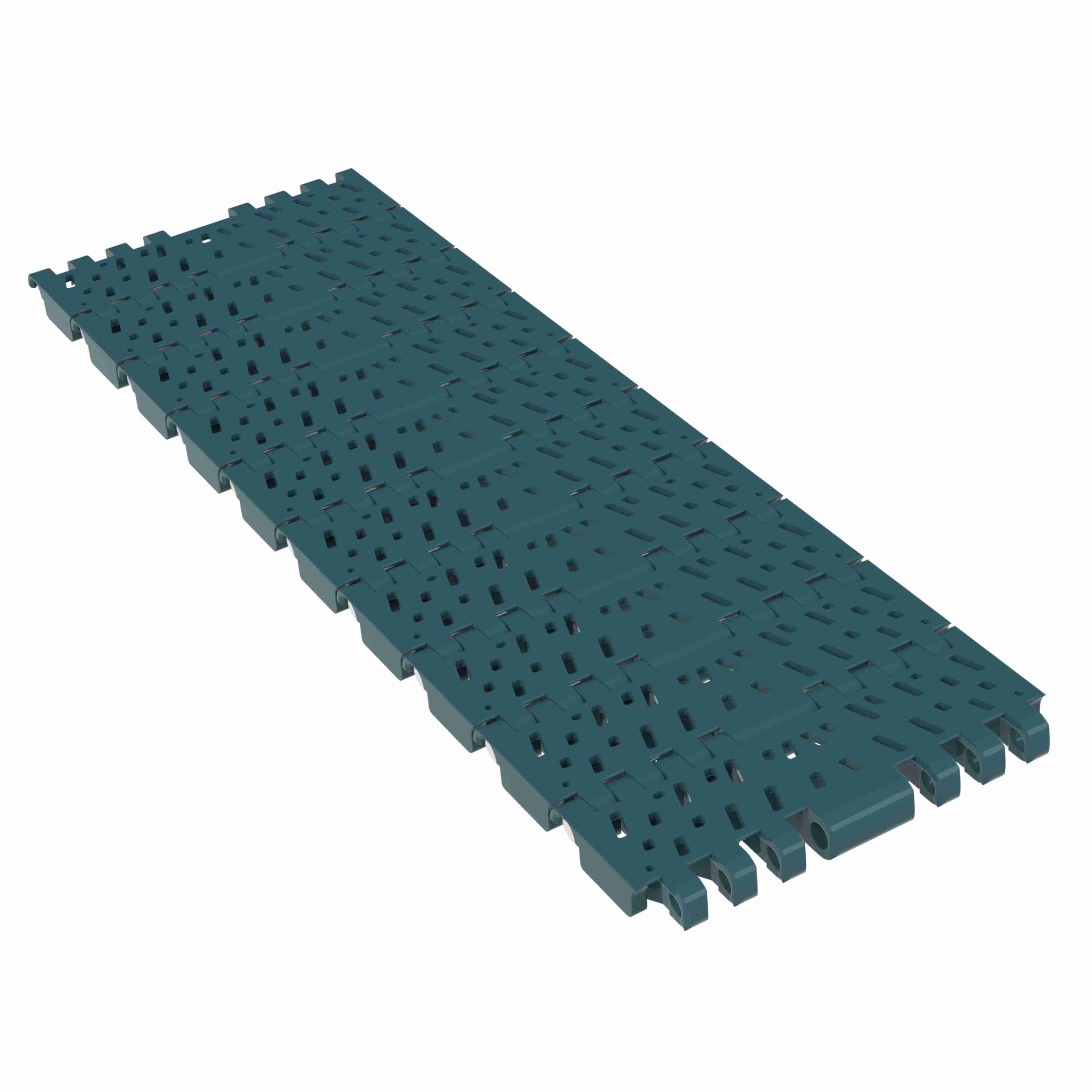

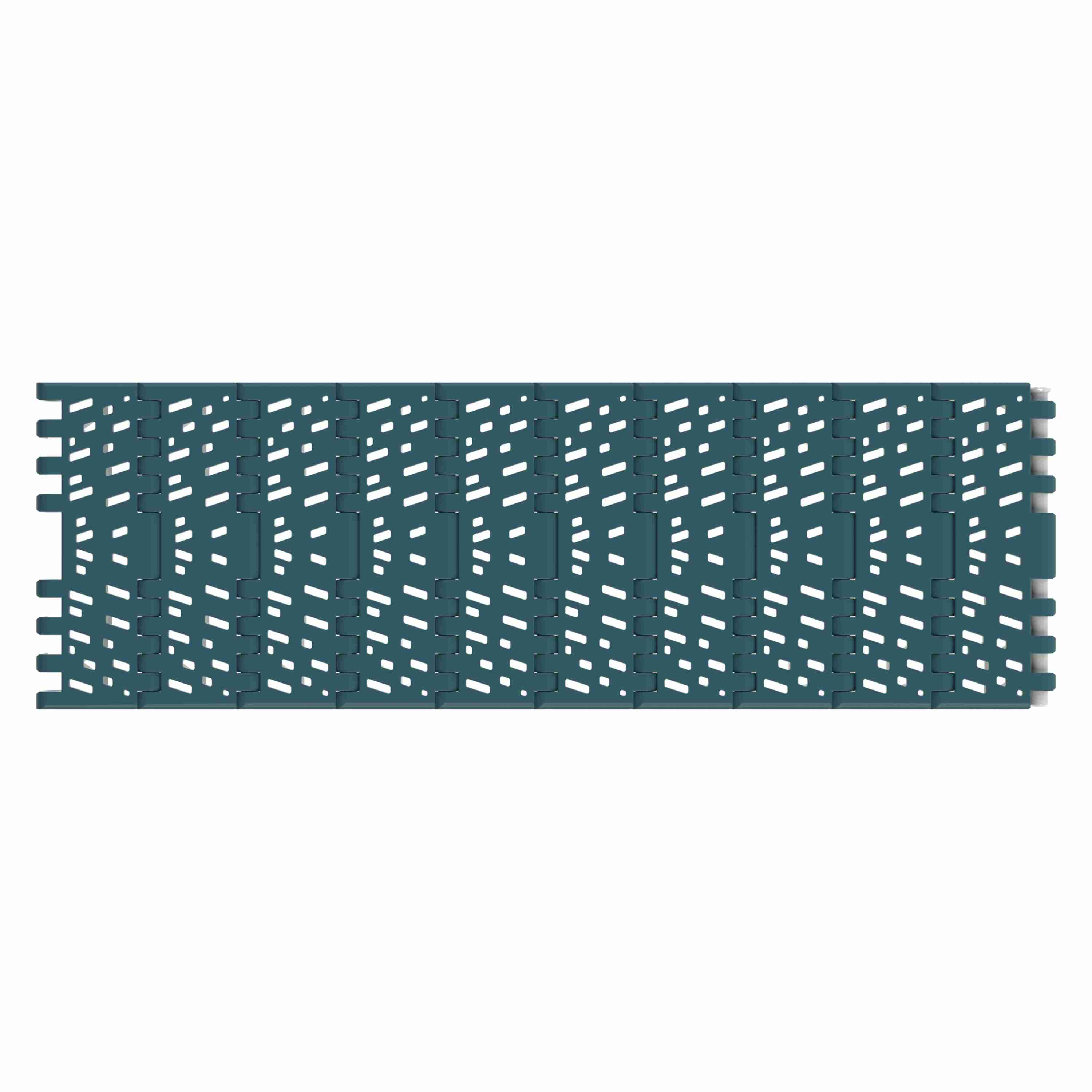

Rexnord 1001FG Straight Running Flush Grid, Material: Green Low Friction Acetal, Width: 84mm, Pitch: 1in - 876.38.72
Part #:10522831
Catalog #:876.38.72
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Rod/Pin Material: | Polyester | Open Area (%): | 25 % |
| Belt Thickness (mm): | 8.7 mm | Chain Material: | XLG |
| Chain Pitch (mm): | 25.4 mm | Positrack Location: | Center |
| Belt Thickness (in): | 0.34 in | Chain Width (in): | 3.31 in |
| Series: | MatTop 1000 Series Chain | Chain Number: | 1001FG |
| Chain Material Description: | Green Low Friction Acetal | Chain Strength (N): | 1,500 N |
| Chain Pitch (in): | 1 in | Chain Width Measurement System: | Metric |
| Number of Positrack: | 2 | Straight or Side-Flex: | Straight Running |
| Product Line: | Plastic Modular Chain and Belt | Product Group: | Modular Plastic Belts |
| Chain Width (mm): | 84 mm | Product Type: | Straight Running |
| Chain Strength (lb): | 337 lb | Positrack: | True |
| Surface Type: | Flush Grid |
General Specifications
| Weight: | 0.01 KG | HTC: | 3926906090 |
| Country of Origin: | Netherlands |
