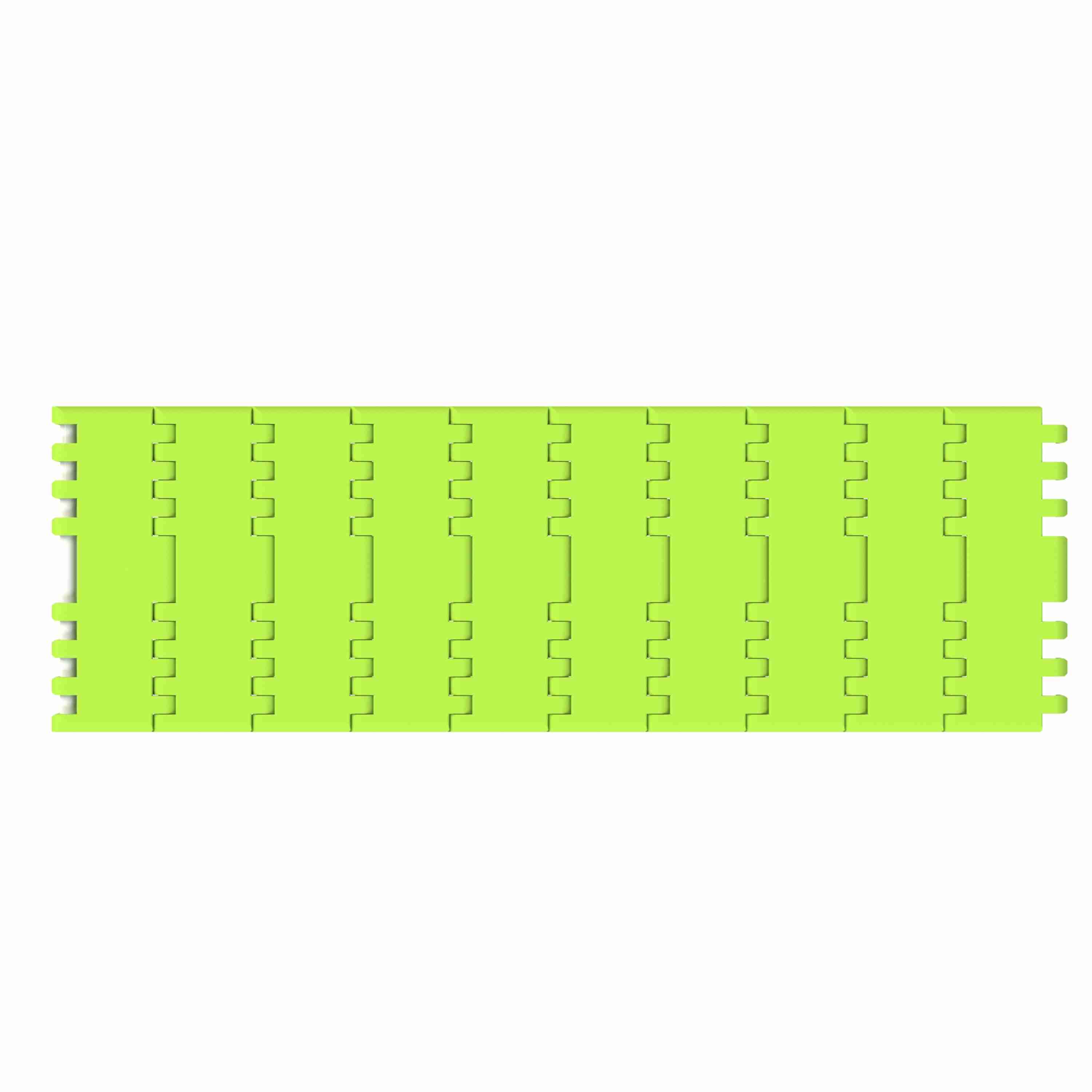

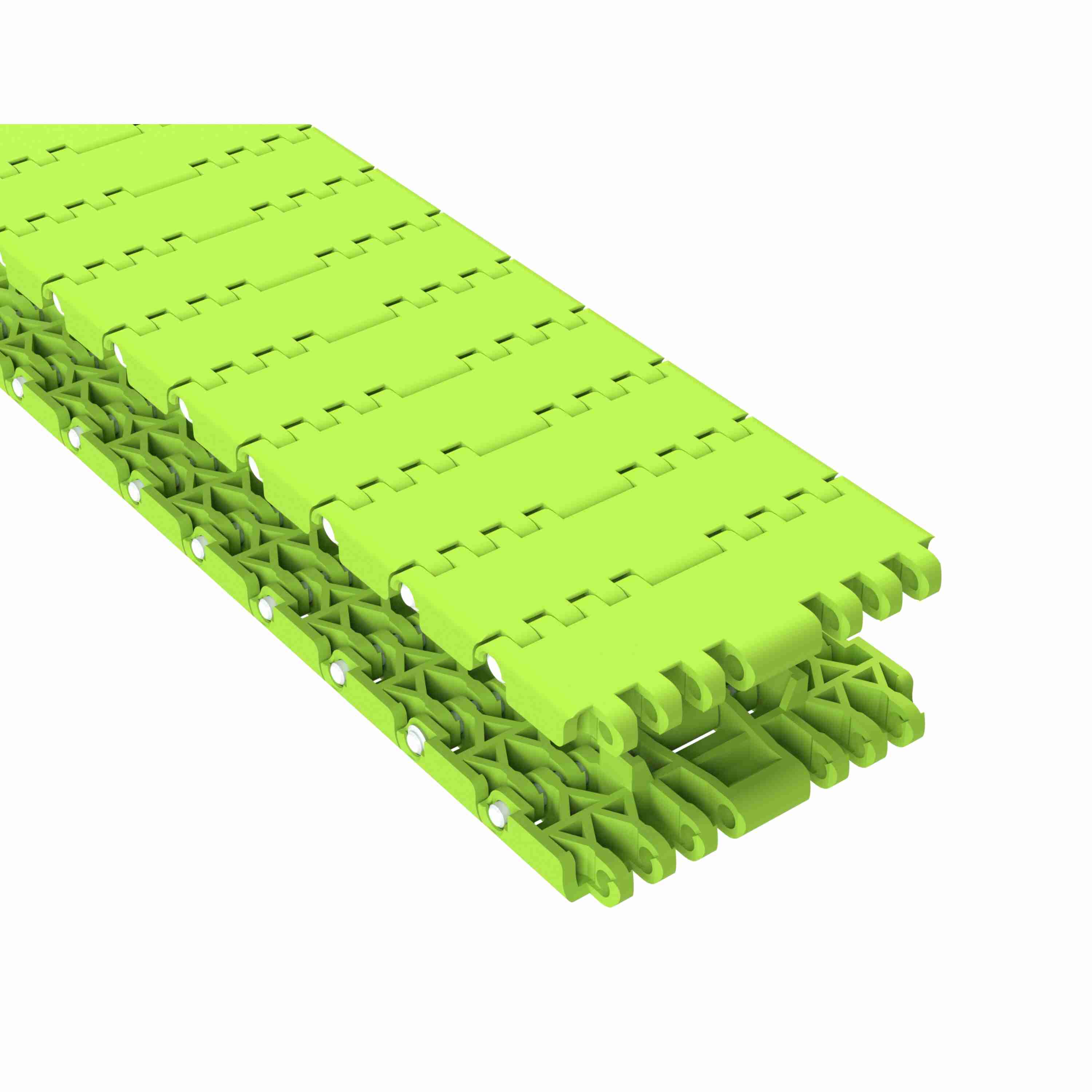

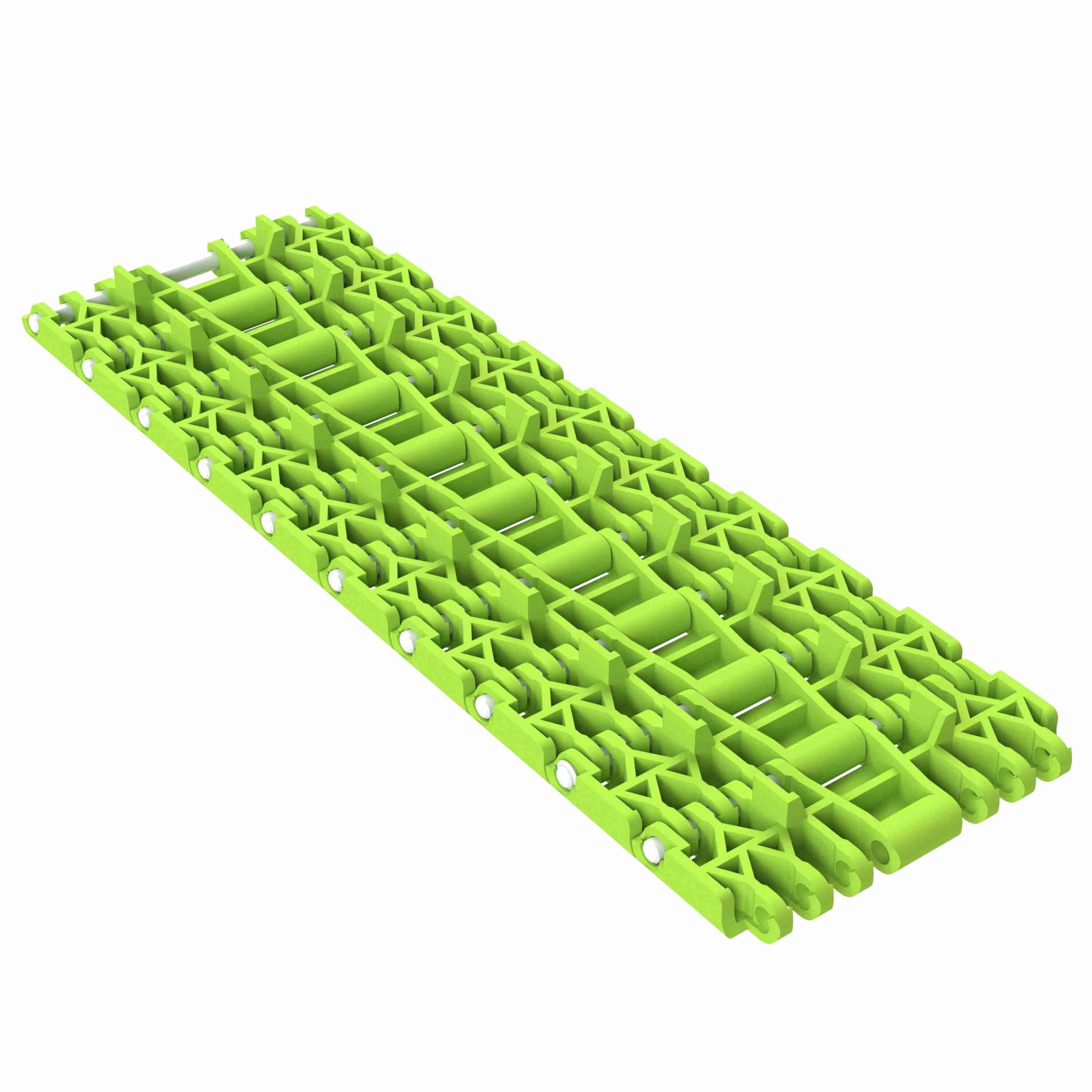

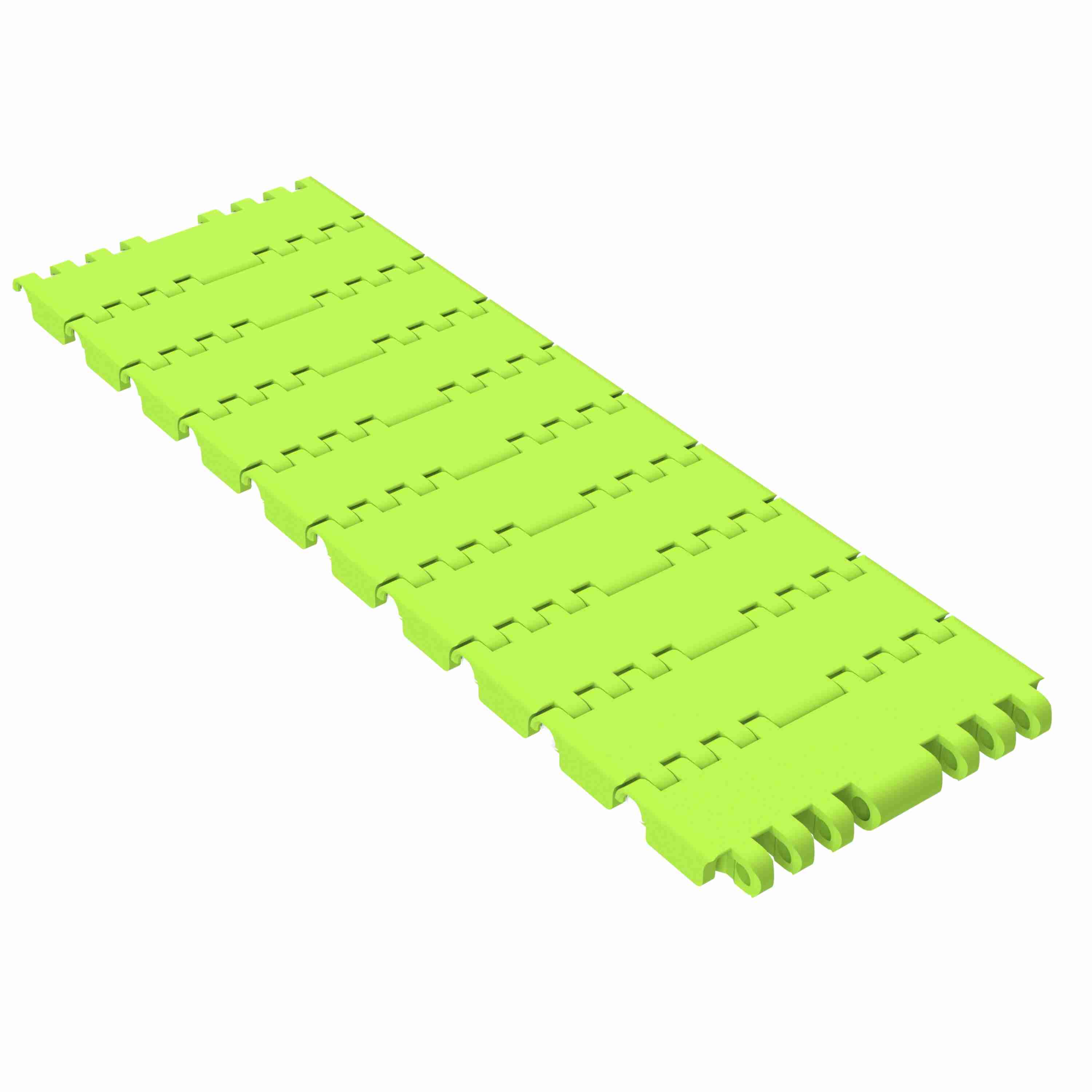

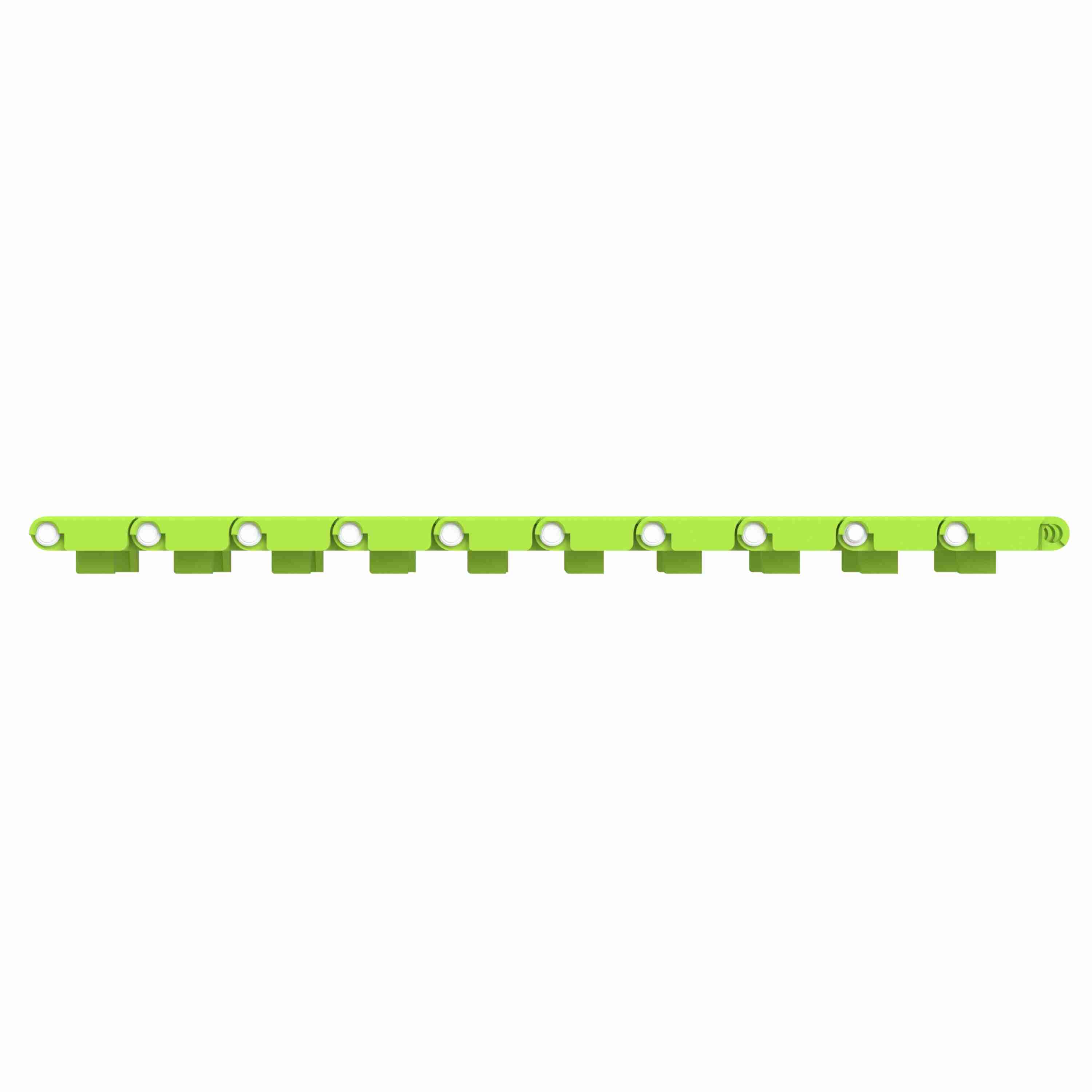

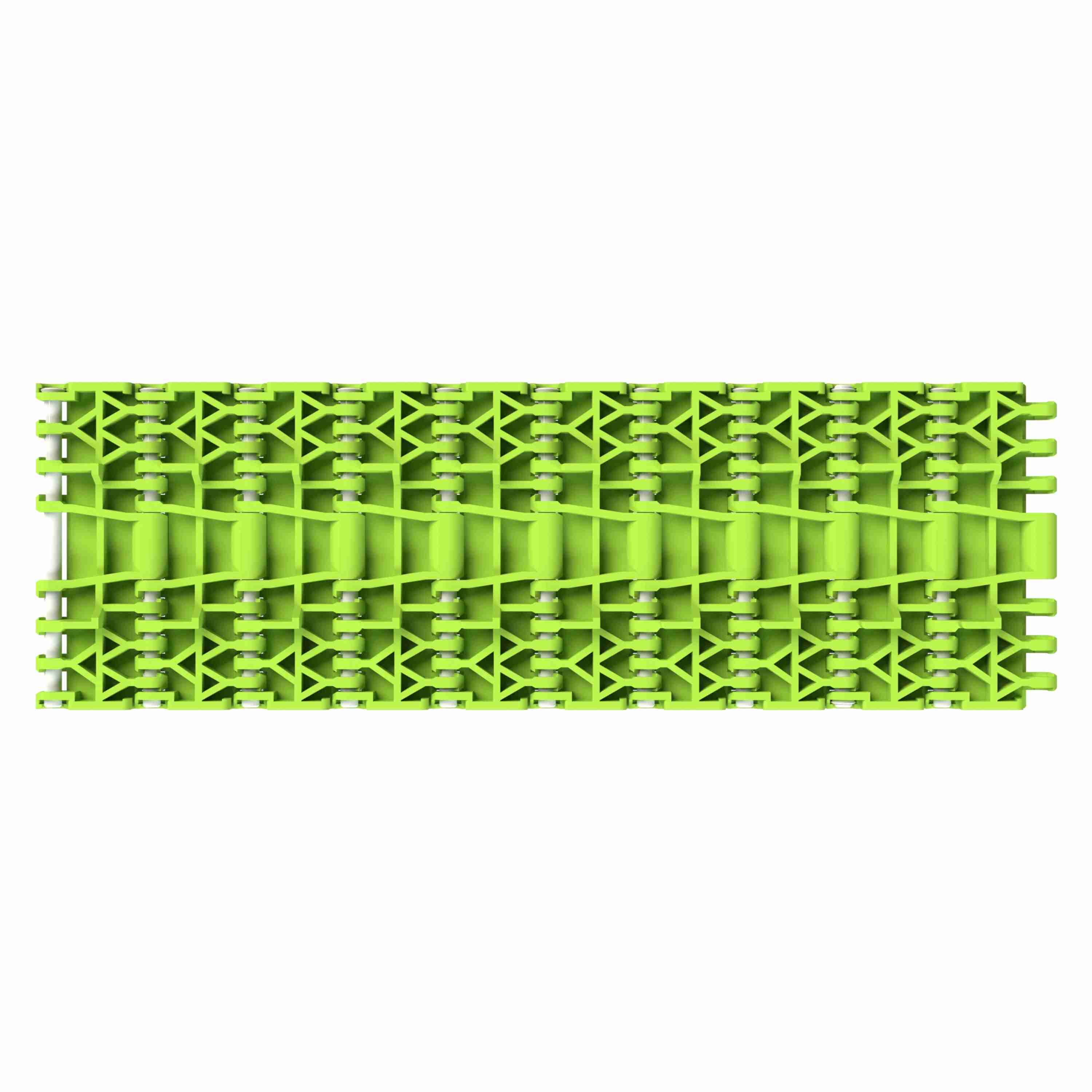

Rexnord 1001FT Straight Running Solid Top, Material: Bright Lime-Green Dry PET Low Friction, Width: 84mm, Pitch: 1in - 876.38.65
Part #:10522806
Catalog #:876.38.65
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Material Description: | Bright Lime-Green Dry PET Low Friction | Rod/Pin Material: | Polyester |
| Chain Material: | Dry-PT | Belt Thickness (in): | 0.34 in |
| Chain Pitch (mm): | 25.4 mm | Positrack: | True |
| Belt Thickness (mm): | 8.7 mm | Number of Positrack: | 2 |
| Series: | MatTop 1000 Series Chain | Chain Pitch (in): | 1 in |
| Straight or Side-Flex: | Straight Running | Chain Width Measurement System: | Metric |
| Product Type: | Straight Running | Chain Width (mm): | 84 mm |
| Chain Strength (lb): | 337 lb | Chain Strength (N): | 1,500 N |
| Product Line: | Plastic Modular Chain and Belt | Positrack Location: | Center |
| Chain Width (in): | 3.31 in | Product Group: | Modular Plastic Belts |
| Open Area (%): | 0 % | Surface Type: | Solid Top |
| Chain Number: | 1001FT |
General Specifications
| Weight: | 0.02 KG | HTC: | 3926906090 |
| Country of Origin: | Netherlands |
