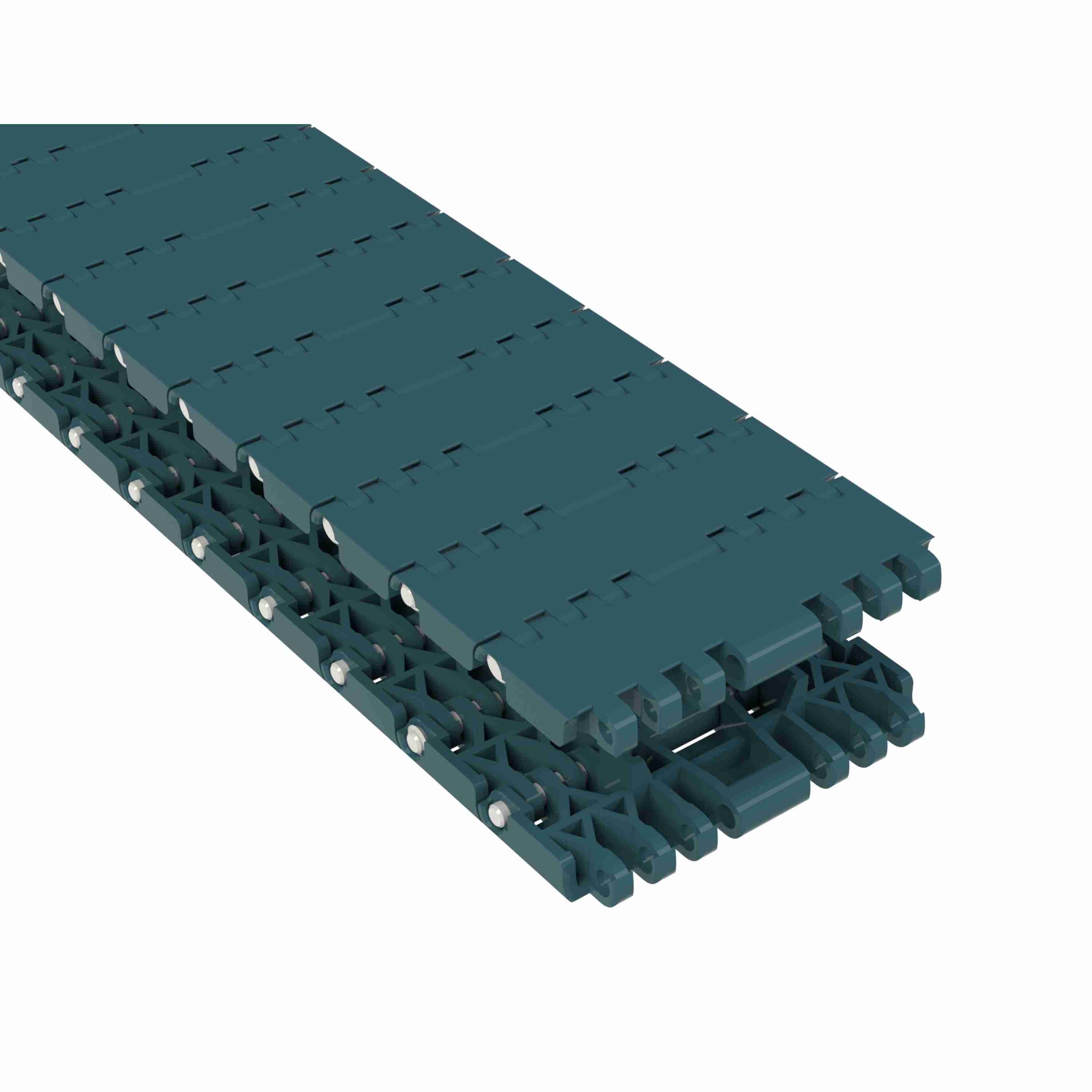

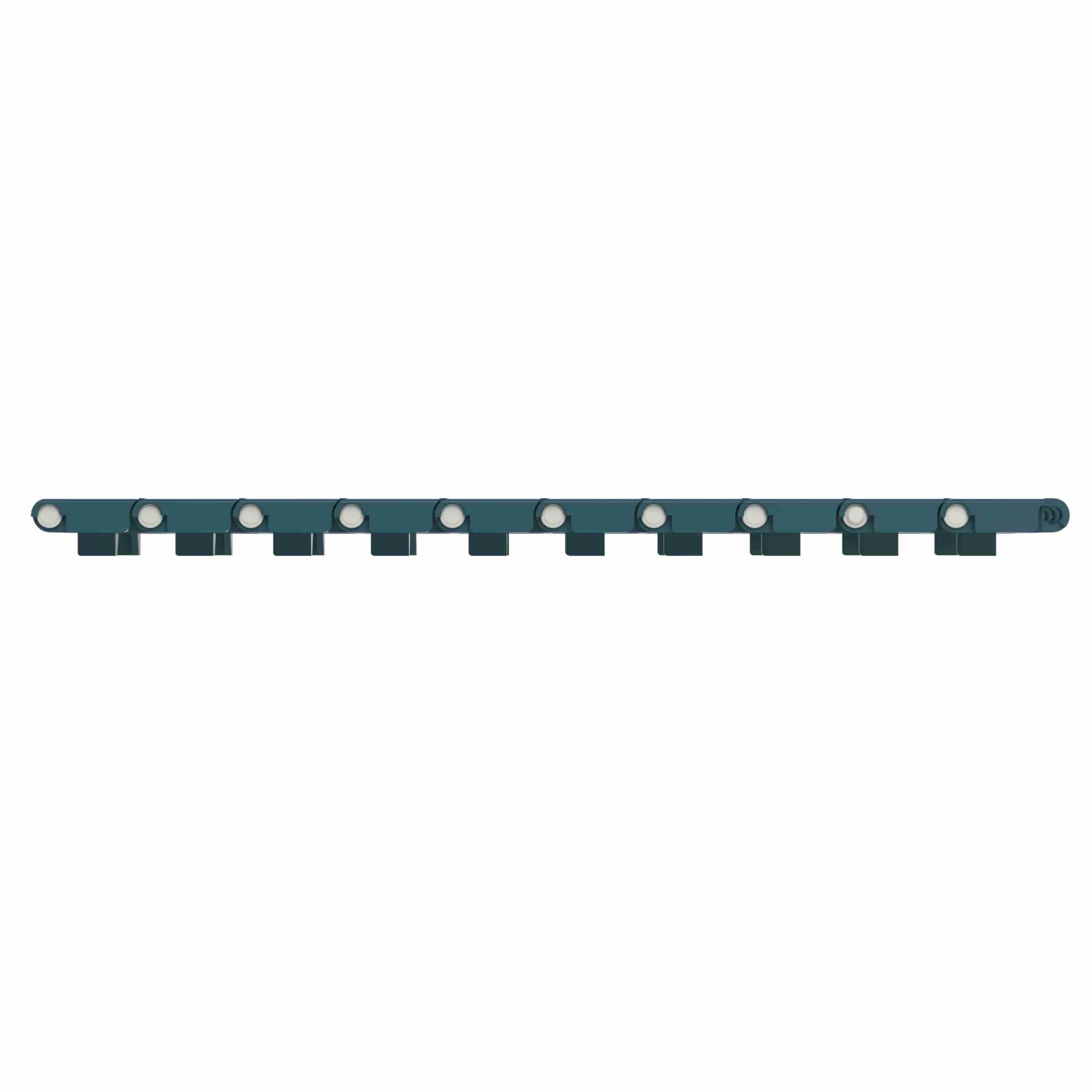

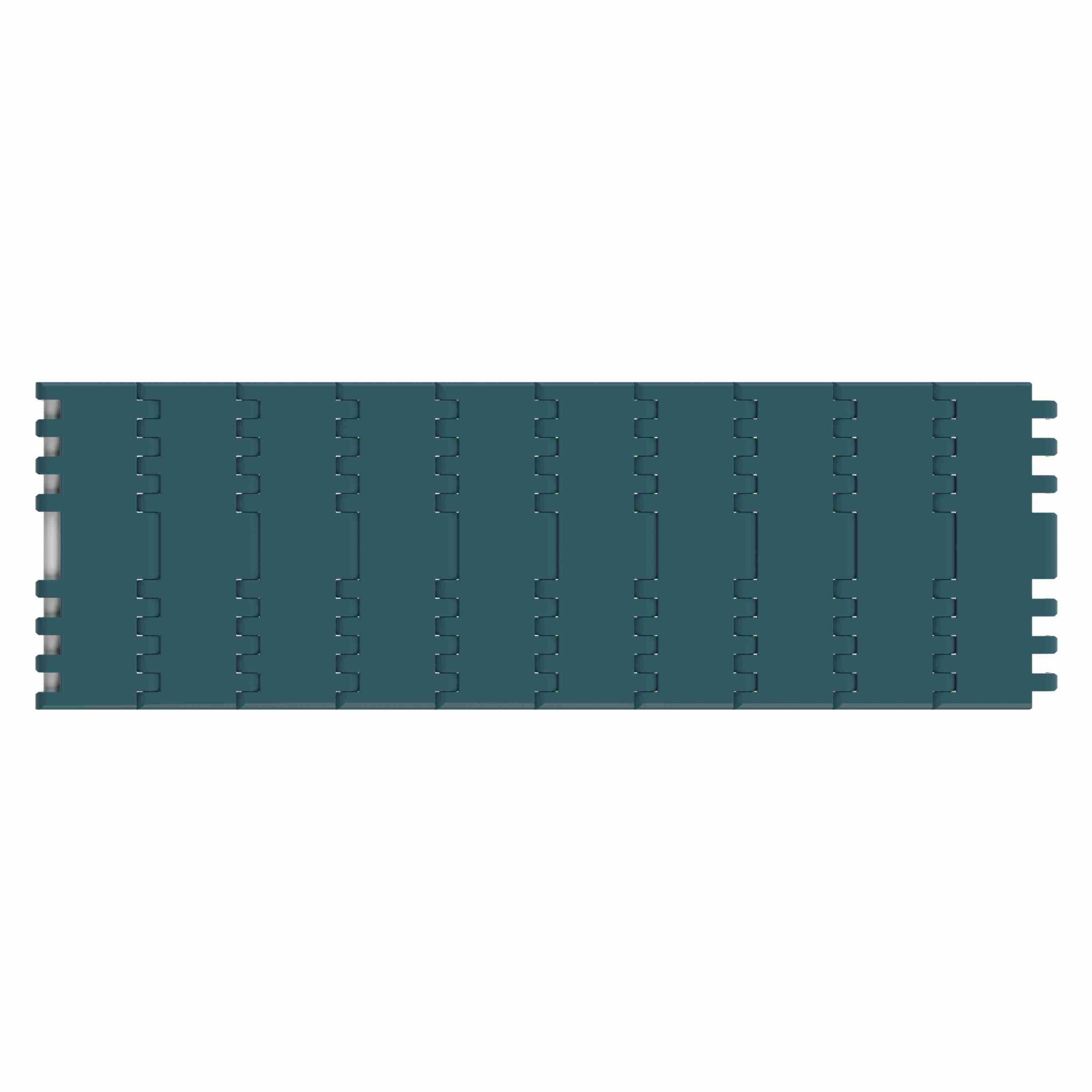

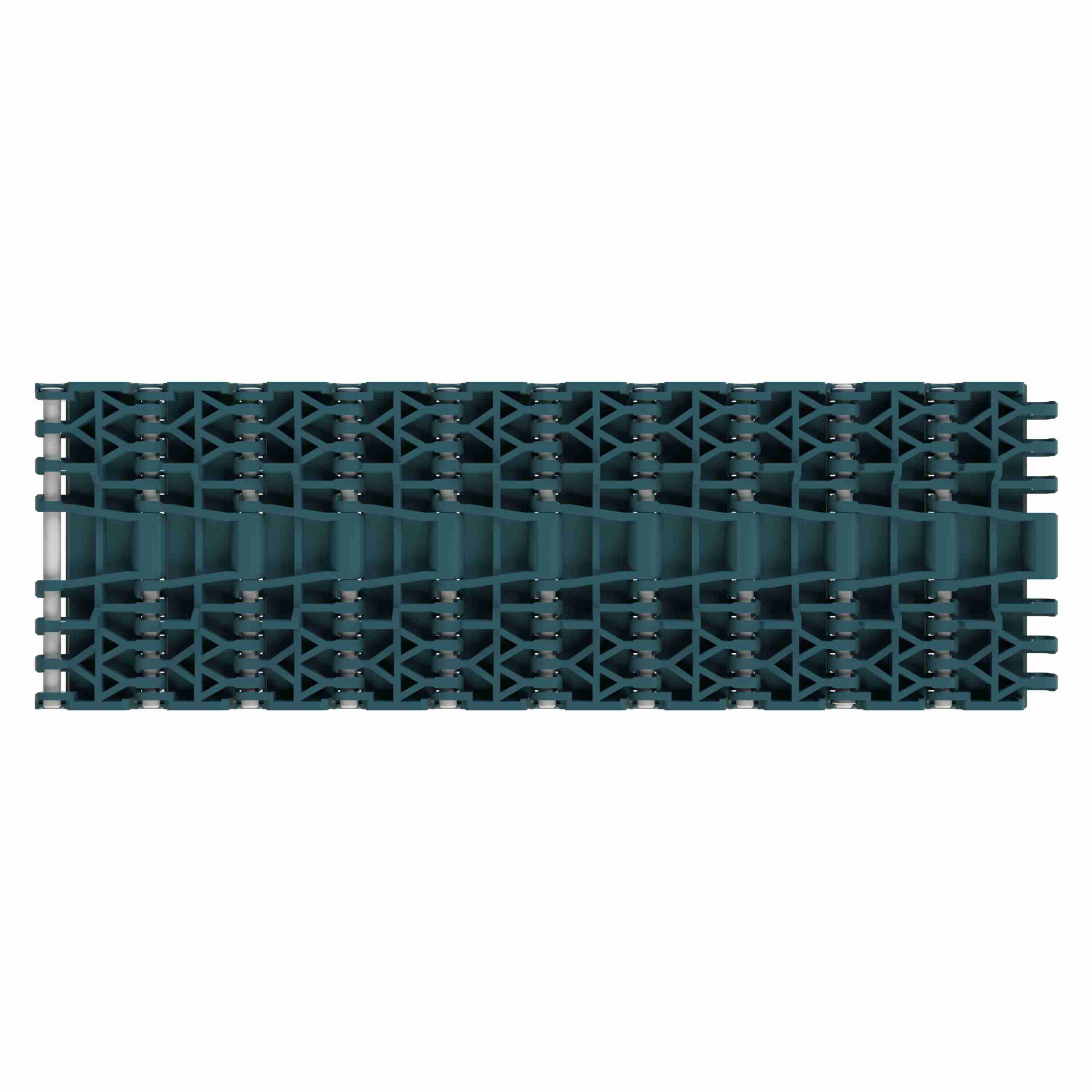

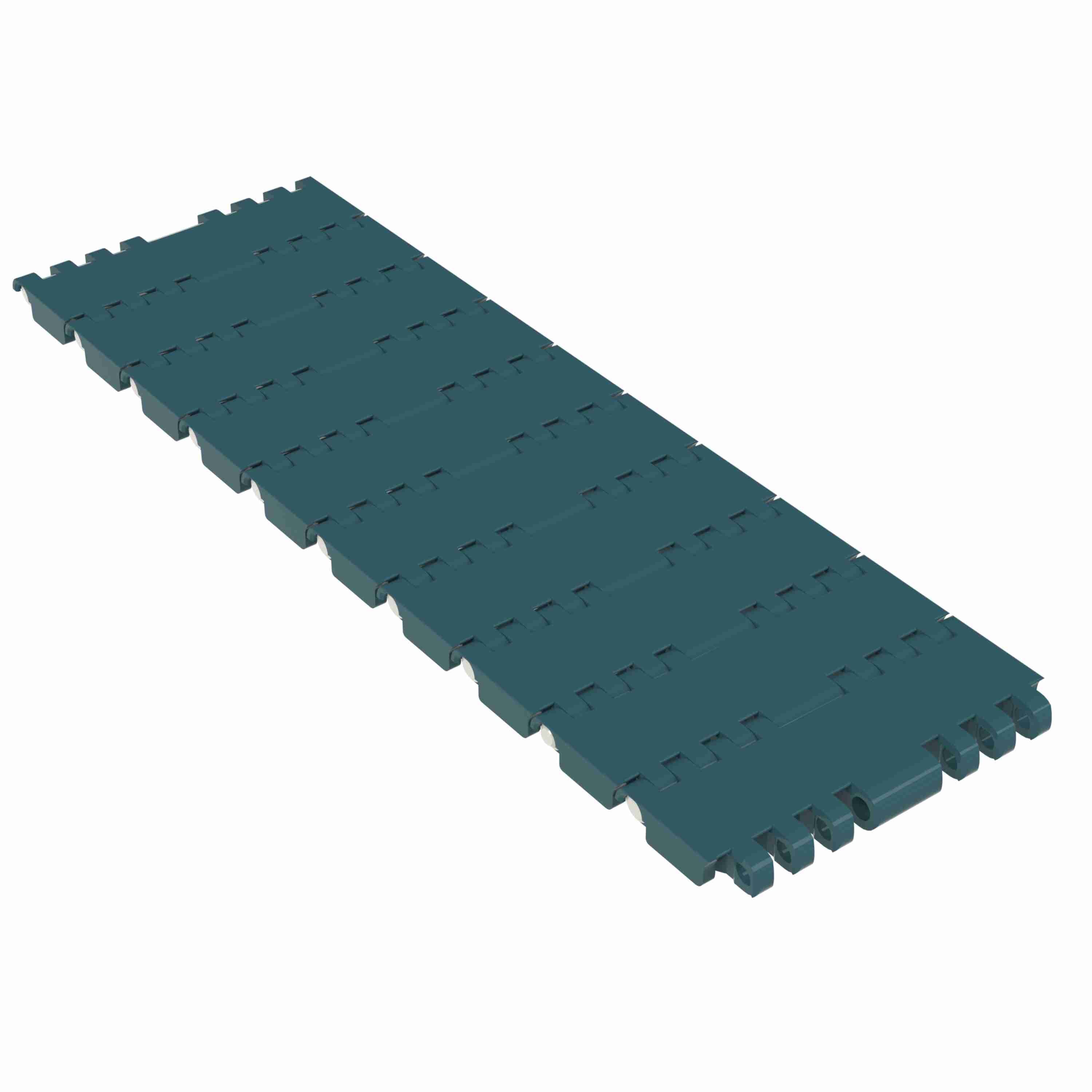

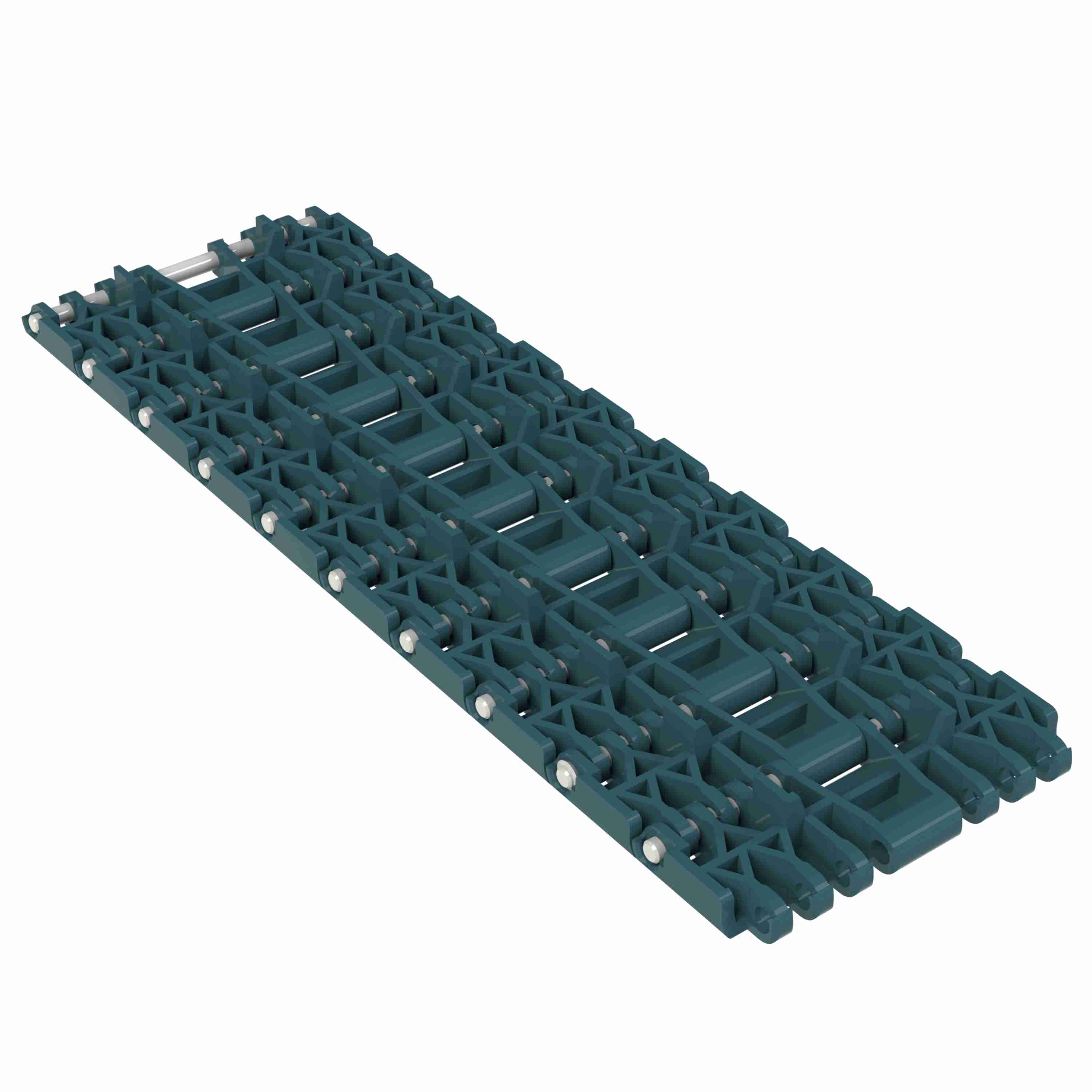

Rexnord 1001FT Straight Running Solid Top, Material: Green Low Friction Acetal, Width: 84mm, Pitch: 1in - 876.38.73
Part #:10522808
Catalog #:876.38.73
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Width Measurement System: | Metric | Product Line: | Plastic Modular Chain and Belt |
| Series: | MatTop 1000 Series Chain | Surface Type: | Solid Top |
| Chain Pitch (mm): | 25.4 mm | Chain Strength (N): | 1,500 N |
| Chain Width (in): | 3.31 in | Belt Thickness (mm): | 8.7 mm |
| Chain Width (mm): | 84 mm | Number of Positrack: | 2 |
| Belt Thickness (in): | 0.34 in | Positrack Location: | Center |
| Chain Strength (lb): | 337 lb | Positrack: | True |
| Straight or Side-Flex: | Straight Running | Product Type: | Straight Running |
| Product Group: | Modular Plastic Belts | Chain Pitch (in): | 1 in |
| Chain Material Description: | Green Low Friction Acetal | Chain Number: | 1001FT |
| Chain Material: | XLG | Open Area (%): | 0 % |
| Rod/Pin Material: | Polyester |
General Specifications
| Weight: | 0.02 KG | HTC: | 3926906090 |
| Country of Origin: | Netherlands |
