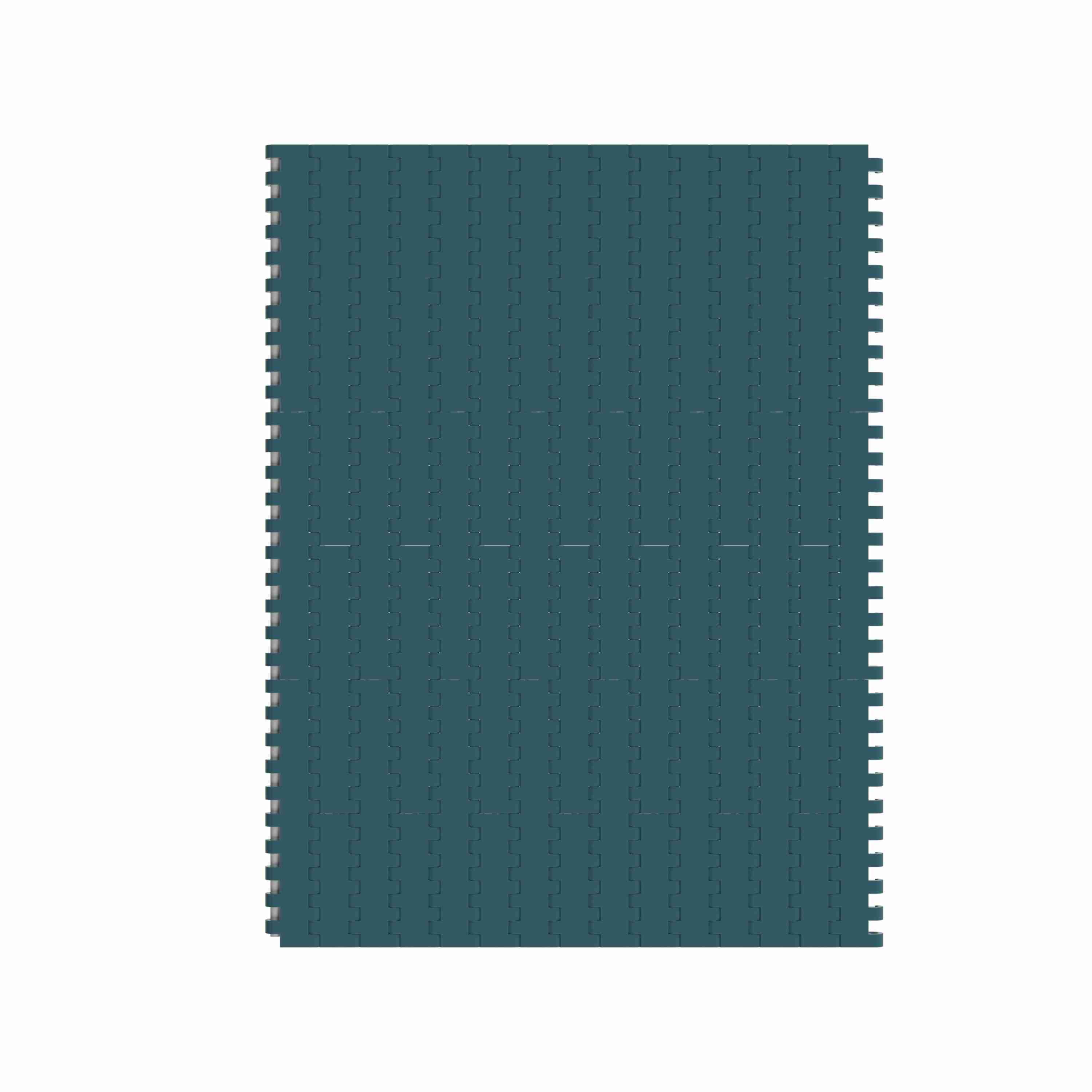

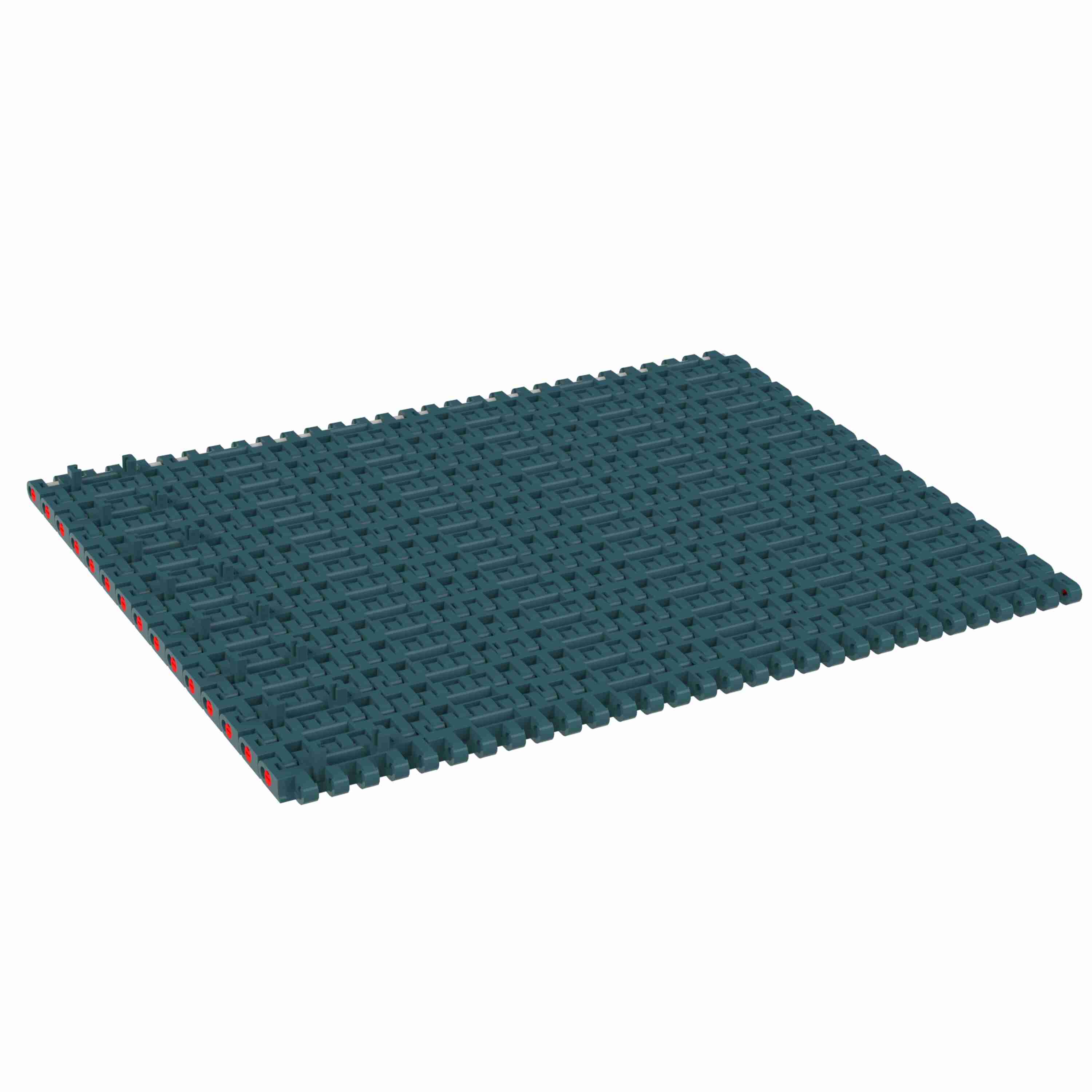

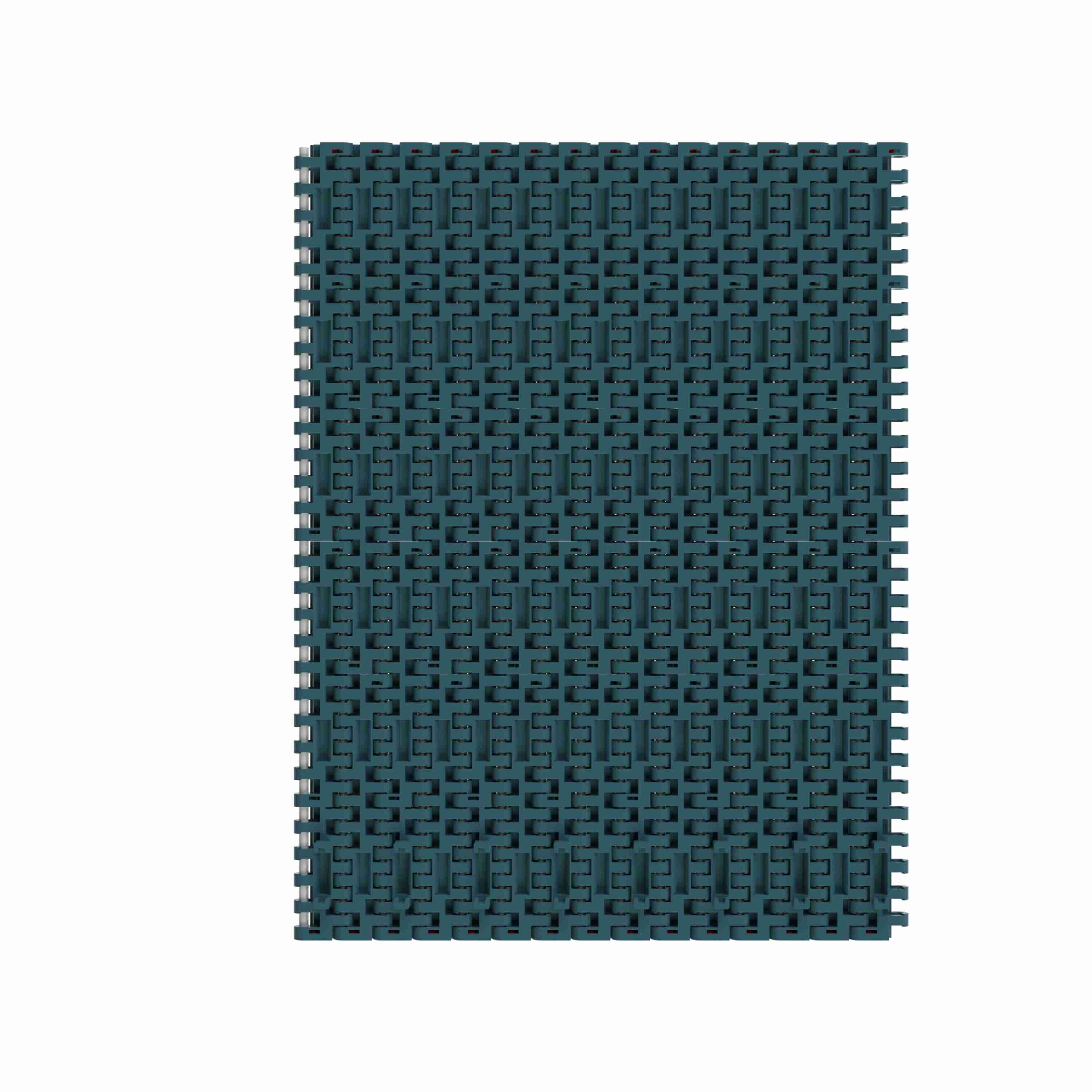

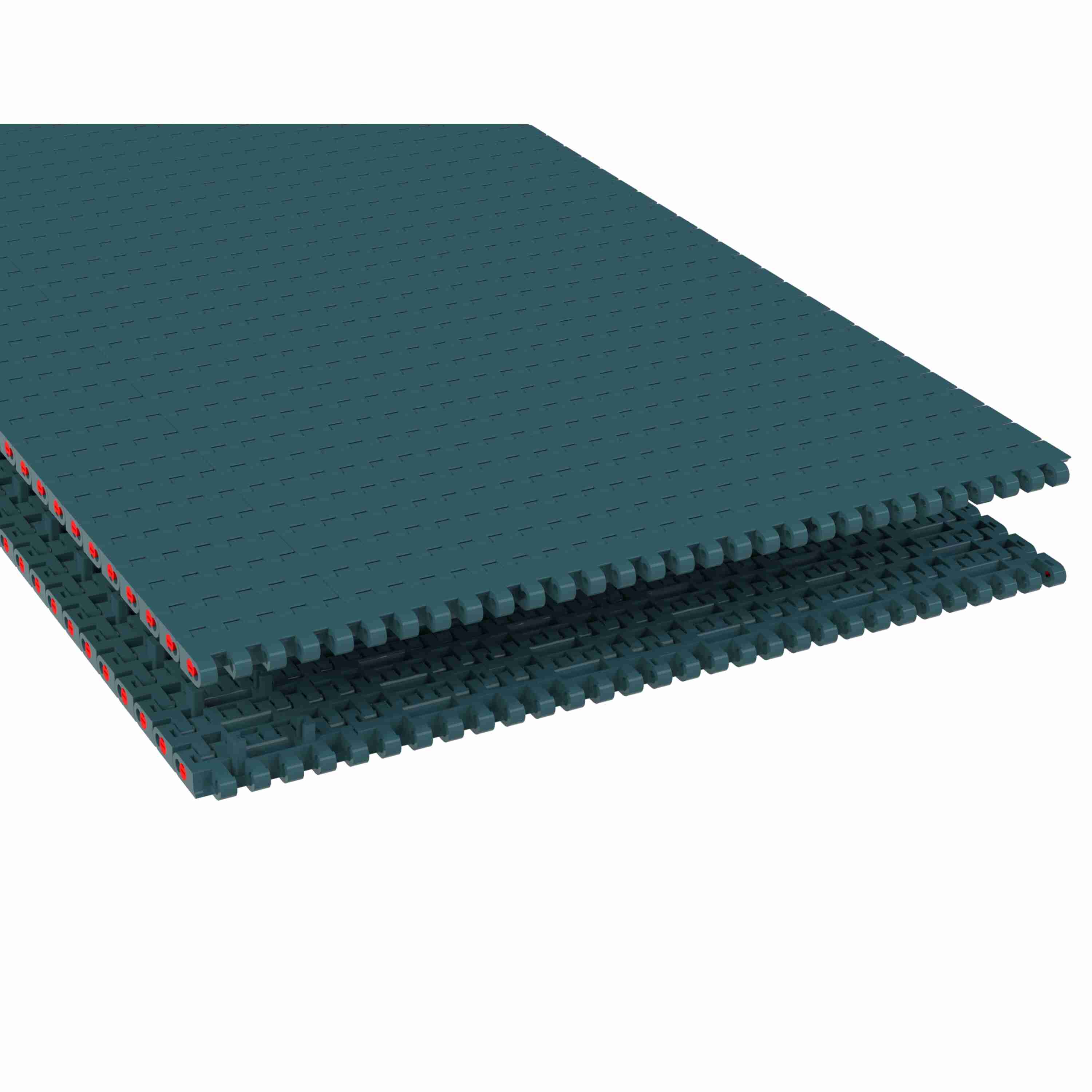

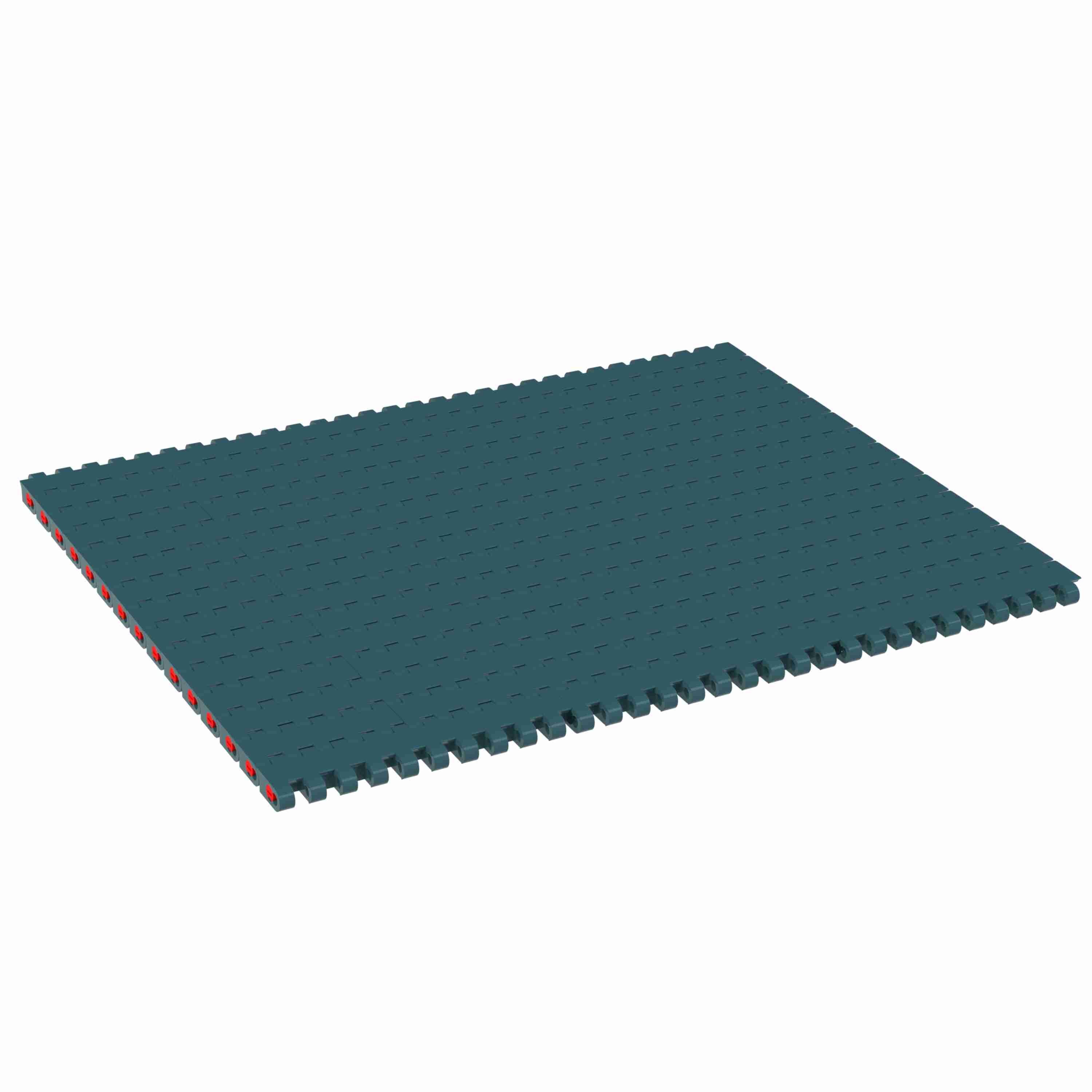

Rexnord 1005FT Straight Running Solid Top, Material: Green Low Friction Acetal, Width: 1020mm, Pitch: 1in - 877.01.21
Part #:10462953
Catalog #:877.01.21
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Strength (N/m): | 35,000 N·m | Positrack: | True |
| Chain Material: | XLG | Chain Material Description: | Green Low Friction Acetal |
| Positrack Location: | Either | Surface Type: | Solid Top |
| Chain Pitch (mm): | 25.4 mm | Open Area (%): | 0 % |
| Chain Strength (lb/ft): | 2,399 lb/ft | Product Type: | Straight Running |
| Series: | MatTop 1005 Series Chain | Chain Width (in): | 40.16 in |
| Product Line: | Plastic Modular Chain and Belt | Product Group: | Modular Plastic Belts |
| Number of Positrack: | 2 | Chain Number: | 1005FT |
| Straight or Side-Flex: | Straight Running | Chain Pitch (in): | 1 in |
| Rod/Pin Material: | Polyester | Belt Thickness (mm): | 12.7 mm |
| Chain Width (mm): | 1,020 mm | Belt Thickness (in): | 0.5 in |
| Chain Width Measurement System: | Metric |
General Specifications
| Weight: | 0.35 KG | HTC: | 3926906090 |
| Country of Origin: | Mexico |
