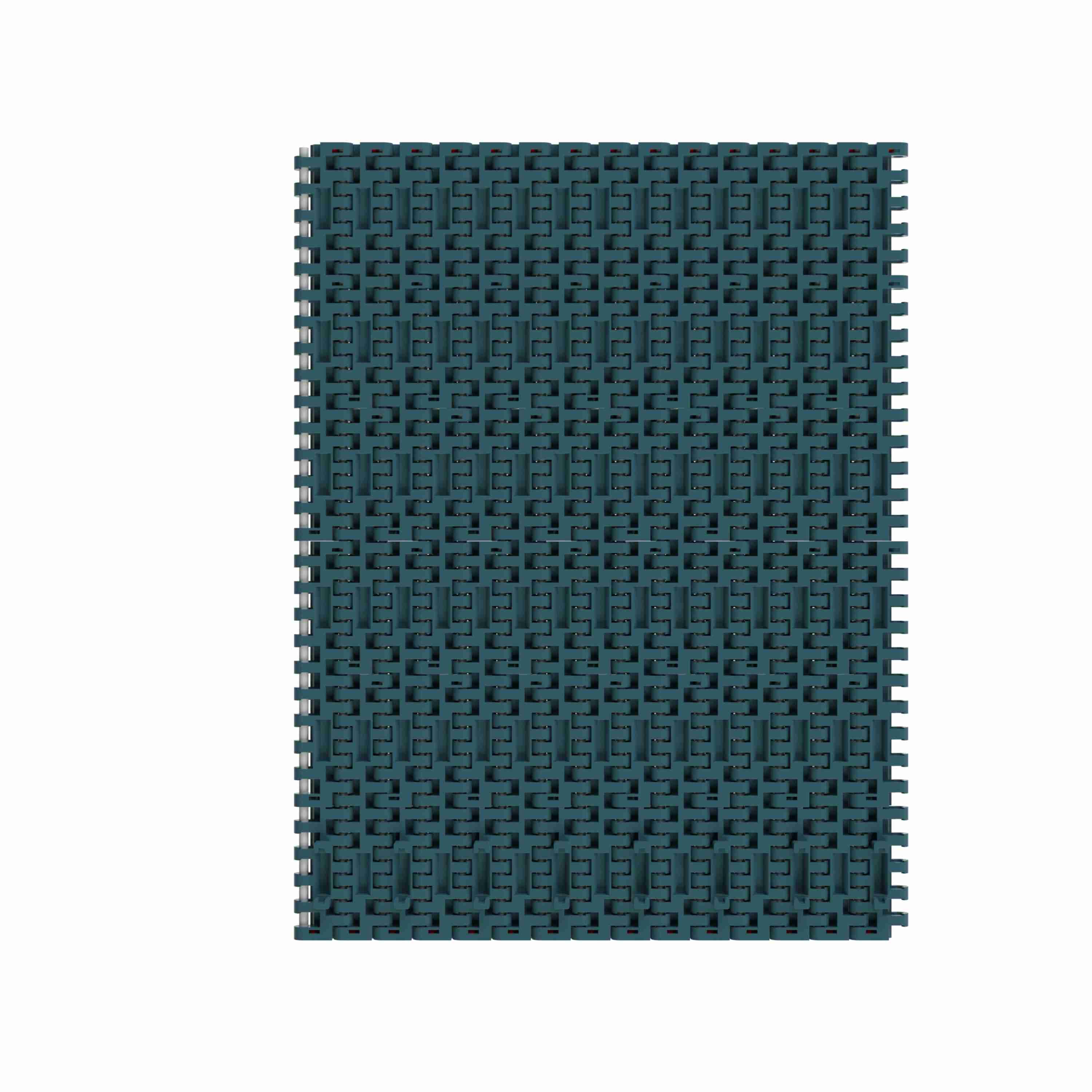

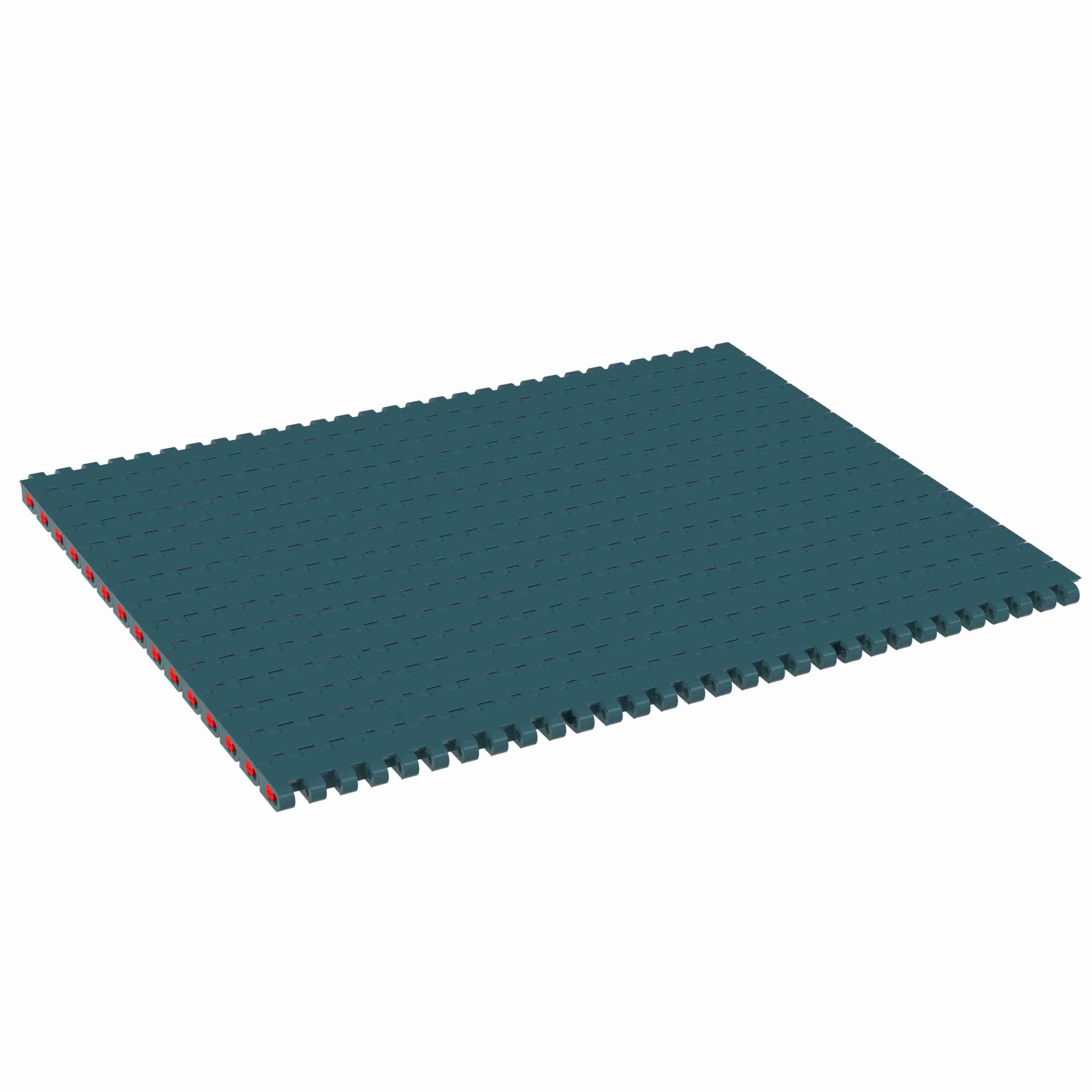

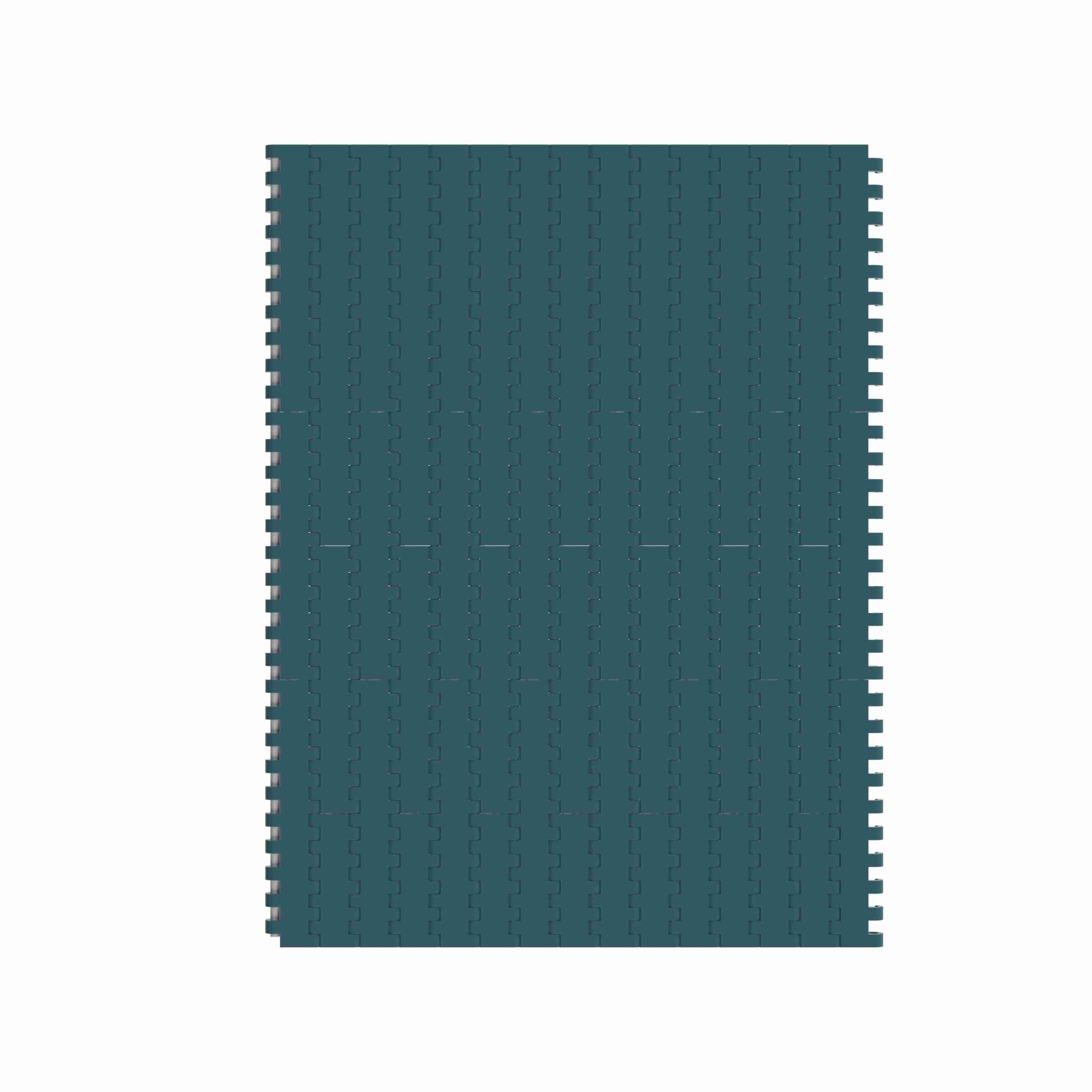

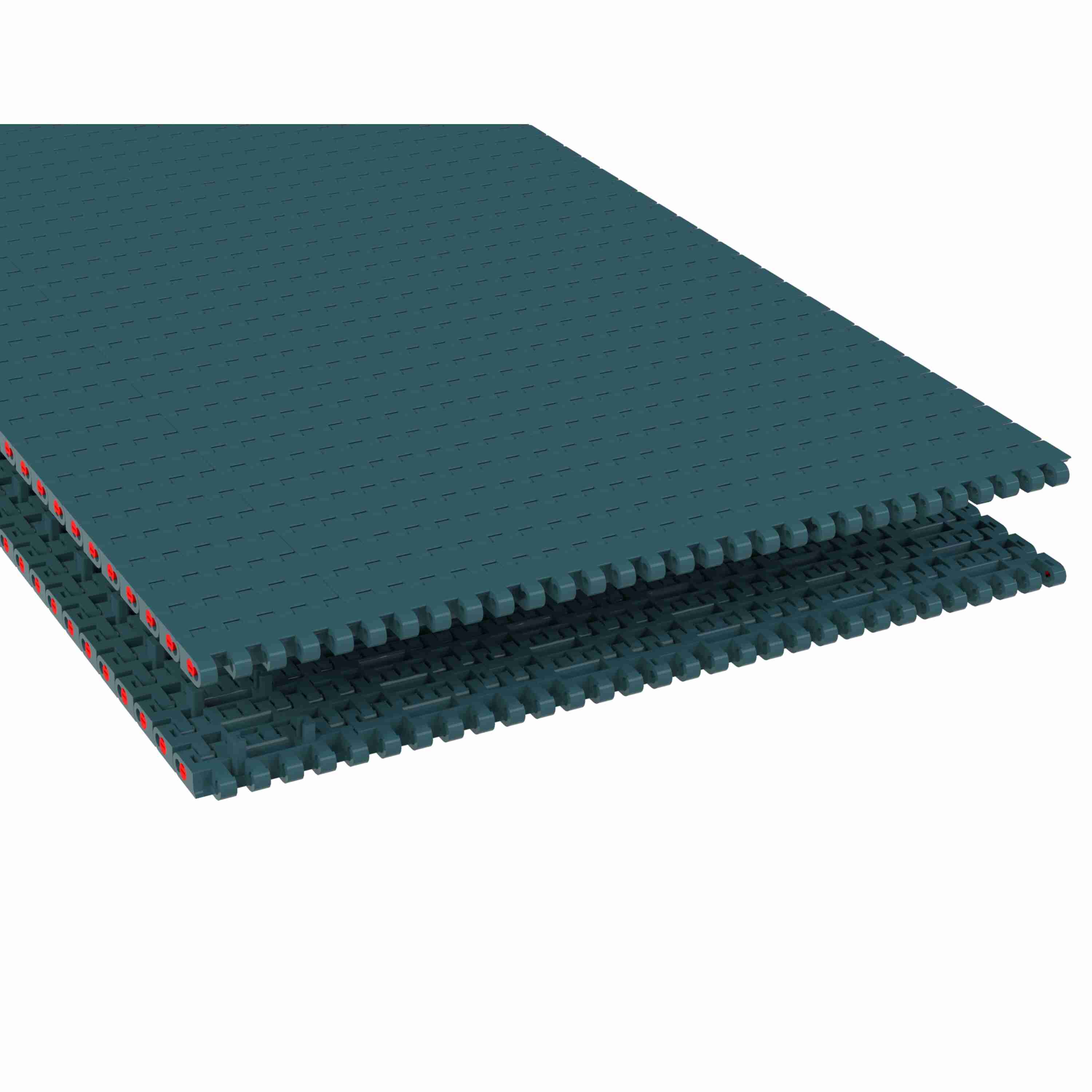

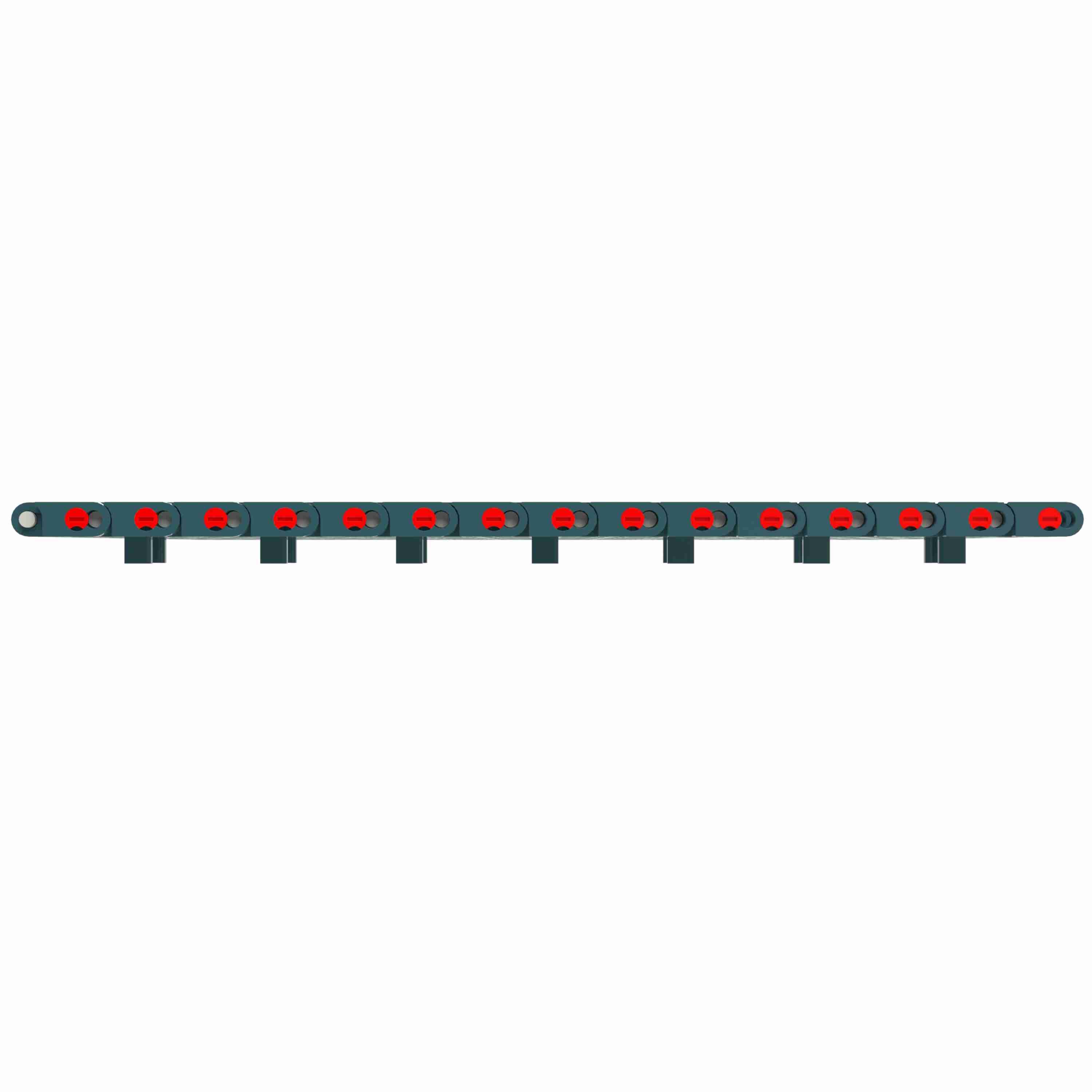

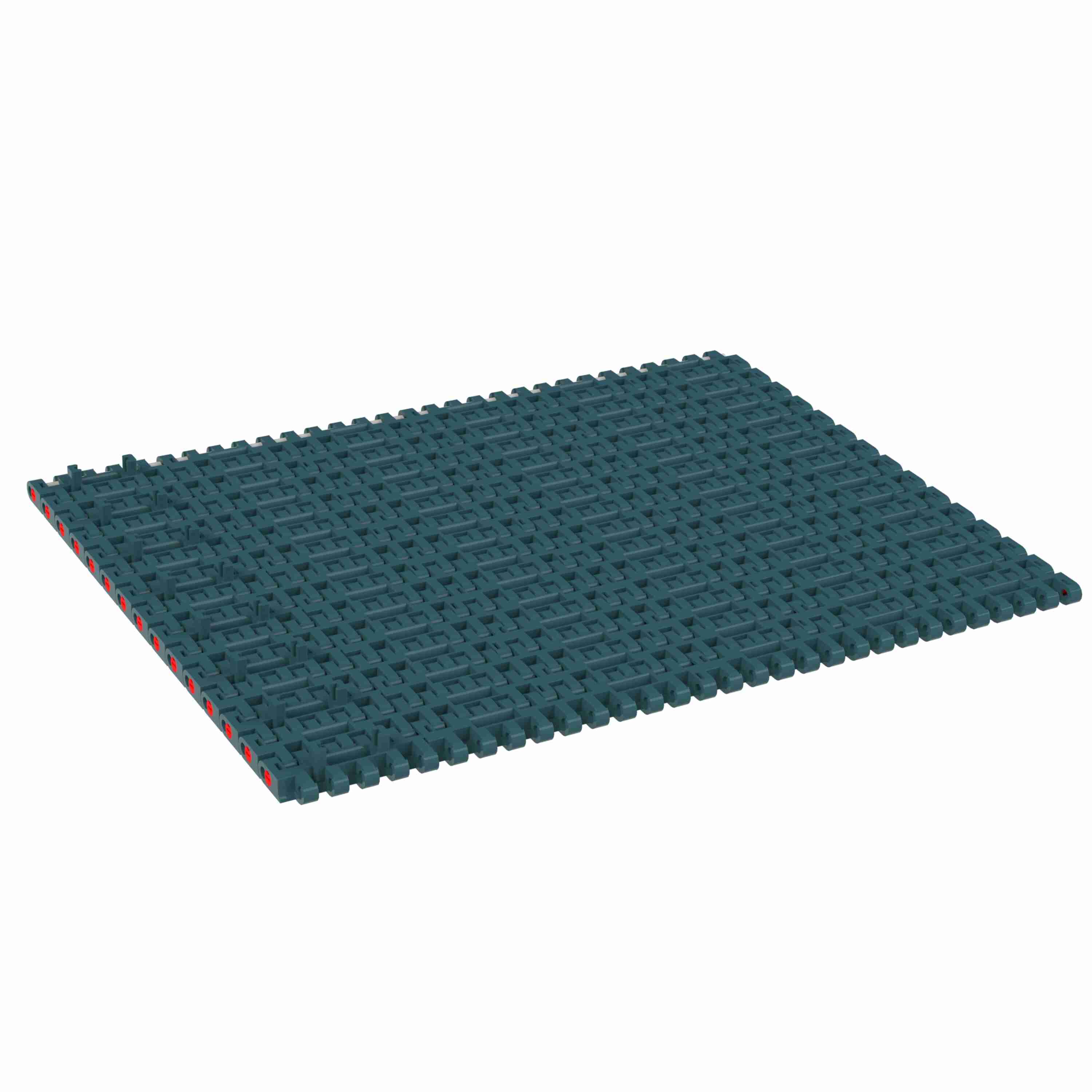

Rexnord 1005FT Straight Running Solid Top, Material: Green Low Friction Acetal, Width: 510mm, Pitch: 1in - 877.01.15
Part #:10462949
Catalog #:877.01.15
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Rod/Pin Material: | Polyester | Product Line: | Plastic Modular Chain and Belt |
| Open Area (%): | 0 % | Chain Width Measurement System: | Metric |
| Chain Material: | XLG | Chain Pitch (in): | 1 in |
| Chain Material Description: | Green Low Friction Acetal | Product Type: | Straight Running |
| Chain Width (in): | 20.08 in | Product Group: | Modular Plastic Belts |
| Series: | MatTop 1005 Series Chain | Positrack Location: | Either |
| Chain Pitch (mm): | 25.4 mm | Chain Strength (lb/ft): | 2,399 lb/ft |
| Positrack: | True | Belt Thickness (mm): | 12.7 mm |
| Chain Width (mm): | 510 mm | Chain Number: | 1005FT |
| Straight or Side-Flex: | Straight Running | Chain Strength (N/m): | 35,000 N·m |
| Belt Thickness (in): | 0.5 in | Surface Type: | Solid Top |
| Number of Positrack: | 2 |
General Specifications
| Weight: | 0.09 KG | HTC: | 3926906090 |
| Country of Origin: | Mexico |
